VR94070NCAQ - Vacuum Cleaner LG - Free user manual and instructions

Product type	Robot vacuum
Brand	LG
Model	VR94070NCAQ
Dimensions (L x W x H)	34 x 34 x 8.9 cm
Weight	3.1 kg
Power supply	Lithium-ion battery 14.4 V / 1800 mAh
Runtime	Up to 90 minutes
Charging time	Approximately 3 hours
Dustbin capacity	0.6 liter
Filter type	Washable HEPA filter
Navigation	Artificial intelligence with laser sensors
Programming	Programmable timer and smartphone app
Functions	Spiral cleaning, zigzag cleaning, zone cleaning, spot cleaning
Brush type	Roller main brush + side brushes
Sensors	Drop sensors, bump sensors, dirt sensors, wall sensors
Noise level	Less than 60 dB
Maintenance	Regularly clean the filter, brushes, and sensors
Spare parts	HEPA filter, main brush, side brushes, battery
Repairability	Repairability score: 7.7/10
Safety	Drop detection, automatic stop when lifted

Frequently Asked Questions - VR94070NCAQ LG

How to start automatic cleaning?

Press the power button on top of the vacuum or use the LG ThinQ app. The device will start cleaning in automatic mode.

What to do if the vacuum does not charge?

Check that the charging station is properly plugged in and the contacts are clean. Make sure the vacuum is correctly positioned on the charging terminals.

How to schedule a cleaning?

Open the LG ThinQ app, select your device, then set the time and days for cleaning. You can also use the remote control if provided.

The vacuum often gets stuck, what to do?

Clear obstacles and check that the brushes are not blocked by hair or threads. Also clean the sensors with a soft cloth.

How to clean the HEPA filter?

Remove the filter, tap it to remove dust, then wash it with warm water (no detergent). Let it dry completely before reinstalling.

What is the actual battery life?

The average runtime is 80 to 90 minutes in standard mode. It may vary depending on floor type and suction power.

The vacuum does not return to its base, what to do?

Place the charging station in an open area with good lighting. Clean the sensors on the base and the vacuum. Check that the path is not obstructed.

Can the vacuum be used on carpet?

Yes, the vacuum is suitable for hard floors and short-pile carpets. For better performance, select 'Carpet' mode in the app.

How to replace the main brush?

Turn the vacuum over, press the release tabs on the brush cover, remove the old brush and insert the new one aligning the notches.

What does the flashing red light mean?

A red light usually indicates a problem: low battery, full bin, or blockage. Refer to the manual to identify the specific code.

USER MANUAL VR94070NCAQ LG

OWNER'S MANUAL

VR94070NCAQ

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on pages 4, 5, and 6 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

CORDLESS KOMPRESSOR ROBOSENSE VACUUM CLEANER

Important safety instructions.... 4~6

Assembling vacuum cleaner 10~11

Operating vacuum cleaner 12~13

Using carpet and floor nozzle / hard floor nozzle 15

Charging the Vacuum Cleaner 17

Cleaning dust tank 19

Cleaning air filter and motor safety filter 20

Cleaning exhaust filter.... 21

What to do if your vacuum cleaner does not work 22

What to do when the suction performance decreases 22

What to do if Robosense™ function does not work 23

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives: -2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION." These words mean:

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard.
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
5. CAUTION: This hose contains electrical connections:
6. Do not use to suck up water; do not immerse in water for cleaning.
7. The hose should be checked regularly and must not be used if damaged.

WARNING

• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use. Failure to do so could result in electrical shock or personal injury.
• Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes. Doing so could result in death, fire or electrical shock.

Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).

The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.

Do not handle plug or vacuum cleaner with wet hands.

Doing so could result in death or electrical shock.

Do not unplug by pulling on cord.

Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.

Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

Failure to do so could result in electrical shock or personal injury.

The hose contains electrical wires. Do not use it if it is damaged, cut or punctured.

Failure to do so could result in death or electrical shock.

- Do not allow it to be used as a toy. Close attention is necessary when used by or near children.

Personal injury or product damage could result.

- Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use the vacuum cleaner if it has been under water.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use an extension cord with this vacuum cleaner.

Fire hazard or product damage could result.

• Using proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of the vacuum cleaner.

• Do not change the plug in any way. Failure to do so could result in electrical shock, personal injury, or product damage. Doing so could result in death. If the plug does not fit, contact a qualified electrician to install the proper outlet. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

• Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

- Do not wash the body of the vacuum cleaner with water.

- Do not allow any metals to touch the charging terminal and the connecting joints of the body and hose.

- Before cleaning the body, unplug the power cord and turn off the main power. Always use a dry cloth to clean the body.

- Avoid placing the product, the battery in particular, near any heat source or direct sunlight.

There is danger of an explosion or a fire.

- When disposing of batteries, please follow appropriate disposal methods.

There is danger of an explosion.

- Do not use the product in bathrooms.

- When a problem occurs with the product, stop vacuuming and turn off the main power.

- Do not place the product near industrial oil fumes or metal particulates.

Doing so could result in fire or damage to the product.

- If the battery has leaked, avoid contact with the skin or eyes. If the battery fluid gets on your skin or in your eyes, immediately rinse the affected part with plenty of water and seek medical attention.

Battery fluid may cause a burn on your skin or loss of eyesight.

- Do not put fingers near the gear.

Failure to do so could result in personal injury.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

• Do not put any objects into openings. Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow. Failure to do so could result in product damage.
• Do not use vacuum cleaner without the dust tank and/or filters in place. Failure to do so could result in product damage. Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust. These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors. Put the vacuum cleaner away after use to prevent tripping over it.
• The vacuum cleaner is not intended to use by young children or infirm people without supervision. Failure to do so could result in personal injury or product damage.
• Only use parts produced or recommended by LG Electronics Service Agents. Failure to do so could result in product damage.
• Use only as described in this manual. Use only with LG recommended or approved attachments and accessories. Failure to do so could result in personal injury or product damage.
• To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs. Failure to do so could result in personal injury or product damage.
• Do not grasp the tank handle when you are moving the vacuum cleaner. The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you are moving the vacuum cleaner. (Page 18)
• Make sure the filters (motor safety filter and air filter) are completely dry before replacing in the machine. Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave. Failure to do so could result in a fire hazard.
• Do not dry the filter in a clothes dryer. Failure to do so could result in a fire hazard.
• Do not dry near an open flame. Failure to do so could result in a fire hazard.
• Do not use filters that are not dried.
• If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Do not approach the vacuum cleaner suddenly when the Robosense™ function is activated. Failure to do so could result in personal injury or product damage. • The battery for the main body is designed for this vacuum cleaner only. Never use it for any other product. Doing so could result in fire or damage to the product.
• Do not use the floor nozzle to clean high areas.
• When you dry the filter, do not use a heating device such as a dryer or heater. Leave it in an airy place and let it dry completely.
• Do not carry the vacuum cleaner with the nozzle head connected to the body. • Empty the dust bin frequently to keep it clean. • Always use the vacuum cleaner with the filter unit assembled in the dust bin.
• Never remove the hose or pipe when the main power is on.
• Use this vacuum cleaner for household use only.

Thermal protector:

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the main power switch. Check the vacuum cleaner for possible sources of overheating such as a full dust tank, a blocked hose, or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30-minute period, turn on the main power switch. If the vacuum cleaner still does not run, contact a qualified electrician.

IMPORTANT SAFETY INSTRUCTIONS

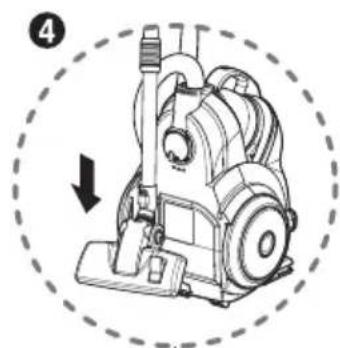

How to use: Assembling the vacuum cleaner

Push the telescopic pipe into the nozzle.

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner.

To remove the flexible hose from the vacuum cleaner, press the button on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

How to use: Operating the vacuum cleaner

• Disconnect the charging cord from the product.
• To operate the vacuum cleaner, press and hold the power button for about 1 second.
• When you turn it on, the mode is set to medium power.
• You can control the power mode using the '+' and '-' buttons. To turn off, press the power button. After use, connect the charging cord to the product.

How to use: Operating the vacuum cleaner

③ Park mode: Parking position

Do not suck up liquids. Sucking up liquids can cause defects.

WARNING

The Robosense™ function measures the distance between the user and the vacuum cleaner. After measurement, the vacuum cleaner will automatically move to maintain a constant distance (about 1.0 m) between the user and the vacuum cleaner. When the distance between the transmitting sensor in the grip handle and the receiver sensors on the vacuum cleaner exceeds 1 m, the vacuum cleaner will automatically move toward the user. If the distance remains within 1 m, the body just rotates to face the user. The auto-moving function does not work properly on carpets with long hair (longer than 20 mm).

NOTICE

Do not put liquid such as water and drink in transmitting sensor and receiving sensors.

Robosense™ function cannot work properly.

WARNING

How to use Using carpet and floor nozzle / hard floor nozzle

This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.

- Carpet or rug position

Press the pedal ( "to lower brush.

- Hard floor position (tiles, parquets floor)

Press the pedal ( 📋 to lift the brush up.

- Cleaning carpet and floor nozzle

- Clean the hole and brush of nozzle.

• Efficient cleaning of hard floors (wood, linoleum, etc)

- Efficient cleaning of hard floors (wood, linoleum, etc.)

How to use Using accessory nozzles

Crevice tool is for vacuuming in those normally hard-to-reach places such as reaching cobwebs or between the cushions of a sofa.

Be cautious to use the product on TV, LCD, Monitor or furniture, it can cause small scratch.

Upholstery nozzle is for vacuuming upholstery, mattresses etc.

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

Pull the cover

Battery level indicator

The battery indicator shows the following battery power levels.

① When the battery power level is low, the battery indicator shows one blinking light. ② When the battery is fully charged, the vacuum cleaner runs for 17 minutes on high-powered mode. ③ In case of operating the protection circuit, You can charge & use the product after approximately one hour later.

How to use Emptying dust tank

Moving the vacuum cleaner

• Don't grasp the tank handle when you are moving the vacuum cleaner. The vacuum cleaner's body may fall when separating tank and body. You should grasp the carrier handle when you are moving the vacuum cleaner.

How to use Cleaning dust tank

① Press tank separation lever and pull out dust tank. ② Raise dust tank cap ③ Wash dust tank. ④ Dry fully in shade so that moisture is entirely removed.

If suction power decreases after cleaning the dust tank, clean the air filter and the motor safety filter. ➡ Next page

WARNING

How to Use: Cleaning the Air Filter and Motor Safety Filter

① Open the vacuum cleaner cover by pushing the button. ② Grasp the handle of the dust separator and take it out. ③ Open the guide cover by pulling the guide cover lever and remove the dust. ④ Open the air filter cover by pushing the air filter cover lever and take out the air filter. ⑤ Separate the air filter and motor safety filter from the dust separator. ⑥ Wash the air filter and the motor safety filter. Do not wash filters with hot water. ⑦ Dry fully in shade so that moisture is entirely removed. The air filter and the motor safety filter should be cleaned as shown in the figure above.

If filters are damaged, do not use them. In such cases, contact LG Electronics Service Agent.

Wash filters at least once a month.

WARNING

How to Use: Cleaning the Exhaust Filter

• The exhaust filter is reusable.

① To clean the exhaust filter, remove the exhaust filter cover on the body by pulling it out. ② Separate the exhaust filter. ③ Dust off the filter. (Do not wash the filter with water.) ④ Insert the projection of the exhaust filter into the grooves on the body and push the exhaust filter.

Exhaust filter cover assembling

• Fit the exhaust filter cover lugs into the grooves of the vacuum cleaner body.
• Join it to the body.

The exhaust filter should be cleaned at least once a year.

WARNING

Check that the charging cord is disconnected and make sure that the main switch is turned on.

What to do when the vacuum cleaner does not work

• Check if the battery has been charged.
• Check if the main power switch is on.
• Disassemble the body and hose, and then reassemble them.

What to do when the suction performance decreases

• Check nozzles, the hose, telescopic tube, dust separator, and dustbin to see if there are any large foreign objects and remove them using chopsticks or tweezers.
• Check if the motor-protecting filter or exhaust filter is dirty.
• Check if the dust separator is correctly attached to the body.

Disposal of your old appliance

1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
2. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
3. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.

• Check the transmitting sensor and receiving sensors
• Please make sure that they are not blocked by obstacles (wall, clothes, etc.). If the sensors were blocked, Robosense™ function cannot work properly.
• If the transmitting sensor and receiving sensors are blocked by dust, clean the sensors using a cotton swab. Clean the sensor holes periodically with a cotton swab.

For your safety, if abnormal electrical noise occurs, the speed of the wheel could change instantaneously.

USER MANUAL INSTRUCTION MANUAL

VR94070NCAQ

NEW TYPE CYCLONE VACUUM CLEANER

WARNING

WARNING
