Product Type	Freestanding electric cooker
Brand	Zanker
Model	KEV6140FBB
Number of cooking zones	4 ceramic hobs
Oven type	Electric fan oven
Oven capacity	66 litres
Dimensions (W x H x D)	50 x 85 x 60 cm
Net weight	45 kg
Electrical supply	230 V / 50 Hz, 10 kW
Oven functions	Fan cooking, grill, bottom heat, lighting, timer
Cleaning	Manual cleaning with mild detergent and non-abrasive cloth
Hob maintenance	Use a special scraper for ceramic glass
Child safety	Control lock
Automatic shut-off	Yes, in case of overheating or prolonged use
Residual heat indicator	Present on each cooking zone
Spare parts	Available on manufacturer's website or authorized dealers
Repairability	Repairability index 7.5/10
Energy class	A
Noise level	Less than 50 dB

Frequently Asked Questions - KEV6140FBB ZANKER

How to use the ceramic hobs?

The hobs are turned on by turning the corresponding knobs. Use flat-bottomed pans for better conductivity. Do not use aluminum containers as they may scratch the surface.

How to easily clean the oven?

To clean the oven, use a damp cloth and white vinegar. Avoid abrasive products. The bottom of the oven can be lined with baking paper to limit dirt. Never use laundry spray.

What to do if a hob does not heat up?

First check that the fuse or circuit breaker has not tripped. If only one hob is faulty, it may be an internal connection problem. Contact an authorized technician to replace the heating element.

How to lock the controls for child safety?

Press simultaneously the keys or buttons indicated in the manual for 3 seconds. An audible signal confirms activation. To unlock, repeat the operation. Never leave a child unattended.

What is the oven capacity?

The oven has a capacity of 66 litres, suitable for dishes up to 35 cm wide. The shelves are sliding for easy access.

How to use the fan cooking mode?

Select the fan cooking mode and set the temperature. The ventilation distributes heat evenly, allowing cooking on multiple levels. Preheat for 10 minutes before placing food.

What to do in case of burning smell at first use?

It is normal to smell an odor due to the combustion of manufacturing residues. Heat the empty oven at 250°C for 30 minutes with windows open. The odor disappears after a few uses.

How to set the timer?

Turn the timer knob to the desired time. An audible beep sounds at the end of cooking. The timer does not stop cooking automatically, it only serves as an alarm. Always monitor cooking.

Where to buy spare parts?

Spare parts are available on the zanker.com website or through authorized dealers. Use the model number KEV6140FBB to identify compatible parts.

How to save energy with this cooker?

Use flat-bottomed pans of appropriate size for the hobs. For the oven, favor fan cooking which reduces cooking time. Turn off the hobs a few minutes before the end to benefit from residual heat.

USER MANUAL KEV6140FBB ZANKER

Safety information_11_

Safety instructions_12_

Product description_14_

Daily use_14_

Hints and tips_14_

Care and cleaning.	15
Troubleshooting_15.
Installation_16.
Technical information_17.
Energy efficiency_18.

Subject to change without notice.

⚠ Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.

General Safety

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external timer or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• Do not store items on the cooking surfaces.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use a steam cleaner to clean the appliance.
• If the glass ceramic surface / glass surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.

Safety instructions

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Keep the minimum distance from the other appliances and units.
  • Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.
• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.
• The bottom of the appliance can get hot. Make sure to install a non-combustile separation panel under the appliance to prevent access to the bottom.

Electrical Connection

Warning! Risk of fire and electrical shock.

- All electrical connections should be made by a qualified electrician.

• The appliance must be earthed.

• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

- The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

Use

Warning! Risk of injury, burns and electrical shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.
• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to "off" after each use.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• When you place food into hot oil, it may splash.

Warning! Risk of fire and explosion

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Care and cleaning

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Deactivate the appliance and let it cool down before you clean it.
• Disconnect the appliance from the electrical supply before maintenance.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

Disposal

Warning! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

Service

• To repair the appliance contact an Authorised Service Centre.
- Use original spare parts only.

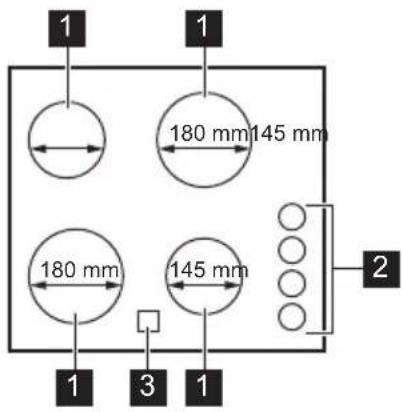

Cooking surface layout

1 Cooking zone
2 Control knobs
3 Residual heat indicator

Control knob

Symbol Function

0 Off position

Assignment of the control knob

Symbol Function

1 - 9 Heat settings

Residual heat indicator

Warning! There is a risk of burns from residual heat.

The indicator comes on when a cooking zone is hot.

Daily use

Warning! Refer to Safety chapters.

The heat setting

To set or change the heat setting turn the knob to the correct heat setting. To deactivate turn the knob to off position.

Hints and tips

Warning! Refer to Safety chapters.

Cookware made of enamelled steel and with aluminium or copper bottoms can cause the colour change on the glass-ceramic surface.

Cookware

The bottom of the cookware must be as thick and flat as possible.

Examples of cooking applications

The data in the table is for guidance only.

Heat setting Use to: Time	(min)	Hints
1 Keep cooked food warm. as nec-	essary	Put a lid on the cookware.
1 - 2 Hollandaise sauce, melt: butter, choco-late, gelatine.	5 - 25 Mix from time to time.
1 - 2 Solidify: fluffy omelettes, baked eggs. 10 - 40 Cook with a lid on.
2 - 3 Simmer rice and milkbased dishes, heating up ready-cooked meals.	25 - 50 Add the minimum twice as much liquid as rice, mix milk dishes part procedure through.
3 - 4 Steam vegetables, fish, meat. 20 - 45 Add some tablespoons of liquid.
4 - 5 Steam potatoes. 20 - 60 Use max. 1⁄4 l water for 750 g of pota-		toes.
4 - 5 Cook larger quantities of food, stews and soups.	60 - 150 Up to 3 l liquid plus ingredients.
6 - 7 Gentle fry: escalope, veal cordon bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts.	as nec- essary	Turn halfway through.
7 - 8 Heavy fry, hash browns, loin steaks, steaks.	5 - 15 Turn halfway through.
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.

Care and cleaning

Warning! Refer to Safety chapters.

General information

• Clean the hob after each use.
  • Always use cookware with clean bottom.
• Scratches or dark stains on the surface have no effect on how the hob operates.
• Use a special cleaner applicable for the surface of the hob.
• Use a special scraper for the glass.

Troubleshooting

Cleaning the hob

• Remove immediately: melted plastic, plastic foil, and food with sugar. If not, the dirt can cause damage to the hob. Put the special scraper on the glass surface at an acute angle and move the blade on the surface.
• Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and some detergent. After cleaning, rub the hob dry with a soft cloth.

Warning! Refer to Safety chapters.

What to do if...

Problem Possible cause	Remedy
You cannot activate or operate the hob.	The hob is not connected to an electrical supply or it is connected incorrectly.	Check if the hob is correctly connected to the electrical supply. Refer to the connection diagram.
The fuse is released. Make sure that the fuse is the cause		of the malfunction. If the fuse releases again and again, contact a qualified electrician.
Residual heat indicator does not come on.	The zone is not hot because it operated only for a short time.	If the zone operated sufficiently long to be hot, speak to an Authorised Service Centre.

If you cannot find a solution...

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Give also three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes on.

Installation

Make sure, you operated the hob correctly. If not the servicing by a service technician or dealer will not be free of charge, also during the warranty period. The instructions about the Service Centre and conditions of guarantee are in the guarantee booklet.

Warning! Refer to Safety chapters.

Before the installation

Before you install the hob, write down the information bellow from the rating plate. The rating plate is on the bottom of the hob.

Serial number ....

Built-in hobs

Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards.

Connection cable

• The hob is supplied with a connection cable.
  • To replace the damaged mains cable use the following (or higher) mains cable type: H05BB-F Tmax 90°C. Speak to your local Service Centre.

Assembly

Cooking zones specification

Cooking zone Nominal Power (Max heat setting) [W] Cooking zone diameter [mm]
Left front 1800 180
Left rear 1200 145
Right front 1200 145
Right rear 1800 180

For optimal cooking results use cookware not larger than the diameter of the cooking zone.

Energy efficiency

Product information according to EU 66/2014

Model identification KEV6140FBB
Type of hob Built-In Hob
Number of cooking zones 4
Heating technology Radiant Heater
Diameter of circular cooking zones (∅) Left front		18.0 cm
	Left rear	14.5 cm
	Right front	14.5 cm
	Right rear	18.0 cm
Energy consumption per cooking zone (EC electric cooking) Left front		175.8 Wh / kg
	Left rear	183.0 Wh / kg
	Right front	183.0 Wh / kg
	Right rear	183.0 Wh / kg
Energy consumption of the hob (EC electric hob) 181.2 Wh / kg

EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance

Energy saving

You can save energy during everyday cooking if you follow below hints.

- When you heat up water, use only the amount you need.

- If it is possible, always put the lids on the cookware.

ENVIRONMENT CONCERNS

• Before you activate the cooking zone put the cookware on it.
• The cookware bottom should have the same diameter as the cooking zone.
• Put the smaller cookware on the smaller cooking zones.
• Put the cookware directly in the centre of the cooking zone.
• Use the residual heat to keep the food warm or to melt it.

Recycle the materials with the symbol. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do

not dispose appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

Table des matières
