USER MANUAL ARTEMIS HTC

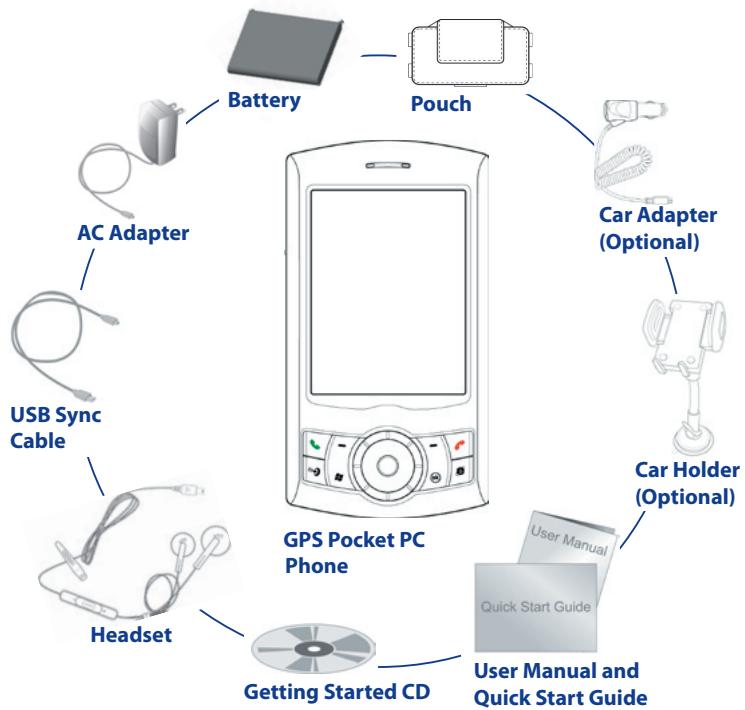

1. What's in the Box

Car Adapter {Optional) re I

This LED shows the followint A flashing Blue light for Bluetooth system notification of powered-up and ready to transmit radio frequency signal. A flashing Green light for Wi-Fi status. When both Bluetooth and Wi-Fi are enabled, their lights flash alternately. Amber light for GPS status. 2 NotificationLED2 This LED shows Green and Amber lights for GSM/GPRS/EDGE standby, message, and network status as well as for notification and battery charging status. 3 Touch Screen ap the screen with the stylus to write, draw, or make a selection. Press to execute the command shown in the label above the button. TALK Button Press to answer an incoming call or dial a number. GPS Button Press to launch the GPS software. START Button Press to open the Start menu HTC RollR'* HTC RollR% is a proprietary device control that integrates the use ofthe Track Wheel and Trackball Use it for GPS navigation, scrolling, web browsing, camera zoom control and shutter release, and for mouse movement when in mouse mode. TrackWheel + Turn clockwise or counterclockwise to move through items on the screen or in a menu. + When using the Camera or GPS software, use it for zooming. Trackball + Roll up, down, left, or right to move through menus and program instructions; carry out the selection by pressing the Trackball. + When using the Camera, use it as the shutter release. + When using the GPS software, use it to move around a GPS map. ss au 9 OKButton Press to confirm your data entries, or to exit the program in use. 10 END Button Press to end a call or to return to the Today screen. 11 INTERNETEXPLORER _ Press to launch Internet Explorer Mobile. Button

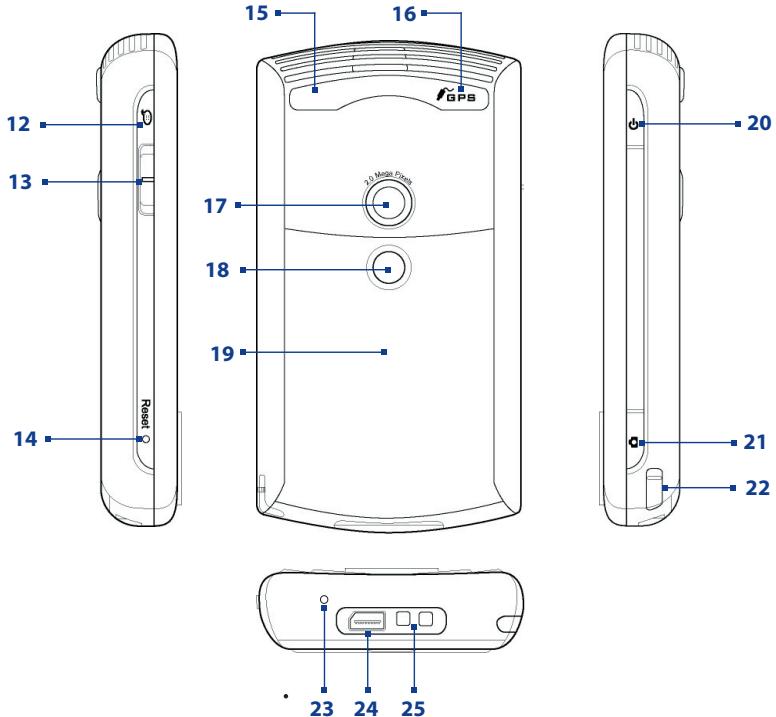

VOICE COMMAND Button Volume Si RESET Button Car Antenna Connector GPS Antenna Connector Camera Self-Portrait Mirror Battery Cover POWER Button CAMERA Button Stylus Microphone Sync Connectoi Earphone Jack Strap Holder Press to start Voice Speed Dial; press and hold to record a voice note. + Slide up or down to adjustthe speaker volume. + During a call slide up or down to adjust the earpiece volume. With the stylus, press the RESET button to soft-reset your device Connect your device to the car antenna while in a car to have better reception quality. If you need better GPS signal reception, you can connect an external GPS antenna. Use the camera to take still photos and record video clips. Turn the back side of your device to face yourself so that your image reflects on the mirror when taking self-portrait shots. Slide out to access the battery compartment. + Press to turn off the display temporarily. This switches your device to Sleep mode. You can still receive calls and messages when your device is in Sleep mode. + Press and hold (for about 5 seconds) to turn off the power completely. All functions including the phone will be unavailable for use. Press to launch the Camera; press again to take a photo or video clip, depending on the specified capture mode. Use the stylus to write, draw, or select items on the touch screen. Speak into the microphone when receiving or making a phone call or voice recording. Use this connectorto synchronize data by connecting the provided USB Sync cable or to recharge the battery via the provided AC adapter. You can also connect the provided USB stereo headiset for hands-free conversation or for listening to FM radio and audio media. FM radio uses the stereo headset as an antenna. Itlets you attach a strap for carrying your device.

No. Accessory Function 1 ACadapter Converts AC to DC for recharging the battery. 2 USBSynccable Connects your device to a PC and synchronize data. 3 Stereo headset + Provides a volume control slider and a Send/End button. Press the Send/End button to pick up a call or put a call on hold; press and hold the button to end the call + Make sure you connect this headset when using the FM Radio since it uses the headset as an antenna 4 Caradapter Use it to charge the battery on your device while you are traveling in a car. Plug it to the (HTC P3300 sync connector of your device and to the cars cigarette lighter socket. Premium only) 5 Carholder Use it to mount your device in a car. Press the suction pedestal on the cars windshield, (HTC P3300 and push the lever to securely attach the holder. Then sit your device in the holder, and Premium only) press both sides of the holder inward to secure the grip.

Before you start using your device, you must install a SIM card and a charged battery. The SIM card contains your phone number and service details, and it stores phonebook entries and your messages. If you need more storage for your device, you can also insert a micro SD memory card inside the battery compartment. Insert the micro SD card first before the SIM card, since the memory card slot is located underneath the SIM card slot. Install the memory card and SIM card

1. Make sure your device is turned off.

2. Slide out the battery cover. Ifthe battery is inside, remove by lifting it up from the upper right

side of the battery slot using your finger.

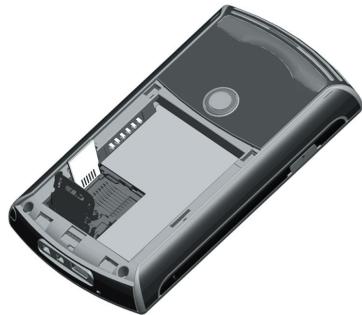

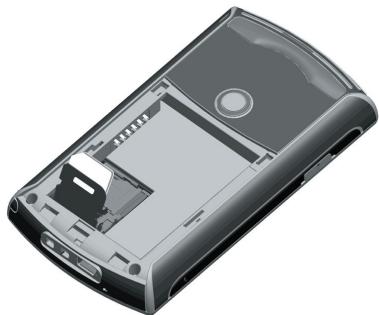

w œ Na . Slide the SIM card holder downward to unlock it, then lightly flip it open. . Pry open the memory card holder. Insert the micro SD card and the SIM card into the respective card holders, with their gold contacts facing down. (The cut-off corner of the SIM card should match the cut-off corner in the SIM card slot). Inserting the micro SD card Inserting the SIM card .… Press down the memory card holder to close and lock it in place. Close the SIM card holder, then slide it upward to lock it in place. .… Replace the battery (see instructions in the next section). . Replace the battery cover.

Install and charge the battery New batteries are shipped partially charged. Before you start using your device, it is recommended that you install and charge the battery. To install the battery, remove the battery cover first, and then insert the battery by aligning the exposed copper part of the battery pack with the protruding copper conductor which is on the left side of the battery slot. Insert the left side of the battery first, then gently push the battery into place, and replace the battery cover. Some batteries perform best after several full charge/discharge cycles. You can charge the battery in two ways: + Connect your device directly to an electrical» Plug the sync cable to the USB port on outlet using the AC adapter. your PC and to the sync connector on your device. When your device is turned off, charging is indicated by a solid amber light on the LED indicator. When your device is turned on, charging is indicated by a solid amber light on the LED indicator as well as a charging icon ( (A) ) on the Today screen. After the battery has been fully charged, the LED indicator becomes green and a full battery icon (@M) appears on the Today screen.

Check the battery power + Tap the battery level icon (@H) on the Today screen. The Power Settings screen will then open where you can see the current battery power level. settings TE Battery power indicator When the battery power gets very low, a warning message will be displayed. When you see this, immediately save your data by synchronizing with your PC, or save your data on a secondary storage card, and then turn off your device. Do not attempt to restart your device until you have connected it with the power adapter.

Turn on your Pocket PC Phone Press POWER to turn on your device. When you turn on your device for the first time, a Quick Start Wizard will guide you through the screen calibration process and the setup of regional settings, date and time, password, Outlook e-mail, and POP3/IMAP4 e-mail accounts. To turn off your device, press POWER again. POWER button

Like a standard mobile phone, you can use your device to make, receive, and keep track of phone calls and send SMS messages. The Phone screen From the Phone screen, you can access Call History, Speed Dial, and Phone settings. To open the Phone screen, do one of the following: + Use the stylus to tap Start > Phone. + Press TALK on the device. TALK button Make a voice call + Ontthe Phone screen, tap the phone number you want to call, then tap MM or press the TALK button.

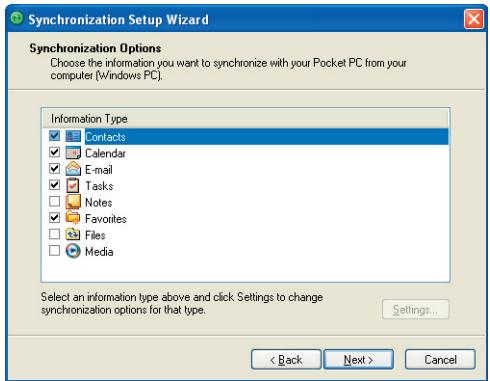

Synchronizing Outlook Information Using Microsoft® ActiveSync”, you can synchronize information on your device with information on your PC, such as Outlook content. ActiveSync is already installed on your device, but you need to install it on your PC if you don't already have it. Insert the Getting Started CD into the CD drive of your PC. Follow the instructions on the installation wizard screen to install ActiveSyne. Once installation is completed, connect the sync cable to your device and plug it into your PC's USB port. To set up a partnership between your device and the PC, turn on your device. When the PC detects a USB connection, it starts the ActiveSync Synchronization Setup Wizard. Follow the instructions on the screen and select the Outlook items you want to synchronize. Smehorzoion Dons ao or tone Sac an mange da ad cdi Extra hare SERRE TE Synchronization Setup Wizard (Synchronization Options)

PC requirement to run ActiveSync 4.x To connect your device to the PC, you must have the Microsoft® ActiveSync® program installed on your PC. ActiveSync 4x is included in the Getting Started CD, which is compatible with the following operating systems and applications: + Microsoft‘ Windows® 2000 Service Pack 4 + Microsoft® Windows® Server 2003 Service Pack 1 + Microsoft® Windows® Server 2003 1A64 Edition Service Pack 1 + Microsoft® Windows® Server 2003 x64 Edition Service Pack 1 + Microsoft® Windows® XP Professional Service Packs 1 and 2 + Microsoft® Windows® XP Home Service Packs 1 and 2 + Microsoft® Windows® XP Tablet PC Edition 2005 + Microsoft® Windows® XP Media Center Edition 2005 + Microsoft® Windows® XP Professional x64 Edition + Microsoft® Outlook® 98, Microsoft Outlook* 2000 and Microsoft® Outlook® XP, and Microsoft® Outlook® 2003 messaging and collaboration clients + Microsoft® Office 97, excluding Outlook + Microsoft® Office 2000 + Microsoft® Office XP + Microsoft® Office 2003 + Microsoft® Internet Explorer 4.01 or later (required) + Microsoft® Systems Management Server 2.0

6. Setting Up E-mail Accounts

The E-mail Setup Wizard makes it easy and simple to set up your Outlook e-mail and POP3/IMAP4 accounts on your device. Set up e-mail accounts u:

1. Tap Start > Messaging.

g E-mail Setup Wizard

3. The E-mail Setup Wizard guides you step-by-step through the setup process.

outcok Emi 2 Ti 4€ chu Dub Et me a dat eeness CS Ces rayure Desire vou era proe Set up Outlook e-mail To be able to send and receive Outlook e-mail on your device, you must set up ActiveSync synchronization with your computer or the Exchange Server. For information about setting up ActiveSync synchronisation, refer to the user manual.

Set up a POP3/IMAP4 e-mail account Set up a POP3 or IMAP4 e-mail account on your device if you have an e-mail account with an Internet service provider (ISP) or an account that you access using a VPN server connection {typically a work account).

1. Tap Start > Messaging.

2. Tap Menu > Tools > New Account.

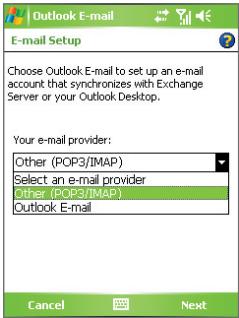

3. On the first E-mail Setup screen, select Other (POP3/IMAP) from the Your e-mail provider

fGarla Ts TOLTCunL Auto configuration will help you download necessary e-mail server settings.

5. Once Auto configuration has finished, tap Next.

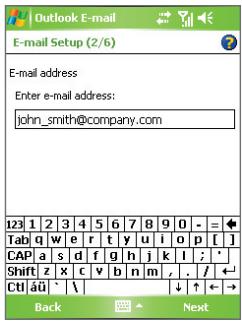

6. Enter your name (the name you want displayed when you send e-mail) and your password

Tip Selectthe Save password check box if you want to save your password so that you do not need to enter it again.

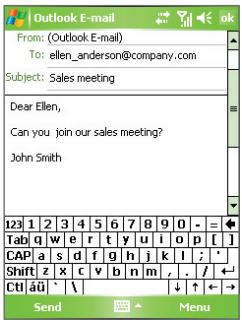

Sending a Message Your device is capable of sending and receiving E-mail, SMS, and MMS messages as long as itis connected to the network. Although you can send text messages (SMS) to only mobile phone numbers, MMS messages can be sent to both mobile phone numbers and e-mail addresses. Compose and send a message

You can set up connections to the Internet or to a corporate network to browse the Internet. The pre-loaded browser, Internet Explorer Mobile, is a full-featured Internet browser, and optimized for use on your device. Use Internet Explorer Mobile

1. Tap Start > Internet Explorer.

2. To go to a web site, enter the URL address of the desired

web site in the address bar that appears at the top ofthe screen, Tap the down arrow (+) to choose one web site from previously entered addresses. RE no rames.

3. Tap the Go icon ({Ÿ ) to go to the web address you res

4. Tap Back to go back to the previous page. =

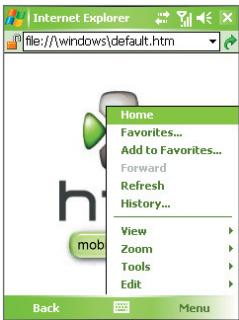

Internet Explorer Mobile . Tap Menu > Favorites, and then select the favorite web site you want to visit. To add a favorite link while browsing the Internet, go to the page you want to add. Then, tap Menu > Add to Favorites, or tap and hold on the page to select Add to Favorites from the shortcut menu.

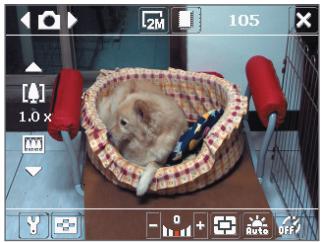

Taking photos and recording video clips along with audio is easy with your devices built-in camera. Launch the camera + Tap Start > Programs > Camera. + Tap Start > Programs > Pictures & Videos, then tap the Camera icon. + Press the CAMERA button on your device. con (EX) on the To exit the camera, tap the E: screen. Camera screen Capture a still image

1. After launching the camera, tap {or [at the upper left side of the screen or roll the Trackball

left or right to select the Photo capture mode.

1. After launching the camera, tap Klor[Jat the upper left side of the screen or roll the Trackball

left or right to select the Video capture mode.

2. Press the CAMERA button or the Trackball to start recording a video clip. To stop recording,

10. Using Pictures & Videos

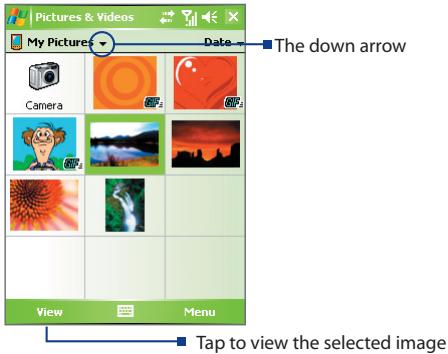

The Pictures & Videos program pictures Va + Vi 4€ D collects, organizes, and sorts all of D Pur(=) = your captured images and video clips 7 on your device. You can use this program to view/play pictures, GIF animation, and video dlips. You can even view pictures as a slide show, beam them, send them via e-mail, edit them, or set them as the background on the Today screen. = ap to viewthe selected image View pictures

1. Tap Start > Programs > Pictures & Videos. The files in the My Pictures folder appear as

thumbnails by default.

2. Select a picture and tap View.

Play GIF animation files

1. Tap Start > Programs > Pictures & Videos.

2. Select a GIF animation file and tap View. The GIF Animation program then opens and plays

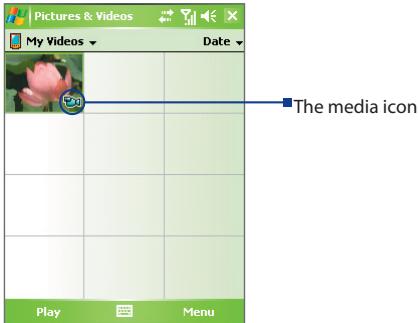

2. To find the video clips that you captured, tap the down arrow (+ ) next to the My Pictures

folder and tap My Documents. Next, tap My Videos. Video clips are displayed as thumbnails by default, which appear with a media icon (54). CORTE ——aThe media icon

3. Tap the desired thumbnail to play it with the built-in Windows Media Player.

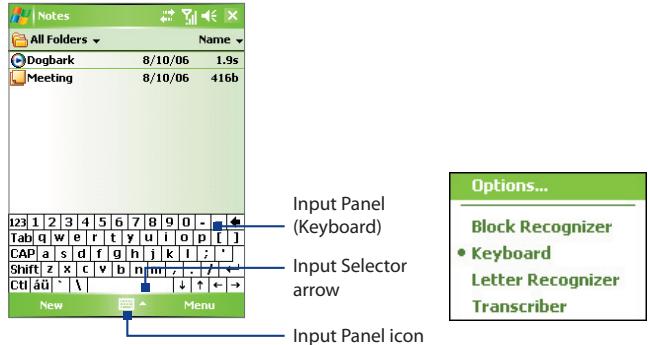

When you start a program or select a field that requires text or numbers, the Input Panel icon becomes available on the menu bar. Tap the Input Selector arrow (that appears next to the Input Panel icon) to open a menu where you can select a text input method and customize input options. After selecting a text input method, the corresponding Input Panel is then displayed and you can use it to enter text. To toggle between showing and hiding the Input Panel, simply tap the Input Panel icon. aau at Options. Input Panel — — (Keyboard) Block Recognizer + keyboard Letter Recognizer Transeriber 1 input Selector arrow Input Panel icon Icon Input method The on-screen keyboard. Letter Recognizer or Block Recognizer. EN rranscriber

The HTC P3300 and HTC P3300 Premium are equipped with a built-in GPS receiver. If you purchased the HTC P3300 Premium, you will find a car adapter and car holder with the product package. The HTC P3300 and HTC P3300 Premium are preinstalled with TomTom NAVIGATOR, a GPS navigation software that provides clear routing directions and vocal instructions to guide you in your journey, based on the destination address you specified, a contact that you selected, a point ofinterest, etc. Features include alternative route calculation, advanced planning which plans out the fastest or shortest route, itinerary planning which allows you to add multiple stops in your journey, and much more. This quick start guide and the user manual describe the basics on how to get started with GPS. navigation. You can also check the TomTom NAVIGATOR program for a brief tutorial on how to get started. Launch TomTom NAVIGATOR To launch the NAVIGATOR, do one of the following: + Tap Start > Programs > TomTom NAVIGATOR. + Press the GPS button (#) on your device. Set Up NAVIGATOR The first time you use TomTom NAVIGATOR, a Setup Wizard opens and asks you a few questions to set up TomTom NAVIGATOR. Answer each question by tapping your desired answer on the screen.

Download the free map (HTC P3300 only) If you are using the HTC P3300, a Download Wizard opens after the Setup Wizard is completed. The Download Wizard allows you to download a map of your choice for free.

1. On the Welcome screen of the wizard, tap Yes when you are prompted to download your

2. The next screen informs you that the map can be downloaded through GPRS or ActiveSync.

If you have access to your computer, it is recommended that you connect your device to your computer and download via the ActiveSyne connection. Ifthe GPRS connection on your device is currently active, you can tap Help for guidance on how to disconnect it so that ActiveSync can be used to download. Note You can also download via Wi-Fi if you have access to a wireless network.

3. When you are ready to download, tap Next.

4. On the next screen, select the desired region then tap Next.

5. Select your country then tap Next.

6. Select a map that you want from the list of maps, or tap Search for where you live and enter

the name of the desired map. Tap Next. To see the cities or areas that are covered by the map you selected, tap View list of cities & map coverage.

8. When you are ready to download the map, tap Download.

9. The maps file name is then displayed. Tap Yes to download the map using the provided file

name to your device. If you want to rename it or save it on the memory card, tap Save As. 10.Wait for the download process to complete. 11.After the download is completed, the map will be automatically installed.

Install maps and voices from the DVD (HTC P3300 Premium only) If you purchased the HTC P3300 Premium, you will find a DVD of maps and a micro SD card included with the product package. You can add the maps and voices for spoken instructions to NAVIGATOR via TomTom HOME. Make sure you insert the provided micro SD card first into your device, and install them on the memory card by following these steps:

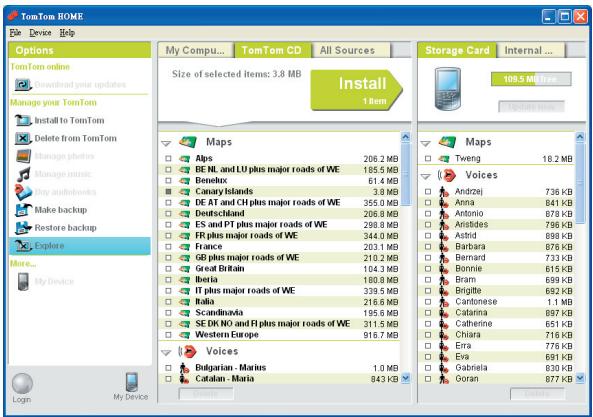

1. First, install the TomTom HOME software. Insert the DVD and install TomTom HOME into your

2. After installation is completed, connect your device to your computer and open TomTom

3. TomTom HOME then checks your device, and it displays the maps, voices and other elements

found in your device in the rightmost pane.

4. In the rightmost pane, tap Storage Card.

To view the contents of the DVD, tap TomTom CD. The maps, voices and other items on the disc are then displayed in the middle pane. In the middle pane, select the check boxes of the maps and voices that you want to install to the memory card, then tap Install. On your device, open TomTom NAVIGATOR. You will prompted to select a map that you installed. Tap the desired map to select it. You will be required to activate the map. There are two ways to activate it: + Automatic. To activate automatically, your device must have an active Internet connection (Wi-Fi, GPRS, EDGE DNS pro remires or ActiveSync). Tap Automatic, then enter your product How do you want to code. The product code is included with your HTC P3300 activate? Premium package. TomTom NAVIGATOR will connect to the TomTom web site and activate the map. + Manual. To activate a map manually, do the following: ” a a. Tap Manual. Your device code will then be displayed. | Note down this device code. b. Go to this web site, http:/{wwwittcode.com, to get an activation code. Tap Cancel twice to exit NAVIGATOR first. Internet Explorer Mobile automatically opens. Enter the URL of the web site. € On the web site, you will be asked to enter the product code and device code. After entering them, an activation code will be provided to you. d. Open TomTom NAVIGATOR again then tap the map. e. Tap Manual again, then tap Activate.

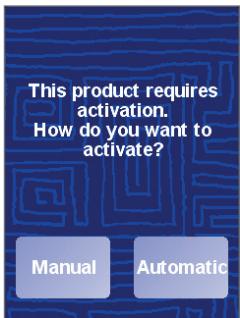

f._ Enterthe activation code then tap Done. Wait for the activation process to be completed. 10.Answer the remaining questions by following the on-screen instructions. Driving View After you have installed a map, NAVIGATOR displays the Driving View. The Driving View is shown in black and white until your devices GPS receiver locates your current position. Once your current position is determined, the Driving View is shown in full color and shows your position on the map. Make your first journey Planning a route with NAVIGATOR is very simple. To plan your first route, follow the steps below. Note You should ahways plan your journeys before you start driving. I is dangerous to plan routes when you are already moving.

1. Tap the Driving View screen to open the Main Menu.

For your first journey, navigate to an address. Tap Address, then tap Street and house number. INavigate to INavigate to Ram Street Selecting an address to Selecting a street and navigate to house number An on-screen keyboard then appears. Enter the name of the town where you want to go. As you tap each character, the names of the towns that match what you have entered are shown. When you see the desired town in the list, tap it to set it as your destination. Next, enter the name of the street. Just like in the previous step, the names of the streets that match what you have entered are shown. When you see the desired street name in the list, tap it to set it as your destination. Now enter the house number of your destination, then tap Done. NAVIGATOR asks you whether you need to arrive at a particular time. Tap YES to enter an arrival time. NAVIGATOR then shows you whether you will arrive on time. When the route has been calculated, tap Done.

NAVIGATOR will return to the Driving View screen, and will immediately start guiding you to your destination with spoken instructions and visual instructions on the screen. EE 2 4 0/ 140 (M) EI

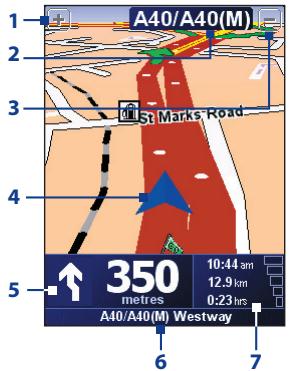

À 350 = AAD/MOIN) Westwray Tap to zoom in on your current position. Shows the name of the next major road or road sign information, if applicable. Tap to zoom out on your current position. Indicates your current position. Shows an arrow that indicates the direction that you should follow, and shows the distance from your current position to the next turn of the road You can also tap this area to repeat the last spoken instruction and to adjust the volume. Shows the name of the next street to turn onto. Shows information about your journey and the strength of the GPS signal. Tap this area to view a route summary.

The Today screen displays important information, such as upcoming appointments and status indicators. Following are some of the status icons that you may see on your device: Icon Des. News e-mail or text messages; SMS notification of voice mail New multimedia (MMS) message New MSN message There are more notifications Tap the icon to view all. Speakerphone on

ing while no SIM card is inserted Voice call in progress Calls are forwarded Call on hold CE Missed call Yi Maximum signal strength Y No signal x Phone is turned off " No phone service

Searching for phone service GPRS available GPRS connecting GPRS in use EDGE available EDGE connecting EDGE in use Roaming Connection is active Connection is not active Synchronization in progress Synchronization error ActiveSync notification Wi-Fi function enabled, but device not connected to a wireless network yet Wireless network(s) detected Connecting to wireless network (arrows mo\ Connected to wireless network

Icon Synchronizing via Wi-Fi Vibration mode Sound on Sound off LT Alarm 5 No SIM card inserted Cnil Battery is fully charged Ca] Battery power is very low Battery charging LA) Bluetooth headset detected DS QuickGPS update notification 4 GPRS Monitor currently active 6 Sprite Backup notification Hg Serial USB connection active Note The USB to PC (lg) icon appears on the Today Screen when your device is connected to your computer and you enable a serial USB connection between them. For more information about USB to PC, refer to the user manual.

14. Customizing Your Pocket PC Phone

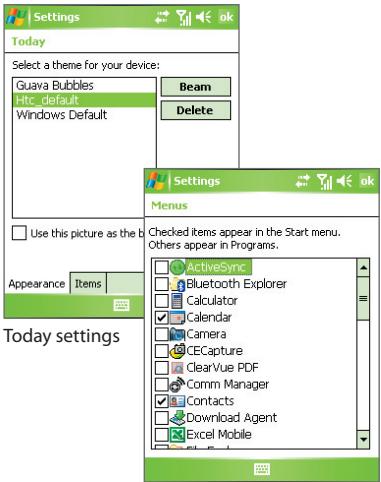

You can customize the look and feel of your device and set the time and date according to the current time zone. Customize the Today screen

1. Tap Start > Settings > Personal tab > Today.

settings TE Sa are far jeu dev

2. On the Appearance tab, select the desired

theme for the background ofthe Today screen.

3. On the Items tab, select the items you want to

appear on the Today screen. = RTE Customize the Start Menu

1. Tap Start > Settings > Personal tab > Menus.

to appear in the Start menu. You can select up (nl to seven items. Today settings Set the time and date

2. Select the correct time zone and change the

date or time. Menu settings

15. Securing Your Pocket PC Phone

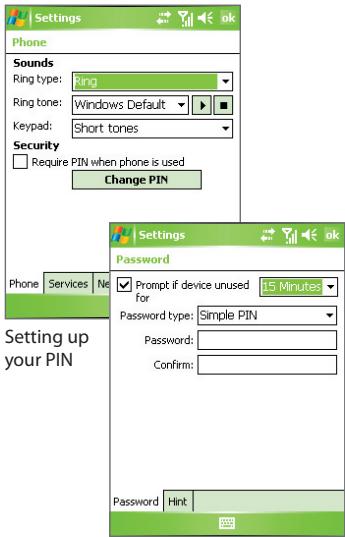

There are two kinds of security on your device. You can protect your SIM card from unauthorized use by assigning a PIN (Personal Identification Number). Additionally, you can prevent unauthorized access to any part oftthe device by using password protection. Protect your SIM card with a PIN

1. Tap Start > Phone.

2. On the Phone screen, tap Menu > Options > Phone

3. Tap Require PIN when phone is used. To change the

PIN at any time, tap Change PIN. | settings EXT iso rremeinin)

Ées Protect your device with a password

and in the box to the right, select how long your device must be ide before a password is required. In setting up the Password type box, select the type of password yourPIN you would like to use. Enter the password and confirm it.

3. On the Hint tab, enter a phrase that wi help you

remember your password, but doesn't allow others to guess your password. The hint will be displayed after the wrong password is entered four times.

4. Tap OK. The next time your device is turned on, you Setting up password

will be prompted to enter your password.

For more instructions, refer to the User Manual or contact your local dealer for assistance. Microsoft, MS-DOS, Windows, Windows NT, Windows Server, Windows Mobile, ActiveSync, Excel, Internet Explorer, MSN, Outlook, PowerPoint, and Word are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. © 2006 TomTom International BV, The Netherlands. Patents pending. All rights reserved. tomtom Tomlom and the TomTom logo are registered trademarks of TomTom BV. The Netherlands. All other trademarks are the property of their respective owners.
