USER MANUAL MUZ5ZP1 BOSCH

Register your new device on MyBosch now and get free benefits:

bosch-home.com/welcome

Citrus press

MUZ5ZP1

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[da]	Scan QR-koden, eller besøg hjemmesiden, for at åbne de udvidede anvisninger om anvendelse. Der kan der findes yderligere oplysninger om apparatet eller tilbehøret.
[no]	Skann QR-koden eller besøk nettstedet for å åpne mer informasjon om bruken. Der finner du mer informasjon om apparatet eller tilbehøret.
[sv]	Scanna QR-koden eller gå till webbplatsen och öppna de utökade användningsanvisningarna. Där finns mer information om din apparat eller dina tillbehör.
[fi]	Skannaa QR-koodi tai vieraile internet-sivustollamme, jotta voit avata laajennetut käyttötiedot. Sieltä löydät laitetta tai varustetta koskevia lisätietoja.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratin veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrintılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[uk]	Щоб отримати докладніші вказівки з користування, зіскануйте QR-код або відвідайте сайт. Там ви знайдете додаткові відомості про прилад або приладдя.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.

A

B

3

4

5

6

7

8

9

10

	√	√	√	√	√

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully. ■ Observe the instructions for the base unit.

1.2 Intended use

Only use the accessories:

■ with a kitchen machine from the same series MUMS2, MUMS4, MUM5. ■ With genuine parts and accessories. ■ For squeezing juice out of citrus fruits.

1.3 Safety instructions

WARNING – Risk of injury!

Improper use may cause injuries.

▶ Never assemble the accessories on the base unit. ▶ Only attach and remove accessories once the drive has stopped and the appliance has been unplugged. - The accessories should only be used in the intended operating position.

2 Unpacking and checking

Find out here what you need to note when unpacking the appliance.

2.1 Unpacking the accessories and parts

1. Take the accessories out of the packaging.
2. Take all other parts and the accompanying documents out of the packaging and place them to hand.
3. Remove any packaging material.
4. Remove any stickers or film.

2.2 Contents of package

After unpacking all parts, check for any damage in transit and completeness of the delivery.

→ Fig. 1

A

Citrus press

B

Accompanying documents

2.3 Cleaning the accessories before using for the first time

1. Take the strainer out of the container.
2. Clean all parts that come into contact with food before using for the first time. → "Cleaning and servicing", Page 11
3. Put the cleaned and dried parts out ready for use.

3 Familiarising yourself with the accessories

3.1 Components

You can find an overview of the parts of your accessories here.

→Fig. 2

1

Container

2

Strainer with pressing cone

4 Before using the appliance

Prepare the base unit and the accessories for use.

4.1 Overview of base units

This accessory can be used with different base units.

You can prepare your kitchen machine as shown.

→ Fig. 3

A

Kitchen machine from the MUMS4 or MUM5 series

B

Kitchen machine from the MUMS2 series

4.2 Fitting citrus press onto the base unit

1. Place the strainer in the container. → Fig. 4
2. Place the citrus press on drive 2 as shown. → Fig. 5
3. Rotate the citrus press clockwise until it engages. → Fig. 6 The citrus press must be securely connected to the base unit.

5 Basic operation

5.1 Squeezing citrus fruit

Note: Your model is equipped with a 4- or 7-level rotary switch depending on the features of the appliance. The recommended speeds for the 4-level rotary switch are always shown in brackets in these instructions for use.

1. Cut the citrus fruit in half.
2. Insert mains plug.
3. Turn the rotary switch to setting 3-5 (2-3). → Fig. 7
4. Press one half of the citrus fruit down on the pressing cone until no more juice escapes. → Fig. 8
5. Repeat the process until all of the fruit has been squeezed out
6. the juice in the container reaches the "max" marking.

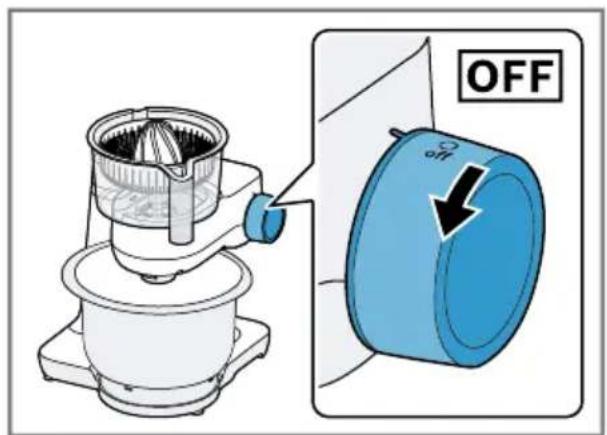

7. Set the rotary switch to O off → Fig. 9
8. Unplug the mains plug.

5.2 Removing the citrus press

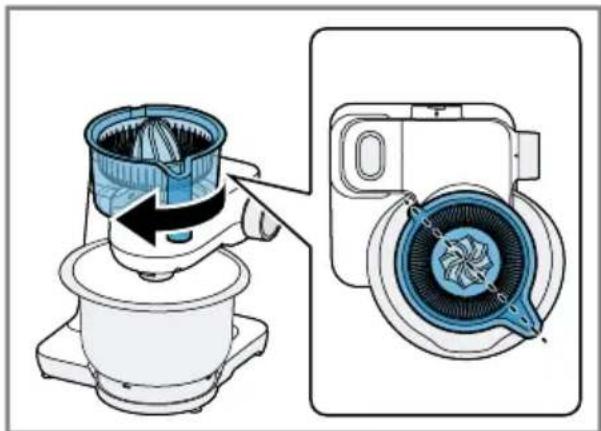

1. Rotate the citrus press anticlockwise until it disengages.

→ Fig. 10

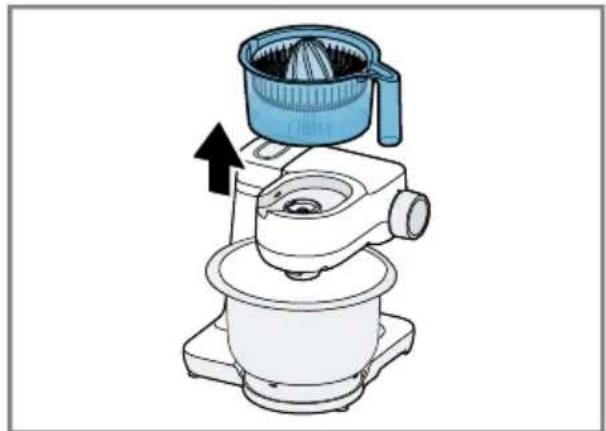

1. Remove the citrus press from the base unit.

→ Fig. 11

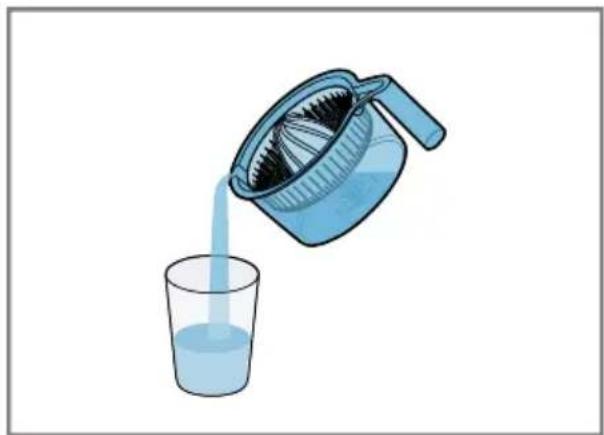

1. Pour the juice into a suitable container.

→ Fig. 12

1. Take the strainer out of the container.

→ Fig. 13

Tip: Clean all parts immediately after use so that residues do not dry on.

6 Cleaning and servicing

6.1 Cleaning products

Find out here what cleaning agents are suitable for your accessories.

ATTENTION!

Using unsuitable cleaning agents or incorrect cleaning may damage the accessories.

• Do not use cleaning agents containing alcohol or spirits.
• Do not use sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.

6.2 Overview of cleaning

Clean the individual parts as indicated in the table.

→ Fig. 14

6.3 Cleaning the citrus press

1. Remove the pips and large pieces of pulp from the strainer.
2. Wash the strainer and container by hand or clean in the dishwasher.

WARNING – Risk of injury!
