USER MANUAL WK-3500 CASIO

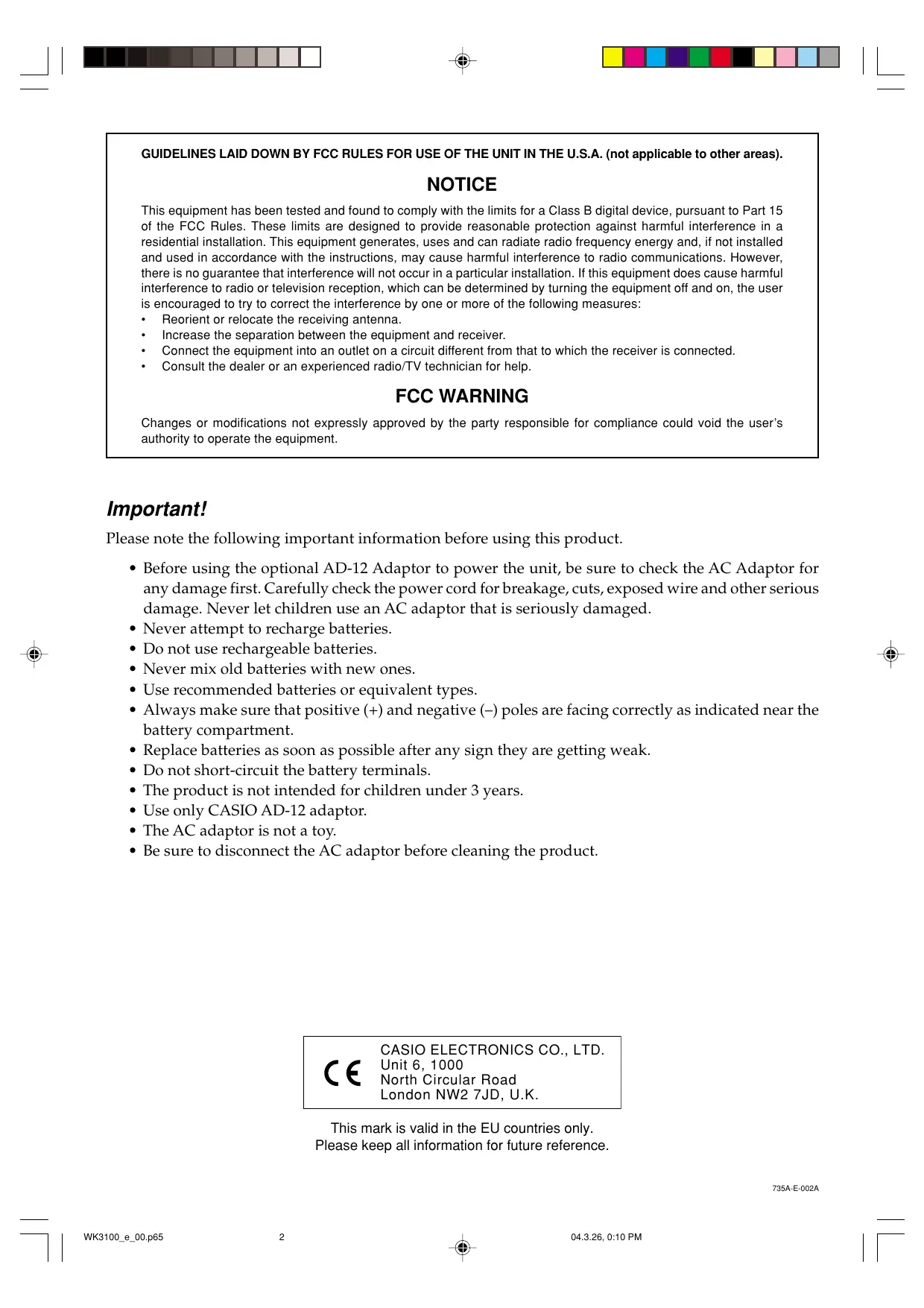

”] | WK3100 GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THE UNIT IN THE U.S.A. (not applicable to other areas). NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + Reorient or relocate the receiving antenna. + _ Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. + Consul the dealer or an experienced radio/TV technician for help. FCC WARNING Changes or modifications not expressiy approved by the party responsible for compliance could void the user's authority to operate the equipment. Important! Please note the following important information before using this product. + Before using the optional AD-12 Adaptor to power the unit, be sure to check the AC Adaptor for any damage first. Carefully check the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor that is seriously damaged. Never attempt to recharge batteries. Do not use rechargeable batteries. Never mix old batteries with new ones. Use recommended batteries or equivalent types.

battery compartment. Replace batteries as soon as possible after any sign they are getting weak. Do not short-circuit the battery terminals. The product is not intended for children under 3 years. Use only CASIO AD-12 adaptor. + The AC adaptor is not a toy. + Be sure to disconnect the AC adaptor before cleaning the product.

CASIO ELECTRONICS CO. LTD. C € Unit 6, 1000 North Circular Road London NW2 7JD, U.K. This mark is valid in the EU countries only. Please keep all information for future reference. TISAE 002A 00.p65 2 04.3.26, 0:10 PM Always make sure that positive (+) and negative (-) poles are facing correctly as indicated near the

CC) 1 Safety Precautions Congratulations on your selection of the CASIO electronic musical instrument. + Before using the instrument, be sure to carefully read through the instructions contained in this manual. + Please keep all information for future reference. Symbols es Various symbols are used in this user’s guide and on the product itself to ensure that the product is used safely and correctly, and to prevent injury to the user and other persons as well as damage to property. Those symbols along with their meanings are shown below. À DANGER This symbol indicates information that, if ignored or applied incorrectly, creates the danger of death or serious personal injury. À\ WARNING This indication stipulates matters that have the risk of causing death or serious injury if the product is operated incorrectly while ignoring this indication. À CAUTION This indication stipulates matters that have the risk of causing injury as well as matters for which there is the likelihood of occurrence of physical damage only if the product is operated incorrectly while ignoring this indication. T3SA.E.003A ”] | WK3100_e_01-09.p65 1 Symbol Examples

This triangle symbol (/\) means that the user should be careful. (The example at left indicates electrical shock caution.) This circle with a line through it (©) means that the indicated action must not be performed. Indications within or nearby this symbol are specifically prohibited. (The example at left indicates that disassembly is prohibited.) The black dot (@) means that the indicated action must be performed. Indications within this symbol are actions that are specifically instructed to be performed. (The example at left indicates that the power plug must be unplugged from the electrical socket.) E-1

| Safety Precautions À DANGER Alkaline Batteries Perform the following steps immediately if fluid leaking from alkaline batteries ever gets into your eyes.

1. Do not rub your eyes! Rinse them with

2. Contact your physician immediately.

Leaving alkaline battery fluid in your eyes can lead to loss of sight. À WARNING Smoke, Strange Odor, Overheating Continued use of the product while it is emitting smoke, a strange odor, or heat creates {he risk of fire and electric shock. Take the following steps immediately.

2. If you are using the AC adaptor for

power, unplug it from the wall outlet.

3. Contact your original retailer or an

authorized CASIO Service Provider. AC Adaptor @Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions. + Be sure to use only the AC adaptor that is specified for this product. + Use only a power source whose voltage is the within the rating marked on the AC adaptor. + Do not overload electrical outlets and extension cords. @Misuse of the AC adaptor’s electric cord can damage or break it, creating the risk of fire and electric shock. Always make sure you observe the following precautions. + Never place heavy objects on the cord or subject it to heat. + Never try to modify the cord or subject it to excessive bending. + Never twist or stretch the cord. + Should the electric cord or plug become damaged, contact your original retailer or authorized CASIO Service Provider. E-2 ”] | WK3100_e_01-09.p65 2

@ Never touch the AC adapter while your hands are wet. Doing so creates the risk of electric shock. + Use the AC adaptor where it will not be splashed with water. Water creates the risk of fire and electric shock. + Do not place a vase or any other container filled with liquid on top of the AC adaptor. Water creates the risk of fire and electric shock. Do not incinerate the product. Never throw the product into fire. Doing so can cause it to explode, creating the risk of fire and personal injury. Water and Foreign Matter Water, other liquids, and foreign matter (such as pieces of metal) getting into the product create the risk of fire and electric shock. Take the following steps immediately.

2.1f you are using the AC adaptor for power, unplug it from the wall outlet.

3. Contact your original retailer or an

authorized CASIO Service Provider. Disassembly and Modification Never try to take this product apart or modify it in any way. Doing so creates the risk of electric shock, burn injury, or other personal injury. Leave all internal inspection, adjustment, and maintenance up to your original retailer or authorized CASIO Service Provider. Dropping and Impact Continued use of this product after it has been damaged by dropping or subjecting it to strong impact creates the risk of fire and electric shock. Take the following steps immediately.

2. If you are using the AC adaptor for

power, unplug it from the wall outlet.

3. Contact your original retailer or an

authorized CASIO Service Provider.

Safety Precautions . Plastic Bags Never place the plastic bag the product comes in over your head or in your mouth. Doing so creates the risk of suffocation. Particular care concerning this precaution is required where small children are present. Keep off of the product and stand.* Climbing onto the product or stand can cause it to tip over or become damaged. Particular care concerning this precaution is required where small children are present. Location Avoid locating the product on an unstable stand, on an uneven surface, or any other unstable location. An unstable location can cause the product to fall over, creating the risk of personal injury. T3SA.E:005A ”] | WK3100_e_01-09.p65 3 À CAUTION AC Adaptor Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions. + Do not locate the electric cord near a stove or other sources of heat. +_ Never pull on the cord when unplugging from the electrical outlet. Always grasp the AC adaptor when unplugging. AC Adaptor Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions. Insert the AC adaptor into the wall outlet as far as it will go. Unplug the AC adaptor from the wall outlet during lightening storms or before leaving on a trip or other long-term absence. At least once a year, unplug the AC Adaptor from the wall outlet and wipe away any dust that is built up in the area around the prongs of the plug.

Relocating the Product Before relocating the product, always unplug the AC adaptor from the wall outlet and disconnect all other cables and connecting cords. Leaving cords connected creates the risk of damage to the cords, fire, and electric shock. Cleaning Before cleaning the product, always unplug the AC adaptor from the wall outlet first. Leaving the AC adaptor plugged in creates the risk of damage to the AC adaptor, fire, and electric shock. Batteries Misuse of batteries can cause them to leak resulting in damage to nearby objects, or to explode, creating the risk of fire and personal injury. Always make sure you observe the following precautions. + Use only batteries that are specified for use with this product. +_ Remove batteries from the product if you do not plan to use it for a long time. Connectors Connect only the specified devices and equipment to the product’s connectors. Connection of a non-specified device or equipment creates the risk of fire and electric shock.

”] | WK3100_6 | Safety Precautions Location Avoid the following locations for this product. Such locations create the risk of fire and electric shock. + Areas subject to high humidity or large amounts of dust In food preparation areas or other areas subject to oil smoke Near air conditioning equipment, on a heated carpet, in areas exposed to direct sunlight, inside of a vehicle parked in the sun, or any other area that subjects the product to high temperatures Display Screen Never push on the display screen’s LCD panel or subject.it to strong impact. Doing so can cause the LCD panel's glass to crack, creating the risk of personal injury. Should the LCD panel ever crack or break, never touch the liquid inside of the panel. LCD panel liquid can cause skin irritation. Should LCD panel liquid ever get inside your mouth, immediately wash out your mouth with water and contact your physician. Should LCD panel liquid ever get into your eyes or onto your skin, rinse with clear water for at least 15 minutes, and then contact a physician. Sound Volume Do not listen to music at very loud volumes for long periods. Particular care concerning this precaution is required when using headphones. High volume settings can damage your hearing, Heavy Objects Never place heavy object on top of the product. Doing so can make the product top heavy, causing the product to tip over or the object to fall from it, creating the risk of personal injury. Correct Stand* Assembly An incorrectly assembled stand can tip over, causing the product to fall and creating the risk of personal injury. Make sure you assemble the stand correctly, following the assembly instructions that come with it. Make sure you mount the product on the stand correctly.

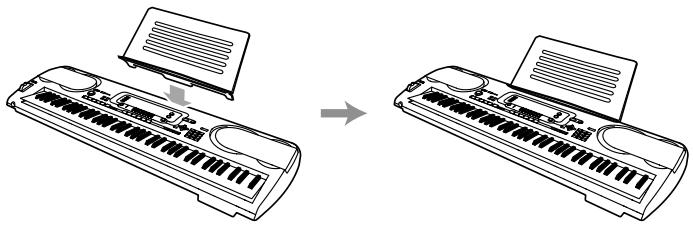

• Stand is available as an option. E-4

IMPORTANT! When using batteries, be sure to replace them or shift to one of the alternate power sources whenever you notice any of the following symptoms. + Dim power indicator Instrument does not turn on Display that is flickering, dim, or difficult to read Abnormally low speaker/headphone volume Distortion of sound output Occasional interruption of sound when playing at high volumes Sudden power failure when playing at high volumes Flickering or dimming of the display when playing at high volume Continued sound output even after you release a key Atone that is totally different from the one that is selected Abnormal rhythm pattern and demo tune play Abnormally low microphone volume (WK-3100 only) Distortion of microphone input (WK-3100 only) Dim power supply indicator when a microphone is used (WK-3100 only) Sudden power failure when using the microphone (WK-3100 only) Loss of power, sound distortion, or low volume when playing from a connected computer or MIDI device Sudden power failure while reading from or writing to a diskette (WK-3500 only) TSALE 006€

CC) 1 Introduction Congratulations upon your selection of this CASIO musical instrument. This keyboard provides you with the following features and functions. { 516 Tones Include Rich Advanced Tones A total of 300 Advanced Tones are programmed with DSP tones to make them richer and more powerful. Advanced tones like Stereo Piano and Tremolo Electric Piano enhance the Piano and Electric Piano tones to create a totally new sound. A 50 Drawbar Organ Tones In addition to the 516 standards tones, the keyboard also includes 50 realistic drawbar organ tones. Drawbar organ tones can be controlled using nine digital drawbars. You can also select percussion or key click, and even edit the parameters of preset tone and save up to 100 original tones in user tone memory. 9 Flash Memory Built-in Flash memory lets you expand your selection of tones and rhythms by downloading data from the CASIO MUSIC SITE, or from other sources. You can also store up to 200 SMF format music files for playback. © PIANO SETTING Button The press of a button optimizes the keyboard setup for piano play. {1 140 Preset Rhythms + 16 User Rhythms A selection of 140 rhythms includes accompaniments for everything from rock to pops and jazz. You can also transfer accompaniment data from your computer and store up to 16 of them as user rhythms in keyboard memory. 1 Auto Accompaniment Simply play a chord and the corresponding rhythm, bass and chord parts play automatically. One-touch Preset instantly recalls the most suitable tone and tempo settings to match the rhythm you are using. { Big, Information-packed Display A big built-in display shows chord names, tempo setting, keyboard information, staff notation of notes played, and more for full support of all your keyboard play. À built-in backlight keeps the display easy to read, even in total darkness. © Song Memory Record up to six parts in memory, along with their tone, volume, pan position, and other parameters for later playback. Realistic ensemble play can also be created using the Auto Accompaniment function. © Synthesizer Mode Edit built-in sounds to produce your own original creations. Up to 120 of your own sounds can be stored in memory for recall, just like the built-in tones. A General MIDI compatibility The General MIDI tones of this keyboard let you connect to à personal computer to enjoy “desktop music” capabilities. This keyboard can be used as a desktop music input device or sound source, and it's just the thing for playback of commercially available pre-recorded General MIDI music software. { Powerful effects A collection of powerful effects, such as DSP reverb, chorus, and more, give you total control over the type of sound you want. You can even change the parameters of an effect to create your own, original effects. À 4-band equalizer is also included. TaSh.E 0078 E-5

”] | WK3100_6 | Introduction Q Mixer You can specify tone, volume, pan position, and other parameters for each built-in Auto Accompaniment part. You can also control the same parameters for each channel during MIDI input. 9 Registration Memory Keyboard setups can be stored in memory for later recall and instant settings whenever you need them. Up to 32 setups (4 setups x 8 banks) can be stored in registration memory. 1 Data download from your computer You can use your computer to download data from the CASIO MUSIC SITE. { SmartMedia'" Card Slot A built-in SmartMedia card slot helps to simplify transfer of data from a computer and lets you store volumes of data for later recall when you need it. You can also load a card with a standard MIDI file (SMF) and play it back on the keyboard © Built-in floppy disk drive (WK-3500 only) Save original tones or songs you created with the Song Memory to disk for long-term storage. You can also load a disk with a standard MIDI file (SMF) and play it back on the keyboard. { Microphone Jack (WK-3100 only) Connect a commercially available microphone* and you can sing as you play, or sing with accompaniment from Song Memory or SMF playback. *If a microphone was included with your keyboard, use that microphone.

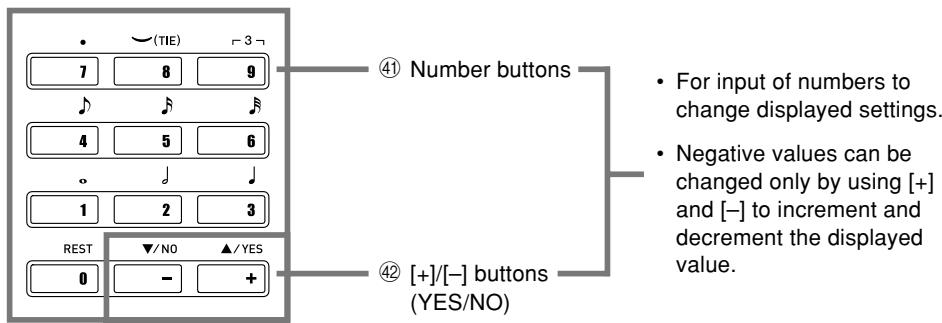

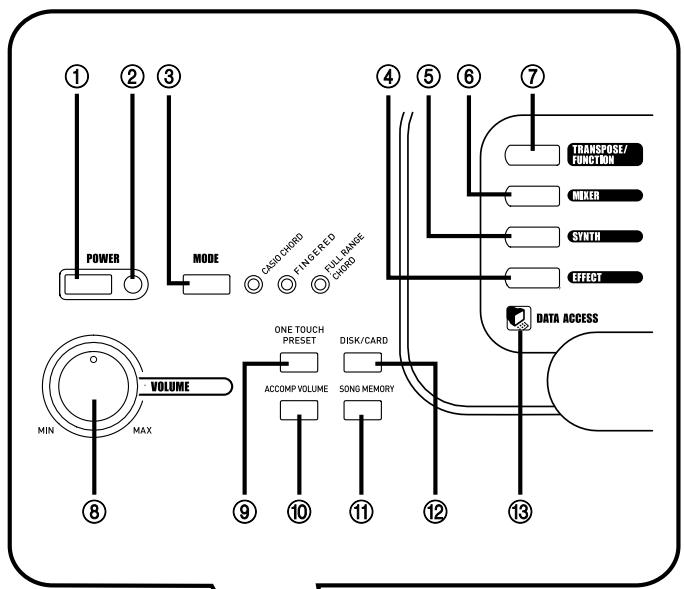

ms À n # Number buttons + For input of numbers to change displayed settings. + Negative values can be changed only by using [+] and [-] to increment and decrement the displayed value. —— @ [4H buttons (YES/NO)

Playing a Demo Tune*4 Pressing the DEMO button starts demo tune play. There are 3 demo tunes, which continuously play in sequence. To stop demo tune play, press either the DEMO button or the START/STOP button. NOTE. + Pressing the [+]/{- buttons skips to the next demo tune. + The PIANO SETTING button, Layer, and Split are disabled while a demo tune is playing. Front Panel + WK-3500 only & Access lamp TT @ Eject button E-12 TASAEOtG

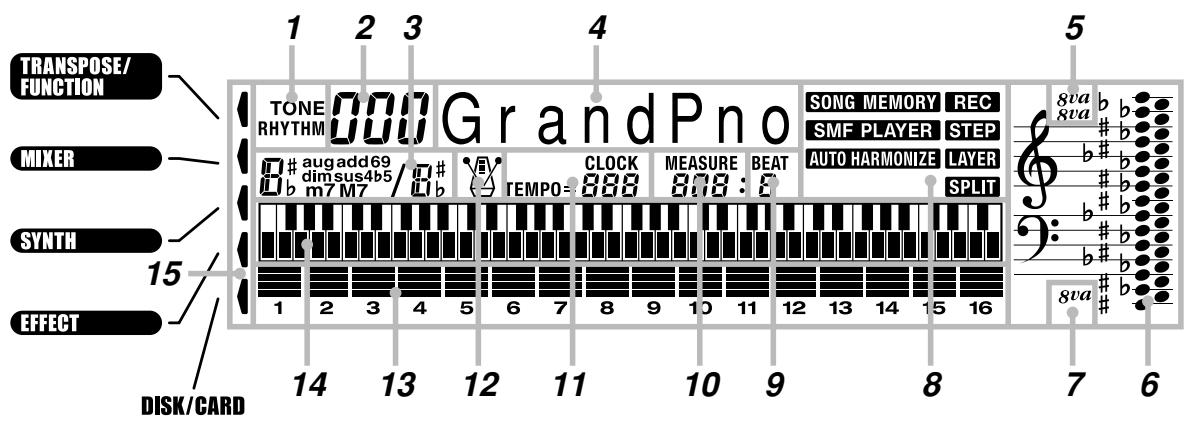

. TONE/RHYTHM indicator TONE is shown during tone selection and display, while RHYTHM is shown during rhythm selection and display.

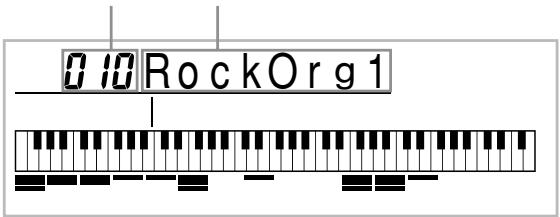

. Tone/Rhythm number (number area) Number of currently selected tone or rhythm. The TONE/RHYTHM indicator shows whether the number is a tone or rhythm: This area also shows other information in other modes.

. Chord name display Shows chord names while Auto Accompaniment is being used. Ÿ 4. Tone/Rhythm name (text area) Name of currently selected tone or rhythm. The TONE/RHYTHM indicator shows whether the name is a tone or rhythm. This area also shows other information in other modes.

One symbol indicates the note being produced by the keyboard is one octave higher than the note shown in the staff notation area 6. Two symbols indicate two octaves higher.

6. Staïf notation area

Notes you play on the keyboard, notes played back from song memory, chord forms, and received MIDI data* are shown here.

One symbol indicates the note being produced by the keyboard is one octave lower than the note shown in the staff notation area 6.

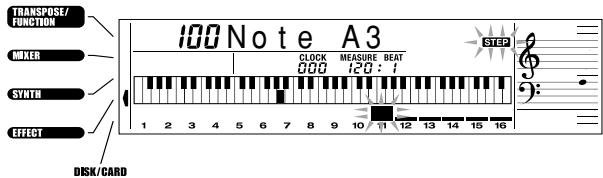

. Indicators An indicator appears to indicate that a function (Song Memory, SMF player, Auto Harmonize, Split, Layer) is currently in use.

. Beat number Shows the beat number during rhythm and Auto Accompaniment play, and while the Song Memory and SMF Player are turned on.

Shows the measure number from the start of play during rhythm and Auto Accompaniment play, and while the Song Memory and SMF Player are turned on.

Shows the tempo as a value indicating the number of beats per minute during rhythm and Auto Accompaniment play, and while the Song Memory is turned on. This display area also shows other information in other modes:

You can turn on the metronome to provide a reference beat for your keyboard play. E-14 TaSAE-DI8A ”] | WK3100_e_10-25.p65 14 À 04.3.26, 0:10 PM | [

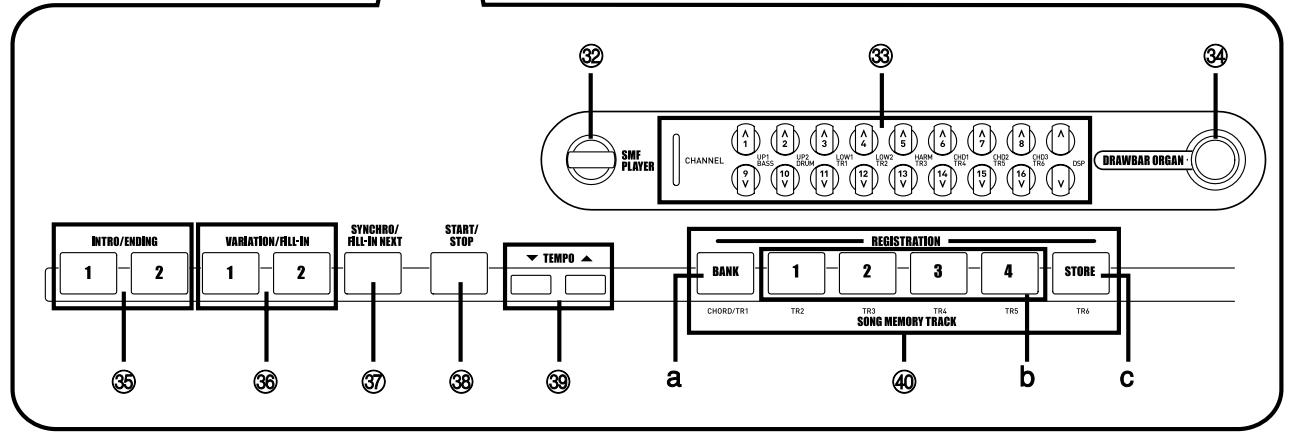

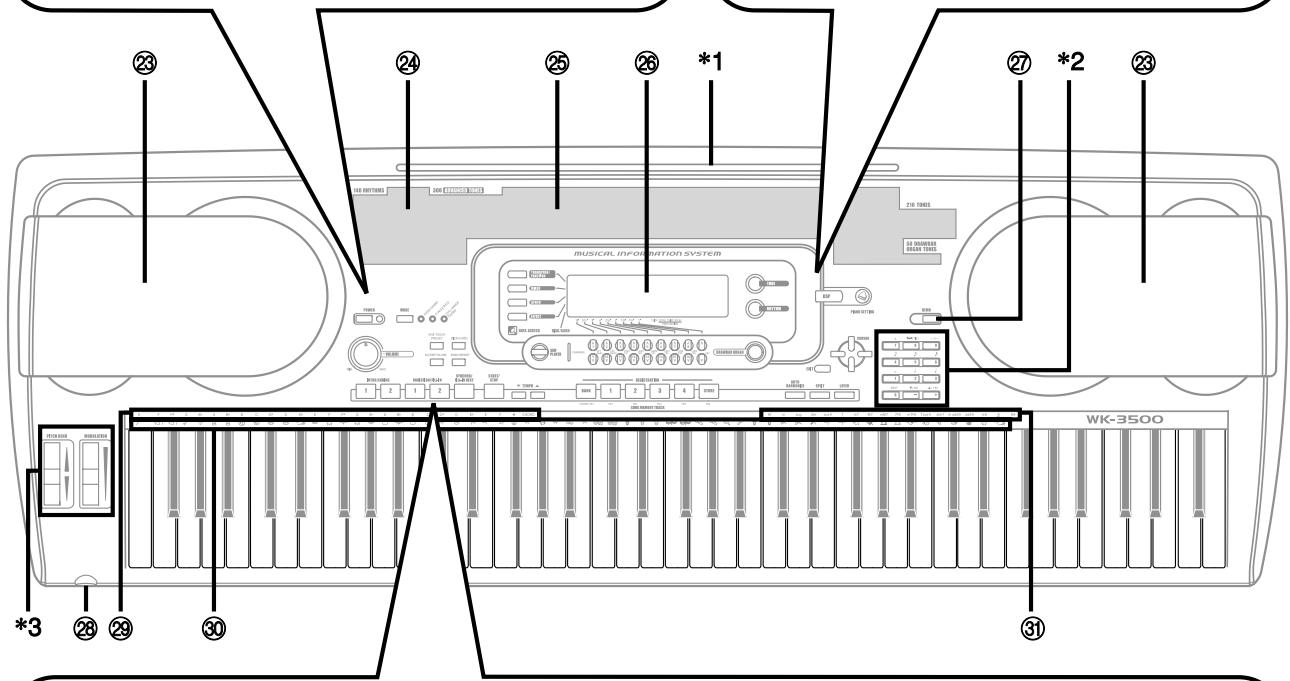

”] | WK3100_6 General Guide .

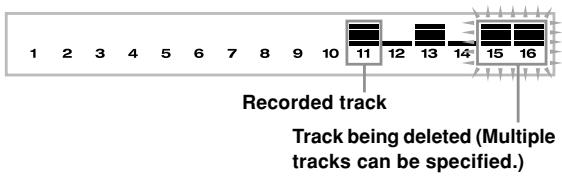

The numbers 1 through 16 correspond to Mixer channels. The level meter indicates which channels are on and off, and also indicates the volume level. Drawbar Organ Mode In the Drawbar Organ Editing Mode, the level meter shows the position of each drawbar and the status of each percussion parameter.

14. Graphic keyboard

Notes you play on the keyboard, notes played back from song memory, and received MIDI data* are indicated on the graphic keyboard.

Pointers appear next to these mode names to indicate that the Transpose, Keyboard Settings, Mixer, Synth, Effect, or Disk/ Card mode is currently active. + Any receive data outside the range of Et to G7 is not displayed. NOTE, + Display examples shown in this User's Guide are intended for illustrative purposes only. The actual text and values that appear on the display may differ from the examples shown in this User's Guide. + Due to LCD element characteristics, display contrast changes depending on the angle from which you view it. The initial default contrast setting is one that allows easy viewing for a musician seated directly in front of the display. You can also adjust the contrast to the level that suits your particular needs. For more information, see page E-82. TaSAE-O17A E-15

CC) 1 ”] | WK3100_6 Power Supply This keyboard can be powered by current from a standard household wall outlet (using the specified AC adaptor) or by batteries. Always make sure you turn the keyboard off whenever you are not using it. Using batteries Always make sure you turn off the keyboard before loading or replacing batteries. LECRENIES Ô Remove the battery compartment cover. 2] Load six D-size batteries into the battery compartment. + Make sure that the positive (+) and negative (-) ends are facing correctly. © Insert the tabs on the battery compartment cover into the holes provided and close the cover. tab

NOTE. + The keyboard may not function correctly if you load or replace batteries with power turned on. If this happens, tuning the keyboard off and then back on again should return functions back to normal. E-16 10-25.p65 16 Important Battery Information mm The following shows the approximate battery life. Alkaline batteries . … 4 hours The above value is standard battery life at normal temperature, with the keyboard volume at a medium setting. Temperature extremes or playing at very loud volume settings can shorten battery life. mm Any ofthe following symptoms indicate low battery power. Replace batteries as soon as possible whenever any of the following occurs. + Dim power indicator + Instrument does not turn on + Display that is flickering, dim, or difficult to read + Abnormally low speaker/headphone volume + Distortion of sound output + Occasional interruption of sound when playing at high volumes + Sudden power failure when playing at high volumes + Hlickering or dimming of the display when playing at high volume + Continued sound output even after you release a key + A tone that is totally different from the one that is selected + Abnormal rhythm pattern and demo tune play + Abnormally low microphone volume (WK-3100 only) + Distortion of microphone input (WK-3100 only) + Dim power supply indicator when a microphone is used (WK-3100 only) + Sudden power failure when using the microphone (WK-3100 only) + Loss of power, sound distortion, or low volume when playing from a connected computer or MIDI device + Sudden power failure while reading from or writing to à diskette (WK-3500 only) À WARNING Misuse of batteries can cause them to leak, resulting in damage to nearby objects, or to explode, creating the risk of fire and personal injury. Always make sure you observe the following precautions. + Never try to take batteries apart or allow them to © become shorted. + Never expose batteries to heat or dispose of them by incineration. + Never mix old batteries with new ones. + Never mix batteries of different types. + Do not charge the batteries. + Make sure the positive (+) and negative (-) ends of the batteries are facing correctiy. À CAUTION Misuse of batteries can cause them to leak resulting in damage to nearby objects, or to explode, creating the risk of fire and personal injury. Always make sure you observe the following precautions. + Use only batteries that are specifediorusewihthis product.) + Remove batteries from the product if you do not plan to use it for a long time. TISAE 0180

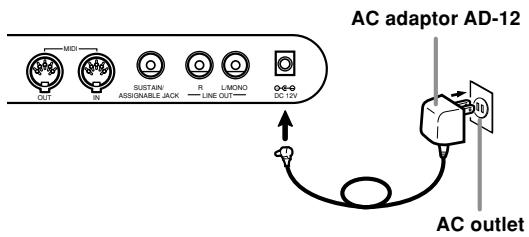

”] | WK3100_6 Power Supply . Using the AC Adaptor Make sure that you use only the AC adaptor specified for this keyboard. Specified AC Adaptor: AD-12 AC adaptor AD-12 AC outlet Also note the following important warnings and precautions when using the AC adaptor. WARNING Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions. + Be sure to use only the AC adaptor that is specified for this product. Use only a power source whose voltage is within the rating marked on the AC adaptor. Do not overload electrical outlets and extension cords. Never place heavy objects on the cord or subject it to heat. Never try to modify the cord or subject it to excessive bending. Never twist or stretch the cord. Should the electric cord or plug become damaged, gg contact your original retailer or authorized CASIO Service Provider. Never touch the AC adaptor while your hands are wet. Doing so creates the risk of electric shock. 00e TISAE:019A 10-25.p65 17 CAUTION Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions. + Do not locate the electric cord near a stove or other sources of heat. Never pull on the cord when unplugging from the electrical outlet. Always grasp the AC adaptor when unplugging. Insert the AC adaptor into the wall outlet as far as it @ÿ will go. Unplug the AC adaptor from the wall outlet during lightening storms or before leaving on a trip or other long-term absence. At least once a year, unplug the AC adaptor from the wall outlet and wipe away any dust that is built up in the area around the prongs of the plug. IMPORTANT! + Make sure that the keyboard is turned off before connecting or disconnecting the AC adaptor. + Using the AC adaptor for a long time can cause it to become warm to the touch. This is normal and does not indicate malfunction. Auto Power Off When you are using battery power, keyboard power turns off automatically whenever you leave it on without performing any operation for about 6 minutes. When this happens, press the POWER button to turn power back on. NOTE, + Auto Power Off is disabled (it does not function) when you are using the AC adaptor to power the keyboard. disable Auto Power Off Hold down the TONE button while turning on the keyboard to disable Auto Power Off. + When Auto Power Off is disabled, the keyboard does not turn off automatically no matter how long it is left with no operation being performed. + Auto Power Off is automatically enabled whenever you turn on keyboard power.

”] | WK3100_6 | Power Supply Tone, rhythm, and other “main keyboard settings” in effect when you turn off the keyboard manually by pressing POWER button or when Auto Power Off turns off power are still in effect the next time you turn power back on. Main Keyboard Settings Tone number, layer, split, split point, drawbar organ tone settings, transpose, tuning, and contrast settings, touch response, reverb, chorus, DSP, equalizer, rhythm number, tempo, keyboard channel, MIDI In Chord Judge on/off, accomp MIDI out on/off, assignable jack setting, accompaniment volume, user area tones (Synthesizer Mode), user area accompaniments, user DSP area, pitch bend range, Auto Harmonize on/off, Auto Harmonize type, Mixer hold, DSP hold, Auto Accompaniment mode, all Mixer parameters, all Synthesizer Mode parameters, Song Memory song numbers, SMF player settings (play mode, manual play part, SMF playback volume) Turning Off the Keyboard + Be sure to press the POWER button to turn off power and make sure that the LCD backlightis off before disconnecting the AC adaptor or doing anything else. + Never disconnect the AC adaptor while the keyboard is turned on or try to turn off power using any other technique besides pressing the POWER button. Doing so can cause the contents of the keyboard’s Flash memory to become corrupted. Strange keyboard operation and abnormal startup when power is turned on are symptoms of corrupted Flash memory contents. See ’Troubleshooting” on page E-106 for more information. IMPORTANT! + Never press the POWER button while the following message is on the keyboard's display. (message) “Pls Wait” or “Bulk In” Turning off the keyboard while the above message is on the display can cause user data (user tones, song memory data, etc.) currently stored in keyboard memory or on external media to become corrupted. Once corrupted, you may not be able to recall the data again. Memory Contents In addition to the above settings, data stored in the Registration Mode and Song Memory Mode is also retained when keyboard power is turned off. E-18 10-25.p65 18 Saving Setups and Memory Contents About Flash memory Your keyboard comes with built-in Flash memory, which can continue to hold data even when electrical power is totally cut off. This means that even after batteries go completely dead, you can attach the AC adaptor, turn on power, and still recall data stored in memory. You can back up keyboard memory contents and other data using the media described below. + SmartMedia Card See “Using a SmartMedia Card” on page E-93. + Floppy Diskette (WK-3500 only) See “Using the Floppy Disk Drive (WK-3500 Only)” on page E-94. IMPORTANT! + When running under battery power, be sure to replace batteries as soon as possible after the first signs of low battery power (dim power indicator lamp, dim display characters, etc.) Though the keyboard's Flash memory is non-volatile (which means that data is not lost when power is interrupted), data can be lost if power suddenly fails while data is being written to flash memory*.

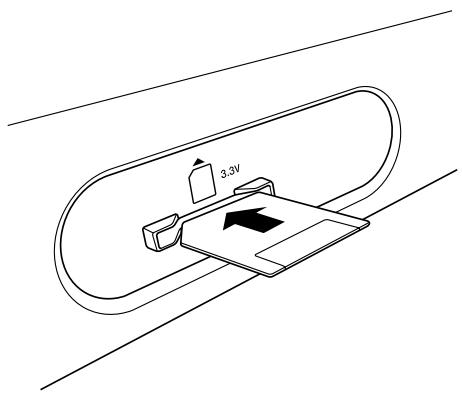

• While storing or deleting user data, while recording with the synthesizer, while transferring data from a computer, etc. Initializing the Keybo: Use the procedure on page E-80 to initialize the keyboard, which clears all memory data and returns settings to their initial factory defaults.

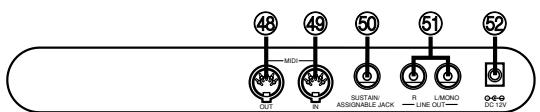

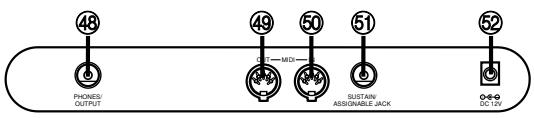

CC) 1 ”] | WK3100_6 Connections + WK-3500 Phones and Line Out Terminals Before connecting phones or other external equipment, be sure to first turn down the volume settings of the keyboard and the connected equipment. You can then adjust volume to the desire level after connections are complete [Front] PHONES Terminal Stereo standard plug Connecting Phones @ Connecting phones cuts off output from the keyboard's built- in speakers, so you can play even late at night without disturbing anyone. [Rear Panel] @ audio ampiter AUXINLete PIN pig De jo

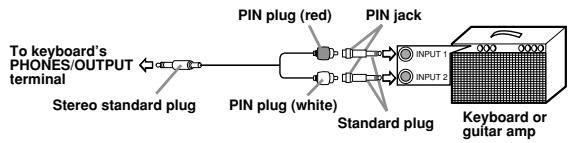

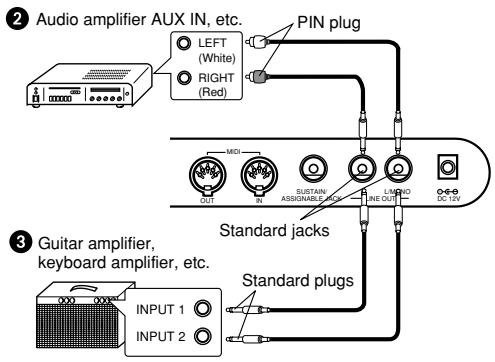

M eur: © | reure © Standard plugs Connecting to Audio Equipment @ Use commercially available cords to connect to the two jacks as shown in Figure @. It is up to you to purchase connecting cables like the ones shown in the illustration for connection. Normally in this configuration, you must set the audio equipment’s input selector to the setting that specifies the terminal (such as AUX IN) that the keyboard is connected to. Use the keyboard’s VOLUME knob to adjust the volume level. TISAEO21A 10-25.p65 19 Connecting to a Musical Instrument Amplifier @ Use commercially available cords to connect to the two jacks as shown in Figure @. It is up to you to purchase connecting cables like the ones shown in the illustration for connection. Use the keyboard's VOLUME knob to adjust the volume level. + If your amplifier has only one input jack, connect a cord to the L/MONO jack only. NOTE, + You can also connect the keyboard's MIDI terminal to a computer or sequencer. See “MIDI” on page E-89 for details. E-19

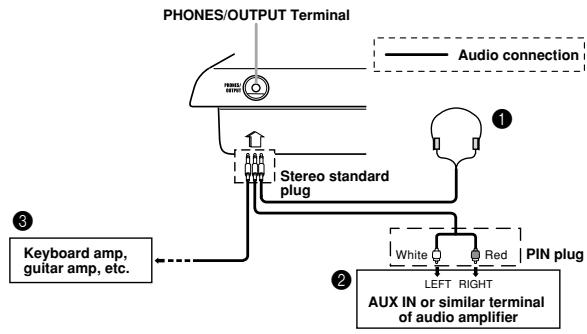

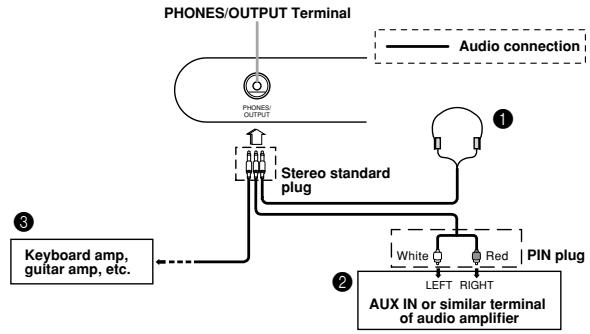

”] | WK3100_6 | Connections + WK:-3100/WK-3000 Phones/Output Terminal Before connecting phones or other external equipment, be sure to first turn down the volume settings of the keyboard and the connected equipment. You can then adjust volume to the desire level after connections are complete [Rear Panel] PHONES/OUTPUT Terminal Audio connecti

Reë | PIN plug AUX IN or similar terminal of audio amplifier [Front] PHONESIOUTPUT Terminal Red |PIN plug AUX IN or similar terminal of audio amplifier Connecting Phones @ Connecting phones cuts off output from the keyboard's built- in speakers, so you can play even late at night without disturbing anyone. Audio Equipment @ Connect the keyboard to a audio equipment using a commercially available connecting cord with a standard plug on one end and two PIN plugs on the other end. Note that the standard plug you connect to the keyboard must be a stereo plug, otherwise you will be able to output only one of stereo channels. In this configuration, you normally set the input selector of the audio equipment to the terminal (usually marked AUX IN or something similar) where the cord from the keyboard is connected. See the user documentation that comes with your audio equipment for full details. Musical Instrument Amplifier @ Use a commercially available connecting cord to connect the keyboard to a musical instrument amplifier. E-20 10-25.p65 20 NOTE, + Be sure to use a connecting cord that has a stereo standard plug on the end you connect to the keyboard, and a connector that provides dual channel (left and right) input to the amplifier to which you are connecting. The wrong type of connector at either end can cause one of the stereo channels to be lost. + When connected to a musical instrument amplifier, set the volume of the keyboard to a relatively low level and make output volume adjustments using the amplifier’s controls. Connection Example PIN plug (red) PIN jack Tokeyhoara's PAORÉS SU PUT Ga : terminal Duf Stereo standard plug PIN plug (white) Keyboard or Standard plug SéXar amp NOTE. + You can also connect the keyboard to a computer or sequencer. See “MIDI” on page E-89 for details. Sustain/Assignable jack Terminal You can connect an optional sustain pedal (SP-3 or SP-20) to the SUSTAIN/ASSIGNABLE JACK terminal to enable the capabilities described below. For details on how to select the pedal function you want, see “Changing Other Settings” on page E-79 SUSTAIN/ASSIGNABLE JACK Terminal Sustain Pedal + With piano tones, depressing the pedal causes notes to linger, much like a piano’s damper pedal. + With organ tones, depressing the pedal causes notes to continue to sound until the pedal is released. TASALE 022C

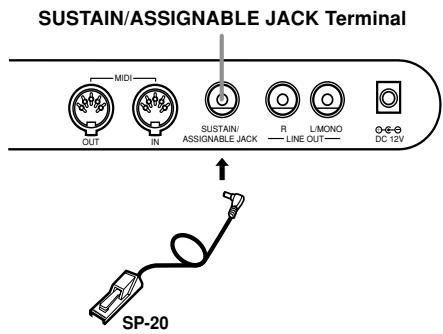

”] | WK3100_6 Sostenuto Pedal + As with the sustain pedal function described above, depressing the sostenuto pedal causes notes to be sustained. + This difference between a sostenuto and sustain pedal is the timing, With a sostenuto pedal, you press the keys and then depress the pedal before you release the keys. Only the notes that are sounding when the pedal is depressed are sustained. Soft Pedal Depressing the pedal softens the sound of the notes being played. Rhythm Start/Stop Pedal In this case, the pedal performs the same functions as the START/STOP button. Using the microphone jack (WK-3100 only) Connecting a commercially available microphone* to the MIC IN jack makes it possible to sing as you play, or sing with accompaniment from Song Memory or SMF playback. When connecting a microphone, be sure to first adjust the MIC VOLUME to a relatively low setting, and then adjust to the level you want after connecting.

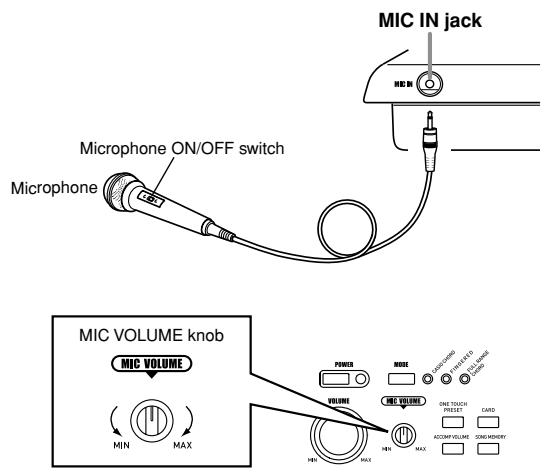

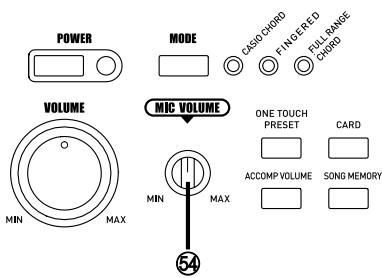

• Ifa microphone was included with your keyboard, use that microphone. If your keyboard did not come with a microphone, use a commercially available microphone that satisfies the stipulated specifications. © sat the MIC VOLUME knob setting so it is on the “MIN” side. @ ur on the microphone's ON/OFF switch © use the MIC VOLUME knob to adjust microphone volume to the level you want. MIC IN jack Microphone ON/OFF switch Microphone MIC VOLUME knob (O) TISAE 0220 10-25.p65 21 Connections . IMPORTANT! + Be sure to use the microphone's ON/OFF switch to turn off the microphone and to disconnect the microphone from the keyboard whenever you are not using it. Recommended Microphone Type + Dynamic microphone (standard plug) IMPORTANT! + Connection to the MIDI terminal of an external device can cause static in the microphone signal. Use of a Cannon type microphone with a metal-shielded body helps to prevent static. + Be sure to disconnect the microphone from the keyboard whenever you are not using it. Howling (Feedback Noise) Any ofthe following conditions can cause howling (feedback noise). + Covering the head of the microphone with your hand + Positioning the microphone too near to a speaker Should howling oceur, try grasping the microphone further away from the head, and move away from any nearby speaker. Static Noise Fluorescent lighting can cause static noise in the microphone signal. When this happens, move away from the lighting you suspect may be causing the static. NOTE. + Effects are not applied to microphone input. Accessories and Options Use only the accessories and options specified for this keyboard. Use of non-authorized items creates the danger of fire, electrical shock, and personal injury. E-21

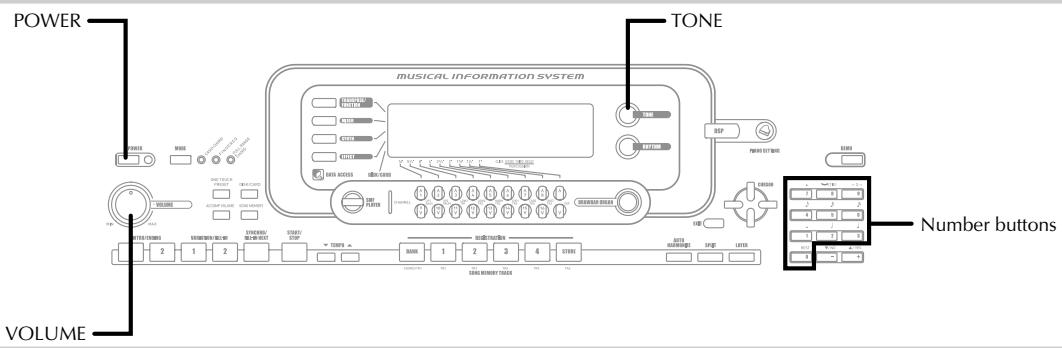

”] | WK3100_6 Basic Operations POWER VOLUME This section provides information on performing basic keyboard operations. To play the keyboard Ô Press the POWER button to turn the keyboard on. @ use the VOLUME knob to set the volume to a relatively low level. @ r:; something on the keyboard. Selecting a Tone This keyboard comes with tones built-in, as shown below. A partial list of the available tone names is printed on the keyboard console. See the “Tone List” on page A-1 of this manual for a complete list. “Advanced Tones”, are variations of standard tones, which are created by programming in effects (DSP) and other settings. For details about drawbar organ tones, see “Using the Drawbar Organ Mode” on page E-26. Tone Types Standard Tones: 516 Preset Tones + 124 User Tones Number DSP Line Number | NPet Tone Type note 000-299] 300 | Advanced Tones On 300-499 [ 200 |Preset Tones Of 500-515] 16 [Drumsets Of 600-699] 100 [User Tones® On/oi 700-719] 20 | User Tones with Waves® On/of 800-803] 4 | User Drum Sets with On/Offss Waves* E-22 10-25.p65 2 [— Number buttons Drawbar Organ Tones: 50 Preset Tones + 100 User Tones Number DSP Line Number | éones Tone Type CEE 000-049 | 50 |Preset Tones On/Off*s 100-199 | 100 | User Tones* On/Off*3 : See “Changing Tones and Configuring DSP Effect Settings” on page E-23. #2: Memory area for tones created by you. See “Synthesizer Mode” on page E-51. User tone areas 600 through 699 initially contain the same data as DSP types 000 through

#3: Depends on source tone or user setting. See “Synthesizer Mode” on page E-51 for more information. #4: Area for data transferred from a computer. See “Using the Data Downloard Service” on page E-91 for more information. For information about waveforms, see “Creating a User Tone” on page E-54. #5: Depends on tone. This status can be checked by viewing the DSP button. See “About the DSP Button” on page E- 34 for more information. *6: Memory area for tones created by you. See ‘To edit a drawbar organ tone” on page E-28. User drawbar organ tone areas initially contain two sets of the same data as drawbar organ tones types 000 through 049. NOTE, + You cannot select tone numbers not included in the above range (standard tones 516 through 599 and 720 through 799, and drawbar organ tones from 050 to 099). When you use the [+] and [-] buttons to scroll through tone numbers, scrolling jumps across the unused numbers. Pressing [+] when 515 is selected, for example, jumps to 600. TISAE 024A

”] | WK3100_6 Basic Operations . To select a tone Ô Find the tone you want to use in the tone list and note its tone number. @ press the TONE button. TONE © Use the number buttons to input the three digit tone number for the tone you want to select Example: To select “332 ACOUSTIC BASS GM”, input 3,3 and then 2. “132 Aco.Bs_G NOTE. + Always input all three digits for the tone number, including leading zeros (if any). + You can also increment the displayed tone number by pressing [+] and decrement it by pressing [-]. + When one of the drum sets is selected (tone numbers 500 through 515), each keyboard key is assigned a different percussion sound. See page A-12 for details. Polyphony The term polyphony refers to the maximum number of notes you can play at the same time. The keyboard has 32-note polyphony, which includes the notes you play as well as the rhythms and auto-accompaniment patterns that are played by the keyboard. This means that when a rhythm or auto- accompaniment pattern is being played by the keyboard, the number of notes (polyphony) available for keyboard play is reduced. Also note that some of the tones offer only 10-note polyphony.

10-25.p65 23 Digital Sampling A number of the tones that are available with this keyboard have been recorded and processed using a technique called digital sampling. To ensure a high level of tonal quality, samples are taken in the low, mid, and high ranges and then combined to provide you with sounds that are amazingly close to the originals. You may notice very slight differences in volume or sound quality for some tones when you play them at different positions on the keyboard. This is an unavoidable result of multiple sampling, and it is not a sign of malfunction. Changing Tones and Con DSP Effect Settings This keyboard has only a single DSP sound source. Because of this, selecting tones for which DSP is enabled for multiple parts when layering or splitting tones (page E-74, 75) can cause conflicts. To avoid conflicts, DSP is allocated to the last DSP enabled tone, and DSP is disabled (DSP line OFF) for all other parts. DSP line is a parameter that controls whether or not the currently selected DSP effect is applied to a part.* Each tone has a DSP line parameter. Selecting a tone for a part applies the tone’s DSP line parameter setting to all parts.

• The DSP line parameter is turned on (DSP effect is applied) for the 300 Advanced Tones numbered 000 through 299, and turned off (DSP effect not applied) for the 200 preset tones from 300 to 499, For information about other tones, see “Tone Types” on page E-22. guring E-23

PIANO SETTING Button Pressing this button changes the setup of the keyboard to optimize it for piano play. Settings Tone Number: “000 St.GrPno” Rhythm Number: “120 PF Bld 1” Accompaniment Mode: Normal Layer: Off Split: Of Auto Harmonize: Off Transpose: 0 Touch Response: Off: Returns to initial default On: No change Assignable Jack: SUS Local Control: On Mixer Channel 1 Parameter Setup: Depends on tone To optimize keyboard set piano play ngs for © press the PIANO SETTING button. @ nov try playing something on the keyboard. + The notes you play will sound with a piano tone. + 1f you want to play with rhythm accompaniment, press the START /STOP button. This causes a rhythm that is optimized for piano will start to play. + To stop rhythm play, press the START/STOP button again E-24 10-25.p65 24 NOTE. + Pressing the PIANO SETTING button while a rhythm is playing stops rhythm play and then changes the keyboard setup. + Pressing the PIANO SETTING button while the keyboard is in the Synthesizer Mode or other mode exits the current mode and then changes the keyboard setup. The setup of the keyboard does not change if you press the PIANO SETTING button when any one of the following exists.

• During real-time recording, step recording, or while using the editing function of the Song Memory « While the data save or overwrite message is on the display

• During a registration data save operation TASALE 026€

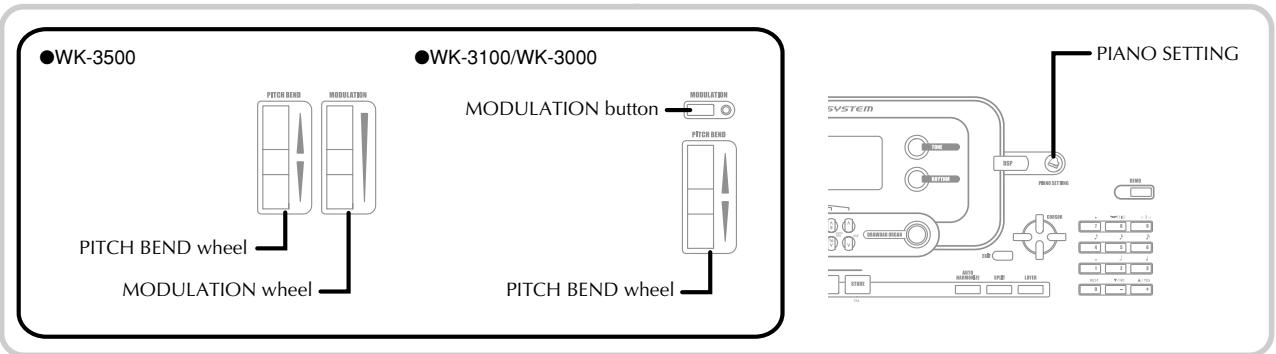

Basic Operations . Using the PITCH BEND Wheel As its name suggests, the PITCH BEND wheel lets you “ben” the pitch of a sound. This makes it possible to add a touch of realism to saxophone and other tones. use the PITCH BEN heel © Write holding down a keyboard key with your right hand, use your left hand to rotate the PITCH BEND wheel up and down. + Releasing the PITCH BEND wheel returns the note to its original pitch. NOTE. + With saxophone and electrical guitar tones, the most realistic sounding effects can be produced if you play notes and operate the PITCH BEND wheel simultaneously. + See “Pitch Bend Range (Initial Default: 12)" on page E- 82 for changing the bend range of the PITCH BEND wheel. + Never turn on keyboard power while the PITCH BEND wheel is rotated. TISAE 0270 ”] | WK3100_6 10-25.p65 25 Using the MODULATION Modulation applies vibrato, which modulates the pitch of a note. It works best with notes that are sustained (held) by keeping a keyboard key held down, especially when playing the melody with a violin or other similar tone. You can modify the modulation effect using DSP parameter Othrough 7. For more information, see “DSP Parameters” on page E-33. + WK:-3500 To use the MODULATION Wheel © wire playing melody notes with your right hand, rotate the MODULATION wheel with your left hand to apply vibrato to the notes + The amount of vibrato applied depends on how far you rotate the MODULATION wheel upwards. Setting the wheel to its neutral position (rotated as far downwards as it can go) turns vibrato off. + WK-3100/WK-3000 To use the MODULATION button © write holding down a keyboard key with your right hand, use your left hand to press the MODULATION button. + Vibrato is applied as long as the MODULATION button is depressed. NOTE, + Modulation can be used to add greater expression to sustained melody notes being played using a violin, synthetic reed, or other similar tone. + Modulation affects different tones in different ways. E-25

04.3.26, 0:10 PM | [

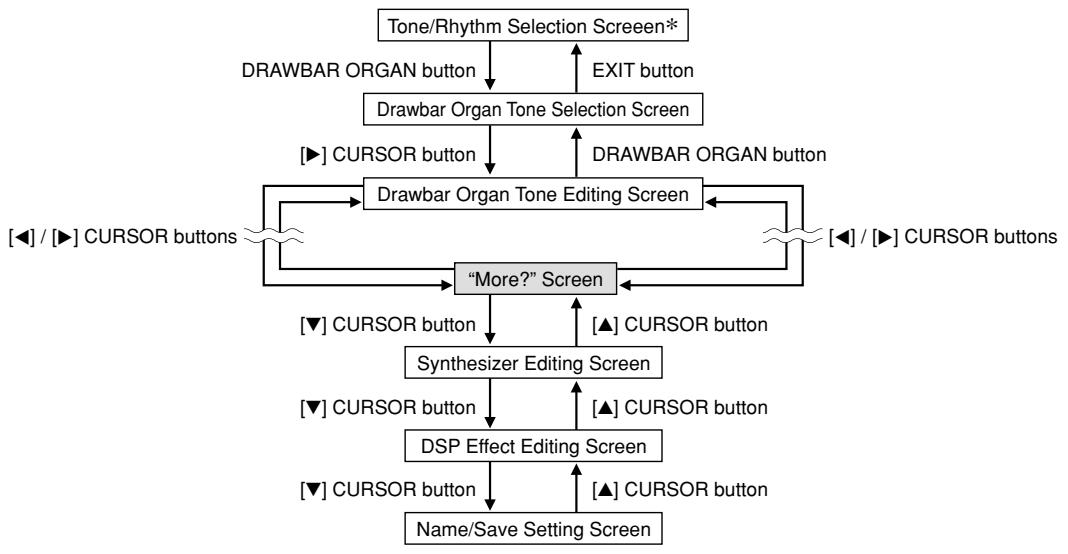

CC) 1 Using the Drawbar Organ Mode Your keyboard has built-in “drawbar organ tones” that can be altered using nine digital drawbars whose operations are similar to the controls on a drawbar organ. You can also select percussion or key click. There is room in memory for storage of up to 100 user-created drawbar tone variations. Drawbar Organ Mode Operational Flow Tone/Rhythm Selection Screeen’* DRAWBAR ORGAN button EXIT button Drawbar Organ Tone Selection Screen D>] CURSOR button DRAWBAR ORGAN button Drawbar Organ Tone Editing Screen [4] / >] CURSOR buttons = l ( { “More? Screen [Y] CURSOR button [A] CURSOR button Synthesizer Editing Screen [Y] CURSOR button [A] CURSOR button [PSP Etiect Editing Screen ] ( / >] CURSOR buttons [7] CURSOR button [A] CURSOR button Name/Save Settng Screen & * You can also display the drawbar organ tone selection screen from the Song Memory Mode or SMF Playback Mode screen. In Ÿ this case, however, the Drawbar Organ Tone Editing Screen does not appear.

”] | WK3000_e_26-37.p65 26 ë 04.3.26, 0:10 PM

”] | WK3000_6 Using the Drawbar Organ Mode . hannel Buttons while the Drawbar Organ Tone Selection Screen is Displayed The 18 buttons along the bottom of the display function as drawbar buttons while the drawbar organ tone selection screen is on the display (after you press the DRAWBAR ORGAN button). Each pair of buttons (upper and lower) represents a drawbar, which means that the 18 buttons provide you with the function of nine drawbars. #1: Feet Value Parameter Name F116 Currently selected — parameter Nes Curenty selected drawbar Decrease Increase Drawbar buttons Each of the nine button pairs is assigned values ranging from 16 feet to 1 foot. Each button pair has a decrease button (for decreasing by 16 feet, 5-1/3 feet, etc.) and an increase button (for increasing by 16 feet, 5-1/3 feet, etc.) TaSAE-029A E-27 26-37.p85 27 04.3.26, 0:10 PM

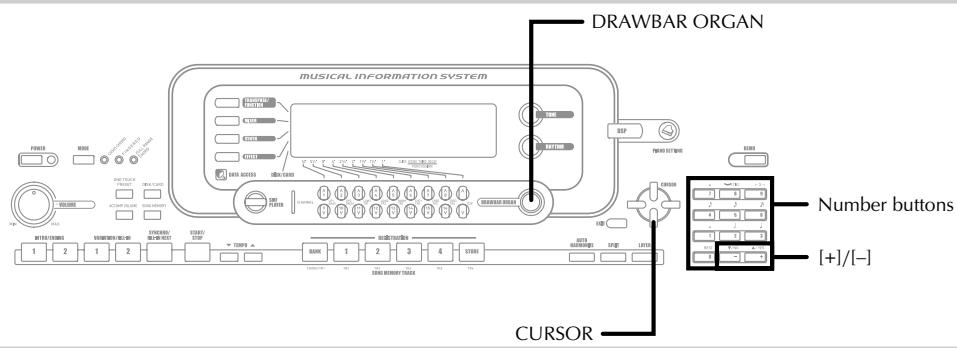

r— DRAWBAR ORGAN To select a drawbar organ tone Ô Find the drawbar organ tone you want to use in the tone list and note its tone number. @ res the DRAWBAR ORGAN button. + This causes the drawbar organ tone selection screen to appear. Tone Number Tone Name © Use the number buttons to input the three digit tone number for the tone you want to select NOTE, + Always input all three digits for the tone number, including leading zeros (if any). + You can also increment the displayed tone number by pressing [+] and decrement it by pressing [-]. To edit a drawbar organ tone © sciect the drawbar organ tone (000 to 049, 100 to

199) you want to edit.

@ use the 1@ and 11 CURSOR buttons to display the drawbar organ tone editing screen. Select the parameter whose setting you want to change. Example: Selecting the “Ft16” parameter

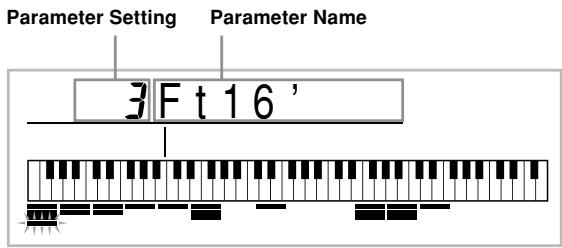

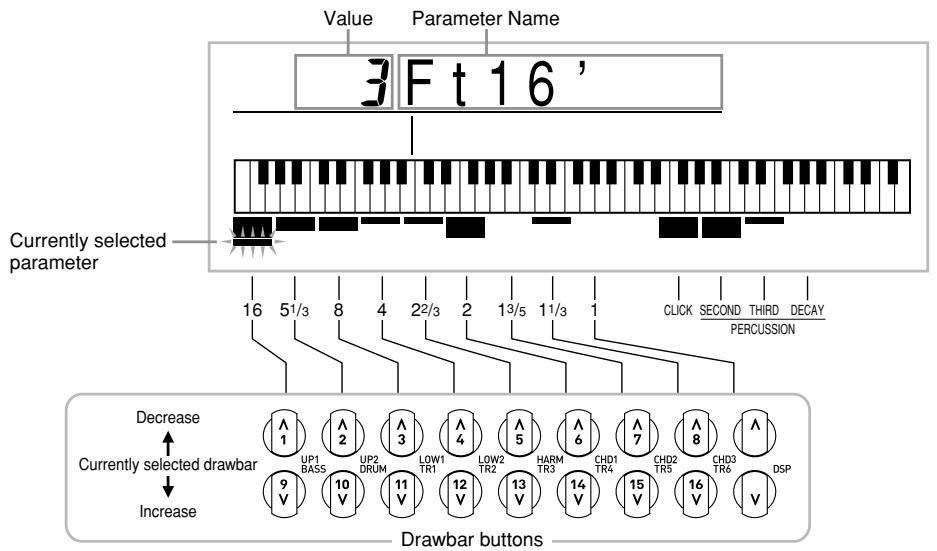

F— Number buttons FF 1/4 Parameter Setting Parameter Name + There are à total of 13 parameters. You can use the [X] and [>] CURSOR buttons to cycle through them See “Parameter Details” on page E-29 for more information. + While the “More?” screen is on the display, you can advance to the synthesizer and DSP effect editing screens by pressing the [Y] CURSOR button or the [+] button. @ use the [A] and [1 CURSOR buttons or the [+] and [-] buttons to change the setting of the currently displayed parameter. + You can also change a parameter setting by entering a value with the number buttons. + You can monitor the changes in a tone by playing notes on the keyboard as you adjust parameter settings. NOTE, + Selecting a different tone after you edit parameters replaces parameter settings with those of the newly selected tone. + If you have drawbar organ tones assigned to more than one channel, changing the drawbar organ setting for one of the channels causes the same setting to be applied to all of the other channels as well. + See “To save an edited drawbar organ tone” on page E- 30 for information about saving your edits. T3SA.E:090A

Editing Synthesizer Mode Parameters and DSP Parameters of Drawbar Tones As with standard (non-drawbar) tones, you can edit the Synthesizer Mode parameters and DSP parameters of drawbar organ tones. See “Drawbar Organ Mode Operational Flow” on page E-26. © Use the 1Q and 11 CURSOR buttons to display “More?", and then press the [W] CURSOR button. + This enters the Synthesizer Mode, which is indicated by the indicator next to SYNTH on the display screen. + For the remainder of this procedure, perform the steps starting from step 3 under “Creating a User Tone” on page E-54. Parameter Details The following provides details about the parameters you can configure using the drawbar organ tone editing screen rawbar Position This parameter defines the position of each drawbar, and the volume of each overtone. The larger the value, the greater the corresponding overtone’s volume. Parameter Name | Parameter Display Settings Indication Drawbar 16’ Ft16" 0to3 Drawbar 51/3 | Ft51/3' 0to3 Drawbar 8 Ft8' 0to3 Drawbar 4 Ft4 0to3 Drawbar 22/3 | Ft22/3 0to3 Drawbar 2 F2" 0to3 Drawbar 13/5 | Ft13/5° 0to3 Drawbar11/3 | Ft11/3 0to3 Drawbar 1 Ft 0to3 (Ft: Feet) The parameter determines whether or not a key click is added when a sustained tone configured using the drawbars is played. Parameter Display Parameter Name nd Indication Settings OFF ….Click Off Click Click on... Click On TISAE 0918 ”] | WK3000_e_26-37.p65 29 LE = BEBE Using the Drawbar Organ Mode This parameter lets you add percussion sound, which provides modulation to sustained tones that you create. When you hold down à key on the keyboard, the sound produced decays until it is no longer audible. Pressing the key again sounds the note again at a louder volume. Percussion has “And Percussion” (2nd overtone pitch) and “3rd Percussion” (rd overtone pitch) settings, each of which can be turned on or off. You can also specify the percussion decay time, which controls how long it takes for the percussion sound to decay. Parameter Display Parameter Name Dati Indication Settings OFF ….Click Off on. Click On OFF Off on....On 2nd Percussion | Second 3rd Percussion | Third Percussion Decay Time 000 to 127 Decay E-29

Display Contents in the Drawbar Organ Mode In the Drawbar Organ Mode, the current status of the drawbar positions, key click, and percussion parameters are indicated on the display’s bar graph as shown in the illustrations below. There is one line for each parameter, and the bottom segment of the selected parameter line flashes. The bottom segment of the bar graph column that represents the currently selected parameter flashes to indicate that it is selected None of the channel numbers (1 to 16) are displayed in the drawbar organ tone mode and editing mode. Drawbar Position Graph Setting Value [0 1 2 dipey | SES | ES | — of — On Click and Percussion On/Off Graph Setting Value | Off On Display Percussion Decay Time Graph Setting Value | 0-31 |] 32-63 | 6495 | 96127

To save an edited drawbar organ tone © Aire editing parameters, use the [4] and [B1 CURSOR buttons to display “More?”. @ res the [V1 CURSOR button three times to display the screen for inputting a tone name and assigning a tone number. @ use the 1+1 and 1-1 buttons to select a tone number. + You can select a tone number in the range of 100 to

14] After the tone name is the way you want, press the 11 CURSOR button to store the tone. + Use the [+] and [-] buttons to scroll through letters at the current cursor location. + Use the [4] and [à] CURSOR buttons to move the cursor left and right. + See the page E-108 for information about inputting text. © Aiter everything is the way you want, press the [W] CURSOR button to store the tone. + This will display a confirmation message asking whether you really want to save the data. Press the YES button to save the data.

• After the save operation is complete, the message “Complete” appears and then the display returns to the tone selection or rhythm selection screen. + To cancel save, press the EXIT button.

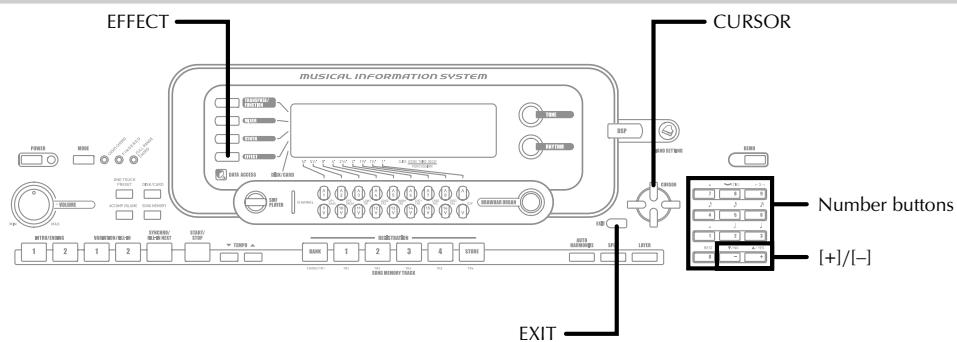

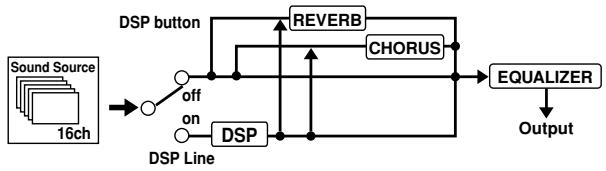

”] | WK3000_6 Applying Effects to Tones This keyboard provides you with a selection of effects that you can apply to tones. The built-in effects include a wide variety of variations that give you access to a selection of general digital effects. Effect Blocks The following shows how the effects of this keyboard are organized. DSP button {REVERS} [ {chorus} EQUALIZER TEch DSP Output Channel Buttons wl DSP DSP effects are applied to the connection between the sound source and output. You can select distortion and modulation effects. You can create DSP effect setups and also transfer downloaded DSP data from your computer. The keyboard has memory that lets you store up to 100 DSP effect setups. See “Using the Data Download Service” on page E-91 and “Saving the Settings of DSP Parameters” on page E-33 for more information. REVERB Reverb simulates the acoustics of specific types of environments. You can choose from among 16different reverb effects, including “Room” and “Hall”. CHORUS The chorus effect gives sound greater depth by causing it to vibrate. You can choose from among 16 different chorus effects, including “Chorus” and “Flanger”. EQUALIZER The equalizer is another type of effect that you can use to make adjustments in tone quality. Frequencies are divided among a number of bands, and raising and lowering the level of each frequency band alters the sound. You can reproduce the optimal acoustics for the type of music you are playing (classics, for example) by selecting the applicable equalizer setting. le the Effect Mode Screen is Displayed In the Effect Mode, the 18 buttons along the bottom of the display screen control the type and parameters of each effect, a shown in the illustration below. Efecttype Parameter1 Parameter3 Parameter 5 Parameter 7 Fraraure pra Fauré Paques Séstess Decrease Currently selected drawbar Increase @ © © © © © © OÙ on Da à

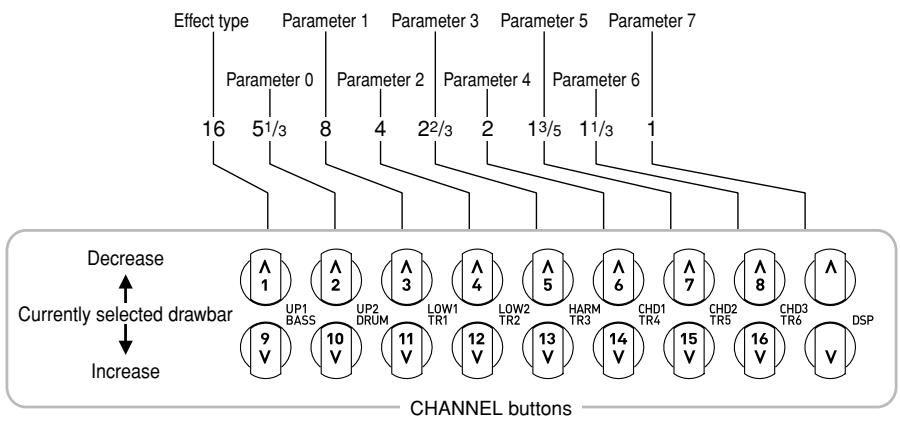

CHANNEL buttons NOTE. + Pressing the [A] and [w] CURSOR buttons at the same time returns the currently selected effect to its preset value.

”] | WK3000_6 | Applying Effects to Tones EFFECT r— CURSOR Selecting a DSP Type In addition to the 100 built-in effect types, you can also edit effect types to create your own and store them in user memory. You can have up to 100 effect types in user memory at one time. You can also select the DSP type of the last DSP enabled tone that you used. This means you always have access to the DSP type of Advanced Tones and tones you download over the Internet To select the DSP type of the last DSP enabled tone that you used, select “ton” in step 3 of the procedure below. Perform the following steps to select a DSP type. PREPARATION + When using a DSP effect, you should use the Mixer to confirm that the DSP lines of the required parts are turned on. See “Mixer Function” on page E-47 for more information. © press the EFFECT button so the pointer appears next to EFFECT on the display, @ press the 1#1 CURSOR button. + The DSP type setting screen will appear automatically about fives seconds after you press the button. @ use the 1+1 and [-1 buttons or number buttons to select the type of DSP you want. + See the “Effect List” on page A-17 for information about the DSP types that can be selected. + Here you could also change the parameters of the effect you selected, if you want. See “Changing the Settings of DSP Parameters” for more information. NOTE, +_ The DSP type display area shows the DSP number (000 to 199), or “ton” (user tone created using DSP). E-32

F— Number buttons FF 1/4 EXIT — Changing the Settings of DS Parameters You can control the relative strength of a DSP and how it is applied. See the following section titled “DSP Parameters” for more information. ÔO After selecting the DSP type you want, use the [4] and [] CURSOR buttons to display the parameter whose setting you want to change. + This displays the parameter setting screen. @ use the 1+1 and 1-1 buttons or the number buttons to make the parameter setting you want. + Pressing the [+] and [-] buttons at the same time returns the parameter to its recommended setting. © press the EFFECT or EXIT button. + This exits the tone or rhythm setting screen. TISALE:094A

”] | WK3000_6 Applying Effects to Tones . NOTE. DSP Parameters The following describes the parameters for each DSP. DSP M Parameter 0 to 7 These parameters differ in accordance with the algorithm* of the selected DSP type. See the “Effect List” on page A- 17 and the “DSP Algorithm List” on page A-19 for more information.

• Effector structure and operation type Æ DSP Reverb Send (Range: 000 to 127) Specifies how much of the post-DSP sound should be sent to reverb. Æ DSP Chorus Send (Range: 000 to 127) Specifies how much of the post-DSP sound should be sent to chorus. + Whether or not an effect is applied to the parts that are sounding also depends on Mixer Mode Reverb Send, Chorus Send, and DSP on/off settings. See “Mixer Function” on page E-47 for more information. Playing a demo tune (page E-12) automatically changes the effect to the one that is assigned to the tune. You cannot change or cancel a demo tune effect. Changing the effect setting while sound is being output by the keyboard causes a slight break in the sound when the effect changes. + À number of tones, called “Advanced Tones”, automatically turn on the DSP line for richer, higher quality sound. If you assign an Advanced Tone to a keyboard part (Channels { through 4), the DSP line turns on automatically and the DSP selection changes in accordance with the settings ofthe Advanced Tone. Also, the Mixer Mode DSP line on/off setting for the keyboard part to which the Advanced Tone is assigned is turned on.*

• The Mixer DSP line setting is automatically turned off for each part that does not have an Advanced Tone assigned. Because of this, DSP effects previously applied to these parts are cancelled, which can make their tone sound different. In this case, display the Mixer screen and turn DSP back on. TISA.E. 0958

NOTE. Saving the Settings of rameters You can save up to 100 modified DSPs in the user area for later recall when you need them. + User DSP areas 100 through 199 initially contain the same data as DSP types 000 through 099. 14] After everything is the way you want, press the ÔO After making the DSP parameter settings you want, press the [W] CURSOR button. + This causes the DSP number of the user area where the DSP will be saved to flash on the display. @ use the 1+1 and 1-1 buttons to select the user DSP area number where you want to save the new DSP. + You can select a user DSP area number in the range of 100 to 199 only. @ Airer the user DSP area number you want is selected, press the [1] CURSOR button + Use the [+] and [-] buttons to scroll through letters at the current cursor location. + Use the [4] and [à] CURSOR buttons to move the cursor left and right. + See the page E-103 for information about inputting text. CURSOR button to store the effect. + This will display a confirmation message asking whether you really want to save the data. Press the YES button to save the data. + The message “Complete” appears momentarily on the display, followed by the tone or rhythm selection screen. E-33

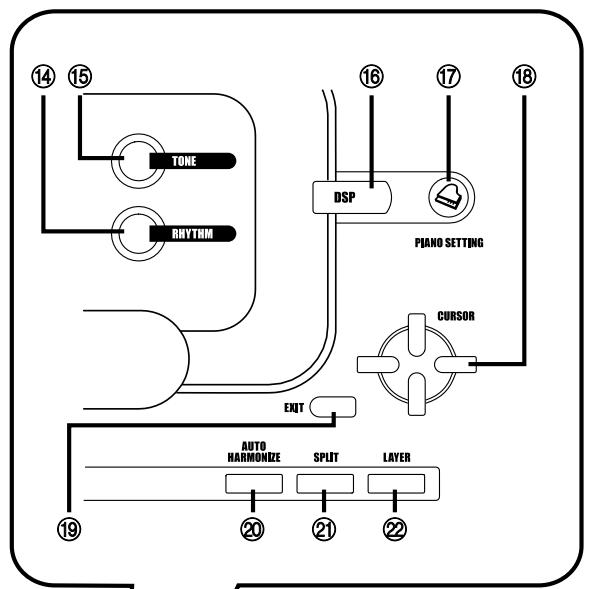

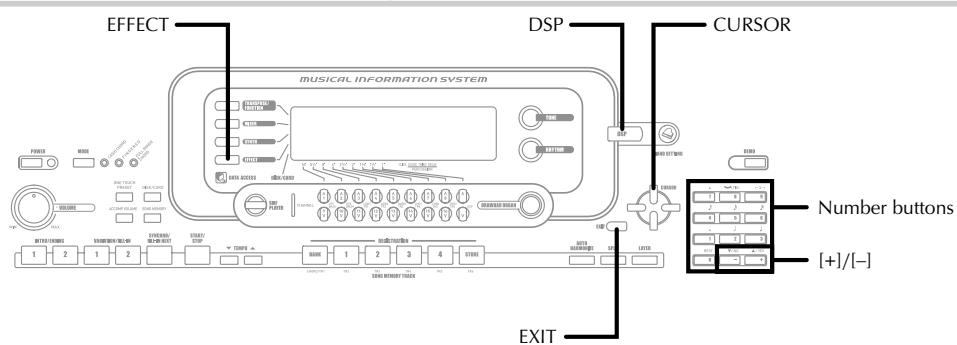

| Applying Effects to Tones EFFECT DSP CURSOR About the DSP Button Checking the DSP button will tell you whether or not DSP is enabled for the tone that is currently selected for a part. The DSP button will be lit for a tone that is DSP enabled (DSP line ON), and unlit for a tone that is DSP disabled (DSP line OFF). For example, when you move each part while using the split/layer function, the DSP button lights or goes out in accordance with that parts setting. Pressing the DSP button toggles the tone of the part you are currently playing on the keyboard between enabled (DSP line ON) and disabled (DSP line OFF). o turn DSP line o: d off © press the DSP button to toggle DSP line for the currently selected part on and off.

F— Number buttons FF 1/4 EXIT — Selecting REVERB Perform the following steps to select REVERB. © press the EFFECT button, so the pointer appears next to EFFECT on the display screen CIS — cum ” { am” Pointer @ rress the 1#]1 CURSOR button once. + This displays the reverb editing screen. @ press the 1#1 CURSOR button. «The reverb type setting screen will appear automatically about fives seconds after you press the button. @ Use the 1+1 and 1-1 buttons or the number buttons to scroll through the reverb types until the one you want is displayed, or use the number buttons to input the reverb number you want to select. + See the list on page A-17 for information about the types of REVERB effects that are available. + Here you could also change the parameters of the effect you selected, if you want. See “Changing the Settings of REVERB Parameters” for more information. TSSA.E.0968

• This returns to the tone or rhythm selection screen. T3SA.E097A

REVERB Parameters Reverb effects are associated with either a reverb type or delay type. Parameter settings depend upon the associated type. Reverb Type (No. 0 to 5, 8 to 13) M Reverb Level (Range: 000 to 127) Controls the reverb size. A larger number produces larger reverb. æ Reverb Time (Range: 000 to 127) Controls how long reverb continues. A larger number produces longer reverb. M ER Level (Initial Echo Sound) (Range: 000 to 127) This parameter controls the initial reverb volume. The initial echo sound is the first sound reflected from the walls and ceiling when a sound is output by this keyboard. A larger value specifies a larger echo sound. M High Damp (Range: 000 to 127) Adjusts the damping of high frequency reverberation (high sound). A smaller value damps high sounds, creating a dark reverb. A larger value does not damp high sounds, for a brighter reverb. Delay Type (No. 6, 7, 14, 15) M Delay Level (Range: 000 to 127) Specifies the size of the delay sound. À higher value produces a larger delay sound. M Delay Feedback (Range: 000 to 127) Adjusts delay repeat. À higher value produces a greater number of repeats. M ER Level Same as Reverb Type Æ High Damp Same as Reverb Type NOTE, + Whether or not an effect is applied to the parts that are sounding also depends on Mixer Mode Reverb Send, Chorus Send, and DSP on/off settings. See “Mixer Function” on page E-47 for more information. E-35

”] | WK3000_6 | Applying Effects to Tones EFFECT r— CURSOR Selecting CHORUS Perform the following steps to select CHORUS. © press the EFFECT button, so the pointer appears next to EFFECT on the display screen @ rress the 1Y] CURSOR button twice. + This displays the chorus editing screen. @ press the 1#1 CURSOR button. «The chorus type setting screen will appear automatically about fives seconds after you press the button. @ Use the 1+1 and 1-1 buttons or the number buttons to scroll through the chorus types until the one you want is displayed, or use the number buttons to input the chorus number you want to select. + See the list on page A-17 for information about the types of CHORUS effects that are available. + Here you could also change the parameters of the effect you selected, if you want. See “Changing the Settings of CHORUS Parameters” for more information. E-36

• This returns to the tone or rhythm selection screen. CHORUS Parameters Æ Chorus Level (Range: 000 to 127) Specifies the size of the chorus sound. Æ Chorus Rate (Range: 000 to 127) Specifies the undulation speed of the chorus sound. A higher value produces faster undulation. Æ Chorus Depth (Range: 000 to 127) Specifies the undulation depth of the chorus sound. A higher value produces deeper undulation. NOTE. + Whether or not an effect is applied to the parts that are sounding also depends on Mixer Mode Reverb Send, Chorus Send, and DSP on/off settings. See “Mixer Function” on page E-47 for more information.

Applying Effects to Tones . Using the Equalizer This keyboard has a built-in four-band equalizer and 10 different settings from which you can choose. You can adjust the gain (volume) of all four equalizer bands within the range of -12 to 0 to +12. o select the equalizer type © press the EFFECT button, so the pointer appears next to EFFECT on the display screen @ rress the 1Y] CURSOR button three times + This displays the equalizer editing screen. @ press the 1#1 CURSOR button. + The equalizer type setting screen will appear automatically about fives seconds after you press the button. @ Use the 1+1 and 1-1 buttons or the number buttons to select the equalizer type you want. + See the list on page A-17 for information about the equalizer types that are available Example: To select Jazz BJazz + Pressing the EXIT or EFFECT button exits the equalizer setting screen. T3SA.E.099A ”] | WK3000_e_26-37.p65 37 To adjust the gain (volume) of a band ÔO After selecting the equalizer type you want, use the [] and [1] CURSOR buttons to select the band whose gain you want to adjust Example: To adjust the HIGH band S8MEa High @ use the 1+1 and 1-1 buttons or the number buttons to adjust the band gain. Example: To adjust the gain to 10 IIÛMEa High + Pressing the EXIT or EFFECT button exits the equalizer setting screen. NOTE, + Changing to another equalizer type causes the band gain settings to change to the initial settings for the newly selected equalizer type automatically. E-37

This keyboard automatically plays bass and chord parts in About the MODE Button accordance with the chords you finger. The bass and chord parts are played using sounds and tones that are Use the MODE button to select the accompaniment mode you automatically selected to select the rhythm you are using. want to use. Each press of the MODE button cycles through AI of this means that you get full, realistic accompaniments the available accompaniment modes as shown in the for the melody notes you play with your right hand, creating illustration below. the mood of a one-person ensemble. + Only rhythm sounds are produced when all accompaniment mode lamps are off. + The currently selected accompaniment mode is shown by the mode lamps above the MODE button. Information on using each of these modes starts from page E-40. E-38 TaSA.E 0408 38 04.3.26, 0:10 PM | [

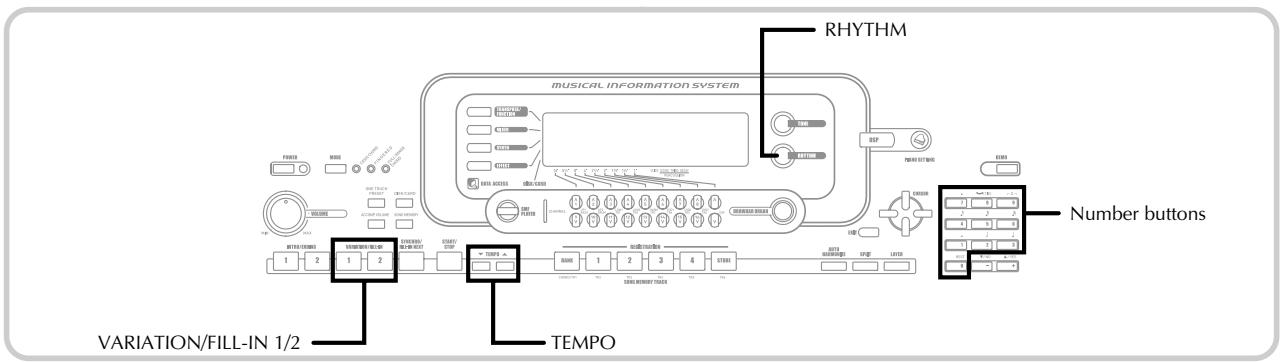

”] | WK3000_6 Auto Accompaniment . Selecting a Rhythm This keyboard provides you with 140 exciting rhythms that you can select using the following procedure. You can also transfer accompaniment data from your computer and store up to 16 of them as user rhythms in keyboard memory. See “Using the Data Download Service” on page E-91 for more information. NOTE. + Initially, nothing is stored in the user rhythm memory area. select a rhythm © sind the rhythm you want to use in the rhythm list and note its rhythm number. @ press the RHYTHM button + Not all of the available rhythms are shown on the rhythm list printed on the keyboard console. For a complete list, see the “Rhythm List” on page A-14. Number and name of selected rhythm

[ou 8Beat 1 Appears when RHYTHM button is pressed RHYTHM| © Use the number buttons to input the three digit rhythm number for the rhythm you want to select Example: To select “041 ROCK 2”, input 0, 4 and then 1. wmÿ4 {ROCK 2 NOTE. + You can also increment the displayed rhythm number by pressing [+] and decrement it by pressing [-]. TISAE041A 38-46.p65 æ Playing a Rhythm © press VARIATION/FILL-IN button 1 or 2. + This starts the play of the selected rhythm. + To stop rhythm play, press the START/STOP button. NOTE. + Chords will sound along with the rhythm if any of the three accompaniment mode lamps above the MODE button is lit. If you want to play the rhythm pattern without chords, press the MODE button until all of the lamps are of. Adjusting the Tempo You can adjust the tempo of rhythm play within a range of 30 to 255 beats per minute. The tempo setting is used for Auto Accompaniment chord play, and song memory operations. adjust the tempo © press one of the TEMPO buttons (A or W) A : Increments displayed value (increases tempo) Y : Decrements displayed value (decreases tempo) Ë TEMPO= {14 NOTE. + Pressing both TEMPO buttons (A and Y) at the same time resets the tempo to the default value of the currently selected rhythm. E-39

Using Auto Accompaniment CASIO CHORD The following procedure describes how to use the keyboard’s This method of chord play makes it possible for anyone to Auto Accompaniment feature. Before starting, you should easily play chords, regardless of previous musical knowledge first select the rhythm you want to use and set the tempo of and experience. The following describes the CASIO CHORD the rhythm to the value you want. “accompaniment keyboard” and “melody keyboard”, and tells you how to play CASIO CHORDSs. use Auto Accompanimen CASIO CHORD Accompaniment Keyboard and Melody Keyboard © ue the MODE button to select CASIO CHORD, } . FINGERED, or FULL RANGE CHORD as the keyboard — Melody keyboard —— 4 accompaniment mode. & + The current selected accompaniment mode is the Î LIU Il] Il Il I {UL NTI IL one whose lamp is lit. See “About the MODE Button” on page E-38 for details. @ res the START/STOP button to start play of the NOTE. currently selected rhythm. + The accompaniment keyboard can be used for playing chords only. No sound will be produced if you try playing @ r: 2 cord. single melody notes on the accompaniment keyboard. + The actual procedure you should use to play a chord depends on the currently selected accompaniment mode. Refer to the following pages for details on chord play. CASIO CHORD. FINGERED

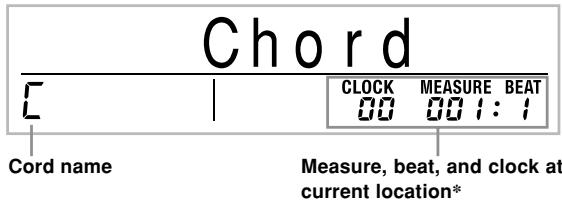

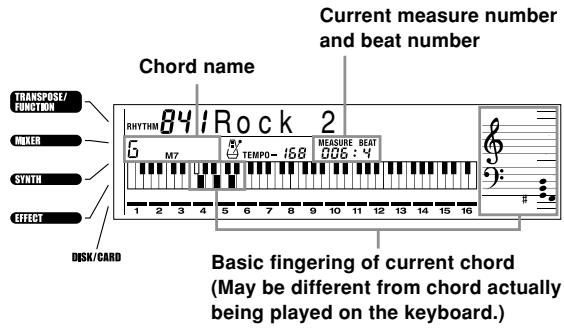

Current measure number and beat number Chord name jar 8 4

arms Basic fingering of current chord {May be different from chord actually being played on the keyboard.) © 5 stop Auto Accompaniment play, press the START/ STOP button again E-40 TASAE-042 ”] | WK3000_6 38-46.p65 40 04.3.26, 0:10 PM

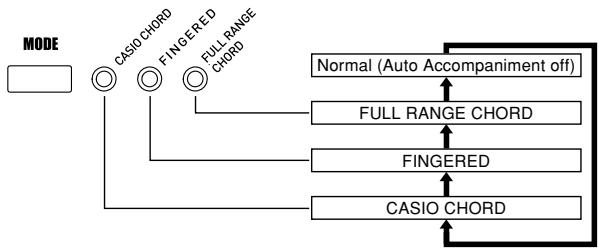

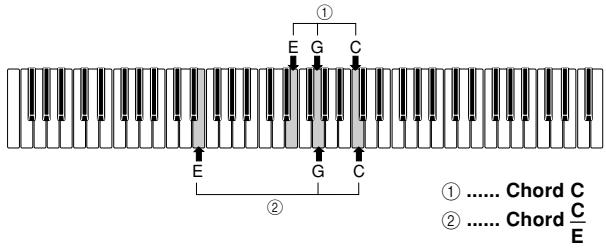

Chord Types CASIO CHORD accompaniment lets you play four types of chords with minimal fingering. Chord Types Example Major chords Major chord names are marked above the keys of the accompaniment keyboard. Note that the chord produced when you press an accompaniment keyboard does not change octave, regardless of which key you use to play it. C Major (C) Minor chords (m) C minor (Cm) To play a minor chord, keep the major chord key depressed | 2er = and press any other accompaniment keyboard key Auto Accompaniment FINGERED provides you with a total of 15 different chord types. The following describes the FINGERED ‘’accompaniment keyboard” and “melody keyboard”, and tells you how to play a C-root chord using FINGERED. FINGERED Accompaniment Keyboard and Melody Keyboard Accompaniment CL LT NOTE. + The accompaniment keyboard can be used for playing chords only. No sound will be produced if you try playing single melody notes on the accompaniment keyboard. located to the right of the major chord key. Seventh chords (7) To play a seventh chord, keep the major chord key depressed and press any other two accompaniment keyboard keys | located to the right of the major chord key. C seventh (C7) Minor seventh chords (m7) To play a minor seventh chord, keep the major chord key depressed and press any other three accompaniment keyboard keys located to the right of the major chord key. C minor seventh (Cm?) NOTE. + Itmakes no difference whether you press black or white keys to the right of a major chord key when playing minor and seventh chords

”] | WK3000_e_38-46.p65 a Nu HUE A VE COLOR TOR See the “Fingered Chord Chart” on page A-15 for details on playing chords with other roots #1: Inverted fingerings cannot be used. The lowest note is the root. #2: The same chord can be played without pressing the 5th G. E-41

”] | WK3000_6 | Auto Accompaniment NOTE, + Except for the chords specified in note*'above, inverted fingerings (ie. playing E-G-C or G-C-E instead of C-E- G) will produce the same chords as the standard fingering. + Except for the exception specified in note*? above, all of the keys that make up a chord must be pressed. Failure to press even a single key will not play the desired FINGERED chord.

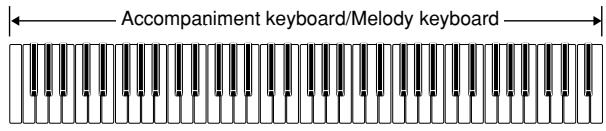

This accompaniment method provides a total of 38 different chord types: the 15 chord types available with FINGERED plus 23 additional types. The keyboard interprets any input of three or more keys that matches a FULL RANGE CHORD pattern to be a chord. Any other input (that is not à FULL RANGE CHORD pattern) is interpreted as melody play. Because of this, there is no need for a separate accompaniment keyboard, so the entire keyboard, from end to end, functions as a melody keyboard that can be used for both melody and chords. FULL RANGE CHORD Accompaniment Keyboard and Melody Keyboard k— Accompaaiment keyboard/Melody Keyboard —+

E-42 38-46.p65 4 Chords Recognized by This Keyboard The following table identifies patterns that are recognized as chords by FULL RANGE CHORD. Pattern Type Number of Variations The 15 chord patterns shown under FINGERED on page E-41. FINGERED See the “Fingered Chord Chart” on page A-15 for details on playing chords with other roots. 23 standard chord fingerings. The following are examples of the 23 chords available with C as the bass note. Standard Cs +Cms + Css Fingerings d D E F G À & C'C'C'C'C'C'C B_,Cîm Dm, Fm ,Gm, Am, Bm c'c'c'c'c'c'c Dmrs, A7 , Fr ,Fmv,Gmr, A“ c'c'c'C'C' ce Example: To play the chord € major. Any of the fingerings shown in the illustration below will WTLL D. Chord C Chord ©

+ As with the FINGERED mode (page E-41), you can play the notes that form a chord in any combination (©). + When the lowest note of a chord is separated from its neighboring note by six or more semitones, the lowest note becomes the bass note (2).

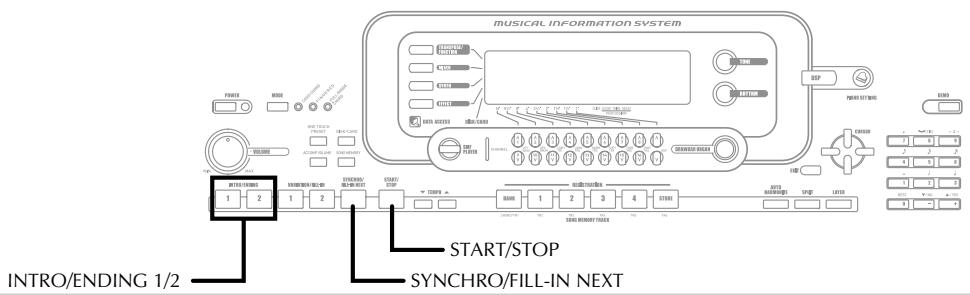

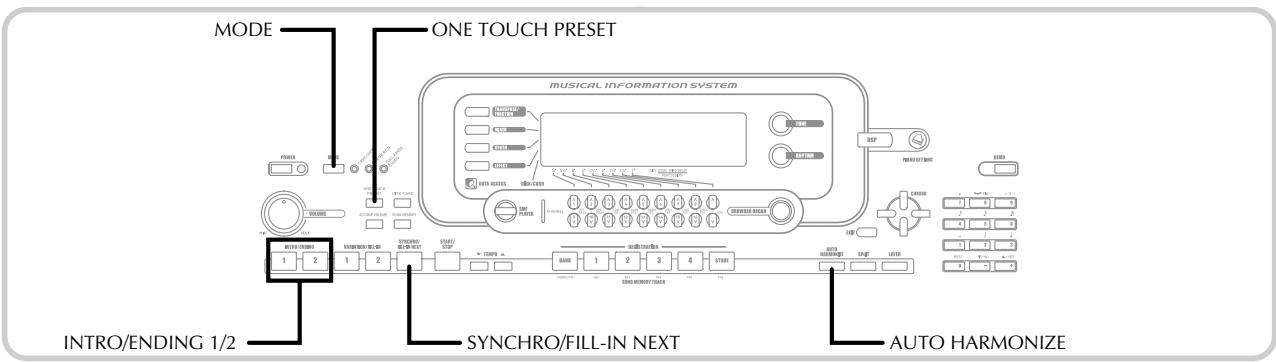

”] | WK3000_6 INTRO/ENDING 1/2 Using an Intro Pattern This keyboard lets you insert a short intro into a rhythm pattern to make startup smoother and more natural. The following procedure describes how to use the Intro feature. Before starting, you should first select the rhythm you want to use, set the tempo, and use the MODE button to select the chord play method you want to use (Normal, CASIO CHORD, FINGERED, FULL RANGE CHORD). ©® rress INTRO/ENDING button 1 or 2. + With the above setup, the intro pattern is played and the auto accompaniment with intro pattern starts as soon as you play chords on the accompaniment keyboard. NOTE, +_ The standard rhythm pattern starts to play after the intro patte is complete. Using a Fill-in Pattern Fill-in patterns let you momentarily change the rhythm pattern to add some interesting variation to your performances. The following procedure describes how to use the Fill-in feature. TISA.E0458

To insert a fill-in © press the START/STOP button to start rhythm play. @ sciect the fill-in variation you want. + To insert Fill-in 1, press the VARIATION /FILL-IN 1 button while Variation 1 of the rhythm is playing. + To insert Fill-in 2, press the VARIATION/FILL-IN 2 button while Variation 2 of the rhythm is playing. NOTE, + Onlythe SYNCHRO/FILL-IN NEXT button is operational while an intro is playing. + Holding down the SYNCHRO/FILL-IN NEXT or VARIATION/FILL-IN 1/2 buttons causes the fill-in pattern to repeat. Using a Rhythm Variation In addition to the standard rhythm pattern, you can also switch to a secondary “variation” rhythm pattern for a bit of variety To insert the variation rhythm pattern © press the START/STOP button to start rhythm play. @ press the SYNCHRO/FILL-IN NEXT button + Ifa Variation 1 rhythmiis currently playing, this plays Hillin 1, followed by Fill-in 2, and then switches to the Variation 2 rhythm. + Ifa Variation 2 rhythmiis currently playing, this plays Fillin 2, followed by Fill-in 1, and then switches to the Variation 1 rhythm. + Holding down the SYNCHRO/FILL-IN NEXT button causes the fill-in pattern to repeat. E-43

INTRO/ENDING 1/2 Synchro Starting Accompaniment with Rhythm Play You can set up the keyboard to start rhythm play at the same time you play the accompaniment on the keyboard. The following procedure describes how to use synchro start. Before starting, you should first select the rhythm you want to use, set the tempo, and use the MODE button to select the chord play method you want to use (Normal, CASIO CHORD, FINGERED, FULL RANGE CHORD). use S ro st: © rress the SYNCHRO/FILL-IN NEXT button to put the keyboard into synchro start standby. Weuvo- 120 @ ra chord and the rhythm pattern starts to play automatically. NOTE. + Ifthe MODE button is set to Normal, only the rhythm plays (without a chord) when you play on the accompaniment keyboard. + If you press the INTRO/ENDING button 1 or 2 before playing anything on the keyboard, the rhythm starts automatically with an intro pattern when you play something on the accompaniment keyboard. + To cancel synchro start standby, press the SYNCHRO/ FILL-IN NEXT button one more time. E-44

nn ess A us NEXT AUTO HARMONIZE Finishing with an Ending Pattern You can end your performances with an ending pattern that brings the rhythm pattern you are using to a natural-sounding conclusion. The following procedure describes how to insert an ending pattern. Note that the actual ending pattern played depends on the rhythm pattern you are using. finish with an ending pattern © white the rhythm is playing, press INTRO/ENDING button 1 or 2. + The timing when the ending pattern starts depends on when you press the INTRO/ENDING button 1 or

2. If you press the button before the second beat of

the current measure, the ending pattern starts playing immediately. NOTE, + Pressing the INTRO/ENDING button prior to the first half beat at the beginning of a measure plays the ending immediately. Pressing the button after the first half beat of a measure causes the ending to be played from the beginning of the following measure. TISA.E:0468

”] | WK3000_6 Auto Accompaniment . Using One-touch Preset One-touch preset automatically makes the main settings listed below in accordance with the rhythm pattern you are using. + Keyboard tone + Layer on/off + Spliton/off + Auto Harmonize on/off + Auto Harmonize type + Accompaniment volume level + Tempo + Effect settings use one-touch preset Ô Select the rhythm you want to use. 2] Use the MODE button to select the accompaniment mode you want to use @ rress the ONE TOUCH PRESET button. + This automatically makes the one-touch preset settings in accordance with the rhythm you selected. + The keyboard automatically enters synchro standby at this time. [4] Start rhythm and Auto Accompaniment, and play something on the keyboard. + Accompaniment is played using the one-touch preset settings. TSSA.E:0478

Using Auto Harmonize When you are using Auto Accompaniment, Auto Harmonize automatically adds additional notes to your melody in accordance with the chord that is being played. The result is a harmony effect that makes your melody line richer and fuller. use Auto Harmonize © Use the MODE button to select FINGERED or CASIO CHORD as the accompaniment mode + The currently selected accompaniment mode is the one whose lamp is lit. See ” About the MODE Button” on page E-38 for details. 6 6 6° @ rress AUTO HARMONIZE button to turn on Auto Harmonize. + This causes the AUTO HARMONTIZE indicator to appear on the display. AUTO HARMONIZE &— © Start Auto Accompaniment play, and play something on the keyboard. @ © turn off Auto Harmonize, press AUTO HARMONIZE button once. + This causes the AUTO HARMONIZE indicator to disappear. NOTE, + Auto Harmonize turns off temporarily whenever you start demo tune play. Itturns back on as soon as the operation or function that caused it to turn off is finished. + Auto Harmonize is enabled only when the Auto Accompaniment mode is FINGERED or CASIO CHORD. E-45

”] | WK3000_6 | Auto Accompaniment ACCOMP VOLUME Auto Harmonize Types Auto Harmonize lets you select from among the 10 Auto Harmonize types. Type changing is performed by the setting item using the TRANSPOSE/FUNCTION button. See “Changing Other Settings” on page E-79 for more information. About Auto Harmonize notes and tones The notes you play on the keyboard are called “melody notes”, while the notes added to the melody by Auto Harmonize is called the “harmonize notes”. Auto Harmonize normally uses the tone you selected for the melody notes as the tone for the harmonize notes, but you can use the Mixer (page E-47) to specify a different tone for the harmonize notes. The harmonize note tone is assigned to Mixer Channel 5, so change Channel 5 to the tone you want to use for the harmonize notes. In addition to the tone, you can also use the Mixer to change à number of other parameters, such as volume balance. See “Using the Parameter Edit Mode” on page E-48 for details on these procedures. NOTE. + The default harmonize note tone when you first turn on Auto Harmonize is the same tone as the melody note tone. + Changing the melody tone setting automatically changes the harmonize note tone to the same setting. E-46

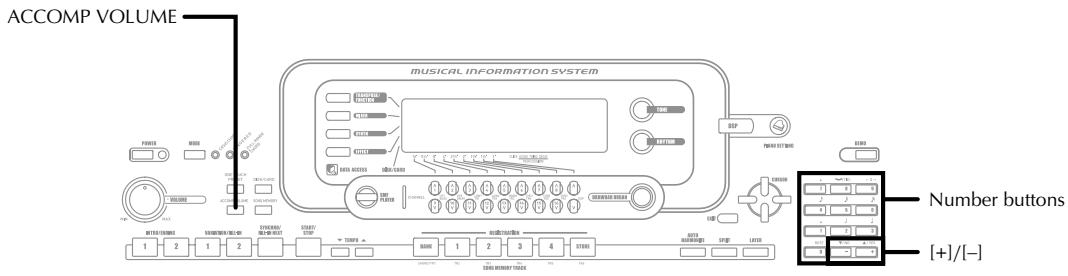

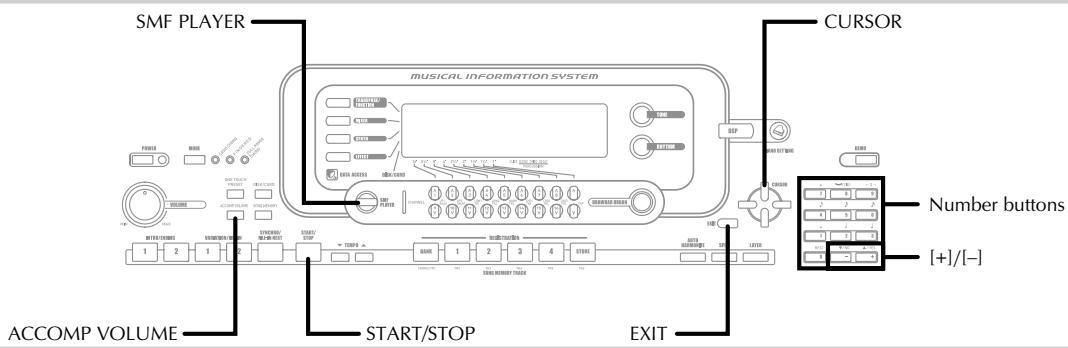

F— Number buttons - H/H Adjusting the Accompaniment Volume You can adjust the volume of the accompaniment parts as a value in the range of 000 (minimum) to 127 (maximum). © press the ACCOMP VOLUME button. Current accompaniment volume setting

{8 AcompVol 2] Use the number buttons or the [+]/[-] buttons to change the current volume setting value. Example: 110 tiuAcomPpVol NOTE. + Pressing the ACCOMP VOLUME button or EXIT button returns to the tone or rhythm setting screen. + Any channel balance settings you make with the Mixer are maintained when you change the accompaniment volume setting. + Pressing [+] and [-] buttons at the same time automatically sets an accompaniment volume of 100.

Mixer Function What you can do with the Mixer This keyboard lets you play multiple different musical instrument parts at the same time during auto- accompaniment play, song memory playback, receipt of data through the MIDI terminal, etc. The Mixer assigns each part to a separate channel (1 through 16) and lets you control the channel on/off, volume, and pan pot parameters of each channel. In addition to channels 1 through 16, the Mixer also has a DSP channel that you can use to adjust the DSP level, DSP pan, and other DSP parameters. Channel Assignments The following shows the parts that are assigned to each of the 16 channels. See page E-74 and E-75 for information on layered, split, and layered/split tones. See page E-61 for information on the song memory. NOTE. + Normally, keyboard play is assigned to Channel 1. When Auto Accompaniment is being used, each part of the accompaniment is assigned to Channels 6 through 10. + When this keyboard is being used as the sound source for an externally connected computer or other MIDI device, all 16 channels are assigned musical instrument parts. The notes played over the channel selected by operation under “Turning Channels On and Off” below are shown on the displayed keyboard and staff. Turning Channels On and Off Press the CHANNEL buttons to toggle individual channels on and off. Indicators on the display show the current on/off status of each channel.

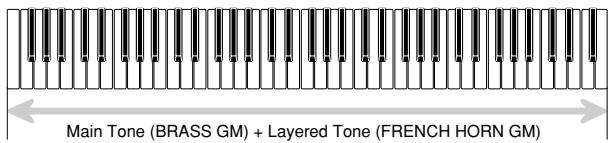

Channel _ Number Channel 1_| Main tone (UPI) Channel2 | Layered tone (UP2) Channel3_| Split tone (LOWI) Channel4_| Layered/split tone (LOW2) Channel5_ | Harmonize Tone (HARM) Channel6_ | Auto Accompaniment chord part 1 (CHD1) Channel7_ | Auto Accompaniment chord part 2 (CHD2) Channel8 | Auto Accompaniment chord part 3 (CHD3) Channel9 | Auto Accompaniment bass part (BASS) Channel 10 | Auto Accompaniment rhythm part (DRUM) Channel 11 | Song Memory track 1 (TRI) Channel 12 | Song Memory track 2 (TR2) Channel 13 | Song Memory track 3 (TR3) Channel 14 | Song Memory track 4 (TR4) Channel 15 | Song Memory track 5 (TRS) Channel 16 | Song Memory track 6 (TR6) NOTE. + Inthis manual, “Channel Number” matches the channel numbers marked on the keyboard above the CHANNEL buttons. + The CHANNEL button name in the above table corresponds to the text marked on the keyboard below the CHANNEL buttons. TISA.E.0498 WK3100_6 47 Channel on Channel off + Each press of a CHANNEL button toggles the applicable channel on and off. + The on/off status of each channel determines the on/off status of the corresponding part for keyboard play, Auto Accompaniment, and Song Memory playback. + Changing to a different rhythm causes Mixer Settings for channel 6 through channel 10 to change to the default settings assigned to the new rhythm. These settings also change to the defaults for the currently selected rhythm pattern whenever you switch between the Intro, Normal, Variation, Fill-in, and Ending patterns. E-47

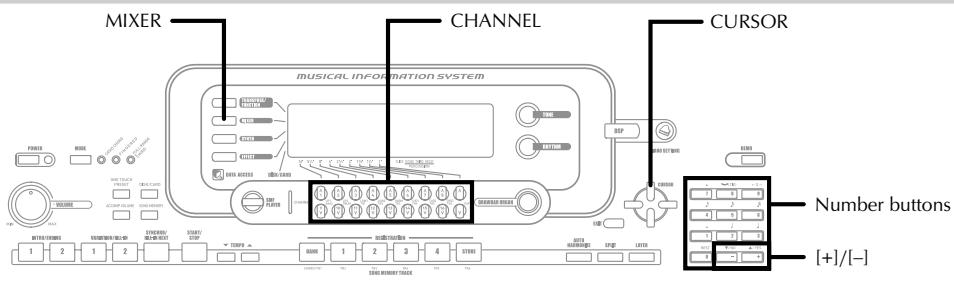

MIXER CHANNEL r— CURSOR Using the Parameter Edit Mode Editing the Parameters for Channels 1 through 16 In the Parameter Edit Mode, you can change the settings of ten different parameters (including tone, volume, and pan pot) for the channel you selected on the Mixer screen. To change parameters & © press the MIXER button. Ÿ + This causes a pointer to appear on the display next to MIXER. @ press à CHANNEL button (1 through 16) to select a channel. + Use the [4] and [à] CURSOR buttons to change between channels. @ use 141 and [Y] CURSOR buttons to select the parameter whose setting you want to change. Example: Select volume setting by displaying “Volume”. + Each press of [A] or [W] CURSOR button cycles through the parameters. + You can use the [4] and [à] CURSOR buttons to change to another channel at any time during this procedure. Indicates channel volume of 127

F— Number buttons - H/H © Use the number buttons or [+1 and [-] to change the parameter setting. Example: Change the setting to “060”. 868 Vo lume + Pressing the MIXER or EXIT button exits the parameter edit mode. Editing DSP nnel Parameters © press the CHANNEL (DSP) button + You can also select the DSP channel by pressing the D] CURSOR button while Channel 16 is selected. + This selects the DSP channel. + Pressing the [4] CURSOR button while the DSP channel is selected returns to Channel 16. T3SA.E:0508

”] | WK3100_6 Mixer Function . How Parameters Work The following are the parameters whose settings can be changed in the Parameter Edit Mode. ne Parameter: m Tone (Range: 000 to 803, Drawbar organ tones 000 to 199) This parameter controls the tones assigned to each part. Anytime the tone is on the display, you can use the TONE button or DRAWBAR ORGAN button and then select a different tone, if you want. G88GrandPno M Part On/Off (Settings: on, oFF) This parameter can be used to turn each part on (sounds) and off (does not sound). The current on/off status of each part is indicated on the display as described below. on Channel M Volume (Range: 000 to 127) This is the parameter that controls the volume of the selected channel. I1Volume M Pan Pot (Range: -64 to 00 to +63) This parameter controls the pan pot, which is the center point of the left and right stereo channels. Setting “00” specifies center, a value less than “00” moves the point left, and a value greater than “00” moves it right. B3Pan TISAE SIA

M Octave Shift (Range: -2 to O to +2) You can use octave shift to shift the range of the tone up or down. When using the piccolo tone, there may be cases when very high notes you want to play are notincluded within the range ofthe keyboard. When this happens, you can use octave shift to shift the keyboard range one octave up. uOctShift -2: Range shifted two octaves down. -1: Range shifted one octave down. 0: No shift +1 : Range shifted one octave up. +2: Range shifted two octaves up. Tuning Parameters You can use these parameters to tune each of the parts individually. M Coarse Tune (Range: -24 to 00 to +24) This parameter controls the coarse tuning of the selected channel's pitch in semitone units. £&C.Tune M Fine Tune (Range: -99 to 00 to +99) This parameter controls the fine tuning of the selected channel's pitch in cent units. GÿFineTune E-49

”] | WK3100_6 | Mixer Function Effect Parameters The Mixer lets you control the effects applied to each individual part, making it different from the Effect Mode, whose settings are applied to all parts in general. æ Reverb Send (Range: 000 to 127) This parameter controls how much reverb is applied to a part. A setting of “000” turns reverb off, while a setting of 127 applies maximum reverb. + ‘Reverb Send” does not work with some drum sounds. E56Rvb Send Æ Chorus Send (Range: 000 to 127) This parameter controls how much chorus send is applied to à part. A setting “000” turns chorus send off, while a setting of 127 applies maximum chorus send. + “Chorus Send” does not work with drum sounds. £85Cho Send æ DSP Line (Settings: on, oFF) You can use this parameter to turn DSP line off for a particular channel, or to turn it on. afFDSP Line SP Part Parameters æ DSP Level (Range: 0 to 127) Sets the post-DSP volume. 21DSPLevel M DSP Pan (Range: -64 to 0 to 63) Sets the post-DSP stereo pan. G5ÿDSPPan E-50 47-58.p85 50 M DSP System Reverb Send (Range: 000 to 127) This parameter adjusts how much reverb is applied to all duo D.RvbSnd Æ DSP System Chorus Send (Range: 000 to 127) This parameter adjusts chorus. Gÿ8D.ChoSnd NOTE, + Changing the tone, volume, pan pot, coarse tune, fine tune, reverb send, or chorus send setting causes the corresponding MIDI message to be output from the MIDI terminal. Changing the tone settings changes the tone, octave shift, reverb send, chorus send, and DSP line* parameter settings.

• When DSP is off (See the note on page E-82). Turing on the Mixer's DSP Line parameter (on this page) causes the settings of the DSP Pan, DSP System Reverb Send, and DSP System Chorus parameters to be used in place of the Pan Pot, Reverb Send, and Chorus Send parameters. TISA.E.0628

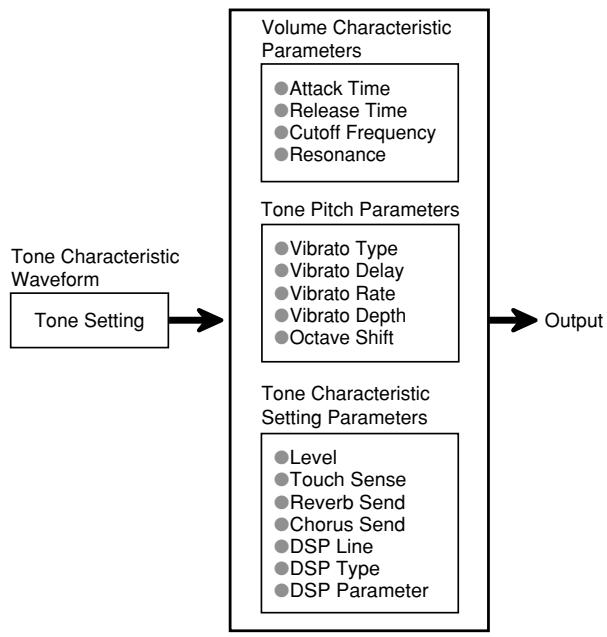

CC) 1 Synthesizer Mode The Synthesizer Mode of this keyboard provides the tools for creating your own original tones. Simply select one ofthe built-in tones and change its parameters to create your own original sound. You can even store your sounds in memory and select it using the same procedure as that used to select a preset tone. Synthesizer Mode Functions The following describes how to use each of the functions available in the Synthesizer Mode. Synthesizer Mode Parameters The preset tones that are built into this keyboard consist of a number of parameters. To create a user tone, you first recall a advanced tone (000 to 299) or a preset tone (300 to 499) and then change its parameters to change it to your own tone. Note that drum set tones (500 through 515) cannot be used as the basis of a user tone. The illustration nearby shows the parameters that make up the preset tones and what each parameter does. As can be seen in the illustration, parameters can be divided into four groups, each of which is described in detail below. Volume Characteristic: pr Parameters La ©Attack Time elease Time Cutofi Frequency @Resonance Tone Pitch Parameters © Vibrato Type Tone Characteristi one Characteristic SVbralo Day Waveorm Tone Setting > (=> Output Octave Shift Tone Characteristie Setting Parameters @Level Chorus Send DSP Line eDSP Type eDSP Parameter NOTE. + Note that the tone whose parameter you can edit is the one assigned to the channel (1 through 4) that is currently selected with the Synthesizer Mode.

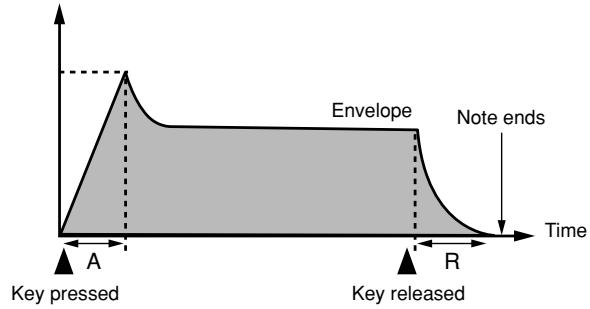

”] | WK3100_e_47-58.p65 si (1) Tone Characteristic Waveform M Tone Setting Specifies which of the preset tones should be used as the original tone. (2) Volume Characteristic Parameters These parameters control how the tone changes over time, from when the keyboard key is pressed until the tone decays. You can specify changes in volume and sound characteristics. mm Attack time This is the rate or time it takes for the tone to reach its highest volume level. You can specify a fast rate, where the tone reaches its highest volume level immediately, a slow rate where it gradually rises, or something in between. M Release time This is the rate or time it takes for the tone volume to fall to zero. You can specify a release that ranges from a sudden fall to zero, to one that gradually falls to zero. Envelope Note ends Time [NS Ar Key pressed Key released A: Attack time R: Release time M Cutoff Frequency The cutoff frequency is a parameter for adjusting timbre by cutting any frequency that is higher than a specific frequency. A larger cutoff frequency produces a brighter (harder) timbre, while a smaller frequency produces à darker (softer) timbre. Level Frequency Cutof frequency E-51 à 04.3.26, 0:11 PM

| Synthesizer Mode M Resonance Resonance enhances the harmonie components in the vicinity of the cutoff frequency, which creates a distinctive sound. À larger resonance value enhances the sound as shown in the figure. Level

Cut off frequency Frequency Small Value Large Value Resonance NOTE, + With some tones, a large resonance value can cause distortion or noise during the attack part of the tone. (8) Tone Pitch Parameters M Vibrato Type, Vibrato Delay, Vibrato Rate, Vibrato Depth These parameters adjust the vibrato effect, which causes periodic changes in the tone. M Octave Shift This parameter controls the octave of all tones. (4) Tone Characteristic Setting Parameters m Level This parameter controls the overall volume of the tone. æ Touch Sense This parameter controls changes in volume and timbre in accordance with the relative amount of pressure applied to the keyboard keys. You can specify more volume for stronger pressure and less volume or a lighter pressure, or you can specify the same volume regardless ofhow much pressure is applied to the keys. M Reverb Send, Chorus Send, DSP Line , DSP Type, DSP Parameter These parameters control the effects applied to tones. E-52 ”] | WK3100_e_47-58.p65 s ë

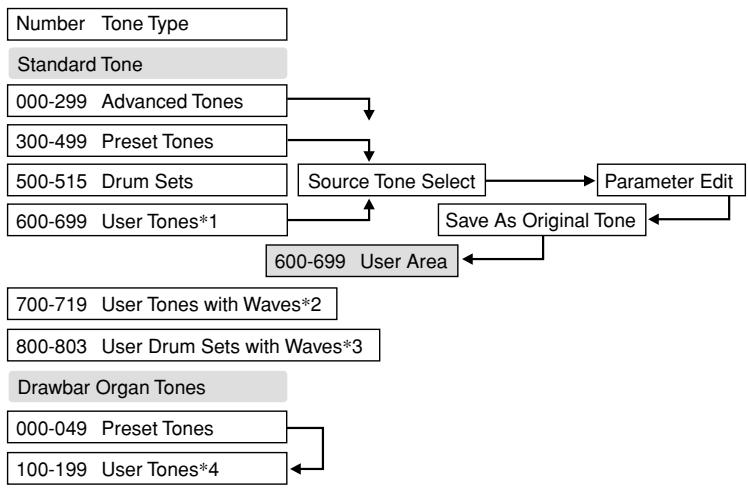

”] | WK3100_e_47-58.p65 sa Synthesizer Mode Saving User Tones The group of tone numbers from 600 through 699 (User 001 through User 100) is called the “’user area” because they are reserved for storage of user tones. After you recall a preset tone and change its parameters to create your own user tone, you can store it in the user area for later recall. You can recall your tones using the same procedure that you use when selecting a preset tone. Number _ Tone Type Standard Tone 000-299 Advanced Tones 300-499 Preset Tones [500-515 Drum Sets ] [Source Tone Select | parameter Edit ] [600-699 User Tones*1 —+ [Save As Original Tone |

600.699 User Area | +—|

700-719 User Tones with Waves*2 800-803 User Drum Sets with Waves*3 Drawbar Organ Tones 000-049 Preset Tones 100-199 User Tones*4 #1: You can select any Advance Tone, preset tone, or user tone. User tone areas 600 through 699 initially contain the same data as DSP types 000 through 099. à #2: Area where data transferred from computer is stored (see “Using the Data Downloard Service” on page E-91). After transfer, ® you can use the keyboard to edit parameters, but you can only overwrite existing parameters. You cannot save the data to another number. Initially, nothing is stored in the user tone with wave memory area. 43: Area where data transferred from computer is stored (see “Using the Data Downloard Service” on page E-91). Transfer only is allowed, and no parameter editing is allowed. Initially, nothing is stored in the user drum set with wave memory area. #4: User tones created by modifying parameters of one of the preset tones (000 to 049). User drawbar organ tone areas initially contain two sets of the same data as drawbar organ tones types 000 through 049. NOTE. + You can create an original tone using a user tone that includes a waveform (tone number 700 to 719). In this case, the storage area is the same as the source tone area. For example, an original tone created using tone number 700 as a source tone is stored in user area number 700. TaSA.E 05SA E-53

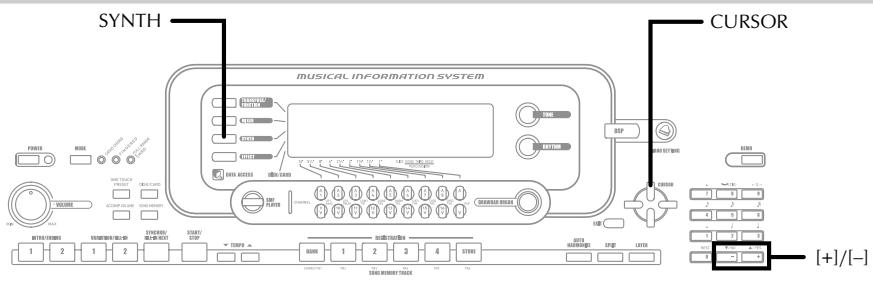

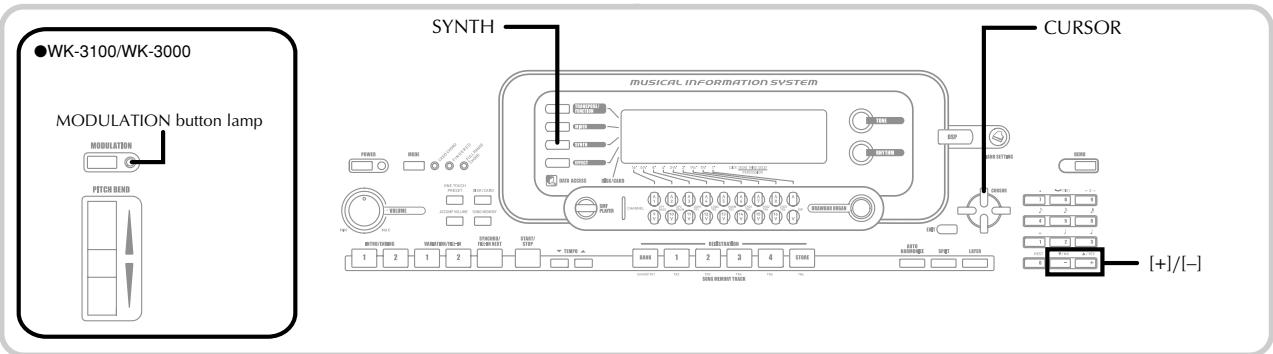

SYNTA p— CURSOR @WK-3100/WK-3000 MODULATION button lamp Creating a User Tone Parameters and Their Settings Use the following procedure to select a preset tone and change The following describes the function of each parameter and its parameters to create a user tone. provides its setting range. Ô First, select the preset tone you want to use as a mm Attack Time (Range: -64 to 00 to +63) basis for your user tone Time it takes before the tone sounds after a key is pressed @ rress the SYNTH button n' : + This enters the Synthesizer Mode, which is indicated LI ! t Ime by the pointer next to SYNTH on the display screen. Parameter setting value M Release Time (Range: -64 to 00 to +63) & Currently selected parameter Time the tone continues to sound after a key is released Ÿ [ BGAtk Ti QiRel.Ti uu Ime uinel.lime © use 14 and 1#1 CURSOR buttons to display the M Cutoff Frequency (Range: -64 to 00 to +63) High-band cutoff for the harmonic components of the tone f&VibDelay -H6C-offFra + Each press of [4] or [>] CURSOR button changes to the next parameter. See “Parameters and Their M Resonance (Range: -64 to 00 to +63) Settings” on this page for information on setting range Resonance of the tone for each parameter. © use 141 and 1-1 to change the setting ofthe currently -fBResonan. selected parameter. + You can also use the number buttons to input a value to change a parameter setting. See “Parameters and Their Settings” on this page for information on setting range for each parameter. parameter whose setting you want to change. © iter you are finished editing the sound, press the SYNTH button to exit the Synthesizer Mode. NOTE. + See “Storing a User Tone In Memory" on page E-57 for details on saving user tone data to memory so it is not deleted.

”] | WK3100_6 Synthesizer Mode . Æ Modulation Assign (Range: *) The Modulation Assign parameter specifies which parameters should be affected when you use the keyboard's modulation function. Select “OFF” for any parameters that you do not want affected by the modulation function. ubModulat. Value Meaning oFF | Of vib | Control Change 01h (Modulation) dp0 | Control Change 16 (Normally assigned to DSP Parameter 0.) dpi | Control Change 17 (Normally assigned to DSP Parameter 1.) dp2 | Control Change 18 (Normally assigned to DSP Parameter 2.) dp3 | Control Change 19 (Normally assigned to DSP Parameter 3.) dp4 | Control Change 80 (Normally assigned to DSP Parameter 4.) dp5 | Control Change 81 (Normally assigned to DSP Parameter 5.) dp6 | Control Change 82 (Normally assigned to DSP Parameter 6.) dp7 | Control Change 83 (Normally assigned to DSP Parameter 7.) NOTE. + Ifthe Modulation Assign setting of a tone is any setting from dp0 through dp7, that setting is ignored when the tone is used as a layered or split tone. DSP parameter effects are applied to the main tone only. TISAE 0870

Æ Modulation Depth (Range: 0 to 127) (WK-3100/WK- 3000 only) On the WK-3100/WK-3000, this parameter controls the modulation value when the MODULATION button is pressed. How the MODULATION button functions depends on the modulation assign parameter setting as described below. If this setting is selected for modulation assign: Modulation is applied like this: Modulation is applied to the depth specified by the value assigned to the Modulation Depth parameter as long as the vib MODULATION button is depressed Releasing the MODULATION button causes the modulation value to return to the initial default value for the tone being used. Each press of the MODULATION button toggles modulation between the value dp0 through dp7_ | assigned to the Modulation Depth Parameter and the initial default value for the tone being used £a8ModDepth MODULATION Button Lamp The MODULATION button lamp lights when the current modulation depth is at its greatest possible setting. This can oceur either when the MODULATION button is depressed or released, depending on the current Modulation Depth parameter setting and the initial default modulation depth value of the tone you are currently using. E-55

”] | WK3100_6 Synthesizer Mode . SYNTH r— CURSOR Use the DSP editing screen to select the DSP type and to edit parameters. Ô Select a tone, press the SYNTH button, and then configure parameter settings. @ kiter everything is the way you want, press the [W] CURSOR button once. + This advances to the DSP parameter editing screen. + Pressing the [A] CURSOR button returns to the Synthesizer Mode parameter screen. This setting specifies DSP parameters. See “DSP Parameters” on page E-33, ‘Effect List” on page A-17, and “DSP Algorithm List” on page A-19 for more information. NOTE, + If you store an original tone with the DSP line turned on {page E-56), simply recalling the tone automatically changes the DSP line, DSP type, and DSP parameter settings. This simplifies the recall of original tones that include a DSP effect. User Tone Creation Hints The following hints provide helpful advice on making user tone creation a bit quicker and easier. Use a preset tone that is similar to the one you are trying to create. Whenever you already have a rough idea of the tone you are trying to create, it is always a good idea to start with a preset tone that is similar. m Experiment with various different settings. There are no real rules about what a tone should sound like. Let your imagination run free and experiment with different combinations. You may be surprised at what you can achieve. TISA.E.0698

Storing a User Tone In Memory The following procedure shows how to store a user tone in memory. Once a tone is stored, you can call it up just as you do with a preset tone. To name a user tone and store memory ÔO Select a preset tone to use as the basis for the user tone, press the SYNTH button to enter the Synthesizer Mode, and make the parameter settings you want 2] After making parameter settings to create the user tone, press [W] CURSOR button twice. © use 141 and 1-1 to change the user area tone number on the display until the one where you want to store the tone is shown. + You can select any tone number from 600 to 699. pu 1 14] After the tone name is the way you want, press the 11 CURSOR button to store the tone. + Use the [+] and [-] buttons to scroll through letters at the current cursor location. + Use the [4] and [à] CURSOR buttons to move the cursor left and right. + See the page E-103 for information about inputting text. E-57

© Press 1Y1 CURSOR button to save the user tone. + This will display a confirmation message asking whether you really want to save the data. Press the YES button to save the data. + The message “Complete” appears momentarily on the display, followed by the tone or rhythm selection screen. + To abort the save operation at any time, press the SYNTH button or the EXIT button to exit the Synthesizer Mode. Pressing the SYNTH button again (before selecting another tone) returns to the Synthesizer Mode with all of your parameter settings still in place. E-58 ”] | WK3100_6

CC) 1 ”] | WK3000_6 Registration Memory Registration Memory Features Registration memory lets you store up to 32 keyboard setups (&-sets x 8 banks) for instant recall whenever you need them. The following is a list of settings that are saved in registration memory. Registration Memory Settings + Tone + Rhythm + Tempo + Layer on/off + Spliton/off + Split point + Auto Harmonize on/off + Mixer settings (Channels 1 to 10) + Effect settings + Touch Response settings + Assignable jack setting + Transpose + Tuning + Accompaniment volume setting + Pitch bend range + Auto Harmonize type + MODE button setting + Synchro standby state + Mixer Hold + DSP Hold + Synthesizer Mode parameters (Modulation Assign, Modulation Depth, Vibrato Waveform, Vibrato Delay, Vibrato Rate, and Vibrato Depth only) NOTE. + Each bank of registration memory initially contains data when you first use the keyboard. Simple replace the existing data with your own data. Registration memory functions are disabled while you are using the SMF Player, Song Memory or demo tune function. Registration memory functions are also disabled while you are using the floppy disk drive (WK-3500 only) or card slot (page E-94). TISAE0618

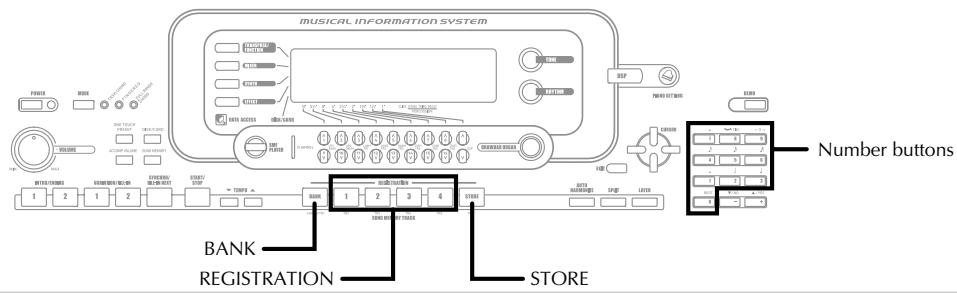

You can assign setups into one of 32 areas, which you can select using BANK buttons 1 through 4 and the four REGISTRATION buttons. Area names range from 1-1 through 8-4 as shown below.

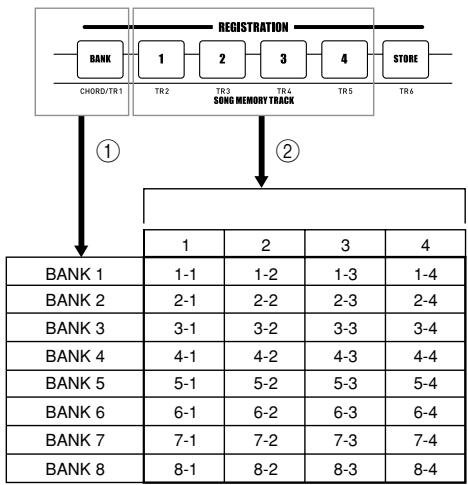

CCC 0] [a] @ Use the BANK button to select the bank. Each press of BANK cycles through the bank numbers from 1 to 8. @ Pressing one ofthe REGISTRATION buttons (1 to 4) selects the corresponding area in the currently selected bank. NOTE. + Whenever you save a setup and assign it a setup name, any setup data previously assigned to that name is replaced with the new data. + You can use the keyboard's MIDI capabilities to save your setup data to a computer or other external storage device. See “Using the Data Download Service” on page E-91 for details. + You can save setup data to external media, if you want. See “Saving Data” on page E-92 for more information. E-59

”] | WK3000_e_59-60.p65 60 ê REGISTRATION —— To Save a Setup in Registration Memory © select a tone and rhythm, and othenwise set up the keyboard the way you want it. + See “Registration Memory Settings” on page E-59 for details on what data is stored in the registration memory. 2] Use the BANK button or the number buttons to select the bank you want. + If you do not perform any operation for about five seconds after pressing the BANK button, the display returns to the contents in step 1, above. + Bank 1 selected. #--Bank © write holding down the STORE button, press a REGISTRATION button (1 to 4). + The following display appears when you press the 2 button. I-eStore @ release the STORE and REGISTRATION buttons. NOTE. + The setup is saved as soon as you press a REGISTRATION button in step 3, above. E-60 E— Number buttons To Recall a Setup from Registration Memory ÔO Use the BANK button or the number buttons to select the bank + If you do not perform any operation for about five seconds after pressing the BANK button, the keyboard automatically clears the registration memory recall screen. /-- Bank @ res the REGISTRATION button (1 to 4) or number buttons for the area whose setup you want to recall I-cRecall + The setup name along with the message ‘’Recall” appears on the display. NOTE. + lf you press a REGISTRATION button without using the BANK button to select a bank first, the last bank number selected is used.

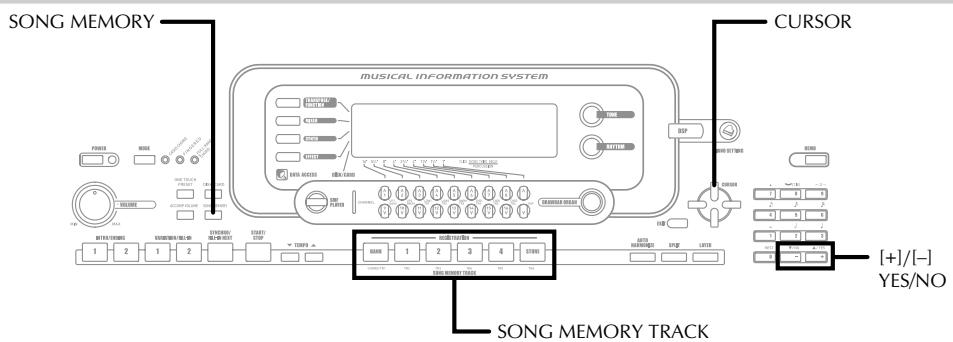

”] | WK3100_6 Song Memory Function This keyboard lets you record up to five separate songs in song memory for later playback. There are two methods you can use to record a song: real-time recording where you record the notes as you play them on the keyboard, and step recording where you input chords and notes one-by-one. NOTE, + Layer and split cannot be used while standing by for recording or while recording is being performed in the Song Memory Mode. Also, layer and split are automatically turned off whenever the keyboard goes into record standby or starts recording. Tracks Keyboard song memory records and plays back much like a standard tape recorder. There are a total of six tracks, each of which can be recorded separately. Besides notes, each track can have its own tone number. Then when you play back the tracks together, it sounds like an entire six-piece band. During, playback, you can adjust the tempo to change the speed of playback. Start End Track 1 Dm Qi Ghord 2) KoyBeur play Track 2 Keyboard play Track 3 Keyboard play Track 4 Keyboard play Track 5 Keyboard play Track 6 Keyboard play EN

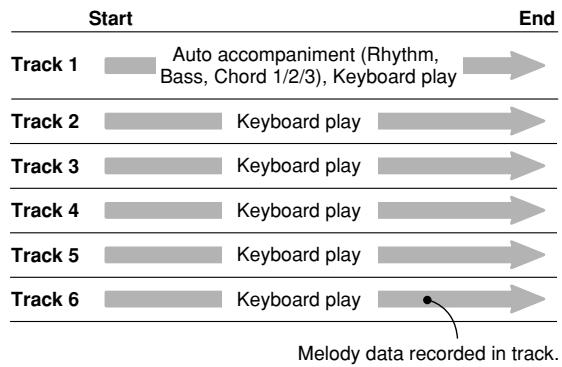

Melody data recorded in track. NOTE, + With this keyboard, Track 1 is the basic track, which can be used to record keyboard play, along with Auto Accompaniment. Tracks 2 through 6 can be used for keyboard play, so they are called melody tracks. Tracks 2 through 6 are used to add other parts to what is recorded in Track 1. Note that each track is independent of the others. This means that even if you make a mistake while recording, you only need to re-record the track where the mistake was made. You can use different Mixer settings for each track (page E-47).

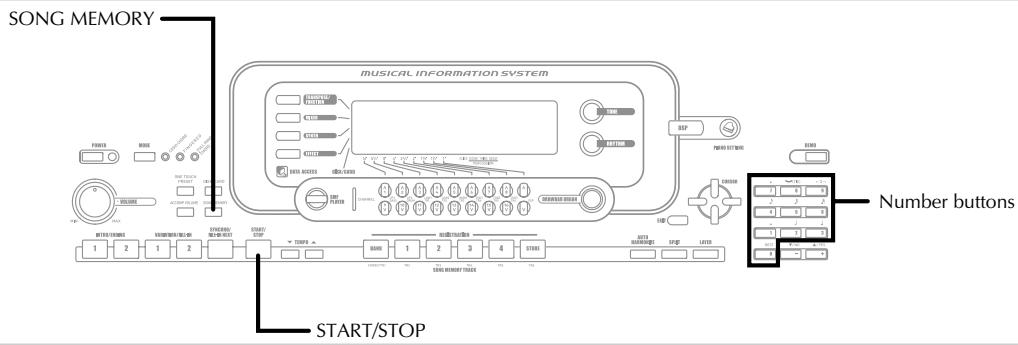

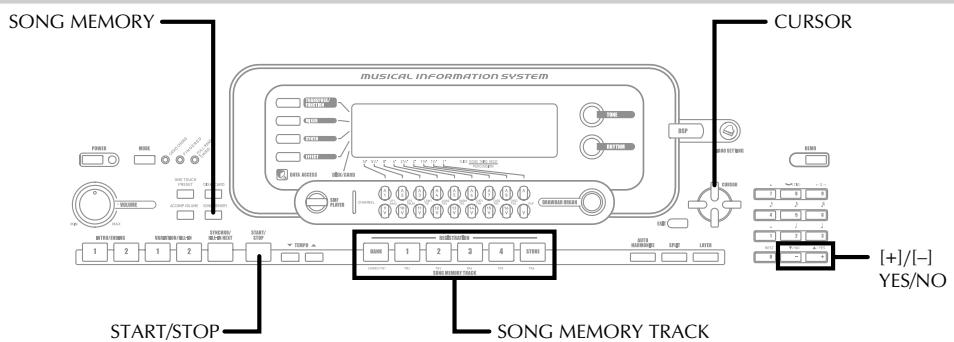

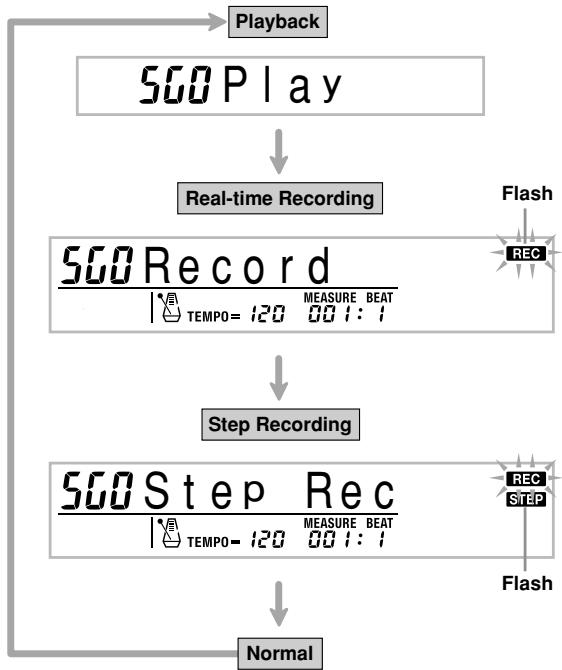

| Song Memory Function SONG MEMORY Using Real-time Recording With real-time recording, the notes you play on the keyboard are recorded as you play them. record with real-time record © press the SONG MEMORY button twice to enter real-time record standby. + Perform step 2, below, within five seconds after entering record standby. + The level meters for tracks 11 through 16 are shown on the display while the keyboard is in record standby, so you can easily check which tracks are already recorded. See “Level Meter Contents During Record/ Edit Standby” on page E-69 for details. 2] Use the number buttons to select a song number {0 to 4). Song number

SüiRecord + The above song number screen remains on the display for about five seconds. © marc the following settings. + Tone number + Rhythm number + Tempo + MODE button E-62 WK3100_6 &

E— Number buttons @ press the START/STOP button to start recording. + When recording starts, the REC indicator flashes on the display. After a few moments the indicator stops flashing, and remains on the display. + Real-time recording without a rhythm starts. If you want to record with a rhythm, press the INTRO/ ENDING 1/2 or VARIATION/FILL-IN 1/2. © r: something on the keyboard. + You can also record Auto Accompaniment chords by selecting the applicable mode with the MODE button. + Optional pedal, pitch bend and modulation operations are also recorded. See “Track 1 Contents After Real-time Recording” @ press the START/STOP button to end recording when you are finish playing. + If you make a mistake while recording, you can stop the record operation and begin over again from step 1, or you can use the editing function (page E-70) to make corrections. NOTE. + Using real-time recording to record to a track that already contains recorded data replaces the previous recording with the new one. TISA.E.0648

Track 1 Contents After Real-time Recording In addition to keyboard notes and accompaniment chords, the following data is also recorded to Track 1 during real- time recording. This data is applied whenever Track 1 is played back. + Tone number + Rhythm number + INTRO/ENDING 1 button, INTRO/ENDING 2 button, VARIATION /FILL-IN 1 button, VARIATION/FILL-IN 2 button, SYNCRHO/FILL-IN NEXT button operations + Pedal operations (option) The following data is recorded in the header whenever you start a recording of a track. + Mixer settings of other tracks + Effect type + Accompaniment volume + Reverb Level + Chorus Level + DSP Hold On/Off + Mixer Hold On/Off + Pitch bend wheel operation + Modulation wheel operation (WK-3500) + Modulation button operation (WK-3100/WK-3000) + Pitch bend range Mixer Mode Settings Channel 1 Mixer parameters (page E-47) are automatically recorded to Track 1. You can use the Mixer to change each of the parameters. Memory Capacity The keyboard has memory for approximately 10,000 notes. + The measure number and note number flash on the display whenever remaining memory is less than 100 notes. + Recording automatically stops (and auto-accompaniment and rhythm stops playing if they are being used) whenever memory becomes full. + Initially, nothing is stored in song memory. TISAE 065€ 61-73.p85 63 Memory Data Storage + Whenever you make a new recording, anything previously stored in memory is replaced. + Tuning off the keyboard while a record operation is in progress causes the contents of the track your are currently recording to be lost. + You can save memory data to external media, if you want. See “Saving Data” on page E-92 for more information. + Remember that you can dump memory contents to another MIDI device using the procedure described under “Using the Data Download Service” on page E-91 Track 1 Real-time Recording Variations The following describes a number of different variations you can use when recording to Track 1 using real-time recording. All of these variations are based upon the procedure described under “To record with real-time recording” on page E-62. To start recording with synchro start In place of step 4, press the SYNCHRO/FILL-IN NEXT button. Auto-accompaniment and recording will both start when you play a chord on the accompaniment keyboard To record using an intro, ending, or fill-in During recording, the INTRO/ENDING 1/2, SYNCHRO/ FILL-IN NEXT, and VARIATION/FILL-IN 1/2 buttons (pages E-43 to 44) can all be used as they normally are To synchro start Auto Accompaniment with an intro pattern In place ofstep 4, press the SYNCHRO/FILL-IN NEXT button and then INTRO/ENDING 1 or INTRO/ENDING 2 button. Auto-accompaniment will start with the intro pattern when you play a chord on the accompaniment keyboard. To start Auto Accompaniment part way into a recording In place ofstep 4, press the SYNCHRO/FILL-IN NEXT button and then play something on the melody keyboard to start recording without Auto Accompaniment. When you reach the point where you want accompaniment to start, play a chord on the accompaniment keyboard to start Auto Accompaniment. E-63

START/STOP: Playing Back from Song Memory Once you record tracks to song memory, you can play them back to see what they sound like. play back from so mel

© use the SONG MEMORY button to enter playback standby, and then use the number buttons to select a song number (0 to 4). Song number GUIP | a y + The above song number screen remains on the display for about five seconds. Ifit disappears before you have a chance to select a song number, use the [W] CURSOR button to re-display it. Playback standby @ res the START/STOP button to playback the song you selected. + You can use the TEMPO buttons to adjust the playback tempo. + Press the START/STOP button again Lo stop playback. NOTE. + You can play along on the keyboard using layer (page E-74) and split (page E-75) during playback. + Pressing the START/STOP button to start playback from song memory always starts from the beginning of the song. + The entire keyboard functions as a melody keyboard, regardless of the MODE button setting. turn off a specific track Press the SONG MEMORY TRACK button of the track you want to turn off, or use the Mixer (Page E-47) to turn off the channel of the track. E-64

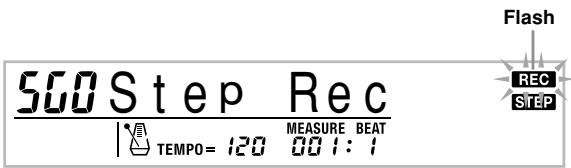

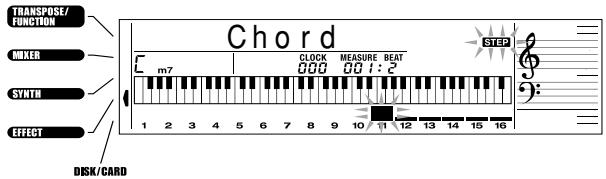

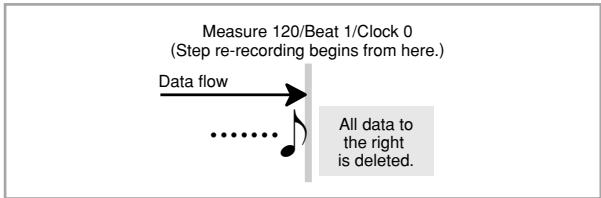

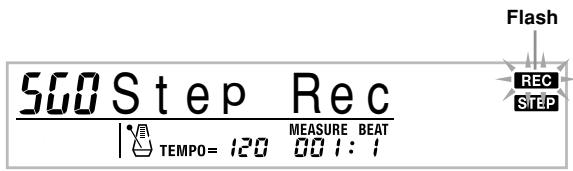

Recording Melody and Chords with Step Recording With step recording, you can record Auto-Accompaniment chords and notes, and even specify note lengths one by one. Even those who find it difficult to play along on the keyboard with an Auto-Accompaniment can create Auto- Accompaniments based on their own original chord progressions. The following shows the type of data that can be recorded in Tracks 1 through 6. Track 1: Chords and Auto-Accompaniment Tracks 2 through 6: Keyboard play With step recording, first record the chords and Auto- Accompaniment in Track 1. Next, record the melody in Tracks 2 through 6. NOTE. + Use the procedure under “To record to Tracks 2 through 6 using step recording” on page E-68 for details on how to record to Tracks 2 through 6.

”] | WK3100_6 Song Memory Function . record chords with step recording © press the SONG MEMORY button three times to enter step recording standby, and then use the number buttons to select the song number (0 to 4). Flash SÿStep Rec KE g PEUT tewpo= {20 Qui: @ mare the following settings. + Rhythm number + MODE button @ rress the CHORD/TRI button, which is one of the SONG MEMORY TRACK buttons, to select Track1 + When recording starts, the REC indicator flashes on the display. After a few moments the indicator stops flashing, and remains on the display. Press the SYNCHRO/FILL-IN NEXT button 6 © Play a chord. + Use the chord play method that is specified by the current MODE button setting (Fingered, CASIO Chord, etc.). + When the MODE button is set to Normal, specify the chord using the root input keyboard and chord type input keyboard. See “Specifying Chords in the Normal Mode” on page E-66 for details. Chord Fr CLOCK MEASURE BEAT, € GG Gti Cord name Measure, beat, and clock at current location’

• 96 clocks = 1 beat @ input the length of the chord (how long it should be played until the next chord is played) + Use the number buttons to specify the length of the chord. See “Specifying the Length of a Note” on page E-66 for details. + The specified chord and its length are stored in memory and the keyboard stands by for input of the next chord. + Repeat steps 5 and 6 to input more chords. T3SA.E:0678

@ kiter you are finished recording, press the START/ STOP button. + This enters playback standby for the song you have just recorded. + To play back the song at this time, press the START / STOP button. NOTE. + Use the procedure under “Correcting Mistakes While Step Recording” on page E-69 to correct input mistakes you make during step recording. You can add on to a track that already contains recorded data by selecting that track in step 3 of the above procedure. Doing so automatically locates the step recording start point at the first beat immediately following the previously recorded data. Inputting “0” as the chord length in steps 5 and 6 of the above procedure specifies a rest, but the rest is not reflected in the accompaniment contents when the accompaniment is played. In addition to chords, the following data is also recorded to Track 1 during step recording, This data is applied whenever Track 1 is played back. + Rhythm number + INTRO/ENDING 1 button, INTRO/ENDING 2 button, VARIATION /FILL-IN 1 button, VARIATION/FILL-IN 2 button, SYNCHRO/FILL-IN NEXT button operations NOTE. + You can also use number buttons 1 through 7, and button 9 to specify the button release timing for the VARIATION FILL-IN f, VARIATION/FILL-IN 2, and SYNCHRO/FILL- IN buttons. For more information, see “Specifying the Length of a Note” on page E-66. Specifying release timing specifies that the applicable button remains depressed for a particular amount of time. If you do not specify the release timing, it is assumed that the button is pressed and then immediately released. E-65

”] | WK3100_6 | Song Memory Function Specifying Chords in the Normal Mode When the MODE button is set to Normal during step recording, you can specify chords using a method that is different from CASIO Chord and Fingered fingerings. This chord specification method can be used to input 18 different chord types using only two keyboard keys, so chords can be specified even if you don’t know how to actually play them. 2e oœu

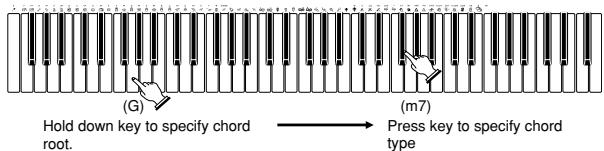

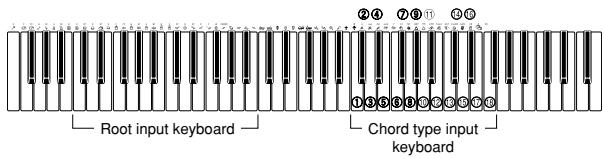

Keyboard © Major © Seventh flat five © Minor @® Minor seventh flat five @ Seventh suspended four ® Diminished seventh @ Minor add ninth & Add ninth ® Minor sixth ® Sixth ® Six ninth © Augmented @ Diminished © Suspended four © Seventh © Minor seventh © Major seventh © Minor major seventh To specify a chord, hold down the key on the root input keyboard that specifies the root, and press the key in the chord type input keyboard to specify the chord type. When inputting a chord with a specified bass note, pressing two keys of the root input keyboard causes the lower note to be specified as a bass note. Example 1: To input Gm7, hold down G on the root input keyboard and press the m7 key on the chord type input keyboard.

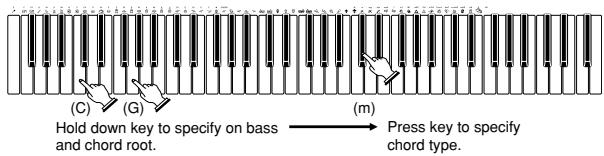

Hold doun key to specify on bass = Press koy to specify and chord root. chord type. E-66 61-73.p85 66 Specifying the Length of a Note During step recording, the number buttons are used to specify the length of each note. Note lengths Use number buttons [1] through [6] to specify whole notes (), half notes (J), quarter notes (4), eighth notes (À), 16th notes (), and 82nd notes (À) Example: To specify a quarter note (4), press [3]. Dots (.) and triplicates (—3- ) While holding down the [7] (dot) or [9] (triplicate), use buttons [1] through [6] to input the lengths of the notes. Example: To input a dotted eighth notes (À), hold down [7] and press [4]. Ties Input the first and then the second note. Example: To input À _À, press [4] and then [8]. Next, press [5]. This note will be tied to the next note you input (16th note in this example) Rest Hold down [0] and then use number buttons [1] through [9] to specify the length of the rest. Example: To inputan eighth note rest, hold down [0] and press LA]. + Pressing the [à] CURSOR button inputs rests up to the beginning of the next measure. Track 1 Step Rec ng Variations The following describes a number of different variations you can use when recording to Track 1 using step recording, AII of these variations are based upon the procedure described under “To record chords with step recording” on page E-65. To start accompaniment with an intro pattern In step 4, press INTRO/ENDING 1 or INTRO/ENDING 2 button after the SYNCHRO/FILL-IN NEXT button. To switch to a rhythm variation In step 5, press VARIATION/FILL-IN 1 or VARIATION/ FILL-IN 2 button immediately before inputting the chord. To insert a fill in In step 5, press VARIATION /FILL-IN 1 or VARIATION / FILL-IN 2 button at the measure or beat immediately before the chord or beat where you want to insert the fill in. To insert an ending In step 5, press INTRO/ENDING 1 or INTRO/ENDING 2 button at the measure or beat immediately before the chord where you want to insert the ending. T3SA.E.0688

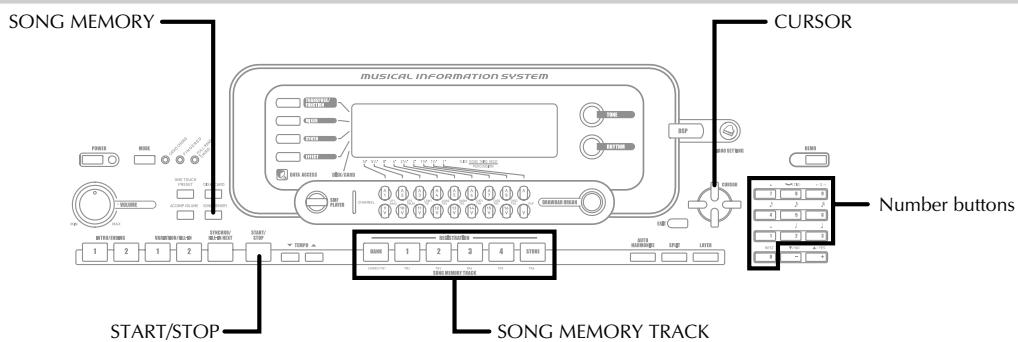

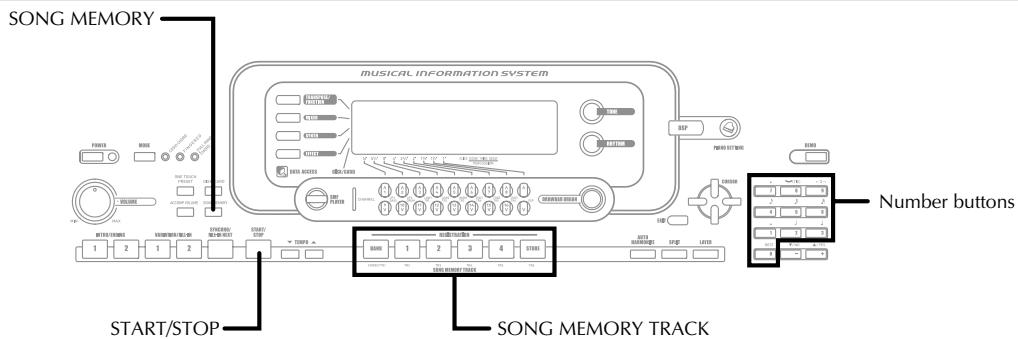

”] | WK3100_6 SONG MEMORY E— Number buttons START/STOP | IMPORTANT! + The length of the ending depends on the rhythm you are using. Check the length of the pattern you are using and set the length of the chord accordingly in step 6. Making the chord too short in step 6 can result in the ending pattern being cut off. To step record chords without rhythm Skip step 4. The specified chord of the length specified by the number buttons is recorded. A rest can be specified here, so an original chord pattern can be created. To add chord accompaniment part way through rhythm play In place of step 4 at the start of the recording, press VARIATION /FILL-IN 1 or VARIATION /FILL-IN 2 button and input rests. Then in step 5, input the chords. Only rhythm is played where you input the rests, and then chord play starts after the rests. Recording Multiple Tracks Track 1 of the keyboard's song memory records Auto Accompaniment and keyboard play. In addition, there are five other melody tracks that you can use to record melody parts only. You can record different tones to the melody tracks and build a full ensemble of instruments for your recordings. The procedure you use for recording to Tracks 2 through 6 is identical to the one you use when recording to Track 1. T3SA.E.0698

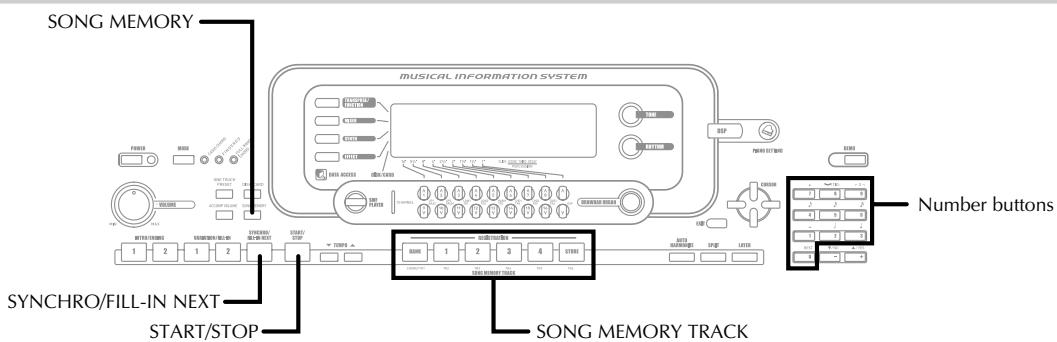

To record to Tracks 2 th real-time recording You can record to Tracks 2 through 6 while playing back what you originally recorded on Track 1 and any other tracks that are already recorded. © press the SONG MEMORY button twice to enter record standby, and then use the number buttons to select a song number (0 to 4) + The song number you select should be the one where you previously input Track 1 2] Use the SONG MEMORY TRACK buttons to select the track you want to record to (2 through 6) + While the keyboard is in record standby, the display shows the level meters for channels 11 through 16, so you can check which tracks have already been recorded. See “Level Meter Contents During Record/ Edit Standby” on page E-69 for details. © mare the following settings. + Tone number + Tempo @ press the START/STOP button to start recording. + Atthis time, the contents of any tracks that are already recorded start to play back. + Optional pedal, pitch bend and modulation operations are also recorded. © use the keyboard to play what you want to record the track you selected. @ rress the START/STOP button to end recording when you are finished. E-67

”] | WK3100_6 | Song Memory Function SONG MEMORY r— CURSOR E— Number buttons CE } START/STOP: | Track Contents After Real-time In addition to keyboard notes, the following data is also recorded to the selected track during real-time recording, This data is applied whenever the track is played back. + Tone number + Pedal operations (option) The following data is recorded in the header whenever you start a recording of a track. + Mixer settings of other tracks + Effect type + Accompaniment volume + Reverb Level + Chorus Level + DSP Hold On/Off + Mixer Hold On/Off + Pitch bend wheel operation + Modulation wheel operation (WK-3500) + Modulation button operation (WK-3100/WK-3000) + Pitch bend range To record to Tracks 2 th step recording This procedure describes how to input notes one-by-one, specifying each notes pitch and length. © press the SONG MEMORY button three times to enter real-time record standby, and then use the number buttons to select a song number (0 to 4). + The song number you select should be the one where you previously input Track 1 SüiStep Rec E-68

@ Use the SONG MEMORY TRACK buttons to select the track you want to record to (2 through 6) Example: Select Track 2. Flash

12 3 4 5 6 7 0 9 10 N/D IT IST

© spccify a tone number. + Pressing a TONE button or the DRAWBAR ORGAN button displays the tone number and name on the display. You can then use the number buttons, or the [+] (increase) and [-] (decrease) buttons to change the tone. + After changing the tone number, press any keyboard key to clear the tone number and name screen, and return to the note input screen. © Use the keyboard keys to input notes, or the [0] button to input rests. + Atthis time, the display shows the keyboard pressure (velocity). Use the [+] (increase) and [-] (decrease) buttons to change the velocity. + You can also input a chord. [5] Use the number buttons to input the length of the note or rest (page E-66) Ô Repeat steps 4 and 5 to input more notes. @ rress the START/STOP button to end recording when you are finished. TSAE 0700

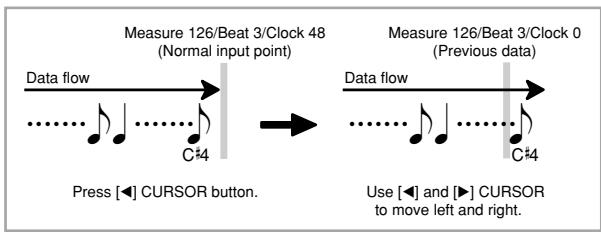

”] | WK3100_6 NOTE, + Use the procedure under “Correcting Mistakes While Step Recording” on this page to correct input mistakes you make during step recording. You can add on to a track that already contains recorded data by selecting that track in step 2 of the above procedure. Doing so automatically locates the step recording start point at the first beat immediately following the previously recorded data. Whenever you are recording to Tracks 2 through 6, the entire keyboard functions as a melody keyboard, regardless of the current MODE button setting. Track Contents After Step Recording In addition to notes and rests, the following data is also recorded to the track during step recording. This data is applied whenever the track is played back. + Tone number Level Meter Contents During Record/ Edit Standby Channels 11 through 16 correspond to Tracks 1 through 6 Whenever the keyboard is in record or edit (page E-70) standby, the level meter display shows which tracks already contain recorded data and which are still empty. Tracks with four lit segments already contained recorded data, while tracks with one lit segment are not yet recorded. Recording track Not recording track Correcting Mistakes While Step Recording Memory data can be thought of as a musical score that progresses from left to right, with the input point normally atthe far right of the recorded data The procedure described here lets you move the input point to the left in order to make changes in data you have already input. Note, however, that moving the input point to the left and changing data automatically deletes all of the data recorded to the right of the input point. TISAEO71B 61-73.p85 6 correct recording Ô Without exiting step recording, use the [4] CURSOR button to move the input point to the left + The REC indicator disappears from the display, and the STEP indicator flashes. IONote BD “ébss Measure 126/Beat 3/Clock 48 {Normal input point) Data flow Measure 126/Beat 3/Clock 0 (Previous data) Data flow mur Use [4] and {>] CURSOR 10 move left and right.

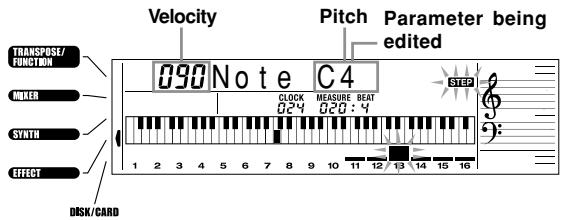

Press [4] CURSOR button. @ Monitoring the data on the display, use [4] and I] CURSOR buttons to move the input point to the data you want to change Example: To re-record all note data following the note A3 located at Measure 120, Beat 1, Clock 0. Measure 120/Beat 1/Clock 0. {input point moved to using [4] and [>] CURSOR buttons) Data flow

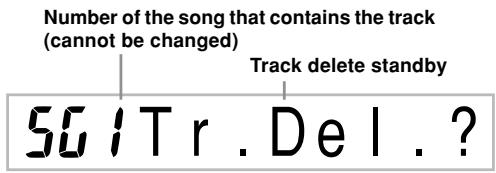

START/STOP: | © press the VES button + This deletes all data from the location you specified and enters step record standby. + Pressing the [A] CURSOR button or the NO button cancels deleting the data. Measure 120/Beat 1/Clock 0 {Step re-recording begins from here.) Data flow Al data to the right is deleted. NOTE, + When you reach the end of the recording by pressing the [>] CURSOR button, the “REC” indicator appears and the “STEP” indicator flashes on the display, indicating that you can add more data using step recording. delete cific note data © rcriorm steps 1 and 2 under To correct mistakes while step recording” above to display the note you want to delete. @ rress the 1Y] CURSOR button twice. © In response to the “Delete?” message that appears on the screen, press the YES button to delete the displayed note E-70

YES/NO Editing Memory Contents After you record to keyboard memory, you can recall individual notes and parameter settings (such as tone number) and make any changes you want. This means you can correct misplayed notes, make changes in tone selections, etc. The following types of data can be edited. + Note intensity + Notes + Chords + Tone numbers + Rhythm number + INTRO/ENDING 1 button, INTRO/ENDING 2 button, VARIATION /FILL-IN 1 button, VARIATION/FILL-IN 2 button, SYNCHRO/FILL-IN NEXT button operations edit memory contents © press the SONG MEMORY button three times to enter step recording standby, and then use the [+] and [-] buttons to select a song number (0 to 4). Flash SÿStep Rec LÉ reuvo- 12) @ Use the SONG MEMORY TRACK buttons to select the recorded track that you want to edit. @ rress the [41 CURSOR button to enter the editing mode. + The REC indicator disappears from the display, and the STEP indicator flashes.

”] | WK3100_6 Song Memory Function . @ use the 14 and 11 CURSOR buttons to move to the location in track where the note or parameter you want to change is located. Note editing example Velocity Parameter being dited Es Le — NT BSNote C4 abs —=

mens © Make any changes in the value that you want + The actual procedures you use to change a parameter depend on the type of data it contains. See “Editing Techniques and Display Contents” on this page for details. [6] Repeat steps 4 and 5 to edit other parameters. @ rress the START/STOP button to end editing when you are finished. NOTE, + The only parameters that can be editted for Tracks 2 through 6 are notes and tone numbers. In the case of real-time recording, you later can change tone numbers you specified while recording to Tracks 1 through 6 is in progress. You can only change tone numbers that were originally set for Tracks 2 through 6 using step recording. In the case of real-time recording, you later can change rhythm numbers you specified while recording to Track 1 is in progress. You can only change rhythm numbers that were originally set for Track 1 using step recording. You cannot use the edit procedure to add more data to a recording. You cannot move portions of a recording to a different location within the recording. + Note lengths cannot be changed.

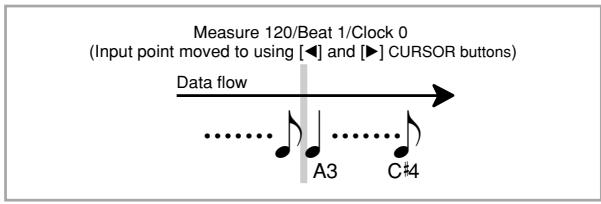

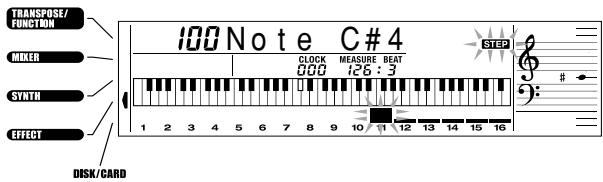

Ed Techniques and Display Contents The following describes the editing techniques you can use to change the various parameters stored in memory. To change the key pressure (velocity) of a note Use the number buttons or [+] and [-] to adjust the key tiiüNote G4 To change the pitch of a note Input a new note on the keyboard or use [+] and [-] buttons to change the pitch of a note. The pitch you specify here is reflected in the keyboard and the notes shown in the staff on iÿNote Gd4 IMPORTANT! + Whenever editing memory contents, never change a note so it is identical to the note before or after it. Doing so may alter the length of the changed note and the note before or after it. Should this happen, you will have to re-record the entire track. To change a chord Use the chord fingering method selected by the MODE button (Fingered, CASIO Chord, etc.) to input a chord.

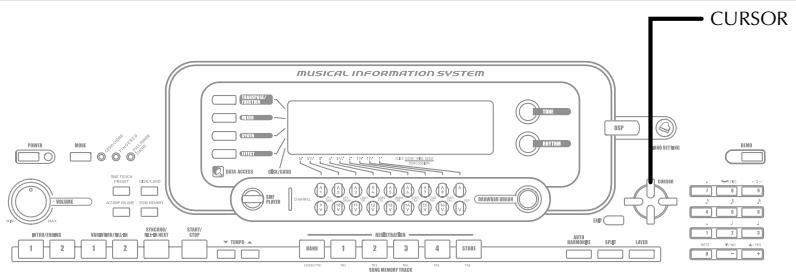

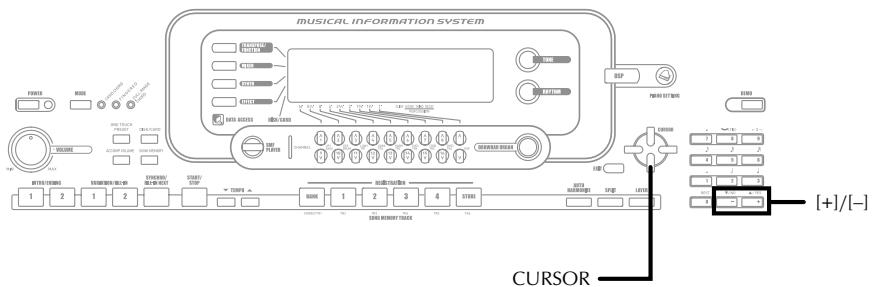

c=— a / To change a tone number Use the number buttons or [+] and [-] buttons to change a tone number. “OO GrandPno E-71

”] | WK3100_6 | Song Memory Function SONG MEMORY r— CURSOR =] + HI/ NOTE. + Inthe case of real-time recording, you later can change tone numbers you specified while recording to Tracks 1 through 6 is in progress. + You can only change tone numbers that were originally set for Tracks 2 through 6 using step recording. To change a rhythm number Use the number buttons or [+] and [-] buttons to change a rhythm number. wmmOe D PO P NOTE, + Inthe case of real-time recording, you later can change rhythm numbers you specified while recording to Track 1 is in progress. + You can only change rhythm numbers that were originally set for Track 1 using step recording. To change a rhythm controller operation*

Editing a Song You can perform the following operations in the song editing mode. + Delete a song + Delete a track + Song header data rewrite (Panel Record) delete a song © pres the SONG MEMORY button once to enter playback standby. @ use the (+1 and 1-1 buttons to select the number of the song you want to delete. @ res the 11 CURSOR button. If there is no song number on the display, press the [W] CURSOR button twice. + This displays the song delete screen. @ press the VES button. + This causes the message “Sure?” to appear, confirming whether you really want to delete the song. [5] Press the YES button to delete the song and return to playback standby. TISAEO74A

”] | WK3100_6 Song Memory Function . To delete a specific track © res the SONG MEMORY button once to enter playback standby. @ use the (+1 and 1-1 buttons to select the number of the song that contains the track you want to delete @ rress the [#1 CURSOR button twice. If there is no song number on the display, press the [W] CURSOR button three times. + This displays the song delete screen. Number of the song that contains the track {cannot be changed) Track delete standby

SüitTr.De © Use the SONG MEMORY TRACK buttons to select the recorded track or tracks whose data you want to delete

Track delete standby Recorded tr: Track being deleted (Multiple tracks can be specified.) + You can specify more than one track for deletion by pressing more than one track select button. + To deselect a track, simply press its track select button again. @ rress the VES button + This causes the message “Sure?” to appear, confirming, whether you really want to delete the track. [6] Press the YES button to delete the track. NOTE, + You cannot change the song number while in track delete standby. + Pressing the SONG MEMORY button while in track delete standby returns to record standby. T3SA.E:075A

To rewrite song header data (Panel Record) You can use a procedure called “Panel Record” to change the initial Mixer, tempo and other settings stored in the song header. © pres the SONG MEMORY button once to enter playback standby. Use the [+] and [-] buttons to select the number of the song that contains the header data you want to rewrite. Make the changes you want to the header data. Press the [W] CURSOR button three times. + This displays the song delete screen. Press the YES button to rewrite the header data.

”] | WK3000_6 Up to four parts (numbered 1 through 4) can be used simultaneously during keyboard play. These parts can be used by the layer and split functions explained below.

Part 1: Main tone part

Part 2: Layered tone part

Part 3: Split tone part

Part 4: Layered and split tone part

Using Layer Layer lets you assign two different tones (a main tone and a layered tone) to the keyboard, both of which play whenever you press a key. For example, you could layer the FRENCH HORN GM tone on the BRASS GM tone to produce a rich and brassy sound. LAYER

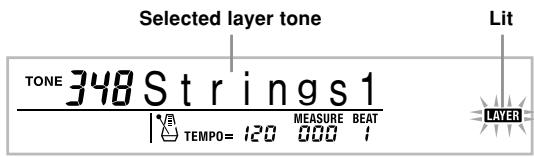

empo- (20 OOG 1 © sciect the layered tone. Example: To select “360 FRENCH HORN GM” as the layered tone, use the number buttons to in- put 3, 6 and then 0. "wJ60Fr.HornG © Now try playing something on the keyboard. + Both tones are played at the same time. © press the LAYER button again to unlayer the tones and return the keyboard to normal NOTE, + Tuning on layering switches the currently selected part from Part to Part 2, and displays the layered tone. At that time, you can use the [4] and [>] CURSOR buttons to switch between parts. Turning off layering returns to

The main tone sounds over Channel 1, while the layered tone sounds over Channel 2. You can also use the Mixer to change the tone and volume settings for these channels. Note that layering is not possible during record standby or recording in the Song Memory Mode, or while you are using the SMF Player Mode. T3SA.E.076A

”] | WK3000_6 Keyboard Settings . Using Split With split you can assign two different tones (a main tone and a split tone) to either end of the keyboard, which lets you play one tone with your left hand and another tone with your right hand. For example, you could select STRINGS las the main (high range) tone and PIZZICATO GM as the split (low range) tone, putting an entire string ensemble at your fingertips. Splitalso lets you specify the split point, which is the location on the keyboard where the changeover between the two tones occurs. NOTE. + Leave the MODE button in the Normal or FULL RANGE

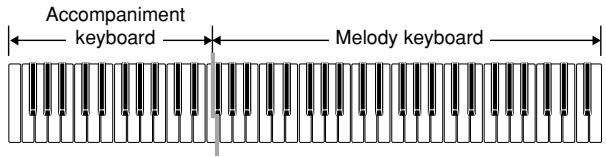

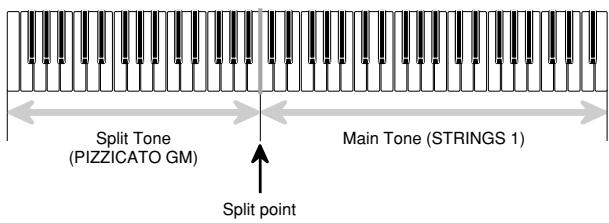

Split point split the keyboard Ô First select the main tone. Example: To select “348 STRINGS 1” as the main tone, press the TONE button and then use the number buttons to input 3, 4 and then 8. "xJUpStringsi @ res the SPLIT button. Selected split tone Lit =JJeAco Bs _G l'E rauvo- 120 "608 Pur © Select the split tone. Example: To select “345 PIZZICATO GM" as the split tone, use the number buttons to input 3, 4 and then 5 "wJU6Pizz _G T3SAE 0778

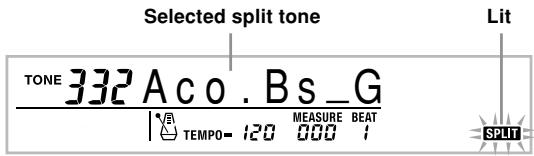

© specity the split point. While holding down the SPLIT button, press the keyboard key where you want the leftmost key of the high end range to be Example: To specify G3 as the split point, press the G3 key.

© nov try playing something on the keyboard. + Every key from F3 and below is assigned the PIZZICATO GM tone, while every key from G3 and above is assigned the STRINGS 1 tone. @ res the SPLIT button again to unsplit the keyboard and return it to normal. NOTE. + Tuning on split switches the currently selected part to

Part 3, and displays the split tone. At that time, you can

use the [4] and [] CURSOR buttons to switch between parts. Tuning off split returns to Part 1. The main tone sounds over Channel 1, while the split tone sounds over Channel 3. You can also use the Mixer to change the tone and volume settings for these channels. Note that split is not possible during record standby or recording in the Song Memory Mode, or while you are using the SMF Player Mode. When the MODE button is set to CASIO CHORD or FINGERED, the accompaniment keyboard range is in accordance with the split point you specify with the above procedure. E-75

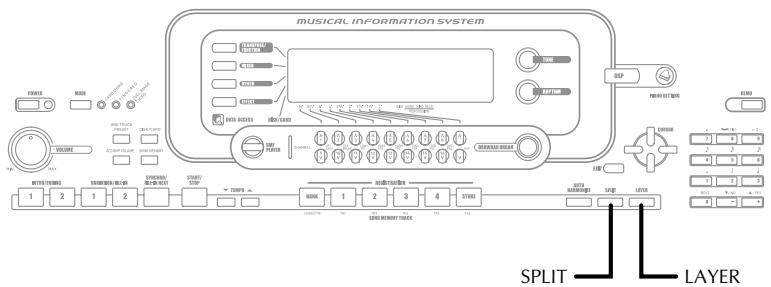

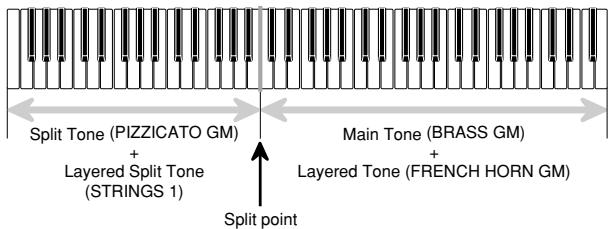

276600000000 0 Ne CES | L + HA SPLIT LAYER Using Layer and Split Together You can use layer and split together to create a layered split keyboard. It makes no difference whether you layer tones first and then split the keyboard, or split the keyboard and then layer tones. When you use layer and splitin combination, the high range of the keyboard is assigned two tones (main tone + layered tone), and the low range two tones (split tone + layered split tone). LAYER SPLIT nr n pt Tone (PIZZICATO GM) Main Tone (BRASS Gi) Layered Spit Tone (STRINGS 1) Layered Tone (FRENCH HORN GM) Split point E-76 74-88.p85 76 split the keyboard and then layer tones ÔO Press the TONE button and then input the tone number of the main tone Example: To set “361 BRASS GM” as the main tone. “36 /Brass_G @ res the SPLIT button and then input the number of the split tone. Example: To set “345 PIZZICATO GM” as the split tone. "wJU6Pizz _G + After specifying the split tone, press the SPLIT button to unsplit the keyboard. @ r165s the LAYER button and then input the number of the layered tone. Example: To set “360 FRENCH HORN GM” as the "w366Fr.HornG @ Press the SPLIT button orthe LAYER button so both of the SPLIT and LAYER indicators are displayed T3SA.E.078A

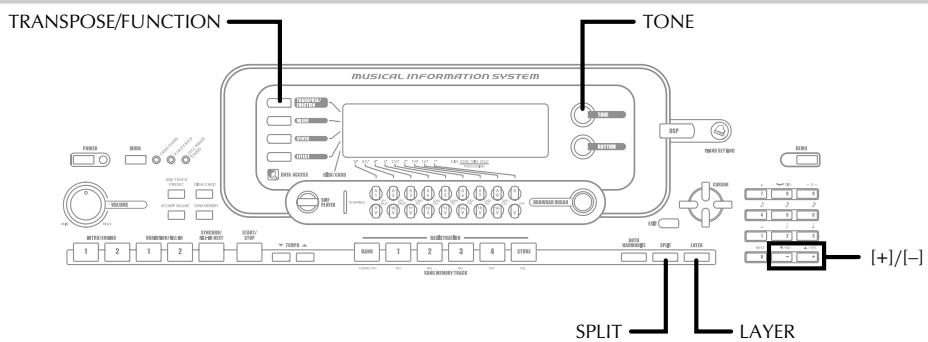

”] | WK3000_6 Keyboard Settings . @ input the number of the layered split tone. Example: To specify the “348 STRINGS 1” tone, enter 3, 4,8. rwJUpStringsi @ wnite holding down the SPLIT button, press the keyboard key where you want the lowest note (the leftmost key) of the upper range (right side range) to be @ r:; something on the keyboard. + Press the LAYER button to unlayer the keyboard, and the SPLIT button to unsplit it. NOTE. + Tuning on layer+split switches the currently selected part to Part 4, and displays the layered tone. At that time, you can use the [4] and [>] CURSOR buttons to switch between parts. Turning off layer returns to Part 3, while turning off split returns to part 2. Turning off both layer and split returns to Part 1. The main tone sounds over Channel 1, the layer tone over Channel 2, the split tone over Channel 3, and the layer/split tone over Channel 4. You can also use the Mixer to change the tone and volume settings for these channels. T3SA.E.079B

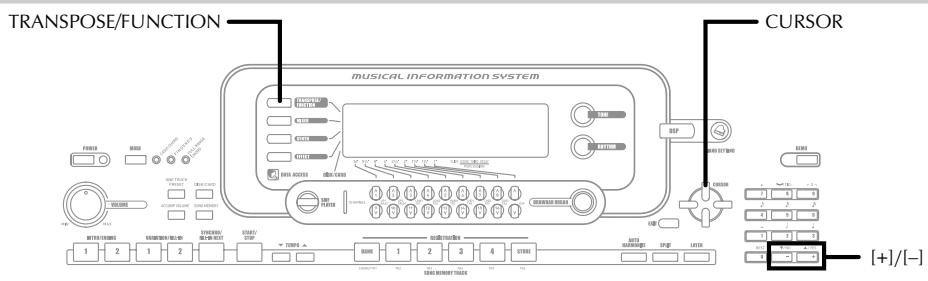

Transposing the Keyboard Transpose lets you raise and lower the overall key of the keyboard in semitone units. If you want to play an accompaniment for a vocalist who sings in a key that's different from the keyboard, for example, simply use transpose to change the key of the keyboard.

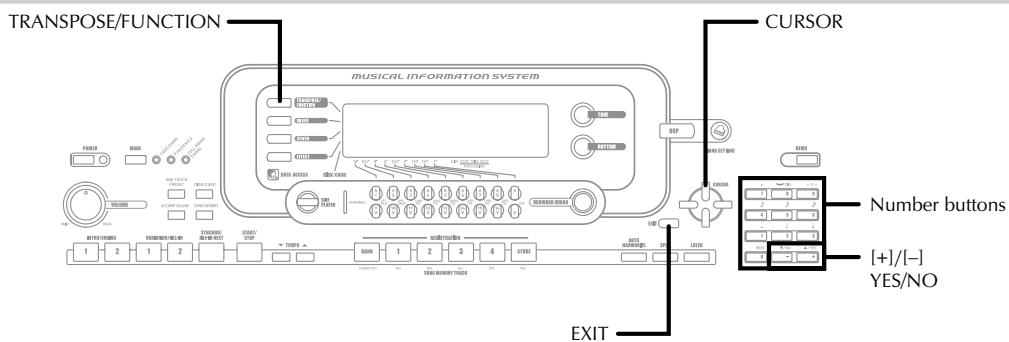

spose the keyboard Ô Press the TRANSPOSE/FUNCTION button. + This causes a pointer to appear on the display next to TRANSPOSE/FUNCTION, and displays the transpose setting screen. ggTrans. @ Use 141 and 1-1 to change the transpose setting of the keyboard. Example: To transpose the keyboard five semitones upwards. 55Trans. + Pressing the TRANSPOSE/FUNCTION button exits the transpose screen. NOTE, + The keyboard can be transposed within a range of -24 {two octave downwards) to +24 (two octave upwards). + The transpose setting also affects playback from song memory and Auto Accompaniment. + The allowable pitch range you can transpose within depends on the tone you are using. If a transpose operation causes a note to be outside of the pitch range for the tone being used, the keyboard automatically plays the same note in the nearest octave that falls within the pitch range of the tone you are using. E-77

| Keyboard Settings TRANSPOSE/FUNCTION r— CURSOR Using Touch Response When touch response is turned on, the relative volume of sound output by the keyboard is varied in accordance with the amount of pressure applied, just like an acoustic piano. turn touch response on and off © press the TRANSPOSE/FUNCTION button

• This causes a pointer to appear on the display next to TRANSPOSE/FUNCTION. & @ use te 14 and 11 CURSOR buttons to display the touch response setting screen. 2Touch @ us the 1+1 and 1-1 buttons to select the touch response sensitivity level + “1” outputs powerful sound even with light key pressure, while “3” requires very heavy key pressure to output powerful sound. + Pressing [+] and [-] at the same time returns sensitivity to the “2” setting, + When you select “OFF”, the tone does not change regardiess of how much pressure you apply to the keyboard. NOTE. + Touch response not only affects the keyboard's internal sound source, it also is output as MIDI data. + Song Memory playback, accompaniment, and external MIDI note data do not affect the touch response setting. E-78 ”] | WK3000_6

Tuning the Keyboard The tuning feature lets you fine tune the keyboard to match the tuning of another musical instrument. tune the keyboa © press the TRANSPOSE/FUNCTION button. @ use te 1@ and 11 CURSOR buttons to display the tuning screen fu Tune @ use 141 and 1-1 to change the tuning setting of the keyboard Example: To lower the tuning by 20. -cüTune + Pressing the TRANSPOSE/FUNCTION button exits the transpose screen. NOTE, +_ The keyboard can be tuned within a range of -99 cents to +99 cents. *100 cents is equivalent to one semitone. + The tuning setting also affects playback from song memory and Auto Accompaniment. T3SA.E.0808

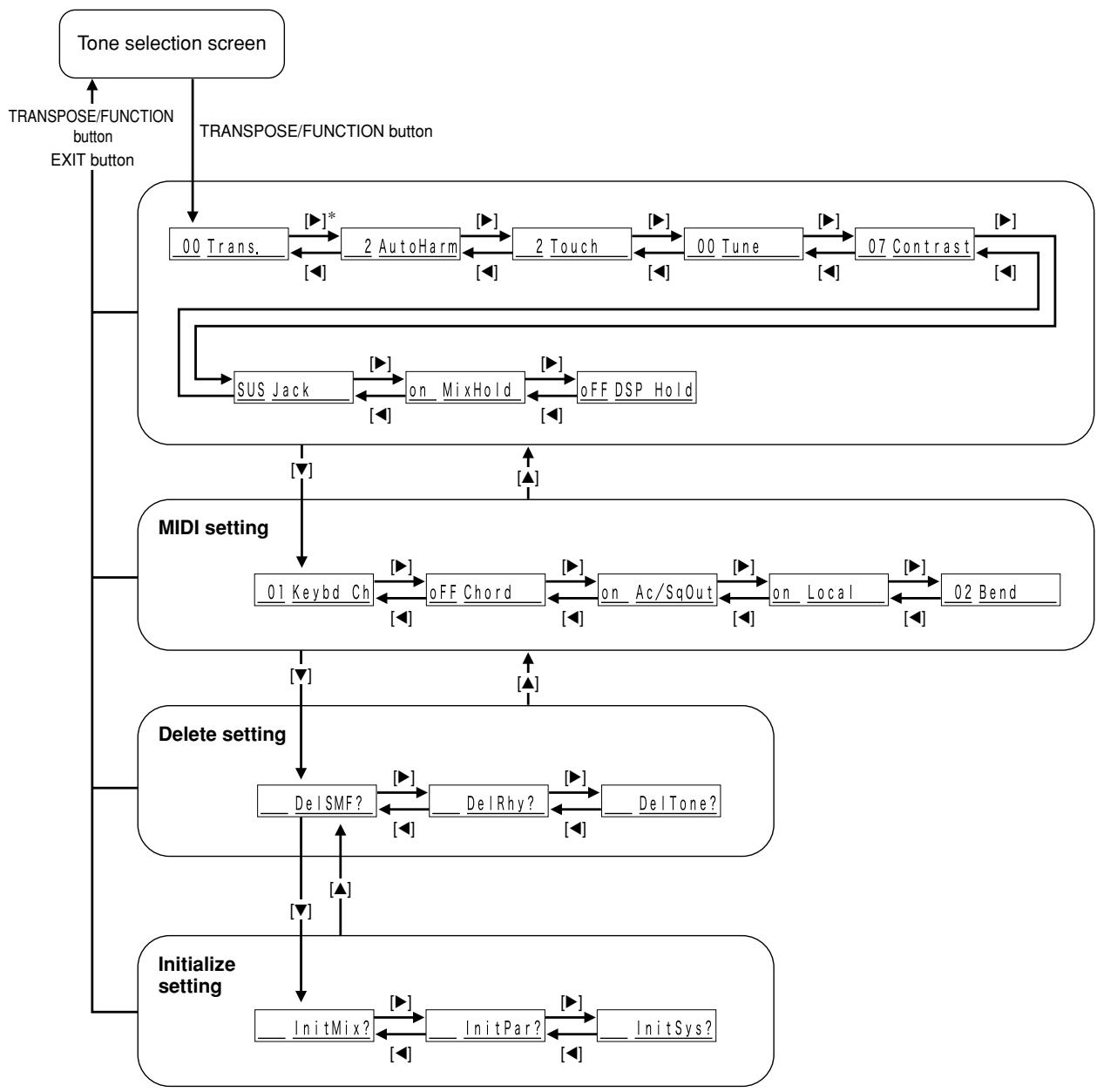

Keyboard Settings Changing Other Settings Setting Types The table below shows the parameters whose settings you can change Setting menu Description Page Transpose Adjusts of overall keyboard tuning by semitone units. E-77 (rans.) d d Auto Harmonize (AutoHarm) Selects the Auto Harmonize Type E-82 Touch Response Specifies of how sound should change with keyboard pressure E-78 (Touch) °P PT °98 PORTE pressure Tune (Tunc) Fine adjustment of overall keyboard tuning. E-78 Display Adjusts display brighe E-82 (ContrasD justs display brightness. Pedal Gack) Assigns effects to pedals. E-82 Mixer Hold (MXLHold) Turns mixer hold on or off E-82 DSP Hold (DSP Hold) Turn DSP hold on or off E-82 MIDI (MIDD MIDI settings E-82 Delete/Initialize Initializes all settings to initial factory defaults, resets specific settings or deletes user ° E-83 {Del/Init) rhythms. NOTE, + The above settings are all saved whenever you turn off the keyboard. For details, see “Memory Contents” on page E-18. + MIDI settings and Delete/initialize settings are disabled while you are using the SMF Player or Song Memory function. TaSAE-0818 E-79 ”] | WK3000_e_74-88.p65 7 À 04.3.26, 0:11 PM

”] | WK3000_6 Keyboard Settings . TRANSPOSE/FUNCTION r— CURSOR F— Number buttons FF 4/4 YES/NO EXIT — @ use the 1+1 and 1-1 buttons or the number buttons to change the values. + Settings you make are applied even if you do not press the EXIT button + See the following section titled “Setting Menu Items” for details on each setting. + After making the settings you want, press the TRANSPOSE/FUNCTION button or EXIT button to return to the tone or rhythm selection screen. M in case of a delete or initialize procedure © press the VES button. + This displays the user area number and data name of the data to be deleted. + The data size value represents kilobyte units. [5] Now use the number buttons, or the [+] (increase) and [-] (decrease) buttons to select the data you want. © press the 171 CURSOR button. + This causes the message Sure?” to appear, confirming whether you really want to perform the delete or initialize operation. [7] Press the YES button to complete the operation. + This performs the delete or initialize operation and returns to the step 5 screen. © iter making the settings you want, press the TRANSPOSE/FUNCTION button or EXIT button to return to the tone or rhythm selection screen. IMPORTANT! + It can take more than one minute to perform a delete or initialize procedure after you pressing the YES button in step 7 above. The message “Pls Wait” will remain on the display to indicate that a procedure is being performed. Never try to perform any operation while “Pls Wait” is displayed. Performing any operation can damage the keyboard's memory and cause it to malfunction. Ta5AE-0838 E-81 81 04.3.26, 0:11 PM

CC) 1 Keyboard Settings Setting Menu Ite Auto Harmonize Types You can select from among the 10 different types of auto harmonize listed below. Type (Parameter Name) Description 0 | Duetl Adds a 1-part harmony to keyboard play. Duet2 Adds a 1-part harmony to keyboard play. Duet2 harmony is more open than Duetl. Country Adds a country-flavor harmony to keyboard play. Octave Adds notes one octave below notes played on the keyboard. 5th Adds fifth notes above notes played on the keyboard. Adds two open harmony parts to notes played on the keyboard (creating three-part harmony) 3-Way Close Adds two close harmony parts to notes played on the keyboard (creating three-part harmony). Strings Adds harmony suitable for strings. Block Adds block chord notes.

Big Band Adds harmony suitable for big band play. H Other Settings (Keybd Ch) Setting menu Range | Default Description Pris » 00 to 15 07 | Adjusts display contrast sus SUS | Assigns the sustain pedal effect to a pedal. Assignable Jack ES — | Assigns the sostenuto pedal effect to a pedal. Uack) SFt — Assigns the soft pedal effect to a pedal. rhy — | Assigns the START/STOP button function to a pedal Mixer Hold When Mixer Hold is turned on, the parameters of accompaniment MixHold) on/oFF | oFF | parts (Part 6 through Part 10) cannot be modified by nu accompaniment data. on: Current DSP line setting is maintained, even when the tone is DSP Hold . FF changed. (DSP Hold) °n/9 ° OFF: Changing the tone switches to the DSP line setting of the new tone. EE MDI Setting Setting menu Range | Default Description Keyboard Channel 01 to 16 o1 Specifies the send channel for main tone play. MIDI In Chord Judge (Chord) Specifies whether accompaniment range MIDI Note On messages on/oFF | oFF | received from an external device should be interpreted as auto accompaniment chords. Accomp/Song MIDI Out on/oFe | oFF | SPecifies whether this keyboard's auto accompaniment or song (Ac/SgOut) memory is sent as MIDI messages. Local Control Setting en/oëF on | Specifies whether the keyboard should sound the parts played on (Local) it Pitch Bend Range (Bend) Specifies the maximum change in a tone that can be applied using 00 to 12 12 | the PITCH BEND wheel. The setting range is 00 (no change) to 12 (12 semitones). E-82 ”] | WK3000_e_74-88.p65

Keyboard Settings . Setting menu Default Description SMF Delete Deletes selected SMF data. User Rhythm Delete Deletes selected user rhythm data. User Tone Delete Deletes selected user tone data. Mixer Reset Initializes parameters assigned by the Mixer or by input from an (nitMix?) external sequencer. Parameter Reset _ —_ Initializes all parameters, except for the display contrast settin (InitPar?) P P pay & System Reset — — | Initializes to initial factory defaults. (initSys?) Deletes all data in the user area. TaSAE-085A E-83 ”] | WK3000_6

CC) 1 Using the SMF Player The letters “SMF” stand for Standard MIDI File, which is a file format that allows MIDI data to be shared between different software and sequencers. There are actually three SMF formats, named SMF 0, SMF 1, and SMF 2. This keyboard supports the SMF 0 format, which is the one that is most widely used today, and so all mentions of “SMF data” in this manual refer to SMF 0 format data. SMF format music data can be stored in the keyboard’s built-in Flash memory. Data stored in Flash memory can be played back using the SMF Player Mode. You can also load SMF data from a SmartMedia card or floppy diskette into the keyboard's user area and then play itback using the SMF Player Mode. The follow shows the maximum number of files that can be stored on each type of media. Flash Memory: 200 files* SmartMedia Card: 255 files* Floppy Diskette (WK-3500 only): 112 (2DD diskette)* or 224 (2HD diskette) files*

• Note that the number of files you can store in memory also depends on the size of each file. If your files are very large, you may be able to store fewer than the number of files indicated above IMPORTANT! + Note that CASIO COMPUTER CO. LTD. shall not be held liable for any loss of data stored in Flash memory, or on a SmartMedia card or a floppy diskette (WK-3500 only). E-84 Ta5AE-0868 84 04.3.26, 0:11 PM

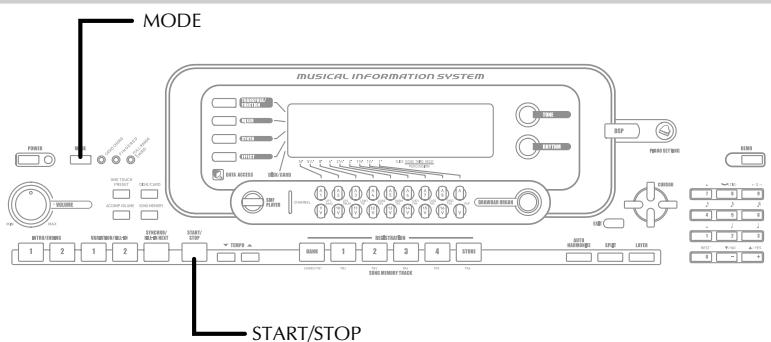

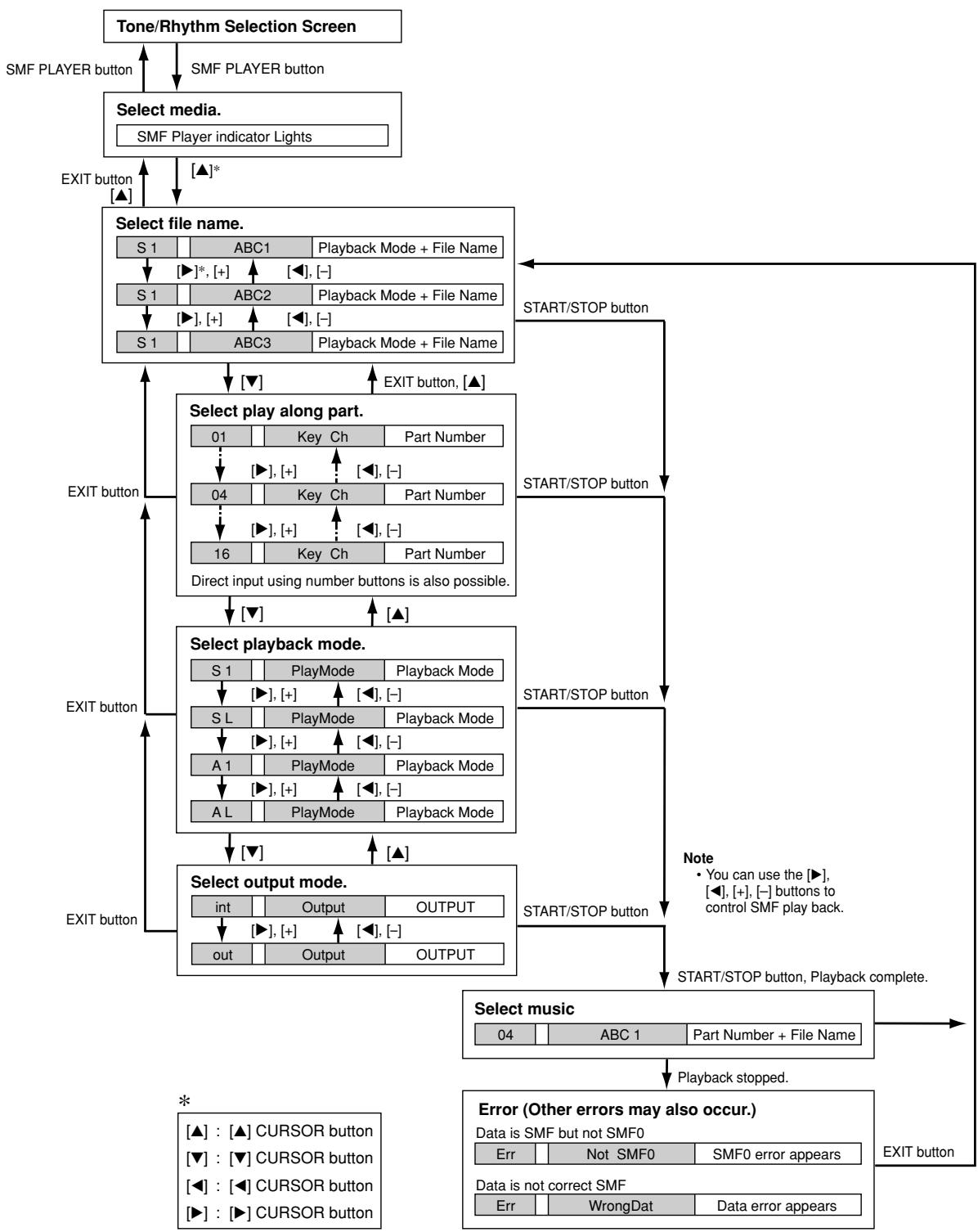

Playing Back an SMF Note that the first step you need to perform in the procedure below depends on whether you are playing back from Flash memory, a SmartMedia card, or a floppy diskette (WK-3500 only) PREPARATION + SmartMedia Card + Insertthe SmartMedia card that contains the data you want to play into the keyboard's card slot. + Floppy Diskette (WK-3500 Only) + Insert the floppy diskette that contains the data you want to play into the keyboard's floppy disk drive. IMPORTANT! + Never remove the SmartMedia card from the card slot or turn off the keyboard while card data is being accessed by a save, read, or delete operation. Doing so can corrupt the data on the SmartMedia card or even damage the card slot. Before ejecting a diskette, always check to make sure that the access lamp is not lit or flashing. A lit or flashing access lamp means that the keyboard is performing a data read or write operation. Ejecting a diskette while it is being accessed can cause its data to become corrupted. E-86

F— Number buttons FF 1/4 EXIT — To play back an SMF © nat you should do first depends on whether you are playing back from Flash memory, a memory card, or a floppy diskette. Flash Memory @: use the SMF PLAYER button to display the “Internal” indicator in the text area of the screen + This causes the “SMF PLAYER” indicator to appear on the display. Internal SmartMedia Card LE Insert the SmartMedia card that contains the file you want to play into the keyboard's card slot Use the SMF PLAYER button to display the “Card” indicator in the text area of the screen. + This causes the “SMF PLAYER" indicator to appear on the display. Floppy Diskette (WK-3500 only) @ : insert the floppy diskette that contains the file you want to play into the keyboard's floppy disk drive. Use the SMF PLAYER button to display the “Disk” indicator in the text area of the screen + This causes the “SMF PLAYER" indicator to appear on the display. @ res the [V] CURSOR button to display the file selection screen. + SMFs are those shows file names end with the extension “MID”. An error message appears at this time if there are no SMF files currently in Flash Memory. T3SA.E088A

”] | WK3000_6 Using the SMF Player . @ Use the 1 and 11 CURSOR buttons or the [+] and [-] buttons to select the file you want to play. + The name of the currently selected file appears in the text area of the display. The playback mode is shown in the number area of the display. The Tempo/ Measure area of the display shows the size of the file in kilobytes. @ r165s the START/STOP button + This starts playback of the selected file. + The number area of the display shows the number of the part to be played manually on the keyboard. + You can use the TEMPO buttons to adjust the tempo Within the range of 30 to 255. + You can turn channels 1 through 16 on and off, regardless of whether file playback is in progress or stopped. For more information, see “Turning Channels On and Off” on page E-47. @ 5 stop file playback, press the START/STOP button again. A ng SMF Playback Volume The following procedure explains how to control the overall volume of SMF data playback. You can adjust volume while playback is stopped or ongoing. © 1655 the ACCOMP VOLUME button. + This causes the “SMF Vol.” indicator to appear on the display, along with a value that indicates the current SMF volume setting. @ use the 1+1 and 1-1 buttons or the number buttons to adjust the SMF volume. + You can specify a setting in the range of 000 (minimum) to 127 (maximum) + Pressing [+] and [-] at the same time returns the SMF volume setting to 100. + Note that this setting does not affect the volume of the notes you play on the keyboard. T3SA.E.0898

Configuring Other Settings configure other settings © sciect the file you want to play back. + Perform steps 1 through 3 under “To play back an SMF" to select a file. @ press the [V1 CURSOR button to display a screen for selecting the part you want to play on the keyboard (play along part). + Use the [4] and [à] CURSOR buttons or the [+] and [-1 buttons to select the play along part. + You can specify the part you want to play on the keyboard (the play-along part) as a value in the range of 1 through 16. + After specifying a part, turn off the channel that corresponds to the play-along part you selected. See “Tuning Channels On and Off” on page E-47 for more information. Performing this step turns off the applicable part so you can play it on the keyboard along with the rest of the SMF playback. NOTE. + Entering the SMF Player Mode initializes all parts by tuning on all Mixer Mode channels. @ res the [V1 CURSOR button to display the playback mode selection screen. Use the [4] and 11 CURSOR buttons or the [+] and [-] buttons to select the playback mode. You can select from among the following four playback modes. S1 : One file, one time SL : One file, repeat A1 : All files, one time AL: All files, repeat @ press the [W] CURSOR button to display the output mode selection screen + Use the [4] and [à] CURSOR buttons or the [+] and [+] buttons to select the output mode. + You can select from among the following two output types. int_: Keyboard’s built-in speakers out : MIDI OUT NOTE, + Layer, split, and Auto Harmonize are automatically turned off in the SMF Player Mode. E-87

| Using the SMF Player SMF Player Error Messages The following explains what you should do when an error message appears in the SMF Player Mode. Error Message Cause Action Err Not SMFO You are attempting to play SMF data that is not Format 0. Use only Format 0 SMF data. Err WrongDat There is a problem with the SMF data you are Use different data. trying to play or the data is corrupted. E-88 TaSAE-000 8 04.3.26, 0:11 PM

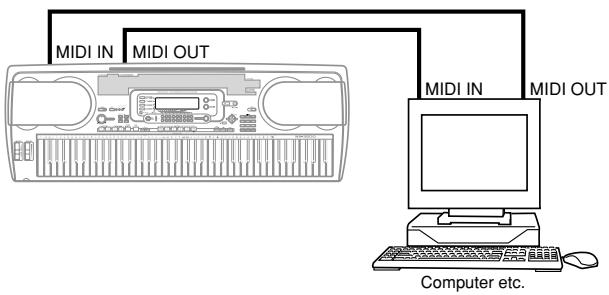

”] | WK3100_6 MIDI What is MIDI? The letters MIDI stand for Musical Instrument Digital Interface, which is the name of a worldwide standard for digital signals and connectors that make it possible to exchange musical data between musical instruments and computers (devices) produced by different manufacturers. MIDI compatible equipment can exchange keyboard key press, key release, tone change, and other data as messages. Though you do not need any special knowledge about MIDI to use this keyboard as a stand-alone unit, MIDI operations require a bit of specialized knowledge. This section provides you with an overview of MIDI that will help to get you going. MIDI Connections MIDI messages are send out through the MIDI OUT terminal of one device to the MIDI IN terminal of another machine over a MIDI cable. To send a message from this keyboard to another device, for example, you must use a MIDI cable to connect the MIDI OUT terminal of this keyboard to the MIDI IN terminal of the other device. To send MIDI messages back to this keyboard, you need to use a MIDI cable to connect the other device’s MIDI OUT terminal to the MIDI IN terminal of this keyboard. To use a computer or other MIDI device to record and playback the MIDI data produced by this keyboard, you must connect the MIDIIN and MIDI OUT terminals of both devices in order to send and receive data. foi in [uni our

MDIIN _ fminiour Computer etc. If a MIDI THRU function provided by the software is being run on a connected computer or other MIDI device, be sure to turn this keyboard's “Local Control Setting” off (page E- 82). TISAE0918

MIDI Channels MIDI allows you to send the data for multiple parts at the same time, with each part being sent over a separate MIDI channel. There are 16 MIDI channels, numbered 1 through 16, and MIDI channel data is always included whenever you exchange data (key press, pitch bend operation, etc.). Both the sending device and the receiving machine must be set to the same channel for the receiving device to correctly receive and play data. Ifthe receiving device is set to Channel 2, for example, it receives only MIDI Channel 2 data, and all other channels are ignored. This keyboard is equipped with multi-timbre capabilities, which means it can receive messages over all 16 MIDI channels and play up to 16 parts at the same time. Tone and volume settings for each channel can be made using the Keyboard’s onboard Mixer, or by an external source thatsends required MIDI control messages. Keyboard operations performed on this keyboard are sent out by selecting a MIDI channel (1 to 16) and then sending the appropriate message. General MIDI General MIDI standardizes MIDI data for all sound source types, regardless of manufacturer. General MIDI specifies such factors as tone numbering, drum sounds, and available MIDI channels for all sound sources. This standard makes it possible for all MIDI equipment to reproduce the same nuances when playing General MIDI data, regardless of the manufacturer of the sound source. This keyboard supports General MIDI, so it can be used to play commercially available pre-recorded General MIDI data and General MIDI data send to it from a personal computer. See the “Tone List” on page A1 for details about the tones that are available with GM tones numbered 000 to 127. E-89

Sending and Receiving MIDI Messages This keyboard can send notes you play on the keyboard, as well as auto accompaniment patterns and Song Memory playback as MIDI messages to another device. MIDI Send Data M Keyboard Play Each keyboard part (Channels 1 through 4) is sent over its own individual MIDI channel. When Auto Harmonize is turned on, harmonize notes are also sent over each individual MIDI channel. M Auto Accompaniment or Song Memory Play Each accompaniment part is sent over its own individual MIDI channel. The “Accomp/Song MIDI Out” parameter (page E-82) is used to specify whether a part is sent. MIDI Message Receive M Multi Channel Receive The 16 mixer parts can be used to receive data over 16 MIDI message channels at the same time. M Chord Changes when Using Auto Accompaniment MIDI messages received from an external device can be interpreted as chord changes as specified by the fingerings supported by the auto accompaniment system of this keyboard. Use the “MIDI In Chord Judge” parameter (page E-82) to turn this capability on and off. + See the MIDI Implementation Chart at the back of this User’s Guide for more information about each MIDI message. E-90 89-105.p85 go MIDI Settings You can change the settings of a number of parameters that control how MIDI messages are sent and received. MIDI Parameters You can use the parameter setting procedure (page E-80) to change the settings of the MIDI parameters described below. See pages E-80 to E-83 for details about the setting menu and procedure. = MIDI In Chord Judge This parameter determines whether note data received from an external device should be interpreted as an auto accompaniment chord fingering. Turn on this parameter when you want to control auto accompaniment chords from a computer or other external device. on: Causes note data input through MIDI IN to be interpreted as auto accompaniment chord fingerings. The channel specified by the keyboard channel is used for specifying chords. oFF: Turns off “MIDI In Chord Judge” M Accomp/Song MIDI Out (Accompaniment/Song MIDI Out) Turn on this parameter when you want sound auto accom- paniment or Song Memory on an external devices sound source. on: Outputs auto accompaniment or Song Memory as MIDI messages through the keyboard’s MIDI OUT terminal. oFF: Does not output auto accompaniment or Song Memory. NOTE. + For details about MIDI specifications, visit the CASIO Website. http:/worid.casio.com T3SA.E.092A

Using the Data Download Service You can download the following type of data from CASIO MUSIC SITE (http:/ /music.casio.com) to your computer, and then transfer it to the keyboard. + Tones + Tones with waves + Drum sets with waves + DSP + Rhythms + Registrations + Songs + SMF + Package File Data M Data and Application Software Data itself as well as application software for transferring data between your computer and the keyboard are available for download at the CASIO MUSIC SITE. M Application Software You can run the application software on your computer and transfer data you download from the CASIO MUSIC SITE to the keyboard, and also use your computer's hard disk for long-term storage of data you transfer from the keyboard to your computer. + See the instructions provided at the CASIO MUSIC SITE or full information about how to download the application software and data. + See the application software’s online help for information about how to use the software.

• CASIO MUSIC SITE http://music.casio.com/ © Go 0 the above URL. 2] Select a region or country. © seiect a download service for the INTERNET DATA EXPANSION SYSTEM data. + Note that the service you should use depends on the area or country. T3SA.E.0938 89-105.p85 a To connect to a computer Be sure to turn off the keyboard and your computer before connecting them. You should also set the volume controller of the keyboard to a relatively low volume © connect the keyboard's MIDI interface to your computer's MIDI interface.

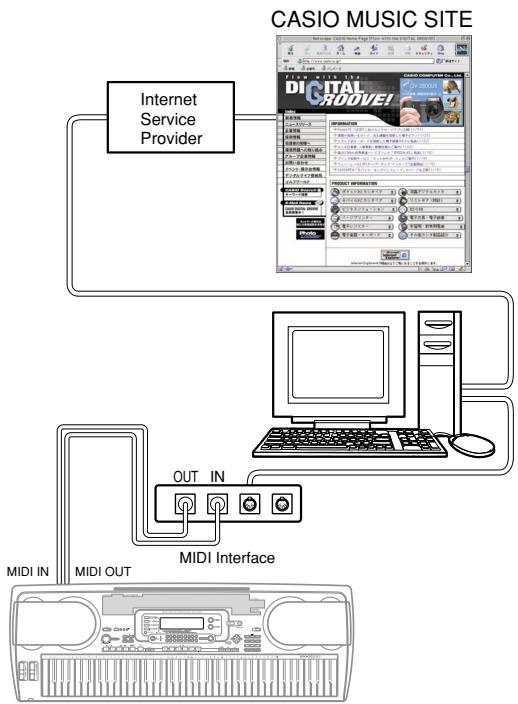

@ ur on the keyboard, and then turn on your computer or other connected device. © Start up the software you want to use on your computer. NOTE. + When using the application software, make sure that the tone setting screen (the screen that appears after tuning on power) is on the keyboard's display screen. ATA ACCESS + The DATA ACCESS lamp lights whenever the keyboard is exchanging data with a connected computer over à MIDI cable connection. Never disconnect the MIDI cable while the DATA ACCESS lamp is lit E-91

CC) 1 WK3100_6 Saving Data You can save data you create and data you transfer to the keyboard from a computer to the keyboard’s built-in Flash memory, or to a SmartMedia card" or floppy diskette (WK-3500). In this manual, SmartMedia cards and floppy diskettes are referred to as “external storage media” The types of files that can be saved to external storage media are listed below. Note that each type of file can be saved to a specific, pre-defined user area, as shown in the “Savable File Types” table below. After you load SMF data from external storage media and store it in a user area, you can play it back using the SMF Player Mode See “Using the SMF Player” on page E-84 for more information. Savable File Types Type mdr | Sedan | pieuy | Extension SMF Smf 1 Tune 200 MID Rhythm Pattern Pattern 1 Pattern 16 200 Registration Regist 1 Bank 8 Z01 User song created in the Song Memory Mode Song 1 Tune 5 202 Drum sound with waves Drwave 1 Set 4 203 Drawbar organ tone Drawbar 1 Tone 100 204 Tone Tone 1 Tone 100 205 Tone with waves Tnwave 1 Tone 20 206 DSP Dsp 1 Type 100 207 Package File*1 Package 1 Pack 1 208 AIL User Data*2 AI Data 209 #1: Package File A package file combines tone settings, DSP effect settings, and other setup data into a single file that you can manage and load as à unit (package). Once you create a package file, you will be able to change the entire setup of the Keyboard by loading a single package file. To create a package file, you need to download special package file software from the CASIO Music Site (http://music.casio.com/) and install it on your computer. For details about the package file software, see the information provided at the CASIO Music Site. IMPORTANT! + Loading a package file loads the setting data listed in the table under “Package File Data Contents” into the user area, and replaces all current data with the data in the package file. + When loading package data from a SmartMedia card or floppy diskette (WK-3500 only), the display's level meter shows the progress of the load operation as shown below. [Load Start] [Load End]

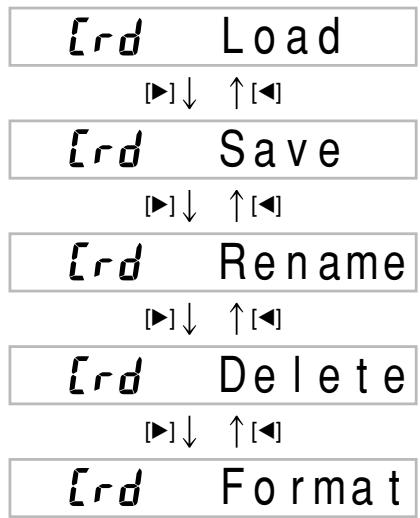

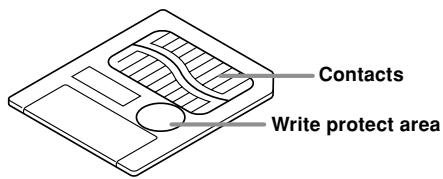

Using a SmartMedia Card Your keyboard is equipped with a card slot that supports the use of SmartMedia"" cards that you can use to store tunes you transfer from your computer, songs you have stored in the keyboard's memory, and other data. This provides you with access to virtually unlimited volumes of data that you can instantly load whenever you need it. IMPORTANT! + There are two types of SmartMedia cards: 3.8V and SV. Note that this keyboard supports use of 3.3V type SmartMedia cards only. + Never try to use a 5V type SmartMedia card with this keyboard. + Note you will not be able to store data to, delete data from, or rename a SmartMedia card that has a write protect sticker affixed to the card's write protect area. About SmartMedia'" Cards + You can purchase SmartMedia cards at most household appliance stores, computer stores, etc. + SmartMedia cards are commercially available in capacities ranging from 8MB up to 128MB. + Though a SmartMedia card is about the size of a postage stamp, its capacity ranges from 8 to 100 times the capacity of a floppy diskette. + The data read rate from a SmartMedia card is very fast. + SmartMedia® is a trademark of Toshiba Corporation. T3SA.E.0968 ”] | WK3100_6 89-105.p85 ss IMPORTANT! + Be sure to carefully read all documentation that comes with the SmartMedia card for important information about how to handle it. Avoid storing and using SmartMedia cards in the following types of locations. Such conditions can cause corruption of data stored on the card. + Areas subject to high temperatures, high humidity, or corrosive agents + Areas subject to strong electrostatic charge or electrical noise Whenever handling a SmartMedia card, make sure that you never touch its contacts with your finger: Ifthe data access lamp is lit and the message “PIs Wait” is on the display, it means that data on the SmartMedia card is being accessed by a save, read, or delete operation. Never remove the SmartMedia card from the card slot or turn off the keyboard while the card is being accessed. Doing so can corrupt the data on the SmartMedia card or even damage the card slot. Never try to insert any type of card other than a 3.3V SmartMedia card into the card slot. Doing so can damage the keyboard. Inserting a SmartMedia card that is charged with static electricity into the card slot can cause malfunction of the keyboard. If this happens, turn the keyboard off and then back on again. À SmartMedia card that has been in the card slot for a long time may feel hot when you remove it. This is normal and does not indicate malfunction. Note that a SmartMedia card has a limited service life. After long use, you may not be able to store data to, read data from, and/or delete data from a card. When this happens, you will need to purchase a new SmartMedia card. CASIO COMPUTER CO. LTD. assumes no responsibility for any loss or damage to you or any third party arising out of the loss or corruption of data. E-93

The following describes how to insert a SmartMedia card into the card slot and how to remove it. To insert a SmartMedia card into the card slot With the contact side of the SmartMedia card facing downwards, insert the card into the card slot. Carefully push the card into the slot as far as it will go.

& To remove a SmartMedia card from the slot Ÿ After making sure that the data access lamp is not lit and the message “Pls Wait” is not on the display, carefully pull the card from the slot.+

• Never remove the SmartMedia card from the card slot or turn off the keyboard card while any of the following conditions exists. + While the keyboard is in the SMF Player Mode and there is a pointer next to CARD on the display + While the data access lamp is lit and the message “PI Wait” is on the display, indicating that a card access operation is being performed IMPORTANT! + Never remove the SmartMedia card from the card slot or turn off the keyboard while card data is being accessed by a save, read, or delete operation. Doing so can corrupt the data on the SmartMedia card or even damage the card slot. E-94 ”] | WK3100_6 89-105.p85 ga Using the Floppy Disk Drive (WK-3500 Only) Floppy Disk Drive Features The WK-3500 comes with a built-in disk drive, which provides you with the capabilities described below. + You can save song memory and synthesizer data on a floppy diskette for long-term storage. When you need the data again, simply insert the diskette into the disk drive and load it. + You can play back SMF (standard MIDI file) data created on a personal computer and saved to diskette. Floppy Diskette Precautions IMPORTANT! + Avoid the following locations when storing and using diskettes. Any of the conditions noted below can cause data stored on the diskette to become corrupted. + Near TVs, on top of audio equipment, or in any area exposed to magnetism. Take special care to keep diskettes away from any source of magnetism. + Areas exposed to direct sunlight, or subject to high humidity or temperature extremes. Failure to observe any of the following precautions can cause data stored on the diskette to become corrupted. + Never try to take a diskette apart. + Never open the shutter of the diskette or touch the film inside with your fingers. + Never bend a diskette or otherwise subject it to rough handling. + Affix labels in the spaces provided only, and do not aftix labels on top of previous ones. Do not eject the diskette from the drive while the access lamp is lit or flashing or turn off keyboard power with a diskette in the drive. Doing either can cause data on the diskette to become corrupted and can even cause malfunction of the disk drive. Never insert any foreign objects into the disk drive. Doing so can cause it to malfunction. The disk drive uses a magnetic head. À dirty head cannot read data from a diskette properly and can corrupt existing data on the diskette. To avoid this, be sure to use a commercially available head cleaning diskette to periodically clean the head. T3SA.E.096A

”] | WK3100_6 Saving Data . + Do not use a computer, another electronic musical instrument, or any other device to change a file name or file contents created with this keyboard. Doing so can make the data unusable by this keyboard and even cause malfunction of the keyboard. Note that CASIO COMPUTER CO, LTD. shall not be held liable for any loss to you or any third party due to corruption or accidental erasure of data on a diskette. Ab Floppy Diskettes This section contains important information about handling diskettes. Be sure to read it before going any further. Diskette Types The WK-3500 supports use of both 3.5” 2HD (1.44MB formatted) and 2DD (720KB formatted) diskettes. Use of other disk sizes and capacities is not supported. Diskette Type Indicators 2HD .… A 2HD diskette is marked with the letters “HD” in the upper right corner of the front side. Also, there is à square hole in the lower right corner. This type of diskette does not have à hole in the lower right corner.

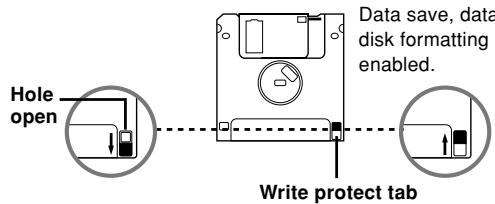

2DD ….. T3SA.E:097A 89-105.p85 ss Write Protection IMPORTANT! + You can write protect a diskette so data on it cannot be deleted and no new data can be stored on the diskette. Also, a write protected diskette cannot be formatted. You can read data from a diskette regardless of whether or not it is write protected. Write enabled hole blocked with tab) Data save, data delete, 1 disk formatting are all enabled. Write protect (hole open) Write protect tab + When the write protect hole is open as shown in the illustration, you can read the contents of the diskette, but you cannot write data to or delete data from the diskette. After saving important data to a diskette, be sure to open its write protect hole to protect the data against accidental changes or deletion. The diskette that comes with the keyboard contains sample data and programs. ltis write protected to avoid accidental erasure or formatting. Make sure you handle this diskette carefully to avoid damaging or erasing its data. E-95

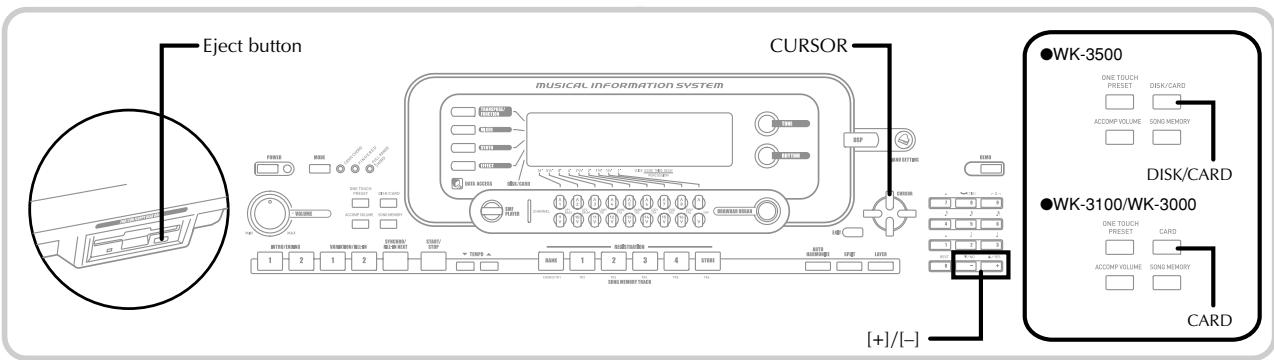

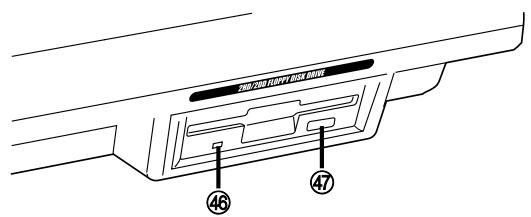

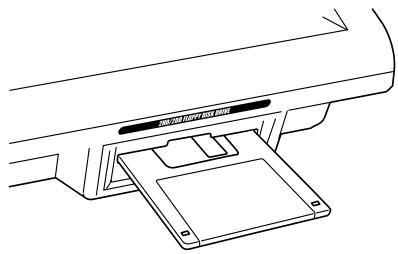

”] | WK3100_6 | Saving Data Eject button CURSOR = Inserting and Ejecting a Diskette The following describes how to insert a diskette into the disk drive and how to eject it. To insert a diskette into the floppy disk drive © win the label area of the diskette facing up, insert the diskette shutter first into the disk drive, as shown in the illustration. @ side the diskette into the drive as far as it will go, until it clicks into place. To eject a diskette from the floppy disk drive IMPORTANT! + Before ejecting a diskette, always check to make sure that the access lamp is not lit or flashing. A lit or flashing access lamp means that the keyboard is performing a data read or write operation. Ejecting a diskette while it is being accessed can cause its data to become corrupted. Ô Press the Eject button + This causes the diskette to be partially ejected from the disk drive. @ remove the diskette from the drive by hand. E-96 89-105.p85 6 D 0 DISK/CARD @WK-3100/WK-3000 HI/EI mt Using External Storage Media This section explains how to use SmartMedia cards and floppy diskettes (WK-3500 only) for data storage. In this manual, SmartMedia cards and floppy diskettes are collectively referred to as “external storage media”. NOTE, + Layer, split, and Auto Harmonize are automatically turned offwhile external storage is being used. Tone and rhythm selection, and rhythm playback are also all disabled. Basic SmartMedia Card Operat ÔO Insert the SmartMedia card into the card slot. @ Enter the Card Mode.

• WK-3500 Press the DISK/CARD button twice. + This causes a pointer to appear next to the DISK/ CARD on the display, and also displays “Card” in the display's text area. + WK-3100/WK-3000 Press the CARD button. + This causes a pointer to appear next to the CARD on the display, and also displays “Card” in the display's text area. @ res the [V1 CURSOR button to display the Card Mode menu TSALE 098C

”] | WK3100_6 Saving Data . @ use the 14 and 11 CURSOR buttons to display the screen for the type of operation you want to perform. frd Load BI, TIQ {ra Save IL TIQ £rd Rename BI, TIQ £frd Delete Il TId £rd Format + See the pages referenced below for details about using each of the above menu operations. Loading a file (Crd Load): page E-99 Saving a file (Crd Save): page E-98 Renaming a file (Crd Rename): page E-100 Deleting a file (Crd Delete): page E-101 Formatting a SmartMedia card (Crd Format): page E-102 @ rress the [W] CURSOR button to advance to the file type selection screen. use the 14 and 1»1 CURSOR buttons to select the file type. + Pressing the EXIT or [W] CURSOR button at this time will return you to the Card Mode menu. @ press the V1 CURSOR button to display the file name selection screen @ use te 1 and 11 CURSOR buttons or [+] and [I buttons to select the file name. + Pressing the EXIT or [A] CURSOR button at this time will return you to the file type selection screen. @ res the 1] CURSOR button to advance to the user area selection screen for file loading. @ use the 141 and 11 CURSOR buttons or [+] and [I buttons to select the user area. + Pressing the EXIT or [A] CURSOR button at this time will return you to the file name selection menu. TISAE 099 89-105.p85 e7 © Press the 1Y1 CURSOR button to load the file. + This will display a confirmation message asking whether you really want to load the data. If you already have data in the user area, the message will ask if you want to overwrite the existing data with the loaded data. Press the YES button to load the data. This will cause the message “Pls Wait” to appear on the display to indicate that a card access operation is being performed. Never try to perform any other operation on the keyboard while the card is being accessed. The message “Complete” will appear on the display after data loading is complete. After a few seconds, the message will be replaced by the file name selection screen. + If you do not want to continue with data loading, press the EXIT button or the NO button in response to the above confirmation message. This will return you to the user area selection screen in step 9. @® Aiter you are finished performing the SmartMedia card operation you want, press the DISK/CARD button (CARD button on the WK-3100/WK-3000) to exit the Card Mode + Exiting the Card Mode causes the pointer next to the display's DISK/CARD pointer (CARD pointer on the WK-3100/WK-3000) to disappear. Basic Floppy Diskette Operatiol (WK-3500 Only) @ insert à floppy diskette into the keyboard floppy disk drive. @ rress the DISK/CARD button + This causes a pointer to appear next to the DISK/ CARD on the display, and also displays “Disk” in the display's text area. © Perform the same operations as those starting from step 3 of under Basic SmartMedia Card Operation” on page E-96 + Note that Disk Mode operations are indicated on the display by the prefix “Fd” in place of the “Crd” prefix of the Card Mode operations. E-97

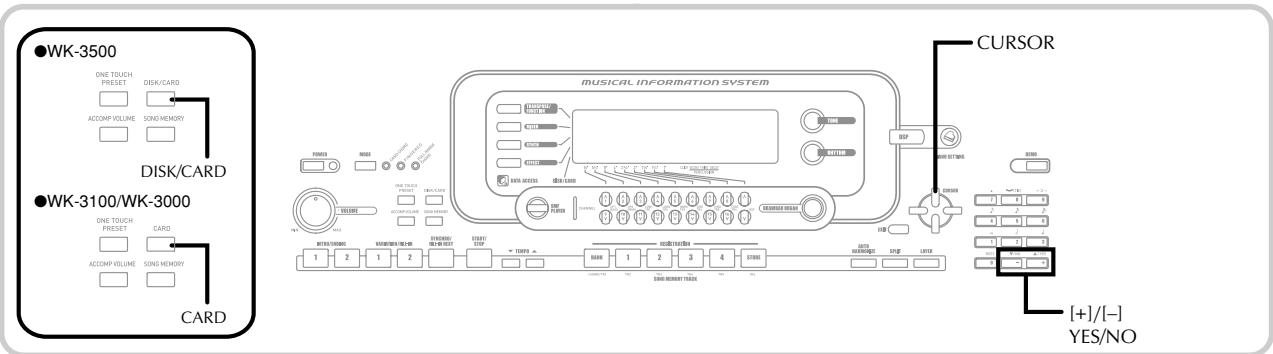

DISK/CARD @WK:-3100/WK-3000 Saving Files You can use the procedures in this section to save Song Memory, Synthesizer, and other data you create to external storage media for later loading when you need it. See “Savable File Types” on page E-92 for information about the type of data you can save. PREPARATION + SmartMedia Card Insert a properly formatted SmartMedia card into the keyboard's card slot. Make sure that the sticker is removed from the card's write area, which enables writing. Floppy Diskette (WK-3500 Only) Insert a properly formatted floppy diskette into the keyboard's floppy disk drive. Make sure that the diskette's write protect hole is closed, which enables writing. NOTE, + Depending on the type and the amount of data involved, a SmartMedia card or floppy diskette (WK-3500 only) data save or load operation can take anywhere from a few minutes to more than 10 minutes to complete. The message “Pls Wait” will remain on the display to indicate that a data save or load operation is being performed. IMPORTANT! + Never try to perform any operation while “Ps Wait” is displayed. Performing any operation can cause Flash memory or SmartMedia card or floppy diskette data to be deleted, and damage the keyboard's memory and cause it to malfunction. E-98

H/H YES/NO To save a file to external storage media © nat you should do first depends on the type of external storage media you are using, + SmartMedia Card: On the WK-3500 press the DISK/CARD button twice. On the WK-3100/WK-3000, press the CARD button once + This causes a pointer to appear next to the DISK/ CARD or CARD on the display, and also displays “Card” in the display's text area. + Floppy Diskette (WK-3500 Only): Press the DISK/CARD button. + This causes a pointer to appear next to the DISK/ CARD on the display, and also displays “Disk” in the display’s text area. @ press the [V1 CURSOR button to display the Card Mode (or Disk Mode) menu. © use te 1@ and 11 CURSOR buttons to display the “Save” screen @ press the [W] CURSOR button to advance to the file type selection screen. © use the 14 and 1>] CURSOR buttons to select the file type. © rress the [W] CURSOR button to advance to the user area selection screen @ use the 14 and 11 CURSOR buttons or [+] and [+] buttons to select the user area you want. + The numeric area of the display will show the user area number, while the text area will show the user area name. + Pressing the EXIT or [A] CURSOR button at this time will return you to the file type selection screen. @ rress the [Y] CURSOR button to advance to the file name input screen. + Use the [+] and [-] buttons to scroll through letters at the current cursor location. See the page E-103 for information about inputting text. + Use the [4] and [à] CURSOR buttons to move the cursor left and right. 7SALE 100€

”] | WK3100_6 Saving Data . © ir inputting the file name, press the [W1 CURSOR button. + If you are saving song data, the file type selection screen appears next. Use the [4] and [à] CURSOR buttons to select “SMF” or “SONG”. After selecting a file type, press the [W] CURSOR button. This will display a confirmation message asking whether you really want to save the data. If you already have data in the user area, the message will ask if you want to overwrite the existing data with the loaded data. © press the YES button to save the data. This will cause the message “Pls Wait” to appear on the display to indicate that a card access operation is being performed. Never try to perform any other operation on the keyboard while the card is being accessed. The message “Complete” will appear on the display after data save is complete. After a few seconds, the message will be replaced by the file name selection screen. + If you do not want to continue with data save, press the EXIT button or the NO button in response to the above confirmation message. This will return you to the user area selection screen in step 7. @® Aiter you are finished performing the save operation, press the DISK/CARD button (CARD button on the WK-3100/WK-3000) to exit the Card Mode. Loading a File Use the procedures in this section when you want to load data from external storage media into the keyboard’ user area IMPORTANT! + Note the following important points whenever using the SMF Player Mode to play back data saved with the above procedure.

• SmartMedia Card To perform the procedure below, you must have à SmartMedia card to which SMF data has been copied from a computer. Insert a SmartMedia card that you have formatted on the keyboard into the card slot of your computer, and copy the SMF data you want to load into the directory named “CASIO_MD”. Note that you will not be able to load the data if it is not located inside the "CASIO_MD” directory. If you create a sub-directory inside of the “CASIO_MD” directory, the keyboard will not be able to load any data inside the sub-directory. Floppy Diskette (WK-3500 only) This Keyboard is able to see only files that are in the top root) directory of the floppy diskette. It will not be able to see any files that are located in a subdirectory. TISAE AOC

PREPARATION + SmartMedia Card + Insertthe SmartMedia card that contains the data you want to load into the keyboard's card slot. + Floppy Diskette (WK-3500 Only) + Insert the floppy diskette that contains the data you want to load into the keyboard's floppy disk drive. NOTE. + Depending on the type and the amount of data involved, a SmartMedia card or floppy diskette (WK-3500 only) data save or load operation can take anywhere from a few minutes to more than 10 minutes to complete. The message “Pls Wait” will remain on the display to indicate that a data save or load operation is being performed. IMPORTANT! + Never try to perform any operation while “PIs Wait” is displayed. Performing any operation can cause Flash memory or SmartMedia card or floppy diskette data to be deleted, and damage the keyboard's memory and cause it to malfunction. To recall file data from external storage media © nat you should do first depends on the type of external storage media you are using, + SmartMedia Card On the WK-3500 press the DISK/CARD button twice. On the WK-3100/WK-3000, press the CARD button once + This causes a pointer to appear next to the DISK/ CARD or CARD on the display, and also displays “Card” in the display's text area. + Floppy Diskette (WK-3500 Only) Press the DISK/CARD button. + This causes a pointer to appear next to the DISK/ CARD on the display, and also displays “Disk” in the display’s text area. @ press the [V1 CURSOR button to display the Card Mode (or Disk Mode) menu. © use te 1@ and 11 CURSOR buttons to display the “Load” screen @ press the [W] CURSOR button to advance to the file type selection screen. © use the 14 and 1>] CURSOR buttons to select the type file you want to load @ res the [V1 CURSOR button to display the file name selection screen © us: tre 1@ and 11 CURSOR buttons or [+] and [-] buttons to select the name of the file you want to load. E-99

DISK/CARD @WK:-3100/WK-3000 @ rress the [W] CURSOR button to advance to the user area selection screen. + The user area selection screen will not appear if the file you selected in step 5 is a package file or “AIL Data” file. In this case, skip step 9 and go directly to step 10. © use the 14 and 11 CURSOR buttons or [+] and [1 buttons to select the user area to which you want to import the loaded file data. + The numeric area of the display will show the user area number, while the text area will show the user area name. + Pressing the EXIT or [A] CURSOR button at this time will return you to the file type selection screen. © iter selecting the user area, press the [W] CURSOR button. + This will display a confirmation message asking whether you really want to load the data. If you already have data in the user area, the message will ask if you want to overwrite the existing data with the loaded data. © Press the YES button to recall the data. + This will cause the message “Pls Wait” to appear on the display to indicate that a card access operation is being performed. Never try to perform any other operation on the keyboard while the card is being accessed. The message “Complete” will appear on the display after data loading is complete. After a few seconds, the message will be replaced by the file name selection screen. If you do not want to continue with data loading, press the EXIT button or the NO button in response to the above confirmation message. This will return you to the user area selection screen in step 9. ® niter you are finished performing the load operation, press the DISK/CARD button (CARD button on the WK-3100/WK-3000) to exit the Card Mode. E-100

H/H YES/NO Renaming a File You can use the procedures in this section to change the name of a file that you previously saved to external storage media. PREPARATION + SmartMedia Card + Insert the SmartMedia card that contains the file you want to rename into the keyboard's card slot. Make sure that the sticker is removed from the card's write area, which enables writing. + Floppy Diskette (WK-3500 Only) + Insertthe floppy diskette that contains the file you want to rename into the keyboard's floppy disk drive. Make sure that the diskette's write protect hole is closed, which enables writing. To rename a file saved to external storage media © nat you should do first depends on the type of external storage media you are using. + SmartMedia Card On the WK-3500 press the DISK/CARD button twice. On the WK-3100/WK-3000, press the CARD button once. + This causes a pointer to appear next to the DISK/ CARD or CARD on the display, and also displays “Card” in the display's text area. + Floppy Diskette (WK-3500 Only) Press the DISK/CARD button. + This causes a pointer to appear next to the DISK/ CARD on the display, and also displays “Disk” in the display’s text area. @ press the [V1 CURSOR button to display the Card Mode (or Disk Mode) menu. © use te 1@ and 11 CURSOR buttons to display the “Rename” screen. @ press the [W] CURSOR button to advance to the file type selection screen. ISA E 1020

”] | WK3100_6 Saving Data . @ use the 14 and 1à>] CURSOR buttons to select the type of the file you want to rename. @ press the [V1 CURSOR button to display the file name selection screen. @ use the 14 and 11 CURSOR buttons or [+] and [I buttons to select the name of the file you want to rename. @ rress the [W] CURSOR button to advance to the file name input screen. + Use the [+] and [-] buttons to scroll through letters at the current cursor location. See the page E-103 for information about inputting text. + Use the [4] and [à] CURSOR buttons to move the cursor left and right. © ir inputting the file name, press the [W1 CURSOR button. + This will display a confirmation message asking whether you really want to change the name. © press the YES button to change the file name. + This will cause the message “Ps Wait” to appear on the display to indicate that a card access operation is being performed. Never try to perform any other operation on the keyboard while the card is being accessed. The message “Complete” will appear on the display after renaming is complete. After a few seconds, the message will be replaced by the file name selection screen. If you do not want to continue with file renaming, press the EXIT button or the NO button in response to the above confirmation message. This will return you to the user area selection screen in step 5. @® Aiter you are finished performing the rename operation, press the DISK/CARD button (CARD button on the WK-3100/WK-3000) to exit the Card Mode. TISAE 1020

Deleting a File You can perform the procedure in this section to delete a file from external storage media. IMPORTANT! + Note that the file delete operation cannot be undone. Make sure that you no longer need data before you delete it. PREPARATION + SmartMedia Card + Insert the SmartMedia card that contains the file you want to delete into the keyboard's card slot. Make sure that the sticker is removed from the card's write area, which enables writing. + Floppy Diskette (WK-3500 Only) + Insertthe floppy diskette that contains the file you want to delete into the keyboard's floppy disk drive. Make sure that the diskette's write protect hole is closed, which enables writing. To delete à file from external storage media © nat you should do first depends on the type of external storage media you are using. + SmartMedia Card On the WK-3500 press the DISK/CARD button twice. On the WK-3100/WK-3000, press the CARD button once. + This causes a pointer to appear next to the DISK/ CARD or CARD on the display, and also displays “Card” in the display’s text area. + Floppy Diskette (WK-3500 Only) Press the DISK/CARD button. + This causes a pointer to appear next to the DISK/ CARD on the display, and also displays “Disk” in the display's text area. @ press the [V1 CURSOR button to display the Card Mode (or Disk Mode) menu. © use te 1@ and 11 CURSOR buttons to display the “Delete” screen. @ press the [W] CURSOR button to advance to the file type selection screen. © use the 14 and 1>] CURSOR buttons to select the type of the file you want to delete. @ res the [V1 CURSOR button to display the file name selection screen. E-101

DISK/CARD @WK:-3100/WK-3000 Use the [4] and [] CURSOR buttons or [+] and [I buttons to select the name of the file you want to delete. After selecting the file, press the [W] CURSOR button. + This will display a confirmation message asking whether you really want to delete the file. Press the YES button to delete the file. + This will cause the message “Pls Wait” to appear on the display to indicate that a card access operation is being performed. Never try to perform any other operation on the keyboard while the card is being accessed. The message “Complete” will appear on the display after file deletion is complete. After a few seconds, the message will be replaced by the file name selection screen. If you do not want to continue with file deletion, press the EXIT button or the NO button in response to the above confirmation message. This will return you to the file name selection screen. After you are finished performing the delete operation, press the DISK/CARD button (CARD button on the WK-3100/WK-3000) to exit the Card Mode. E-102 ”] | WK3100_6

H/H YES/NO Formatting External Storage Media Use the procedures in this section to format external storage media before using it for the first time, or when you want to delete all of the contents on à SmartMedia card or floppy diskette. IMPORTANT! + Note that formatting a card or diskette that already contains data causes all of that data to be deleted. Data deleted by the format operation cannot be recovered. Before performing the procedure below, check to make sure that the media does not contain any data you might need. PREPARATION + SmartMedia Card + Insert the SmartMedia card you want to format into the keyboard's card slot. Make sure that the sticker is removed from the card's write area, which enables writing. + Floppy Diskette (WK-3500 Only) + Insert the floppy diskette you want to format into the keyboard's floppy disk drive. Make sure that the diskette's write protect hole is closed, which enables writing.

”] | WK3100_6 Saving Data . To format external storage media © nat you should do first depends on the type of storage media you are using. + SmartMedia Card On the WK-3500 press the DISK/CARD button twice. On the WK-3100/WK-3000, press the CARD button once. + This causes a pointer to appear next to the DISK/ CARD or CARD on the display, and also displays “Card” in the display's text area. + Floppy Diskette (WK-3500 Only) Press the DISK/CARD button. + This causes a pointer to appear next to the DISK/ CARD on the display, and also displays “Disk” in the display's text area. @ res the [V1 CURSOR button to display the Card Mode (or Disk Mode) menu. @ use the 1@ and 11 CURSOR buttons to display the “Format” screen @ Press the 1Y1 CURSOR button. + WK-3500 Users If you are formatting a floppy diskette, a screen will appear here for specification of the floppy diskette density. Use the [4] and [à] CURSOR buttons to select either “2DD” or “2HD”, and then press the [W] CURSOR button. + This will display a confirmation message asking whether you really want to format the media. [5] Press the YES button to start formatting. + This will cause the message “Pls Wait” to appear on the display to indicate that a card access operation is being performed. Never try to perform any other operation on the keyboard while the card is being accessed. The message “Complete” will appear on the display after media formatting is complete. After a few seconds, the message will be replaced by the file name selection screen. If you do not want to continue with formatting, press the EXIT button or the NO button in response to the above confirmation message. This will return you to the mode menu. @ niter you are finished performing the format operation, press the DISK/CARD button (CARD button on the WK-3100/WK-3000) to exit the Card Mode. TISAE 1080 89-105.p85 103 Inputting Characters The following describes the types of characters you can input when saving data to the user area and external storage media. ser Area Data "l#1$1%|8&l') (|) *|+],1-1.1/10[1/2)38 41516171819|:|:|1<]=

| Saving Data SmartMedia Card Error Messages allowed by MS-DOS. Display Message Cause Action Err Card R/W There is something wrong with the card. Use a different card. Err CardFull The card is full 1. Use a different card.

2. Delete files you no longer need from the

card (page E-101) Err No Card 1. The card is not set correctly in the card slot. | 1. Remove the card and reinsert it correctly (page E-94)

2. There is no card in the card slot or the card | _2. Insert a card into the card slot. Never remove

was removed part way through a card à card from the card slot while a card access operation. operation is in progress. Err Name 1. À file with the same name as the one you | 1. Use a different name (page E-100). are trying to use already exists.

2. You are trying to use a file name thatis not | 2. Name files using the allowable characters

(page E-103). Err ReadOnly Attempt to save a file using the same name as an existing file that is read only. Save the new file to a different card or use another name. Err Format 1. The format of the card is not compatible | 1. Change to a card that has the proper format. with this keyboard. .. E-102

2. The card is not formatted. 2. Format the card. . E-102

3. The card is damaged. 3. Use a different card.

& Err Mem Full Keyboard memory became full while | 1. Delete data you no longer need from the importing data from card. user area that corresponds to the file you are trying to store. .If you have song data stored in Song Memory (5G0 to 4), delete the song data you no longer need. … ..E72

Err Not SMFO The file you are reading is not an SMF 0 format file. Use SMF 0 format files only. Err No File The keyboard cannot find any file it can read on the card. Use a card that contains data stored by this keyboard or compatible data from another device. Err Protect The card is write protected.

1. Use a different card.

2. Remove the card's write protect sticker to

enable data storage. ….E-98 Err Convert There is not enough memory to save data | Delete SMFs you no longer need from your produced by converting song data from SONG | SMF data (page E-80). format to SMF format. Err WrongDat The data on the card is corrupted. Use other data or another card. E-104 T36A.E-4068 ”] | WK3100_6 89-105.p85

Saving Data . Disk Drive Error Messages (WK-3500 Only) Display Message Cause Action Err ReadOnly Attempt to save a file using the same name as an existing file that is read only. Save the new file to a different diskette or use another name. Err Format 1. The format of the diskette is not compatible | 1. Change to a diskette that has the proper with this keyboard. format. E-102

2. The diskette is not formatted. 2. Format the diskette.

3. The diskette is damaged. 3. Use a different diskette.

Err Disk R/W The diskette is damaged. Use a different diskette. Err DiskFull The diskette is full. . Use a different diskette. . Delete any files you no longer need in order to make room for the data you want to save. E-101

Err Mem Full Keyboard memory became full while importing data from diskette. . Delete data you no longer need from the user area that corresponds to the file you are trying to store. If you have song data stored in Song Memory (5G0 to 4), delete the song data you no longer need. … 72

Err Not SMFO The file you are reading is not an SMF 0 format file. Use SMF 0 format files only & Err No Disk 1. The diskette is not loaded in the drive | 1. Eject the diskette from the drive and reload Ÿ correctly. it. .E-94

2. No diskette is loaded in the drive. 2. Load a diskette into the drive.

Err No File The keyboard cannot find any file it can read | Use a diskette that contains data stored by this on the diskette. keyboard or compatible data from another device. Err Protect The diskette is write protected.

1. Use a different diskette.

enable data storage. … ..E-95 Err Convert There is not enough memory to save data | Delete SMFs you no longer need from your produced by converting song data from SONG | SMF data (page E-80). format to SMF format. Err WrongDat The file you are reading is a wrong format file. | Use other data or another diskette. The data on the diskette is corrupted. Err Name A file with the same name as the one you are | Use a different name (page E-100). trying to use already exists on the floppy. diskette. TaSAE-107A E-105 ”] | WK3100_6 89-105.p85

Power is not turned on.

Volume setting is too low.

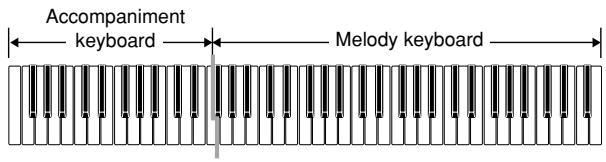

Playing in the accompaniment keyboard area while the MODE button setting is CASIO CHORD or FINGERED. Local Control is off. Mixer channel 1 is turned off.

Mixer channel 1 volume setting is too low. The DSP volume parameter is set +00 low. The Expression value of the file data played back on the SMF player is 00 low.

Correctly attach the AC adaptor, make sure that batteries poles (+/ —) are facing correctly, and check to make sure that batteries are not dead. Press the POWER button to turn on power. Use the VOLUME knob to increase volume. None of the accompaniment mode indicators are lit, which means Auto Accompaniment is turned off. Turn on Local Control. Use the Mixer to turn channel 1 on. Use the Mixer to raise the volume setting for channel 1. Increase the DSP parameter value. Exit then re-enter the SMF Player Mode, or change the SMF Player play-along part. E & D

© æœ E-16, 17 Any ofthe following symptoms while using battery power Low battery power Replace the batteries with a set of new ones or use the AC adaptor. Dim power indicator Instrument does not turn on. Distortion of sound output MIDI device Display that is flickering, dim, or difficult to read Abnormally low speaker/headphone volume Occasional interruption of sound when playing at high volumes Sudden power failure when playing at high volumes Hlickering or dimming of the display when playing at high volume Continued sound output even after you release a key A tone that is totally different from the one that is selected. Abnormal rhythm pattern and demo tune play Abnormally low microphone volume (WK-3100 only) Distortion of microphone input (WK-3100 only) Dim power supply indicator when a microphone is used (WK-3100 only) Sudden power failure when using the microphone (WK-3100 only) Loss of power, sound distortion, or low volume when playing from à connected computer or Sudden power failure while reading from or writing to a diskette (WK-3500 only) E-16, 17 Auto Accompaniment does not sound.

1. Accompaniment volume is set to

2. Auto Accompaniment part

Channels 6 through 10 are turned off.

3. Auto Accompaniment part

Channels 6 through 10 volume setting is too low.

1. Use the ACCOMP VOLUME

button to increase the volume.

2. Use the Mixer to turn the channels

3. Use the Mixer to raise the volume

setting for the applicable channel. E-106 106-112.p65 106

”] | WK3100_6 Troubleshooting . Problem Possible Cause Action See page Sound output does not change Touch response is turned off. Press the TRANSPOSE/ | E-78 when key pressure is varied. FUNCTION button to turn it on. Playing the keyboard sounds | Layeris turned on. Press the LAYER button to turn off | E-74 two tones. layering. Different tones sound when Split is turned on. Press the SPLIT button to turn off | E-75 keys in different keyboard split. ranges are pressed. The key or tuning does not | 1.The tuning or transpose | 1. Change the transpose or tuning | E-77,78 match when playing along with parameter is set to a value other parameter value to 00. another MIDI machine. than 00.

2. Mixer coarse tune, fine tune, and / 2. Use the Mixer to change the | E-49

or octave shift settings are values coarse tune, fine tune, and/or other than 00. octave shift settings to 00. Parts suddenly drop out during | The number of tones being played | Use the Mixer to turn unneeded | E-47 song memory playback at the same time exceeds the | channels off and decrease the keyboard's limitation. number of parts being played. Some parts do not play at all 1. Channels are turned off. 1. Use the Mixer to turn channels | E-47 during song memory playback. on.

2. Volume setting is too low. 2. Use the Mixer to check the | E-48

volume setting, Nothing happens when the | 1.One or more of the melody | 1. Use the Mixer to turn on | E47 LAYER or SPLIT button is channels (2 through 4) is turned Channels 2 through 4. pressed. off.

2. The volume setting of one or 2. Use the Mixer to raise the volume | E-48

more of the melody channels (2 setting of Channels 2 through 4. through 4) is t00 low. 3.The keyboard is in record 3. The LAYER and SPLIT buttons | E-74,75 standby. are disabled during recording and record standby.

4. The SMF Player Mode is currently 4. Turn off the SMF Player Mode. | E-84

being use. LAYER and SPLIT are not available while the SMF Player Mode is in use. No sound is produced when 1. MIDI cables are not connected 1. Connect MIDI cables properly. E-89 playing MIDI data from a properly. computer. 2. Channel is turned off, or volume 2. Use the Mixer to turn the channel | E-46,47 setting is too low. on, or raise the volume setting. Playing on the keyboard The computer’s MIDI Thru function Turn off the MIDI Thru function on | E-82 produces an unnatural sound is turned on. the computer or turn off Local when connected to a computer. Control on the keyboard. Cannot record chord | Accomp/Song MIDI Out is turned | Turnon Accomp/Song MIDI Out. | E-82 accompaniment data on a | off. computer. TaSh.E 409 E-107 106-112.p65 107

”] | WK3100_6 | Troubleshooting Problem Possible Cause Action See page The keyboard starts up | Flash memory is corrupted. There | 1. Remove the batteries from the | E-83 abnormally when it is turmed | is something wrong with the card. keyboard and disconnect the AC on. adaptor and press the POWER button.

2. Reload the batteries and/or

reconnect the AC adaptor, and then press the POWER button again to turn on power.

3. Use the TRANSPOSE/

FUNCTION button to perform the system reset operation. + If this does not solve the problem, contact your nearest authorized CASIO Service Provider to request repair. A downloaded tone with Someone may have turned off the Use the TRANSPOSE/FUNCTION | E-83 waveform contains noise or | keyboard while data was being | button to perform the system reset keyboard operations become | stored in Flash memory or | operation. If this does not correct abnormal when user data is | something else has caused Flash | the problem, contact your nearest selected. memory contents to become authorized CASIO Service Provider corrupted for some reason. to request maintenance. Cannot save data to a card. 1. The card is write-protected. 1. Remove the write-protect sticker | E-93 from the card.

2. The card is not inserted correctly 2. Correctly insert the card into the | E-94

into the card slot. card slot.

3. There is not enough space left on 3. Use a different card or delete files | E-101

the card. you no longer need from the card you are using.

4. You are trying touse a card whose | 4. Use only a card of the voltage | E-93

voltage or capacity is not and capacity specified for this supported by this keyboard. keyboard.

5. The card is damaged. 5. Use a different card.

Cannot recall data from a card. 1. The card is not inserted correctly 1. Correctly insert the card into the | E-94 into the card slot. card slot.

2. There is not enough space | 2. Deleterhythm,SMF,ortone with | E-83

available in the area into which wave data currently in the you are trying to import the data. keyboard's Flash memory to make room from the imported data.

3. Youaretryingtouseacard whose | 3. Use only a card of the voltage | E-93

voltage or capacity is not and capacity specified for this supported by this keyboard. keyboard.

4. The card is damaged. 4. Use a different card.

Static noise when a microphone 1. Use of a microphone that is 1. Use a full metal shielded Cannon | E-21 is connected. different from the type that is type microphone. (WK:-3100 only) recommended.

2. Use of the microphone in the | 2.Movethemicrophoneawayfrom | E-21

vicinity of fluorescent lighting. source of the static. No microphone sound 1. Microphone volume settingistoo | 1. Increase the microphone volume | E-21 (WK-3100 only) low. setting. | 2. Microphone’s on/off switch is set 2. Change the microphone's on/off | E-21 to OFF. switch setting to ON. E-108 7aSnE110c 106-112.p65 108

Polyphony: 32 notes maximum (10 for certain tones) Drawbar Organ Function Drawbars: 9(6,51/3,8,4,22/3,2,13/5,11/3,1) Percussion: Second, Third Click: On, Off Effects: DSP (200 types: internal, 100 user areas) + Reverb (16 types) + Chorus (16 types) + Equalizer (10 types, 4 bands) Auto Accompaniment Rhythm Patterns: Tempo: Chords: Rhythm Controller: Accomp Volume: FN One-touch Presets: Auto Harmonize: 156 (internal, 16 user areas*) Variable (226 steps, J = 30 to 255) 3 fingering methods (CASIO CHORD, FINGERED, FULL RANGE CHORD) START/STOP, INTRO/ENDING 1 and 2, VARIATION /FILL-IN 1 and 2,

SYNCHRO/FILL-IN NEXT

0 to 127 (128 steps) Recalls settings for tone, tempo, layer on/off, and harmonize on/off in accordance with rhythm. 10 types : Automatic addition of notes that harmonize with melody note in accordance with specified Auto Accompaniment chords. Memory Function Songs: Recording Tracks: Recording Methods: Memory Capacity:

| Specifications Synthesizer Function Parameters: Attack time; release time; resonance; cutoff frequency; vibrato type; vibrato delay; vibrato depth; vibrato rate; octave shift; level; touch sense; reverb send; chorus send; DSP line; DSP type; DSP parameter; 300 Advanced Tones + 200 Preset Tones + 16 Drum Sounds + 124 User Tones + 150 Drawbar Organ Tones (790 tones total) Registration Memory Number of Setups: Memory Contents: 32 (4 setups x 8 banks) Tone, Rhythm, Tempo, Layer on/off, Split on/off, Split point, Harmonize on/ off, Mixer settings (Channels 1 to 10), Effect settings, Touch Response settings, Assignable jack setting, Transpose, Tuning, Accompaniment volume setting, Pitch bend range, Auto Harmonize type, MODE button setting, Synchro standby state, Mixer Hold, DSP Hold, Synthesizer Mode parameters Mixer Function Channels: 16 Parameters: Tone; part on/off; volume; pan pot; octave shift; coarse tune; fine tune; reverb send; chorus send; DSP line; DSP level, DSP pan, DSP system rever send, DSP system chorus send MIDI: 16 multi-timbre receive, GM Level 1 standard Other Functions Pitch Bend Range: Adjustable (12 semitones upwards and downwards) Modulation: Equipped Transpose: 49 steps (-24 semitones to +24 semitones) & Tuning: Variable (A4 = approximately 440Hz #100 cents) LCD: Adjustable contrast SMF Player: Flash memory storage for up to 200 files* Supported Format: SMFO Flash Memory Capacity: 2MB Shared Area: Approximately 1.5MB (waveform data, accompaniment data, SMF data) Further storage of waveform, accompaniment, and SMF data becomes impossible after the total of such data reaches approximately 1.5MB. Card Slot 3.3V SmartMedia!* (8MB, 16MB, 32MB, 64MB, 128MB) Functions: Save and load of user tones, user songs, and registration data; playback of SMF; card formatting; file delete; file rename Floppy Disk Drive (WK-3500 only) Type: 3.5" FDD Formats: 2DD (720KB MS-DOS format) 2HD (1.44MB MS-DOS format) Functions: Save and load of user tones, user songs, and registration data; playback of SMF; disk formatting; file delete; file rename E-110 TSSAE-128 ”] | WK3100_6 106-112.p65 110

Specifications . Terminals MIDI Terminals: Sustain/Assignable Terminal: °WK-3500 Headphones: Line Out (R, L/MONO): +WK-3100/WK-3000 Headphone/Output Terminal: Power Supply Terminal: Microphone In: (WK-3100 only) IN, OUT Standard jack (sustain, sostenuto, soft, rhythm start/stop) Stereo standard jack Output Impedance : 2000 Output Voltage : 250mV (RMS) MAX Standard jack x 2 Output Impedance : 3kQ Output Voltage : 1.5V (RMS) MAX Stereo standard jack Output Impedance: 200 Output Voltage: 5.5V (RMS) MAX 12V DC Stereo standard jack (with microphone volume knob) Input impedance: 1 kQ Input sensitivity: 10 mV Power Supply: Batteries: Battery Life: AC Adaptor: Auto Power Off: Dual power supply system 6 D-size batteries Approximately 4 hours continuous operation on alkaline batteries AD-12 Turns power off approximately six minutes after last key operation. Enabled under battery power only, can be disabled manually. Speaker Output: 6.1W + 6.1W Power consumption: 12V == 18W Dimensions:

122.3 x 42.3 x 16.0 cm (48 3/16 x 16 1/16 x 6 5/16 inch)

Weight: WK-3500: Approximately 10.0 kg (22.0 Ibs) (without batteries) WK:3100/WK-3000: Approximately 9.5 kg (20.9 Ibs) (without batteries)

CC) 1 ”] | WK3100_6 Care of your Instrument Avoid heat, humidity or direct sunlight. Do not overexpose the instrument to direct sunlight, or place it near an air conditioner, or in any extremely hot place. Do not use near a TV or radio. This instrument can cause video or audio interference with TV and radio reception. If this happens, move the instrument away from the TV or radio. Do not use lacquer, thinner or similar chemicals for cleaning. Clean the instrument with a soft cloth dampened in a weak solution of water and a neutral detergent. Soak the cloth in the solution and squeeze until it is almost dry. Avoid use in areas subjected to temperature extremes. Extremely high or low temperature can cause figures on the LCD screen to become dim and difficult to read. This condition should correct itself when the instrument is brought back to normal temperature. NOTE. + You may notice lines in the finish of the case of this instrument, These lines are a result of the molding process used to shape the plastic of the case. They are not cracks or breaks in the plastic, and are no cause for concern.

Appendix No. | Tone Group Tone Name Come Bank Sglect Popnony Free DSP Type

502 | DRUM ROOM SET 8 120

503 | DAUM POWER SET 16 120

504 | DRUM ELEC. SET 24 120

505 | DRUM SYNTH SET 1 25 120

506 | DRUM SYNTH SET 2 30 120

507 | DRUM JAZZ SET 32 120

Appendix Drum Assignment List 4 "indicates the same sound as STANDARD SET. Key Program Change No. Drum Set Name, Note rumber _|Poo: STANDARD Er 1[PCHSNRDSET2] PCE:ROOM SET |PCI6: PONER ser] PC24:ELEC SET | PCA: SVNTHT | POSTE ao 21 = = = = = = = = fer EUR = = = = = = = GEI = = = = = = = = oi 2 = = = = = = = = PE ea ice = = = = = = = Er : = = = = = = = DE] ru = = = = = = CRE = = = = = = rs Fe = = = = = = = SRE = = = = = = ais ermosone ce | = = = = = = [81 35 STANDARD 1 KICK 2 _|_ STANDARD 2 KICK 2 _| ROOM KICK 2 POWER KICK 2 ELEC KICK 2 SYNTH 1 KICK SYNTH 2 KICK 1 TAZZKICKZ CE SORA SANDER ROOMNE— POMEROR—VÉLEO RER SR (5 races 2 = É É DE U ET ME 2 2 58 DRE SRE STANDARD SNA ADR ONE SARE SERA (ON OA ONE SNRRET (ZUNE

2 ARTE MERE = = = STORE THEN

= = LOOPED LOOPED LOOPED LOOPED

l = —| E £ E E G F#/(G*)

“P2S0P STI JE UAS “19}

“MOIS 0} JSEJ LOL PAUPILMS

SISJOURIE D KepQ de-T - SMOUD as 4-1 - on

This recycle mark indicates that the packaging conforms to the environmental protection legislation in Germany. ° CASIO. CASIO COMPUTER CO.LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan ”] | WK3100_e_cover.p65 2 À 04.3.26, 0:13 PM MA0403-C_ Printed in China WK3100-E-1
