AquaTouch S5091 - Razor PHILIPS - Free user manual and instructions

Product Type	Shaver
Brand	Philips
Model	AquaTouch S5091
Dimensions (H x W x D)	6.5 x 5.0 x 17.5 cm
Weight	0.54 kg
Power Source	Rechargeable Lithium-ion battery
Charging Time	1 hour
Run Time	50 minutes
Voltage	100-240 V automatic
Wet & Dry Usage	Yes, fully washable
Shaving Heads	3 rotary Flex heads
Pop-up Trimmer	Yes
Display	LED battery indicator
Shaving System	AquaTec wet & dry with SkinGlide coating
Cleaning Method	Rinse under running water
Replacement Heads	Philips SH50 (every 2 years)
Accessories Included	Protective cap, charging cable
Motor	SmartMotor
Warranty	2 years

Frequently Asked Questions - AquaTouch S5091 PHILIPS

Can I use this shaver in the shower?

Yes, the AquaTouch S5091 is fully waterproof and designed for wet & dry use. You can use it with shaving foam or gel in the shower.

How do I clean the shaver?

Rinse the shaver head under running water after each use. For a deeper clean, open the shaving head and rinse thoroughly. Do not use abrasive cleaners.

How long does the battery last?

The rechargeable lithium-ion battery provides up to 50 minutes of cordless use after a full 1-hour charge.

When should I replace the shaving heads?

It is recommended to replace the shaving heads every 2 years for optimal performance. Use Philips SH50 replacement heads.

Can I use the shaver while it is charging?

No, the AquaTouch S5091 is designed for cordless use only. Do not use it while plugged in.

How do I know when the battery is low?

The LED battery indicator will flash when the battery is low. It shows a solid light during charging and switches off when full.

What is the pop-up trimmer used for?

The pop-up trimmer is ideal for trimming sideburns, mustache, or detailing edges. Slide it up to activate.

Is this shaver suitable for sensitive skin?

Yes, the SkinGlide coating and rounded heads reduce friction, making it suitable for sensitive skin. Use wet for extra comfort.

How do I lubricate the shaver?

Apply a drop of Philips shaver oil to the shaving heads once a month. Do not use other oils as they may damage the device.

What should I do if the shaver does not turn on?

Make sure the battery is charged. If it still doesn't work, try resetting by plugging it in for a few seconds. If the issue persists, contact Philips customer support.

USER MANUAL AquaTouch S5091 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

series S5000

PHILIPS

ENGLISH 4

INDONESIA 38

한국어 72

BAHASA MELAYU 106

ภาษาไทย 141

TIẾNG VIỆT 170

繁體中文 203

简体中文 233

293

321

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

1 Protection cap for cleansing brush attachment (specific types only) 2 Click-on cleansing brush attachment (specific types only) 3 Comb for beard styler attachment (specific types only) 4 Click-on beard styler attachment (specific types only) 5 Click-on trimmer attachment (specific types only) 6 Protection cap for shaving unit (specific types only) 7 Click-on shaving unit 8 On/off button 9 Turbo button (specific types only) 10 Handle 11 Socket for small plug 12 Battery charge indicator with 1 light 13 Battery charge indicator with 3 lights 14 Unplug for use symbol 15 Travel lock symbol 16 Replacement reminder 17 Cleaning reminder 18 Cleaning cartridge for SmartClean system 19 SmartClean system (specific types only) 20 Cap of SmartClean system 21 On/off button 22 Battery symbol

23 Cleaning symbol 24 Replacement symbol 25 Ready symbol 26 Adapter 27 Small plug 28 Pouch (specific types only)

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Always unplug the shaver before you clean it under the tap.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

Caution

- Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.

- Never use water hotter than 80°C to rinse the shaver.

- Only use this appliance for its intended purpose as shown in the user manual.

- For hygienic reasons, the appliance should only be used by one person.

- Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter.

- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

- If your shaver comes with a cleaning system, always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).

- Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.

- If your cleaning system uses a cleaning cartridge, always make sure that the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.

- When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.

- Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Electromagnetic fields (EMF)

- This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.
• The appliance is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

The display

Charging

Battery charge indicator with 3 lights

• Charging takes approx. 1 hour
• Quick charge: When the appliance is connected to the mains, the lights of the battery charge indicator light up one after the other continuously. When the appliance contains enough energy for one shave, the bottom light of the battery charge indicator flashes slowly.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, first the bottom light flashes and then lights up continuously. Then the second light flashes and then lights up continuously, and so on until the appliance is fully charged.

Battery charge indicator with 1 light

- Charging takes approx. 1 hour.

- Quick charge: When the appliance does not contain enough energy for one shave, the battery charge indicator flashes quickly. When the battery charge indicator starts flashing slowly, the appliance contains enough energy for one shave. - If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, the battery charge indicator flashes slowly.

Battery fully charged

Note: This appliance can only be used without cord.

Note: When the battery is full, the display switches off automatically after 30 minutes. If you press the on/off button during charging, the ‘unplug for use’ symbol flashes white to remind you that you have to disconnect the appliance from the mains.

When the battery is fully charged, all lights of the battery charge indicator light up continuously.

- Battery charge indicator with 3 lights

- Battery charge indicator with 1 light

Battery low

When the battery is almost empty, the battery charge indicator flashes orange.

- Battery charge indicator with 3 lights

- Battery charge indicator with 1 light

Remaining battery capacity

Battery charge indicator with 3 lights

- The remaining battery capacity is indicated by the lights of the battery charge indicator that light up continuously.

'Unplug for use' reminder

- The appliance is equipped with an ‘unplug for use’ reminder. The ‘unplug for use’ symbol starts to flash to remind you that you have to disconnect the appliance from the adapter before you can switch it on.

Cleaning reminder

For optimal shaving performance, we advise you to clean the shaver after every use.

- When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.

Travel lock

You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident.

Activating the travel lock

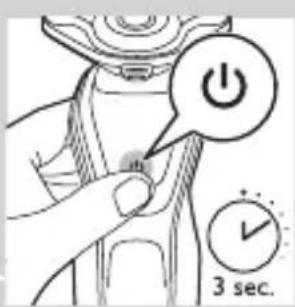

1 Press the on/off button for 3 seconds to enter the travel lock mode.

- While you activate the travel lock, the travel lock symbol lights up continuously. When the travel lock is activated, the travel lock symbol flashes.

Deactivating the travel lock

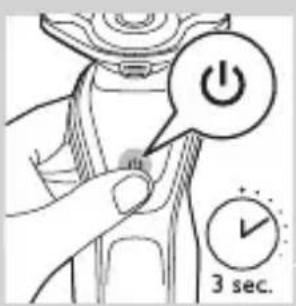

1 Press the on/off button for 3 seconds.

- The travel lock symbol flashes and then lights up continuously. The shaver is now ready for use again.

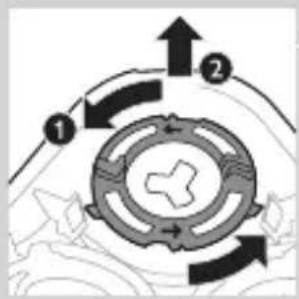

Replacing shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

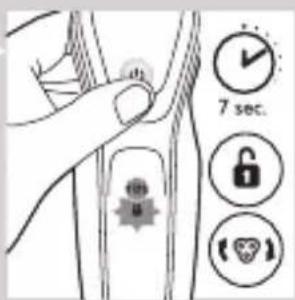

- The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The replacement reminder lights up continuously.

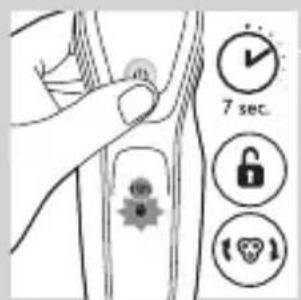

Note: After replacing the shaving heads, you need to reset the replacement reminder by pressing the on/off button for 7 seconds.

Turbo setting (specific types only)

The appliance is equipped with a Turbo or Turbo+ setting. This setting is intended for quicker and more intense shaving and makes hard-to-reach areas easier to shave.

Activating the Turbo setting

1 To activate the Turbo setting, press the Turbo button once.

Deactivating the Turbo setting

1 To deactivate the Turbo setting, simply press the Turbo button once again.

Charging

Charging takes approx. 1 hour.

Note: This appliance can only be used without cord.

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

Charging with the adapter

1 Insert the small plug into the appliance and put the adapter in the wall socket.

Charging in the SmartClean system (specific types only)

1 Put the small plug in the SmartClean system. 2 Put the adapter in the wall socket. 3 Press down the top cap to be able to place the shaver in the holder ('click'). 4 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

5 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate the shaver is charging.

Using the shaver

Switching the appliance on and off

1 To switch on the appliance, press the on/off button once. 2 To switch off the appliance, press the on/off button once. - Battery charge indicator with 3 lights: The display lights up for a few seconds to show the remaining battery status.

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system. We advise you to shave regularly (at least 3 times a week) with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver.

Note: This appliance can only be used without a cord.

1 Switch on the appliance. 2 Move the shaving heads over your skin in circular movements.

Note: Do not make straight movements.

3 Clean the shaver after use (see chapter 'Cleaning and maintenance').

Wet shaving

You can also use this shaver in the shower or on a wet face with shaving foam or shaving gel.

To shave with shaving foam or shaving gel, follow the steps below:

1 Apply some water to your skin.

2 Apply shaving foam or shaving gel to your skin.

3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

4 Switch on the shaver.

5 Move the shaving heads over your skin in circular movements.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 Dry your face and thoroughly clean the shaver after use (see chapter ‘Cleaning and maintenance’).

Note: Make sure you rinse all foam or shaving gel off the shaver.

Turbo setting (specific types only)

The appliance is equipped with a Turbo or Turbo+ setting for easy shaving of hard-to reach areas.

1 Switch on the shaver.

2 Press the Turbo button once to switch on the Turbo setting if you want to shave hard-to-reach areas more quickly.

3 Move the shaving heads over your skin in circular movements.

Note: Do not make straight movements.

4 To deactivate the Turbo setting simply press the Turbo button once.

Using the click-on attachments

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Removing or attaching the click-on attachments

1 Make sure the appliance is switched off. 2 Pull the attachment straight off the appliance.

Note: Do not twist the attachment while you pull it off the appliance.

3 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the trimmer attachment

You can use the trimmer attachment to groom your sideburns and moustache.

1 Make sure the appliance is switched off. 2 Insert the lug of the attachment into the slot in the top of the shaver. Then press down the trimmer attachment to attach it to the appliance ('click'). 3 Switch on the appliance.

4 You can now start trimming.

5 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Using the beard styler attachment

1 Make sure the appliance is switched off. 2 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the beard styler attachment with comb

You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. You can use it also to pre-trim any long hairs before shaving to have a more comfortable shave.

The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.

1 Slide the comb straight into the guiding grooves on both sides of the attachment ('click').

2 Press the length selector and then push it to the left or right to select the desired hair length setting. 3 Switch on the appliance. 4 You can now start styling your beard by moving the attachment upwards with gentle pressure, making sure the front of the comb is in full contact with the skin. 5 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Using the beard styler attachment without comb

You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns, or neckline to a length of 0.5mm.

1 Pull the comb off the attachment.

Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.

2 Switch on the appliance. 3 You can now start contouring your beard, moustache, sideburns, or neckline by moving the styler downwards with gentle pressure while holding it perpendicular to the skin. 4 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Using the cleansing brush attachment

Use the rotating cleansing brush attachment with your daily cleansing cream. The cleansing brush attachment removes oil and dirt, contributing to a healthy and oil-free skin.

1 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

2 Moisten the attachment with water. Do not use the appliance with a dry brush head, as this can irritate the skin.

Tip: Use the attachment before shaving for easier shaving and a more hygienic shaving result.

3 Moisten your face with water and apply a cleanser to your face.

4 Place the attachment on your right cheek.

5 Switch on the appliance.

6 Gently move the attachment across your skin from the nose towards the ear. Do not push the attachment too hard onto the skin to make sure the treatment remains comfortable.

7 After approximately 20 seconds, you can move the attachment to your left cheek and start cleansing this part of your face.

Caution: Do not clean the sensitive area around your eyes.

8 After approximately 20 seconds, you can move the attachment to your forehead and start cleansing this part of your face. Gently move the attachment from left to right.

Note: We advise you not to overdo the cleansing and not to cleanse any zone for longer than 20 seconds.

9 After the treatment, rinse and dry your face. Your face is now ready for the next step of your daily skincare routine. 10 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Cleaning and maintenance

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Cleaning the shaver in the SmartClean system (specific types only)

Do not tilt the SmartClean system to prevent leakage.

Note: Hold the SmartClean system while you prepare it for use.

Note: If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

Preparing the SmartClean system for use

1 Put the small plug in the back of the SmartClean system. 2 Put the adapter in the wall socket. 3 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.

4 Pull the seal off the cleaning cartridge.

5 Place the cleaning cartridge in the SmartClean system.

6 Push the top part of the SmartClean system back down ('click').

Using the SmartClean system

Always make sure to shake excess water off the shaver before you place it in the SmartClean system.

1 Press down the top cap to be able to place the shaver in the holder ('click').

2 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

3 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate that the shaver is charging.

4 Press the on/off button on the SmartClean system to start the cleaning program.

- During the cleaning program (which takes approx. 10 minutes), the cleaning symbol flashes.

- When the cleaning program has been completed, the ready symbol lights up continuously.

- The battery symbol lights up continuously to indicate that the shaver is fully charged. This takes approx. 1 hour.

Note: If you press the on/off button of the SmartClean system during the cleaning program, the program aborts. In this case, the cleaning symbol stops flashing.

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts.

Note: 30 minutes after the charging phase has been completed, the SmartClean system switches off automatically.

5 To let the shaver dry, you can leave it in the SmartClean system until your next shave. You can also remove the shaver from the SmartClean system, shake off excess water, open the shaving unit and let the shaver air dry.

Replacing the cartridge of the SmartClean System

If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

Replace the cleaning cartridge when the replacement symbol flashes orange or when you are no longer satisfied with the cleaning result. If used once a week, the SmartClean cartridge will last for approximately three months.

1 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system. 2 Take the empty cleaning cartridge from the SmartClean system and pour any remaining cleaning fluid out of the cleaning cartridge. You can simply pour the cleaning fluid down the sink. 3 Throw away the empty cleaning cartridge. 4 Unpack the new cleaning cartridge and pull the seal off the cartridge.

5 Place the new cleaning cartridge in the SmartClean system.

6 Push the top part of the SmartClean system back down ('click').

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal shaving performance.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

1 Rinse the shaving unit under a warm tap for some time.

2 Press the release button and open the shaving unit.

3 Rinse the shaving head holder under a warm tap for 30 seconds. 4 Carefully shake off excess water and let the shaving head holder dry. 5 Close the shaving head holder ('click').

Thorough cleaning method

Make sure the appliance is switched off.

1 Press the release button and open the shaving unit. 2 Pull the shaving head holder off the bottom part of the shaving unit.

3 Turn the retaining rings anticlockwise and remove them.

4 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

5 Clean the cutter and guard under the tap.

6 After cleaning, place the cutter back into the guard.

7 Put the shaving heads back into the shaving head holder.

Note: Make sure the projections of the shaving heads fit exactly into the recesses of the shaving-head holder.

8 Place the retaining rings back onto the shaving head holder and turn them clockwise.

- Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.

- Turn the ring clockwise until you hear 'click' and the ring is fixed.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

9 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder ('click').

Cleaning the click-on attachments

Never dry the trimmer or beard styler attachments with a towel or tissue, as this may damage the trimming teeth.

Cleaning the trimmer attachment

Clean the trimmer attachment every time you have used it.

1 Switch on the appliance with the trimmer attachment attached. 2 Rinse the trimmer attachment under a hot tap for some time. 3 After cleaning, switch off the appliance.

4 Carefully shake off excess water and let the trimmer attachment dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the beard styler attachment

Clean the beard styler attachment every time you have used it.

1 Pull the comb off the beard styler attachment. Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb. 2 Switch on the appliance. 3 Rinse the beard styler attachment and the comb separately under a hot tap for some time. 4 After cleaning, switch off the appliance. 5 Carefully shake off excess water and let the beard styler attachment and comb dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the cleansing brush attachment

Clean the cleansing brush attachment every time you have used it.

1 Make sure the appliance is switched off. 2 Detach the brush head from the brush base.

3 Clean both parts thoroughly with warm water and mild soap.

4 Dry the cleansing brush attachment with a towel.

Storage

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Note: We advise you to let the appliance and its attachments dry before you put the protection caps on the attachments and store the shaver in the pouch.

- Put the protection cap on the shaving unit to protect it from dirt accumulation.

- Store the shaver in the pouch supplied.

- Put the protection cap on the shaving unit to protect it from dirt accumulation. - Store the shaver in the pouch supplied.

- Put the protection cap on the cleansing brush attachment to protect it from dirt accumulation.

Replacement

Replacing the cleansing brush head

- The cleansing brush head attachment should be replaced every 3 months or earlier if the filaments are deformed or damaged.

Replacing the shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving unit symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads immediately. Only replace the shaving heads with original Philips shaving heads as specified in chapter ‘Ordering accessories’.

1 The shaving unit symbol lights up continuously when you switch off the shaver to indicate that the shaving heads need to be replaced.

ENGLISH30

2 Press the release button and open the shaving unit.

3 Pull the shaving head holder off the bottom part of the shaving unit.

4 Turn the retaining rings anticlockwise and remove them.

5 Remove the shaving heads from the shaving head holder and throw them away.

6 Place new shaving heads in the holder.

Note: Make sure the projections of the shaving heads fit exactly into the recesses of the shaving head holder.

7 Place the retaining rings back onto the shaving heads and turn them clockwise.

- Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.

- Turn the ring clockwise until you hear 'click' and the ring is fixed.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

8 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder ('click').

9 To reset the replacement reminder, press and hold the on/off button for approx. 7 seconds.

Ordering accessories

To buy accessories or spare parts, visit

www.shop.philips.com/service or go to

your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

The following parts are available:

• HQ8505 adapter
• SH50 Philips shaving heads
• HQ110 Philips Shaving Head Cleaning Spray
• RQ111 Philips beard stylister attachment
• RQ585 Philips cleansing brush attachment
• RQ560, RQ563 Philips cleansing brush heads
• JC301, JC302, JC303, JC304, JC305 cleaning cartridge

Note: Availability of the accessories may differ per country.

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace the shaving heads with original SH50 Philips shaving heads.

Recycling

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it.

Be careful, the battery strips are sharp.

1 Remove the screw in the back panel with a screwdriver. Then remove the back panel.

2 Bend the hooks aside and remove the power unit.

3 Break the snap hooks and remove the front panel of the power unit.

4 Take out the battery holder and cut the battery tags with a pair of cutting pliers.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Hairs or dirt obstruct the shaving heads.	Clean the shaving heads by following the steps of the thorough cleaning method (see chapter ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The shaver is still attached to the mains. For safety reasons, the shaver can only be used without cord.	Disconnect the shaver from the mains and press the on/off button to switch on the shaver (see section ‘Unplug for use reminder’).
	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’).
	The travel lock is activated.	Press the on/off button for 3 seconds to deactivate the travel lock.
	The shaving unit is soiled or damaged to such an extent that the motor cannot run.	Clean the shaving heads or replace them (see chapters ‘Cleaning and maintenance’ and ‘Replacement’).

Problem Possible cause Solution

The shaver is not entirely clean after I clean it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly, so there is no electrical connection between the SmartClean system and the shaver.	Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.
	The cleaning cartridge is empty. The replacement symbol flashes to indicate you have to replace the cleaning cartridge.	Place a new cleaning cartridge in the SmartClean system (see chapter 'Cleaning and maintenance').
	You have used another cleaning fluid than the original Philips cleaning cartridge.	Only use the original Philips cleaning cartridges.
Water is leaking from the bottom of the shaver.	During cleaning, water may collect between the inner body and the outer shell of the shaver.	This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.
The SmartClean system does not work when I press the on/off button.	The SmartClean system is not connected to the mains.	Put the small plug in SmartClean system and put the adapter in the wall socket.

Problem Possible cause Solution

The shaver is not fully charged after I charge it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly.	Make sure you press the shaver in the SmartClean system until it locks into place and press down the top cap.
I replaced the shaving heads, but the replacement reminder symbol is still showing.	You have not reset the shaver.	Reset the shaver by pressing the on/off button for approx. 7 seconds (see chapter ‘Replacement’).
A shaving head symbol had suddenly appeared on the display.	This symbol is a replacement reminder.	Replace the shaving heads (see chapter ‘Replacement’).

Introduction

When the battery is almost empty, the battery power indicator will blink orange.

Activating travel lock

- When you activate travel lock, the travel lock symbol will stay on. If travel lock is activated, the travel lock symbol will blink.

Deactivating travel lock

1 Press the on/off button for 3 seconds.

- The travel lock symbol blinks, then stays on.

Activating Turbo setting

Storage

Replacement

2 Bend the latch to the side and release the power unit.

3 Break the lock hook and remove the front panel of the power unit.

Caution

Battery charging indicator (1 indicator)

- Battery charge indicator (1 light)

Low battery

- Battery charge indicator (1 light)

Remaining battery capacity

Battery charge indicator (3 lights)

Unlock function

Turbo setting active

1. Wet your skin with water.

Use the click-on accessory

Use the beard styler accessory

Use the SmartClean system

Clean the cleansing brush accessory

Replacement

Replace the cleansing brush head

When the battery is almost empty, the battery charge indicator flashes orange.

If you activate the travel lock, the travel lock symbol will light up continuously. When the travel lock is activated, the travel lock symbol starts to blink.

Deactivating the travel lock

1 Press the on/off button for 3 seconds.

Activating Turbo setting

3 Press the button on the side of the SmartClean system and lift the top of the SmartClean system.

Caution

1 Switch on the appliance

Wet shaving

2 Switch on the appliance

Storing milk

Ordering accessories

Warning

Battery charging indicator, 1 light

Note: This product can only be used wirelessly.

- Battery charging indicator, 1 light

Low battery

- Battery charging indicator, 1 light

Remaining battery level

Battery charging indicator, 3 lights

Using this shaver

Turning the product on and off

2 Remove the attachment directly from the product.

1 Remove the comb from the attachment.

Using the cleansing brush attachment

4 Unpack the cleaning cartridge.

1 Rinse the shaver unit with warm water for a while.

2 Press the release button to open the shaver unit.

1 Press the release button to open the shaver unit.

6 After cleaning, place the blades back into the shaving heads.

7 Reattach the shaving heads to the shaver head holder.

4 Dry the cleansing brush accessory with a towel.

Storage

- Store the shaver in the provided storage pouch.

2 Bend the side hooks and then remove the power supply unit.

Battery charging indicator (1-level indication)

- Battery charging indicator (1-level indication)

Low battery

- Battery charging indicator (3-level indication)

- Battery charging indicator (1-level indication)

Remaining battery level

Battery charging indicator (3-level indication)

"Unplug and use" reminder

Cleaning reminder

1 Insert the small plug into the SmartClean system.

2 Insert the power adapter into the power socket.

Using the shaver

Switching the product on or off

1 To switch on the product, press the on/off button once.

2 To switch off the product, press the on/off button once.

5 Move the shaving heads over your skin in a circular motion.

Using the snap-on attachments

2 Pull the attachment straight off the product.

Note: Do not twist the attachment when pulling it off the product.

Using the trimmer attachment

You can use the trimmer attachment to trim sideburns and moustache.

1 Pull the trimming comb off the attachment.

Using the cleansing brush attachment

Never tilt the SmartClean system to prevent leakage.

4 Pull the sealing ring off the cleaning cartridge.

Using the SmartClean system

1 Rinse the shaving head unit under a hot water tap for a moment.

2 Press the release button to open the shaving head unit.

Make sure the product is switched off.

1 Press the release button to open the shaving head unit.

5 Clean the cutters and guards under the tap.

6 After cleaning, put the cutters back into the guards.

7 Put the shaving head back onto the shaving head holder.

1 Remove the trimming comb from the beard styler attachment.

Cleaning the cleansing brush attachment

Clean the cleansing brush attachment after every use.

1 Make sure the product is turned off.

2 Remove the brush head from the brush base.

3 Clean both parts thoroughly with warm water and mild soap.

4 Dry the cleansing brush attachment with a towel.

Storage

4 Turn the retaining ring counterclockwise and remove it.

3 Disengage the safety hook and remove the front panel of the power unit.

Ordering accessories

Replacement

Replacing the series

Maintenance

Distinguishing and maintaining

Correcting

Skin adaptation period

Using the shaver

Replacing the shaving heads

Shaving

Low battery

Display

Charging

Connection

Introduction

Warranty and support

Ordering accessories

Ideal use

Cleaning and maintenance

Skin calibration period

Activating turbo setting

Charging

Travel mode

Low battery

Introduction
