Product Type	Corded Telephone
Brand	Audioline
Model	BIGTEL 49 PLUS
Display	LCD display with large digits
Keypad	Large, easy-to-press buttons
Handsfree	Yes, with speakerphone
Volume Control	Adjustable ringer and handset volume
Memory	Speed dial memory for 10 numbers
Redial	Last number redial
Mute	Mute function
Ringtones	Multiple ringer melodies
Visual Indicator	LED for incoming calls
Wall Mountable	Yes
Power	Powered via phone line (no batteries needed)
Weight	Approximately 0.5 kg
Dimensions	Approx. 22 x 18 x 8 cm
Color	Black/White
Compatibility	Standard analog telephone line (PSTN)
Warranty	2 years
Package Contents	Telephone, handset, coiled cord, user manual

Frequently Asked Questions - BIGTEL 49 PLUS AUDIOLINE

How do I set the date and time on the Bigtel 49 Plus?

Press the Menu button, use the navigation keys to select Settings, then Date/Time. Enter the current date and time using the keypad and confirm.

How can I adjust the ringer volume?

While the phone is idle, press the Volume up or down button on the side of the handset to adjust the ringer volume.

How do I store a number in speed dial?

Press and hold one of the Memory keys (M1-M10) until you hear a beep. Enter the phone number and press the same memory key again to save.

Can I use the speakerphone?

Yes, press the Speaker button during a call to switch to handsfree mode. Press it again to return to the handset.

How do I mute the microphone during a call?

Press the Mute button (often indicated by a microphone icon) to mute the microphone. Press again to unmute.

How do I redial the last number?

Press the Redial button twice quickly. The last dialed number will be called.

What should I do if there is no dial tone?

Check that the telephone line cord is securely connected to both the phone and the wall socket. Also ensure that the handset cord is properly connected.

How do I clean the telephone?

Use a soft, damp cloth to clean the surface. Do not use any abrasive cleaners or solvents. Avoid getting moisture into the openings.

Can I wall mount the Bigtel 49 Plus?

Yes, the phone has slots for wall mounting. Use two screws to fix the wall mount bracket (included) to the wall, then hang the phone.

How do I change the ringer melody?

Press Menu, navigate to Settings > Ringer > Melody. Use the navigation keys to preview and select your preferred melody, then confirm.

USER MANUAL BIGTEL 49 PLUS AUDIOLINE

Notruftelefon Emergency telephone

Operating Instructions 19

Inhaltsverzeichnis

3 Bedienelemente

Telefon

Please read this operating instruction manual thoroughly.

Intended use

The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Power adapter plug (option)

Caution: No power adapter plug is enclosed with the product. Only use an original power adapter plug which can be ordered from out Service Hotline.

Hearing aid compatibility

Using the premium receiver, the telephone is perfectly compatible with most popular hearing aids on the market. However, due to the wide range of hearing aids available, there is no guarantee that the telephone will function problem-free with every model.

Caution: This telephone is capable of producing very volume levels when the amplifier is switched on and the volume control is set to maximum. Extreme caution should be taken if the handset is to be shared between users with normal hearing and those with hearing impairment.

Disposal

You are obliged to dispose of consumable goods properly in accordance with the applicable legal regulations. The adjacent symbol on the telephone indicates that electrical and electronic apparatus and batteries no longer required must be disposed of separate from domestic waste.

Electrical and electronic devices must be disposed of at suitable collection points provided by the public waste authorities.

Batteries must be disposed of at the point of sale or at the appropriate collection points provided by the public waste authorities.

Packaging materials must be disposed of according to local regulations.

2 Putting the Telephone into Operation

Safety notes

Caution: It is essential to read the safety information in Chapter 1 before preparing the telephone for use.

Checking the contents of the package

The package contains:

Content	BIGTEL 49 PLUS
Base unit 1
Premium receiver 1
Coil cable for the receiver 1
Telephone connection cable 1
Batteries AA 1.5 V 4
Wall-mounting bracket 1
Operating manual 1

Putting the Telephone into Operation

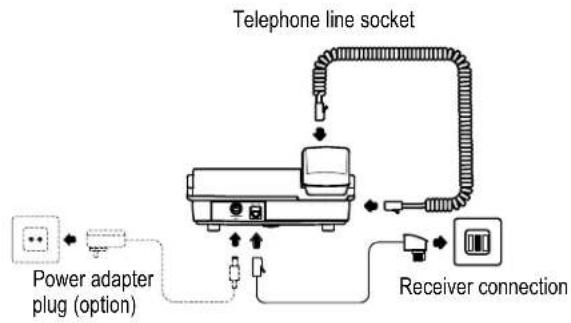

Connecting the telephone

Connect the telephone as illustrated in the diagram. Only use the telephone connection line supplied because the equipment may not function if another telephone connection line is used.

range of telephone functions can only be used when the batteries are correctly inserted and are not empty.

It is also possible to use the optional power adapter plug instead of batteries.

Device type: BIGTEL 49 PLUS (9 V DC, 200 mA).

Putting the Telephone into Operation

Inserting the batteries

Insert the batteries in the open battery compartment. Only use batteries of the type AA 1.5 V. Pay attention to the correct polarity. Close the battery compartment cover.

The full range of telephone functions can only be used when the batteries are correctly inserted and are not empty.

Caution: Always ensure that the telephone is not connected to the telephone socket and/or power socket (option) when inserting or replacing batteries.

When the batteries are empty, the icon appears in the display. Replace the batteries.

Setting the time and date

The time and date are set via the menu. Refer to Page 28 for the sequence of menu option selections necessary.

Private branch exchanges

The information on Page 27 explains how to install your telephone in a private branch exchange.

Wall installation

The telephone can also be installed on a wall. You require two screws in order to fix the telephone on a wall. Feed the guide tabs (1) on the wall-mounting bracket (2) in the slots (3) on the rear side of the telephone. Slide the wall bracket (2) 10 mm upwards until it audibly snaps into place.

Warning: Ensure that there are no cables or pipes etc. under the surface of the wall where you want to drill the holes.

Drill two holes whose distance apart corresponds to the bracket to be used, insert the screws and allow them to project 5 mm from the wall. Position the telephone on the bracket, fit the screws in the slots and slide the telephone downwards a little.

Turn the receiver hook (4) in the receiver cradle 180° so that the receiver can be hooked in.

3 Operating Elements

Telephone

1 Call back button
2 One-touch dialling button M1 (emergency call number 1)
3 Delete
4 One-touch dialling button M2 (emergency call number 2)
5 Scroll upwards
6 Quick dial button
7 Scroll downwards
8 Calls list (CID 1) / Cancel ²
9 New call indication
10 Phone book
11 Save number button
12 R button

13 Redial button
14 LED, telephone is ringing
15 LED, handsfree mode
16 Handsfree mode button
17 Receiver +40 dB boost button
18 Volume boost on LED
19 Control knob, receiver volume (hidden under premium handset)
20 "Ringing volume" slide control
21 "Tone" slide control
22 "Handsfree volume" slide control

The buttons in this operating manual are depicted with a uniform contour. Variations in the symbols on the telephone buttons compared to those depicted here are possible.

² Each process is automatically cancelled if no input is made within a period of 60 seconds or if the CID button is pressed.

¹ CID: Connection Identification = Displays the number of a caller.

Operating Elements

Service-Hotline Germany: Tel. [phone], cost via German landline at time of going to print: 14 ct/min., different costs possible via mobile telephone systems

Operating the Telephone

4 Operating the Telephone

Display and explanation of operation sequences

Enter digits or letters

* Press the button depicted briefly

2 x * Press the button depicted twice, briefly

2 sec * Press the button depicted for

2 seconds

Press and hold ☒ Press and hold the button depicted

Release * Release the button depicted

Telephone rings

Lift the receiver

Replace the receiver on-hook

≥Text≤ Text flashes in the display

GERMAN or

Text or icon in the display

Icons and texts in the display

Icon Description

On: Replace the batteries.

14:45 Display of the time.

19/09 Display of the date.

The phone book is open Page 29.

CID The calls list is open ☐ Page 30.

NEW The entry in the calls list is new Page 30.

01 Position number in the call list.

TOTAL: There are XX entries in the call list.

XX

NEW: There are XX new entries in the call list. XX

Creating phone book entries - example

The example in Creating phone book entries explains how to navigate and make entries in the phone book. Proceed as in this example for all the settings.

Creating phone book entries

Open the phone book
SAVE?	Activate the saving process and
confirm it
	Enter the phone number(max. 22 digits) and confirm it
	Enter the name (max. 16 letters)and confirm it
SAVED	Entry is saved

Telephoning

5 Telephoning

Taking a call

Enter the phone number

(max. 22 digits)

⊗ Following incorrect input, press to

delete the last digit

or or Dial the number

It is also possible to lift the receiver first to obtain the dialling tone.

The digits in the phone number then entered are dialled immediately. It is not possible to correct wrong digits individually using this dialling procedure.

Redialling

Your telephone stores the last phone number dialled.

or 📋, Redial the last phone number dialled

Calling back missed calls

The telephone stores the numbers of the last 32 calls received in a calls

list.

▲ or ▼ Select an entry

or Dial the number

Dialling phone numbers from the phone book

There must be phone numbers stored in the phone book Page 29.

Open the phone book

▲ or ▼ Select an entry

or Dial the number

One-touch dialling

The quick dial buttons M1 or M2 can be used for normal quick dial numbers or as a memory location for automatic emergency call dialling. Phone numbers must have been stored as quick dial numbers. Page 31.

M1 or M2 Press the required quick dial button

or or Dial the number

Quick dialling

It is possible to store 10 phone numbers so that they are dialled simply by pressing three buttons (quick dialling).

Programming quick dial buttons

Press the Save number button

Enter the phone number

(max. 22 digits) and confirm it

Enter the name (max. 16 letters)

and confirm it

0 Enter the memory location number

(e.g. in this case, memory location 0)

Making calls using the quick dial buttons

or Lift the receiver or handsfree

→• Press the quick dial button

0 Enter the memory location number

(e.g. in this case, memory location 0)

The phone number stored is automatically dialled.

Adjusting the receiver volume

The receiver volume can be adjusted when the +40 dB volume boost button is activated.

0 1 2 3 Adjust the volume with the control knob

Telephoning

Increasing the receiver volume on +40 dB.

The receiver volume can be increased by pressing the left-hand side of the loudspeaker key marked +40 dB

+40dB Increasing the volume on + 40 dB

Tone control

The tone of the receiver can be adjusted using the corresponding slide control on the right-hand side of the housing.

Adjust the tone using the slide control

Tone adjustment is only possible when the receiver volume +40 dB boost button is on.

Ringing volume

The ringing volume can be adjusted using the corresponding slide control on the right-hand side of the housing.

Adjust the volume using the slide control

Talk time display

The duration of a call is displayed in minutes and seconds during the call.

Handsfree

Use this function to listen to the caller via the loudspeaker.

Switch on handsfree mode

Deactivate handsfree mode

Adjusting the handsfree volume

The handsfree volume can be adjusted using the corresponding slide control on the right-hand side of the housing.

Adjust the volume using the slide control

6 Private Branch Exchanges / Suppl. Services

R button on private branch exchanges

If the telephone is connected to a private branch exchange, functions such as transferring calls and automatic call back can be used via the R button. Please refer to the operating manual supplied with your private branch exchange to determine, whether the telephone will work properly with the exchange.

Dialling pause

In the case of private branch exchanges, it is necessary to enter an access code to get an outside line with its corresponding dialling tone. When using some older private branch exchanges, it takes a little time before the dialling tone becomes audible. Particularly in the case of such private branch exchanges, it is possible to insert a dialling pause after the number for the outside line so that the number can be dialled in a continuous process without having to wait for the dialling tone.

Insert a dialling pause

"P" is shown in the display.

After dialling the number for the outside line, the telephone then waits approx. 3 seconds before dialling the actual phone number.

The pause can also be entered with the phone number in the phone book.

R button and supplementary services

Your telephone supports the supplementary services offered by your telephone network provider, such as brokering, call waiting and conference calls. The supplementary services can be used in conjunction with the R button. Please contact the telephone network provider with regard to enabling the supplementary services.

Private Branch Exchanges / Suppl. Services

Caller number display (CID ¹ )

If this function is available with your telephone line, the number of the caller appears in the display when the phone rings. If the caller has suppressed transmission of his phone number, a corresponding message appears in the display. The phone number is not displayed and, as a result, is not stored in the calls list.

caller number display function is a supplementary service offered by telephone network providers. Contact your network provider for further information.

¹ CID: Connection Identification = Displays the number of a caller.

Menu Structure

7 Menu Structure

Main menu

Press button ▲ for 4 sec to open the main menu. Press button ▲ or ▼ to select the required setting. Press button ⊗ to confirm your selection.

LANGUAGE DEUTSCH

	FRANCAIS
	ENGLISH
	SVENSKA
	POLSKI
	NORSK
	SUOMI
	DANSK
LCD CONTRAST LCD CONTRAST 1-4
SET TIME/DATE	▲, ▼ENTER TIME	▲, ▼ENTER DATE
DIALLING MODE	TONE
	PULSE
FLASH TIME 100, 300, 600

8 Phone Book

Thirty-two phone numbers can be stored in the phone book together with the associated names.

• Always enter the area access code with the phone numbers so that the telephone can also assign incoming local calls to a phone book entry.
• When the memory capacity of the phone book is used up, the message MEMORY FULL appears when an attempt is made to store another number. To create space, an existing entry must first be deleted.
  •The phone book entries are arranged alphabetically. To skip to the required phone book entry directly, enter the first letter of the corresponding entry.

Entering a name

The digit keys are also labelled with letters for the entry of the respective letters. Pressing the respective key the necessary number of times enables capital letters and digits to be entered.

1 Space
Delete

To enter the same letter twice, press the button to enter the letter. Wait until the cursor skips one place forward. Enter the letter again.

Creating phone book entries

Open the phone book

→, SAVE?
→ confirm it

Enter the phone number

Activate the saving process and

Enter the name (max. 16 letters) and confirm it

SAVED

Entry is saved

Editing entries in the phone book

Open the phone book
▲ or ▼ Select a phone book entry
3 sec ➕ Activate the editing process

EDIT? , and confirm it

Edit the phone number

(max. 22 digits) and confirm it

附. Edit the name (max. 16 letters)

and confirm it

SAVED

Entry is saved

Deleting entries from the phone book

Deleting a single entry

Open the phone book

▲ or ▼ Select a phone book entry

DELETE?

4 sec ☒ or ▲ ▼

Activate the deleting process

Confirm the deleting process or Cancel the deleting process

Delete all entries

Open the phone book
▲ or ▼ Select any phone book entry
4 sec ☒ DELETE ALL? Activate the deleting process
4 sec ☒ or ▲ ▼ Confirm the deleting process or Cancel the deleting process

Calls List / CID

9 Calls List / CID

A total of 32 call numbers can be stored in the calls list. The flashing red LED indicates new calls in the calls list.

Displaying phone numbers in the calls list

Open the calls list and select an entry

Display messages:

Display Description

NEW The entry in the calls list is new.
	The caller in the calls list has called several times.
NO NUMBER The caller's	number is only received in part or is erroneous. The information on the caller's number is not available.
PRIVATE The caller has	suppressed transmission of his number or the call is from a PBX.
OUT OF AREA The call	concerns an international call or it is from a PBX.
As soon as the phone number in the phone book has been saved together with a name, the name entered appears in the call list.

Storing numbers from the calls list in the phone book

A phone number stored in the calls list can be transferred directly to the phone book.
▲ or ▼ Open the calls list and select an entry
◇, COPY NUMBER? Activate the copy process and◇ confirm it
SAVED	Entry is saved

The phone number is stored in the phone book without a name being assigned. Then enter a name for the phone number. Editing entries in the phone book Page 29.

Deleting phone numbers from the calls list

Deleting phone numbers individually

▲ or ▼	Open the calls list and select an entry
⊗ DELETE?	Activate the deleting process
4 sec ⊗ Confirm the deleting process
or
▲ or ▼	Cancel the deleting process
g all the phone numbers
▲ or ▼	Open the calls list and select an entry
4 sec ⊗ DELETE ALL?	Activate the deleting process
4 sec ⊗ Confirm the deleting process
or
▲ or ▼	Cancel the deleting process
Before deleting the phone numbers, check that the entries have been viewed.

Emergency Call

10 Emergency Call

The emergency call unit can be used to dial an emergency services exchange or persons for assistance.

There are several appropriate emergency service call numbers available, such as the Red Cross, St. John's Ambulance Brigade, etc. In some countries emergency calls are not free of charge. The unit can also be used for private emergency calls within the family, for example.

Storing emergency call / quick dial numbers

The quick dial buttons M1 and M2 can be used for normal quick dial numbers or as memory locations for automatic emergency call dialling.

-, STORE NUMBER Activate the saving process

Enter the phone number (max. 22 digits) and confirm it

Edit the name (max. 16 letters) and confirm it

LOCATION? M1 or M2 Select the quick dial button

SAVED Entry is saved

The phone numbers assigned to the quick dial keys cannot be deleted. When storing new numbers, the existing entries are overwritten.

Starting the emergency call

M1 or M2 Select the quick dial button

or Dial the number

If Problems Occur

11 If Problems Occur

Service Hotline

Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, you can also contact our hotline service, tel. [phone] (cost via German landline at time of going to print:: 14 ct/min, different costs possible via mobile telephone systems). In the case of claims under the terms of guarantee, contact your sales outlet. There is a 2 year period of guarantee.

Problems Reply
No telephone calls possible - The	telephone line is not connected properly or is defective. Only use the telephone connection cable supplied.
Some functions eg +40 dB amplifier or handsfree not working	- Check the batteries are fitted and they are not exhausted.
The caller number display (CID 1 ) does not function	- The caller number display function is a supplementary service offered by telephone network providers. Contact your network provider for further information.- The caller has suppressed the transmission of their phone number.

¹ CID: Calling Identification

12 Maintenance / Guarantee

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries, rechargeable batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies resulting from material or production faults which occur during the period of guarantee will be eliminated free of charge. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device. Replacement parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your equipment shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AUDIOLINE equipment together with the purchase receipt. All rights to claims under the terms of guarantee in accordance with this agreement must be asserted exclusively with regard to your sales outlet. Two years after the purchase and transfer of our products, claims under the terms of guarantee can no longer be asserted.

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive:

1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above mentioned directive is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site www.audioline.de.

Index

13 Index

C

Caller number display, 27

Calling back missed calls, 25

Calls list, 30

CID, 30

Connecting the telephone, 21

Contrast setting, 28

Creating phone book entries, 24, 29

D

Date, 22

Date and time setting, 28

Declaration of Conformity, 33

Deleting entries from the phone book, 29

Deleting phone numbers from the calls list, 30

Dialling pause, 27

Dialling phone numbers from the phone book, 25

Display, 24

Displaying phone numbers in the calls list, 30

E

Editing entries in the phone book, 29

Emergency call unit, 31

Ending a call, 25

Entering a name, 29

Explanations, 24

G

Guarantee, 33

H

Handsfree, 26

Handsfree volume, 26

|

Icons and texts in the display, 24

Inserting batteries, 22

L

Language setting, 28

M

Main menu, 28

Maintenance, 33

Making a call, 25

Making calls using the quick dial buttons, 25

Menu structure, 28

0

One-touch dialling, 25

Operating elements, 23

Operating the Telephone, 24

P

Package contents, 21

Phone book, 29

Private branch exchanges, 27

Programming quick dial buttons, 25

Putting the telephone into operation, 21

Q

Quick dialling, 25

R

R button and supplementary services, 27

R button on private branch exchanges, 27

Receiver volume, 25

Redialling, 25

Reinforcement the receiver volume on +40 dB., 26

Ringing volume, 26

s

Safety information, 20

Service Hotline, 32

Storing emergency call numbers, 31

Storing numbers from the calls list in the phone book, 30

Storing quick dial numbers, 31

Supplementary services, 27

T

Taking a call, 25

Talk time, 26

Telephoning, 25

Time, 22

Tone control, 26

W

Wall installation, 22

Notes
