Brand	Siemens
Model	Slider SL 10 Power TS16122
Product type	Steam iron
Power	2400 W
Water tank capacity	300 ml
Soleplate type	Slider ceramic soleplate
Steam function	Adjustable continuous steam
Continuous steam output	Up to 40 g/min
Steam boost	Up to 150 g/min
Anti-drip system	Yes
Automatic shut-off	Yes, after 8 minutes of inactivity
Vertical function	Yes, for steaming hanging garments
Anti-scale system	Built-in anti-scale filter
Power cord length	2 meters
Weight	1.5 kg
Dimensions (L x W x H)	30 x 12 x 15 cm
Care and cleaning	Clean the soleplate with a damp cloth; descale regularly with the self-cleaning system
Safety	Automatic shut-off; ergonomic handle; secure fill cap
Spare parts and repairability	Tank, soleplate, buttons available from after-sales service
General information	Powerful and smooth iron, suitable for all types of fabrics

Frequently Asked Questions - Slider SL 10 Power TS16122 SIEMENS

How to fill the water tank?

Unplug the appliance, open the fill cap and pour tap or demineralized water up to the MAX mark. Do not exceed this level.

Can I use tap water?

Yes, but if your water is very hard, mix it with demineralized water to reduce deposits.

How to use the vertical steam function?

Hold the iron vertically, press the steam boost button and pass the soleplate a few centimeters from the hanging fabric.

What to do if the iron does not produce steam?

Check the water level, ensure the temperature is sufficient (indicator on) and that the anti-drip system is not activated. Run a descaling cycle if necessary.

How to clean the soleplate?

Wait for the iron to cool down, then wipe the soleplate with a soft, damp cloth. Do not use abrasive products.

What is the anti-drip system for?

It prevents water from leaking from the soleplate when the temperature is too low, avoiding spots on laundry.

How to descale the iron?

Fill the tank with a water-white vinegar mixture (1:1), heat the iron to max temperature, then use the self-cleaning function by pressing the dedicated button. Rinse with clean water afterwards.

The iron turns off by itself, is this normal?

Yes, the automatic shut-off activates after 8 minutes of inactivity in horizontal position or after 30 seconds in vertical position. Shake the iron to reactivate it.

What is the maximum power?

The power is 2400 W, ensuring fast heating and powerful steam.

Where can I find spare parts?

Contact Siemens after-sales service or check the official website to order parts such as the soleplate, tank or buttons.

USER MANUAL Slider SL 10 Power TS16122 SIEMENS

Operating instructions

slider SL10

B C

D E

Index

DEUTSCH 6
ENGLISH 12
FRANÇAISE 18
ITALIANO 24
NEDERLANDS 30
DANSK 36
NORSK 42
SVENSKA 48
SUOMI 54
ESPAÑOL	60
PORTUGUÊS	66
ΕΛΛΗΝΙΚΑ	72
TÜRK	78
POLSKI	84
MAGYAR 90
ΥΚΡΑΪΗСЬКА	96
РУССКИЙ	103
ROMÂN 109
العربية	120

Thank you for buying the slider SL10 steam station, the new steam-ironing system from Siemens.

Carefully read through the operating instructions for the appliance and safeguard them for future reference.

Introduction

These instructions for use contain valuable information about the unique features of this system and some hints to make ironing easier for you. We hope that you enjoy ironing with this steam station.

Important

Open out the first page of the booklet, this will help you to understand how the appliance works. This appliance complies with international safety standards.

This appliance has been designed exclusively for domestic use and must not be used for industrial purposes.

This appliance must be used only for the purposes for which it was designed, i.e. as an iron. Any other use will be considered improper and consequently dangerous. The manufacturer will not be held responsible for any damage arising from misuse or improper use.

General safety instructions

• The iron must not be left unattended while it is connected to the supply mains.
• Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.
• The appliance must be used and placed on a stable surface.
• When placed on its stand, make sure that the surface on which the stand is placed is stable.
• The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorized Technical Service Centre before it can be used again.
• With the aim of avoiding dangerous situations, any work or repair that the appliance may need, e.g. replacing a faulty mains cable, must only be carried out by qualified personnel from an Authorised Technical Service Centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down. • CAUTION. Hot surface. Surface is liable to get hot during use.
• This appliance is to be connected and used in accordance with the information stated on its characteristics plate.
• This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16A and has a socket with an earth connection.
• If the safety fuse fitted in the appliance blows, the appliance will be rendered inoperative. To restore normal operation the appliance will have to be taken to an authorised Technical Service Centre.
• In order to avoid that, under unfavourable mains conditions, phenomena like transient voltage drops or lighting fluctuations can happen, it is recommended that the iron is connected to a power supply system with a maximum impedance of 0.27Ω . If necessary, the user can ask the public power supply company for the system impedance at the interface point.
• The appliance must never be placed directly under the tap to fill the water tank.
• Unplug the appliance from the mains supply after each use, or if a fault is suspected.
• The electrical plug must not be removed from the socket by pulling the cable.
• Never immerse the iron in water or any other fluid.
• Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.)

Important:

• This appliance reaches high temperatures and produces steam during use, this could cause scalds or burns if not used properly.
• The steam hose, base station, metal plate at the bottom of the removable iron pad (2) and in particular the iron can get hot when used. This is normal. ■ Never aim the steam at people or animals.
• Do not allow the power cable to come into contact with the soleplate when it is hot.
• Be aware that the system can keep on steaming for a short additional time after releasing the steam trigger. This is a normal function.

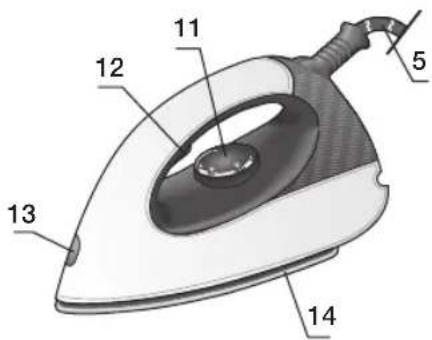

Description

1. Boiler's cap
2. Removable iron pad
3. Mains cable and hose storage compartment
4. Mains cable
5. Steam hose
6. "Steam ready" pilot light
7. "Refill boiler" pilot light
8. Variable steam control *
9. Illuminated main power button (0/1)
10. Housing with internal steam generator
11. Temperature control knob
12. Steam release button
13. Iron pilot light
14. Soleplate
15. Filling funnel
16. Carrying handles

* Model dependent

A Preparation

1. Remove any label or protective covering from the soleplate.
2. Place the appliance horizontally on a solid, stable surface. You may remove the iron pad (2) from the appliance and place the iron on it on another solid, stable, horizontal surface. Never rest the iron on the appliance without the iron pad!
3. Open the boiler's cap (1). Fill the boiler carefully using always the funnel, and close the cap firmly. Filling with warm water reduces the waiting time for heating up. Do not overfill the boiler.
4. Unwind the mains cable (4) fully and plug it into an earthed socket.
5. Switch the main power button (9) on (position "I")
6. The "Steam ready" indicator lamp (6) will light up after approximately 7 minutes, indicating that the appliance is ready to use.
7. This appliance has a water level sensor. The "Refill boiler" indicator (7) will light when the boiler is empty. Remark: if the boiler is empty, both indicator lamps (6 and 7) may light up simultaneously. Fill the boiler as indicated in paragraph "Refilling the boiler".

Refilling the boiler

Attention! Risk of burns!

Be careful when opening the cap, steam may escape.

If the pilot lamp (7) illuminates :

1. Press the steam button (12) to check that no more steam is generated. Only then should the boiler be refilled.
2. Set the appliance switch (9) to the off position ("0") and unplug the steam station from the mains. Then wait for at least 2 minutes.
3. Open the cap (1) carefully and slowly. Allow remaining steam to escape.
4. Refill the boiler using the funnel at all times. Do not overfill the boiler.
5. If there is water left around the filling inlet, dry it with a towel before closing the boiler.
6. Close the cap firmly.

Important:

• Normal tap water can be used.

To prolong the optimum steam function, mix tap water with distilled water in a 1:1 ratio. If the tap water in your area is very hard, mix tap water with distilled water in a 1:2 ratio.

You can inquire about the water hardness with your local water supplier.

- To avoid damage and/or contamination of the boiler, do not use perfumed water, vinegar, starch, descaling agents, additives, or any other type of chemical product.

Any damage caused by the use of the aforementioned products will void the guarantee.

- The iron is not designed to rest on its heel. Please always position it horizontally on the iron pad (2). The iron pad can be placed into the specially designed recess on the appliance or somewhere suitable alongside the ironing area.

Never rest the iron on the appliance without the iron pad!

During its first use, the iron may produce certain vapours and odours, along with white particles on the soleplate. This is normal and will stop after a few minutes.

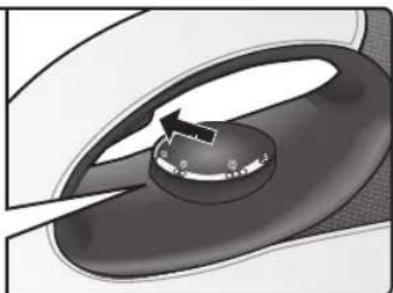

Setting the temperature

1. Check the ironing instruction label on the garment to determine the correct ironing temperature.
2. Turn the temperature selector (11) to the required setting:

●	Synthetics
●●	Silk – Wool
●●●	Cotton – Linen

1. The indicator lamp (13) will remain lit while the iron is heating and go out as soon as the iron has reached the selected temperature.

Tips:

• Sort your garments out based on their cleaning symbol labels, always starting with clothes that have to be ironed at the lowest temperatures.
• If you are not sure what the garment is made of, then begin ironing at a low temperature and decide on the correct temperature by ironing a small section not usually seen when worn.

B

Ironing with steam

1. Turn the temperature selector (11) to the required setting.
2. Set the amount of steam to suit your needs, using the variable steam control (8*) (depending on the model).
3. Press the steam release button (12) to release steam.

Attention:

When ironing on a lower temperature setting “•”.

• If the appliance has variable steam control (8*), set the variable steam control to its lowest position ("小").
• If the appliance does not have variable steam control, press the steam release button (12) only for a few seconds at a time when ironing at lower temperatures.

In both cases, if you find that water is dripping out of the soleplate, set the temperature selector (11) to a higher position (take care that the garment can be ironed on this heat temperature setting).

- At the beginning of each use, it is possible that drops of water will be dispensed alongside steam. Therefore, it is advisable to try the iron on the ironing board or a piece of cloth to start with.

Tip: for better ironing results, iron the last strokes without steam to dry the garment.

Important:

- The steam hose may get hot if you are ironing for long periods.

Ironing without steam

1. Set the required ironing temperature.
2. Begin ironing but without pressing the steam release button (12).

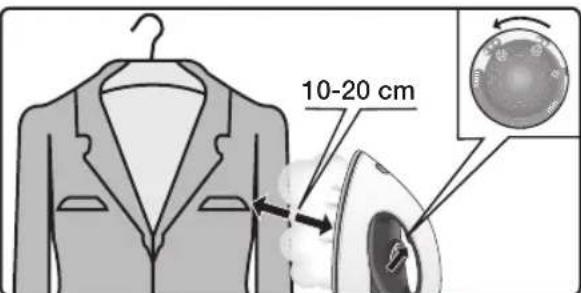

Vertical steam

Never direct the steam jet at garments that are being worn.

Never aim the steam at people or animals.

1. Set the temperature control to the “••” or “max” position.
2. You can steam iron curtains and hanging garments (jackets, suits, coats...) by holding the iron in a vertical position and pressing the steam release button (12).

Operate the iron vertically at a distance of 10 to 20 cm.

Energy saving "eco" setting

(model dependent)

If the “eco” steam setting on the steam regulator (8*) is selected, the energy consumption of the appliance will be reduced, by means of the reduction of water consumption and electricity.

A good ironing result can be obtained for most of the garments.

Use higher settings only for thick and highly wrinkled fabrics.

Cleaning the Boiler

To extend the life of your steam generator and to avoid any build up of scale, it is essential that you rinse out the boiler after several hours of use (approximately after 50 hours). If the water is hard, increase the frequency.

Do not use descaling agents for rinsing out the boiler, as they could damage it.

1. Check that the appliance is unplugged and cold for more than 2 hours.
2. Unscrew the boiler's cap (1)
3. Empty the boiler above a sink by holding the appliance upside down.
4. Fill the boiler with 500 ml of fresh water.
5. Shake the base unit for a few moments and then empty it completely over a sink or bucket.
6. To obtain the best result, we recommend that this operation is done twice
7. Close the cap

Cleaning & Maintenance

Attention! Risk of burns!

Always unplug the appliance from the mains supply before carrying out any cleaning or maintenance operation on it.

1. After ironing, pull out the plug and allow the appliance to cool down before cleaning.
2. Wipe the housing, handle and iron body with a damp cotton cloth.
3. If the soleplate is soiled with dirt or scale, clean it with a damp cotton cloth.
4. If the cloth is synthetic, it may melt due to the high temperature on the soleplate (14). Switch off the steam and rub off any residue immediately with a thickly folded, dry cotton cloth.
5. Never use abrasive products or solvents. To keep the soleplate (14) smooth, you should avoid hard contact with metal objects. Never use a scouring pad, or chemicals to clean the soleplate.

Storing the appliance

1. Set the main power to the "0" position and disconnect the mains cable.
2. Always allow the appliance to cool down before storing it.
3. Place the iron on the iron pad, standing on the soleplate.
4. Empty the boiler and store the mains cable and the steam hose in the storage compartment. Do not wrap the cords too tight.
5. Use the carrying handles (16) on the sides when moving the appliance.

Fabric protection soleplate cover

(model dependent)

The fabric-protection soleplate cover is used for steam-ironing delicate garments at maximum temperature without damaging them. Use of the soleplate cover also does away with the need for a cloth to prevent shine on dark materials. It is advisable to first iron a small section on the inside of the garment to see if it is suitable.

To attach the soleplate cover to the iron, place the tip of the iron into the end of the soleplate cover and pull the elastic strap over the lower rear of the iron until it fits tightly. To release the soleplate cover, pull the elastic strap and remove the iron.

The fabric-protection soleplate cover may be purchased from the customer service or specialist shops:

Accessory code (After-sales)

Name of accessory (online shop)

571510 TZ20450

Tips to help you save energy

Steam production consumes the most energy. To help minimise the energy used, follow the advice below:

• Start by ironing the fabrics that require the lowest ironing temperature. Check the recommended ironing temperature in the label on the garment.
• Try to iron the fabrics while they are still damp and reduce the steam setting.
• If you tumble dry your fabrics before ironing them, set the tumble drier on the ‘iron dry’ programme.
• If the fabrics are damp enough, you can iron without steam.

Advice on disposal

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials. Your local town council can give you information about how to dispose of obsolete appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Trouble shooting

Problem Possible causes Solution
The steam generator does not come on.	·There is a connection problem.·The main power button is not switched on.	·Check the mains cable, the plug and the socket.·Switch the main power button (9) to the on position.(“I”)
The iron does not heat up.	·The main power button is not switched on.·The temperature control knob is set to the “min” position.	·Switch the main power button (9) to the on position.(“I”)·Set the temperature control knob (11) to the desired position.
The iron begins to smoke when switched on.	·During first use: Certain components on the appliance have been lightly greased at the factory and may produce a little smoke when initially heated.·During later use: the soleplate may be soiled.	·This is completely normal and will stop after a short while.·Clean the soleplate according to the cleaning instructions in this manual.
Water flows through the holes on the sole plate.	·The steam function is being used before it has reached temperature.·The water is condensing inside the pipes because steam is being used for the first time or has not been used for a long time.	·Reduce the steam flow when ironing at low temperatures (Variable steam control (8*)).·Point the iron away from the ironing area and press the steam release button (12) until steam is produced.
Dirt comes out through the sole plate.	·There is a build-up of scale or minerals in the boiler.·Chemical products or additives have been used.	·Clean the boilerUse tap water mixed 50% with distilled or demineralised water. If the tap water in your district is very hard, mix tap water with distilled water 1:2.·Clean the sole plate with a damp cloth.·Never add products to the boiler
The iron does not produce any steam.	·The boiler is not switched on or is empty.·The steam regulator is set to the minimum position.	·Switch the main power button (9) to the on position.(“I”) and/or fill the boiler·Increase the steam flow by turning the steam control (8*).
The ironed garment turns dark and/or sticks to the soleplate.	·The selected temperature is too high and has damaged the garment.	·Select a suitable temperature for the material and clean the sole plate with a damp cloth.
The soleplate turns brown.	·This is a regular consequence of usage.	·Clean the soleplate regularly with a damp cloth.
Loss of pressure during ironing.	Steam release button activated during a long period of time.	Use the steam release button (12) with intervals. This improves the ironing result as the textiles will be dried and stay smooth better.

If the above does not solve the problem, get in touch with authorized technical service.

You can download this manual from the local homepages of Siemens.
