Product Type	Filter Coffee Machine
Brand	AEG
Model	KF7800
Capacity	1.5 L (12 cups)
Power	1000 W
Dimensions (L x P x H)	250 x 200 x 350 mm
Weight	2.5 kg
Power supply	220-240 V, 50/60 Hz
Coffee Type	Ground coffee
Permanent filter	Yes, reusable
Water level indicator	Yes, graduated
Drip-stop function	Yes
Automatic shut-off	Yes, after 40 minutes
Programmable timer	Yes, 24 hours
Keep warm	Yes, warming plate
Maintenance and descaling	Regular descaling recommended with white vinegar or descaling product
Spare parts available	Carafe, permanent filter, tank
Repairability	Repairability index not communicated
Main material	Plastic and stainless steel
Color	Black and silver
Accessories included	Glass carafe, permanent filter, measuring spoon

Frequently Asked Questions - KF7800 AEG

How to use the AEG KF7800 coffee maker?

Fill the tank with cold water, add ground coffee to the filter, place the carafe on the warming plate and press the on/off button. You can program the timer for delayed brewing.

How to clean the coffee maker?

Regularly clean the removable parts (carafe, filter, tank) with soapy water. For descaling, use a mixture of white vinegar and water (1:2) or a suitable descaling product.

Why doesn't the machine turn on?

Check that the plug is connected and the on/off button is pressed. Make sure the carafe is properly positioned. If the problem persists, consult the manual or contact customer service.

How to use the programmable timer?

Press the 'PROG' button to set the current time, then use the '+' and '–' buttons to set the desired start time. Confirm with 'PROG'. The machine will automatically turn on at the programmed time.

The machine is leaking water, what to do?

Check that the water tank is properly engaged, the filter is in place, and the carafe is not cracked. Clean the seals and make sure the lid is closed.

What type of ground coffee to use?

Use medium grind ground coffee, suitable for filter machines. Avoid coffee too fine that could clog the filter. The recommended amount is about 1 measuring spoon per cup.

How to descale the machine?

Mix equal parts white vinegar and water, pour into the tank, run a cycle without coffee. Let it sit for 30 minutes, then rinse by performing two cycles with fresh water.

Can I use paper filters?

Yes, you can use size 4 paper filters in addition to the permanent filter. Place the paper filter in the filter holder before adding ground coffee.

Is the carafe dishwasher safe?

The glass carafe is dishwasher safe, but it is recommended to wash it by hand to extend its lifespan. The lid and other plastic parts should be washed by hand.

Where to find spare parts?

Spare parts such as the carafe, permanent filter and tank are available from AEG customer service or on authorized spare parts websites.

USER MANUAL KF7800 AEG

Modern AEG coffee maker with digital display and coffee cup, no visible text or symbols on the device itself.

GB INSTRUCTION BOOK

Exterior view of a modern coffee maker with a power outlet connected to its side (no text or symbols visible)

Exterior view of a modern kitchen blender with open lid (no text or symbols visible)

Close-up of a stainless steel coffee maker with lid and handle (no visible text or symbols)

2www.aeg.com

Close-up of a mechanical component with a dashed circular annotation and label '6' (no readable text or symbols)

Close-up of a modern kitchen appliance with a handle and internal components, showing a downward arrow indicating a drop (no text or symbols visible)

Exterior view of a modern coffee maker with a patterned lid and power cord (no text or symbols visible)

Close-up of a kitchen blender with a magnified view showing the handle and lever mechanism (no text or symbols visible)

Exterior view of a modern kitchen blender with a plastic bottle nearby (no text or symbols visible)

Diagram showing a funnel pouring liquid into a conical container with an arrow indicating flow direction (no text or symbols)

3D rendering of a metallic kettle with handle and lid (no text or symbols visible)

CONTENTS

ENGLISH 6

FRANÇAIS 18

PORTUGUÊS 30

DEUTSCH 9

ΕΛΛΗΝΙΚΑ 21

عربوي

ITALIANO 24

ESPAÑOL 15

NEDERLANDS 27

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy accessories and consumables for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

- Model Number

- PNC number

- Serial number

The information can be found on the rating plate.

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

ENGLISH

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS

A. Option button
B. Set button
C. Scroll up ( ) button
D. Scroll down ( ) button
E. LCD Display
F. Aroma button
G. Auto/Start button
H. Brew button
I. Cancel button
J. Removable water tank

K. Water level indicator
L. Hinged lid
M. Water filter holder with Active carbon filter cartridge
N. Filter holder with anti-drip valve
O. Permanent coffee filter
P. Coffee jug with fresh water graduation on both sides*
Q. Warming plate*
R. Extendable power cord & plug
S. Measuring spoon
T. Stainless steel thermo jug with a trigger*
* Depending on model

Picture page 2-3

GETTING STARTED

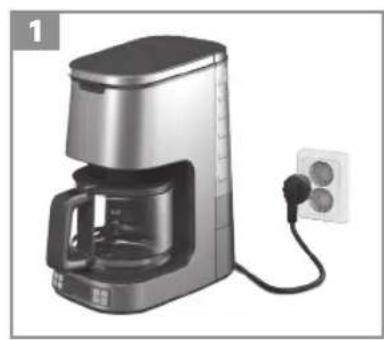

Before first use. Place the machine on a flat surface. When starting the machine for the first time, fill the tank with cold water. Press the Option button twice. The display will show "AUTO CLEAN". Press the Set button to confirm. Let a full tank of water pass through the machine once or twice to clean it, without using coffee.

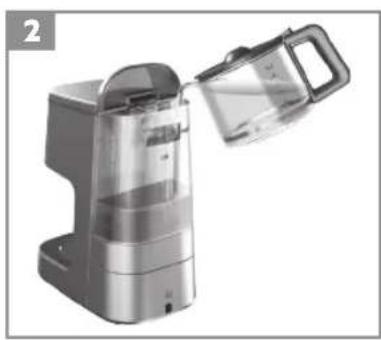

2 Making coffee: open the lid and fill the water tank with fresh cold water up to the desired level. Note: The water tank is removable. There is a gauge for cups on the water tank and on the coffee jug (for the Coffee maker with Glass jug only). The machine must not be used with empty tank!
3 Insert the permanent coffee filter in the filter holder and fill it with ground coffee. For average strong coffee one measuring spoon (approx. 6-7 g) per cup is sufficient. Close the water tank lid and place the jug (complete with lid) onto the warming plate.
4: P Start brewing coffee instant to pause the brewing, press the Brew button again. When the brewing process is finished the appliance will enter keep warm mode (for the Coffee maker with Glass jug only).

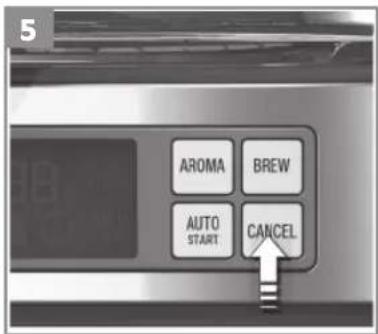

5 Press the Cancel button to stop a selected operation, the appliance will enter standby mode. Note: Press and hold the Cancel button for two seconds to turn off the display.
6 If the jug is removed, the filter valve prevents coffee from dripping onto the warming plate. While boiling, the jug must not be removed for longer than 30 seconds or the filter will overflow.

OTHER FUNCTIONS

7 Adjusting the clock : Press and hold the Set button until the time (hours) on the display starts flashing. Press the Scroll up (Aor Scroll down (V) button to change hours, then press the Set button to confirm. Set minutes (and AM or PM) by using the (Aor (V) button, press the Set button to confirm. Note: If no button is pressed the appliance will automatically close the clock setting interface after 5 seconds.

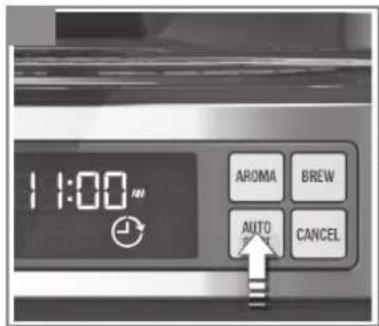

8 Brewing coffee with the program time setting: Press and hold the Auto/Start button until the display shows the time and the program time indicator. Set the time by using the (Aor (V) button, press the Set button to confirm. Press the Auto/Start button to start or pause the program time setting.

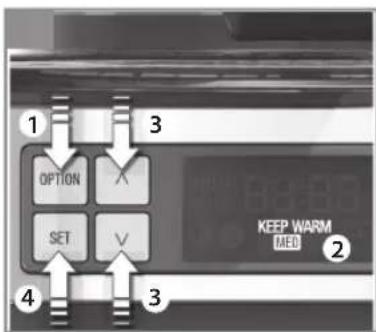

9: Adjusting the keep warm temperature (for the Coffee maker with Glass jug only) Choose the desired temperature (High/Medium/Low) by pressing the (A or C) button. Press the Set button to confirm.

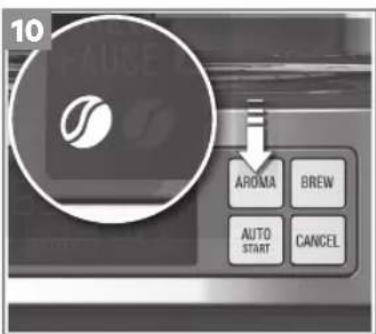

10 The Aroma Selector extends the brewing time to maximize the flavour extraction and get a stronger coffee for a small number of cups (normally less than 6). Press the Aroma button to adjust the aroma setting.

11 The display will show "change filter" after 60 brew cycles, to let user know that the PureAdvantageTM water filter needs to be replaced. Place a new filter into a container of clean cool water, and let soak 10 minutes

6www.aeg.com

before replacing the old filter. Then press the "option" button 3 times (the "change filter" icon will start blinking) and press "set" button 1 time to refresh the filter status. To directly switch off the filter status function when the display "change filter", press "option" button 3 times (the "change filter" icon will start blinking) and press "cancel" button 1 time.

CLEANING AND CARE

12 Turn the machine off and unplug the power cord. Wipe all outer surfaces with a damp cloth. Coffee jug and jug lid are dishwasher proof. Never use caustic or abrasive cleaners, and never immerse the machine in liquid!
13 To clean the filter holder, lift up the handle and remove the filter holder. To clean the filter valve thoroughly, push it several times while it is being rinsed. The filter holder and the permanent coffee filter can also be washed in the dishwasher.
14 Decalcifying is recommended every three months for best performance. Fill the tank with water and decalcifier according to product instructions, then follow steps 16 and 17. Note: The water tank is removable.
15 Place the coffee jug with its lid onto the warming plate. Allow the decalcifier to take effect for about 15 minutes. Press the Option button twice. The display will show "Auto Clean". Press the Set button to confirm. Once finished, the water will stop flowing, followed by three beep sounds. If necessary repeat the decalcifying process. Note: Make sure no coffee is used.
16 Allow the machine to run at least twice with plain water. Then thoroughly rinse the coffee jug, lid and filter holder under running water, activate the filter valve repeatedly during the rinse process.
17 Never immerse the thermo jug in liquid or wash it in dishwasher.* * Depending on model

Enjoy your new AEG product!

SAFETY ADVICE

Read the following instruction carefully before using machine for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

7www.aeg.com

• Always place the appliance on a flat, level surface.
- Never leave the appliance unattended while connected to the supply mains.
- The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.
- The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
- The mains cable must not come into contact with any hot parts of the appliance.
- Do not immerse the appliance in water or any other liquid.
- Do not exceed the maximum filling volume as indicated on the appliances.
- Do not use or place the appliance on a hot surface or near source of heat.
- This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.
