Brand	Candy
Model	CDIM 2412
Product type	Built-in dishwasher
Dimensions (W x H x D)	45 x 82 x 55 cm
Net weight	35 kg
Capacity	10 place settings
Energy class	A+
Water consumption per cycle	10 L
Power consumption	0.92 kWh/cycle
Noise level	49 dB(A)
Number of programs	6
Programs	Eco, Intensive, Normal, Quick, Glasses, Pre-wash
Options	Delayed start, Half load
Power supply	230 V / 50 Hz / 1900 W
Water connection	Cold water only
Safety function	Anti-leak, Child safety
Drum material	Stainless steel
Drying system	Natural condensation
Installation type	Integrated under counter
Repairability	Repairability index 8/10

Frequently Asked Questions - CDIM 2412 CANDY

How to install my Candy CDIM 2412 dishwasher?

Make sure you have a cold water supply, drainage, and an electrical outlet nearby. Refer to the manual for the installation dimensions. Use the adjustable feet to level the appliance.

Which products to use for the dishwasher?

Use regenerating salt, rinse aid, and powder or tablets. Follow the dosages indicated in the manual.

What to do if my dishwasher does not start?

Check that the appliance is plugged in, the door is properly closed, and the program is not in delayed start mode. Refer to the troubleshooting guide on page 22 of the manual.

How to clean the filters of the Candy CDIM 2412?

Remove the lower basket, unscrew the cylindrical filter, clean it under running water. Reassemble, checking that the seals are in place. Do this regularly to avoid blockages.

My dishwasher is noisy, is that normal?

A pump or water jet noise is normal. If the noise is unusual, check that the dishes are not blocking the spray arms and that the filters are clean. Refer to the manual for more details.

How to activate the delayed start on the CDIM 2412?

Select a program, then press the Delayed start button several times until the desired time (from 1 to 24 hours). Close the door to start the countdown.

Where can I download the full manual for the Candy CDIM 2412?

The manual is available for free as a PDF on notice-facile.com. You can also consult it online on the dedicated pages.

How to reset my Candy dishwasher?

Cut off the power supply for 30 seconds, then restore it. If an error code persists, consult the code table in the appendix of the manual.

What is the repairability index of the CDIM 2412?

The repairability index is 8/10. Spare parts (seals, heating element, pump, etc.) are available from Candy after-sales service.

How to maintain the door seals?

Clean the seals with a damp cloth and white vinegar. Make sure they are not deformed to ensure a watertight seal.

USER MANUAL CDIM 2412 CANDY

Thank you for choosing a Candy appliance; quality dishwashers that guarantee high performance and reliability.

Candy manufactures a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers.

Ask your dealer for the catalogue with the complete range of Candy products. Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher.

For future reference, please keep this instruction booklet in a safe place.

CUSTOMER SERVICE AND GUARANTEE

Your new appliance is fully guaranteed by the manufacturer for 12 months against electrical/mechanical breakdown, excluding:

A. Any faults that occur due to bad installation or misuse of the machine.

B. Any faults that occur due to repair of, or interference with, the machine by any person not authorized by the manufacturer to carry out service.

C. Any faults that occur due to any parts fitted to the machine that are not the original manufacturer's parts.

D. Any faults arising from non-domestic use or unusual or abnormal use of the machine.

E. Any faults arising from operation at incorrect voltage.

F. Any faults arising from incorrect operation of the machine. The guarantee applies to Great Britain and Northern Ireland only and is in addition to your statutory rights.

AFTER-SALES SERVICE

For service and repairs, call your local engineer on our national telephone number:

GIAS Service	Tel: [phone]
Support Service	(Eire 0818 200021)

DESCRIPTION OF THE CONTROL PANEL

A "ON/OFF" button B "PROGRAMME SELECTION" button C "DELAY START" button D "EXPRESS" option button E "ALL IN 1" option button

F "START"/"RESET" button (start/cancelling programme) G "OPTION SELECTION" lights H DIGITAL DISPLAY I Programme guide

DIMENSIONS
Width x Height x Depth (cm)	59,8 x 81,8 ÷ 89,8 x 55
Depth with door open (cm)	117
TECHNICAL DATA
EN 50242 place load		12
Capacity with pans and dishes		8 persons
Water supply pressure (MPa)		Min. 0,08 - Max. 0,8
Fuse / Power input / Supply voltage		See rating plate
CONSUMPTION (main programmes)*
Programme Energy (kWh) Water (L)
HYGIENIC	1,97	20
UNIVERSAL	1,35	14
ECO	0,90	10
RAPID 24'	0,59	9
Power consumption of the off-mode and of the left-on mode: 0,30 W / 0,45 W
*Values are measured in a laboratory according to European Standard EN 50242 (consumption may vary according to conditions of usage).

PROGRAMME SELECTION AND SPECIAL FUNCTIONS

(Use in conjunction with programme guide)

Programme settings

■ Open the door and place the dirty dishes inside the appliance. ■ Press the "ON/OFF" button for about 2 seconds. The display will show two lines. ■ Choose a programme by pressing the "PROGRAMME SELECTION" button. ■ If you wish to select an option, press the corresponding button (the indicator light will turn on).

The option buttons can be selected or deselected WITHIN one minute of the programme commencing.

■ Press the "START" button. The length of the program will be shown on the display alternating hours with minutes [e.g., 1 h (1 hour) / 25 (25 minutes)].

■ Close the door (after an audible signal has sounded, the programme will start automatically).

WITHIN one minute of the programme commencing, another programme can be selected, simply by pressing the "PROGRAMME SELECTION" button.

"IMPULSE" programmes

The “IMPULSE” programmes use an impulse washing technology, which reduces consumption, noise and increases performances.

IMPORTANT

The “intermittent” working of the washing pump MUST NOT be considered a malfunction, it is a characteristic of the impulse washing so must be considered a normal function of the programme.

Programme interruption

Opening the door when a programme is running is not recommended, especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes), the machine stops automatically and the display will flash the remaining time before the end of the cycle. Close the door without pressing any buttons. The cycle will start from where it left off.

WARNING!

If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished.

Changing a running programme

Proceed as follows to change or cancel a running programme:

■ Open the door.

■ Hold the "RESET" button down for at least 3 seconds. "00" will appear on the display and some audible signals will sound.

■ The running programme will be cancelled. The display will show two lines.

■ At this point a new programme can be set.

WARNING!

Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser.

If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

Programme end

A 5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended.

The dishwasher will automatically switch off.

Option buttons

"EXPRESS" button

This button provides an average energy and time saving of 25% (depending on the selected cycle) by reducing the wash water temperature and the drying time during the final rinse.

This programme is recommended for lightly soiled dishes and for slightly wet dishes that are not fully dry, and it improves drying results. We advise you to leave the dishwasher door half-open at the end of the cycle to allow natural air circulation inside the dishwasher.

"ALL IN 1" button

This option optimises the use of "ALL in 1" ("3 in 1", "4 in 1", "5 in 1", etc.) combined detergents.

By pressing this button, the selected washing programme is modified to get the best performance from combined detergents (furthermore, the salt empty alert will be deactivated).

WARNING!

Once selected, this option remains active (light on) for subsequent washing cycles and can only be deactivated (light off) by pressing the button again.

IMPORTANT

This option is recommended when using the RAPID 24' programme, the duration of which will be extended by about 15 minutes, allowing detergent tablets to achieve better performance.

Salt empty alert

If your dishwasher requires filling with salt, the display will show and flash "SL" when the dishwasher is switched on.

The appearance of white stains on dishes is generally a warning sign that the salt container needs filling.

"DELAY START" button

1-23h

Dishwasher start time can be set with this button, delaying start from 1 to 23 hours.

Proceed as follows to set a delayed start:

■ Press the "DELAY START" button ("00" will appear on the display).

■ Press the button again to increase the delay in hours (each time the button is pressed the delay is increased by 1 hour to a maximum of 23).

■ To start the countdown, press the "START" button. At the end of the countdown, the programme will automatically start.

If you wish to see which programme has been selected, press the "PROGRAMME SELECTION" button.

Proceed as follows to cancel a delayed start:

■ Hold the "RESET" button down for at least 3 seconds. "00" will appear on the display and some audible signals will sound. ■ The delayed start and the selected programme will be cancelled. The display will show two lines.

■ At this point, a new programme and option buttons must be set to start a new programme as indicated in the "PROGRAMME SETTINGS" section.

Alarm mute for the PROGRAMME END

The alarm for the programme end may be muted as follows:

IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 15 seconds (during this time 2 audible signals will sound).
3. Release the button when the second audible signal sounds ("b1" will appear on the display to indicate that the alarm is on).
4. Press the same button again ("b0" will appear on the display to indicate that the alarm is off).
5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To turn the alarm on again, follow the same procedure.

Memorization of the last programme used

The last programme used can be memorized by following the below:

IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 30 seconds (during this time, 3 audible signals will sound).
3. Release the button when the THIRD audible signal sounds ("A0" will appear on the display to indicate that the memorization is off).
4. Press the same button again ("A1" will appear on the display to indicate that the memorization is on).
5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To disable the memorization, follow the same procedure.

IMPORTANT

This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur.

WARNING!

To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.

The dishwasher is able to signal a series of faults in the display.

AUTOMATIC FAULT SIGNALS

FAULTS CAUSE SOLUTION
E2 appears on the display and the alarm sounds.	No water (inlet hose closed).	Turn off the dishwasher, open the inlet hose and reset the cycle.
E3 appears on the display and the alarm sounds.	The machine cannot drain water.	Check if the drain tube is bent or if the siphon or filters are clogged.If the problem persists, contact Customer Service.
E4 appears on the display and the alarm sounds.	Water leak	Check if the drain tube is bent or if the siphon or filters are clogged.If the problem persists, contact Customer Service.
E5,E6,E7,Ef or EL appears on the display and the alarm sounds.	Electronic control fault.	Contact Customer Service.
E8 or Ei appear on the display and the alarm sounds.	The water heating element is not working correctly or the filter plate is clogged.	Clean the filter plate.If the problem persists, contact Customer Service.

PROGRAMME GUIDE

Wash with prewash

For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10 g) directly in the machine.

Programme

Description

P 1		Hygienic 75°C	An antibacterial cycle, intended for washing and sterilising dishes (even heavily stained ones) babies' bottles etc.
P 2		Universal 60°C	Once a day - for normal soiled pans and any other items that have been left all day for washing.
P 3		Daily 55°C	Fast cycle, for “normally” dirty dishes - intended for frequent washes and normal loads.
P 4		Eco 45°C	Programme for normally soiled tableware (the most efficient in terms of its combined energy and water consumption for that type of tableware).Programme standardised to EN 50242.
P 5		Delicate 45°C	Suitable for delicate crockery and glassware. Also for less soiled items excluding pans.
P 6		Rapid 59' 65°C	Suitable for heavily soiled items that are to be washed straight after a meal (Max 8 place load).
P 7		Rapid 24' 50°C	Quick wash for dishes which are to be washed immediately after the meal. Wash load of 6 persons.
P 8		Night 55°C	Quietest washing cycle. Ideal for functioning by night and for taking advantage of reduced energy fares.
P 9		Refresh	Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.
70°C		Dishwasher Cleaner P 4 + €xpress=	This programme should be used periodically with specialist dishwasher cleaning products. For all cleaning operations the dishwasher must be empty.

■ = "IMPULSE" programmes N/A = OPTION NOT AVAILABLE

Check list

Programme contents

Avarage duration in minutes

Special function buttons available

Detergent for soaking (Prewash)

Detergent for washing

Clean filter

Check rinse aid dispenser

Check salt container

Hot pre-wash

Cold pre-wash

Main wash

First cold rinse

Second cold rinse

Hot rinse with rinse aid

With cold water (15°C)*-Tolerance ± 10%-

"DELAY START" button

"EXPRESS" button

"ALL IN 1" button

●

●

●●

○

●

75°C

○

○

○

130

YES

YES

YES

●

●●

●○

60°C

○

○

120

YES

YES

YES

●

●●

●○

55°C

○

○

80

YES

YES

YES

●

●

●●

●○

45°C

○

190

YES

YES

YES

●

●●

●○

45°C

○

○

85

YES

YES

YES

●

●

●●

○

●

65°C

○

59

YES

YES

YES

●

●●

●

50°C

○

24

YES

N/A

YES

●

●●

●○

55°C

○

○

240

YES

YES

YES

●

○

5

YES

N/A

70°C

○

45

YES

* WITH HOT WATER THE TIME REMAINING UNTIL THE END OF THE PROGRAMME IS AUTOMATICALLY DISPLAYED WHILE THE PROGRAMME IS RUNNING.

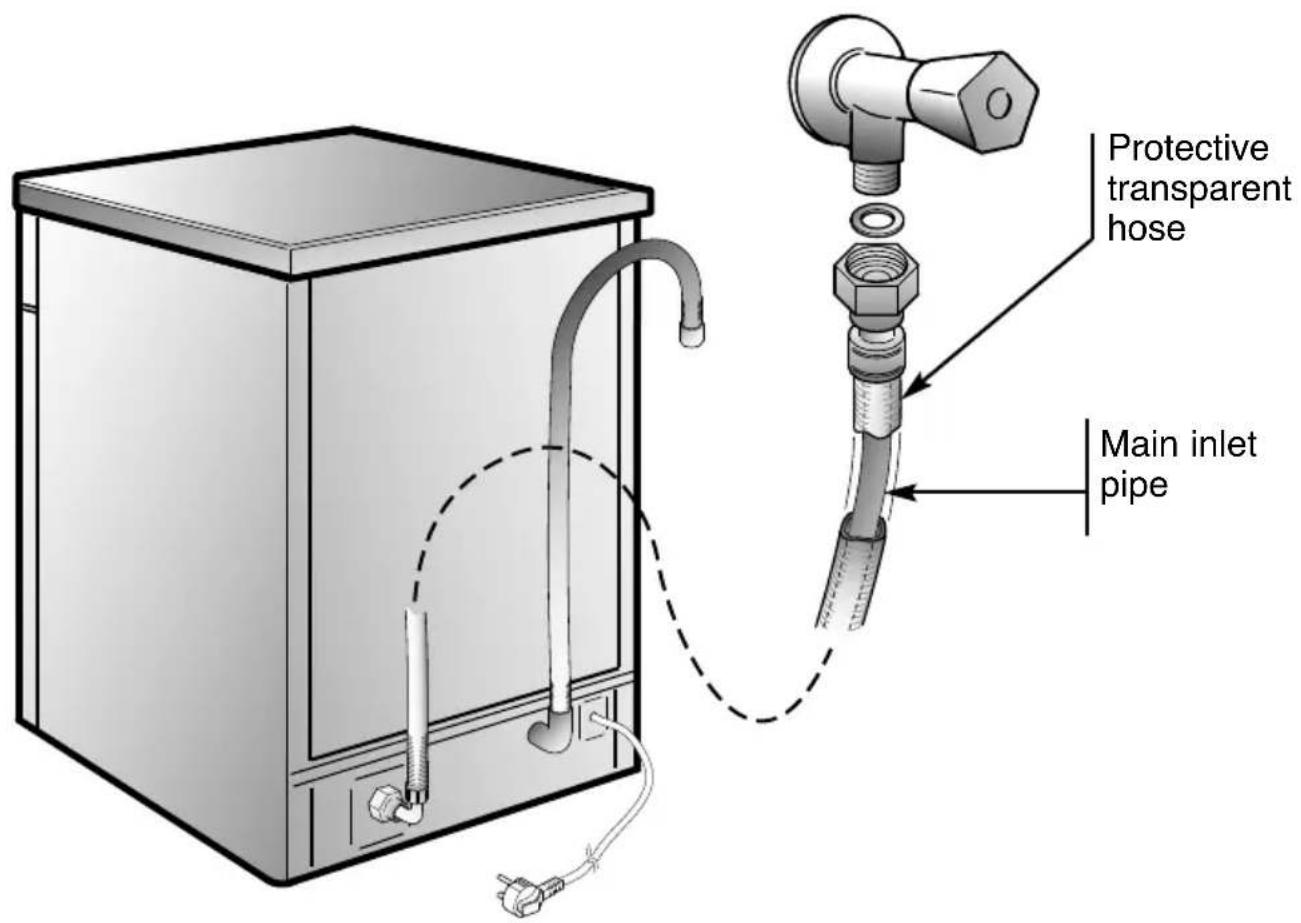

AQUAPROTECT – PROTECTED INCOMING WATER PIPE

The main inlet pipe is contained within a protective transparent hose. In the event of damage occurring to the main inlet pipe any water leakage is retained within the transparent hose.

If water has leaked from the main inlet pipe there will be a visible sign within the transparent hose.

You may continue to complete the programme cycle but for safety we recommend the immediate replacement of the complete hose assembly.

If the hose is not long enough for correct connection, it must be replaced with a longer one.

The hose can be obtained from a Service Centre.

WATER SOFTENER UNIT

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company.

Regulating the water softener with electronic programmer

The water softener can treat water with a hardness level of up to 90° fH (French grading) or 50° dH (German grading) through 8 settings.

The settings are listed in the table below:

Level	Water hardness		Use of regenerating salt	Water softener setting
	°fH (French)	°dH (German)
0	0-5	0-3	NO	d0
1	6-10	4-6	YES	d1
2	11-20	7-11	YES	d2
3	21-30	12-16	YES	d3
*4	31-40	17-22	YES	d4
5	41-50	23-27	YES	d5
6	51-60	28-33	YES	d6
7	61-90	34-50	YES	d7

* The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users.

Regulate the setting of your water softener unit according to the degree of hardness of your water as follows:

IMPORTANT

The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 5 seconds, UNTIL an audible signal sounds. The current water softener setting level will be shown on the display.
3. Press the same button again to select the required water softener level: each time the button is pressed, the setting will increase by one level. When you have reached "d7", the display will go back to "d0".
4. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

WARNING!

If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

Compliments,

Programmes "IMPULSE"

Touche "EXPRESS" €xpress=

Programme

Description

■ = Programmes "IMPULSE" N/A = OPTION NOT AVAILABLE

●

●

●●

○

●

75°C

○

○

○

130

JA

JA

JA

●

●●

●○

60°C

○

○

120

JA

JA

JA

●

●●

●○

55°C

○

○

80

JA

JA

JA

●

●

●●

●○

45°C

○

190

JA

JA

JA

●

●●

●○

45°C

○

○

85

JA

JA

JA

●

●

●●

○

●

65°C

○

59

JA

JA

JA

●

●●

●

50°C

○

24

JA

N/A

JA

●

●●

●○

55°C

○

○

240

JA

JA

JA

●

○

5

JA

N/A

70°C

○

45

JA

* WHEN THE MACHINE USES HOT WATER DURING A PROGRAM, THE DISPLAY AUTOMATICALLY SHOWS HOW MANY MINUTES ARE LEFT UNTIL THE END OF THE PROGRAM.

AQUAPROTECT – WATER SUPPLY PROTECTION

■ = "IMPULSE" programs

N/O = OPTION NOT AVAILABLE

Kaj je treba storiti pred pomivanjem

Faze programa

Povprečno trajanje v minutah

Tipke za posebne funkcije

Odmeriti detergent za namakanje (Predpomivanje)

Odmeriti detergent za pomivanje

Očistiti filter

Preveriti stanje tekočine za lesk

Preveriti stanje soli

Predpomivanje z vročo vodo

Predpomivanje s hladno vodo

Glavno pomivanje

Prvo izpiranje s hladno vodo

Drugo izpiranje s hladno vodo

Izpiranje z vročo vodo z dodatkom tekočine za lesk

S hladno vodo (15 °C)* - Odstopanje ± 10%-

Tipka "ZAMIK VKLOPA"

Tipka "EXPRESS"

Tipka "ALL IN 1"

●

●

●●

○

●

75°C

○

○

○

130

DA

DA

DA

●

●●

●○

60°C

○

○

120

DA

DA

DA

●

●●

●○

55°C

○

○

80

DA

DA

DA

●

●

●●

●○

45°C

○

190

DA

DA

DA

●

●●

●○

45°C

○

○

85

DA

DA

DA

●

●

●●

○

●

65°C

○

59

DA

DA

DA

●

●●

●

50°C

○

24

DA

N/O

DA

●

●●

●○

55°C

○

○

240

DA

DA

DA

●

○

5

DA

N/O

70°C

○

45

DA

* WITH HOT WATER, THE TIME REMAINING UNTIL THE END OF THE CURRENT PROGRAM IS AUTOMATICALLY DISPLAYED WHILE THE PROGRAM IS RUNNING.

AQUAPROTECT – WATER INLET PIPE PROTECTION

■ = "IMPULSE" programs

N/A = NOT AVAILABLE

Popis provjera

Sadržaj programa

Prosječno trajanje u min.

Tipke sa posebnim funkcijama

Deterdžent za namakanje

Deterdžent za pranje

Čišćenje filtra

Provjera sredstva za sjaj

Provjera količine soli

Vruće predpranje

Hladno predpranje

Glavno pranje

Prvo hladno pranje

Drugo hladno pranje

Vruće ispiranje sa sredstvom za sjsj

Sa hladnom vodom (15°C)* - Dopušteno odstupanje ± 10% -

Tipka "ODGODU POČETKA PRANJA"

Tipka "EXPRESS"

Tipka "ALL IN 1"

●

●

●●

○

●

75°C

○

○

○

130

DA

DA

DA

●

●●

●○

60°C

○

○

120

DA

DA

DA

●

●●

●○

55°C

○

○

80

DA

DA

DA

●

●

●●

●○

45°C

○

190

DA

DA

DA

●

●●

●○

45°C

○

○

85

DA

DA

DA

●

●

●●

○

●

65°C

○

59

DA

DA

DA

●

●●

●

50°C

○

24

DA

N/A

DA

●

●●

●○

55°C

○

○

240

DA

DA

DA

●

○

5

DA

N/A

DA

70°C

○

45

DA

* FOR PROGRAMS WITH HOT WATER, THE REMAINING TIME TO THE END OF THE PROGRAM WILL AUTOMATICALLY BE SHOWN BRIEFLY WHEN THE PROGRAM STARTS.

AQUAPROTECT – PROTECTION FOR THE WATER INLET HOSE

●

●

●●

○

●

75°C

○

○

○

130

NAI

NAI

NAI

●

●●

●○

60°C

○

○

120

NAI

NAI

NAI

●

●●

●○

55°C

○

○

80

NAI

NAI

NAI

●

●

●●

●○

45°C

○

190

NAI

NAI

NAI

●

●●

●○

45°C

○

○

85

NAI

NAI

NAI

●

●

●●

○

●

65°C

○

59

NAI

NAI

NAI

●

●●

●

50°C

○

24

NAI

Δ/

NAI

●

●●

●○

55°C

○

○

240

NAI

NAI

NAI

●

○

5

NAI

Δ/

70°C

○

45

NAI

■ = "IMPULSE" PROGRAMS

N/A = FUNCTION SETTING NOT POSSIBLE

"IMPULSE" PROGRAMS

■ = "IMPULSE" PROGRAMS

N/A = OPTION NOT AVAILABLE

"EXPRESS" BUTTON €xpress=

■ = "IMPULSE" PROGRAMS

N/A = FUNCTION NOT AVAILABLE

●

●

●●

○

●

75°C

○

○

○

130

TAK

TAK

TAK

●

●●

●○

60°C

○

○

120

TAK

TAK

TAK

●

●●

●○

55°C

○

○

80

TAK

TAK

TAK

●

●

●●

●○

45°C

○

190

TAK

TAK

TAK

●

●●

●○

45°C

○

○

85

TAK

TAK

TAK

●

●

●●

○

●

65°C

○

59

TAK

TAK

TAK

●

●●

●

50°C

○

24

TAK

N.D.

TAK

●

●●

●○

55°C

○

○

240

TAK

TAK

TAK

●

○

5

TAK

N.D.

70°C

○

45

TAK

* WHEN WASHING WITH HOT WATER, THE REMAINING TIME TO THE END OF THE PROGRAM IS AUTOMATICALLY ADJUSTED DURING THE PROGRAM.

AQUAPROTECT – INLET HOSE WITH PROTECTIVE COVER

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

To consult the product fiche, please refer to the manufacturer website.
