HD4672 - Kettle PHILIPS - Free user manual and instructions

Product Type	Kettle
Brand	Philips
Model	HD4672
Capacity	1.7 L
Power	2400 W
Voltage	220-240 V, 50-60 Hz
Dimensions (HxWxD)	26 x 22 x 16 cm
Weight	1.2 kg
Material	Stainless steel body, plastic lid with steel finish
Color	White with transparent water level indicator
Heating Element	Concealed stainless steel
Base	360° cordless, swivel
Key Features	Auto shut-off, boil-dry protection, removable limescale filter
Water Level Indicator	Transparent, illuminated (blue LED)
Lid Opening	One-touch button with wide opening
Care and Cleaning	Descale regularly; wipe with damp cloth; do not immerse base
Safety Features	Auto shut-off, boil-dry protection, thermal cut-out
Spare Parts	Lid, filter, base unit available via service centers
Repairability	Repairable by authorized service; spare parts available for 7 years
Certifications	CE, RoHS

Frequently Asked Questions - HD4672 PHILIPS

What is the capacity of the Philips HD4672 kettle?

The capacity is 1.7 liters, ideal for making up to 7 cups of tea or coffee.

How do I descale the kettle?

Use a mixture of white vinegar and water (1:2 ratio) or a commercial descaling agent. Fill, boil, let sit for 15 minutes, then rinse thoroughly. Repeat if needed.

Is the kettle cordless?

Yes, it features a 360° cordless base for easy handling and pouring.

What material is the kettle made of?

The body is stainless steel, and the lid is plastic with a steel finish for durability and a modern look.

Does it have an auto shut-off function?

Yes, it has auto shut-off that activates when the water reaches boiling point, for safety and energy saving.

Can I boil water for infant formula?

Yes, you can. Allow the water to cool after boiling to the recommended temperature. The kettle is suitable for boiling tap water.

How do I clean the kettle?

Unplug and let it cool. Wipe the exterior with a damp cloth. For the interior, use a descaling solution. Do not immerse the base in water.

What is the warranty period?

Philips typically offers a 2-year warranty on kettles, covering manufacturing defects. Check your local terms.

Is the kettle noisy while boiling?

Some noise is normal due to boiling water and the heating element. The kettle may produce a soft humming sound.

How do I replace the limescale filter?

The filter is located in the spout. Simply pull it out and replace with a new one (model HD4672 filter available). Clean it regularly under running water.

USER MANUAL HD4672 PHILIPS

White Philips water heater with visible brand name and control panel (no text or symbols on body)

ENGLISH 4

TIẾNG VIÊT 8

繁體中文 12

한국어 16

ไทย 20

简体中文 24

Thank you for choosing a product from the Philips range. Please read the instructions carefully before using the appliance for the first time.

Important

▶ Please note that some condensation may occur on the base of your kettle. This is perfectly normal and by no means a manufacturing defect.
▶ Depending on the hardness of the water in your area, small spots may appear on the heating element of your kettle (even if you have used it only once). This phenomenon is the result of scale build-up and is perfectly normal. Scale consists of naturally occurring minerals that solidify when water is heated and which slowly deposit over a period of time. This can lead to scale build-up on the heating element and on the inside of the kettle over time. The harder the water, the faster scale will build up. Scale can occur in different colours. Although it may look like rust, it is not because this kettle has a stainless steel element. Although scale is perfectly harmless, it can affect the performance of your kettle if it is left to build up over a longer period of time. Please follow the instructions for descaling the kettle in this instruction booklet.
- Boiling water can cause serious burns. Please take care when the kettle contains hot water.
- Keep the kettle and its cord well out of the reach of children and do not let them play with the appliance. Prevent children from pulling at the mains cord. Do not let the mains cord hang over the edge of the work surface.
▶ Do not fill the kettle beyond the 'MAX' indication.
- WARNING: If the kettle has been overfilled, there is a risk that boiling water will be ejected from the spout.
This Philips kettle is equipped with a precision boil-control system that will switch the kettle off immediately after the water has reached boiling point.

For type HD4673 only

This Philips rapid boil kettle can draw up to 13 Amps from your power supply. Ensure that your household electrical system can withstand this consumption.
We advise you to refrain from running too many other appliances connected to the same circuit while your kettle is in use.

Using the kettle

Diagram of a medical or anatomical structure with a central triangular form and surrounding circular elements (no text or labels)

Line drawing of a kettle with a handle and spout, showing internal components (no text or symbols)

Line drawing of a car's front and side profile showing the nose and mouth (no text or symbols)

1 Wind excess mains cord around the base of the appliance.

2 Put the base with the kettle on a cool, flat surface, out of the reach of children and put the plug in the wall socket.

Only use the kettle in combination with its original base.

3 Take the kettle off its base.

4 Fill the kettle with water through the spout.

Never fill the kettle while it is standing on its base.

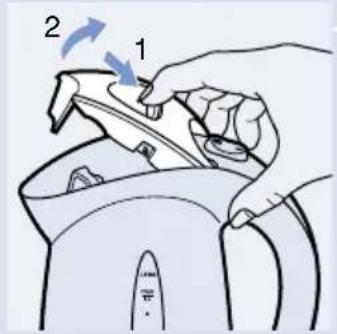

▶ You can also open the lid to fill the kettle.

Do not put less than 0.1 litre of water in the kettle.

- If the kettle boils dry, it will switch off automatically but the On/Off switch will stay in the "I" position. After 10 minutes the kettle must be lifted off the base to reset its dry-boil protection, you can use the kettle again.

Do not fill the kettle beyond the 'MAX' indication.

- If too much water has been put in the kettle, boiling water may be ejected from the spout.

5 Close the lid and put the kettle on its base.

Make sure the lid is properly closed, otherwise the kettle will boil dry.

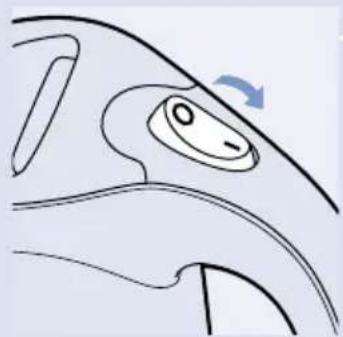

6 Set the On/Off switch to position "I".

The kettle starts heating up.

7 The appliance switches off automatically when the water has reached the boiling point.

The On/Off switch returns to the "O" position.

8 You can interrupt the boiling process by setting the On/Off switch to "O".

Cleaning the appliance

1 Unplug the base of the appliance.
2 Clean the outside of the appliance with a cloth moistened with warm water and some cleaning agent.

Do not use any abrasive cleaning agents, scourers etc. to clean the appliance.

Never immerse the kettle or its base in water.

Cleaning the scale filter

Anatomical illustration of pelvic anatomy with a blue arrow indicating a specific area (no text or labels present)

Scale is not harmful to your health but it may give your drink a powdery taste. The scale filter prevents scale particles from ending up in your drink. Clean the filter regularly.

1 Remove the filter.

Illustration of hands using a tool to clean or rinse a tooth (no text or symbols)

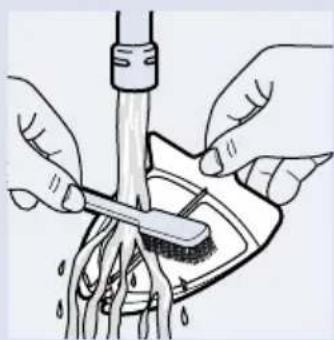

2 Clean the filter under a running tap while gently brushing the filter with a soft nylon brush.

Illustration of a hand adjusting a mechanical component with a blue arrow indicating the direction (no text or symbols present)

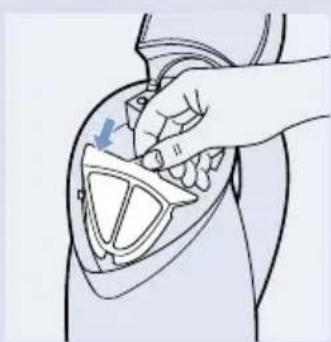

3 Put the filter back into the appliance.

Descaling

Regular descaling will prolong the life of the appliance.

When you descale the kettle, you can also descale the filter at the same time by simply leaving it in the appliance.

1 Fill the kettle with water up to three-quarters of the 'MAX' capacity and bring the water to the boil.
2 After the appliance has switched off, add white vinegar (8% acetic acid) to the 'MAX' level.

3_leave the solution in the kettle overnight.
4 Empty the kettle and rinse the inside thoroughly.
5 Fill the kettle with clean water and boil the water.
6 Empty the kettle and rinse it with clean water again.

Repeat this procedure if there is still some scale in the kettle.

You can also use an appropriate descaler.

Replacement

Replacement filters for the HD4672 and HD4673 are available from your Philips dealer under type number HD4974.

If the mains cord of this appliance is damaged, it must always be replaced by a service centre authorised by Philips, as special tools and/or parts are required.

Guarantee & service

If you need information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Diagram of a medical or anatomical structure with concentric circles and radial lines, no visible text or symbols

Line drawing of a steam iron with a handle and spout, showing internal components (no text or symbols)

Line drawing of a car's head and side profile showing the nose and mouth (no text or symbols)

LÀM SACH ÂM

Anatomical illustration of pelvic anatomy with a blue arrow indicating a specific area (no text or labels present)

Illustration of hands using a tool to clean or brush the tool, no text or symbols present

Illustration of a hand adjusting a mechanical component with a blue arrow indicating the direction (no text or symbols present)

Diagram of a circular device with internal components and a blue arrow indicating direction (no text or symbols)

Line drawing of a portable electric kettle with a handle and spout (no text or symbols)

Line drawing of a car's head and side profile with no text or symbols

Anatomical illustration of pelvic anatomy with a blue arrow indicating a specific area (no text or labels present)

1 取下過濾器。

Illustration of hands using a tool to clean or rinse a tooth (no text or symbols)

Illustration of a hand adjusting a mechanical component with a blue arrow indicating the direction (no text or symbols present)

3 把過濾器放回水壺。

清除水垢

經常清除水垢可以延長水壺的壽命。

Diagram of a circular mechanical component with internal structure and directional arrow (no text or symbols)

Line drawing of a steamer with handle and spout, showing internal components (no text or symbols)

Diagram of a car's side profile showing the nose and mouth (no text or labels)

Anatomical illustration of pelvic anatomy with a blue arrow indicating a specific region (no text or labels present)

Illustration of hands using a tool to clean or brush the surface of a tool (no text or symbols present)

Illustration of a hand adjusting a mechanical component with a blue arrow indicating direction (no text or symbols present)

Diagram of a medical device with a central anatomical structure and surrounding wires (no text or labels)

Line drawing of a kitchen fan with a handle and lid, no text or symbols present

Line drawing of a car's head and side profile showing the nose and mouth (no text or symbols)

Anatomical illustration of pelvic anatomy with a hand holding the pelvis and a blue arrow indicating a specific area (no text or labels present)

Illustration of hands using a tool to clean or brush the tool, no text or symbols present

Illustration of a hand adjusting a mechanical component with a blue arrow indicating direction (no text or symbols present)

Diagram of a circular device with internal components and wiring, no visible text or symbols

Line drawing of a kettle with a handle and spout, no text or symbols present

也可以打开壶盖加水。

水壶里加的水不可少於 0.1 升。

Line drawing of a car's head and side profile with a circular eye and handle (no text or symbols)

Anatomical illustration of pelvic anatomy with a hand holding a device, showing internal structures without any text or labels.

Illustration of hands using a tool to clean or brush the root of a pipe (no text or symbols present)

Illustration of a hand inserting a device into a patient's abdomen (no text or symbols)

3 把过滤网放回水壶内。

除去水垢

经常清除水垢可以延长水壶的寿命。
