K 2.490 T150 - Pressure washer KARCHER - Free user manual and instructions

Product type	Domestic high-pressure cleaner
Brand	Kärcher
Model	K 2.490 T150
Category	High-pressure cleaner
Maximum pressure	110 bar
Maximum flow rate	360 l/h
Motor power	1,400 W
Power supply	230 V / 50 Hz
Cable length	5 m
High-pressure hose length	3 m
Weight	3.9 kg
Dimensions (L x W x H)	31 x 24 x 45 cm
Adjustable pressure level	Yes, via vario lance
Active foam function	Yes, with integrated detergent tank
Wheels	Yes, 2 large wheels
Retractable handle	Yes
Automatic shut-off	Yes, in rest position
Pinch protection	Yes, for gun and lance
Water inlet filter	Integrated filter, cleanable
Descaling	Use recommended Kärcher descaler
Spare parts available	Lance, hose, gun, foam kit, etc.
Repairability index	7.3/10 (estimate)
Use	Domestic, for vehicles, terraces, garden furniture

Frequently Asked Questions - K 2.490 T150 KARCHER

How to start the Kärcher K 2.490 T150?

Make sure the water hose is connected and open, then plug in the device. Hold the gun and press the trigger after unlocking the safety. The device starts automatically.

How to use detergent with this high-pressure cleaner?

Fill the detergent tank with a suitable Kärcher product. Use the low-pressure lance or the vario lance in Mix position to aspirate the detergent.

How to change the lance nozzle?

To change the nozzle, turn the ring at the front of the lance. Choose between flat jet, rotary jet, or low-pressure jet according to your need.

What is the maximum pressure of the device?

The maximum pressure is 110 bar. You can reduce it by adjusting the trigger or using the vario lance.

How to maintain the high-pressure cleaner?

Clean the water inlet filter regularly after use. Descale the pipes with a Kärcher descaler if necessary. Store the device in a dry place.

Why does the device stop while the gun is pressed?

This may be due to a lack of water supply, a clogged filter, or triggered pinch protection. Check the water supply and clean the filter.

What is the length of the high-pressure hose?

The high-pressure hose is 3 meters long. Use an approved extension if necessary, following safety instructions.

Can I use hot water in the device?

No, the device is designed only for cold water. Hot water can damage internal components.

How to store the device after use?

Empty the water from the hose and lance. Put the gun in the storage position to trigger the automatic shut-off. Store it in a frost-free place.

Where to find spare parts for the K 2.490 T150?

Spare parts are available from authorized Kärcher dealers and on the official website. Search by model number K 2.490 T150.

USER MANUAL K 2.490 T150 KARCHER

Deutsch 4

English 11

Français 18

Italiano 25

Nederlands 33

Español 40

Português 47

Dansk 54

Norsk 61

Svenska 68

Suomi 75

Ελληνικά 82

Türkçe 89

Русский 96

Magyar 105

Čeština 112

Slovenščina 119

Polski 126

Românește 133

Slovenčina 140

Hrvatski 147

Srpski 154

Български 161

Eesti 168

Latviešu 175

Lietuviškai 182

Українська 189

Register and win! www.kaercher.com/register-and-win

EAC

001

59640860 (03/15)

Inhaltsverzeichnis

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/11/01

Contents

General information....EN 4

Safety instructions ....EN 5

Operation....EN 6

Transport....EN 8

Storage.....EN 8

Care and maintenance ..... EN 9

Troubleshooting....EN 9

Technical specifications.....EN 10

EC Declaration of Conformity ..... EN 10

General information

Dear Customer,

Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.

Proper Use

This high-pressure cleaner is designed for domestic use only:

– to clean machines, vehicles, buildings, tools, facades, terraces, garden equipment etc. using a high-pressure water jet (and detergents if required).

– with accessories, replacement parts and detergents approved by KÄRCHER. Observe the instructions provided with these detergents.

Symbols on the machine

The high pressure jet may not be directed at persons, animals, live electrical equipment or at the appliance itself. Protect the appli-

ance against frost.

Symbols in the operating instructions

DANGER

Immediate danger that can cause severe injury or even death.

⚠ WARNING

Possible hazardous situation that could lead to severe injury or even death.

CAUTION

Possible hazardous situation that could lead to mild injury to persons or damage to property.

Environmental protection

The packaging material can be recycled. Please do not place the packaging into the ry refuse for disposal, but arrange for the recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances.

Please dispose your old appliances using appropriate collection systems.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.

Please submit the proof of purchase.

(See address on the reverse)

Safety instructions

DANGER

■ Never touch the mains plug and the socket with wet hands.
The appliance must not be used if the power cord or important parts of the appliance, e.g. high pressure hoses, trigger gun or safety devices are damaged.
Check the power cord and mains plug for damage before every use. If the power cord is damaged, please arrange for it to be replaced immediately by an authorised repair agent or a skilled electrician.
- Check the high pressure hose for damage before every use. Please arrange for the immediate replacement of a damaged high pressure hose.
■ The appliance may not be used in areas where a risk of explosion is present.
If the appliance is used in hazardous areas (e.g. filling stations) all of the safety provisions and operating instructions detailed in this manual must be observed.
■ High pressure jets can be dangerous if improperly used. The jet must not be directed at persons, animals, live electrical equipment or at the appliance itself.
The high pressure jet must not be directed at other persons or directed by the user at him/herself to clean clothing or footwear.
■ Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
■ Vehicle tyres or tyre valves are susceptible to damage from the high pressure jet and may burst. The first indication of this is a discolouration of the tyre. Damaged vehicle tyres/tyre valves are highly dangerous. Ensure that a distance of at least 30 cm is observed when cleaning with the jet!
■ Risk of explosion! Do not spray flammable liquids.

Never draw in fluids containing solvents or undiluted acids! This includes petrol, paint thinner and heating oil. The spray mist thus generated is highly inflammable, explosive and poisonous. Do not use acetone, undiluted acids or solvents as they are damaging to the materials from which the appliance is made.

⚠ WARNING

The mains plug and the coupling of an extension cable must be watertight and must never lay in the water.
■ Unsuitable electrical extension cables can be hazardous. Only use electrical extension cables outdoors which have been approved and labelled for this purpose and have an adequate cable cross-section: 1 - 10 m: 1.5 mm ² ; 10 - 30 m: 2.5 mm ²
■ Always fully unroll electrical cables from the cable drum.
■ High pressure hoses, fixtures and couplings are important for the safety of the appliance. Only use high pressure hoses, fixtures and couplings recommended by the manufacturer.
This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities.
The appliance must not be operated by children or persons who have not been instructed accordingly. Children should be supervised to prevent them from playing with the appliance.
- Keep packaging film away from children - risk of suffocation!
This appliance was designed to be used with detergents which are supplied or recommended by the manufacturer. The use of other detergents or chemicals may compromise the safety of the appliance.
The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby.
■ Do not use the appliance when there are other persons around unless they are also wearing safety equipment.
■ Wear protective clothing and safety goggles to protect against splash back containing water or dirt.

CAUTION

In case of extended downtimes, switch the appliance off at the main switch / appliance switch or remove the mains plug.

■ Do not operate the appliance at temperatures below 0 °C.

- Observe a distance of at least 30 cm when using the jet to clean painted surfaces to avoid damaging paintwork.

■ Never leave the appliance unattended when it is in operation.

■ Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.
■ All current-conducting parts in the working area must be protected against jet water.
The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.
For safety reasons, we recommend that you operate the appliance only via an earth-leak-age circuit breaker (max. 30 mA).
■ Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.

Safety Devices

CAUTION

Safety devices protect the user and must not be modified or bypassed.

Power switch

The appliance switch prevents unintentional operation of the appliance.

Lock trigger gun

This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance.

Overflow valve with pressure switch

The overflow valve prevents the permissible working pressure from being exceeded. If the lever on the trigger gun is released the pressure switch turns off the pump, the high pressure jet is stopped. If the lever is pulled the pump is turned on again.

Prerequisites for the appliance's stability

CAUTION

Create stability for the appliance prior to all work on or with the appliance to prevent accidents or damage.

- The stability of the appliance is warranted when it is placed onto an even surface.

Operation

Scope of delivery

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.

In the event of missing accessories or any transport damage, please contact your dealer.

Description of the Appliance

Illustrations on Page 2

1 Quick coupling for high pressure hose
2 High pressure connection
3 Appliance switch "0/OFF"/ „I/ON"
4 Storage hook for high pressure hose and mains connection cable
5 Transport handle
6 Storage for spray lance
7 Storage for trigger gun
8 Water connection with integrated sieve
9 Detergent suction hose (with sieve)
10 Detergent Tank
11 Coupling element for water connection
12 Mains cable with mains plug
13 Bearing wheel
14 Trigger gun
15 Lock trigger gun
16 Key to detach the high pressure hose from the trigger gun
17 High pressure hose
18 Washing brush
19 Spray lance with Dirtblaster
20 Spray lance with pressure regulation (Vario Power)

Special accessories

Special accessories expand the possibilities of using your appliance. Please contact your KÄRCHER dealer for further information.

Before Startup

Mount loose parts delivered with appliance prior to start-up.

Illustrations on Page 3

Illustration A

→ Insert the transport wheels and lock them. Illustration B

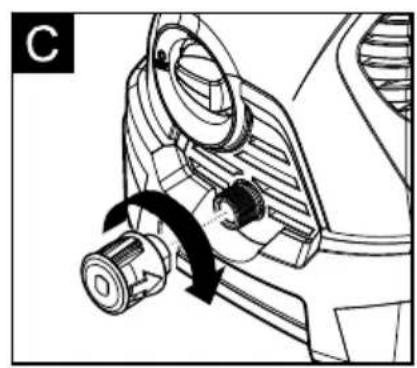

→ Attach the transport handle /carrying handle. Illustration C
→ Fasten the quick coupling for the high pressure hose to the high pressure connection.

Illustration D

→ Push the high pressure hose into the trigger gun until it locks audibly.

Note: Make sure the connection nipple is aligned correctly.

→ Check the secure connection by pulling on the high pressure hose.

Illustration E

→ Pull the suction hose for detergent through the cover of the detergent tank until the filter contacts the bottom of the tank.

→ Close the detergent tank with the lid.

→ Lock the detergent tank in place on the appliance.

Water supply

According to the applicable regulations, the appliance must never be used on the drinking water supply without a system separator. Use a suitable system separator manufactured by KÄRCHER; or, as an alternative, a system separator as per EN 12729 Type BA. Water flowing through a system separator is considered non-drinkable.

-CAUTION

Always connect the system separator to the water supply, never directly to the appliance!

Note: Impurities in the water can damage the high-pressure pump and accessories. For protection, the use of the KÄRCHER water filter (optional accessory, order no. 4.730-059) is recommended.

Water supply from mains

Observe regulations of water supplier.

For connection values, see type plate/technical data.

→ Use a fibre-reinforced water hose (not included) with a standard coupling. (Minimum diameter 1/2 inch (13 mm), minimum length 7.5 m).

Illustration G

→ Screw the coupling element to the water connection on the appliance.

→ Push the water supply hose onto the coupling unit, then connect it to the water supply.

Start up

CAUTION

Dry runs lasting longer than two minutes lead to damages to the high pressure pump. If the appliance does not build up pressure within two minutes, switch it off and proceed as instructed in the Chapter "Troubleshooting".

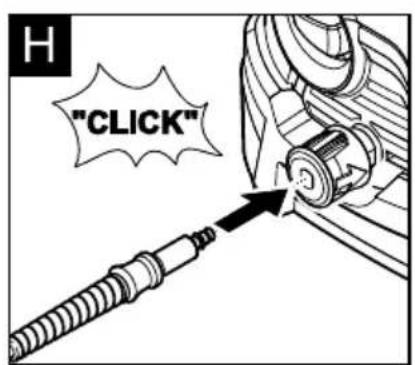

Illustration H

→ Insert the high pressure hose tightly into the quick coupling on the appliance, it will lock in audibly.

Note: Make sure the connection nipple is aligned correctly.

→ Check the secure connection by pulling on the high pressure hose.

Illustration

→ Push the spray lance into the trigger gun and fasten it by turning it through 90°.

→ Completely open the water tap.

→ Insert the mains plug into the socket.

→ Turn on the appliance "I/ON".

Operation

DANGER

The trigger gun is subjected to a recoil force when the water jet is discharged. Make sure that you have a firm footing and are also holding the trigger gun and spray lance firmly.

Illustration J

→ Unlock the lever on the trigger gun.

→ Pull on the lever of the trigger gun; the device will switch on.

Note: Release the lever of the trigger gun; the device will switch off again. High pressure remains in the system.

Spray lance with pressure regulation (Vario Power)

Carrying out the most common cleaning tasks. The work pressure can be stagelessly regulated between "Min" and "Max". You can add detergent when "Mix" is selected.

→ Release the lever on the trigger gun.

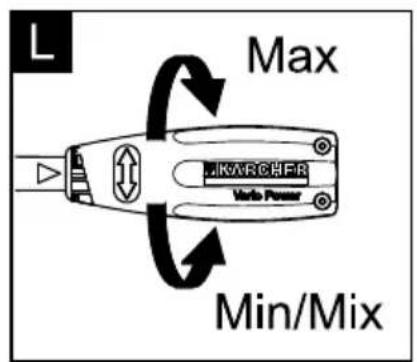

Illustration L

→ Turn the spray lance to the desired position.

Spray lance with Dirtblaster

For particularly dirty items or areas.

CAUTION

Car tyres, paint or sensitive surfaces such as wood should not be cleaned with the dirt blaster, as there is a risk of damage.

Not suitable for use with detergents.

Washing brush

Suitable for use with detergents.

CAUTION

Please make sure that the washing brush is free from dirt or other particles. Otherwise, it may damage the paint work.

Working with detergent

Please use exclusively KÄRCHER detergents and care products to carry out the respective cleaning task, as these were specifically developed for your appliance. The use of other detergents and care products may lead to premature wear and can invalidate your warranty claims. Please obtain information at your local dealer or request information directly from KÄRCHER.

→ Detach spray lance from the trigger gun. Work only with the trigger gun. Note: This will mix the detergent with the water stream.

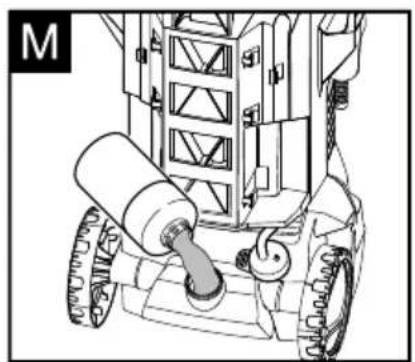

Illustration M

→ Fill the detergent solution in the detergent tank (observe dosage instructions on the packaging of the detergent).

Recommended cleaning method

→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
→ Spray off loosened dirt with the high pressure jet.

Interrupting operation

→ Release the lever on the trigger gun. Illustration K
→ Lock the lever on the trigger gun.
→ During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.
→ Insert the trigger gun in its holder.

Finish operation

CAUTION

Only separate the high-pressure hose from the trigger gun or the appliance while there is no pressure in the system.

→ After operation with detergent: Run the machine for approximately 1 minute for a clear rinse.
→ Release the lever on the trigger gun.
→ Turn off the appliance "0/OFF".
→ Turn off tap.
→ Press the lever on the trigger gun to release any remaining pressure in the system.

Illustration K

→ Lock the lever on the trigger gun.

→ Detach the appliance from the water supply.
→ Pull out the mains plug.

Transport

CAUTION

In order to prevent accidents or injuries, keep in mind the weight of the appliance during transport (see Specifications).

When transporting by hand

→ Lift appliance by the carrying handle and carry it.
→ Pull the appliance by its transport handle.

When transporting in vehicles

→ Empty detergent tank.
→ Secure the appliance against shifting and tipping over.

Storage

CAUTION

In order to prevent accidents or injuries, keep in mind the weight of the appliance when selecting a storage location for it (see Specifications).

Storing the Appliance

Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.

→ Park the machine on an even surface.
→ Push the casing of the quick coupling for the high pressure hose toward the rear and disconnect the high pressure hose from the appliance.
→ Press the disconnect on the trigger gun and remove the high pressure hose from the trigger gun.
→ Insert the trigger gun in its holder.
→ Engage the spray lance in its compartment.
→ Stow away the mains cable, the high-pressure hose and accessory on the appliance.

Frost protection

CAUTION

Protect the appliance and its accessories against frost.

The appliance and its accessories can get destroyed through frost if there is any water residues in them. To avoid damage to them:

→ Completely drain all water from the appliance: Switch the appliance on with detached high pressure hose and detached water supply (max. 1 minute) and wait, until no more water exits at the high pressure connection. Turn off the appliance.

→ Store the appliance and the entire accessories in a frost free room.

Care and maintenance

DANGER

Turn off the appliance and remove the mains plug prior to any care and maintenance work.

Care

Prior to longer periods of storage, e.g. in the winter:

→ Remove filter from suction hose for detergent and clean under running water.
→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.

Maintenance

The appliance is maintenance free.

Spare parts

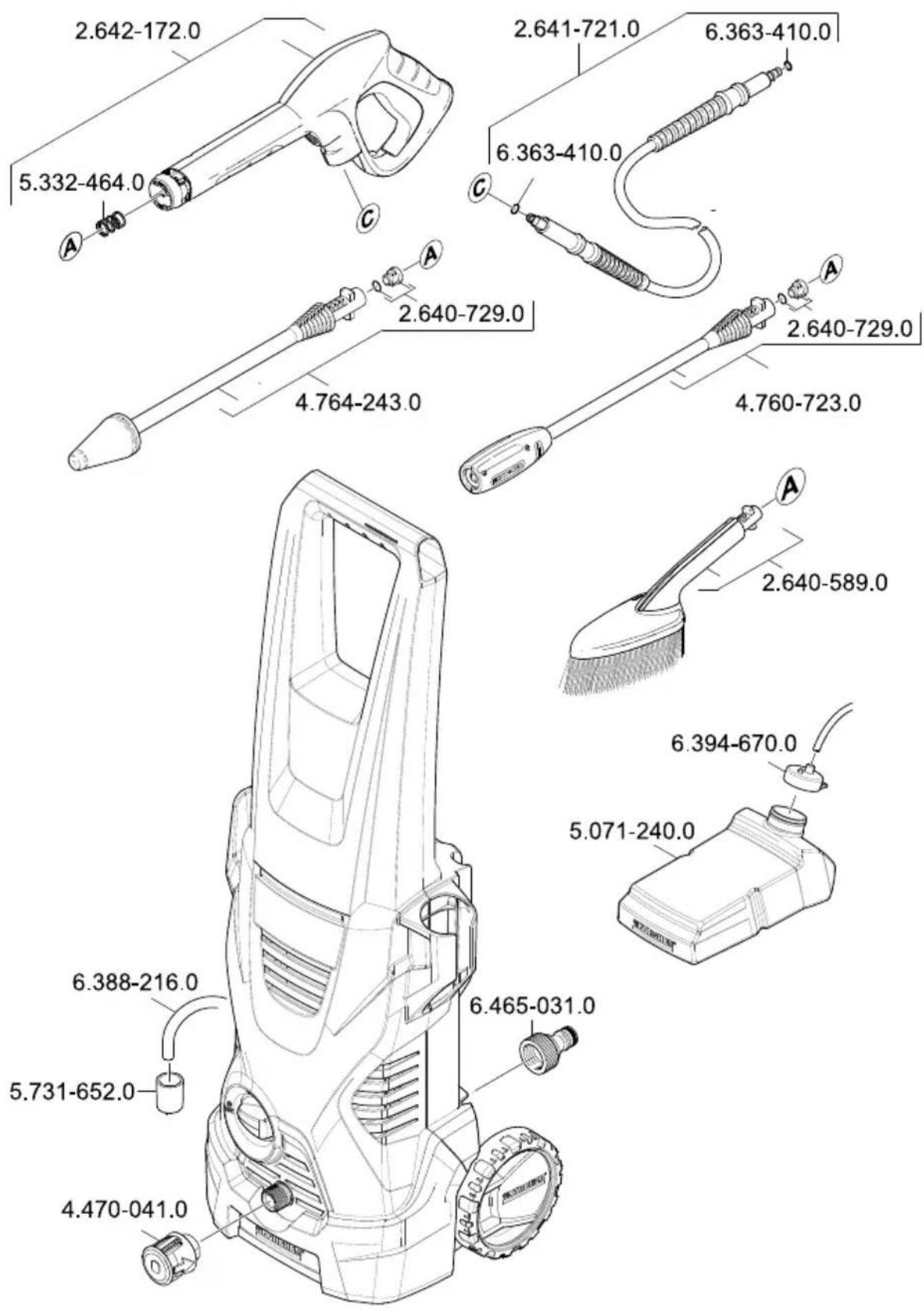

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Troubleshooting

You can rectify minor faults yourself with the help of the following overview.

If in doubt, please consult the authorized customer service.

⚠️DANGER

Turn off the appliance and remove the mains plug prior to any care and maintenance work. Repair works may only be performed by the authorised customer service.

Appliance is not running

→ Pull on the lever of the trigger gun; the device will switch on.
→ Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
→ Check the mains connection cable for damages.

Pressure does not build up in the appliance

→ Check setting at the spray lance.
→ Appliance ventilation: Switch the appliance on with the high-pressure hose detached and operate (max. 2 minutes) until the water exits the high-pressure connection without bubbles. Switch off appliance and reconnect high-pressure hose.

→ Check the water supply.

→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.

Strong pressure fluctuations

→ Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.

→ Check water flow quantity.

Appliance is leaking

→ Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service.

No detergent infeed

→ Detach spray lance from trigger gun and work with trigger gun only or use spray lance with pressure regulation and turn to "Mix".

→ Clean the detergent suction hose filter.

→ Check the detergent suction hose for kinks.

Technical specifications

Electrical connection

Voltage 220-240	V
	1~50-60 Hz
Connected load 1,6 kW
Protection class IP X5
Protective class II
Mains fuse (slow-blow) 10 A

Water connection

Feed pressure 0,2-1,2 MPa

Max. feed temperature 40 °C

Min. feed volume 8 l/min

Performance data

Working pressure 9 MPa

Max. permissible pressure 12 MPa

Water flow rate 5,7 l/min

Detergent flow rate 0,3 l/min

Recoil force of trigger gun 11 N

Dimensions and weights

Length 280 mm

Width 242 mm

Height 783 mm

Weight, ready to operate with acces- 6,5 kg sories

Values determined as per EN 60335-2-79

Hand-arm vibration value	<2,5 m/s2
Uncertainty K	0,3 m/s2
Sound pressure level LpA	73 dB(A)
Uncertainty KpA	3 dB(A)
Sound power level LWA + Uncertainty KWA	89 dB(A)

Subject to technical modifications!

EC Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: High pressure cleaner

Type: 1.674-xxx

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2004/108/EC

2000/14/EC

Applied harmonized standards

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

Applied conformity evaluation method

2000/14/EC: Appendix V

Sound power level dB(A)

Measured: 86

Guaranteed: 89

The undersigned act on behalf and under the power of attorney of the company management.

H. Jenner

CEO

S. Reiser

Head of Approbation

Authorised Documentation Representative

S. Reiser

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

Winnenden, 2014/11/01

Table des matières

www.kaercher.com/REACH

Garantie

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

71364 Winnenden (Germany)

www.kaercher.com/REACH

Garanzia

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/11/01

Inhoud

www.kaercher.com/REACH

Garantie

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/11/01

www.kaercher.com/REACH

Garantía

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

71364 Winnenden (Germany)

Tele.: [phone]

Fax: [phone]

Winnenden, 2014/11/01

Índice

www.kaercher.com/REACH

Garantia

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/11/01

Indholdsfortegnelse

www.kaercher.com/REACH

Garanti

2006/42/EF (+2009/127/EF)

2004/108/EF

2000/14/EF

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2014/11/01

Innholdsfortegnelse

Generelle merknader ..... NO 4

Feilretting.....NO 9

Tekniske data.... NO 10

EU-samsvarserklæring.... NO 10

Generelle merknader

Kjære kunde,

www.kaercher.com/REACH

Garanti

2006/42/EF (+2009/127/EF)

2004/108/EF

2000/14/EF

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

Målt: 86

Garantert: 89

71364 Winnenden (Germany)

Tlf: [phone]

www.kaercher.com/REACH

Garanti

→ Starta aggregatet "I/ON".

Drift

⚠️FARA

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/11/01

Sisällysluettelo

www.kaercher.com/REACH

Takuu

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Puh.: [phone]

www.kaercher.com/REACH

Εγγύηση

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2014/11/01

İçindekiler

www.kaercher.com/REACH

Garanti

71364 Winnenden (Germany)

Tel.: [phone]

www.kaercher.com/REACH

Гарантия

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2014/11/01

Tartalomjegyzék

www.kaercher.com/REACH

Garancia

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/11/01

Obsah

www.kaercher.com/REACH

Záruka

2006/42/ES (+2009/127/ES)

2004/108/ES

2000/14/ES

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/11/01

Vsebinsko kazalo

Splošna navodila .... SL 4

Varnostna navodila. SL 5

Uporaba SL 6

Transport SL 8

Skladiščenje SL 8

www.kaercher.com/REACH

Garancija

2006/42/ES (+2009/127/ES)

2004/108/ES

2000/14/ES

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2012/03/01

Spis treści

www.kaercher.com/REACH

Gwarancja

2006/42/WE (+2009/127/WE)

2004/108/WE

2000/14/WE

71364 Winnenden (Germany)

tel.: [phone]

faks: [phone]

Winnenden, 2014/11/01

Cuprins

Mult stimate client,

www.kaercher.com/REACH

Garantie

Directive EG respectate:

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

Norme armonizate utilize:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2014/11/01

Obsah

www.kaercher.com/REACH

Záruka

2006/42/ES (+2009/127/ES)

2004/108/ES

2000/14/ES

Uplatňované harmonizované normy:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

71364 Winnenden (Germany)

Tel: [phone]

Fax: [phone]

Winnenden, 2014/11/01

Pregled sadržaja

www.kaercher.com/REACH

Jamstvo

2006/42/EZ (+2009/127/EZ)

2004/108/EZ

2000/14/EZ

Primijenjene uskladene norme:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

71364 Winnenden (Germany)

Tel.: [phone]

www.kaercher.com/REACH

Garancija

U svakoj zemlji važe garantni uslovi koje je izdala naša nadležna distributivna organizacija. Eventualne smetnje na uređaju za vreme trajanja garancije uklanjamo besplatno, ukoliko je uzrok greška u materijalu ili proizvodnji. U slučaju koji podleže garanciji obratite se sa potvrdom o kupovini Vašem prodavcu ili najbližoj ovlašćenoj servisnoj službi.

2006/42/EZ (+2009/127/EZ)

2004/108/EZ

2000/14/EZ

Primenjene uskladene norme:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

71364 Winnenden (Germany)

Tel.: [phone]

www.kaercher.com/REACH

Гаранция

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2014/11/01

Sisukord

Üldmärkusi ET 4

www.kaercher.com/REACH

Garantii

Toode: Körgsurvepesur

Tüüp: 1.674-xxx

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2012/03/01

Satura rādītājs

www.kaercher.com/REACH

Garantija

71364 Winnenden (Germany)

Tālr.: [phone]

Fakss: [phone]

Winnenden, 2014/11/01

Turinys

Bendrieji nurodymai ..... LT 4

Saugos reikalavimai .... LT 5

Valdymas .... LT 6

Transportavimas .... LT 8

Laikymas .... LT 8

www.kaercher.com/REACH

Garantija

71364 Winnenden (Germany)

Tel.: [phone]

Faksas: [phone]

Winnenden, 2014/11/01

3Mict

www.kaercher.com/REACH

Гарантія

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2014/11/01

5.964-086.0 04/12

http://www.kaercher.com/dealersearch

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]
