USER MANUAL K 5 Premium Full Control Plus Home KARCHER

Deutsch 5

English 11

Français 17

Italiano 23

Nederlands 29

Español 35

Português 41

Dansk 47

Norsk 53

Svenska 59

Suomi 65

Ελληνικά 71

Türkçe 78

Русский 84

Magyar 91

Čeština 97

Slovenščina 103

Polski 109

Românește 115

Slovenčina 121

Hrvatski 127

Srpski 133

Български 139

Eesti 145

Latviešu 151

Lietuviškai 157

Українська 163

Register and win! www.kaercher.com/register-and-win

EAC

59670880 (12/16)

Inhaltsverzeichnis

Sicherheit D E

www.kaercher.com/dealersearch

Technische Daten

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Contents

Safety ...... EN 5

Proper use.....EN 5

Environmental protection.....EN 5

Description of the Appliance ..... EN 6

Assembly.....EN 6

Start up EN 6

Operation. E N

Transport E N

Storage....EN 8

Care and maintenance ..... EN 9

Troubleshooting.....EN 9

Accessories and Spare Parts ..... EN 10

Warranty EN 10

Technical specifications....EN 10

EU Declaration of Conformity ..... EN 10

Safety

Please read these original operating instructions and the enclosed safety in-

structions prior to the initial use of your device. Proceed accordingly. Keep both booklets for future reference or subsequent owners.

Hazard levels

⚠️DANGER

Pointer to immediate danger, which leads to severe injuries or death.

⚠ WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

△CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Symbols on the machine

The appliance must not be directly connected to the public drinking water network.

The high pressure jet must not be directed at persons, animals, live electrical equipment or at the appliance itself.

Protect the appliance against frost.

Safety Devices

△CAUTION

■ Safety installations serve the protection of the user and may not be modified or bypassed.

Appliance switch

The appliance switch prevents unintentional operation of the appliance.

Lock trigger gun

The lock locks the lever of the trigger gun und prevents the accidental start of the device.

Overflow valve with pressure switch

The overflow valve prevents the permissible working pressure from being exceeded.

If the lever on the trigger gun is released, the pressure switch turns off the pump, the high-pressure jet stops. If the lever is pulled the pump is turned on again.

Motor protection switch

The motor protection switch switches off the device if the power consumption is high.

Proper use

Use this pressure washer for private households only:

– for cleaning machines, vehicles, buildings, tools, facades, terraces, gardening tools, etc. by means of a high-pressure water jet (if necessary, with additional cleaning agents).

– with accessories, replacement parts and cleaning agents approved by KÄRCHER. Please observe the information accompanying the cleaning agents.

Environmental protection

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

The packaging material can be recycled. Please arrange for the environmentally appropriate disposal of the packaging.

Electrical and electronic devices often contain components which could potentially pose a danger to human health and the environment if handled or disposed of incorrectly. However, these components are necessary for the proper operation of the device. Devices marked with this symbol must not be disposed of with regular household rubbish.

Old appliances contain valuable recyclable materials that should be recycled properly. Batteries and accumulators contain substances that must not enter the environment. Please dispose of old devices and batteries or accumulators in an environmentally friendly way.

Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.

Work with detergents must only be performed on liquid-tight work surfaces with a connection to the sewer system. Do not let release detergent into waters or earth.

The extraction of water from public waters is prohibited in some countries.

Description of the Appliance

The scope of delivery of the device (depending on the model) is illustrated on the packaging. These operating instructions describe all possible options.

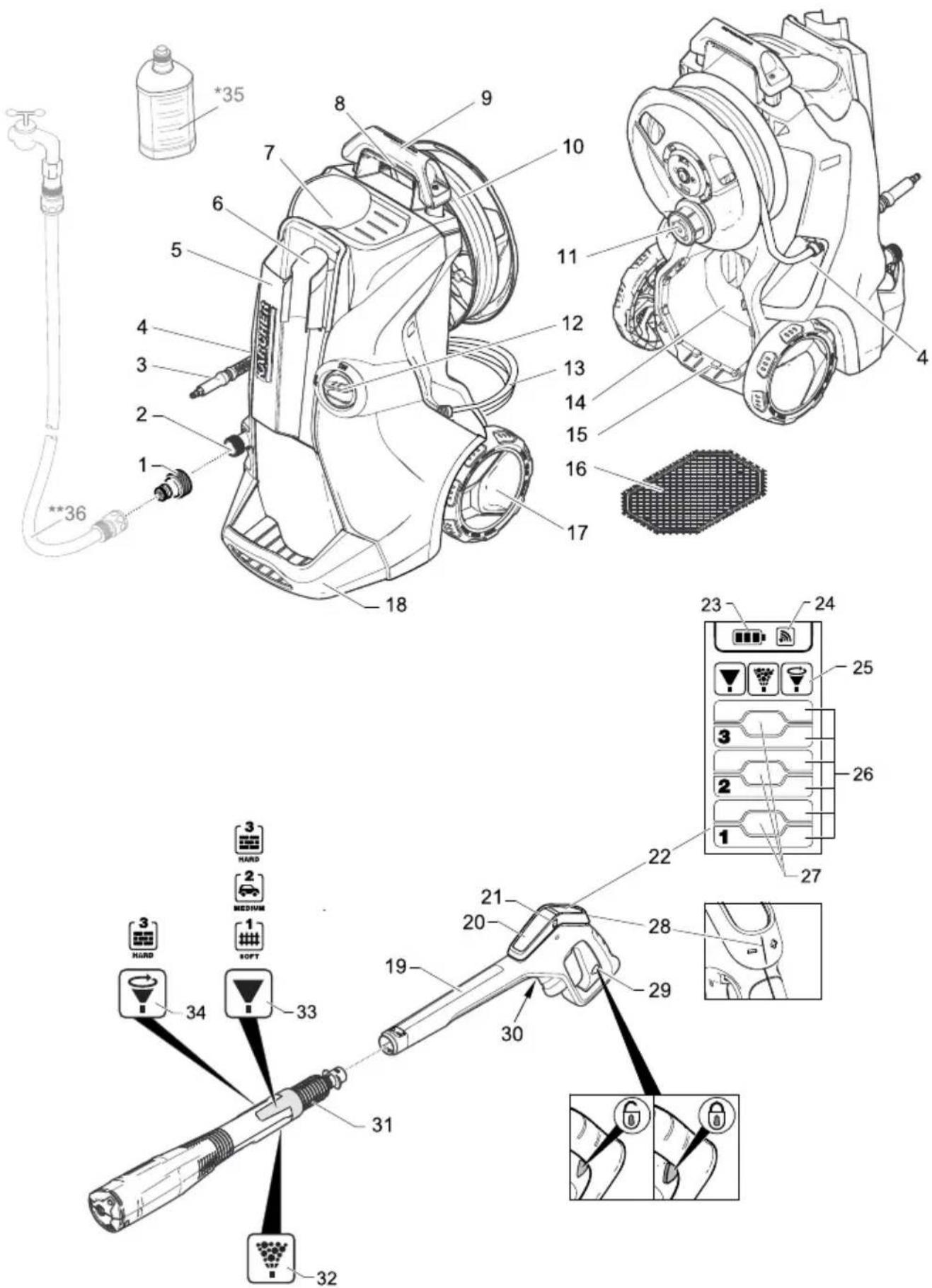

See fold-out page 4 for illustrations

1 Coupling element for water connection

2 Water connection with integrated sieve

3 High pressure hose

4 Hose guide

5 Storage for spray lance

6 Storage / parking position for trigger gun

7 Connection for Plug 'n' Clean detergent

8 Carrying handle

9 Transport handle, detachable

10 High-pressure hose drum

11 Hand crank for hose drum

12 Appliance switch „0/OFF“ / „I/ON“

13 Mains cable with mains plug

14 Accessory compartment

15 Hooks for fastening the net

16 Net for accessory compartment

17 Bearing wheel

18 Base with carrying handle

19 Full Control trigger gun

20 Battery compartment

21 Battery compartment lock

22 LCD display

23 Battery status (empty, almost empty, medium, full)

24 Signal strength status (four levels)

25 Spray type recommendation (flat stream/detergent/dirt grinder)

26 Area of application (1 - SOFT / 2 - MEDIUM / 3 - HARD with two pressure levels each)

27 Detergent level (1 / 2 / 3)

28 Pressure regulation + / -

29 Lock trigger gun

30 Button for detaching the high-pressure hose from the trigger gun

31 3-in-1 multi jet spray lance (with three spray types)

32 Detergent nozzle (three dosing levels) - For dosing detergents

33 Flat jet nozzle (three areas of application with two pressure levels each) - for the most common cleaning tasks.

34 Dirt grinder (one area of application with two pressure levels) - for stubborn contamination.

* Optional

35 Plug 'n' Clean detergent bottle with locking lid

** Additionally required

36 Fabric-reinforced water hose with commercially available coupling.

- Minimum diameter, 1/2 inches (13 mm).

– Minimum length 7.5 m.

Assembly

See fold-out page 3 for illustrations

Mount loose parts delivered with appliance prior to start-up.

You will need the 2 included screws as well as a Philips screwdriver PH 2.

Installing the base

Illustration A

→ Insert base.

→ Insert the included dowels all the way into the holes.

→ Secure the base with the enclosed screws.

Install storage for spray lance

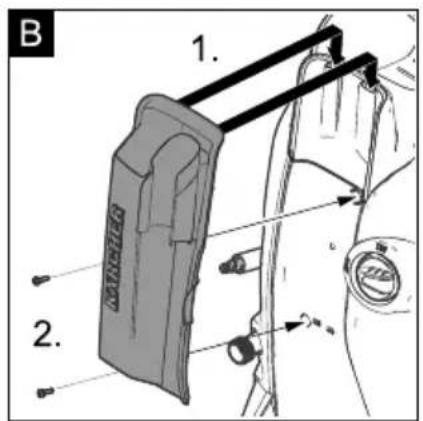

Illustration B

→ Hook in storage for spray lance.

→ Secure the storage for the spray lance by means of two screws.

Install the transport handle

Illustration C

→ Attach the transport handle.

→ Secure the transport handle by means of two screws.

Attach the net to the accessory compartment

Illustration D

→ Hook the net into the hooks shown in the illustration.

Coupling of the high-pressure gun

Before initial startup, the high-pressure gun must be coupled to the high-pressure cleaner.

→ Insert the mains plug into the socket.

→ Immediately thereafter, simultaneously press the + and - buttons on the high-pressure gun.

→ Hold down the buttons until the entire signal strength symbol flashes.

Once coupling is complete, all six pressure levels will be displayed.

Start up

→ Park the appliance on an even surface.

Illustration E

→ Put the high-pressure hose through the hose guide from the back.

Illustration F

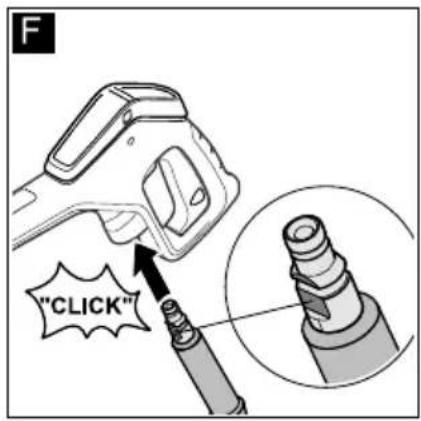

→ Push the high pressure hose into the trigger gun until it locks audibly.

Note: Make sure the connection nipple is aligned correctly.

Check the secure connection by pulling on the high pressure hose.

→ Unwind the high pressure hose from the hose drum.

→ Insert the mains plug into the socket.

Water supply

For connection values, see type plate/technical data.

ATTENTION

Impurities in the water can damage the high-pressure pump and the accessories. For protection, the use of the KÄRCHER water filter (optional accessory, order no. 4.730-059) is recommended.

Water supply from mains

Observe regulations of water supplier.

ATTENTION

Hose couplings made of metal with aquastop can damage the pump! Please use plastic couplings or KÄRCH-ER brass couplings.

Illustration G

→ Screw the coupling element to the water connection on the appliance.
→ Attach the water supply hose to the coupling on the water connection.
→ Connect the water supply hose to the water supply.
→ Completely open the water tap.

Drawing in water from open reservoirs

This high-pressure cleaner is suited to work with the KÄRCHER suction hose with backflow valve (Optional accessory, order no. 2.643-100) to draw in surface water, e.g. from water butts or ponds (see specifications for max. suction height).

Note: With vacuuming operation, the coupling for the water connection is not required.

→ Fill the suction hose with water.
→ Screw the suction hose into the water connection of the appliance and insert it into the water source (e.g. rainwater drum).

Bleed the device as follows prior to operation:

→ Turn on the appliance "I/ON".
→ Unlock the lever of the trigger gun.
→ Push the lever of the trigger gun, the device will switch on.
→ Using the +/- buttons, set the high-pressure gun to detergent level 1.
→ Let the device run (max. 2 minutes) until the water exits the trigger gun without bubbles.
→ Release the lever of the trigger gun.
→ Lock the lever of the trigger gun.

Operation

ATTENTION

Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the instructions in Chapter "Troubleshooting".

Full Control Plus System

The +/- buttons on the high-pressure gun can be used to select the pressure and detergent dosing levels. It is possible to change spray type by turning the 3-in-1 multi jet spray lance.

Note: The pressure indicator is not significant during operation with the T-Racer and other accessories.

Pressure level For	example, recommended for
Flat jet nozzle

Pressure level For		example, recommended for
		Stone terraces, asphalt, metal surfaces, garden utensils (wheelbarrow, spade, etc.)
		Motorcar / motorcycle, brick surfaces, plastered walls, plastic furniture
		Wooden surfaces, bicycles, sand stone surfaces, rattan furniture
	Dirt grinder
		For especially stubborn dirt on stone terraces, asphalt, metal surfaces, garden utensils (wheelbarrow, spade, etc.)
	Detergent nozzle
		Operation with detergent. Dosing the detergent concentration as needed.

ATTENTION

The sensitivity of the materials can strongly differ depending on the age and the condition. The so-called recommendations are non-binding.

High pressure operation

△CAUTION

Keep a distance of at least 30 cm when using the jet for cleaning painted surfaces to avoid damage.

ATTENTION

Car tyres, paint or sensitive surfaces such as wood should not be cleaned with the dirt blaster, as there is a risk of damage.

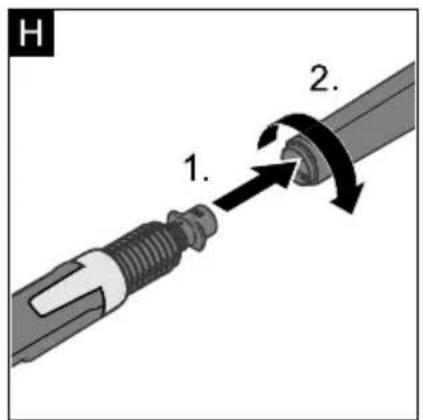

Illustration H

→ Push the 3-in-1 multi jet spray lance into the high-pressure gun and fasten it by a 90° rotation (observe alignment!).
→ Select spray type, by turning the 3-in-1 multi jet spray lance until the required spray display is visible above.
→ Turn on the appliance "I/ON".
→ Unlock the lever of the trigger gun.
→ Push the lever of the trigger gun, the device will switch on.

Note: Release the lever of the trigger gun; the device will switch off again. High pressure remains in the system.

Operation with detergent

* Optional accessories

Most KÄRCHER detergents can be bought ready to use in a Plug 'n' Clean detergent bottle.

△DANGER

When using detergents, the material data safety sheet issued by the detergent manufacturer must be adhered to, especially the instructions regarding personal protective equipment.

Note: Detergent can only be added when the device is operated in low pressure mode.

Illustration I

→ Remove the cap of the Plug 'n' Clean detergent bottle.
→ Push the detergent bottle with the opening pointing downwards into the connection for the Plug 'n' Clean detergent.
→ Turn the 3-in-1 multi jet spray lance to detergent nozzle "MIX".
Note: This will mix the detergent with the water stream.
→ Using the +/- buttons of the high-pressure gun, set the desired detergent concentration.

Recommended cleaning method

→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
→ Spray off loosened dirt with the high pressure jet.

After operation with detergent

→ Remove the Plug 'n' Clean detergent bottle from the intake and close it with the lid.
→ For storage, put the detergent bottle into the retainer with the cap pointing up.
→ To rinse, operate the device for about 30 seconds in detergent level 1.

Interrupting operation

→ Release the lever of the trigger gun.
→ Lock the lever of the trigger gun.

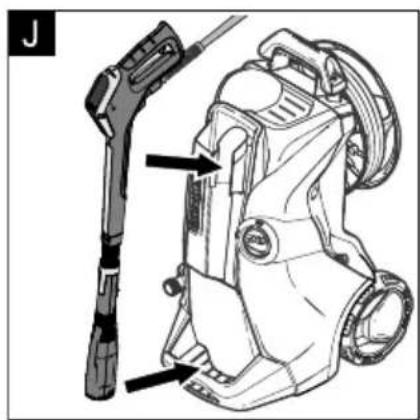

Illustration J
→ Put the trigger gun with the spray lance into the parking position.
→ During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.

Finish operation

△CAUTION

Only separate the high-pressure hose from the trigger gun or the device when there is no pressure in the system.

ATTENTION

When disconnecting the supply or high pressure hose, warm water may leak from the connections after operation.

→ Release the lever of the trigger gun.
→ Turn off tap.
→ Press the lever of the high-pressure gun for 30 seconds to release any remaining pressure in the system.
→ Release the lever of the trigger gun.
→ Lock the lever of the trigger gun.
→ Detach the appliance from the water supply.
→ Turn off the appliance "0/OFF".
→ Disconnect the mains plug from the socket.

Transport

△CAUTION

Risk of personal injury or damage!

Mind the weight of the appliance during transport.

When transporting by hand

→ Lift appliance by the carrying handle and carry it.
→ Pull out the transport handle until it audibly snaps into place.
Pull the appliance by its transport handle.

When transporting in vehicles

→ Prior to horizontal transport: Remove the Plug 'n' Clean detergent bottle from the intake and close it with the lid.
→ Secure the appliance against shifting and tipping over.

Storage

△CAUTION

Risk of personal injury or damage!

Consider the weight of the appliance when storing it.

Storing the Appliance

→ Park the machine on an even surface.
→ Detach spray lance from the trigger gun.
→ Push the disconnect button on the trigger gun and pull the high-pressure hose out of the trigger gun.
→ Place the trigger gun into the storage for the trigger gun.
→ Put the 3-in-1 multi jet spray lance into the storage for the spray lance.
→ Store the mains connection in the accessory compartment.

△CAUTION

Risk of personal injury or damage!

Observe the rotation direction of the hose reel upon coiling up the high-pressure hose.

→ Coil up the high-pressure hose.

Turn the hose reel in a counter-clockwise direction using the crank handle.

Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.

Frost protection

ATTENTION

Appliances and accessories that are not completely drained can be destroyed by frost. Completely drain appliance and accessories and protect them against frost. To avoid damage:

→ Detach the appliance from the water supply.
→ Detach spray lance from the trigger gun.
→ Turn on the appliance "I/ON".
→ Push the lever of the trigger gun until no more water is escaping (approx. 1 min).
→ Release the lever of the trigger gun.
→ Lock the lever of the trigger gun.
→ Turn off the appliance "0/OFF".
→ Store the appliance and the entire accessories in a frost free room.

Care and maintenance

△DANGER

Risk of electric shock.

→ Prior to all work on the appliance, switch off the appliance and pull the power plug.

Clean the sieve in the water connection

Clean the sieve in the water connection regularly.

→ Remove coupling from the water connection.

ATTENTION

The sieve must not be damaged.

Illustration K

→ Pull the sieve out using flat pliers.
→ Clean the sieve under running water.
→ Reinsert the sieve into the water connection.

Changing the batteries of the trigger gun

The batteries are depleted if nothing or the following is shown on the display of the high-pressure gun.

Two batteries or accumulators of the size AAA are required.

Illustration L

→ Push the locking slide.
→ Open battery compartment.
→ Remove the batteries.
→ Insert new batteries and observe the correct orientation of the terminals.
→ Close battery compartment.
→ Dispose of the used batteries according to the local provisions.

Troubleshooting

DANGER

Risk of electric shock. Turn off the appliance and remove the mains plug prior to performing any care and maintenance work.

Repair work and work on the electrical components may only be performed by an authorised customer service. You can rectify minor faults yourself with the help of the following overview.

If in doubt, please consult the authorized customer service.

Appliance is not running

→ Push the lever of the trigger gun, the device will switch on.
→ Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
→ Check the mains connection cable for damages.
→ Motor overloaded, the motor circuit breaker has tripped.

– Turn off the appliance "0/OFF".
- Allow the device to cool down for one hour.
- Switch on the device and put it into operation again. If the malfunction occurs repeatedly, have the device checked by the customer service.

Appliance does not start, motor hums

Voltage reduction due to weak mains supply or when using an extension cable.
→ Upon switch-on, push the lever of the trigger gun first and then switch the power switch to "I/ON".

Pressure does not build up in the appliance

→ Check setting at the spray lance.
→ Check water supply for adequate delivery rate.
→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.
→ Remove air from appliance before operation. Switch on the appliance without connection the HP hose (max. 2 minutes) and run it until the water discharging from the HP outlet is free of bubbles. Switch off appliance and reconnect HP hose.

Strong pressure fluctuations

→ Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.
→ Check water flow quantity.

Appliance is leaking

→ Dropwise leakage of the device is normal for technical reasons. If the leakage increases contact the authorized customer service.

No detergent infeed

→ Turn the 3-in-1 multi jet spray lance to detergent nozzle "MIX".
→ Check whether the Plug 'n' Clean detergent bottle is placed into the detergent connection facing down.

No pressure indicator on the trigger gun

→ Check / replace the batteries
→ Decrease the distance between high-pressure gun and high-pressure cleaner.
→ Couple it to the high-pressure cleaner again.

Error messages

→ Switch off the device and pull the mains plug out of the socket.
→ After 20 seconds, insert the power cord back into the socket and switch the device on.

If the malfunction occurs repeatedly, have the device checked by the customer service.

Emergency operation

If the pressure regulation on the high-pressure gun is defective (electronic defect, battery empty, etc.), the high-pressure cleaner continues operating at the level that was last set.

To activate emergency operation at the maximum level:

→ Switch off the device and pull the mains plug out of the socket.
→ Insert the power cord back into the socket and switch the device on.

Accessories and Spare Parts

Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. Addresses can be found under: www.kaercher.com/dealersearch

Technical specifications

Electrical connection
Voltage 230	V1~50 Hz
Connected load 2,1 kW
Type of protection IP X5
Protective class I
Mains fuse (slow-blow) 10 A
Water connection
Max. feed pressure 1,2 MPa
Max. feed temperature 40 °C
Min. feed volume 10 l/min
Max. Suction height 0,5 m

Performance data

Working pressure 12,5 MPa
Max. permissible pressure 14,5 MPa
Water flow rate 7,5 l/min
Max. flow rate 8,3 l/min
Detergent flow rate	0,3 l/min
Recoil force of the trigger gun	17 N

Dimensions and weights

Length	411 mm
Width	305 mm
Height	584 mm
Weight, ready to operate with accessories	15,3 kg

Values determined as per EN 60335-2-79

Hand-arm vibration value	1,0 m/s2
Uncertainty K	0,6 m/s2
Sound pressure level LpA	76 dB(A)
Uncertainty KpA	3 dB(A)
Sound power level LWA + Uncertainty KWA	92 dB(A)

Subject to technical changes.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: High pressure cleaner

Type: K 5 Premium Full Control Plus

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2014/53/EU

2011/65/EU

2000/14/EC

Applied harmonized standards

EN 50581

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 300 220-2 V2.4.1

EN 301 489-1 V1.9.2

EN 301 489-3 V1.6.1

EN 60950-1

EN 61000-3-2: 2014

EN 61000-3-3: 2013

Applied conformity evaluation method

2000/14/EC: Appendix V

Sound power level dB(A)

Measured: 89

Guaranteed: 92

The undersigned act on behalf and under the power of attorney of the company management.

CEO

S. Reiser
Head of Approbation

Authorised Documentation Representative S. Reiser

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Table des matières

Sécurité FR 5

www.kaercher.com/REACH

12 Interrupteur principal "0/OFF" / "I/ON"

www.kaercher.com/dealersearch

2006/42/CE (+2009/127/CE)

2014/53/UE

2011/65/UE

2000/14/CE

71364 Winnenden (Germany)

Winnenden, 2016/08/01

Indice

Sicurezza.... I T 5

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Dati tecnici

2006/42/CE (+2009/127/CE)

2014/53/UE

2011/65/UE

2000/14/CE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Inhoud

Veiligheid ....NL 5

www.kaercher.com/dealersearch

Technische gegevens

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Datos técnicos

2006/42/CE (+2009/127/CE)

2014/53/UE

2011/65/UE

2000/14/CE

71364 Winnenden (Germany)

Tele.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Índice

Segurança PT 5

www.kaercher.com/REACH

12 Interruptor do aparelho "0/OFF" / "I/ON"

www.kaercher.com/dealersearch

Dados técnicos

2006/42/CE (+2009/127/CE)

2014/53/UE

2011/65/UE

2000/14/CE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Indholdsfortegnelse

Full Control Plus system

Adresser finder De under: www.kaercher.com/dealersearch

Tekniske data

2006/42/EF (+2009/127/EF)

2014/53/EU

2011/65/EU

2000/14/EF

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Innholdsfortegnelse

Sikkerhet N O

www.kaercher.com/REACH

Materialet i emballasjen kan resirkuleres. Kvitt deg med emballasjen på miljøvennlig måte.

12 Apparatbryter "0/OFF" / "I/ON"

13 Strømledning med støpsel

14 Tilbehørsrom

www.kaercher.com/dealersearch

Tekniske data

2006/42/EF (+2009/127/EF)

2014/53/EU

2011/65/EU

2000/14/EF

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

Målt: 89

Garantert: 92

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tlf: [phone]

Winnenden, 2016/08/01

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Tekniska data

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Sisällysluettelo

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2016/08/01

www.kaercher.com/REACH

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2016/08/01

İçindekiler

Güvenlik T R

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Teknik Bilgiler

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/08/01

Оглавление

www.kaercher.com/REACH

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2016/08/01

Tartalomjegyzék

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Műszaki adatok

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Obsah

Bezpečnost CS 5

www.kaercher.com/REACH

Adresy najdete zde: www.kaercher.com/dealersearch

Technické údaje

2006/42/ES (+2009/127/ES)

2014/53/EU

2011/65/EU

2000/14/ES

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Vsebinsko kazalo

Varnost SL 5

Namenska uporaba. SL 5

Varstvo okolja SL 5

Opis naprave. SL 6

Montaža. S L 6

Zagon SL 6

Obratovanje. SL 7

Transport S L 8

Skladiščenje SL 8

Vzdrževanje. SL 9

Pomoč pri motnjah ..... SL 9

Pribor in nadomestni deli. SL 10

Garancija S L 1 (

www.kaercher.com/REACH

Embalažni materiali so primerni za recikliranje. Embalažo zavrzite okolju prijazno.

www.kaercher.com/dealersearch

Tehnični podatki

2006/42/ES (+2009/127/ES)

2014/53/EU

2011/65/EU

2000/14/ES

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/08/01

Spis treści

Bezpieczeństwo PL 5

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Dane techniczne

2006/42/WE (+2009/127/WE)

2014/53/UE

2011/65/UE

2000/14/WE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

tel.: [phone]

faks: [phone]

Winnenden, 2016/08/01

Cuprins

Siguranța R O

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Date tehnice

Directive UE respectate:

2006/42/CE (+2009/127/CE)

2014/53/UE

2011/65/UE

2000/14/CE

Norme armonizate utilize:

EN 50581

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 300 220-2 V2.4.1

EN 301 489-1 V1.9.2

EN 301 489-3 V1.6.1

EN 60950-1

EN 61000-3-2: 2014

EN 61000-3-3: 2013

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

1024

Obsah

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Technické údaje

2006/42/ES (+2009/127/ES)

2014/53/EU

2011/65/EÚ

2000/14/ES

Uplatňované harmonizované normy:

EN 50581

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 300 220-2 V2.4.1

EN 301 489-1 V1.9.2

EN 301 489-3 V1.6.1

EN 60950-1

EN 61000-3-2: 2014

EN 61000-3-3: 2013

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Pregled sadržaja

Sigurnost H R

www.kaercher.com/REACH

Materijali ambalaže se mogu reciklirati. Ambalažu odložite na otpad u skladu s propisima o očuvanju okoliša.

Električni i elektronički dijelovi često sadrže sastavne dijelove koji pri pogrešnom rukovanju ili pogrešnom zbrinjavanju mogu predstavljati potencijalnu opasnost za ljudsko zdravlje i okoliš. Ipak, ti sastavni dijelovi nužni su za propisani pogon uređaja. Uređaji označeni ovim simbolom ne smiju se odlagati u komunalni otpad.

Stari uređaji sadrže vrijedne materijale koji se mogu reciklirati te bi ih stoga trebalo predati kao sekundarne sirovine. Primarne i punjive baterije sadrže tvari koje ne smiju dospjeti u okoliš. Stare uređaje kao i primarne odnosno punjive baterije odložite u otpad ekološki primjereno.

www.kaercher.com/dealersearch

Tehnički podaci

2006/42/EZ (+2009/127/EZ)

2014/53/EU

2011/65/EU

2000/14/EZ

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/08/01

Pregled sadržaja

Sigurnost	S	R
Namensko korišćenje	SR	5
Zaštita životne sredine	SR	5
Opis uređaja	SR	6
Montaža	S	R
Stavljanje u pogon	SR	6
Rad	SR	7
Transport	S	R
Skladištenje	SR	8
Nega i održavanje	SR	9
Otklanjanje smetnji	SR	9
Pribor i rezervni delovi	SR	10
Garancija	S	R
Tehnički podaci	SR	10
Izjava o usklađenosti sa propisima EU	SR	10

Sigurnost

Pre prve upotrebe Vašeg uređaja pročitajte ovo originalno uputstvo za rad i priložene sigurnosne napomene i postupajte prema njima. Sačuvajte obe sveske za kasniju upotrebu ili za sledećeg vlasnika.

Stepeni opasnosti

⚠ OPASNOST

Napomena koja ukazuje na neposredno preteću opasnost koja dovodi do teških telesnih povreda ili smrti.

⚠UPOZORENJE

Napomena koja ukazuje na eventualno opasnu situaciju koja može dovesti do teških telesnih povreda ili smrti. △OPREZ

Napomena koja ukazuje na eventualno opasnu situaciju, koja može izazvati lakše telesne povrede.

PAŽNJA

Napomena koja ukazuje na eventualno opasnu situaciju koja može izazvati materijalne štete.

Simboli na uređaju

Uređaj se ne sme priključiti neposredno na javnu vodovodnu mrežu.

www.kaercher.com/REACH

Ambalaža se može ponovo preraditi. Ambalažu odložite u otpad ekološki primereno.

Električni i elektronski uređaji sadrže često sastavne delove koji, u slučaju nepravilnog rukovanja ili nepravilnog odlaganja u otpad, mogu da predstavljaju potencijalnu opasnost za zdravlje ljudi i okolinu. Ipak, ovi sastavni delovi su neophodni za pravilan rad uređaja. Uređaji koji su označeni ovim simbolom ne smeju da se odlažu u kućni otpad.

Stari uređaji sadrže vredne materijale sa sposobnošću recikliranja i treba ih dostaviti na ponovnu preradu. Primarne i punjive baterije sadrže materije koje ne smeju dospeti u životnu sredinu. Stare uređaje kao i baterije ili akumulatore odložite u otpad ekološki primereno.

Radovi na čišćenju kod kojih nastaju uljne otpadne vode, kao što su pranje motora, pranje donjeg dela vozila, smeju da se izvode samo u perionicama sa separatorom ulja.

S deterdžentima se sme raditi samo na vodonepropusnim radnim površinama koje su priključene na kanalizacioni sistem. Ne dozvolite da deterdženti prodru u površinske vode ili tlo.

www.kaercher.com/dealersearch

Tehnički podaci

Električni priključak
Napon 230	V1~50 Hz
Priključna snaga 2,1 kW
Stepen zaštite IP X5
Klasa zaštite I
Mrežni osigurač (inertan) 10 A
Priključak za vodu
Dovodni pritisak (maks.) 1,2 MPa
Dovodna temperatura (maks.) 40 °C
Dovodni protok (min.) 10 l/min
Maks. usisna visina 0,5 m
Podaci o snazi
Radni pritisak 12,5 MPa
Maks. dozvoljeni pritisak 14,5 MPa
Protok vode 7,5 l/min
Maksimalni protok 8,3 l/min
Protok sredstva za čišćenje	0,3 l/min
Povratna udarna sila visokopritisne prskalice	17 N
Dimenzije i težine
Dužina	411 mm
Širina	305 mm
Visina	584 mm
Težina u stanju spremnom za rad, sa priborom	15,3 kg
Izračunate vrednosti prema EN 60335-2-79
Vrednost vibracije na ruci	1,0 m/s2
Nepouzdanost K	0,6 m/s2
Nivo zvučnog pritiska LpA	76 dB(A)
Nepouzdanost KpA	3 dB(A)
Nivo zvučne snage LWA + nepouzdanost KWA	92 dB(A)

Pridržano pravo na tehničke promene.

Izjava o usklađenosti sa propisima EU

Ovim izjavljujemo da ovde opisana mašina po svojoj koncepciji i načinu izrade, sa svim njenim modelima koje smo izneli na tržište, odgovara osnovnim zahtevima dole navedenih propisa Evropske Zajednice o sigurnosti i zdravstvenoj zaštiti. Ova izjava prestaje da važi ako se bez naše saglasnosti na mašini izvedu bilo kakve promene.

Proizvod: Uređaj za čišćenje pod visokim pritiskom

Tip: K 5 Premium Full Control Plus

2006/42/EZ (+2009/127/EZ)

2014/53/EU

2011/65/EU

2000/14/EZ

Primenjene uskladene norme:

EN 50581

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 300 220-2 V2.4.1

EN 301 489-1 V1.9.2

EN 301 489-3 V1.6.1

EN 60950-1

EN 61000-3-2: 2014

EN 61000-3-3: 2013

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/08/01

И011 16

Съдържание

Сигурност......BG 5

Употреба по предназначение ..... BG 5

www.kaercher.com/dealersearch

Технически данни

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2016/08/01

Sisukord

Ohutus.... ET 5

Seisujala monteerimine

Joonis A

www.kaercher.com/dealersearch

Tehnilised andmed

Toode: Körgsurvepesur

Tüüp: K 5 Premium Full Control Plus

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2016/08/01

Satura rādītājs

Drošība LV 5

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Tehniskie dati

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tālr.: [phone]

Fakss: [phone]

Winnenden, 2016/08/01

Turinys

Sauga .... LT 5

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Techniniai duomenys

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Faksas: [phone]

Winnenden, 2016/08/01

Зміст

Безпека. U K

www.kaercher.com/REACH

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2016/08/01
