CM1300 - Crepe maker CASO - Free user manual and instructions

Product type	Crêpe maker
Brand	CASO
Model	CM1300
Dimensions (L x W x H)	30 x 30 x 10 cm
Weight	2.5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W
Plate diameter	30 cm
Coating	Non-stick
Adjustable thermostat	Yes, from 50°C to 200°C
Heating indicator light	Yes
Automatic shut-off function	No
Non-slip handle	Yes
Cleaning	Removable plate, hand washable or dishwasher safe
Body material	Heat-resistant plastic
Safety	Overheating protection
Spare parts available	Yes, plate and power cord
Repairability	Repairability index not disclosed
Package contents	Crêpe maker, user manual
Warranty	2 years

Frequently Asked Questions - CM1300 CASO

How to clean the plate of the CASO CM1300 crêpe maker?

The removable plate can be washed by hand with a soft sponge and dish soap, or in the dishwasher. Make sure it is completely cool before removing it. Avoid abrasive sponges to prevent damaging the non-stick coating.

Can the crêpe maker be used with batter without fat?

Yes, thanks to the non-stick coating, you can cook crêpes without fat. However, a light film of oil may improve taste and texture.

What is the diameter of the plate?

The diameter of the cooking plate is 30 cm, ideal for standard-size crêpes.

Is the plate removable?

Yes, the plate is removable for easy cleaning. Always remove it after complete cooling.

How to adjust the temperature?

Use the adjustable thermostat located on the side of the appliance. Turn the knob to select the desired temperature, from 50°C to 200°C. A light indicates when the plate is ready.

What to do if the crêpe maker no longer heats?

First check that the appliance is properly plugged in and that the thermostat is set to a heating position. If the problem persists, contact CASO customer service. Do not attempt to repair it yourself.

Can metal utensils be used on the non-stick plate?

No, to preserve the non-stick coating, use only wooden, silicone, or plastic utensils. Metal utensils scratch the surface.

Does the crêpe maker have an automatic shut-off?

No, the CASO CM1300 model does not have automatic shut-off. Never leave the appliance unattended while on.

Where to find spare parts?

Spare parts (plate, power cord) are available from CASO after-sales service or on the official website. Refer to the manual for references.

How to store the crêpe maker?

Let the appliance cool completely. Clean the plate, wrap the cord around the base, and store it in a dry place. Avoid placing heavy objects on it.

USER MANUAL CM1300 CASO

Cassover design with wooden chopsticks on a black tray (no text or symbols visible)

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Service-Hotline International:

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

11.1 General....24
11.2 Information on this manual 24
11.3 Warning notices 24
11.4 Limitation of liability 25
11.5 Copyright protection....25
12 Safety 25
12.1 Intended use....25
12.2 General Safety information 26
12.3 Sources of danger....27
12.3.1 Danger of burns 27
12.3.2 Danger of fire 28
12.3.3 Dangers due to electrical power....28
13 Commissioning....29
13.1 Safety information....29
13.2 Delivery scope and transport inspection....29
13.3 Unpacking....29
13.4 Disposal of the packaging....29
13.4.1 Setup location requirements: 29
13.5 Electrical connection....30
14 Design and Function....30
14.1 Overview 31
14.2 Rating plate....31
15 Operation and Handing ....31
15.1 Before first use....31
15.2 Use....32
16 Basic Recipe....32
17 Cleaning and Maintenance....32
17.1 Safety information....33
17.2 Cleaning....33
18 Troubleshooting....33
18.1 Safety notices....33
18.2 Causes and rectification of faults 33
19 Disposal of the Old Device....34
20 Guarantee ....34
21 Technical Data....34
22 Mode d'emploi....36
22.1 Généralités....36
22.2 Informations relatives à ce manuel....36

22.3 Avertissements de danger ....36

40.3 Advertencias....64

Original Operating Manual

Crepes Maker CM 1300

Cassos design cooktop with wooden stick and control knob (no visible text or symbols on the device itself)

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your Crepes Maker CM 1300 will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the Crepes Maker CM 1300 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

- Commissioning

- Operation

- Troubleshooting and/or - Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

▲WARNUNG WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: • Non-observance of the manual • Uses for non-intended purposes

• Improper repairs
• Technical alterations, modifications of the device
• Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

- Baking of crepes and mini pan-cakes

This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
  • in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG WARNING

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Read all these instructions before using the appliance.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ The appliance is not intended to be operated by means of an external timer or separate remote-control system.
▶ Unplug from the outlet when not in use and before cleaning.
▶ Use only the accessory recommended by the manufacturer or the device could be damaged.

HINWEIS

Please note

▶ Do not immerse in water, dishwasher or any other liquids.
▶ Do not touch the device with wet hands.
▶ Do not leave the device unsupervised during operation.
▶ Unplug after use.
▶ Do not cut the food on the device.
▶ Use exclusively heat resistant plastic or wooden flatware so that the device will not be damaged. Do not use metal utensils, they could scratch or damage the non-stick coating of the device.
▶ Do not move the device during operation.

12.3 Sources of danger

12.3.1 Danger of burns

⚠️WARNUNG

Warning

The food prepared with the device, the device and the surfaces of the device can become very hot.

Please observe the following safety notices in order not to burn or scald yourself or others

▶ The outer surfaces of the device and the device can become very hot.
▶ The temperature of the accessible surface can become very hot when the device is operating.
▶ Do not touch hot surfaces of the device, use pot holders. The device is very hot after the end of baking process.
▶ Be careful when handling hot food.
▶ Let the device cool down before cleaning.

12.3.2 Danger of fire

⚠️WARNUNG Warning

There is a risk of fire if the appliance is used incorrectly.

Adhere to the following safety instructions in order to avoid a risk of fire:

▶ During operation remove all inflammable items from the vicinity of the appliance.
▶ During operation keep distance to walls and flammable materials for example curtains.
▶ Never cover the device during operation to prevent overheating.
▶ Avoid overheating oils and fats for extended periods. Overheated oil and fat can ignite rapidly.

12.3.3 Dangers due to electrical power

AGEFAHR Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not unplug by pulling the cord pull the plug.
▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

▲WARNUNG WARNING

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the Crepes Maker CM 1300 delivered with the following components:

- CM 1300 • crepes dough spreader • flat turner • operating instructions

HINWEIS Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

Remove the device out of the carton, remove the packaging material, shovel and measuring container.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.4.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm, flat, level and heat-resistant surface with sufficient load-bearing capacity for the device and its contents.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.
• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• Do not place the device near a gas or electric cooker or an oven.

• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 20 cm all around the device.
• Do not cover up any openings on the device and do not block these off.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The device and power cord should not come in contact with the hot surface. The device could be damaged.
• The installation and assembly of this device in non-stationary setup locations must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.5 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch, separately from other electricity consumers.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.
  The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

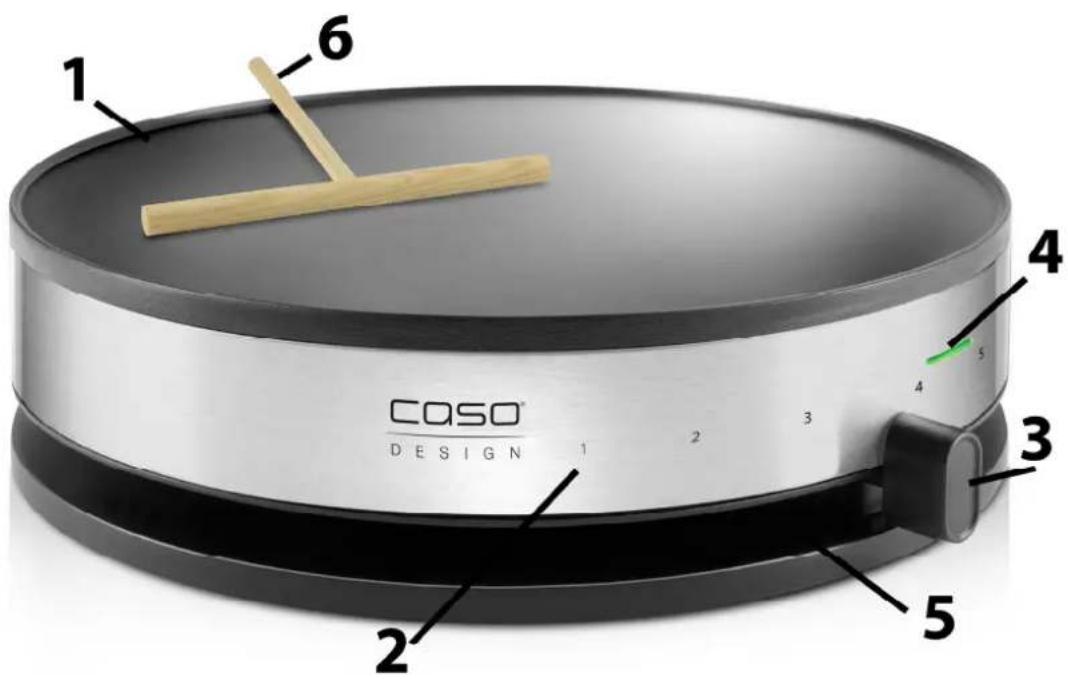

14.1 Overview

1 baking surface
2 temperature levels
3 temperature controller
4 control lamp
5 base
6 crepes dough spreader
7 flat turner

14.2 Rating plate

The rating plate with the connection and performance data can be found on the bottom side of the device.

15 Operation and Handing

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

⚠️WARNUNG

Warning

▶ Do not let the device unsupervised during operation to be able to react quickly in case of dangers.

15.1 Before first use

Clean the baking surface with a damp cloth. At first use there could be a little production of smoke. Therefore use the device without food on highest level for 10 minutes and let it cool down after this. Wipe the device with damp cloth after cooling down.

15.2 Use

Plug in and turn the temperature controller to desired level (for first use we recommend level 6. Depending on the desired degree of browning, you can switch to higher or lower level).

The control lamp will turn red and the device is heating up.

When temperature is reached the control lamp will turn green.

Place a small amount of dough on the baking surface and spread with the crepes dough spreader in an evenly rotating motion.

Bake the crepe until the surface is not liquid any more and until the crepe can be moved back and forth easily.

Turn the crepe with the flat turner and let it bake. The crepe should be baked thoroughly but not too brown. Lift the crepe with the flat turner and remove it from the baking surface.

Now you can spread the crepe for example with jam and roll it. Pull the plug when you have finished the desired amount of crepes.

HINWEIS

Please note

▶ During operation the control lamp will switch between green and red. This indicates that the device maintains the temperature.
▶ Do not use the device for cooking or defrosting of frozen food.
▶ Use only thawed food.
▶ Moisture the crepes dough spreader a little bit so that the dough will not stick so easy.
▶ Reduce the temperature if the crepes are too brown.
For mini pan-cakes place a little amount of dough on the baking surface and bake it until the pan cake can easily be released. Then you can turn the mini pan cakes and bake them until they have the desired browning.

16 Basic Recipe

Ingredients (for 20 portions):

250 g flour, 3 eggs, 500 ml milk, 1 pinch of salt.

Mix all ingredients in a bowl to form the dough. Let the dough steep for 1 hour.

As lower the viscosity of the dough is as thinner the crepes will be.

17 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

17.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
▶ Unplug the plug from the wall power outlet prior to cleaning.
The device is hot after it is used. There is a danger of burns! Wait until the device has cooled down.
▶ If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.

17.2 Cleaning

Wipe the housing with a soft cloth. Remove dough and oil-residues with a paper towel and carefully wipe the baking surface with a damp cloth. Allow the device to dry before storing it.

18 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

18.1 Safety notices

▲VORSICHT Attention

▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.

18.2 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults.

Problem Solution
The device is not functioning	• Please check whether the power plug is properly plugged.

HINWEIS Please note

▶ If you are unable to solve the problem with the steps shown above, please contact Customer Service.

19 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials.

However, they also contain damaging substances, which were necessary for

their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.

Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  ▶ Ensure that your old device is stored safely away from children until it is taken away.

20 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

21 Technical Data

Device Crepes Maker
Name CM 1300
Item No.: 2930
Mains data 220-240V~50 Hz
Power consumption 1300 W
Net weight 1925 g
Diameter 33 cm, with controller 35,5 cm
Height 9,5 cm

COSO Design 1 electric cooktop with wooden stick and control knob (no text or symbols on body)

CE

N°. d'art. 2930

22 Mode d'emploi

22.1 Généralités

CoSOSO design cooktop with wooden chopsticks on top (no visible text or symbols)

31 Istruzioni d'uso

31.1 In generale

Exterior view of a CoS0 design cooktop with wooden chopsticks on top (no text or symbols on the device itself)

Coasol® design grater with wooden chopsticks on top, no visible text or symbols on the device itself

▲WARNUNG WAARSCHUWING

▲WARNUNG WAARSCHUWING

Exterior view of a CoS0 design cooktop with wooden chopsticks on top (no text or symbols on the device itself)

Артикул № 2930
