Watch & Care V300 - Baby monitor AUDIOLINE - Free user manual and instructions

Product Type	Baby Monitor
Brand	Audioline
Model	Watch & Care V300
Category	Video Baby Monitor
Parent Unit Dimensions	7.5 x 4.5 x 2.0 cm
Baby Unit Dimensions	6.0 x 5.0 x 3.5 cm
Weight (Parent Unit)	120 g
Weight (Baby Unit)	150 g
Power Supply	AC adapter (included) or 4x AAA batteries (not included)
Display Type	2.4-inch color LCD
Operating Range	Up to 300 m (outdoor), 50 m (indoor)
Night Vision	Yes, infrared LEDs with automatic activation
Two-Way Audio	Yes, built-in microphone and speaker
Temperature Sensor	Yes, displays room temperature on parent unit
Lullabies	Yes, 4 built-in melodies
Battery Life (Parent Unit)	Approximately 8 hours (with backlight off)
Charging Time	Approximately 3 hours
Frequency Band	2.4 GHz FHSS (Frequency Hopping Spread Spectrum)
Audio Monitoring	VOX (voice-activated) with adjustable sensitivity
Alerts	Out-of-range, low battery, and temperature alerts
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquids or abrasives.
Safety Certification	CE, RoHS compliant
Spare Parts and Repairability	Spare parts available via Audioline support; user-replaceable batteries

Frequently Asked Questions - Watch & Care V300 AUDIOLINE

How do I pair the camera with the monitor?

Press and hold the PAIR button on the baby unit for 3 seconds. On the parent unit, go to Menu > Pairing and select 'Start'. The devices will connect automatically.

What is the maximum operating range?

The range is up to 300 meters outdoors and 50 meters indoors, depending on walls and interference.

Can I use the monitor without batteries while plugged in?

Yes, the parent unit can operate directly from the AC adapter without batteries installed.

How do I set a temperature alert?

Go to Menu > Alerts > Temperature. Choose high and low thresholds. The monitor will beep when the room temperature goes outside the set range.

Why is the picture distorted or has interference?

Ensure both units are within range and avoid placing them near large metal objects or other 2.4 GHz devices (like Wi-Fi routers). Change the channel via Menu > Channel if available.

How do I turn off the night vision lights?

Night vision activates automatically in low light. To disable it, go to Menu > Night Vision and set to 'Off' (note: the camera will not see in the dark).

Can I add multiple cameras?

Yes, the V300 supports up to 4 cameras. Each camera must be paired separately using the PAIR button.

How do I clean the camera lens?

Gently wipe the lens with a soft, dry microfiber cloth. Do not use any cleaning liquids or abrasive materials.

What type of batteries does the parent unit use?

The parent unit requires 4 AAA alkaline or rechargeable batteries (not included). Ensure correct polarity when inserting.

How can I reset the monitor to factory settings?

On the parent unit, go to Menu > Settings > Reset. Confirm with 'Yes'. This clears all pairings and settings.

USER MANUAL Watch & Care V300 AUDIOLINE

Bedienungsanleitung

Operating Instructions

Watch & Care V300

D

GB

Bedienelemente 2

Operating Elements 2

Starting Up ....3

Checking the package contents 3

Connecting and aligning the transmitter ....3

Connecting the receiver 3

Operating with a power adapter plug ....3

Changing the rechargeable batteries 3

Setting up the receiver 4

Optimization of range 4

Operating the Transmitter ....5

Switching the transmitter on/off 5

Connecting and aligning the transmitter 5

Night vision 5

Operating the Receiver 6

Switching the receiver on/off 6

Settings 6

Video/Audio switching 7

Setting the zoom 8

Setting the volume 8

Camera control 8

Selecting a lullaby 8

Intercom function 8

Range 8

Registration 9

Multi camera mode .9

Appendix 10

Safety Information 10

Intended use 10

Installation location and safety information 10

Power adapter plug 10

Rechargeable batteries 10

Power failure 11

Medical equipment 11

Disposal 11

Helpline 11

Troubleshooting guide - Problems and solutions .....11

Declaration of conformity 12

Maintenance 12

Technical data 13

Guarantee 13

Operating Elements

Monitor unit (receiver)

1 Antenna (fold-out)
2 Power LED
3 Link LED
4 Sound level LEDs
5 Menu button / Activate camera control
6 On/Off switch / Video/audio switching

7 Multifunctional buttons
8 Talk button
9 Microphone
10 Fold-out stand
11 Socket for power adapter plug

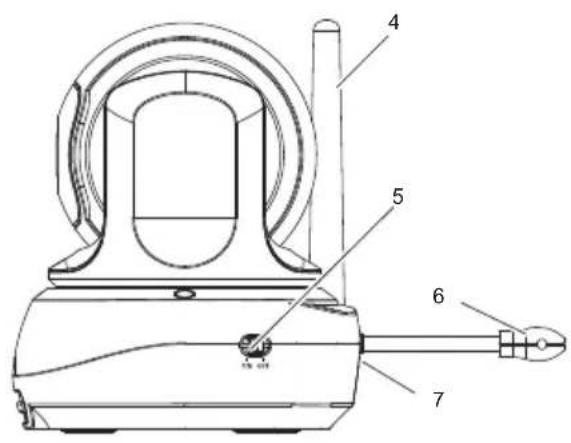

Camera unit (transmitter)

1 Camera lens
2 Night light
3 Light sensor
4 Antenna

5 ON/OFF switch
6 Temperature sensor
7 Socket for power adapter plug

Starting Up

⚠️ Important: please make sure you've read the safety information on page 10 before you set up your system. The data transmitted (image and/or sound) are digitally coded.

Checking the package contents

The package contains:

• Camera unit (transmitter) 1
  • Monitor unit (receiver) with installed rechargeable battery pack 1
  • Power adapter plug for the transmitter 1
  • Power adapter plug for the receiver 1
• Operating manual 1

Connecting and aligning the transmitter

⚠ Attention: Position the transmitter with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance. Point the upper section of the transmitter rough towards the baby or object you want to monitor. Thanks to the camera control you can optimize the view later using the feature on the receiver.

Connect the transmitter as illustrated in the diagram. For safety reasons, only use the power adapter plug supplied.

Connecting the receiver

⚠ Attention: Position the receiver with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance.

Operating with a power adapter plug

Connect the receiver as illustrated in the diagram. For safety reasons, only use the power adapter plug supplied.

GB

Changing the rechargeable batteries

1. Open the battery compartment on the rear side of the receiver (screwdriver necessary).
2. Take out the old battery pack and install the new one. Observe the correct polarity (charging contacts).
3. Close the battery compartment again.

The receiver is powered by a Lithium-ion battery pack of 3.7 V, 1700 mAh.

The rechargeable battery pack is recharged directly in the receiver when the power supply is connected. The charging status appears in the display. The more segments are shown in the symbol the fuller the battery.

Setting up the receiver

For setting up the receiver unfold the support at the rear side.

Optimization of range

The parent unit (receiver) comes with a fold-out antenna. If necessary, optimum range can be achieved if the parent unit antenna is extended vertically.

Operating the Transmitter

Check the transmitter and receiver are working properly each time before the equipment is put into operation.

Switching the transmitter on/off

Position the transmitter in a good position for the monitoring tasks required and align the camera lens to the area to be monitored.

Slide the switch to ON.

To switch the unit off, slide the switch to OFF.

Connecting and aligning the transmitter

⚠ Attention: Position the transmitter with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance. Point the transmitter rough towards the baby or object you want to monitor. Thanks to the camera control you can optimize the view later using the feature on the receiver.

Night vision

The transmitter is equipped with 8 infrared diodes. This enables the transmission of pictures from areas which are not illuminated. The night vision function is activated automatically when the light conditions make it necessary.

When the night–time vision function is activated, the screen display on the receiver turns to black and white.

Operating the Receiver

Check the transmitter and receiver are working properly each time before the equipment is put into operation.

Switching the receiver on/off

Press and hold this button until the logo appears first then the image being taken by the transmitter camera.

Press and hold the button for approx. 2-3 seconds to switch the unit off.

In the case of a low battery charge, the Power LED flashes slowly. Place the receiver in the charger to recharge the battery pack.

Settings

With the settings menu open (long press on the menu button, you will get to the next setting by pressing the menu button briefly. For changing the relevant setting press (multiple, if necessary) the buttons on the multi function key. If no action is detected within 5 seconds, the device returns to idle state.

Press and hold down the menu key for approx. 3 s to access the settings menu.

The display shows

Use to adjust the brightness.

Press the menu key briefly.

The display shows

Use to set temperature measurement to ° C or ° F.

Press the menu key briefly.

The display shows

Use to adjust the lower temperature limit.

You can adjust the upper and lower limit for the temperature monitor. An alert will occur if the temperature becomes outside the preset temperature range. When set to "Off" the temperature monitoring is deactivated.

The ideal temperature for a baby to sleep is 16° - 18°C . Please set or adjust the room temperature accordingly.

Press the menu key briefly.

The display shows

Use to adjust the upper temperature limit.

Press the menu key briefly.

The display shows

Press the menu key briefly.

The display shows

Use to switch the vibration alarm on or off.

When the vibration alarm is activated, the receiver vibrates when sounds in the room being monitored are so loud that the red Sound Level LEDs are activated.

Press the menu key briefly.

The display shows

Use to set VOX to OFF or adjust the sensitivity to one of 5 levels (5 = highest sensitivity).

(VOX: Voice Operated Transmission = Sound detection)

The VOX function (sound detection) causes the system to start transmitting automatically from the transmitter to the receiver immediately a voice or sound is detected. If one of the five levels has been set, the VOX icon lights up in the display.

If the receiver is operated with battery (without power supply) the display will switch off after approx. one minute of inactivity, but will switch back on if triggered by the vox detector in the transmitter or by pressing any button on the receiver. However if VOX is set to OFF, the display will remain on all the time.

Video/Audio switching

You can manually switch off the display to save battery power. The sound from the baby's room are to be heard permanently and the display will automatically switch on again if triggered by the vox detector.

Press this button briefly.

For switching the display on again press this button again briefly.

Setting the zoom

You can zoom in on the image (digital zoom).

Press and hold this button for approx. 2 seconds. The zoom will be activated.

To deactivate the zoom function press and hold this button again for approx. 2 seconds.

Setting the volume

Use these buttons to adjust the volume to one of five settings or "Off".

Camera control

Press the menu key briefly. Four arrows appear in the display.

Using the multi function key you can turn the camera up, down, to the left and to the right.

Selecting a lullaby

Switch on: press the button briefly.

Use these buttons to select one of the 5 lullabies (1-5).

Switch off: press the button briefly.

Intercom function

Press and hold this button whilst speaking.

Speak with normal voice in the direction of the receiver to talk with the person near the other unit. Release the talk button again to listen to your counterpart.

When the talking button is pressed, any playing of lullabies will be aborted.

Range

When the distance between the transmitter and receiver is too far, the message "Out of Range" appears in the display and you hear a beep. Move the receiver nearer to the transmitter. If necessary, optimum range can be achieved if the Parent unit antenna is extended vertically.

Registration

In delivery state the transmitter is pre-registered at the receiver. If necessary or if a another camera is added to the system, registration can also be completed manually:

1 Switch the receiver on.
2 Press the menu key repeatedly until [C4] appears in the display.
3 Use the ⊕\Q buttons to select the desired camera [C1] ... [C4].
4 Press the button briefly. The Link LED flickers for approx. 10 seconds. During this time, you must perform steps 5 and 6.
5 Switch the transmitter on (switch set to ON).
6 Press the registration key on the rear of the transmitter. After a short time the video from the transmitter will appear on the screen if the registra tion was successful.

If the registration failed, "Out of Range" appears on the screen.

Multi camera mode

If you registered several cameras (up to 4) to your system, you can select a single camera or switch to scan mode. In scan mode, the signals from all activated cameras are continuously displayed alternately each for about 10 seconds.

Press this button briefly. The number of the selected camera is shown.

Select another camera or the scan mode by pressing this button repeatedly.

Selecting the cameras for the scan mode

When performing the selection of the camera (see above), you can set by pressing these buttons for each of the registered cameras, whether it should be assigned to the scan mode (e.g. "C2 x" = not assigned to the scan mode / "C2 √" = assigned to the scan mode).

For each of the four cameras you can select the features settings individually.

Appendix

Safety Information

Please read this operating instruction manual thoroughly.

Intended use

The surveillance system has been developed to monitor rooms. The transmitter sends acoustic and video signals from its point of installation to the receiver. Any other use is considered unintended use. The use of this equipment does not substitute personal supervision, e.g. of a child. Users are not relieved of their personal liability. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location and safety information

• Never lay the transmitter in a baby's/child's bed or playpen.
• Ensure that the transmitter and power cable are out of reach of babies/children.
• Pay attention that the components are sufficiently well-ventilated when in operation. Do not lay a cushion, towel or such over the devices.
• The devices are not intended for medical purposes. Warning and signal tones from respiratory or heartbeat monitoring equipment are not transmitted.
• The installation location plays a decisive role in ensuring proper operation. Therefore, maintain a distance of at least one meter from other electronic equipment, such as microwave ovens or hi-fi devices, otherwise they could cause mutual interference/faults.
• Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight. Do not use the equipment in potentially explosive areas.

Power adapter plug

⚠ Attention: Only use the power adapter plugs contained in the material supplied since other power adapter plugs could damage the surveillance system. Ensure access to the power adapter plug is not obstructed by furniture or such.

When using the equipment with a power adapter plug, pay attention that the plug and cable are in perfect condition. Kinked or worn cable represents the risk of a fatal accident!

The power adapter plug supplied fulfils the ecodesign requirements of the European Union (Directive 2005/32/EC). This means that, both in an operating state and in an idling state, the power consumption is considerably lower compared to power adapter plugs with an older design.

• Energiesparend
  • Economisant
  l'énergie
  • A risparmio di energia
  • Energy efficient

Rechargeable batteries

⚠ Attention: Never throw batteries into a fire. Only use batteries of the same type! Pay attention to correct polarity.

Power failure

In the event of a power failure, the transmitter (camera) is without function.

Medical equipment

⚠ Attention: Never use the devices in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!

Batteries represent a hazard to health and the environment! Never open, damage or swallow batteries or allow them to pollute the environment. They may contain toxic, ecologically hazardous heavy metals. You are legally obliged to dispose of power packs and batteries at the point of sale or in the corresponding containers provided at collection points provided by local public waste authorities. Disposal is free of charge. The adjacent symbols indicate that the batteries must not be disposed of in normal domestic waste and must be brought to collection points provided by local public waste authorities.

Packaging materials must be disposed of according to local regulations.

Helpline

Should problems arise with the device, please refer to the following information first. In the case of technical problems, contact our Hotline. Please refer to our website www.audioline.de for the telephone number.

In the case of claims under the terms of guarantee, contact your sales outlet.

There is a 2 year period of guarantee.

Troubleshooting guide - Problems and solutions

Equipment does not function

• Transmitter and/or receiver are not switched on.
• The battery (receiver) is empty or defective.
• The power adapter plugs are not connected.

No reception

• Transmitter and receiver are not registered.
• The receiver and transmitter are too far apart.
  • The VOX sensitivity is set too low.

Reception interference

• The receiver and transmitter are too far apart.
  • The battery power is too low.
• Other electronic devices are causing interference in the field of transmission.

Howling or squealing noise (acoustic feedback)

• Increase the distance between receiver and transmitter.
• Reduce the volume on the receiver.

Noise

• The battery power is too low.

Picture but no sound transmission

• Volume setting is too low.

Picture is in black and white

- The night vision function is active.

The battery pack in the receiver is not charged

- The power adapter plug is not connected.

Declaration of conformity

This device fulfils the requirements stipulated in the EU directive:

1999/5 EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

Conformity with the above mentioned directive is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our website www.audioline.de

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

Technical data

Camera (transmitter) Socket: 6 V DC

Sensor: 1 night light sensor

IR diodes: 8

Monitor (receiver) Screen: 4.3" LC display

Socket: 6 V DC

Power supply (receiver) Power adapter plug, input:

100-240 VAC, 50-60Hz, 150 mA

Power adapter plug, output: 6 VDC, 800 mA

or Lithium-ion battery pack 3.7 Volt / 1700 mAh

Initial charging time for battery Up to 16 h

Maximum monitor time VOX on: up to 10 h

(with battery pack) VOX off: up to 6 h

Power supply (transmitter) Power adapter plug, input:

100-240 VAC, 50-60Hz, 150 mA

Power adapter plug, output: 6 VDC, 800 mA

Range Up to 150 meters under optimum conditions. Range is

reduced in buildings through walls, doors etc.

Frequency range 2.4 GHz (digital)

Permissible ambient temperature 0°C to 40°C

Transmission power (TX PA power) 15 \~ 17 dBm

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. Carefully selected materials and highly developed technology ensure perfect functioning and a long service life. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defect parts, replace them or replace the entire device. Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device does show signs of a defect within the period of guarantee, please contact the sales outlet where you purchased the AUDIOLINE device, producing the purchase receipt as evidence. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.
