BCB 7030 AA S - Combined refrigerator HOTPOINT - Free user manual and instructions

Brand	Hotpoint
Model	BCB 7030 AA S
Product Type	Combined refrigerator with **** freezer compartment
Power Supply	220-240 V, 50 Hz
Compartments	Refrigerator, 4-star freezer, meat and fish compartment, zero-degree compartment
Special Features	Meat and Fish compartment, Zero Degree compartment, door open alarm (depending on model)
Refrigerator Defrost	Automatic
Freezer Defrost	Manual (1 to 2 times per year)
Freezing Capacity	Indicated on the rating label
Ice Cube Production	Ice cube tray provided
Temperature Adjustment	Thermostat with adjustment positions; recommended refrigerator temperature +2°C to +6°C
Installation	Min. distance 30 cm from coal/oil stoves, 3 cm from electric/gas stoves
Electrical Connection	Grounded outlet mandatory, no adapter or extension cord
Interior Cleaning	Sponge soaked in warm water and mild detergent, rinse and dry
Exterior Cleaning	Soft cloth soaked in water, avoid abrasive products

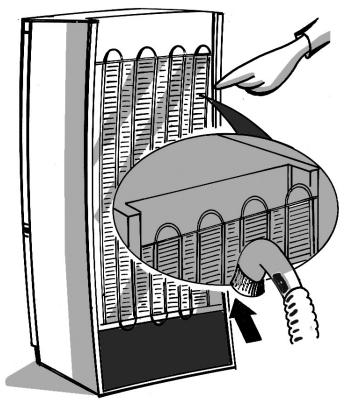

Condenser Maintenance	Clean regularly with vacuum cleaner or brush
After-Sales Service	Contact with model, service number, and fault description
Warranty	Door reversal not covered

Frequently Asked Questions - BCB 7030 AA S HOTPOINT

How to set the refrigerator temperature?

Turn the thermostat knob to an intermediate position for a recommended temperature of +5°C. Temperature may vary depending on location, frequency of door opening, and food placed inside. For the freezer compartment, set the thermostat to achieve -18°C.

What to do if the red alarm light stays on?

The red light indicates a temperature that is too high. Check that the door is properly closed, the thermostat is correctly set, the appliance is not near a heat source, there is no excessive ice on the walls, and air circulation is not obstructed.

How to activate the Zero Degree compartment?

Press the dedicated button for at least one second until the symbol lights up. Make sure the refrigerator compartment is activated and its temperature is between +2°C and +6°C. The drawer must be correctly inserted.

How to defrost the freezer?

Unplug the appliance, remove food and place it in a cool place. Leave the door open to melt the ice. Do not use sharp objects. Clean the interior with a sponge soaked in warm water, rinse and dry. Plug back in and set the thermostat.

How to clean the interior of the refrigerator?

Use a sponge soaked in a solution of warm water and mild detergent. Rinse and wipe with a soft cloth. Do not use abrasive substances. Clean the defrost water drain hole regularly with the tool provided.

What to do in case of a power failure?

The freezer compartment maintains storage temperature for about 15 hours if the door remains closed. Avoid opening the door unnecessarily. After power is restored, check the condition of the food.

How to change the door opening direction?

Door reversal carried out by After-Sales Service is not considered a warranty intervention. Consult a qualified technician if necessary.

How to freeze fresh food?

Place the food to be frozen in the center of the **** freezer compartment, without contact with already frozen food. Maintain a distance of about 20 mm. The maximum quantity in 24h is indicated on the rating label. Wrap food in aluminum foil or freezer bags.

Where to place food in the refrigerator?

Arrange food so that it does not touch the back wall. Use appropriate shelves and drawers. Vegetables with high water content may cause condensation on glass shelves, which is normal.

How to use the Meat and Fish compartment?

This compartment is designed for longer storage of fresh meat and fish. The temperature is indicated by an arrow on the door. Set the refrigerator temperature between +2°C and +6°C. Avoid placing fruits or vegetables in it as the temperature can drop below 0°C.

USER MANUAL BCB 7030 AA S HOTPOINT

Instructions for use

Instructions for use

Instructions for use

Instructions for use

Instructions for use

Instructions for use

Instructions for use

Instructions for use

Instructions for use

REPLACING A REGULAR BULB OR LED BULB

Figure 1

Figure 2

REPLACING THE LAMP OR LED BULB (depending on model)

Figure 1

Figure 2

REPLACING THE BULB SECTION

(depending on the model)

IF THE DEVICE IS NOT IN USE

Fig. 1

Fig. 2

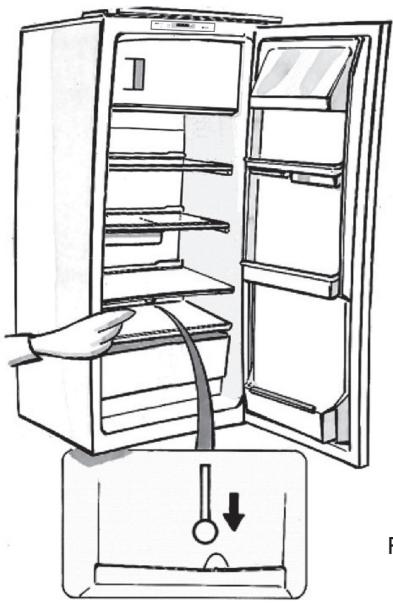

DEFROSTING

REPLACING THE BULB OR LED

IF THE DEVICE IS NOT IN USE

figure 1

figure 2

REPLACE INCANDESCENT BULB OR LED

(depending on the model)

- conventional incandescent bulb (max. 25 W)

Incandescent bulb

or

Figure 1

Figure 2

DEFROSTING

Instructions for use

Fridge with freezer compartment

DEUTSCH	Gebrauchsanweisung	Seite 4
FRANÇAIS	Mode d’emploi	Page 10
ENGLISH	Instructions	Page 16
NEDERLANDS	Gebruiksaanwijzing	Pagina 22

USING FOR THE FIRST TIME

Connect the appliance to the power supply.

In models with electronics, a sound signal may be emitted, which means that the temperature alarm has been activated: press the sound alarm off button. Where provided, position the antibacterial anti-odour filter in the fan as demonstrated in the filter packaging.

Note: After turning the appliance on, you must wait for 4-5 hours for the correct storage temperature to be reached for a normally filled appliance.

MAINTENANCE AND CLEANING OF THE APPLIANCE

Clean the appliance occasionally with a cloth and a solution of warm water and neutral cleaning agents specifically for cleaning the inside of the refrigerator. Do not use abrasive cleaning agents. To ensure the constant and correct flow of the defrosting water, regularly clean the inside of the drain situated in the back wall of the refrigerator compartment near the fruit and vegetable drawer using the utensil provided (see figure).

Before carrying out any maintenance or cleaning, take the plug out of the socket or disconnect the appliance from the power supply.

REPLACING THE LIGHT BULB OR LED

(depending on the model)

Always disconnect the appliance from the power supply before replacing the light bulb. Then follow the instructions based on the type of light bulb for your product.

Replace the light bulb with one with the same features, available from the Technical Assistance Service and authorized sellers.

Light type 1)

To remove the light bulb, unscrew it in an anti-clockwise direction, as shown in the figure. Wait 5 minutes before reconnecting the appliance.

- traditional light bulb (max 25W)

Light bulb

or

- LED light bulb (with the same features)

only available from the Technical Assistance Service

LED light bulb

Light type 2)

If the product has LED lights, as demonstrated in the figures below, contact the Technical Assistance Service if you need a replacement.

LEDs last longer than traditional light bulbs, improve internal visibility and are environmentally-friendly.

IN THE EVENT OF NON-USE OF THE APPLIANCE

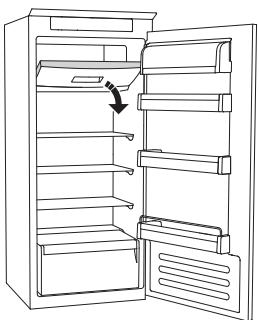

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it. Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

IN THE EVENT OF AN INTERRUPTION TO THE POWER SUPPLY

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

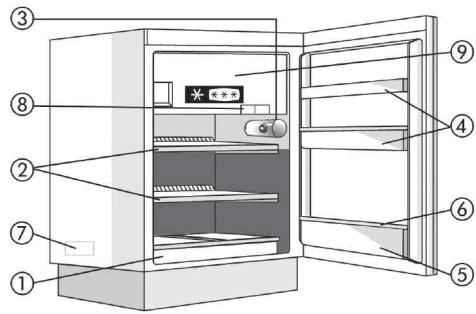

REFRIGERATOR COMPARTMENT

The refrigerator compartment allows for the storage of fresh food and drink.

The refrigerator compartment defrosts completely automatically.

The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Depending on the model, the product may be equipped with a special “Zero Degrees” compartment, which is ideal for storing fresh meat and fish.

Warning: do not clean refrigerator accessories in a dishwasher.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors.

Note: in very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one.

Removing the fruit and vegetable drawer (depending on the model)

Pull the drawer outwards as far as it will go, lift it up and take it out.

To make it easier to remove the fruit and vegetable drawer, it may be necessary to empty (and possibly remove) the two lower door shelves and then continue to remove the drawer.

Fan and antibacterial anti-odour filter (depending on the model)

The fan allows for the even distribution of the temperatures inside the compartments and, consequently, better preservation of the food and reduction of excess humidity. Do not obstruct the ventilation area. The fan can be turned on/off manually (see the Quick Guide); if it is turned on, it operates automatically when necessary.

FREEZER COMPARTMENT

Model with separate freezer compartment

The freezer compartment ✦*** allows for the storage of frozen food (for the period indicated on the packaging) and the freezing of fresh food. The quantity of fresh food that can be frozen in 24 hours is written on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment (see Quick Guide), leaving enough space around the food packages to allow air to circulate freely. It is advisable that you do not re-freeze food that has partially defrosted. It is important to wrap the food in a way that prevents the ingress of water, humidity or condensation.

Making ice cubes

Fill 2/3 of the ice tray (if available) with water and put it back in the freezer compartment. Do not use sharp or pointed objects to remove the ice under any circumstances.

Removing the drawers (depending on the model)

Pull the drawers outwards as far as they will go, lift them up and remove them. To get more volume, the freezer compartment can be used without the drawers.

Make sure that the door is closed properly after putting the food back on the grilles/shelves.

Models with an internal product compartment

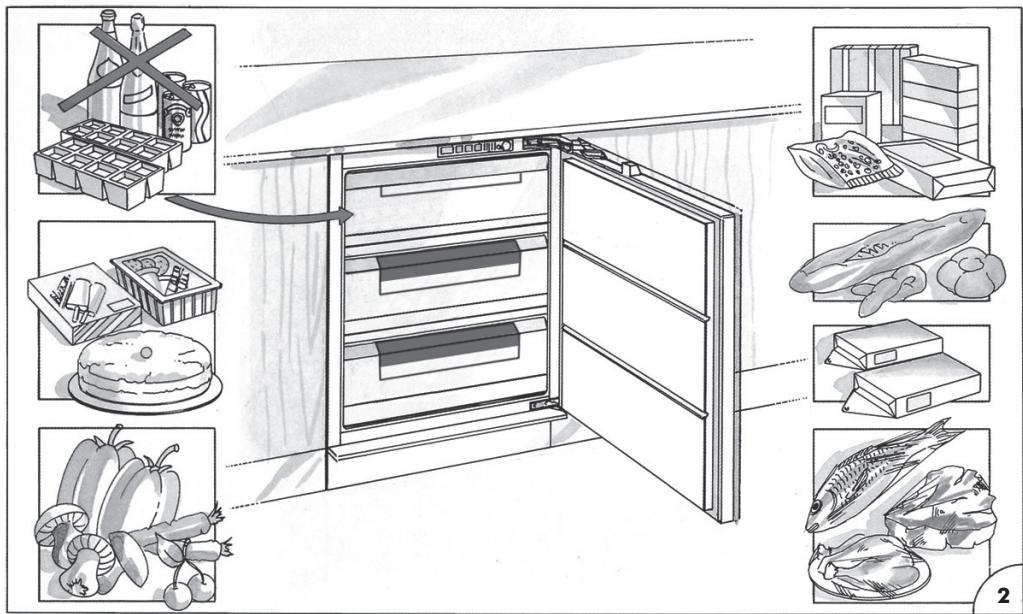

In the freezer compartment you can also freeze fresh food. The quantity of fresh food that can be frozen in 24 hours is written on the rating plate.

How to freeze fresh food:

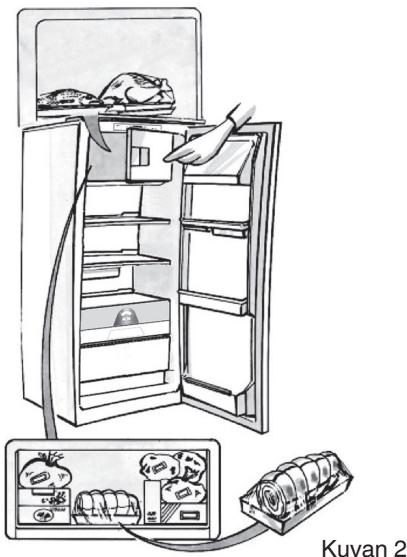

• arrange the food on the grille, if present (figure 1), or directly on the bottom of the compartment (figure 2)
• put the food in the middle of the compartment without it coming into contact with food that is already frozen, keeping a distance of about 20 mm (figure 1 and 2).

Figure 1

Figure 2

HOW TO DEFROST THE FREEZER COMPARTMENT

(depending on the model)

For frost free models it is not necessary to carry out any defrosting procedures.

For other models, the build up of frost is a normal occurrence.

The quantity and speed of frost accumulation varies depending on the ambient conditions and how often the door is opened. It is advisable to set the temperature colder or, if available, turn on the quick freeze function (see Quick Guide) four hours before removing the food from the freezer compartment, to prolong the preservation of the food during the defrosting phase. To defrost, turn the appliance off and remove the drawers. Put the frozen food in a cool place. Leave the door open to allow the frost to melt. To prevent the water from escaping during the defrost, it is advised that you place an absorbent cloth on the bottom of the freezer compartment and wring it out regularly.

Clean the inside of the freezer compartment and dry it carefully.

Turn the appliance back on and put the food back inside.

STOP FROST SYSTEM

(depending on the model)

The STOP FROST SYSTEM (available depending on the model) facilitates the defrost procedure for the freezer compartment. The STOP FROST accessory (figure 1) is designed to collect some of the frost that forms in the freezer compartment and it is easy to remove and clean, therefore reducing the time needed to defrost the inside of the freezer compartment.

To remove the frost on the STOP FROST accessory follow the cleaning procedure demonstrated below.

PROCEDURE TO CLEAN THE STOP FROST ACCESSORY

• Open the freezer compartment door and remove the upper drawer (figure 2).
• Unfasten the STOP FROST accessory (figure 3) and remove it (figure 4), taking care not to drop it on the glass shelf below. Note: if the accessory is jammed or difficult to remove, do not keep trying to remove it, but proceed with the complete defrost of the freezer compartment.
• Close the door to the freezer compartment.
• Remove the frost on the accessory by rinsing it under running (not hot) water (figure 5).
• Let the accessory drip dry and dry the plastic parts with a soft cloth.

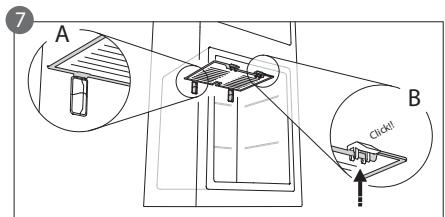

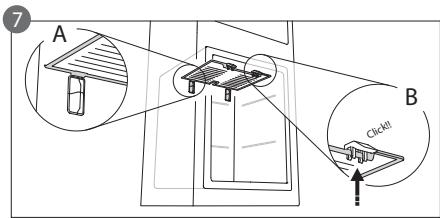

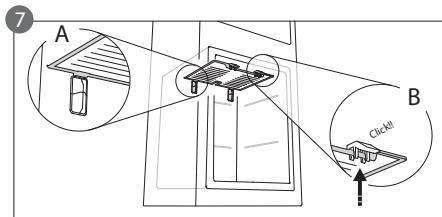

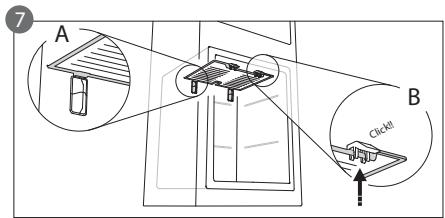

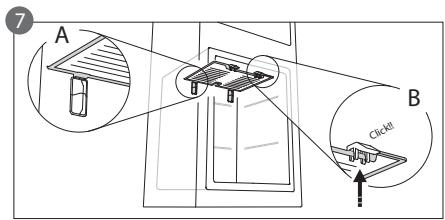

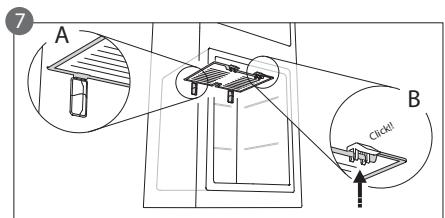

• Reinsert the accessory by placing the back part on the projections shown in figure 7-A, then refasten the handle of the accessory to the clasps above (figure 7-B).
• Reinsert the upper drawer and close the door to the freezer compartment.

It is possible to clean the STOP FROST accessory on its own without completely defrosting the freezer compartment. Cleaning the STOP FROST accessory regularly helps to reduce the need to completely defrost the freezer compartment.

Note: the product specifications, including volume and energy, are calculated without the STOP FROST accessory.

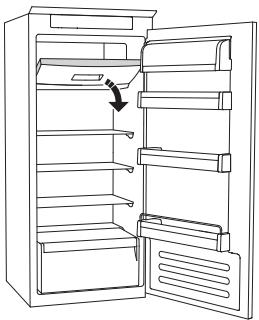

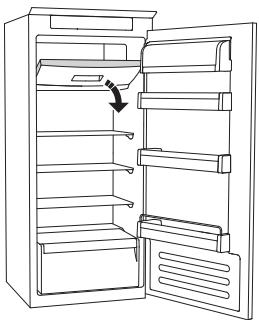

"ZERO DEGREES" COMPARTMENT

(depending on the model)

The “Zero Degrees” compartment is specifically designed to maintain a low temperature and the correct humidity to preserve fresh food for longer (for example, meat, fish, fruits and winter vegetables).

Humidity control technology coupled with Activ0° provides the best food preservation when the food is not completely packed.

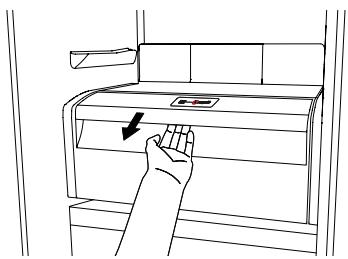

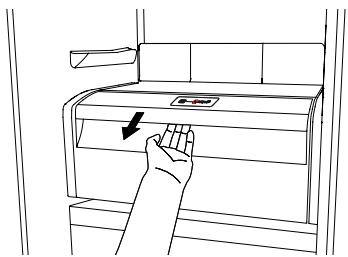

Turning on and turning off the compartment

The internal temperature of the compartment is approximately 0° when the compartment is turned on.

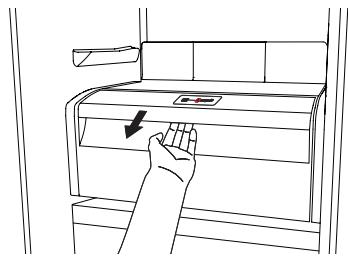

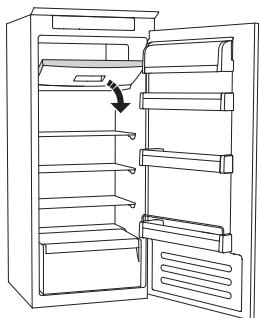

To turn on the compartment, press the button shown in the figure for more than one second until the symbol lights up.

The lit symbol means that the compartment is working. Press the button again for more than one second to turn off the compartment. To turn off the compartment completely, you must remove the drawer.

For the correct functioning of the "Zero Degrees" compartment, it is necessary that:

• the refrigerator compartment is turned on
• the temperature is between +2°C and +6°C
• the drawer in the "Zero Degrees" compartment must be inserted for it to be turned on
• one of the following special functions is not selected: Stand-by, Cooling-Off, Vacation (if present), in this case, remove the food contained in it.

Note:

• if the symbol does not light up when you turn on the compartment, check that the drawer is properly inserted; if the problem persists contact the authorised Technical Assistance Service.
• if the compartment is turned on and the drawer is open, the symbol in the control panel may automatically turn off. The symbol will light up again when the drawer is inserted
• regardless of the state of the compartment, you may hear a faint noise, which you should consider as normal
• when the compartment is not in operation, the temperature inside it depends on the general temperature of the refrigerator compartment. In this case, it is advised that fruits and vegetables that are not sensitive to cold (berries, apples, apricots, carrots, spinach, lettuce, etc.) are stored in it.

Important: if the compartment is turned on and food with a high water content is present, condensation may form on the shelves. In this case, turn the function off temporarily.

Be careful when positioning food and containers that are small in size on the upper shelf of the "Zero Degrees" compartment in order to prevent them accidentally falling between the shelf and the back wall of the refrigerator compartment.

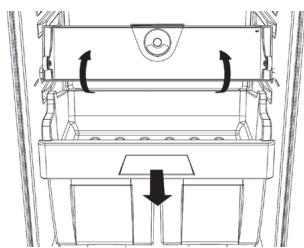

Removing the “Zero Degrees” compartment:

Carry out the following steps:

• to make it easier to remove the compartment, we recommend that you empty (and possibly remove) the lower door shelves
• turn off the compartment
• remove the compartment by rotating it upwards
• Remove the white plastic shelf under the compartment.

Note: It is not possible to remove the upper shelf and side supports.

To use the “Zero Degrees” compartment again, carefully reposition the white plastic shelf under the compartment before inserting the drawer and turning the function back on.

To have a larger refrigerator volume and to reduce energy consumption, it is recommended that you turn off the “Zero Degrees” compartment and remove the compartment.

Clean the compartment and its components occasionally using a cloth and a solution of warm water (taking care not to submerge the white plastic shelf under the drawer) and neutral cleaning agents specifically for cleaning the inside of the refrigerator. Do not use abrasive cleaning agents.

Before cleaning the compartment (also externally) it is necessary to remove the drawer to disconnect the electrical supply for the compartment.

TECHNICAL ASSISTANCE SERVICE

Before contacting the Technical Assistance Service:

Restart the appliance to check if the problem has been solved. If not, disconnect the appliance again and repeat the procedure after one hour.

If, after having completed the checks listed in the guide for malfunctions and after restarting the appliance, your appliance continues to function incorrectly, contact the Technical Assistance Service, clearly describing the problem and stating:

• the type of malfunction - the model

• the type and serial number of the appliance (written on the rating plate)
• the Service number (if available) (the number that is after the word SERVICE on the rating plate placed inside the appliance)

SERVICE

0000 000 00000

Note:

Reversing the doors of the appliance, if carried out by the Technical Assistance Service, is not considered as a warranty claim.

Nederland Home Product Service (ATAG)

Postbus 249

6920 AE Duiven

REPLACING THE LIGHT BULB OR LED INDICATOR

(depending on the model)

IF THE APPLIANCE IS NOT USED

Figure 1

Figure 2

DEFROSTING THE FREEZER COMPARTMENT

(depending on the model)

ZERO-DEGREE COMPARTMENT

(depending on the model)

IF THE APPLIANCE IS NOT USED

Figure 1

Figure 2

HOW TO DEFROST THE FREEZER COMPARTMENT

(depending on the model)

- traditional lamp (max 25W)

Lamp

or

Figure 1

Figure 2

HOW TO DEFROST THE FREEZER COMPARTMENT (depending on the model)

REPLACING THE BULB OR LED

WHEN THE APPLIANCE IS NOT IN USE

Figure 1

Figure 2

HOW TO DEFROST THE FREEZER COMPARTMENT (depending on the model)

"NULL-KRAADI" SECTION (depending on the model)

REPLACING THE ELECTRIC OR LED LIGHT BULB (depending on the model)

- standard light bulb (max. 25 W)

Light bulb

or

WHEN THE APPLIANCE IS NOT IN USE

Fig. 1

Fig. 2

HOW TO DEFROST THE FREEZER COMPARTMENT –

REPLACING THE LIGHT BULB OR LED

NOT USED IN THIS DEVICE

1. figure

1. figure

DEFROSTING THE FREEZER COMPARTMENT (depending on the model)

REPLACING THE LIGHT BULB OR LED

WHEN THE DEVICE IS NOT IN USE

Figure 1

Figure 2

"ZERO DEGREES" COMPARTMENT

- Traditional bulb (max. 25 W)

Bulb

or

IN CASE OF APPLIANCE SHUTDOWN

Figure 1

Figure 2

DEFROSTING THE FREEZER COMPARTMENT

- conventional light bulb (max. 25 W)

or

WHEN THE DEVICE IS NOT IN USE

Figure 1

Figure 2

DEFROSTING THE FREEZER COMPARTMENT

(depending on the model)

REPLACING THE LAMP BULB OR LED BULB

- standard lamp bulb (max. 25 W)

WHEN THE APPLIANCE IS NOT IN USE

Figure 1

Figure 2

REPLACING THE STANDARD OR LED BULB

(depending on the model)

- standard bulb (max. 25 W)

Bulb

or

- LED bulb (same characteristics)

WHEN THE APPLIANCE IS NOT IN USE

Figure 1

Figure 2

DEFROSTING METHOD FOR THE FREEZER COMPARTMENT (depending on the model)

For models without frost-free operation, defrosting is not necessary.

For other models, the appearance of ice is normal.

“ZERO DEGREE” COMPARTMENT (depending on the model)

REPLACING THE BULB OR LED

- regular bulb (max. 25 W)

The bulb

or

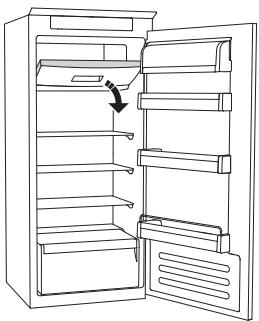

IF THE APPLIANCE IS NOT IN USE

Figure 1

Figure 2

REPLACING THE BULB OR LED BULB

(depending on the model)

Always unplug the appliance from the electrical outlet before replacing the bulb. Then follow the instructions based on the type of bulb for the product you own.

Replace the bulb with another of the same characteristics, which you can obtain through the technical support service and from authorized dealers.

Light type 1)

To remove the bulb, unscrew it counterclockwise as shown in the figure. Wait 5 minutes before reconnecting the appliance.

- standard bulb (max 25 W)

Bulb

or

- LED bulb (same characteristics)

WHEN THE APPLIANCE IS NOT IN USE

Figure 1

Figure 2

HOW TO DEFROST THE FREEZER COMPARTMENT (depending on model)

ZERO DEGREES COMPARTMENT (depending on model)

The Zero Degrees compartment is specifically designed to maintain low temperature and appropriate humidity for longer freshness of food (e.g., meat, fish, fruit, and winter vegetables).

Moisture control technology combined with Activ0° technology allows for optimal food preservation when food is not fully packaged.

Image 1

Image 2

Instructions for use

Replacing the bulb or LED

(depending on the model)

Bulb

LED bulb

Bulb type2)

If not using the appliance

Figure 1

Figure 2

How to defrost the freezer (depending on the model)

For frost-free models, no defrosting is required.

For other models, frost buildup is normal.

"Zero" compartment

(depending on the model)

Switching the "Zero" compartment power on and off

For the "Zero" compartment to work correctly, ensure that:

Replacing the light bulb or LED

(depending on the model)

- Traditional light bulb (max 25W)

Light bulb

or

- LED light bulb (same function)

Obtain from customer service

LED light bulb

Bulb type 2)

When the refrigerator is no longer in use

Figure 1

Figure 2

How to defrost the freezer (depending on model)

Frost-free models do not require defrosting.

For other models, frost formation during use is normal.

"Zero" refrigerator compartment

(depending on model)

Turning the refrigerator compartment on and off

When the refrigerator compartment is on, the internal temperature is close to 0°.

For the "Zero" refrigerator compartment to work properly, you must:

Operating instructions

Instructions for use

Instructions for use

Instructions for use

Temperature setting

Fig. 1

Fig. 2

Fig. 1

1-3
4-7
8-12

DEFROSTING THE APPLIANCE

Switching on the appliance

1. Plug in the appliance
2. When the appliance is plugged in, it is normally factory set to a temperature of 5°C.

Adjusting the temperature

For temperature adjustment, see the enclosed product sheet.

Note:

Ambient air temperature, the frequency of door opening, the introduction of hot food and unsuitable appliance positioning can all affect the internal temperature of the refrigerator, which may differ from that shown on the display.

Storing food in the refrigerator compartment:

• Cover food to prevent it drying out - The distance between the shelves and the rear wall inside the refrigerator ensures the free circulation of air - Do not place food in direct contact with the rear wall of the refrigerator compartment - Do not place hot food in the refrigerator • Store liquids in closed containers

Important:

Storing vegetables with a high water content can cause condensation to form on the glass shelves; this will not affect the correct operation of the appliance.

MEAT & FISH BOX (depending on model)

The Meat & Fish box was designed specially to keep foods fresher for longer, without altering nutritional values or original freshness. Do not store fruit or vegetables in this box, as the temperature may drop below 0°C, causing water contained in the food to freeze.

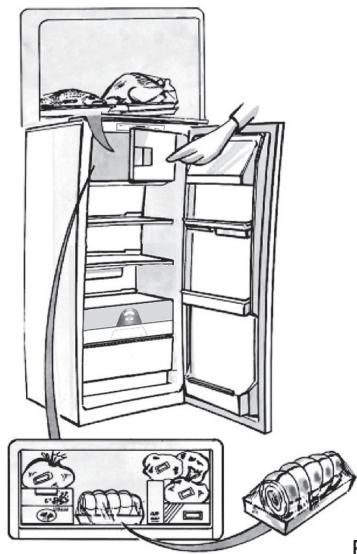

Temperature Adjustment

The temperature inside the Meat & Fish box is indicated by the position of the arm on the door of the box, and depends on the general temperature of the refrigerator compartment.

We recommend setting the temperature of the refrigerator compartment between +2° and +6°. To work out if the temperature inside the Meat & Fish box is correct, refer to the pictures below:

When the arm points to the left, you need to raise the temperature in the refrigerator compartment.

When the arm is in the middle, the temperature is ok.

When the arm points to the right, you need to lower the temperature in the refrigerator compartment.

Important: when the function is activated and foods with a high water content are present, condensation may form on the shelves. In this case, disable the function temporarily.

Removing the Meat & Fish compartment:

To ensure correct operation of the product, adequate preservation of food and to optimise energy consumption, it is advisable not to remove the Meat & Fish compartment if the symbol 📁 (see Quick Guide) is not present on the control panel. In all other cases, the Meat & Fish compartment can be removed to obtain more space inside the refrigerator.

Proceed as follows:

1. Remove the compartment drawer (Figure 1).
2. Remove the drawer cover by releasing the bottom side clips (Figure 2).

To reinstate the Meat & Fish compartment, make sure to refit the drawer cover before inserting the drawer and reactivating operation.

1. Press the "Meat & Fish compartment function" button on the control panel for 3 seconds, until the yellow indicator goes off.

To optimise energy consumption, it is advisable to deactivate the Meat & Fish compartment and remove its components (except the shelf above the crisper drawers).

Fig. 1

Fig. 2

"ZERO DEGREES" BOX (depending on the model)

The “Zero Degrees” box is specifically designed to maintain a low temperature and a suitable humidity level, in order to keep foods fresher for longer (e.g. meat, fish, fruit and winter vegetables).

Activating and deactivating the box

The temperature inside the box, when active, is approximately 0° .

To activate the compartment, press the button shown in the figure for more than 1 second, until the symbol lights up

The symbol lit indicates that the compartment is functioning. Press the button again for more than 1 second to deactivate the compartment

The following factors are vital for the “Zero Degrees” box to work properly:

• the refrigerator compartment must be switched on
• the temperature of the refrigerator compartment must be between +2°C and +6°C
• the box must be inserted to enable activation
• no special functions must have been selected (Standby, Cooling-Off, Vacation – where applicable).

If one of these special functions has been selected, the “Zero Degrees” box must be deactivated manually, and any fresh food inside it removed. If manual deactivation does not take place, the box will be deactivated automatically after 8 hours.

Note:

• if the symbol does not light up when the box is activated, check that the box is properly inserted; if the problem persists, contact your nearest authorized After-sales Service
• if the box is active and the drawer open, the symbol on the control panel may be deactivated automatically. If the drawer is inserted, the symbol will become active again
• irrespective of the state of the box, a slight noise may be heard: this is normal and is not a cause for concern.
• when the box is not active, the temperature inside it depends on the general temperature inside the refrigerator compartment. In this case, we recommend it is used to store fruit and vegetables which are not sensitive to cold temperatures (fruits of the forest, apples, apricots, carrots, spinach, lettuce, etc.).

Important: If the function is activated and food with high water content is present, condensate may form on the shelves. In this case, temporarily deactivate the function.

When placing small containers and food products on the top shelf of the “zero degrees” compartment, make sure they do not accidentally fall between the drawer and the back of the refrigerator compartment.

Removing the "Zero Degrees" box:

The “Zero Degrees” box can be removed to create more space inside the refrigerator. In this case proceed as follows:

• To facilitate removal, we recommend emptying (and if necessary, removing) the two lower door trays.
• Switch off the box.
• Pull out the drawer and the white plastic shelf underneath the box.

Note: The upper shelf and the side supports cannot be removed.

To restore “Zero Degrees” box operation, make sure you replace the white plastic shelf underneath the box before inserting the drawer and reactivating the function. To optimise energy consumption, we recommend you deactivate the “Zero Degrees” box and remove it.

Clean the box and all its parts regularly, using a cloth and a solution of warm water and neutral detergent specifically formulated for refrigerator interiors (take care not to immerse the white plastic shelf underneath the box in water).

Before cleaning the box (including the outside), remove the drawer so as to disconnect the box from the electricity supply.

Never use abrasive detergents.

HOW TO USE THE FREEZER COMPARTMENT (if present)

The freezer compartment *** can also be used for freezing fresh food. The quantity of fresh food that can be frozen in 24 hours is shown on the rating plate.

Freezing fresh food

• The recommended position for fresh food is that indicated in Fig. 1, if a wire shelf is present, or that in Fig. 2 for models with no wire shelf.
• Place food in the middle of the compartment, making sure it does not touch already frozen food, but is placed at a distance of approx. 20 mm (fig. 1 and 2).

The table alongside shows the recommended maximum storage time for frozen fresh foods.

When purchasing frozen food products:

• Make sure the packaging is not damaged, since the product quality may have deteriorated. If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.
• Place the items in the compartment as soon as you get home.
• If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.
• Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package.
• Always follow the storage instructions on the frozen food packages.

Making ice cubes

• Fill the ice cube tray 2/3 full and place it in the compartment .
• Do not use sharp or pointed instruments to detach the tray if it is stuck to the bottom of the *** compartment.
• Bend the ice tray slightly to remove the cubes.

Fig. 1

Fig. 2

1-3
4-7
8-12

HOW TO DEFROST THE APPLIANCE

Before defrosting the appliance, unplug it or switch off the power at the mains. Defrosting of the refrigerator compartment is completely automatic. Droplets of water on the rear wall of the refrigerator compartment indicate that the periodic automatic defrost cycle is in progress. The defrost water is automatically routed to a drain outlet and into a container from which it evaporates.

Clean the defrost water drain outlet regularly using the tool supplied with the appliance in order to ensure defrost water is removed correctly. (Fig. 1)

Defrosting the compartment (if present)

Defrost the compartment once or twice a year or when ice formation is excessive. It is perfectly normal for ice to form. The amount of ice which forms and the rate at which it accumulates will vary depending on ambient conditions and the frequency with which the freezer door is opened. Ice formation is concentrated at the top of the compartment and does not affect the efficiency of the appliance.

If possible, defrost the freezer when it is nearly empty.

• Remove the food from the freezer compartment and group together in a cool place or in a cool bag.
• Leave the door open to allow the frost to melt.
• Clean the interior of the freezer with a sponge and warm water and/or neutral detergent. Do not use abrasive substances.

Rinse the interior and dry thoroughly.

Put the food back into the freezer.

Close the door.

Plug the appliance back in and switch on, following the instructions in chapter “How to operate the refrigerator compartment”. The settings and selections made prior to switching off will be restored.

CLEANING AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

• Clean the inside of the refrigerator compartment periodically with a sponge dampened in warm water and/or neutral detergent. Rinse and dry with a soft cloth. Do not use abrasive products.
• The separators must not be washed in water but simply cleaned with a damp sponge.
• Clean the inside of the freezer compartment when defrosting.
• Clean the air vents and condenser at the rear of the appliance regularly with a vacuum cleaner or brush.
• Clean the outside with a damp cloth. Do not use abrasive products, scourers, stain-removers (e.g. trichlorethylene, acetone) or vinegar.

Prolonged disuse

1. Empty the refrigerator.
2. Disconnect the appliance from the mains power supply.
3. Defrost and clean the interior.
4. In the event of prolonged disuse, leave the appliance door open to prevent mould, odours and oxidation from forming.
5. Clean the appliance.
6. Clean the inside of the low temperature compartment (where present) when defrosting.
7. Clean the inside of the refrigerator compartment periodically with a sponge dampened in warm water and/or neutral detergent. Rinse and dry with a soft cloth. Do not use abrasive products.

AFTER-SALES SERVICE

Before contacting the After-Sales Service:

1. See if you can solve the problem yourself with the help of the Troubleshooting guide.
2. Switch the appliance off and then on again to check if the problem has been eliminated. If it has not, switch off the appliance again and repeat the operation after one hour.
3. If the problem persists after this course of action, contact After-sales Service.

Specify:

• the type of fault • the appliance model
• The Service number (the number after the word SERVICE on the rating plate inside the appliance)
• Your full address
• Your telephone number and area code

SERVICE

0000 000 00000

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

INSTALLATION

• Install the appliance away from heat sources. Installation in a hot environment, direct exposure to the sun or installation near heat sources (heaters, radiators, cookers) will increase power consumption and should therefore be avoided.
• If this is not possible, the following minimum distances must be respected:
• 30 cm from coal or paraffin stoves;
• 3 cm from electric and/or gas stoves.
• Fit the spacers (if supplied) on the rear of the condenser positioned at the back of the appliance.
• Install the appliance in a dry, well-ventilated place, and ensure it is level, using the front adjustment feet if necessary.
• Clean the interior.
• Fit the accessories.

Electrical connection

• Electrical connections must be made in accordance with local regulations.
• Voltage and power consumption are indicated on the rating plate inside the appliance.

Regulations require that the appliance be earthed. The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the above procedures and reminders.

If the plug and socket are not of the same type, have the socket replaced by a qualified electrician.

Do not use extension leads or adapters.

Disconnecting the appliance

It must be possible to disconnect the appliance by unplugging it or by means of a two-pole switch fitted upline of the socket.

ELECTRICAL CONNECTION FOR GREAT BRITAIN AND IRELAND ONLY

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

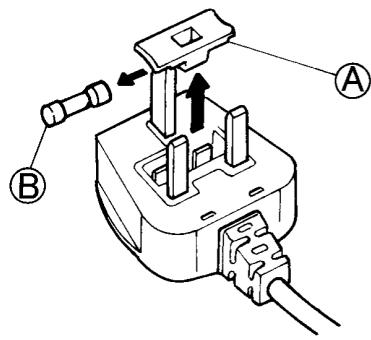

1. Remove the fuse cover (A) and fuse (B).
2. Fit replacement 13A fuse into fuse cover.
3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact After-sales Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified technician in compliance with the manufactures instructions and current standard safety regulations.

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT

Fig. 1

Fig. 2

Fig. 1

Fig. 2

1-3
4-7
8-12

HOW TO DEFROST THE APPLIANCE

Fig. 1

CLEANING AND MAINTENANCE

Temperature setting

Fig. 1

Fig. 2

Fig. 1

Fig. 2

1-3
4-7
8-12			[302W]

DEFROSTING THE APPLIANCE

Fig. 1

CLEANING AND MAINTENANCE

CUSTOMER SERVICE

Fig. 1

Fig. 2

Fig. 1

Fig. 2

1-3
4-7
8-12

HOW TO DEFROST THE APPLIANCE

Fig. 1

CLEANING AND MAINTENANCE

1-3
4-7
8-12

HOW TO DEFROST THE APPLIANCE

1-3
4-7
8-12

HOW TO DEFROST THE APPLIANCE

ZERO DEGREE COMPARTMENT

1-3
4-7
8-12

Fig. 1

Fig. 2

Fig. 1

Fig. 2

1-3
4-7
8-12

DEFROSTING THE APPLIANCE

Fig. 1

CLEANING AND MAINTENANCE

Temperature setting

Fig. 1

Fig. 2

Fig. 1

Fig. 2

1-3
4-7
8-12

DEFROSTING THE APPLIANCE

Fig. 1

CLEANING AND MAINTENANCE

During prolonged absence

Temperature regulation

Fig. 1

Fig. 2

Fig. 1

Fig. 2

1-3
4-7
8-12

DEFROSTING THE APPLIANCE

Fig. 1

CLEANING AND MAINTENANCE

Fig. 1

Fig. 2

In Fig. 1

1-3
4-7
8-12

DEFROSTING THE APPLIANCE

Figure 1

CLEANING AND MAINTENANCE

Instructions for use Instructions for use Instructions for use

Note:

HOW TO USE THE LOW TEMPERATURE COMPARTMENT

HOW TO DEFROST AND CLEAN THE FREEZER

CLEANING AND MAINTENANCE

ENERGY SAVING TIPS

APPLIANCE DESCRIPTION

A. Refrigerator compartment

CONTROLS

Note:

HOW TO USE THE LOW TEMPERATURE COMPARTMENT

If a low temperature compartment is available, it is marked with stars ✱***.

HOW TO DEFROST AND CLEAN THE LOW TEMPERATURE COMPARTMENT

CLEANING AND MAINTENANCE

ENERGY SAVING TIPS

PRODUCT DESCRIPTION

A. Refrigerator compartment

OPERATING THE LOW TEMPERATURE COMPARTMENT

ENERGY SAVING TIPS

PRODUCT DESCRIPTION

Note:

STARTING UP THE LOW TEMPERATURE COMPARTMENT

HOW TO DEFROST AND CLEAN THE LOW TEMPERATURE COMPARTMENT

RECOMMENDATIONS FOR ENERGY SAVING

PRODUCT DESCRIPTION

HOW TO START THE LOW TEMPERATURE COMPARTMENT

DEFROSTING AND CLEANING THE FREEZER COMPARTMENT

CLEANING AND MAINTENANCE

PRODUCT DESCRIPTION

A. Refrigerator compartment

Note.

HOW TO USE THE LOW TEMPERATURE COMPARTMENT

HOW TO DEFROST AND CLEAN THE LOW TEMPERATURE COMPARTMENT

CLEANING AND MAINTENANCE

ENERGY SAVING TIPS

PRODUCT DESCRIPTION

Note.

HOW TO USE THE LOW TEMPERATURE COMPARTMENT

HOW TO DEFROST AND CLEAN THE LOW TEMPERATURE COMPARTMENT

CLEANING AND MAINTENANCE

ENERGY SAVING TIPS

PRODUCT DESCRIPTION

A. Refrigerator compartment

CONTROLS

Note

USING THE REFRIGERATOR

DEFROSTING AND CLEANING THE REFRIGERATOR

CLEANING AND MAINTENANCE

ENERGY SAVING

PRODUCT DESCRIPTION

Note:

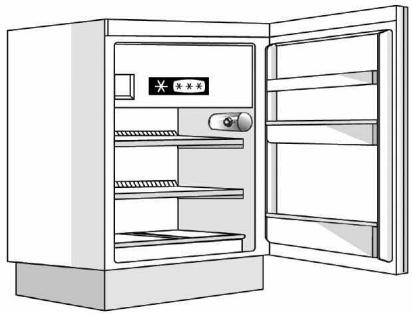

PRODUCT DESCRIPTION

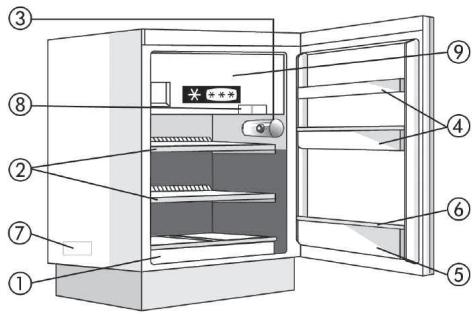

A. Refrigerator

1. Fruit and vegetable drawer
2. Shelves / shelf area
3. Thermostat and light
4. Deep door shelves
5. Bottle compartment
6. Movable bottle holder
7. Base plate (located on the side next to the fruit and vegetable drawer)
8. Ice tray
9. Low temperature compartment door

CONTROLS

Note:

Room temperature, frequency of door opening, and the position of the appliance can affect the temperature inside the two compartments.

HOW TO START THE LOW TEMPERATURE COMPARTMENT

HOW TO DEFROST AND CLEAN THE LOW TEMPERATURE COMPARTMENT

For optimal performance, we recommend defrosting the low temperature compartment at least twice a year or when the layer of ice on the walls reaches a thickness of about 3 mm.

- Note: Do not use sharp or pointed metal objects to remove ice; do not artificially heat the low temperature compartment.

HOW TO CLEAN THE REFRIGERATOR

CLEANING AND MAINTENANCE

ENERGY SAVING TIPS

• Avoid exposing the appliance to very high temperatures and direct sunlight, and do not place it near heaters or stoves, as this increases energy consumption.
• Do not block the air inlet or outlet openings on the appliance.
• Place foods that need to be defrosted in the refrigerator, thus making the best use of the low temperature of frozen foods.
• Limit as much as possible the frequency and duration of door openings. • Do not place hot foods in the refrigerator.

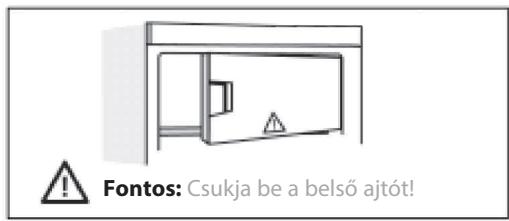

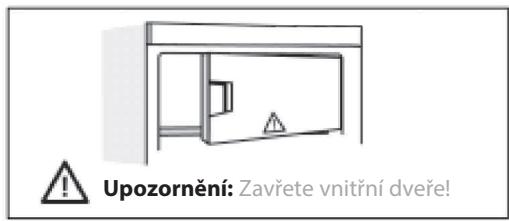

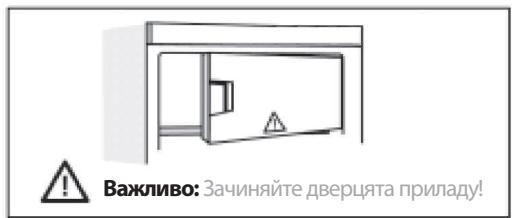

• Do not leave the door of the low-temperature compartment open.

TROUBLESHOOTING GUIDE

1. The appliance does not work.

6. Excessive ice formation in the low-temperature compartment.

PRODUCT DESCRIPTION

A. Refrigerator compartment

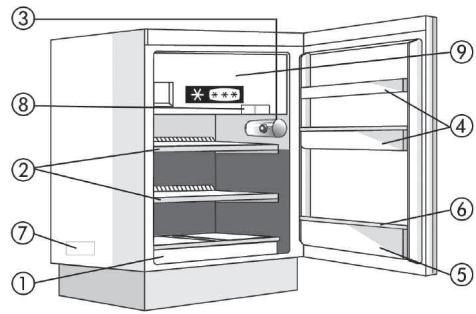

I. Fruit and vegetable drawer 2. Shelves / shelf compartment 3. Thermostat knob/light 4. Door shelves 5. Bottle shelf 6. Removable bottle holder 7. Rating plate (on the side of the fruit and vegetable drawer) 8. Ice tray 9. Low-temperature compartment door

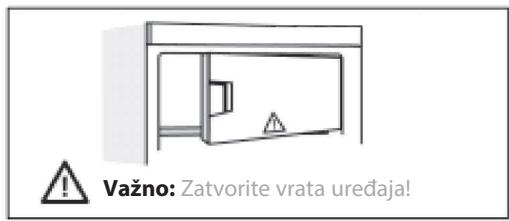

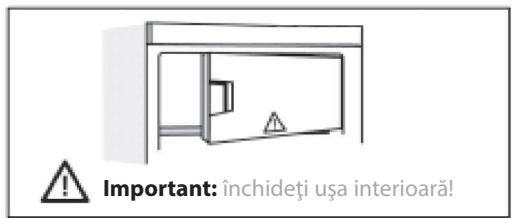

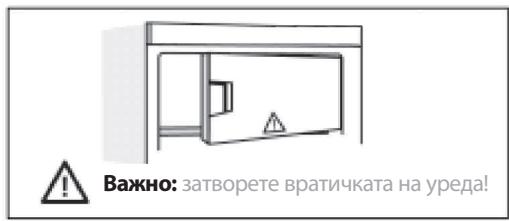

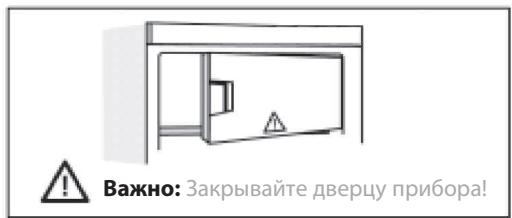

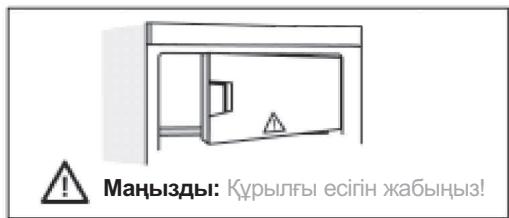

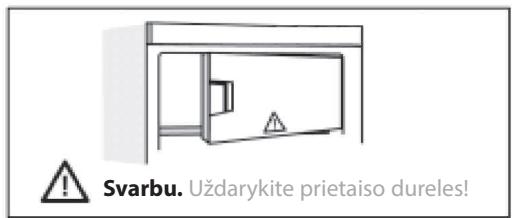

B. Low-temperature compartment, if ✪*** exists

Coldest zone

Least cold zone

Note: The number of shelves and the type of additional equipment may vary depending on the model.

All shelves, door shelves, and baskets can be removed.

CONTROL

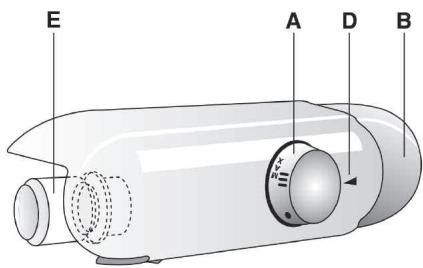

A. Thermostat knob B. Light switch D. Thermostat control panel E. Light bulb

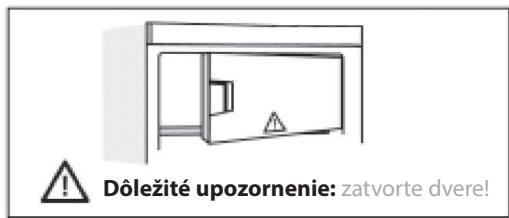

USING THE REFRIGERATOR COMPARTMENT

This appliance is an automatic refrigerator or a refrigerator with a low-temperature compartment marked with class * ***.

Note:

Ambient temperature, frequency of door opening, and the position of the appliance can affect the temperature inside the two compartments.

Keep these factors in mind when adjusting the thermostat knob.

USING THE LOW-TEMPERATURE COMPARTMENT

The low-temperature compartment, if present, is a class ✪*** compartment.

Refer to the packaging of each individual product for the recommended storage time of frozen food. When purchasing frozen products:

DEFROSTING AND CLEANING THE LOW-TEMPERATURE COMPARTMENT

For best performance, we recommend defrosting the low-temperature compartment at least twice a year or when ice on the walls reaches a thickness of about 3 mm.

CLEANING AND MAINTENANCE

• Regularly clean the ventilation openings and the condenser on the back of the appliance with a vacuum cleaner or a brush.
• Clean the exterior with a soft cloth.

In case of prolonged non-use

TIPS FOR SAVING ELECTRICAL ENERGY

PRODUCT DESCRIPTION

Notes:

CLEANING AND CARE

Important:

Note:

PRODUCT SPECIFICATIONS

USING THE LOW TEMPERATURE COMPARTMENT

Gebrauchsanweisung Instructions for use Mode d'emploi Gebruiksaanwijzing Istruzioni per l'uso

Brugsanvisning Bruksanvisning Käyttöohje Manual de utilização Instrucciones para el uso

Návod k použití Návod na použitie Instrucțiuni de utilizare Инструкции по эксплуатации

DEUTSCH	Gebrauchsanweisung	Seite 4
ENGLISH	Instructions for use	Page 8
FRANÇAIS	Mode d'emploi	Page 12
NEDERLANDS	Gebruiksaanwijzing	Pagina 16
ESPAÑOL	Instrucciones para el uso	Página 20
PORTUGUÊS	Manual de utilização	Página 24
ITALIANO	Istruzioni per l'uso	Pagina 28
ΕΛΛΑΣ	Οδηγίες χρήσης	Σελίδα 32
SVENSKA	Bruksanvisning	Sidan 36
NORSK	Bruksanvisning	Side 40
DANSK	Brugervejledning	Side 44
SUOMI	Käyttöohje	Sivu 48

YOUR NEW APPLIANCE

The appliance you have just bought, marked by the symbol ✦***, allows the freezing - in of fresh and cooked food, the production of ice cubes and the storage of frozen food. Please read these instructions carefully, as they include a description of your appliance and the useful hints to enable you to achieve the best performances required to freeze fresh food and to store already frozen food.

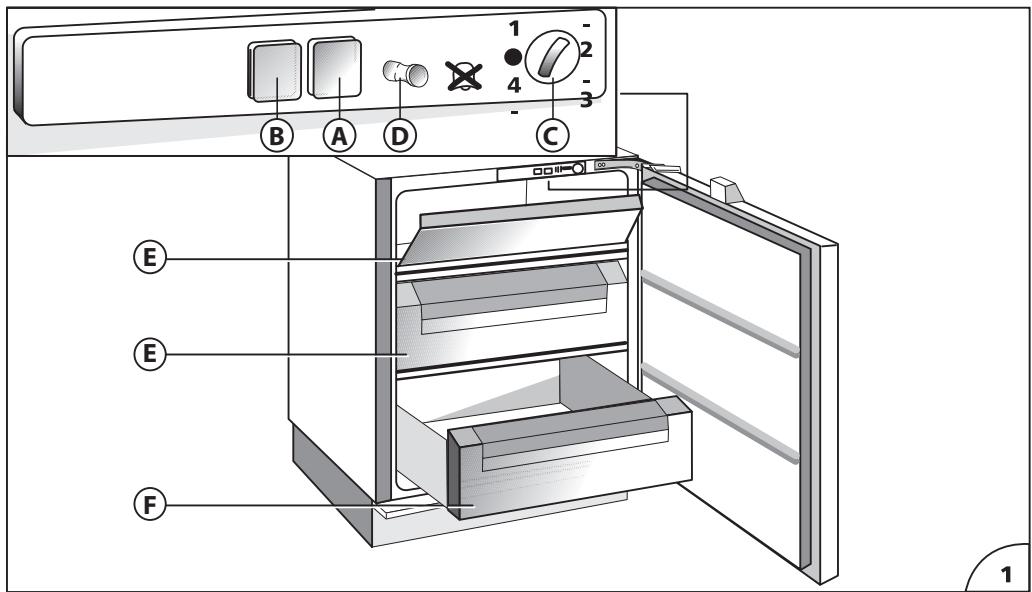

DESCRIPTION OF THE APPLIANCE (Fig. 1)

Control panel

A) Operation control lamp (green light) B) Temperature control lamp (red alarm light) C) Temperature control knob (thermostat) D) Open door alarm switch (if present) E) Baskets (freezing - in and storage baskets) F) Storage basket only. G) Eutectic system: remove from drawer F and insert into the high compartment E to optimise the product's consumption.

Some models are supplied with containers filled with cooling liquid (eutectics).

INSTALLATION

Ensure that the appliance is not damaged. Transit damages must be reported to your dealer within 24 hours of receipt of the appliance. The appliance should not be installed close to heat sources such as cookers, central heating, boilers, sunlight, etc. It must however be located in a well ventilated dry space.

Attention: Accessibility to the plug has to be guaranteed even after installation of the appliance to disconnect it, if required. Alternatively, connect the appliance to the mains by means of a two-pole switching device with contact separation of 3 mm situated in an accessible position.

ELECTRICAL CONNECTION AND OPERATION

Please check that the voltage indicated on the rating plate situated inside the compartment corresponds to the voltage in your home. The earthing of this appliance is compulsory by law. The manufacturer will accept no liability for injury to persons or damage to objects arising from the non observance of this requirement.

When the appliance is plugged in, if the thermostat knob is not set to symbol •, the green and the red lamps (A) and (B) (Fig. 1) light up. The green control light always remains alight and indicates the operation of the appliance. The red control light remains alight until the set operation temperature has been attained. It lights up again when the temperature inside the freezer rises due to frequent or prolonged door opening, and when the appliance has been loaded with fresh food to be frozen.

ADJUSTMENT OF THE TEMPERATURE

The thermostat (Fig. 1) controls the temperature inside the appliance. Position • indicates that the operation of appliance is interrupted. The ideal storage temperature of frozen food for a long time is -18°C. In normal ambient conditions (temperature between +20°C and +25°C), we suggest you adjust the thermostat control knob to a middle position. To obtain colder or warmer temperatures than -18°C, turn the thermostat control knob to the highest or lowest setting respectively. We remind you that internal temperatures are affected by the location of the appliance, the temperature of the surrounding air, the frequency of the door opening. The setting of the thermostat may have to be varied to allow for these factors. To check the temperature of the food stored, place the thermometer (if delivered) under the food; if it is placed on the food it will indicate the temperature of the air which does not correspond to that of the food stored.

USE OF THE FREEZER COMPARTMENT

This appliance is equipped with an acoustic alarm which sounds when the door is left open (if present).

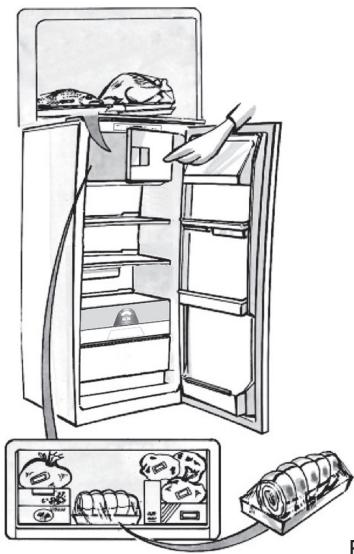

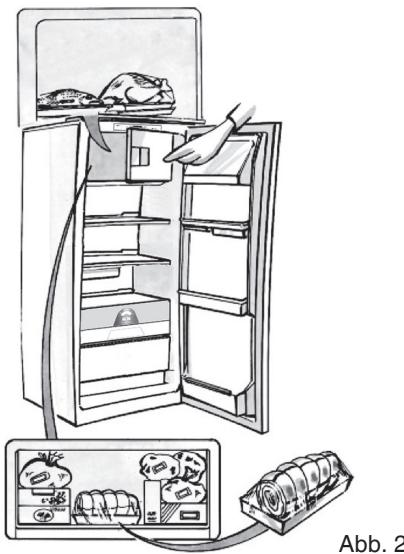

FREEZING IN (Fig. 2)

The amount of fresh food which can be frozen in a 24 hours period at an ambient temperature of +25°C is stated on the rating plate.

Do not store warm foods in the freezer. Never re-freeze partially or completely defrosted foods. Prepare and wrap foods to be frozen in aluminium or plastic foils or place them in appropriate containers. Label the packets indicating the freezing-in date and the contents. The freezer compartment maintains the storage temperature for 15 hours approx. even in case of power failure.

We suggest however you leave the door closed during this time.

Fizzy drinks should not be frozen and some products, such as flavoured water ices, should not be consumed too cold.

Note: Due to the efficiency of the door seal, it is not always possible to open the freezer door immediately after closing it. Wait some minutes before trying to open it.

PRODUCTION OF ICE CUBES

3/4 fill the ice cube trays with water and place them in the low temperature compartment. If the trays stick to the bottom of the compartment, do not detach them with sharp or cutting instruments, which could damage the appliance. Use, if necessary, the handle of a spoon. To allow removal of ice cubes from plastic trays, bend them slightly.

Attention: Do not eat ice cubes or ice lollies immediately after removal from the low temperature compartment as they may give rise to cold burns.

STORAGE OF FROZEN FOOD

When buying frozen food, it is suggested to use thermal bags or cold boxes. They should be the last purchases made and should be well wrapped in newspaper. When home, store them in the compartment, with the least possible delay. In any case these foods have to be used within the date printed on the packet.

THAWING

Here are some basic suggestions:

Raw vegetables: Do not thaw - put straight into boiling water and cook as usually.

Meat (large cuts): Thaw in the refrigerator without unwrapping them. Before cooking, leave at room temperature for some hours.

(Small cuts): Thaw at room temperature or cook directly.

Fish: Thaw in the refrigerator without unwrapping or cook directly before being completely thawed.

Previously cooked food: Re-heat in the oven without removing from its aluminium container.

Fruit: Thaw in the refrigerator.

DEFROSTING

Generally you need to defrost two or three times a year when the layer of frost reaches a 3 mm thickness. We suggest you periodically remove the frost from the freezing plate by means of a plastic scraper. Avoid using sharp or cutting instruments. Defrosting should be carried out when the quantity of food stored is minimum. Wrap the frozen food into several layers of newspaper (or in a cover) and place them in the refrigerator or in a cool place. Adjust the thermostat control knob to position•, disconnect the appliance from the mains and leave the door open. Remove the baskets by pulling forward and up. Do not use commercial defrosting products as they could contain dangerous components. At completion of defrosting, clean and dry the appliance carefully. Reconnect the freezer to the mains supply. Reload the freezer with the frozen food.

MAINTENANCE AND CLEANING

A periodic and proper maintenance will ensure a longer life to your appliance. Disconnect the appliance from the mains supply before any intervention. Clean periodically the appliance with a solution of water and vinegar. Rinse and dry thoroughly. Never use abrasive or detergents. Clean periodically the door gasket with water and dry carefully. Avoid soiling the door gasket with oil or other grease which could damage it. After cleaning, reconnect the appliance to the mains supply.

HINTS FOR HOLIDAYS

If you plan to be away for a long time, disconnect the appliance from the mains, empty and clean the inside. Leave the door open to prevent the appliance from smelling musty. If you plan to be away for a short time, let the appliance operate normally.

SERVICE

The incorrect operation of the appliance is not always due to a fault but it may also result from poor installation or usage. To prevent unnecessary service calls for which you will be charged, we suggest you consult this trouble-shooting guide.

If the red light is on continuously or flashing, the internal temperature is too high.

Check that:

• the door is not properly shut; - the thermostat control knob is correctly set (see chapter "Adjustment of the temperature"); - the freezer is not near a source of heat; - there is a large build up of frost on the inner walls; • the air flow is not restricted.

If the compressor functions continuously. Check that:

• the ambient temperature is too warm;

- the door is not being opened too frequently.

The appliance is excessively noisy. Check that:

• the appliance is level.

The appliance does not operate. Check that:

• the thermostat control knob is not set to position •; • there is not a power failure;
• the plug is making good contact with the supply socket;
• any automatic circuit breakers have tripped or any fuses blown;
• the supply cable is intact (see also Note).

Note: When replacing a damaged supply cord, be sure the new cord is correctly clamped. If you have followed this trouble shooting guide and your freezer still does not work properly, get in touch with your Retailer or Service Agent. State clearly what is wrong and the type and serial number of your freezer.

PRESENTATION OF THE APPLIANCE

TIPS FOR THE HOLIDAYS

GET TO KNOW YOUR FREEZER

SETTING THE TEMPERATURE
