Product type	2-way floor-standing speaker
Brand	Yamaha
Model	NS-F350
Dimensions (W x H x D)	200 x 900 x 300 mm
Weight	12 kg
Power supply	Passive (no built-in amplification)
Power handling	100 W (RMS)
Impedance	6 ohms
Frequency response	40 Hz - 25 kHz
Woofer	1 x 16 cm (cone)
Tweeter	1 x 2.5 cm (dome)
Main features	Stereo sound reproduction, compatible with hi-fi amplifier
Care and cleaning	Wipe with a soft, dry cloth. Do not use chemicals.
Safety	Do not expose to moisture or heat sources. Place on a stable surface.
Spare parts and repairability	Parts available from Yamaha after-sales service. Repair by a professional recommended.
General information	User manual available in PDF format at notice-facile.com

Frequently Asked Questions - NS-F350 YAMAHA

What are the dimensions of the Yamaha NS-F350 speaker?

The dimensions of the NS-F350 speaker are approximately 200 mm in width, 900 mm in height, and 300 mm in depth.

What is the weight of the NS-F350 speaker?

The weight of the speaker is approximately 12 kg per unit.

What is the impedance of the Yamaha NS-F350?

The nominal impedance is 6 ohms.

What amplifier power is needed for the NS-F350?

It is recommended to use an amplifier delivering between 30 and 100 W RMS per channel into 6 ohms.

How to connect the NS-F350 speakers?

Use good quality speaker cables. Connect the + and - terminals of the speaker to those of the amplifier, respecting polarity.

What is the best placement for the NS-F350?

Place the speakers at least 30 cm from the rear wall and separate them by 2 to 3 meters from each other for a good stereo image.

How to clean the NS-F350 speaker?

Use a soft, dry cloth. Never use solvents or abrasive products.

What to do if the speaker emits no sound?

Check cable connections, source selection on the amplifier, and make sure the amplifier is on. Test with another source.

Are the NS-F350 compatible with a subwoofer?

Yes, they can be used with an active subwoofer. Connect the subwoofer to the amplifier's subwoofer output or use a high-pass filter.

Where to find spare parts for the NS-F350?

Contact Yamaha after-sales service or an authorized dealer. Speakers and electronic parts are available on order.

USER MANUAL NS-F350 YAMAHA

Please read the following operating precautions before use. Yamaha will not be held responsible for any damage and/or injury caused by not following the cautions below.

1. To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
2. Install the speakers in a cool, dry, clean place – away from windows, sources of heat, sources of excessive vibration, dust, moisture or cold. Avoid sources of electrical humming (e.g., transformers and motors). To prevent fire or electric shock, do not expose the speakers to rain or water.
3. To prevent the enclosure from warping or discoloring, do not expose the speakers to direct sunlight or excessive humidity.
4. Avoid installing the speakers where foreign objects may fall onto them and/or where they may be exposed to liquid dripping or splashing.
5. Do not place the following objects on top of the speakers:
6. Other components, as they might damage or discolor the surface of the speakers.
   – Burning objects (e.g., candles), as they might cause fire, damage to the speakers or personal injury.
7. Containers of liquid, as they might spill and cause electric shock to the user or damage to the speakers.
8. Do not place the speakers where they are liable to be knocked over or struck by falling objects. Stable placement will also ensure better sound performance.
9. Placing the speakers on the same shelf or rack as the turntable can result in feedback.
10. Do not insert a hand or object into the port or pick up the speaker by holding the port, as it may cause personal injury or damage to the speaker.

11. Any time you note distortion, reduce the volume control on your amplifier to lower setting. Never allow your amplifier to be driven into "clipping". Otherwise, the speakers may be damaged.

12. When using an amplifier with a rated output power higher than the nominal input power of the speakers, care should be taken not to exceed the maximum input of the speakers.

13. Do not attempt to clean the speakers with chemical solvents as this might damage the finish. Use a clean, dry cloth.
14. Do not attempt to modify or fix the speakers. Contact qualified Yamaha service personnel when service is needed. The cabinet should never be opened for any reason.
15. As this unit is heavy, whenever it is moved, two people are required to transport it safely.
16. Secure placement or installation is the owner's responsibility. Yamaha is not liable for accidents caused by improper placement or installation of speakers.

Taking care of the speaker

When you wipe this unit, do not use chemical solvents (e.g., alcohol or thinners, etc.): this might damage the finish. Use a clean, dry cloth. For difficult soils, dampen a soft cloth in water, wring it out, and then wipe with the cloth.

The grille is detached from the speaker and packed separately. Be careful not to lose it.

Contents

Placing the speakers ....1

Connecting to your amplifier ....2

Standard connections....2

Bi-wire connection ....3

Attaching the grille....4

Specifications....5

Features

[NS-F350]

• Type: 3-way, 4-speaker bass-reflex floor standing tower speaker for main channels
• Woofer: Dual 16 cm PMD cone, Midrange: 13 cm PMD cone, Tweeter: 3 cm aluminum dome

[NS-F330]

• Type: 2-way, 3-speaker bass-reflex floor standing tower speaker for main channels
• Woofer: Dual 13 cm PMD cone, Tweeter: 3 cm aluminum dome

Placing the speakers

Line drawing of two human figures carrying a rectangular object (no text or symbols)

Note

• Be sure to have another person support it.
• Pay extra attention to avoid scratching the speaker's surface.
• Be careful not to apply force to the side of the speaker, otherwise the speaker may fall causing damage to the speaker or personal injury.
• To avoid accidents resulting from tripping over loose speaker cables, affix them to the floor.
• Placing the speakers too close to a CRT-type TV may impair the picture color or cause a buzzing noise. In this case, move the speakers at least 20 cm (8") away from the TV. This is not an issue with LCD and plasma TVs.

Precautions when positioning the speakers

Illustration of a smartphone with an exclamation mark inside a circle (no text or symbols)

The speaker is constructed with the majority of the weight located in its upper portion, and is thus susceptible to falling over if proper care is not taken to ensure its stability. If the speaker tips over, the speaker or other personal property may be damaged or an individual may

be injured (possibly even fatally injured).

For safe and proper use of the speaker:

• Position the speaker in a location that is solid, level, smooth, and low (with respect to the floor).
• Do not push or apply pressure to the side of the speaker when moving, or lean objects against the side of the speaker.
• Do not sit on or set objects on top of the speaker. Vibrations or jolts associated with earthquakes and other phenomena or activities may cause the speaker to fall over. For safety reasons, using commercially available products that increase stability of the speaker is recommended (metal fittings or chains, etc.).

■Using as 2ch stereo speakers

Illustration of a person sitting in a bed with two floating devices above, emitting sound waves (no text or symbols)

Better stereo images will be obtained when the speakers are slightly angled in towards the listener.

■Using as front speakers in a multi-channel system

Position the speakers on both sides of the TV. The positioning of speakers is important, since this dictates the overall sound quality of the multi-channel system. Set up the speakers on the basis of your listening position by following the owner's manual supplied with your amplifier.

Connecting to your amplifier

You need a commercially available speaker cable.

This speaker system is capable of standard connections and bi-wire connection.

Before making connections, make sure that the amplifier is switched off.

■Connections

Connect one speaker to the left (marked L) terminals of your amplifier or receiver, and another speaker to the right (marked R) terminals. Please refer to the owner's manual that came with your amplifier or receiver.

Note

• Make sure you connect the speakers with the correct polarity—positive (+) terminals to positive (+) terminals, and negative (−) terminals to negative (−) terminals. If you get them crossed over, the sound will be unnatural and lack bass.
• In your AV receiver's speaker size settings, specify small (or "S") for all of the speakers.
• The speaker may be damaged if certain sounds are continuously output at high volume level. For example, if sine waves from a test disc, bass sounds from electronic instruments, etc., are continuously output, or when the stylus of a turntable touches the surface of a disc, reduce the volume level to prevent the speaker from being damaged.
• Once you have connected all of the speakers, plug the amplifier and other AV components into suitable AC wall outlets.
• When using an amplifier with a rated output power higher than the nominal input power of the speaker, care should be taken never to exceed the speaker's maximum input.

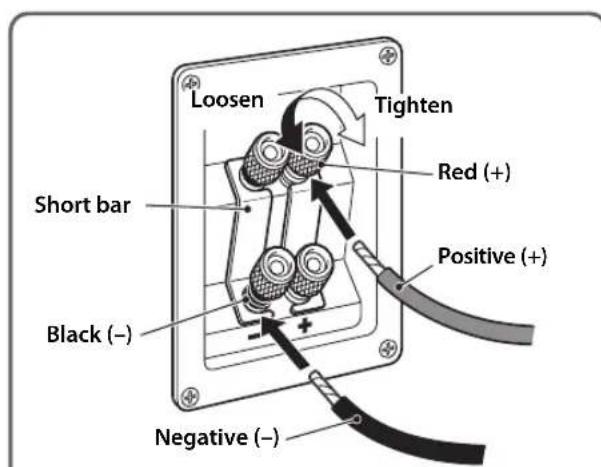

■How to connect the speaker cables

1 Remove 15 mm (5/8") of insulation from each end of the cables, and twist the exposed conductors together neatly and tightly, as shown left.
2Loosen the terminal knob.
3 Insert the bare wire.
4 Tighten the knob and secure the cable.
5 Test the firmness of the connection by pulling lightly on the cable at the terminal.

Note

• Make sure the terminal is gripping the bare wire, not the insulation.
• Make sure the bare wires do not touch each other, as this could damage the speaker or amplifier.
• If the connections are faulty, you will hear no sound from the speakers.

Standard connections

Leave the short bars in place when connecting. Connect the + speaker cable to the upper red terminal and then – speaker cable to the lower black terminal.

Bi-wire connection

■About bi-wire connection

This speaker system is capable of bi-wire connection. To connect the speaker to the output terminals of the amplifier (or receiver), two pairs of cables for each of mid-range/woofer and tweeter used instead of standard connections.

This type of connection decreases the modulation distortion caused by electric resistance of the cables and driving current of the speakers.

Consequently, purer sound quality can be expected.

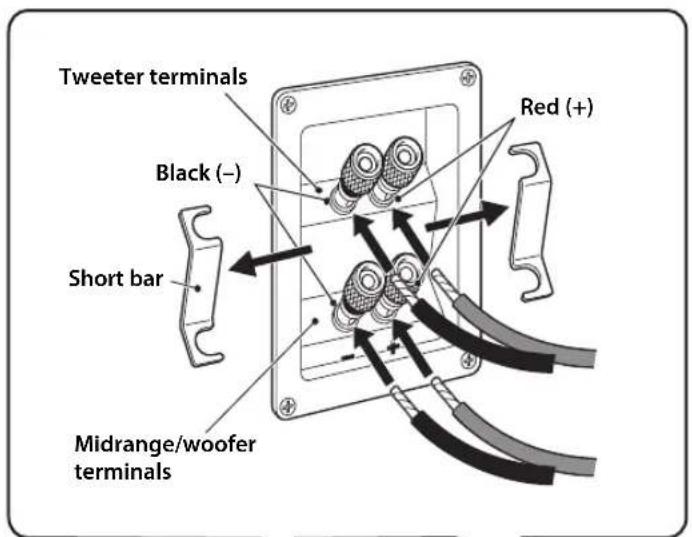

To utilize bi-wire connection, remove the short bars from the terminals first, and then connect the midrange/woofer and tweeter to the amplifier separately using two pairs of cables.

If necessary, use a commercially available speaker cable to connect the speaker system.

Remove the short bars before connecting.

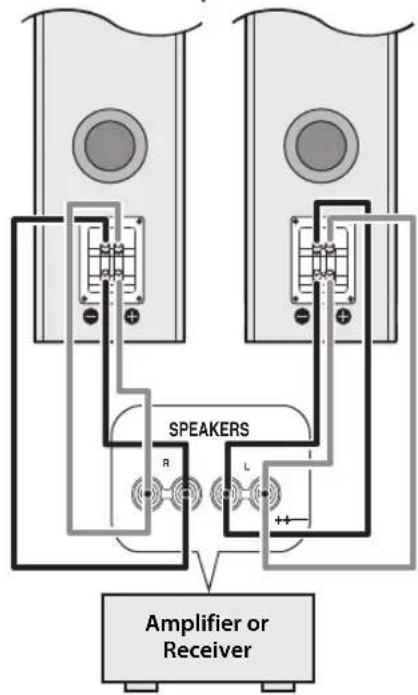

When your amplifier has only one set of speaker output terminals.

1

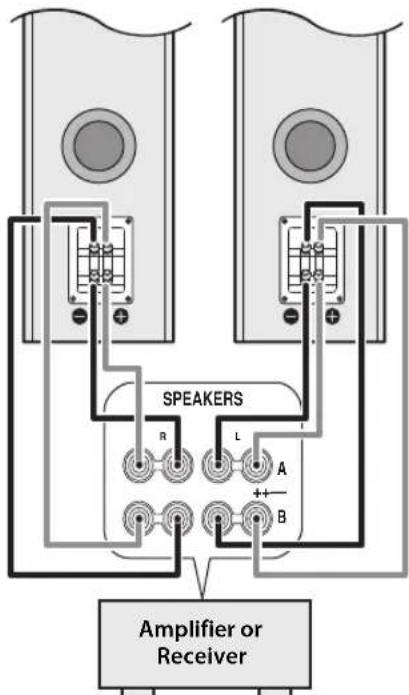

When your amplifier has two sets of speaker output terminals.

2

1

NS-F350

NS-F330

(R)

NS-F350

NS-F330

(L)

2

NS-F350

NS-F330

(R)

NS-F350

NS-F330

(L)

Both SPEAKERS A and B should be connected.

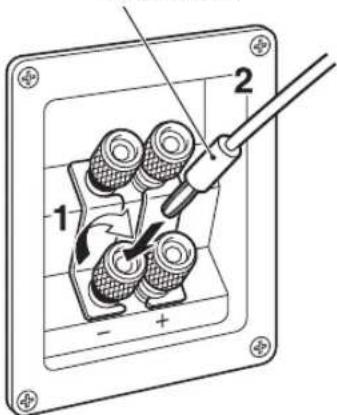

■When using a banana plug

1 Tighten the terminal knob.
2 Simply insert the banana plug into the terminal.

Attaching the grille

The grille is fastened to the enclosure at six points and can be removed if desired. To remove the grille, hold on to both sides and slowly pull straight away from the speaker. To reattach, line up the six holes on the inner surface of the grille with the six corresponding pegs on the speaker and push gently.

(NS-F350)

Illustration of a hand inserting a card into a speaker tower (no text or symbols)

Note

• When removing or attaching the grille, be careful not to touch the drive units, and not to exert excessive force with any tools.
• Do not touch or apply impact to the speaker's diaphragm. Otherwise, the speaker may malfunction.
• To avoid damaging the grille, never apply excessive force, and be sure to use its frame, never pull or push the surface, for removing or attaching the grille.

Specifications

NS-F350

Type.... 3-way bass reflex Non-magnetic shielding type

Driver .... Woofer: 16 cm (6-1/2") cone type x 2 Midrange: 13 cm (5") cone type Tweeter: 3 cm (1") aluminum dome type

Impedance ...... Nominal 6 Ω

Frequency response .... 35 Hz - 45 kHz (-10 dB) - 100 kHz (-30 dB)

Nominal input power 100 W

Maximum input power 200 W

Sensitivity 88 dB/2.83 V, 1 m

Crossover frequency.... 1.4 kHz, 3.8 kHz

Dimensions (W x H x D) ..... 220 x 1157 x 339 mm (8-5/8" x 45-1/2" x 13-3/8")

Weight 25.9 kg (57 lbs. 3 oz)

NS-F330

Type....2-way bass reflex Non-magnetic shielding type

Driver.... Woofer: 13 cm (5") cone type x 2 Tweeter: 3 cm (1") aluminum dome type

Impedance ......Nominal 6 Ω

Frequency response .... 40 Hz - 45 kHz (-10 dB) - 100 kHz (-30 dB)

Nominal input power 50 W

Maximum input power 200 W

Sensitivity....89 dB/2.83 V, 1 m

Crossover frequency 3.2 kHz

Dimensions (W x H x D) ..... 202 x 950 x 299 mm (8" x 37-3/8" x 11-3/4")

Weight....18.2 kg (40 lbs. 3 oz)

* Specifications are subject to change without notice.
* Care should be taken not to exceed the input power values noted above.

Information for Users on Collection and Disposal of Old Equipment

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

[Information on Disposal in other Countries outside the European Union]

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
