HM 0306 AX0 - Fridge HOTPOINT - Free user manual and instructions

USER MANUAL HM 0306 AX0 HOTPOINT

Line drawing of a modern electric mixer with handle and control panel (no text or symbols)

EN Operating instructions

FR Mode d'emploi

Line drawing of a kitchen electric oven with two metal grilles (no text or symbols)

Simple line drawing of a vertical pole with a round base and a small protrusion (no text or symbols)

Two identical curved mechanical or electrical components with mounting flanges, shown from different angles (no text or symbols visible)

Read this manual thoroughly before using and save it for future reference

PARTS AND FEATURES

1. Eject button
2. Speed button
3. Turbo button
4. Beaters
5. Dough hooks
6. Whisk attachment

IMPORTANT INFORMATION ON SAFETY

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions.
2. Before use, check that the voltage of your wall outlet corresponds to the one on the rating plate which is on the bottom of the appliance.

3. Do not operate the appliance with a damaged cord or after malfunction or has been damaged in any manner.

4. Do not let cord hang over edge of table or counter or hot surface.

5. Do not immerse cord or the body of mixer into

water as this would give rise to electric shock.

1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
2. Close supervision is necessary when your appliance is being used near children or infirm persons.
3. Do not place an appliance on or near a hot gas or on a heated oven.
4. Never eject beaters or dough hooks when the appliance is in operation.
5. Do not leave mixer unattended while it is operating.
6. Unplug from outlet while not in use, before putting on or taking off parts, and before

cleaning.

1. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury
2. Remove beaters from mixer before washing.
3. Always check that the control is OFF before plugging cord into wall outlet. To disconnect, turn the control to OFF, then remove plug from wall outlet.
4. Avoid contacting with moving parts.
5. Keep hands, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons, and/or damage to the mixer.
6. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

1. Keep the appliance and its cord out of reach of children less than 8 years.

2. Switch off the appliance before changing accessories or approaching parts which move in use.

3. Do not use outdoors.

4. Save these instructions.

OPERATING INSTRUCTIONS BEFORE USING MIXER

Remove any packages, disassemble any detachable parts. Clean the dough hooks and beaters. Before assembling the mixer, make sure the power cord is unplugged from the power outlet and the speed selector is on "Off" position.

USING YOUR MIXER

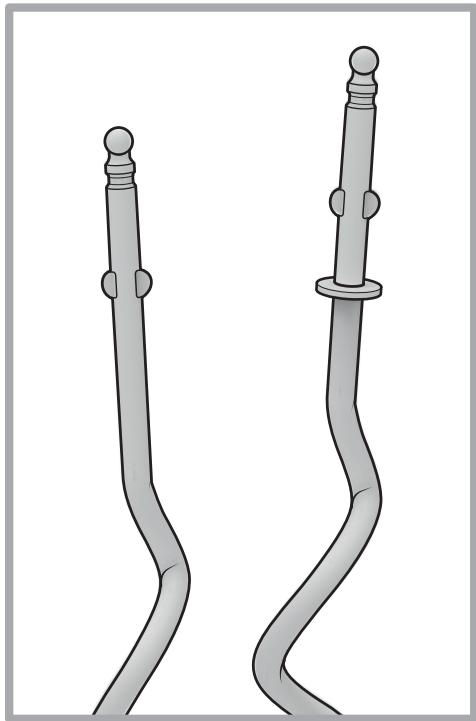

Note: one of two beaters/dough hooks has a small, metal washer-ring (collar) around the top of the stem. Beaters/dough hooks with the washer-ring are the ones which must be inserted into the bigger of the two holes in the mixer's body

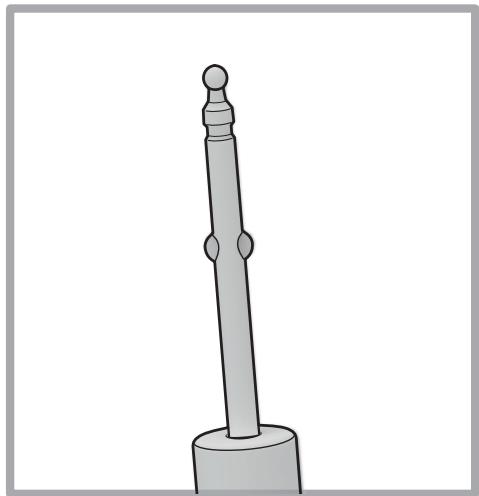

1. push the beaters/dough hooks with the washerring into the bigger hole. Rotate the beater until it locks into position. (see figure 1.)
2. push other beaters/dough hooks (without washer-ring) into the other hole. Rotate the beater until it locks into position. (See Figure 2.)

Note: After installing Beaters/Dough Hooks/

Egg Whisk, gently pull each Stem to be sure re secured properly.

1. Ensure that the unit is on "Off" position, then plug in the power source.
2. Set the speed selector to your desired speed. There are 6 speed settings to be selected.

Note: When kneading yeast dough, we suggest to set the speed selector on the lower speed when on the higher speed to achieve the best 6.

Note: The mixer will run at the highest speed when pressing turbo button.

speed	task	description
1	fold	To start mixing
2	stir	To combine liquids with dry ingredients
3	mix	To mix batters and dough recipes
4	blend	To combine light mixtures; for fillings/puddings
5	beat	To combine cake mixes and other light mixtures
6	whip	To whip cream and aerating eggs

Warning: Do not put knife, metal spoons, fork and so on into bowl while operating.

1. The max operation time shall not exceed 10 minutes, then have a rest for a proper time until your hand mixer has cooled down between two consecutive cycles.

Note: During operation you may rotate the bowl by hand to achieve the best results.

1. When mixing is complete, turn the speed selector to "Off" setting, and unplug the cord from the power outlet.

Note: If necessary, scrape the food particles in excess from the beaters or dough hooks a or wooden spatula.

1. Hold the beaters or dough hooks with one hand and press the Ejector button down firmly with the other hand to remove beaters, dough hooks or whisk.

Note: Remove the beaters or dough hooks only with the speed selector on Off position.

Note: During operation, you can move the mixer to upright position occasionally, but make the speed selector is on Off position.

CLEANING AND MAINTENANCE

1. Unplug the appliance and wait for it to be completely cooled down before cleaning
2. Wipe over the outside surface of the head with a damp cloth and mop with a soft dry cloth.
3. Wipe any food particles in excess out of the power cord.
4. Wash beaters, dough hooks and whisk in warm soapy water and dry them with a soft cloth.

Note: Beaters, dough hooks and whisk may be washed in the dishwasher.

Caution: The mixer can not be immersed into water or other liquid.

Warning: Any other maintenance operation shall be performed by an authorized service personnel.

COOKERY TIPS

Note: Refrigerated ingredients, i.e., butter and eggs should be at room temperature before

en

mixing.

Note: To eliminate the possibility of shells into your recipe, break eggs into separate container when adding to the mixture.

Note: Do not over-beat. Be careful that you only mix/blend mixtures until recommended in recipe.

Note: Always use the low speed when folding dry ingredients.

Note: Seasonal temperature changes, temperature of ingredients and their texture on from area to area all play a part in the ed mixing time and in the final result.

Note: Always start mixing at slow speed. Gradually increase to the recommended speed ted in the recipe.

ENVIRONMENT DISPOSAL

FRIENDLY

The European Directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.

Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
