Product type	3-in-1 appliance for fondue, raclette and wok
Brand	CASO
Model	W1800
Dimensions (L x W x H)	40 x 30 x 20 cm
Weight	3.5 kg
Power supply	220-240 V, 50/60 Hz
Power	1500 W
Fondue pot capacity	1.5 L
Wok capacity	2 L
Number of raclette pans	8
Main material	Stainless steel and non-stick coating
Functions	Fondue, raclette, wok; variable temperature control
Care and cleaning	Removable parts dishwasher safe
Safety	Safety thermostat, non-slip base, automatic shut-off in case of overheating
Spare parts and repairability	Raclette pans, fondue pot, wok, heating element available as options
General information	User manual included (58 pages), 2-year warranty
Included accessories	8 fondue forks, 8 raclette pans, wok, fondue pot, heating element

Frequently Asked Questions - W1800 CASO

How to use the appliance for fondue?

Fill the fondue pot with oil or broth, place it on the base, plug in the appliance and set the desired temperature. Use the provided forks to skewer the food.

Can I use the wok for stir-fries?

Yes, the wok is ideal for stir-fries, vegetables and meats. Set the temperature to the desired level and stir frequently for even cooking.

How to clean the raclette pans?

The pans are removable and can be washed in the dishwasher or by hand with a soft sponge. Avoid abrasives to preserve the non-stick coating.

Does the appliance shut off automatically?

Yes, the appliance has a safety thermostat that cuts the power in case of overheating. Let it cool down before reuse.

What oil to use for fondue?

Use a cooking oil stable at high temperature such as grape seed or peanut oil. Avoid extra virgin olive oil which smokes at low temperature.

Can I leave the appliance plugged in after use?

No, always unplug the appliance after use and let it cool down before storing. Never leave the appliance unattended while in operation.

What to do if the power fluctuates or does not heat?

Check the power outlet and cord. Make sure the base and heating elements are properly connected. If the problem persists, contact customer service.

What foods are suitable for raclette?

Raclette cheese, potatoes, cured meats, grilled vegetables and pickles are perfect for raclette. You can also use other melting cheeses.

How to adjust the temperature for the wok?

Turn the temperature control knob to the desired position. Low to medium levels are suitable for simmering, high levels for searing. Use a thermometer if necessary.

Where to find spare parts?

Spare parts such as pans or the heating element are available on the CASO website or from authorized dealers. Use original parts to ensure safety.

USER MANUAL W1800 CASO

Black ceramic ovens with a dome-shaped lid and control knob, no visible text or symbols

CE

Artikel-Nr. 1492

caso Germany

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Service-Hotline International:

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

10.1 General....19
10.2 Information on this manual .... 19
10.3 Warning notices .... 19
11 Safety....20
11.1 Intended use....20
11.2 General Safety information....20
11.3 Sources of danger (Danger of Burning, Danger of Explosion, Danger of Fire, Danger due to electrical power)....22
11.4 Limitation of liability....24
11.5 Copyright protection....24
12 Commissioning....24
12.1 Safety information....24
12.2 Delivery scope and transport inspection 25
12.3 Unpacking....25
12.4 Disposal of the packaging....25
12.5 Setup 25
12.6 Electrical connection 26
13 Design and Function 26
13.1 Overview ......26

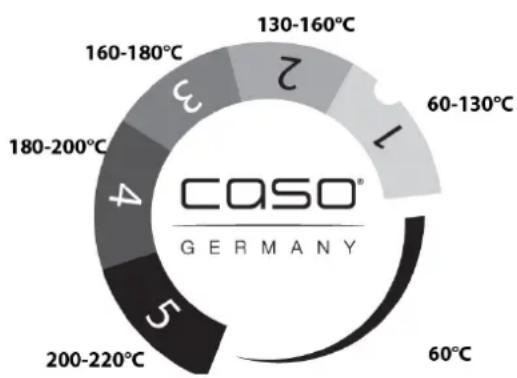

13.2 Automatic temperature controller....27
14 Operation and Handing 27
14.1 Switching on....28
14.2 Cooking in a wok....28
14.3 Roasting....28
14.4 Frying 28
14.5 Braising and stewing 29
15 Cleaning and Maintenance....29
15.1 Safety information....29
15.2 Cleaning 30
16 Disposal of the Old Device....30
17 Guarantee....30
18 Technical Data ....31
19 Mode d'emploi ....31
19.1 Généralités....31
19.2 Informations relatives à ce manuel....31
19.3 Avertissements de danger....32

20 Sécurité ....32

20.1 Utilisation conforme....32

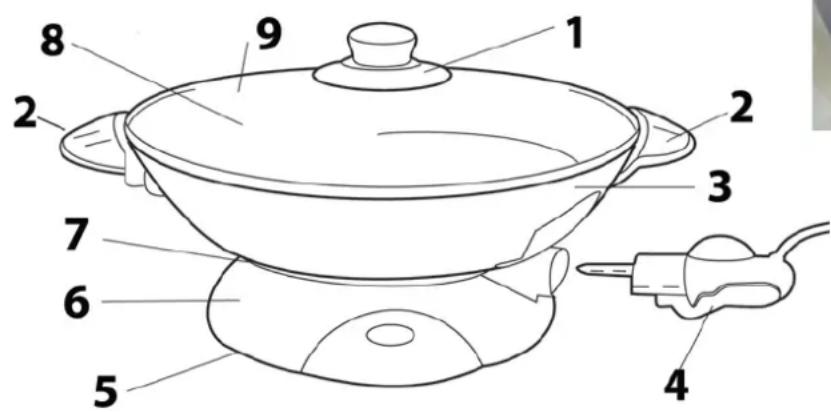

4.1 Gesamtübersicht

Close-up of a mechanical component with a central circular housing and multiple protrusions (no visible text or symbols)

Close-up of a black leather shoe handle and jaw (no text or symbols visible)

Close-up of a mechanical component with a labeled section 'A' and two small holes (no text or symbols beyond the label)

Close-up of a metallic knob with control buttons and triangular indicators (no readable text or symbols)

Black wok with a lid and control knob, no visible text or symbols

Item no. 1492

10 Operating Manual

10.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your device will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

10.2 Information on this manual

These Operating Instructions are a component of the Electric Wok W1800 (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: • Commissioning • Operation

- Troubleshooting and/or

Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

10.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

▲WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

11.1 Intended use

This device is only intended for use in households in enclosed spaces for warming up and cooking foods. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG

Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

11.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.

HINWEIS

Please note

▶ If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
▶ Keep the appliance and its cord out of reach of children aged less than 8 years.
▶ Do not leave the device unsupervised when it is in operation.
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled
▶ Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.
▶ Temperatur controller must be removed before the appliance is cleaned and that the appliance inlet must be dried before the appliance is used again.
▶ Only the appropriate connector must be used.

HINWEIS

Please note

The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

11.3 Sources of danger (Danger of Burning, Danger of Explosion, Danger of Fire, Danger due to electrical power)

11.3.1 Danger of Burning

▲WARNUNG

WARNING

The items cooked on this appliance as well as the cooking utensils used and the surface of the appliance can become very hot. Adhere to the following safety instructions in order to avoid burning or scalding yourself or others:

▶ Protect your hands during all work at the hot appliance by using heat insulating gloves, dish cloths or similar.
▶ Do not place cooking utensils, knives or other metal objects on the cooking surface. When the unit is turned on, these items can become very hot. Also the surface of the device may be damaged.
▶ Do not move or transport the device when it is filled with hot oil or other hot liquids.
▶ Be cautious when lifting the lid: Hot steam may be formed, keep face and hands away from it.

11.3.2 Danger of Explosion

▲WARNUNG

WARNING

Incorrect use of the appliance incurs a danger of explosion due to the overpressure produced.

Adhere to the following safety instructions in order to prevent a danger of explosion:

▶ Never heat food or liquids in sealed containers such as, for example, cans. The container can burst due to the overpressure generated.

11.3.3 Danger of Fire

▲WARNUNG WARNING

There is a risk of fire if the appliance is used incorrectly.

Adhere to the following safety instructions in order to avoid a risk of fire:

▶ During operation remove all easily inflammable items (e.g. detergents, aerosol cans, oven, cloths and dishcloths, etc.) from the immediate vicinity of the appliance.
▶ Avoid overheating oils and fats for extended periods. Overheated oil and fat can ignite rapidly.

11.3.4 Dangers due to electrical power

AGEFAHR Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

▶ If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
▶ Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not touch the appliance or the mains plug with wet hands.
▶ The cable should not come into contact with hot surfaces.

⚠GEFAHR

Danger

▶ Do not insert objects into the openings of the appliance.
There is a risk of electrocution if contact is made with voltage-carrying connections.
▶ Do not place the device near a hot gas or electric burner or in a hot oven.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual.

The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual

• Uses for non-intended purposes

- Improper repairs

- Use of unauthorized spare parts

- Technical alterations, modifications of the device

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

12 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.1 Safety information

⚠️WARNUNG

Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

12.2 Delivery scope and transport inspection

As a rule, the Electric Wok W1800 is delivered with the following components:

• Electric Wok W1800

- Operating Instructions

HINWEIS Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.3 Unpacking

To unpack the device, remove the device out of the carton and remove the packaging material.

12.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.5 Setup

12.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The appliance must be positioned on a solid, even, horizontal and heat-resistant base with sufficient load-supporting capacity for the appliance itself plus the heaviest anticipated cooking contents.
• Select an installation location where children cannot reach the appliance's hot surface.
• The appliance is not intended as a built-in appliance.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• To operate correctly, the appliance requires a sufficient flow of air. Leave a 15 cm gap on all sides when setting up the appliance.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

- The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 ~mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.
  The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

13 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

13.1 Overview

1 lid knob with 1 a steam vent Turn "open" so that the steam can escape, turn to "close" to close steam vent.

▲WARNUNG Warning: Danger of scalding!

2 lids 3 heavy duty die-cast wok-vessel

5 non-slip feet 6 detachable base

8 non stick coating of wok 9 glass lid

4 temperature controller

7 butterfly shaped heating element

13.2 Automatic temperature controller

1 temperature sensor
2 electric plug
3 electric cable
4 temperature regulator

The automatic temperature controller is a highly sensitive part. Therefore, it is advisable to make sure that it does not fall down, be

pushed or be shaken.

Only use the automatic temperature controller which has been supplied with the appliance. Never use a different controller.

When removing and inserting the temperature controller push the lever.

Close-up of a black leather shoe with a strap, resting on a white surface (no text or symbols visible)

When connecting the automatic temperature controller make sure that it has been plugged in correctly. Do not pull the cable but the plug of the temperature controller. Do not handle with exaggerated force or bend.

Always keep the temperature controller and the pin of the holder clean.

Always turn the controller before removing and inserting to the

Close-up of a mechanical component with a circular opening and two small holes, labeled 'A' in white (no other text or symbols)

starting point of the arrow as it may otherwise lead to overheating or failure.

Insert the automatic temperature controller in the connector "A". If the temperature controller isn't fixed properly, a very high

temperature can arise which can cause injuries or damages to the appliance. Please ensure that the temperature controller is plugged in correctly.

Immediately stop using the automatic temperature controller in case it is damaged or overheated. Do not repair by yourself. Take the appliance to the next authorised dealer and have it repaired.

The temperature controller should not be come into contact with the device! Always remove the plug from outlet, then remove temperature controller.

13.2.1 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

14 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

⚠️WARNUNG

Warning

▶ Do not leave the device unsupervised when it is in operation and remove the plug from the socket after use.

14.1 Switching on

Put the plug in a 230 volt safety-contact power outlet.

Turn the controller to desired level. Wait until the control lamp on temperature controller turns of then the device has reached the desired temperature.

Scale setting at the controller

HINWEIS Please note

▶ Turn the device off by rremove the plug.
▶. If the temperature falls down, the device is heating up again and the indicator light turns on again.
▶ Caution: The device can still be very hot over a

▲VORSICHT Attention

14.2 Cooking in a wok

Prepare the ingredients and cut them in columns or strips, so you can reduce the cooking tiem and preserve the flavor of our ingredients. Process only samm amount at time and adjust the temperature levels to your chosen ingredients. You can cook your ingredients in oil or broth. Are the ingredients greatly reduced that add a little liquid.

HINWEIS Please note

▶ Do not use sharp or pointed objects, they can damage the wok.
▶ Remove excessive marinade.
▶ Only use oil that is suitable for the temperature setting you have chosen.

14.3 Roasting

Set the device to 4-5 and wait until the wok is hot. Add a small amount of oil. Fry briefly smaller quantities and ensure constant stirring for a uniform heat supply from all sides. By short roasting you prevent drying of your ingredients. You can reduce the temperature after rorasting and add liquid to brew it longer in the liquid.

14.4 Frying

Select a higher temperature level and wait until the oil is hot.

Do not use the lid during frying to prevent dripping of liquid and formation of steam. Enter samm amounts of breaded ingredients gradually into the hot oil and fry them. So temperature level remains the same and your food is crispy on the outside and remains soft inside. Place the food on a piece of paper kitchen roll to remove excessive fat.

▲WARNUNG Risk of injury!

▶ Attention! Be careful during frying the oil becomes very hot.

14.5 Braising and stewing

Braise and stew your food with liquid using the lid on a lower temperature level.

15 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device.
▶ The device can be very hot after use. Danger of burns! Wait until device has cooled down.
▶ Remove the plog before cleaning of the device.. Then remove the temperature controller from the connector.
▶ Allow the temperature controller to cool down before removing it. After the use of the device it can be very hot.
▶ Clean the device after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
▶ If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
▶ Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.
▶ Do not use a sharp metal pusher
▶ Do not cut the food with a knife on the surface.
▶ Do not put the automatic temperature controller on the hot surface. It must not come into contact with the hot surface.
▶ No cleansing agents (except liquid soap), scouring pads or metallic brushes must be used as the surface of the device could be damaged.
▶ Always clean the plate after having used it with a damp cloth as food leftovers or oil sticked to the surface could adhere or bind.
▶ Do not use solvent-based cleaners such als gasoline to avoid damaging the plastic parts.

15.2 Cleaning

After cooling down cover the connector to avoid that water enters and clean the wok and the lid with a soft damp cloth and a mild detergent.

Temperature controller: Gently wipe the controller with a dry cloth.

▲WARNUNG Warning

▶ Never cleans the components of temperature controller.
▶ Cleaning of them may cause an electric shock or fire.

Base: Turn the knob on the bottom to remove the base. If necessary you can clean the base and the heating element as well with a slightly damp cloth. Place the base under the device again. Press and turn the knob to fix the base again.

16 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  ▶ Ensure that your old device is stored safely away from children until it is taken away.

17 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

18 Technical Data

Device	Electric Wok W1800	Dimensions (W, H)	46 cm x 24,5 cm
Item No.:	1492	Diameter of lid	33,5 cm
Mains data	230 V~ 50 Hz	Weight	3,7 kg
Power 1800 W

Close-up of a mechanical component with a central circular housing and multiple protruding rods (no visible text or symbols)

2 Poignées

Close-up of a black leather shoe handle and jaw (no text or symbols visible)

Close-up of a mechanical component with a labeled section 'A' and two small holes (no text or symbols beyond the label)

Close-up of a metallic knob with a glossy finish and directional arrow (no readable text or symbols)

Black wok with a dome-shaped lid and control knob, no visible text or symbols

Modello n. 1492

28 Istruzioni d'uso

28.1 In generale

Close-up of a metallic mechanical component with a circular central feature and multiple protruding rods (no visible text or symbols)

Close-up of a black rubber duck being held by a white plastic container (no text or symbols visible)

Close-up of a mechanical component with a labeled section 'A' and two small holes (no text or symbols beyond the label)

Close-up of a metallic industrial knob with control buttons (no readable text or symbols)

▲WARNUNG
