4-Some 153.741 - Effect machine BeamZ - Free user manual and instructions

Product type	Bubble machine with LED lighting
Brand	BeamZ
Model	4-Some 153.741
Dimensions (L x W x H)	400 x 300 x 300 mm
Weight	5 kg
Power supply	230 V / 50 Hz
Power consumption	300 W
Liquid type	Standard bubble liquid
Tank capacity	1 litre
Bubble output	Approximately 200 m³/min
Lighting	Multicolour RGB LED
Number of nozzles	4
Main functions	Bubble generation, LED lighting with colour effects
Control modes	Manual switch, remote control (included)
Noise level	Less than 50 dB
Operating temperature	5 °C to 40 °C
Maintenance and cleaning	Clean the tank and nozzles after each use with warm water
Safety	Overheat protection, do not immerse, use in a ventilated area
Spare parts and repairability	Tank, nozzles, fan, remote control available
General information	Designed for indoor use, parties and events

Frequently Asked Questions - 4-Some 153.741 BeamZ

What type of bubble liquid to use?

Use a standard bubble liquid for machines, commercially available. Avoid homemade liquids that could clog the machine.

How to fill the tank?

Open the tank cap and pour the bubble liquid up to the fill mark. Do not exceed the maximum capacity of 1 litre.

How to clean the machine after use?

Empty any unused tank, rinse it with warm water and clean the nozzles with a soft cloth. Let it dry completely before storing.

The machine is not producing bubbles, what to do?

Check the liquid level, ensure the nozzle is not blocked, and that the machine is properly plugged in. If the problem persists, the fan or pump may be defective.

Can I use the machine outdoors?

Yes, but only in dry weather and sheltered from the wind. Avoid direct exposure to rain or humidity.

How to change the colour LEDs?

The machine has a button on the control panel to cycle through colour modes: fixed, gradient or strobe. The remote control also allows selecting colours.

What is the lifespan of the LEDs?

The LEDs have a lifespan of approximately 50,000 hours. Under normal use, they should last several years.

The remote control does not work, what to do?

Replace the remote control battery (CR2025 button cell). Check that there is no obstacle between the remote and the sensor on the machine.

Where to find spare parts?

Contact BeamZ customer service or an authorised dealer. Parts such as tank, nozzles and fan are available online.

How to reset the machine to factory settings?

Turn off the machine, unplug it for 10 seconds, then plug it back in and turn it on. This resets the default settings.

USER MANUAL 4-Some 153.741 BeamZ

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

GEBRAUCHSANLEITUNG

MANUEL D'INSTRUCTIONS

ENGLISH

Congratulations to the purchase of this Beamz light effect. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• During operation, the housing becomes very hot. Do not touch it during operation and immediately after.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Secure the unit with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1 meter space on every side to ensure sufficient cooling.
• This unit contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes.
• Do not repeatedly switch the fixture on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the unit with clean hands.
• Do not force the controls.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5° C/41°F and 35° C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the controller is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The controller must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

INSTALLATION

CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers!

Attention:

• The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
• The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
• The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
• The fixture should be installed in the position where persons cannot reach and where persons may walk by or be seated.

CAUTION: When installing the device, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min 0.5 meter.

DISPLAY

Three ways to operation:

A. Master/Slave operation
B. Easy sound active and Auto mode
C. Universal DMX controller

The unit can be linked together in daisy chain as many as you need in master/slave mode to perform the great built-in pre-programmed lighting shows triggered by music.

In Master/Slave mode refer to the DMX settings below:

Master unit : when working at Auto-run or Sound Control mode operation

Slave units : DMX start address MUST be set to d001.

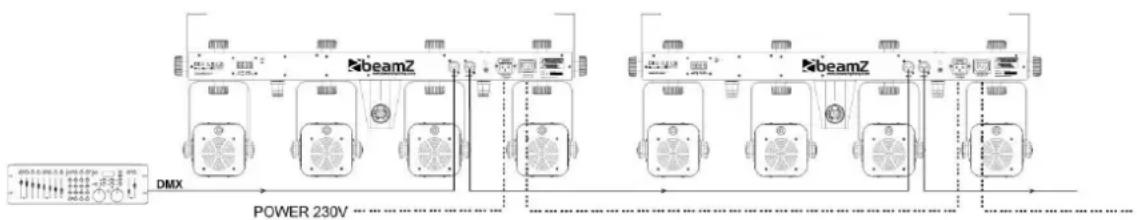

DMX-512 CONNECTION

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected. If you use a controller with 5 pin DMX connection you will need to use a 5-pin to 3-pin adapter.

At the last fixture, the DMX cable has to be terminated. Solder a 120 Ohm resistor between signal (-) and signal (+) into a 3-pin XLR connector and plug this into the DMX output of the last fixture in the chain.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

FIXTURE CLEANING

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's optics.

• Make sure the area below the installation place is free from unwanted persons during servicing
- Housings, fixations and installations spots( ceiling, truss, suspensions) should be totally free from any deformation
- The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected
- In order to protect the fixture from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
- The interior of the fixture should be cleaned annually using a vacuum cleaner or air-jet.
- Clean with soft cloth using normal glass cleaning fluid.
• Always dry the parts carefully.
- Clean the external optics at least every month. Clean the internal optics at least every 30/60 days.

ATTENTION: We strongly recommend internal cleaning to be carried out by qualified worker!

NEDERLANDS

REPLACEMENT DU FUSIBLE

DMX	Value	Description
CH1~ CH4	0~10	All color off
	11~15	All White
	16~20	All Red
	21~25	All Green
	26~30	All Blue
	31~35	Group 1 of White
	36~40	Group 2 of White
	41~45	Group 3 of White
	46~50	Group 1 of Red
	51~55	Group 2 of Red
	56~60	Group 3 of Red
	61~65	Group1 of Green
	66~70	Group 2 of Green
	71~75	Group 3 of Green
	76~80	Group 1 of Blue
	81~85	Group 2 of Blue
	86~90	Group 3 of Blue
	91~95	Group 1 of Red & all White
	96~100	Group 2 of Red & all White
	101~105	Group 3 of Red & all White
	106~110	Group 1 of Green & all Blue
	111~115	Group 2 of Green & all Blue
	116~120	Group 3 of Green & all Blue
	121~125	Group 1 of White & all Green
	126~130	Group 2 of White & all Green
	131~135	Group 3 of White & all Green
	136~140	Group 1 of Blue & all Red
	141~145	Group 2 of Blue & all Red
	146~150	Group 3 of Blue & all Red
	151~155	Group 1 of white & Group 1 of Red
	156~160	Group 2 of white & Group 2 of Red
	161~165	Group 3 of white & Group 3 of Red
	166~170	Group 1 of Green & Group 1 of Blue
	171~175	Group 2 of Green & Group 2 of Blue
	176~180	Group 3 of Green & Group 3 of Blue
	181~185	Group 1 of White & Group 1 of Green
	186~190	Group 2 of White & Group 2 of Green
	191~195	Group 3 of White & Group 3 of Green
	196~200	Group 1 of Red & Group 3 of Blue
	201~205	Group 2 of Red & Group 2 of Blue
	206~210	Group 3 of Red & Group 1 of Blue
	211~215	Group 1 of White & Group 3 of Green
	216~220	Group 2 of White & Group 2 of Green
	221~225	Group 3 of White & Group 1 of Green
	226~230	Group 1 for Red, Green, Blue and White
	231~235	Group 2 for Red, Green, Blue and White
	236~240	Group 3 for Red, Green, Blue and White
	241~245	All White & all Red
	246~250	All White & all Red & all Green
	251~255	All color On
CH5	11~255	LED Strobe (From slow to fast)
CH6	11~140	Auto program 1 by DMX
	141~150	Auto program 2 by DMX
	151~160	Auto program 3 by DMX
	161~170	Auto program 4 by DMX
	171~180	Auto program 5 by DMX
	181~190	Auto program 6 by DMX
	191~200	Auto program 7 by DMX
	201~255	Sound mode by DMX
CH7	0~255	Auto DMX/ Sound DMX Speed (Slow--Fast)

MANUAL SETTING MODE:

Mode	Programming Steps	Description
A1 Mode	Auto program 1	Speed 1~9
A2 Mode	Auto program 2	Speed 1~9
A3 Mode	Auto program 3	Speed 1~9
S1 Mode	Sound program 1	Speed 1~9
S2 Mode	Sound program 2	Speed 1~9
S3 Mode	Sound program 3	Speed 1~9
d Mode	DMX setting.
L Mode	"0" for Light Off under Sound mode no music, "1" for Light On under Sound mode no music.

TECHNICAL SPECIFICATION

Rated voltage : AC220\~240V 50Hz

Rated power : 25W

LED : 36 x White, 48 x Red, 72 x Green and 72 x Blue

Fuse : 3A

Control Signal : DMX signal

DMX Channel : 7 Channels

Function : DMX, Auto, Sound active and Master-Slave.

Dimensions per unit : 890 x 120 x 350 mm

Weight (per unit) : 4,8 kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

tronios

Sound & Light

CE Declaration of Conformity

Supplier Details: TRONIOS BV

Regulatory Requirement: EN 60598-1/2

EN 60335-1

EN 55014-1/-2

EN 61000-3

The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to the above mentioned Declarations.

ALMELO,

04-04-2014

Name : P. Feldman

Controller regulations

Signature :

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2014 by TRONIOS the Netherlands
