Product type	Rotary electric shaver
Brand	Philips
Model	Series 9000 S9121
Power source	Rechargeable lithium-ion battery, 1-hour quick charge, 50 minutes runtime
Input voltage	100-240 V, automatic
Shaving head	3 flexible rotary heads with multidirectional rotation system
Blade technology	Self-sharpening NanoTech blades, antibacterial
Usage	Dry or wet shaving (waterproof up to 5 meters)
Additional features	Retractable trimmer for sideburns and contours
Charge indicator	3-level LED, cleaning and replacement indicator
Maintenance	Rinseable under tap, Click & Clean system for easy opening
Included accessories	Travel case, cleaning brush, power adapter
Dimensions (L x W x H)	5.5 x 2.5 x 2.5 inches (approx. 14 x 6.4 x 6.4 cm)
Weight	Approx. 200 g (without cable)
Color	Black with silver accents
Shaving head lifespan	2 years (replacement recommended every 12 months for optimal performance)
Warranty	2 years (depending on country)

Frequently Asked Questions - Series 9000 S9121 PHILIPS

How to clean the Philips Series 9000 S9121 shaver?

Open the shaving head by pressing the side button. Rinse the heads and trimmer under warm water. Close and let air dry. Do not use abrasive cleaners.

How long does it take to fully charge the shaver?

Full charge takes about 1 hour. A 5-minute quick charge is enough for one shave.

Can I use this shaver in the shower?

Yes, the shaver is waterproof and can be used in the shower for wet shaving with foam or gel.

How often should the shaving heads be replaced?

Philips recommends replacing the shaving heads every 12 months to maintain optimal performance. The replacement indicator lights up when needed.

How do I know when the shaving heads need to be changed?

An LED indicator on the shaver lights up orange to signal that the heads need replacement. Refer to the manual for compatible references.

Is the shaver supplied with a travel case?

Yes, the Philips Series 9000 S9121 comes with a travel case to protect the device during travel.

Can I use the shaver cordless?

Yes, the shaver runs on rechargeable battery. You can use it cordless after a full charge.

How to use the retractable trimmer?

Slide the button on the side of the shaver to deploy the trimmer. Use it to trim sideburns and contours. Rinse it after use.

What if the shaver does not turn on?

Check that the battery is charged. Plug the shaver into the charger for at least 5 minutes. If the problem persists, contact Philips customer service.

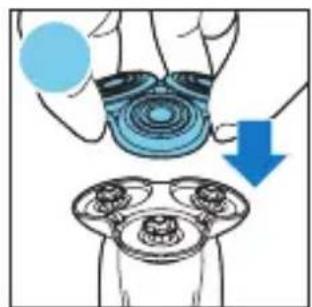

How to replace the shaving heads?

Press the unlock buttons on each side of the head. Remove the old heads and insert the new ones by snapping them in. Use replacement heads Philips SH90 Series 9000.

USER MANUAL Series 9000 S9121 PHILIPS

PHILIPS digital brush with three rotary dials and power button (no text or symbols on body)

PHILIPS

Diagram showing five panels with arrows pointing to each panel, connected by an open door (no text or symbols)

Diagram of a mechanical or electrical component with circular features and labeled 'Plus' (no readable text or symbols beyond label)

Illustration of a white handheld device with a circular icon and a battery symbol, set against a blue background (no text or symbols on the device itself)

Illustration of two electric shaver units with cutouts, shown against a plain blue background (no text or symbols)

Illustration of a person applying a blue tool to their ear (no text or symbols present)

Illustration of a blue robotic arm pressing a button on a white base, with a numbered circle in the top-left corner (no text or symbols on the diagram itself)

Illustration of a blue handheld device with an upward arrow, emitting light (no text or symbols)

Line drawing of a mechanical component with a bulb and handle, shown against a solid blue background (no text or symbols)

Simple line drawing of a container with a blue lid and an upward arrow, no text or symbols present.

Illustration of a blender with a blue arrow pointing to a container (no text or symbols)

Illustration of a blue mechanical component with a blue arrow indicating direction (no text or symbols)

Illustration of a white cylindrical device with a tapered top and internal structure, accompanied by two blue circular icons labeled 'C' and 'W' (no text or symbols on the device itself)

Illustration of a blender with a blue container and a numbered label (3) in the corner, no text or symbols present.

Simple line drawing of a box with a blue cylindrical object inside, showing a blue arrow pointing downward (no text or symbols)

Simple line drawing of a container with a blue lid and an upward arrow, no text or symbols present.

Diagram of a device being inserted into a container, with no visible text or symbols

Illustration of a blue mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a three-bladed fan or turbine component with a 1M calendar icon (no text or symbols on the fan or background)

Diagram of a mechanical component with a blue arrow indicating upward motion, no text or symbols present

Illustration of a diverging water pump with two submerged objects, one labeled '5' (no text or symbols on the diagram itself)

Illustration of a hand holding a mechanical bearing with a blue arrow indicating direction (no text or symbols)
    note right of B: An arrow points to the structure, indicating a transformation or interaction between the two components.

Illustration showing a hand holding a circular object with a blue circle above and a downward arrow pointing to a separate view of a multi-circular object (no text or symbols present)

ENGLISH 12 DEUTSCH 36 FRANÇAIS 62 NEDERLANDS 87

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable.

General description (Fig. 1)

1 Comb for beard styler attachment
2 Click-on beard styler attachment
3 Click-on trimmer attachment
4 Click-on shaving unit
5 On/off button
6 Socket for small plug
7 Exclamation mark
8 Replacement reminder
9 Battery charge indicator
10 Travel lock symbol
11 Cleaning reminder
12 Replacement symbol
13 SmartClean system
14 Cap of SmartClean system
15 On/off button
16 Cleaning symbol
17 Drying symbol
18 Ready symbol
19 Charge symbol
20 Cleaning cartridge for SmartClean system
21 Adapter
22 Small plug
23 Retaining ring holder
24 Pouch

Important

Read this user manual carefully before you use the shaver and the SmartClean system. Save this user manual for future reference.

No sign depicting a faucet without a shower, enclosed in a circle (no text or symbols)

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• The shaver and the SmartClean system are not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of these appliances by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the shaver and the SmartClean system.
• Always unplug the shaver before you clean it under the tap.

No sign depicting a faucet with a diagonal line and a circular background (no text or symbols)

Caution

• Never immerse the SmartClean system in water nor rinse it under the tap.
• Never use water hotter than 80^irc C to rinse the shaver.
• Do not use the shaver, SmartClean system, adapter or any other part if it is damaged, as this may cause injury. Always replace a damaged adapter or part with one of the original type.
• Only use the SmartClean system with the original cleaning cartridge.
• Always place the SmartClean system on a stable, level and horizontal surface to prevent leakage.
• Always make sure that the cartridge compartment is closed before you use the SmartClean system to clean or charge the shaver.
• When the SmartClean system is ready for use, do not move it to prevent leakage of cleaning fluid.

Simple line drawing of a showerhead spraying over water (no text or symbols)

• The SmartClean system thoroughly cleans but does not disinfect your shaver, therefore do not share the shaver with others.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Compliance with standards

• This shaver is waterproof and complies with the internationally approved safety regulations. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used cordlessly.
• The shaver and the SmartClean system comply with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• The adapter is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.
• Maximum noise level: Lc = 69dB(A)

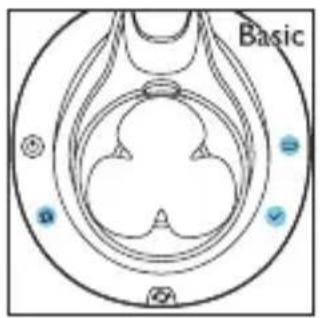

The display

Note: Before you use the shaver for the first time, remove the protective foil from the display.

The various shaver types have different displays, which are shown in the figures below.

- S91XX/S90XX

Charging

Simple line drawing of a symmetrical object with a central circular feature (no text or symbols)

- Charging takes approx. 1 hour.

Note: This appliance can only be used cordlessly.

• When the shaver is connected to the mains, you hear a sound. First the bottom light flashes white then lights up white continuously. Then the second light flashes and then lights up continuously, and so on until the shaver is fully charged.

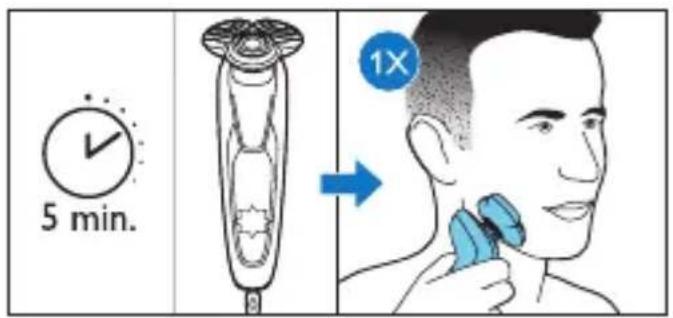

• Quick charge: When the bottom light stops flashing and lights up continuously, the shaver contains enough charge for one shave.

Battery fully charged

Simple line drawing of a vertical object with a circular button labeled 'S' (no text or symbols beyond the label)

Note: This appliance can only be used cordlessly.

Note: When the battery is full, the display switches off automatically after 30 minutes. When you press the on/off button during or after charging, you hear a sound to indicate that the shaver is still connected to the mains.

- When the battery is fully charged, all lights of the battery charge indicator light up white continuously.

Battery low

Simple line drawing of a symmetrical object with an orange central symbol and a small circle at the top (no text or labels)

- When the battery is almost empty, the bottom light flashes orange and you hear a sound.

Remaining battery capacity

- The remaining battery capacity is indicated by the lights of the battery charge indicator that light up continuously.

Cleaning reminder

Simple line drawing of a funnel with a water symbol inside, and a blue circular icon labeled '水' (water) in the corner (no text or symbols on the diagram itself)

For optimal shaving performance, we advise you to clean the shaver after every use.

- When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.

Travel lock

You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident.

Activating the travel lock

Simple line drawing of a human leg with a lock icon and a blue lock symbol (no text or labels)

1 Press the on/off button for 3 seconds to enter the travel lock mode.

While you activate the travel lock, the travel lock symbol lights up white continuously. When the travel lock is activated, the shaver produces a sound and the travel lock symbol flashes.

Deactivating the travel lock

Simple line drawing of a human leg with a lock icon and a small blue lock symbol (no text or labels)

1 Press the on/off button for 3 seconds.

The travel lock symbol flashes and then lights up continuously.

The shaver is now ready for use again.

Note: You can also deactivate the travel lock by connecting the appliance to the mains.

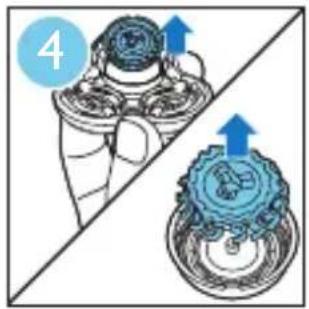

Replacing shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

- The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The replacement reminder lights up white continuously and the arrows flash white. You hear a beep to indicate you have to replace the shaving heads.

Note: After replacing the shaving heads, you need to reset the shaver by pressing the on/off button for 7 seconds.

Exclamation mark

Blocked shaving heads

• If the shaving heads are blocked, the exclamation mark lights up orange continuously. The replacement reminder and the cleaning reminder flash white alternately and you hear a sound. In this case, the motor cannot run because the shaving heads are soiled or damaged.
• When this happens, you have to clean the shaving heads or replace them.

Simple line drawing of a mechanical component with an orange star and a blue warning circle (no text or symbols)

Overheating

• If the appliance overheats during charging, the exclamation mark flashes orange.
• When this happens, the shaver automatically switches off. Charging continues once the appliance is back to the normal temperature.

Charging

Charging takes approx. 1 hour. A fully charged shaver has a shaving time of up to 50 minutes.

Note: You cannot use the appliance while charging.

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

Charging with the adapter

1 Make sure the appliance is switched off.
2 Insert the small plug into the appliance (1) and put the adapter in the wall socket (2).

Charging in the SmartClean system

Illustration of a blue pen tip inserted into a glass container with a downward arrow (no text or symbols)

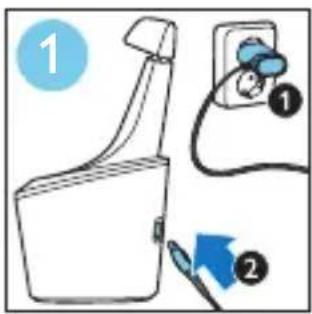

1 Put the small plug in the SmartClean system.
2 Put the adapter in the wall socket.
3 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

4 Place the shaver in the holder (1), tilt the shaver backwards (2) and press down the top cap to connect the shaver ('click') (3).

Note: The battery symbol lights up to indicate the appliance is charging.

Using the shaver

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system.

We advise you to shave regularly (at least 3 times a week) with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver.

Tip: To ensure the best result, we advise you to pre-trim your beard if you have not shaved for 3 days or longer.

Note: This appliance can only be used cordlessly.

1 Press the on/off button once to switch on the shaver. The display lights up for a few seconds.

Illustration of a person applying facial hair to their ear with a blue brush (no text or symbols)

2 Move the shaving heads over your skin in circular movements.

- Do not make straight movements.

3 Press the on/off button once to switch off the shaver.

The display lights up for a few seconds and then shows the remaining battery charge.

Wet shaving

You can also use this shaver on a wet face with shaving foam or shaving gel.

To shave with shaving foam or shaving gel, follow the steps below:

Illustration of a person's face with a blue-tinted object on the cheek, no text or symbols present

1 Apply some water to your skin.

Line drawing of a person applying a blue-tinted product to their face (no text or symbols)

2 Apply shaving foam or shaving gel to your skin.

Illustration of a hand washing a small object with water flowing from a faucet (no text or symbols)

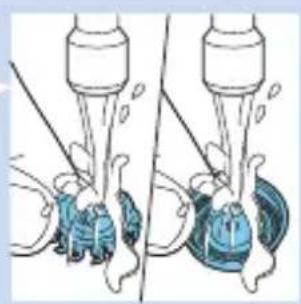

3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

4 Press the on/off button once to switch on the shaver.

Illustration of a person applying a blue hair accessory to their ear (no text or symbols present)

5 Move the shaving heads over your skin in circular movements.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 Dry your face and thoroughly clean the shaver after use (see chapter ‘Cleaning and maintenance’).

Note: Make sure you rinse all foam or shaving gel off the shaver.

Using the click-on attachments

Using the trimmer attachment

You can use the trimmer attachment to groom your sideburns and moustache.

Illustration of a blue flying saucer with a red cross symbol and upward arrow, placed on a curved surface (no text or symbols)

1 Pull the shaving unit straight off the appliance.

Note: Do not twist the shaving unit while you pull it off the appliance.

Illustration of a robotic arm with motion arrows and a graduation cap inset (no text or symbols)

2 Insert the lug of the trimmer attachment into the slot in the top of the shaver. Then press down the trimmer attachment to attach it to the appliance ('click').

3 Press the on/off button once to switch on the appliance.

The display lights up for a few seconds.

Illustration of a person using a hairdryer to apply product (no text or symbols present)

4 You can now start trimming.

5 Press the on/off button once to switch off the appliance.

The display lights up for a few seconds to show the remaining battery charge.

Illustration of a blue mechanical component pressing down on a curved surface (no text or symbols)

6 Pull the trimmer attachment straight off the appliance.

Note: Do not twist the trimmer attachment while you pull it off the appliance.

7 Insert the lug of the shaving unit into the slot in the top of the appliance. Then press down the shaving unit to attach it to the appliance ('click').

Illustration of a medical device with a blue dome and red X marks, no text or symbols present

Using the beard styler attachment

1 Make sure the appliance is switched off.
2 Pull the shaving unit straight off the appliance.

Note: Do not twist the shaving unit while you pull it off the appliance.

Illustration of a medical procedure with a blue tool and magnified view showing a graduation cap and coins (no text or symbols)

3 Insert the lug of the beard styler attachment into the slot in the top of the appliance. Then press down the beard styler attachment to attach it to the appliance ('click').

Using the beard styler attachment with comb

You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.

Line drawing of a hairbrush with a blue brush applying powder to the jaw (no text or symbols)

1 Slide the comb straight into the guiding grooves on both sides of the beard stylist attachment ('click').

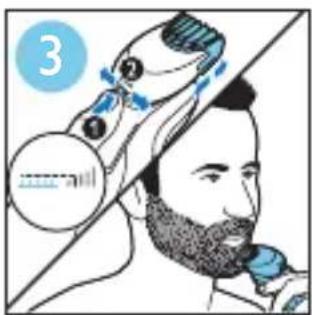

2 Press the length selector and then push it to the left or right to select the desired hair length setting.
3 Press the on/off button once to switch on the appliance.
4 You can now start styling your beard.

Illustration of a person brushing a beaded tooth with a blue brush (no text or symbols)

Using the beard styler attachment without comb

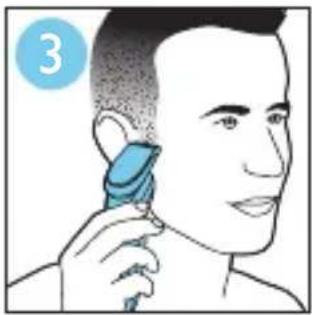

You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline.

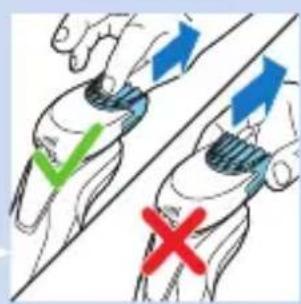

1 Pull the comb off the beard stylist attachment.

Note: Grab the comb in the centre to pull it off the beard styler attachment. Do not pull at the sides of the comb.

Illustration of a person applying a blue tool to their neck (no text or symbols)

2 Press the on/off button once to switch on the appliance.
3 You can now start contouring your beard, moustache, sideburns or neckline.

Cleaning and maintenance

Cleaning the shaver in the SmartClean system

Pure diagram of a symmetrical mechanical or architectural component with no text, numbers, or symbols

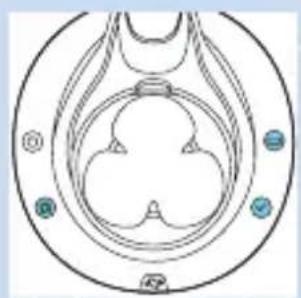

The SmartClean system comes in two types:

- SmartClean system Basic has one phase: the rinsing phase.

Symmetrical abstract diagram with concentric circles and small circular elements, no text or symbols present

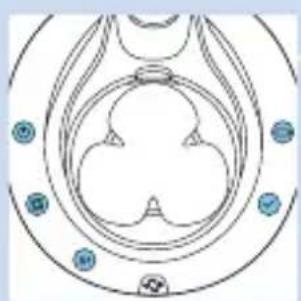

- SmartClean system Plus has two phases: the rinsing phase and the drying phase.

Simple line drawing of a paintbrush with a red X mark and water droplets, no text or symbols present.

Preparing the SmartClean system for use

Do not tilt the SmartClean to prevent leakage.

Note: Hold the SmartClean while you prepare it for use.

1 Put the small plug in the back of the SmartClean system.

2 Put the adapter in the wall socket.

3 Press the button on the side of the SmartClean system (1) and lift the top part of the SmartClean system (2).

4 Pull the seal off the cleaning cartridge.

Simple line drawing of a container with a blue lid and an upward arrow, no text or symbols present.

5 Place the cleaning cartridge in the SmartClean system.

Illustration of a blender with a blue arrow pointing to its liquid inside a container (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Illustration of a blue mechanical component with a downward arrow indicating motion (no text or symbols)

Using the SmartClean system

Always make sure to shake excess water off the shaver before you place it in the SmartClean.

ENGLISH24

Illustration of a blue pen tip inserted into a glass container with a downward arrow (no text or symbols)

1 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

2 Place the shaver in the holder (1), tilt the shaver backwards (2) and press down the top cap to connect the shaver ('click') (3).

The battery symbol and the on/off button start to flash, which indicates that the shaver is charging.

Illustration of a hand inserting a power button into a device (no text or symbols)

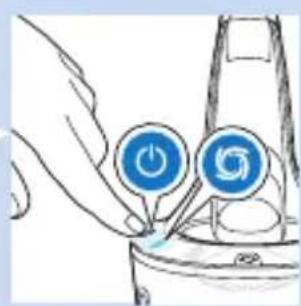

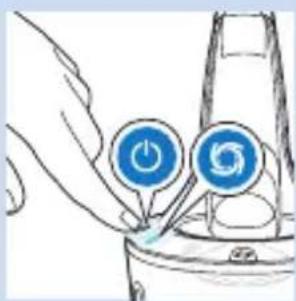

3 Press the on/off button on the SmartClean system to start the cleaning program.

The on/off button and the rinsing symbol both light up continuously.

Simple line drawing of a funnel with two blue circular icons labeled 'Power' and 'Stimulus', no text or symbols present.

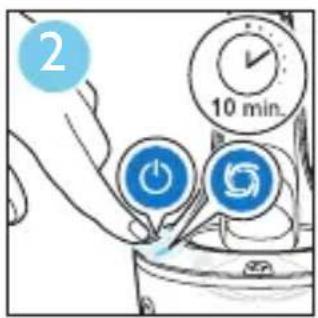

Note: The rinsing phase takes approx. 10 minutes.

▶SmartClean systems Plus only:

During the drying phase, the drying symbol lights up continuously.

Note: The drying phase takes approx. 4 hours.

Illustration of a funnel-shaped container with two circular indicators (blue checkmark and blue circle) pointing to it, no text or symbols present.

When the cleaning program has been completed, the ready symbol lights up continuously.

The battery symbol lights up continuously to indicate that the shaver is fully charged.

Note: Charging takes approx. 1 hour.

Note: If you press the on/off button of the SmartClean system during the cleaning program, the program aborts. In this case, the rinsing or drying symbol stops flashing.

Illustration of a blender with a blue arrow indicating liquid being poured into it (no text or symbols)

Illustration of a blue mechanical component with a downward arrow indicating direction (no text or symbols)

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts.

Note: 30 minutes after the cleaning program and charging have been completed, the SmartClean switches off automatically.

Replacing the cartridge of the SmartClean System

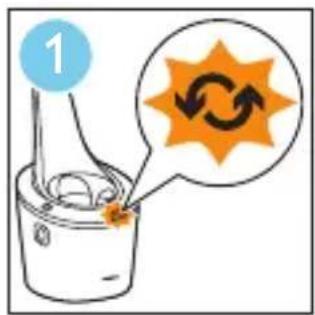

- Replace the cleaning cartridge when the replacement symbol flashes orange or when you are no longer satisfied with the result.

1 Press the button on the side of the SmartClean system (1) and lift the top part of the SmartClean system (2).

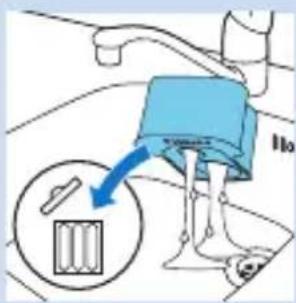

2 Take the empty cleaning cartridge from the SmartClean system and pour any remaining cleaning fluid out of the cleaning cartridge.
You can simply pour the cleaning fluid down the sink.

3 Throw away the empty cleaning cartridge.

4 Unpack the new cleaning cartridge and pull the seal off the cartridge.

5 Place the new cleaning cartridge in the SmartClean system.

6 Push the top part of the SmartClean system back down ('click').

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal shaving performance.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Illustration of a hand washing a blue object with a water dispenser (no text or symbols)

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

1 Switch off the shaver.
2 Rinse the shaving unit under a warm tap for some time.
3 Pull the shaving head holder off the bottom part of the shaving unit.

Illustration of a human leg with concentric contour lines and an upward arrow indicating pressure or movement (no text or symbols)

Illustration of a hand pouring liquid into a blue container with bubbles (no text or symbols)

4 Rinse the shaving head holder under a warm tap.

5 Carefully shake off excess water and let the shaving head holder dry.

6 Reattach the shaving head holder to the bottom part of the shaving unit ('click').

Thorough cleaning method

Illustration of a human leg with a blue arrow indicating upward motion (no text or symbols)

Make sure the appliance is switched off.

1 Pull the shaving head holder off the bottom part of the shaving unit.

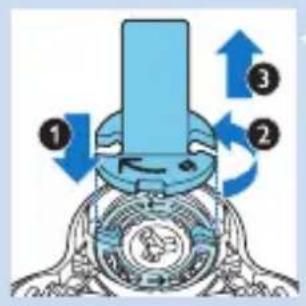

2 Place the retaining ring holder on the retaining ring (1), turn it anticlockwise (2) and lift it off the shaving head (3).

Remove the retaining ring from the retaining ring holder and repeat this process for the other retaining rings.

Diagram showing two mechanical components with blue arrows indicating direction, no text or symbols present

3 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

Illustration of two mechanical components with ropes and a blue mesh component, no text or symbols present

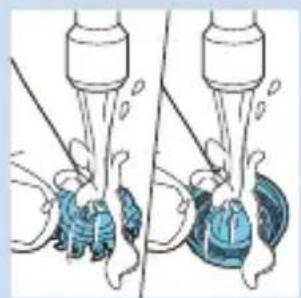

4 Clean the cutter and guard under the tap.

Diagram of a mechanical gear system with a blue arrow indicating direction (no text or symbols)

5 After cleaning, place the cutter back into the guard.

Diagram showing a blue circular object being lifted by a blue arrow into a ring structure (no text or symbols)

6 Put the shaving heads back into the shaving head holder.

Note: Make sure the projections of the shaving heads fit exactly into the recesses.

7 Place the retaining ring holder on the retaining ring (1), place it on the shaving head (2) and turn it clockwise (3) to reattach the retaining ring.

Repeat this process for the other retaining rings.

8 Reattach the shaving head holder to the bottom part of the shaving unit.

Cleaning the click-on attachments

Illustration of a blue plastic bag pouring liquid into a pipe (no text or symbols)

Cleaning the trimmer attachment

Clean the trimmer attachment every time you have used it.

1 Switch on the appliance with the trimmer attachment attached.
2 Rinse the trimmer attachment under a hot tap for some time.
3 Carefully shake off excess water and let the trimmer attachment dry.
4 After cleaning, switch off the appliance.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the beard styler attachment

Clean the beard styler attachment every time you have used it.

Illustration of two blue fish jumping from a pipe, one falling and the other rising (no text or symbols)

1 Pull the comb off the beard stylist attachment.
2 Rinse the beard styler attachment and the comb separately under a hot tap for some time.
3 Carefully shake off excess water and let the beard styler attachment and comb dry.
4 Lubricate the teeth with a drop of sewing machine oil every six months.

Storage

Illustration of a blue dental tool with a downward arrow indicating compression or disassembly (no text or symbols)

1 Store the shaver in the pouch supplied.

Note: We advise you to let the shaver dry before you store it in the pouch.

Replacement

Replacing the shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving unit symbol lights up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads right away.

Only replace the shaving heads with original SH90 Philips shaving heads.

1 The shaving unit symbol lights up continuously, the arrows flash white and you hear a beep when you switch off the shaver.

Illustration of a human hand with a blue arrow pointing upward on the wrist area, showing concentric circular patterns (no text or symbols)

2 Pull the shaving head holder off the bottom part of the shaving unit.

3 Place the retaining ring holder on the retaining ring (1), turn it anticlockwise (2) and lift it off the shaving head (3).

Remove the retaining ring from the retaining ring holder and repeat this process for the other retaining rings.

Illustration of a hand holding a mechanical component with a magnified view of its internal structure (no text or symbols)

4 Remove the shavings heads from the shaving head holder and throw them away.

Diagram showing a blue circular object falling into a ring with a blue arrow pointing downward (no text or symbols)

5 Place new shaving heads in the holder.

Note: Make sure the projections of the shaving heads fit exactly into the recesses.

6 Place the retaining ring holder on the retaining ring (1), place it on the shaving head (2) and turn it clockwise (3) to reattach the retaining ring.

Repeat this process for the other retaining rings.

7 Reattach the shaving head holder to the bottom part of the shaving unit.

8 To reset the shaver, press and hold the on/off button for approx. 7 seconds. Wait until you hear two beeps.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service. or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

The following parts are available:

• HQ8505 adapter
• SH90 Philips shaving heads
• HQ110 Philips Shaving Head Cleaning Spray
• RQ111 Philips beard styler attachment
• RQ585 Philips cleansing brush attachment
• RQ560/RQ563 Philips cleansing brush heads
• JC301/JC302/JC303/JC304/JC305 cleaning cartridge

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace the shaving heads with original SH90 Philips shaving heads.

Environment

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

- Do not throw away the shaver and the SmartClean system with the normal household waste at the end of their life, but hand them in at an official collection point for recycling. By doing this, you help to preserve the environment.

Simple line drawing of a trash bin with no text or symbols

- The built-in rechargeable shaver battery contains substances that may pollute the environment. Always remove the battery before you discard or hand in the shaver at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the shaver to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it.

Be careful, the battery strips are sharp.

1 Insert the screwdriver into the slot between the front and back panel in the bottom of the appliance. Remove the back panel.
2 Remove the front panel.
3 Unscrew the two screws at the top of the inner panel and remove the inner panel.
4 Remove the rechargeable battery with a screwdriver.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution
The shaver does not work when I press the on/off button.	The shaver it still attached to the mains. For safety reasons, the shaver can only be used cordlessly.	Unplug the shaver and press the on/off button to switch on the shaver.
	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’).
	The travel lock is activated.	Press the on/off button for 3 seconds to deactivate the travel lock.
The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Hairs or dirt obstruct the shaving heads.	Clean the shaving heads (see chapter ‘Cleaning and maintenance’).
		Clean the shaver thoroughly before you continue shaving (see chapter ‘Cleaning and maintenance’).
I replaced the shaving heads, but the replacement reminder is still showing.	You have not reset the shaver.	Reset the shaver by pressing the on/off button for approx. 7 seconds (see chapter ‘Replacement’).
A shaving head symbol has suddenly appeared on the display.	This symbol is a replacement reminder.	Replace the shaving heads (see chapter ‘Replacement’).
An exclamation mark has suddenly appeared on the display while charging.	The shaver is overheated.	Disconnect the shaver from the mains for approx. 10 minutes.
An exclamation mark, replacement reminder and the cleaning reminder have suddenly appeared on the display.	The shaving heads are soiled or damaged.	Replace (see chapter ‘Replacement’) or clean the shaving heads (see chapter ‘Cleaning and maintenance’).
Water is leaking from the bottom of the shaver.	During cleaning, water may collect between the inner body and the outer shell of the shaver.	This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.
The SmartClean system does not work when I press the on/off button.	The SmartClean system is not connected to the mains.	Put the small plug in SmartClean system and put the adapter in the wall socket.
The shaver is not entirely clean after I clean it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly, so there is no electrical connection between the SmartClean system and the shaver.	Press down the top cap (‘click’) to ensure a proper connection between the shaver and the SmartClean system.
	The cleaning cartridge needs replacement.	Replace the cleaning cartridge (see chapter ‘Cleaning and maintenance’).
	The cleaning cartridge is empty. The replacement symbol flashes to indicate you have to replace the cleaning cartridge.	Place a new cleaning cartridge in the SmartClean system (see chapter ‘Cleaning and maintenance’).
	You have used another cleaning fluid than the original Philips cleaning cartridge.	Only use the Philips cleaning cartridge.
	The drain of the cleaning cartridge might be blocked.	Push the hairs down the drain with a toothpick.
The shaver is not fully charged after I charge it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly.	Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.

Einführung

Gefahr

No sign depicting a faucet with a diagonal line and a diagonal line, indicating no restrictions or absence of any other measures.

Achtung

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Simple line drawing of a symmetrical object with an orange central feature, no text or symbols present.

Simple line drawing of a funnel with a water drop symbol and a blue circular icon (no text or labels)

Diagram of a human leg with a lock icon and a blue lock symbol (no text or labels)

Diagram of a human leg with a lock icon and a blue lock symbol (no text or labels)

Simple line drawing of a mechanical component with an orange star and a blue warning symbol (no text or labels)

Überhitzen

Illustration of a blue pen tip inserted into a glass container with a downward arrow (no text or symbols)

Illustration of a person applying a blue brush to their face, showing the brush tip and eye area (no text or symbols)

Illustration of a person's face with a hand touching the cheek area, showing a blue highlighted area (no text or symbols)

Nassrasur

Line drawing of a person applying a product to their neck area (no text or symbols)

Illustration of a hand washing a blue object with a tool inserted (no text or symbols)

Illustration of a person applying a blue brush to their face, showing the brush tip and eye area (no text or symbols)

Illustration of a blue flying saucer with red X marks above a curved surface, no text or symbols present.

Illustration of a blue medical or laboratory device with a magnified inset showing a graduation cap and a droplet on a surface (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Illustration of a blue tool pressing down on a curved surface with an upward arrow (no text or symbols)

Illustration of a flying saucer with a red cross symbol and an upward arrow, placed on a curved surface (no text or symbols)

Illustration of a medical procedure on a hand, showing a blue surgical instrument and a magnified inset of a graduation cap (no text or symbols present)

Illustration of a hairbrush cutting through a comb with blue motion arrows (no text or symbols)

Illustration of a person brushing their beard with a blue brush (no text or symbols)

Illustration of a person applying a blue hair accessory to their neck (no text or symbols)

Symmetrical abstract diagram with circular outline and internal curved shapes, no text or symbols present

Symmetrical abstract diagram with circular and petal-like shapes, no text or symbols present

Simple line drawing of a paintbrush with a red X mark and blue liquid, no text or symbols present.

Simple line drawing of a container with a blue lid and an upward arrow, no text or symbols present.

Illustration of a blender with a blue arrow pointing to its liquid inside a container (no text or symbols)

Illustration of a blue mechanical device with a downward arrow indicating rotation (no text or symbols)

Illustration of a blue pipette dispensing liquid into a glass container (no text or symbols)

Hand holding two blue circular icons with 'Power' and 'Rotate' symbols, next to a device (no text or labels)

Simple line drawing of a device with two blue circular icons labeled 'Power' and 'Hot Water', no text or symbols present.

Diagram of a blender with a blue arrow indicating flow or insertion (no text or symbols)

Illustration of a blue mechanical component with a blue arrow indicating direction (no text or symbols)

Illustration of a hand washing a blue plastic bag with a water dispenser (no text or symbols)

Illustration of a human leg with concentric blue contour lines and an upward arrow indicating motion or pressure (no text or symbols)

Illustration of a hand pouring liquid into a blue container with bubbles (no text or symbols)

Illustration of a human leg with concentric contour lines and an upward arrow indicating pressure or movement (no text or symbols)

Diagram showing two mechanical components with blue arrows indicating direction, no text or symbols present

Illustration of two mechanical components with hoses and levers, no text or symbols present

Diagram of a mechanical component with a blue arrow pointing downward, no text or symbols present

Diagram showing a blue circular object above a metallic ring with a downward arrow, no text or symbols present.

Illustration of a blue plastic bag pouring liquid from a pipe outlet (no text or symbols)

Illustration of a blue spray bottle pouring liquid onto a white funnel, separated by a diagonal line (no text or symbols)

Illustration of a blue brush holding a flat object with a downward arrow, no text or symbols present

Simple line drawing of a guitar body with musical notes and a blue circular icon (no text or symbols)

Illustration of a hand holding a wrist with a blue arrow indicating upward motion (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating direction, alongside a close-up of a circular component (no text or symbols present)

Diagram showing a blue circular object being lifted by a blue arrow into a metallic ring (no text or symbols)

Symbol of a waste bin with no text or labels, crossed by two crossed lines and a solid rectangle below (no text or symbols present)

Danger

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Simple line drawing of a showerhead spraying over water (no text or symbols)

Simple line drawing of a symmetrical object with a central oval and two protruding ends (no text or symbols)

Simple line drawing of a symmetrical mechanical or electrical component with internal oval and three circular features (no text or symbols)

Piles faibles

Simple line drawing of a symmetrical object with an orange central element, no text or symbols present.

Simple line drawing of a funnel with a water drop symbol and a blue circular icon (no text or labels)

Diagram of a human leg with a lock icon and a blue lock symbol (no text or labels)

Simple line drawing of a human leg with a lock icon and a blue circular symbol (no text or labels)

Simple line drawing of a symmetrical object with an orange star and a blue warning symbol (no text or labels)

Surchauffe

Illustration of a blue pen tip inserted into a glass container with a downward arrow (no text or symbols)

Illustration of a person applying a blue hairbrush to their face (no text or symbols present)

Illustration of a person's face with a blue object on the cheek, no text or symbols present

Illustration of a person applying a product to their ear (no text or symbols)

Illustration of a hand holding a medical or laboratory device with tubing and forceps (no text or symbols)

Illustration of a person applying a blue brush to their face area, no text or symbols present

Illustration of a flying saucer with a warning symbol and red cross, placed on a curved surface (no text or labels)

Illustration of a blue robotic arm with motion arrows and a magnified inset showing a graduation cap (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Illustration of a blue tool pressing down on a curved surface with an upward arrow (no text or symbols)

Illustration of a blue flying saucer with an upward arrow and red X marks, placed on a curved surface (no text or symbols)

Illustration of a hand holding a medical device with a magnified inset showing a graduation cap and a circular icon (no text or symbols)

Line drawing of a hairbrush emitting a blue brushstroke (no text or symbols)

Illustration of a person brushing a beaded tooth with a blue brush (no text or symbols)

Illustration of a person applying a blue hair accessory to their neck (no text or symbols)

Pure diagram of a symmetrical mechanical or architectural component with no text, numbers, or symbols

Pure diagram of a symmetrical mechanical or architectural component with circular and rectangular outlines, no text or symbols present.

Simple line drawing of a paintbrush with a red X mark and blue spray, no text or symbols present.

Simple line drawing of a container with a blue lid and an upward arrow, no text or symbols present.

Illustration of a blender with a blue arrow pointing to its liquid, no text or symbols present

Illustration of a blue mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a blue pipette dispensing liquid into a glass bottle (no text or symbols)

Illustration of a hand inserting a power button into a device (no text or symbols)

Simple line drawing of a water tower with two blue circular indicators (power and heating symbols) above it, no text or labels present.

Diagram of a funnel-shaped container with two blue circular indicators (✓ and □) pointing to its sides, no text or symbols present.

Diagram of a blender with a blue arrow indicating fluid flow or insertion (no text or symbols)

Illustration of a blue mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand washing a small object with a water tap (no text or symbols)

Illustration of a hand holding a wrist with a blue arrow pointing upward indicating motion or pressure (no text or symbols present)

Illustration of a hand pouring liquid into a blue container with bubbles (no text or symbols)

Illustration of a human leg with a blue arrow indicating upward motion or pressure direction (no text or symbols)

Diagram showing two mechanical components with blue arrows indicating direction, no text or symbols present

Illustration of a medical procedure showing two steps: left side with surgical tools and a patient's foot, right side with a blue circular device (no text or symbols)

Diagram of a mechanical gear assembly with a blue arrow pointing to a circular component (no text or symbols)

Diagram showing a blue circular object being lifted by a blue arrow onto a metallic ring (no text or symbols)

Illustration of a blue soap dispenser pouring liquid from a pipe (no text or symbols)

Illustration of a blue spray bottle pouring liquid onto a pair of boots, separated by a diagonal line (no text or symbols)

Illustration of a blue dental tool with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of a human torso with concentric blue contour lines and an upward arrow indicating pressure or movement (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating direction, alongside a close-up of a circular component (no text or symbols present)

Diagram showing a blue circular object being lifted by a blue arrow onto a metallic ring (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

No sign depicting a faucet without any text or symbols

Let op

Simple line drawing of a showerhead spraying over a water-filled basin (no text or symbols)

Simple line drawing of a symmetrical mechanical or biological component with a central oval shape and a small circular feature (no text or symbols)

Simple line drawing of a symmetrical mechanical or electrical component with a central circular feature (no text or symbols)

Simple line drawing of a symmetrical object with an orange central feature, no text or symbols present.

Simple line drawing of a funnel with a water drop symbol and a blue circular icon labeled '水' (water drop) in the corner.

Simple line drawing of a human leg with a lock icon and a small dot on the lower leg (no text or symbols)

Diagram of a human leg with a lock icon and a blue lock symbol (no text or labels)

De reisvergrendeling deactiveren

Simple line drawing of a dropper bottle with a blue tip and arrow indicating liquid level (no text or symbols)

Illustration of a person applying a blue brush to their face, no text or symbols present

Illustration of a person's face with a blue object on the cheek, no text or symbols present

Line drawing of a person applying a blue-tinted product to their ear (no text or symbols)

Illustration of a hand washing a shoe with a water dispenser above (no text or symbols)

Illustration of a person applying facial massage to their ear with a blue brush (no text or symbols)

Illustration of a blue flying saucer with red cross symbols above it, placed on a curved surface (no text or symbols)

Illustration of a blue-handled robotic arm with motion arrows and a graduation cap inset (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Illustration of a blue-handled tool pressing a button on a curved surface (no text or symbols)

Illustration of a blue object with an upward arrow and a red cross symbol, placed on a curved surface (no text or labels)

Illustration of a blue medical or laboratory device with a magnified inset showing a graduation cap and a circular diagram (no text or symbols)

Illustration of a hairbrush emitting hair with a blue arrow indicating direction (no text or symbols)

Illustration of a person brushing their beard with a blue brush (no text or symbols)

4 U kunt nu beginnen uw baard te stylen.

Illustration of a person applying a blue hair accessory to their neck (no text or symbols)

Pure diagram of a circular mechanical or architectural component with no text, numbers, or symbols

Symmetrical abstract diagram with circular and petal-like shapes, no text or symbols present

Simple line drawing of a paintbrush with a red X mark and blue spray, no text or symbols present.

Simple line drawing of a container with a blue lid and an upward arrow, no text or symbols present.

Diagram of a blender with blue liquid being inserted into a container (no text or symbols)

Illustration of a blue mechanical component with a blue arrow indicating direction (no text or symbols)

Illustration of a blue pipette dispensing liquid into a glass container (no text or symbols)

Hand holding a device with two blue circular buttons labeled 'Power' and 'Spiral', no text or symbols present.

Simple line drawing of a water dispenser with two blue circular indicators labeled 'Power' and 'Stimulus', no text or symbols present.

Diagram of a funnel-shaped container with two blue circular indicators (one checked, one checked) pointing to it, no text or symbols present.

Illustration of a blender with a blue arrow pointing to a blue container (no text or symbols)

Illustration of a blue mechanical component with a blue arrow indicating direction (no text or symbols)

Illustration of a hand washing a blue plastic bag with a water tap (no text or symbols)

Illustration of a human leg with a blue contour overlay and an upward arrow indicating motion or pressure (no text or symbols)

Illustration of a hand using a pipette to lift a blue liquid in a container (no text or symbols)

Grondige reinigingsmethode

Illustration of a human torso with concentric contour lines indicating pressure or density, and an arrow pointing upward (no text or symbols)

Diagram showing two mechanical components with blue arrows indicating upward motion, no text or symbols present

Illustration of a hand holding a blue object with a tool, next to another pair of hands holding a larger blue object (no text or symbols present)

Diagram of a mechanical gear assembly with a blue arrow indicating direction (no text or symbols)

Diagram showing a blue circular object being lifted by a blue arrow into a ring structure (no text or symbols)

Illustration of a blue pushpin securing a bundle of wires from a pipe (no text or symbols)

Illustration of two blue spray bottles pouring liquid from a funnel onto a diagonal line (no text or symbols)

Illustration of a blue medical device with a downward arrow indicating compression or disassembly (no text or symbols)

Simple line drawing of a device with a speaker icon and a blue circular icon (no text or symbols)

Illustration of a human knee joint with concentric blue contour lines indicating stress or pressure distribution (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating direction, alongside a close-up of a circular component (no text or symbols present)

Diagram showing a blue circular object above a ring with a blue arrow pointing downward (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines, representing waste sorting or disposal (no text or labels)

Symbol of a waste bin crossed with a diagonal line, no text or labels present

Illustration of a human wrist with a blue arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with a rotating component and a close-up view of its internal structure (no text or symbols)

Illustration of a blue pushpin pouring liquid from a pipe outlet (no text or symbols)

Illustration of a blue object being lifted by a water pump onto a diagonal line, with another object partially visible below (no text or symbols)

نگهداری

Illustration of a blue dental implant with a downward arrow indicating compression (no text or symbols)

Diagram showing two mechanical components with blue arrows indicating motion or force direction (no text or symbols)

Illustration of a hand holding a water pump with two blue containers, no text or symbols present

Diagram of a mechanical device with a blue arrow pointing downward, no text or symbols present

Diagram showing a blue circular object pressing into a ring with a blue arrow indicating direction (no text or symbols)

Illustration of a hand washing a blue water bottle with a mechanical pump (no text or symbols)

Illustration of a human wrist with concentric blue wave patterns and an upward arrow indicating motion (no text or symbols)

Illustration of a hand using a pipette to lift liquid into a blue container (no text or symbols)

Illustration of a human leg with concentric circular patterns and an upward arrow indicating motion or pressure (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Illustration of a blue pen tip inserted into a glass container with a downward arrow (no text or symbols)

Illustration of a hand holding two blue circular icons with power and signal symbols, connected to a device (no text or labels)

Illustration of a device with two blue circular icons labeled 'Power' and 'Hot Water', no text or symbols present.

Technical line drawing of a mechanical component with two blue circular indicators (no text or symbols)

Diagram of a mechanical component with directional arrows indicating force or movement (no text or symbols)

Simple line drawing of a container with a blue liquid and an upward arrow, no text or symbols present.

Diagram of a hand mixer with blue arrow indicating fluid direction (no text or symbols)

Illustration of a blue mechanical component with a directional arrow indicating motion (no text or symbols)

Illustration of a person brushing their beard with a blue brush (no text or symbols)

Illustration of a person applying a blue-tinted hair accessory to their neck (no text or symbols)

تمیزکردن و نگهداری

Symmetrical abstract diagram with concentric circles and central shapes, no text or symbols present

Abstract circular diagram with concentric rings and small blue dots, no text or symbols present

Illustration of a blue tool pressing down on a curved surface with an upward arrow (no text or symbols)

Illustration of a hand holding a device with a blue dome and red prohibition symbols (no text or labels)

Illustration of a medical procedure with a blue instrument and magnified view showing a graduation cap (no text or symbols)

Illustration of a hairbrush cutting into a toothbrush with motion arrows (no text or symbols)

Illustration of a medical or surgical procedure with arrows indicating motion and a magnified circular detail (no text or symbols)

Illustration of a person applying a blue tool to their neck area, no text or symbols present

Illustration of a blue UFO with red X and downward arrows pointing upward, above a curved surface (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing a circular object (no text or symbols)

Illustration of a person using a handheld tool to apply or prepare a hair product (no text or symbols visible)

Illustration of a person applying a blue hair accessory to their face (no text or symbols present)

Illustration of a person's face with a blue human figure on the cheek, no text or symbols present

Illustration of a person's face with a hand near the ear, showing no text or symbols

Illustration of a hand washing a blue plastic cup with a faucet above (no text or symbols)

Diagram of a hairpin with two probes connected to a socket, showing blue directional arrows indicating force or movement (no text or symbols)

Illustration of a blue pen tip inserted into a glass container (no text or symbols)

استفاده ازريش تراش

اصادح کردن

دوره تطابق پوست

Simple line drawing of a telephone handset with musical notes and a blue circular icon (no text or symbols)

Simple line drawing of a U-shaped object with a small orange star-like symbol inside, and a blue warning circle (no text or symbols)

بشارز کردن

Simple line drawing of a U-shaped object with a small circular icon labeled 'AB' (no text or symbols on the object itself)

Diagram of a human leg with internal organs and a lock icon (no text or labels)

Diagram of a human leg with a water droplet and a lock icon, no text or symbols present

شارزکردن

Simple line drawing of a symmetrical object with a central circular feature (no text or symbols)

Simple line drawing of a symmetrical object with internal oval and oval shapes (no text or symbols)

Simple line drawing of a symmetrical object with an orange star-like symbol inside, no text or symbols present.

No sign depicting a faucet crossed out by a diagonal line, indicating no pollution or water release.

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text)

مقدمة

Symbol of a waste bin with no text or labels, crossed by diagonal lines and a solid rectangle below (no readable text or symbols)

الضمان والدعم

طلب الملاحظات

Illustration of a human wrist with a blue arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Diagram showing a mechanical device with a rotating top and a close-up of its base, no text or symbols present.

Diagram showing a blue circular object being lifted by a blue arrow onto a metallic base (no text or symbols)

Illustration of a blue soap dispenser pouring liquid from a pipe outlet (no text or symbols)

Illustration of a blue fish being watered from a water pump onto a surface, with no text or symbols present.

ال tangzǐn

Illustration of a blue medical device with a downward arrow indicating compression or disassembly (no text or symbols)

Two identical diagrams showing a bowl with blue liquid and a lid, separated by a diagonal line (no text or symbols)

Illustration of a medical procedure showing two steps of catheter insertion (no text or symbols present)

Diagram of a mechanical component with a blue arrow pointing downward, no text or symbols present

Diagram showing a blue circular object falling into a ring with a downward arrow, no text or symbols present

Illustration of a hand washing a blue object with a water dispenser (no text or symbols)

Illustration of a human leg with concentric circular patterns and an upward arrow indicating motion or pressure (no text or symbols)

Illustration of a hand pouring liquid into a blue container with bubbles (no text or symbols)

Illustration of a human leg with concentric blue contour lines indicating stress or pressure distribution (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating rotation or movement (no text or symbols)

Hand holding two blue circular icons with 'Power' and 'Rotate' symbols, connected to a device (no text or labels visible)

Diagram of a device with two blue circular icons labeled 'Power' and 'Thermostat' connected to a central port (no text or symbols beyond icons)

Diagram of a funnel-shaped object with two blue circular indicators (one checked, one checked) pointing to it, no text or symbols present.

Simple line drawing of a container with a blue liquid and an upward arrow, no text or symbols present.

Illustration of a blender with a blue arrow pointing to its interior (no text or symbols)

Illustration of a blue mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a blue pipette dispensing liquid into a glass container (no text or symbols)

Illustration of a person applying a blue hair accessory to their neck (no text or symbols)

التنظيف والصيانة

Pure diagram of a symmetrical abstract shape with circular elements and small circular markers (no text or symbols)

Pure diagram of a symmetrical mechanical or architectural component with circular and rectangular outlines, no text or symbols present.

Illustration of a medical procedure with a blue tool and magnified view showing a graduation cap (no text or symbols)

Illustration of a hairbrush with motion lines indicating brush direction (no text or symbols)

Illustration of a person brushing a beaded beard with a blue brush (no text or symbols)

Illustration of a blue UFO with a red X and blue upward arrow, above a curved surface (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing a small boat (no text or symbols)

Illustration of a person using a hairdryer to apply product (no text or symbols present)

Illustration of a blue mechanical component pressing down on a curved surface (no text or symbols)

Illustration of a medical device with a blue bulb and red X marks, no text or symbols present

Illustration of a person's face with a blue star marking the ear area (no text or symbols)

Line drawing of a person's face with a hand near the ear, showing skin texture and hair density (no text or symbols)

Illustration of a hand washing a blue plastic cup with a faucet (no text or symbols)

Illustration of a person applying a blue brush to their face, no text or symbols present

Illustration of a blue pen tip inserted into a glass container (no text or symbols)

Illustration of a person applying a blue tool to their face, showing the brush (no text or symbols present)

Simple line drawing of a U-shaped object with a small star-like symbol inside, and a blue circular icon with an exclamation mark (no text or symbols)

الشحن

Diagram of a handheld device with two leads and a plug, showing blue directional arrows indicating connection (no text or symbols)

Simple line drawing of a funnel-shaped object with a handle and a blue circular icon containing a faucet symbol (no text or labels)

قال السفر

Diagram of a human leg with a lock icon and a small symbol, no text or labels present

Simple line drawing of a human leg with a water droplet and a lock icon (no text or symbols)

الشحن

Simple line drawing of a symmetrical object with a central circular feature (no text or symbols)

Simple line drawing of a symmetrical object with a central circular feature (no text or symbols)

Simple line drawing of a symmetrical object with an orange star-like shape at the center (no text or symbols)

Prohibition sign showing a faucet with a diagonal line and a showerhead, no text present

تنبيه

No sign depicting a faucet crossed out by a diagonal line, indicating no pollution or leakage (no text present)

مقدمة

All rights reserved.

Document order number: 4222.002.5612.1 (04/2014)

100% recycled paper

100% papier recyclé
