Product Type	Electric Shaver
Model Number	Series 5000 S5330
Brand	Philips
Dimensions (approx)	6.5 x 2.5 x 2.5 inches
Weight (approx)	0.5 kg
Power Source	Rechargeable battery
Battery Type	Lithium-ion
Charging Time	1 hour
Runtime	50 minutes
Washable	Fully washable under tap
Wet & Dry Use	Yes
Pop-up Trimmer	Yes, integrated
Blade Material	Self-sharpening steel
Number of Heads	3
Motor Type	Digital motor
Display	LED battery indicator
Travel Lock	Yes
Skin Protection	Comfort ring technology
Accessories Included	Protection cap, cleaning brush
Warranty	2 years

Frequently Asked Questions - Series 5000 S5330 PHILIPS

How do I clean the Philips Series 5000 S5330 shaver?

Rinse the shaver head under running water after each use. For a deeper clean, remove the shaver head and clean it with the supplied brush. Ensure the shaver is switched off and disconnected from charging before cleaning.

How long does the battery last on a full charge?

The lithium-ion battery provides up to 50 minutes of cordless shaving after a 1-hour charge.

Can I use the shaver in the shower?

Yes, the Series 5000 S5330 is fully washable and can be used with or without shaving foam or gel in the shower.

How do I replace the shaving heads?

Press the release button on the shaver head, remove the old heads, and click new ones into place. Replace every 12 months for optimal performance.

What does the travel lock feature do?

The travel lock prevents the shaver from turning on accidentally. To activate, press and hold the on/off button for 3 seconds. The LED will flash to confirm.

How do I know when the shaver is fully charged?

The LED indicator shows the battery level. When fully charged, all lights are solid and stay on for about 30 minutes before dimming.

Is the pop-up trimmer suitable for trimming sideburns?

Yes, the pop-up trimmer is ideal for detailing sideburns, mustache, and beard edges. Slide the trimmer up while the shaver is on.

What should I do if the shaver stops working?

First, check if the battery is charged. If not, charge for at least 30 minutes. If still not working, try resetting by holding the on/off button for 10 seconds. If the issue persists, contact Philips customer support.

Can I use the shaver while it is plugged in?

No, the Series 5000 S5330 is designed for cordless use only. Do not shave while connected to the charger.

How often should I replace the blades?

For optimal shaving performance, replace the shaver heads (blades and cutters) every 12 months. Replacement heads are available as model SH30 or similar.

USER MANUAL Series 5000 S5330 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

series S5000

Black Philips Aquatouch electric shaver with three rotary buttons and power button (no visible text beyond brand name)

ENGLISH 4

INDONESIA 36

한국어 69

BAHASA MELAYU 100

ภาษาไทย 134

TIÊNG VIÊT 160

繁體中文 192

简体中文 221

272

295

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

1 Protection cap for nose trimmer attachment (specific types only)
2 Click-on nose trimmer attachment (specific types only)
3 Comb for beard styler attachment (specific types only)
4 Click-on beard stylister attachment (specific types only)
5 Click-on trimmer attachment (specific types only)
6 Protection cap for shaving unit (specific types only)
7 Click-on shaving unit
8 On/off button
9 Turbo button (specific types only)
10 Handle
11 Socket for small plug
12 Battery charge indicator with 1 light
13 Battery charge indicator with 3 lights
14 Travel lock symbol
15 Replacement reminder
16 Cleaning reminder
17 Cleaning cartridge for SmartClean system
18 SmartClean system (specific types only)
19 Cap of SmartClean system
20 On/off button
21 Battery symbol
22 Cleaning symbol

23 Replacement symbol
24 Ready symbol
25 Adapter
26 Small plug
27 Pouch (specific types only)

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Always unplug the shaver before you clean it under the tap.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign of a faucet with no text or symbols

Caution

- Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.

- Never immerse the shaver in water. Do not use the shaver in the bath or in the shower.

- Never use water hotter than 80^irc C to rinse the shaver.

- Only use this appliance for its intended purpose as shown in the user manual.

- For hygienic reasons, the appliance should only be used by one person.

- Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter.

- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

- If your shaver comes with a cleaning system, always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).

- Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.

- If your cleaning system uses a cleaning cartridge, always make sure that the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.

- When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.

- Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Simple black-and-white icon of a faucet with raindrops, enclosed in a square frame (no text or symbols)

Electromagnetic fields (EMF)

- This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• This shaver can be safely cleaned under the tap.
• The appliance is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

The display

Charging

Battery charge indicator with 3 lights

• Charging takes approx. 1 hour
• Quick charge (specific types only): When the appliance is connected to the mains, the lights of the battery charge indicator light up one after the other continuously. When the appliance contains enough energy for one shave, the bottom light of the battery charge indicator flashes slowly.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, first the bottom light flashes and then lights up continuously.
  Then the second light flashes and then lights up continuously, and so on until the appliance is fully charged.

Illustration of a hairdryer with a magnified inset showing the hairline pattern (no text or symbols)

ENGLISH8

Diagram of a test tube with a spool stopper and a magnified inset showing a spike (no text or symbols)

Battery charge indicator with 1 light

• Charging takes approx. 1 hour.
• Quick charge (specific types only): When the appliance does not contain enough energy for one shave, the battery charge indicator flashes quickly. When the battery charge indicator starts flashing slowly, the appliance contains enough energy for oneshave.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, the battery charge indicator flashes slowly.

Battery fully charged

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Note: You can also use this appliance directly from the mains.

Note: When the battery is full, the display switches off automatically after 30 minutes.

When the battery is fully charged, all lights of the battery charge indicator light up continuously.

- Battery charge indicator with 3 lights

Diagram of a mechanical component with a circular annotation and pointer, no readable text or symbols present.

- Battery charge indicator with 1 light

Battery low

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

When the battery is almost empty, the battery charge indicator flashes orange.

- Battery charge indicator with 3 lights

Diagram of a laboratory test tube with a magnified inset showing a test tube (no text or labels)

- Battery charge indicator with 1 light

Remaining battery capacity

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Battery charge indicator with 3 lights

- The remaining battery capacity is indicated by the lights of the battery charge indicator that light up continuously.

Cleaning reminder

For optimal shaving performance, we advise you to clean the shaver after every use.

- When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.

Travel lock

You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident.

Activating the travel lock

1 Press the on/off button for 3 seconds to enter the travel lock mode.

- While you activate the travel lock, the travel lock symbol lights up continuously. When the travel lock is activated, the travel lock symbol flashes.

Deactivating the travel lock

1 Press the on/off button for 3 seconds.

- The travel lock symbol flashes and then lights up continuously. The shaver is now ready for use again.

Illustration of a robot's head with a padlock icon and speech bubble (no text or symbols)

Diagram of a smart device with a lock icon and speech bubble (no text or symbols)

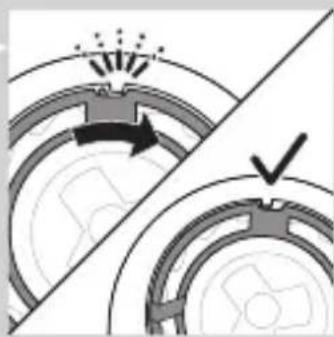

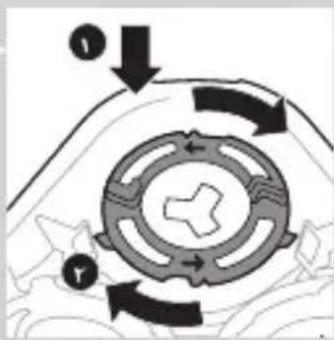

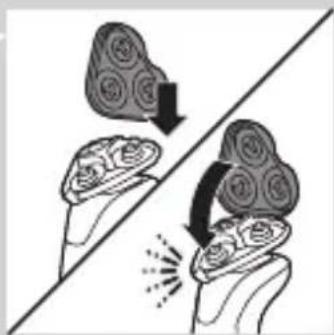

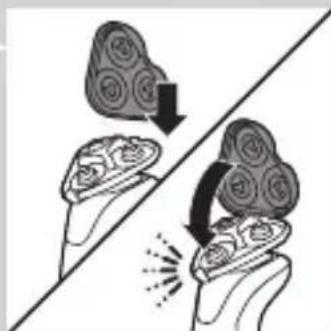

Replacing shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

- The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The replacement reminder lights up white continuously.

Note: After replacing the shaving heads, you need to reset the replacement reminder by pressing the on/off button for 7 seconds.

Turbo setting (specific types only)

- The appliance is equipped with a Turbo or Turbo+ setting. This setting is intended for quicker and more intense shaving and makes hard-to-reach areas easier to shave.

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Activating the Turbo setting

1 To activate the Turbo setting, press the Turbo button once.

Deactivating the Turbo setting

1 To deactivate the Turbo setting, simply press the Turbo button once again.

Charging

Charging takes approx. 1 hour.

Note: You can also use this appliance directly from the mains.

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

Charging with the adapter

Diagram of a hairbrush plug connecting a power outlet with an attached cable (no text or symbols)

1 Insert the small plug into the appliance and put the adapter in the wall socket.

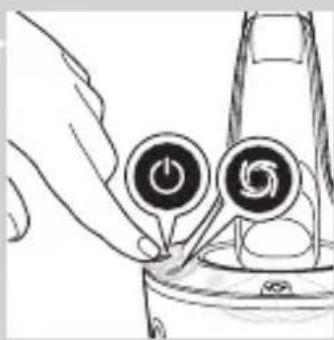

Charging in the SmartClean system (specific types only)

1 Put the small plug in the SmartClean system.
2 Put the adapter in the wall socket.
3 Press down the top cap to be able to place the shaver in the holder ('click').

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols visible)

4 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Illustration of a pair of boots with arrows indicating motion or force (no text or symbols)

5 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate the shaver is charging.

Using the shaver

Switching the appliance on and off

Illustration of a hand holding a circular object with an arrow pointing to it, against a stylized background (no text or symbols)

1 To switch on the appliance, press the on/off button once.
2 To switch off the appliance, press the on/off button once.
- Battery charge indicator with 3 lights: The display lights up for a few seconds to show the remaining battery status.

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system.

We advise you to shave regularly (at least 3 times a week) with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver.

Note: You can also use the shaver directly from the mains.

Illustration of a person applying a hairpin to their face (no text or symbols present)

1 Switch on the appliance.
2 Move the shaving heads over your skin in circular movements.

Note: Do not make straight movements.

3 Clean the shaver after use (see chapter 'Cleaning and maintenance').

Turbo setting (specific types only)

The appliance is equipped with a Turbo or Turbo+ setting for easy shaving of hard-to reach areas.

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

1 Switch on the shaver.
2 Press the Turbo button once to switch on the Turbo setting if you want to shave hard-to-reach areas more quickly.
3 Move the shaving heads over your skin in circular movements.

Illustration of a person's beard and ear with a T-shaped logo, no text or symbols present

Note: Do not make straight movements.

4 To deactivate the Turbo setting simply press the Turbo button once.

Using the click-on attachments

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Removing or attaching the click-on attachments

Illustration of a hand holding a device with a warning symbol (no text or labels)

1 Make sure the appliance is switched off.
2 Pull the attachment straight off the appliance.

Note: Do not twist the attachment while you pull it off the appliance.

Diagram showing a funnel pouring liquid into a droplet on a surface, with an inset magnified view of the droplet (no text or symbols present)

3 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the trimmer attachment

You can use the trimmer attachment to groom your sideburns and moustache.

Illustration of a robotic arm with motion arrows and a magnified inset showing the head area (no text or symbols)

1 Make sure the appliance is switched off.
2 Insert the lug of the attachment into the slot in the top of the shaver. Then press down the trimmer attachment to attach it to the appliance ('click').
3 Switch on the appliance.
4 You can now start trimming.
5 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a hairdryer with an inset showing the tip and base (no text or symbols)

Using the beard styler attachment

1 Make sure the appliance is switched off.
2 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the beard styler attachment with comb

You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. You can use it also to pre-trim any long hairs before shaving to have a more comfortable shave.

The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.

Line drawing of a hairbrush cutting into a pair of scissors (no text or symbols)

1 Slide the comb straight into the guiding grooves on both sides of the attachment ('click').

2 Press the length selector and then push it to the left or right to select the desired hair length setting.

3 Switch on the appliance.

Illustration of a man with beard and pipe, no text or symbols present

4 You can now start styling your beard by moving the attachment upwards with gentle pressure making sure the front of the comb is in full contact with the skin.

5 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a mechanical device emitting powder into a surface, with an inset showing a graduation cap and a speech bubble (no text or symbols)

Illustration of a person using a handheld device to interact (no text or symbols visible)

Using the beard styler attachment without comb

You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline to a length of 0.5mm.

1 Pull the comb off the attachment.

Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.

2 Switch on the appliance.

3 You can now start contouring your beard, moustache, sideburns or neckline by moving the styler downwards with gentle pressure while holding it perpendicular to the skin.

4 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Using the nose trimmer attachment

You can use the nose trimmer attachment to trim your nose hair. Make sure your nostrils are clean.

1 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

2 Switch on the appliance.

3 Carefully insert the attachment into one of your nostrils.

Do not insert the attachment more than 0.5cm into your nostrils.

4 Slowly move the attachment around to remove all unwanted hairs in your nostrils.

5 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Trimming ear hair

You can use the nose trimmer attachment to trim your ear hair. Make sure your outer ear channels are clean and free from wax.

Illustration of a dental implant tool with a magnified inset showing a graduation cap and a circular seal (no text or symbols)

1 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').
2 Switch on the appliance.
3 Slowly move the attachment along the rim of the ear to remove hairs that stick out beyond the rim.
4 Insert the attachment into the outer ear channel.

Do not insert the attachment more than 0.5cm into your ear channel, as this could damage the eardrum.

Illustration of a person using a handheld device to interact with a beard (no text or symbols visible)

5 Slowly turn the attachment around to remove all unwanted hairs from your outer ear channel.
6 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Cleaning and maintenance

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Cleaning the shaver in the SmartClean system (specific types only)

Simple line drawing of a paintbrush with a cross mark, no text or symbols present

Do not tilt the SmartClean system to prevent leakage.

Note: Hold the SmartClean system while you prepare it for use.

Note: If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

Preparing the SmartClean system for use

1 Put the small plug in the back of the SmartClean system.
2 Put the adapter in the wall socket.
3 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.

Simple line drawing of a container with an upward arrow and label 'SARMA' (no text or symbols on the diagram itself)

4 Pull the seal off the cleaning cartridge.

Diagram of a blender with a black arrow indicating the process (no text or symbols present)

5 Place the cleaning cartridge in the SmartClean system.

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Using the SmartClean system

Always make sure to shake excess water off the shaver before you place it in the SmartClean system.

1 Press down the top cap to be able to place the shaver in the holder ('click').

Close-up of a mechanical component with a black arrow pointing downward to a star-like feature (no text or symbols visible)

2 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

3 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate that the shaver is charging.

Hand holding two circular buttons with a power symbol, next to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and no visible text or symbols.

4 Press the on/off button on the SmartClean system to start the cleaning program.

- During the cleaning program (which takes approx. 10 minutes), the cleaning symbol flashes.

- When the cleaning program has been completed, the ready symbol lights up continuously. - The battery symbol lights up continuously to indicate that the shaver is fully charged. This takes approx. 1 hour.

Note: If you press the on/off button of the SmartClean system during the cleaning program, the program aborts. In this case, the cleaning symbol stops flashing.

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts.

Note: 30 minutes after the charging phase has been completed, the SmartClean system switches off automatically.

5 To let the shaver dry, you can leave it in the SmartClean system until your next shave. You can also remove the shaver from the SmartClean system, shake off excess water, open the shaving unit and let the shaver air dry.

Replacing the cartridge of the SmartClean System

Replace the cleaning cartridge when the replacement symbol flashes orange or when you are no longer satisfied with the cleaning result. If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months

1 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.

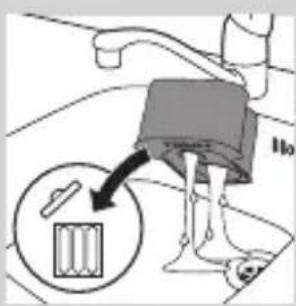

2 Take the empty cleaning cartridge from the SmartClean system and pour any remaining cleaning fluid out of the cleaning cartridge. You can simply pour the cleaning fluid down the sink.

3 Throw away the empty cleaning cartridge.

4 Unpack the new cleaning cartridge and pull the seal off the cartridge.

5 Place the new cleaning cartridge in the SmartClean system.

Diagram of a blender with a plug inserted into a container (no text or symbols visible)

6 Push the top part of the SmartClean system back down ('click').

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal shaving performance.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

ENGLISH22

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

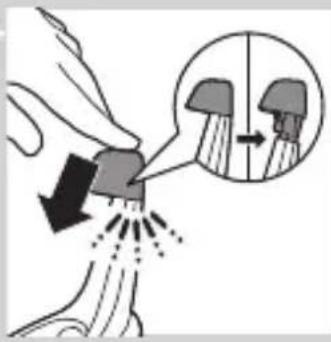

1 Rinse the shaving unit under a warm tap for some time.

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

2 Press the release button and open the shaving unit.

Illustration of a food item being lifted from a pipette into a bowl (no text or symbols)

3 Rinse the shaving head holder under a warm tap for 30 seconds.
4 Carefully shake off excess water and let the shaving head holder dry.
5 Close the shaving head holder ('click').

Thorough cleaning method

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Make sure the appliance is switched off.

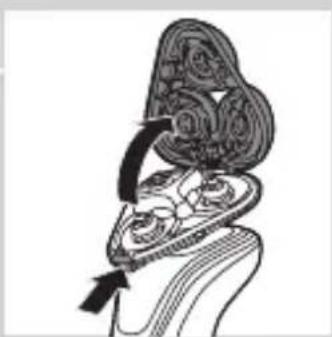

1 Press the release button and open the shaving unit.

Illustration of a mechanical assembly with an upward arrow indicating growth (no text or symbols present)

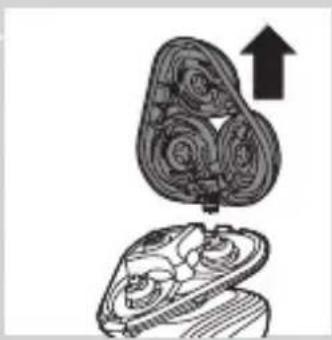

2 Pull the shaving head holder off the bottom part of the shaving unit.

3 Turn the retaining rings anticlockwise and remove them.

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

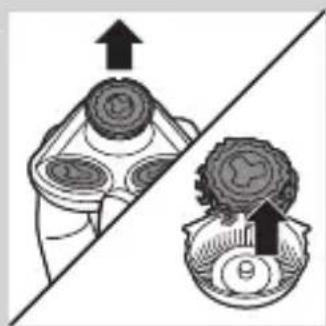

4 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Diagram showing two mechanical components with fluid flow, no text or symbols present

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

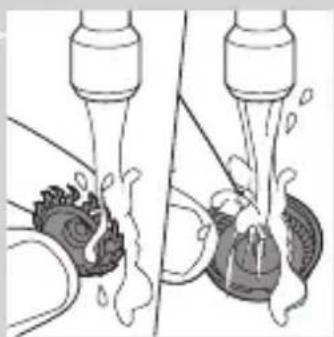

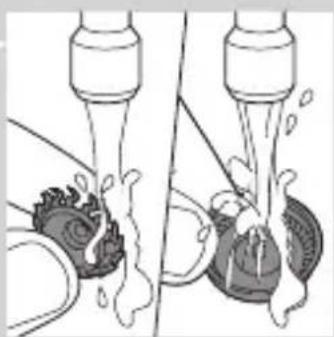

5 Clean the cutter and guard under the tap.

Diagram of a mechanical component with a central shaft and flange, showing internal structure (no text or symbols)

6 After cleaning, place the cutter back into the guard.

7 Put the shaving heads back into the shaving head holder.

ENGLISH24

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Note: Make sure the projections of the shaving heads fit exactly into the recesses of the shaving-head holder.

8 Place the retaining rings back onto the shaving head holder and turn them clockwise.

- Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.

Diagram showing a mechanical or electrical component with arrows indicating motion, no visible text or symbols

- Turn the ring clockwise until your hear 'click' and the ring is fixed.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

Illustration of two hands exchanging a leaf with arrows indicating rotation or movement (no text or symbols)

9 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder ('click').

Cleaning the click-on attachments

Never dry the trimmer or beard styler attachments with a towel or tissue, as this may damage the trimming teeth.

Cleaning the trimmer attachment

Clean the trimmer attachment every time you have used it.

Illustration of a shoe being dispensed from a bottle onto a surface (no text or symbols)

1 Switch on the appliance with the trimmer attachment attached.

2 Rinse the trimmer attachment under a hot tap for some time.

3 After cleaning, switch off the appliance.

Illustration of a hand blowing bubbles with a magnified circular inset showing a mountain (no text or symbols)

4 Carefully shake off excess water and let the trimmer attachment dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Cleaning the beard styler attachment

Clean the beard styler attachment every time you have used it.

1 Pull the comb off the beard styler attachment.

Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.

Illustration of a hand washing clothes with a tool, showing two different positions (no text or symbols)

Illustration of two fish separated by a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a showerhead spraying water with a pipe (no text or symbols)

Illustration of a funnel-shaped object emitting particles (no text or symbols)

2 Switch on the appliance.
3 Rinse the beard styler attachment and the comb separately under a hot tap for some time.
4 After cleaning, switch off the appliance.
5 Carefully shake off excess water and let the beard styler attachment and comb dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the nose trimmer attachment

Clean the nose trimmer attachment every time you have used it.

1 Make sure the appliance is switched off.
2 Rinse the cutting element of the nose trimming head with hot water.
3 Switch on the appliance and rinse the cutting element once more to remove any remaining hairs. Then switch off the appliance again.
4 Carefully shake off excess water and let the nose trimmer attachment dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage

Three-step illustration showing a hairpin being inserted into a device, with arrows indicating the process (no text or symbols present)

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Note: We advise you to let the appliance and its attachments dry before you put the protection caps on the attachments and store the shaver in the pouch.

- Place the protection cap on the nose trimming head.

- Put the protection cap on the shaving head to protect it from dirt accumulation.

- Store the shaver in the pouch supplied.

Replacement

Replacing the shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving unit symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads immediately. Only replace the shaving heads with original Philips shaving heads as specified in chapter ‘Ordering accessories’.

ENGLISH28

1 The shaving unit symbol lights up continuously when you switch off the shaver to indicate that the shaving heads need to be replaced.

Illustration of a decorative object with swirling patterns and an arrow indicating direction (no text or symbols)

2 Press the release button and open the shaving unit.

Illustration of a mushroom-shaped container with an upward arrow indicating growth (no text or symbols)

3 Pull the shaving head holder off the bottom part of the shaving unit.

4 Turn the retaining rings anticlockwise and remove them.

Diagram showing a hand holding a circular object with arrows indicating motion or force (no text or symbols present)

5 Remove the shavings heads from the shaving head holder and throw them away.

Abstract diagram with three connected nodes and a central triangular structure (no text or symbols)

6 Place new shaving heads in the holder.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Note: Make sure the projections of the shaving heads fit exactly into the recesses of the shaving head holder.

7 Place the retaining rings back onto the shaving heads and turn them clockwise.

- Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

- Turn the ring clockwise until your hear 'click' and the ring is fixed.

Note: Hold te shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

Illustration of two hands exchanging a heart-shaped object, one with a downward arrow and the other with a curved arrow (no text or symbols)

8 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder ('click').
9 To reset the replacement reminder, press and hold the on/off button for approx. 7 seconds.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details). The following parts are available:

• HQ8505 adapter
• SH50 Philips shaving heads
• HQ110 Philips Shaving Head Cleaning Spray
• RQ111 Philips beard styler attachment
• JC301, JC302, JC303, JC304, JC305 cleaning cartridge

Note: Availability of the accessories may differ per country.

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace the shaving heads with original SH50 Philips shaving heads.

Recycling

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Removing the rechargeable shaver battery

Illustration of a hand holding a small object, with another hand partially visible below (no text or symbols)

Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it.

Be careful, the battery strips are sharp.

Illustration of two skis with directional arrows indicating motion (no text or symbols)

1 Remove the screw in the backpanel with a screwdriver. Then remove the back panel.

2 Bend the hooks aside and remove the power unit.

Two views of a mechanical component with arrows indicating motion or assembly (no text or symbols)

3 Break the snap hooks and remove the front panel of the power unit.

Diagram of two robotic arms with a tool, showing mechanical assembly (no text or symbols)

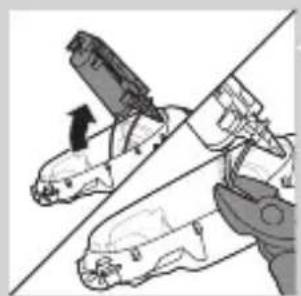

4 Take out the battery holder and cut the battery tags with a pair of cutting pliers.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.

The shaving heads are damaged or worn.

Replace the shaving heads (see chapter ‘Replacement’).

Hairs or dirt obstruct the shaving heads.

Clean the shaving heads by following the steps of the thorough cleaning method (see chapter ‘Cleaning and maintenance’).

The shaver does not work when I press the on/off button.

The rechargeable battery is empty.

Recharge the battery (see chapter ‘Charging’).

Problem Possible cause Solution

	The travel lock is activated.	Press the on/off button for 3 seconds to deactivate the travel lock.
	The shaving unit is soiled or damaged to such an extent that the motor cannot run.	Clean the shaving heads or replace them (see chapters ‘Cleaning and maintenance’ and ‘Replacement’).
The shaver is not entirely clean after I clean it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly, so there is no electrical connection between the SmartClean system and the shaver.	Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.
	The cleaning cartridge is empty. The replacement symbol flashes to indicate you have to replace the cleaning cartridge.	Place a new cleaning cartridge in the SmartClean system (see chapter ‘Cleaning and maintenance’).
	You have used another cleaning fluid than the original Philips cleaning cartridge.	Only use the original Philips cleaning cartridges.

Problem Possible cause Solution

The SmartClean system does not work when I press the on/off button.	The SmartClean system is not connected to the mains.	Put the small plug in SmartClean system and put the adapter in the wall socket.
The shaver is not fully charged after I charge it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly.	Make sure you press the shaver in the SmartClean system until it locks into place and press down the top cap.
I replaced the shaving heads, but the replacement reminder symbol is still showing.	You have not reset the shaver.	Reset the shaver by pressing the on/off button for approx. 7 seconds (see chapter ‘Replacement’).
A shaving head symbol has suddenly appeared on the display.	This symbol is a replacement reminder.	Replace the shaving heads (see chapter ‘Replacement’).
The nose trimmer attachment pulls at the hairs.	You move the appliance too fast.	Do not move the appliance too fast.

Problem Possible cause Solution

The nose trimmer attachment does not work.

The cutting element of the attachment is very dirty, for instance because some nasal mucus has dried inside the cutting element.

Clean the cutting element by rinsing it under the tap with hot water. Switch on the appliance and rinse the cutting element once more to remove any remaining hairs.

If rinsing the nose trimmer under the tap does not unblock the cutting element, then immerse it in a glass with warm water for a few minutes. Then switch on the appliance and rinse it under the tap.

Pendahuluan

No sign depicting a faucet without a shower, enclosed in a circle (no text or symbols)

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Diagram of a hairdryer with a magnified inset showing internal structure (no text or labels)

Diagram of a laboratory test tube with a magnified inset showing a star-shaped object (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Diagram of a mechanical component with a circular annotation and arrow pointing to a small feature (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Saat baterai hampir habis, indikator daya baterai akan berkedip oranye.

Diagram of a device with a starburst pattern and a magnified view of its internal structure (no text or symbols)

Diagram of a syringe with a magnified inset showing internal components (no text or labels)

Mengaktifkan travel lock

Illustration of a robotic arm with a lock icon and a speech bubble (no text or symbols)

Menonaktifkan travel lock

1 Tekan tombol on/off selama 3 detik.

Illustration of a robotic device with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Mengaktifkan setelan Turbo

Diagram of a hairpin plug connecting a power outlet with an attached cable, showing directional arrows (no text or symbols)

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or damage, no text or symbols present

Illustration of a hand inserting a circular object into a rounded rectangular area, with no visible text or symbols.

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a person applying a toothbrush to their beak, with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Diagram showing a funnel with an upward arrow and a cross symbol, no text or labels present

Diagram showing a droplet on a surface with an arrow indicating light emission, and a magnified inset showing a droplet inside (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing a small object (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a medical or laboratory procedure showing a device emitting particles into a surface, with an inset magnified view of a graduation cap (no text or symbols present)

Line drawing of a hairbrush cutting into a button with motion arrows (no text or symbols)

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of a dental implant being injected onto a tooth, with an inset showing a graduation cap (no text or symbols present)

Illustration of a person applying a nasal swab or throat filter to their mouth (no text or symbols present)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Illustration of a person using a hairbrush to clean their face (no text or symbols visible)

Simple line drawing of a container with an upward arrow, no text or symbols present

Illustration of a blender with a black arrow pointing to its lid (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow and a prohibition symbol (no text or labels)

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Line drawing of a hand holding two circular buttons with power and spiral symbols (no text or labels)

Diagram of a mechanical component with two circular indicators (one checked, one checked) and a label 'D' (no text or symbols on the main diagram)

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

1 Bilas unit pencukur di bawah keran air hangat selama beberapa saat.

Illustration of a decorative ornamental object with swirling patterns and an arrow indicating direction (no text or symbols)

Illustration of a food item being lifted by a pipette over a bowl of noodles (no text or symbols)

Anatomical illustration of a human head with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a mushroom-shaped container with an upward arrow indicating growth (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing fluid flow between two vessels with bubbles and a central pipe (no text or symbols)

Diagram of a mechanical or biological structure with a central circular component and directional arrow (no text or symbols)

Diagram showing a circular object falling into a triangular structure with concentric rings (no text or symbols)

Diagram showing a mechanical component with arrows indicating motion, divided by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a shoe being lifted by a string, showing the foot and ankle (no text or symbols)

Illustration of a hand crushing a small object with waste, accompanied by a magnified circular inset showing a pile of material (no text or symbols)

Illustration of two hands holding a curved object with directional arrows, no text or symbols present

Illustration of a pair of hanging objects with liquid, separated by a diagonal line (no text or symbols)

Illustration of two fish separated by a diagonal line, one falling and the other wading (no text or symbols)

Simple line drawing of a bottle with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a hand holding a small object with a downward arrow indicating motion or force (no text or symbols)

Illustration of a medical device with a downward arrow indicating force or movement (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a mushroom-shaped object with an upward arrow, no text or symbols present

Diagram of a hand holding a circular component with arrows indicating direction (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing a mechanical or electrical component with arrows indicating motion, no text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration showing a hand using a screwdriver to cut a cylindrical object, with another hand holding a small boat (no text or symbols present)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

2 Tekuk kait ke samping dan lepaskan unit daya.

Two mechanical components with a diagonal line and an upward arrow, no visible text or symbols

3 Patahkan pengait kunci dan lepaskan panel depan unit daya.

Illustration of two robotic arms with a tool, one holding a knife and the other in use, against a diagonal line (no text or symbols)

No sign depicting a faucet without any text or symbols

No sign depicting a faucet with a diagonal line and a diagonal line, crossed out by a diagonal line (no text or symbols)

주의

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

EMF(전자기장)

Diagram of a test tube with a magnified inset showing internal structure (no text or symbols)

배터리 충전 표시등(표시등 3개)

Illustration of a hairdryer with a magnified inset showing a starburst pattern (no text or symbols)

배터리 충전 표시등(표시등 1개)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Diagram of a mechanical component with a circular target and arrow pointing to it (no text or symbols present)

-배터리 충전 표시등(표시등 1개)

배터리 부족

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

-배터리 총전 표시등(표시등 1개)

남은 배터리 용량

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

배터리 충전 표시등(표시등 3개)

Illustration of a robot's leg with a lock icon and speech bubble (no text or symbols)

Diagram of a smart device with a lock icon and speech bubble (no text or symbols)

잠금 기능 작동

터보 설정 작동

Diagram of a hairpin plug connecting a socket to a rack with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a close-up of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand inserting a circular button into a rounded rectangular object (no text or symbols)

Illustration of a person applying a facial massage device to their neck (no text or symbols present)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a person applying a toothbrush to their beaded area, with a circular logo containing the number 'T' (no text or symbols on the diagram itself)

Illustration of a hand holding a mushroom-shaped object with an upward arrow and a cross symbol (no text or labels)

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a hairdryer with an inset showing the tip and base (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tip and hair (no text or symbols)

Illustration of a hairbrush cutting down a surface with a downward arrow indicating compression (no text or symbols)

Illustration of a man with a beard eating a spoon (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a dental implant being injected with a magnified inset showing the same component (no text or symbols present)

Illustration of a person using a handheld device to interact (no text or symbols visible)

Illustration of a medical or laboratory procedure showing a tool pressing down on a device with an inset magnified view (no text or symbols)

Illustration of a person using a hairdryer to clean their face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark and label (no text or symbols)

스마트클린 시스템 사용 준비

Simple line drawing of a container with an upward arrow and label 'WELL' (no text or symbols on the diagram itself)

Illustration of a blender with a black arrow pointing to its interior (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

스마트클린 시스템 사용

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a cross-section of a mechanical component (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with 'Power' and 'Spiral' symbols, connected to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

스마트클린 시스템의 카트리지 교체

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a fork being inserted into a bowl of noodles (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a mushroom-shaped container with internal compartments and an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing two mechanical components with fluid flow, no text or symbols present

Simple line drawing of a mechanical component with a central downward arrow and circular base (no text or symbols)

Diagram showing a circular object being lifted by a downward arrow into a triangular structure (no text or symbols)

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a heart-shaped object with arrows indicating rotation or movement (no text or symbols)

Illustration of a shoe being lifted by a string, showing the fabric and part (no text or symbols)

Illustration of a hand blowing bubbles with a magnified circular inset showing a mountain silhouette (no text or symbols)

Illustration of two hands holding a tool, with arrows indicating movement or force direction (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Illustration of two fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a mechanical device with a lever and handle, showing fluid flow (no text or symbols)

턱수염 스타일러 액세서리 세척

Illustration of a brush tip emitting small particles (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a stylized object with a downward arrow, possibly indicating a motion or change (no text or symbols present)

Illustration of a decorative hat with ornate patterns and a black arrow pointing to the handle (no text or symbols)

Illustration of a mushroom-shaped container with internal swirling patterns and an upward arrow, no text or symbols present.

Diagram showing a hand holding a device with a circular component and an arrow indicating direction (no text or symbols)

Abstract diagram with three connected nodes and a central triangular structure (no text or symbols)

Pure diagram of a mechanical or architectural component with a circular top and triangular base, no text or symbols present.

Diagram showing two mechanical components with arrows indicating motion or force, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

Illustration showing a hand turning a tool into a pair of hands, with no visible text or symbols.

Two illustrations of a diverging object with arrows indicating motion, no text or symbols present

Two types of shoe covers shown side by side, one with a black arrow pointing to the cover (no text or symbols)

Diagram showing two mechanical components with a tool, one being inserted and the other holding a tool (no text or symbols present)

No sign depicting a faucet without any text or symbols

No smoking sign with faucet symbol (no text or numbers)

Simple black-and-white icon of a faucet with a showerhead, enclosed in a square frame (no text or symbols)

Illustration of a syringe with a magnified inset showing internal structure (no text or symbols)

Illustration of a laboratory test tube with a magnified inset showing a test tube tip (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a mechanical component with a circular annotation and pointer, no readable text or symbols present.

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Apabila bateri hampir habis, penunjuk cas bateri berkelip jingga.

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a star-shaped object (no text or labels)

Diagram of a hairdryer with a magnified inset showing the tip and body area (no text or symbols)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Diagram of a robotic device with a lock icon and speech bubble (no text or symbols)

Menyahaktifkan kunci kembara

1 Tekan butang hidup/mati selama 3 saat.

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Mengaktifkan tetapan Turbo

Diagram of a hairbrush connecting a power outlet with a cable, showing two arrows indicating direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a close-up of a mechanical component (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a person applying a hair product to their face (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Illustration of a mushroom-shaped object with an arrow pointing upward, above a stylized leaf or crown (no text or symbols)

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a robotic arm interacting with a surface, showing motion and magnified detail (no text or symbols)

Line drawing of a person using a hairdryer (no text or symbols)

Illustration of a medical procedure showing a device emitting laser waves into a patient's ear (no text or symbols present)

Illustration of a hairbrush cutting down with a downward arrow indicating compression (no text or symbols)

Illustration of a man smoking a pipe with a beanie (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a mechanical device with a lever and a magnified inset showing a graduation cap (no text or symbols)

Illustration of a person applying a nasal swab or throat filter to their mouth (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing a graduation cap and a speech bubble (no text or symbols)

Illustration of a person using a hairpin to apply product, no text or symbols present

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'POT' (no text or symbols on the diagram itself)

BAHASA MELAYU116

Diagram of a blender with a black arrow pointing to its base, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow and a prohibition symbol (no text or labels)

Illustration of a hand spraying water with a magnified inset showing a person's head and shoulder (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand inserting a power button into a device (no text or symbols visible)

Diagram of a device component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a plastic container inserted, showing internal components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Menggantikan kartrij Sistem SmartClean

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human digestive system with internal organs and a curved arrow indicating movement (no text or labels)

Illustration of a food item being lifted from a pipette into a bowl (no text or symbols)

Anatomical illustration of a human head with internal organs and a directional arrow (no text or labels)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of two mechanical components with water spray and a gear-like component, no text or symbols present

Diagram of a mechanical component with a central downward arrow and circular base (no text or symbols)

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Simple line drawing of a shoe being lifted by a string, no text or symbols present

Illustration of a hand blowing bubbles with a magnified circular section showing a mountain (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a pipe being compressed with a funnel (no text or symbols)

Penggantian

Anatomical illustration of a human head and neck with internal organs, showing no text or labels.

Illustration of a mechanical component with an upward arrow, no text or symbols present

1 Simbol unit pencukur menyala secara berterusan apabila anda mematikan pencukur untuk menunjukkan bahawa kepala pencukur perlu digantikan.
2 Tekan butang pelepas dan buka unit pencukur.

Diagram showing a hand holding a three-cylinder brush and a circular object with arrows indicating motion (no text or symbols)

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

Diagram showing a circular object being lifted by a black arrow, with no visible text or symbols.

Diagram showing two circular components with arrows indicating motion or flow, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a spark effect, no text or symbols present.

Illustration of a hand holding a tool over a small object, with no visible text or symbols

Berhati-hati, jalur bateri sangat tajam.

Illustration of two skis in action poses, one on a diagonal line and the other on a diagonal line, with arrows indicating motion direction (no text or symbols)

Two mechanical components with arrows indicating motion or assembly, no visible text or symbols

Diagram of a robotic hand holding a tool, with an arrow indicating the process (no text or symbols present)

Jaminan dan sokongan

No sign depicting a faucet crossed out by a diagonal line, indicating no pollution or leakage (no text present)

No sign depicting a faucet with a diagonal line and a diagonal line, crossed out by a diagonal line (no text or symbols)

ข้อควรระวัง

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Illustration of a laboratory test tube with a magnified inset showing internal structures (no text or symbols)

Illustration of a dropper with a magnified inset showing a spike (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Diagram of a laboratory pipette with a labeled component (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Illustration of a test tube with a cap and a magnified inset showing a starburst pattern (no text or symbols)

Diagram of a test tube with a cap and magnified inset showing internal components (no text or labels)

Illustration of a robot's interior with a lock icon and a speech bubble (no text or symbols)

การเปลี่ยนขุดหัวโกน

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Diagram of a hairpin plug connecting a socket to a cable with an arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of two boots with arrows indicating motion or damage, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, against a stylized background (no text or symbols)

Illustration of a person applying a hair product to their face (no text or symbols)

ระยะปรับสภาพผิว

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a person's beard and toothbrush with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Illustration of a funnel with a cross symbol and an upward arrow, no text or labels present

Illustration of a graduation cap impact technique on a curved surface, showing stress and graduation outcomes (no text or symbols)

Illustration of a medical or laboratory procedure showing a device emitting particles from a surface, with an inset magnified view of the process (no text or symbols present)

Line drawing of a person using a hairpin to apply product (no text or symbols)

Illustration of a medical procedure with a device and a magnified view of a graduation cap (no text or symbols)

Line drawing of a hairbrush cutting down a piece of hair with a downward arrow indicating compression (no text or symbols)

Illustration of a man with a beard eating a pipe (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset magnified view (no text or symbols)

Illustration of a person eating a fish (no text or symbols present)

Illustration of a mechanical device with a downward arrow and magnified inset showing a small circular component (no text or symbols)

Illustration of a person using a handheld device to interact with a beaded mouth (no text or symbols visible)

Simple line drawing of a container with an upward arrow and label 'SARMA' (no text or symbols on the diagram itself)

Simple line drawing of a paintbrush with a cross mark and sound waves, no text or symbols present.

Simple line drawing of a container with an upward arrow and label 'SARMA' (no text or symbols on the diagram itself)

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a fire extinguisher with a stop sign (no text or symbols on the device itself)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Diagram of a funnel-shaped container with two circular indicators (one checked, one not checked) and no visible text or symbols.

Diagram of a blender with a black arrow indicating the process (no text or symbols present)

Diagram of a mechanical component with a directional arrow indicating movement (no text or symbols present)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Taking place for the purpose of the following:

Anatomical illustration of a human head with internal organs and a highlighted region, showing no text or labels.

Illustration of a spoon lifting a bowl of noodles (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a mushroom-shaped container with internal compartments and an upward arrow, no text or symbols present

Diagram showing two mechanical components with upward arrows, one divided and one with a circular base (no text or symbols)

Diagram showing fluid flow between two vessels with bubbles and a central pipe (no text or symbols)

Diagram of a mechanical component with a central circular feature and a downward arrow, no text or symbols present.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows indicating motion or flow, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a light burst, no text or symbols present.

Illustration of a shoe being lifted by a string, showing the blade and handle (no text or symbols)

Illustration of a hand blowing bubbles with a magnified circular inset showing a cloud or cloud inside (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands using a tool to lift or spread material, separated by a diagonal line (no text or symbols)

Illustration of two cartoon fish on a diagonal line, one blowing water and the other wading down (no text or symbols)

Illustration of a faucet pouring liquid into a pipe (no text or symbols)

Illustration of a funnel-shaped object emitting particles (no text or symbols)

Three-step illustration showing a hairpin being inserted into a body, with arrows indicating the process (no text or symbols present)

Anatomical illustration of a human upper body with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a biological structure with an upward arrow, no text or symbols present

Diagram showing a hand holding a circular object with an arrow indicating direction, alongside a cylindrical object (no text or symbols present)

Abstract diagram with three symmetrical shapes and arrows, no text or symbols present

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two mechanical components with arrows indicating motion, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration showing a tool tip interacting with a device and a separate mechanical component (no text or symbols)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two identical 3D-rendered objects with internal features, one on a diagonal line and the other on a flat surface, with an arrow indicating transformation (no text or symbols)

Diagram showing a hand operating a tool with an arrow indicating motion (no text or symbols present)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Illustration of a test tube with a magnified inset showing internal structure (no text or symbols)

Diagram of a dropper with a magnified inset showing a spike (no text or symbols)

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or labels)

Diagram of a test tube with a circular indicator and arrow pointing to the tip (no text or symbols present)

Diagram of a hairdryer with a magnified inset showing internal structure (no text or labels)

Diagram of a test tube with a spiky tip and a magnified inset showing a labeled section (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Illustration of a robotic arm with a lock icon and a speech bubble (no text or symbols)

Illustration of a robotic device with a lock icon and speech bubble (no text or symbols)

Tắt khóa du lịch

Illustration of a hand pressing a button on a knee joint (no text or symbols)

1 public health health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, public health care, private sector services and other services.

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force direction, and a magnified inset showing a close-up of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

1 public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Private Sector Public Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector Private Sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private sector private-sector private sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-sector private-

2 publicly state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the public is a state that the private sector is an unaffordable sector, which is not a private sector.

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Illustration of a person's beard and ear with a circular logo containing a stylized 'T' symbol (no text or symbols present)

Illustration of a mushroom-shaped object with an arrow indicating upward motion, accompanied by a cross symbol (no text or labels)

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a robotic arm interacting with a curved surface, showing motion and magnified detail (no text or symbols)

Line drawing of a person using a hairdryer (no text or symbols)

Illustration of a medical or laboratory procedure showing a device emitting particles from a surface, with an inset magnified view of a graduation cap (no text or symbols present)

Illustration of a hairbrush cutting down a surface with a downward arrow indicating compression (no text or symbols)

Illustration of a man with a beard and pipe, showing hand positioning (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Illustration of a person applying nasal or oral pressure to a tooth (no text or symbols)

Illustration of a dental implant tool striking a tooth with an inset showing a graduation cap (no text or symbols)

Illustration of a person using a handheld device to interact with a beaded face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'POTATO' (no text or symbols on the diagram itself)

Diagram of a blender with a black arrow pointing to its base, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a spray gun with a stopper and no visible text or symbols

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a cross-section of a mechanical component (no text or symbols present)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing two footshells with arrows indicating motion or force, separated by a diagonal line (no text or symbols)

Line drawing of a hand inserting a power button into a device (no text or symbols)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a plug inserted into a container (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human head and neck with a black arrow indicating a specific region (no text or labels present)

Illustration of a fork and chopsticks lifting a bowl of noodles (no text or symbols)

Anatomical illustration of a human head with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing two mechanical components with directional arrows, no text or symbols present

Illustration of two mechanical components with fluid flow, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Simple line drawing of a hand holding a shoe and a bottle with a bundle of noodles (no text or symbols)

Illustration of a hand blowing bubbles with a magnified circular inset showing a hand holding a rock (no text or symbols)

Illustration of two hands holding a tool with arrows indicating movement or force direction (no text or symbols)

Illustration of two hands holding small objects above a diagonal line, no text or symbols present

Illustration of a hand pouring liquid into a bottle (no text or symbols)

Illustration of a droplet being spiked with granular debris (no text or symbols)

Bảo quản

Illustration of a stylized human head with ornate patterns and a black arrow indicating motion (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a hand holding a circular object with arrows indicating direction, alongside a battery and mechanical components (no text or symbols)

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands exchanging a cloud-like object, one moving down and the other moving up with a spark effect (no text or symbols)

9 public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information, public health information

Đặt mua phụ kiện

Illustration showing a tool tip and a foot with an arrow, no text or symbols present

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with arrows indicating movement or assembly (no text or symbols)

Diagram showing two mechanical components with a tool, one being inserted and the other holding a tool (no text or symbols present)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

No sign depicting a faucet without a shower, enclosed in a circle (no text or symbols)

警告

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Illustration of a syringe with a magnified inset showing internal structure (no text or symbols)

Illustration of a small electronic device with a starburst symbol and a pointing arrow (no text or labels)

電池充電指示燈，1個燈

注意：您也可以直接插電使用本產品。

Diagram of a hairbrush with a circular button labeled 'I' pointing to the tip (no text or symbols beyond the label)

電量不足

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Diagram of a test tube with a cap and a magnified inset showing a star-shaped object (no text or symbols)

- 電池充電指示燈，1 個燈

剩餘電池電量

Illustration of a hairdryer with a magnified inset showing the tip and body area (no text or symbols)

電池充電指示燈，3個燈

Illustration of a robotic device with a lock icon and a small star on the base (no text or symbols)

解除旅行鎖

1 按住開關按鈕 3 秒鐘。

Diagram of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a medical or robotic device with a speech bubble containing a skull symbol (no text or labels present)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Diagram of a hairbrush connecting a socket to a cable with an arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a handle and arrow indicator (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Illustration of a hand pressing a button on a medical device (no text or symbols visible)

Illustration of a person's head with a T-shaped logo overlay (no text or symbols on the figure)

Diagram showing a hand holding a device with a warning symbol (no text or labels)

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a robotic arm with motion arrows and a close-up inset showing a hand holding a device (no text or symbols)

3 開啟產品。

4 這時即可開始修整。

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

繁體中文202

Illustration of a hairbrush cutting into a pair of thumbs-down arrows (no text or symbols)

使用装上梳具的鬢角造型修容器配件

Illustration of a man with a beard eating a pipe (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

1 將梳具從配件取下。

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a hairdryer with a magnified inset showing a graduation cap and a speech bubble (no text or symbols)

Illustration of a person using a handheld device to interact (no text or symbols visible)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset magnified view (no text or symbols)

Illustration of a person using a handheld tool to apply facial hair (no text or symbols present)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow, no text or symbols present

Illustration of a blender with a black arrow indicating a process (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a spray bottle with a stopper and a prohibition symbol (no text or labels)

Illustration of a hand pouring liquid into a container with an inset showing a magnified view of the container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with 'Power' and 'Spiral' symbols, connected to a device (no text or labels visible)

Diagram of a funnel-shaped container with two circular indicators showing check and no text (no readable symbols or text)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

1 將電鬍刀組以溫水沖洗一段時間。

Anatomical illustration of a human upper body with internal organs and a directional arrow indicating movement (no text or labels)

2 按下釋放鈕打開電鬍刀組。

Illustration of a fork being inserted into a bowl of noodles (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

確定關閉本產品的電源。

1 按下釋放鈕打開電鬍刀組。

Illustration of a mushroom-shaped object with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of a hand washing a tooth with water splashing out (no text or symbols)

Cross-sectional diagram of a mechanical component with no visible text or symbols

6 清洗後，請將刀片放回刀網中。

7 將電鬍刀刀頭裝回電鬍刀刀頭固定座。

繁體中文210

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Illustration of two hands exchanging a heart-shaped object, one with a downward arrow and the other with a curved arrow (no text or symbols)

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand crushing a small object with a magnified circular inset showing a pile of material (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

繁體中文212

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish on a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a pipe being lifted by a hose (no text or symbols)

Illustration of a funnel-shaped object emitting particles (no text or symbols)

收納

Three-step illustration showing a hairpin being inserted into a body, with arrows indicating the process (no text or symbols present)

- 蓋上鼻毛修整刀頭保護蓋。

Illustration of a stylized human head with ornate patterns and a black arrow indicating motion (no text or symbols)

2 按下釋放鈕打開電鬍刀組。

Illustration of a mechanical component with an upward arrow, no visible text or symbols

Diagram showing a hand holding a circular object with arrows indicating direction, alongside a battery and mechanical components (no text or symbols)

Abstract diagram of a symmetrical geometric structure with three connected nodes (no text or symbols)

6 將新的電鬍刀刀頭放入固定座。

Pure diagram of a mechanical or architectural structure with no text, numbers, or symbols

Diagram showing a mechanical component with arrows indicating motion or force, intersected by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

Illustration showing a tool tip interacting with a device, with no visible text or symbols

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with a diagonal line and an arrow indicating motion or assembly (no text or symbols)

Diagram showing two mechanical components with a tool, one being inserted and the other holding a tool (no text or symbols present)

No sign depicting a faucet with a diagonal line and raindrops, enclosed in a circle (no text or symbols)

No sign depicting a faucet with a diagonal line, crossed out by a diagonal line (no text or symbols)

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Illustration of a test tube with a star-shaped label and arrow pointing to its tip (no text or symbols present)

电池充电指示灯（1级指示）

- 充电约需 1 小时。

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or labels)

注意：您也可以直接插电使用本产品。

Diagram of a hand tool with a circular indicator and arrow pointing to the handle (no text or symbols present)

电池电量不足

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Diagram of a test tube with a cap and a magnified inset showing a star-shaped object (no text or symbols)

- 电池充电指示灯（1级指示）

电池剩余电量

Illustration of a hairdryer with a magnified inset showing the tip and body (no text or symbols)

电池充电指示灯（3 级指示）

Illustration of a robotic device with a lock icon and a small star on the base (no text or symbols)

解除旅行锁

1 按开/关按钮 3 秒钟。

Diagram of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a medical or robotic device with a speech bubble containing a skull symbol (no text or labels present)

高速设置（仅限于特定型号）

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Diagram of a hairbrush plug connecting a power outlet with an attached cable, showing two arrows indicating direction (no text or symbols present)

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a cross-section of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of two different shoe foot models, one with a pointed tip and arrow, the other with a flame (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to it, against a stylized background (no text or symbols)

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a mushroom-shaped object with a cross symbol and an upward arrow, placed on a finger (no text or symbols present)

Illustration of a funnel pouring liquid into a curved surface, with an inset showing a graduation cap and a speech bubble (no text or symbols)

Illustration of a robotic arm with motion lines and a magnified inset showing a circular object (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

3 启动产品。

4 现在可以开始修剪了。

Illustration of a medical procedure showing a surgical tool impacting a patient's skin area, with an inset magnified view of the procedure (no text or symbols present)

使用带修剪梳的胡须造型器附件

Line drawing of a hairbrush cutting down a piece of hair with a downward arrow (no text or symbols)

Illustration of a man smoking a pipe with a pencil (no text or symbols)

Illustration of two hands holding a tool with directional arrows and cross marks (no text or symbols)

1 将修剪梳从配件中拉出。

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a hairdryer with a magnified view showing a graduation cap and a speech bubble (no text or symbols)

Illustration of a person's face with a textured, abstract shape resembling a tool or device (no text or symbols)

使用鼻毛修剪器配件

您可以使用鼻毛修剪器附件修剪鼻毛。

确保鼻腔是清洁的。

1 将配件的凸缘插入产品顶部的槽内。

Illustration of a syringe with a droplet falling into a container, showing a magnified view of the droplet inside (no text or symbols)

您可以使用鼻毛修剪器附件修剪耳毛。

确保外耳道洁净无耳垢。

Illustration of a person using a hairbrush to clean their face (no text or symbols visible)

高效智能清洁系统使用准备

Simple line drawing of a container with an upward arrow and label 'MILK' (no text or symbols on the diagram itself)

简体中文234

Diagram of a blender with a black arrow pointing to its base, showing no text or symbols.

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a spray bottle with a stopper and a prohibition symbol (no text or labels)

使用高效智能清洁系统

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a cross-section of a mechanical component (no text or symbols present)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with 'Power' and 'Spiral' symbols, connected to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one checked) and no visible text or symbols.

Illustration of a blender with a black arrow pointing to its interior (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

1 在热水龙头下冲洗剃须刀头部件片刻。

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

2 按释放按钮，打开剃须刀头部件。

Illustration of a fork and chopsticks lifting a bowl of noodles (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

确保产品电源已关闭。

1 按释放按钮，打开剃须刀头部件。

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram showing two identical mechanical components with fluid flow, no text or symbols present

Cross-sectional diagram of a mechanical component with no visible text or symbols

6 清洁后，将刀片放回网罩中。

7 将剃须刀头装回到剃须刀头支架中。

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Illustration of two hands exchanging a heart-shaped object, one with a downward arrow and the other with a curved arrow, against a diagonal line (no text or symbols)

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a faucet pouring liquid into a container (no text or symbols)

Illustration of a funnel-shaped object emitting particles (no text or symbols)

Three-step illustration showing a mechanical assembly process: top-down, top-down with a tool, and bottom-down with a tool (no text or symbols)

Anatomical illustration of a human head and neck with internal organs, showing no text or labels.

2 按释放按钮，打开剃须刀头部件。

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing a hand holding a circular object with arrows indicating motion or force (no text or symbols present)

Abstract diagram with three symmetrical shapes and arrows, no text or symbols present

6 将新的剃须刀头放在支架中。

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

Illustration of a tool interacting with a device, showing a brush tip and a separate view of a device being inserted (no text or symbols present)

只有在丢弃剃须刀时才可取下充电电池。

请确保在取下电池时电量已完全耗尽。

注意，电池带非常锋利。

Two illustrations of a vehicle with directional arrows indicating motion or movement, no text or symbols present.

1 用螺丝刀卸下背板中的螺钉。

然后卸下背板。

2 将钩子向外掰，取出电源部件。

Two types of shoe covers shown side by side, one with a black arrow indicating upward motion (no text or symbols)

3 脱开安全钩，取下电源部件的前面板。

Illustration of a robotic hand holding a tool, with an arrow indicating the process (no text or symbols present)

Illustration of two skis in motion, one moving and the other descending, with arrows indicating motion direction (no text or symbols)

Two mechanical components with internal features, one showing a cross-section and the other a top view with an arrow indicating motion (no text or symbols)

Diagram showing two hands operating a tool with an arrow indicating direction (no text or symbols present)

ضمانت و پشعتباني

Illustration of two hands holding three leaf-shaped objects with a downward arrow, separated by a diagonal line (no text or symbols)

سفارش دادن لوازم

Illustration of a hand using a screwdriver to cut a cylindrical object, with another hand holding a small object nearby (no text or symbols)

Diagram of a mechanical or structural component with a circular top and triangular base, no visible text or symbols.

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of a stylized human head with ornate patterns and a curved arrow, no text or symbols present

Diagram of a mechanical assembly with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a hand holding a device with an arrow indicating direction (no text or symbols)

نگلهداری

تعميض

تعويض سريهاي اصد鹵

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Illustration of two mechanical components pouring liquid onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon-style illustrations of a bird and a shoe, separated by a diagonal line (no text or symbols)

Illustration of a pipe being lifted with a coiled tube (no text or symbols)

Illustration of a brush tip emitting small particles (no text or symbols)

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands exchanging a cloud-like object with arrows indicating rotation or interaction (no text or symbols)

Illustration of a medical procedure with tubing and a foot (no text or symbols)

Illustration of a hand blowing liquid with a magnified circular inset showing a hand holding a rock (no text or symbols)

Mechanical component diagram showing a gear-like top with a downward arrow and central circular base (no text or symbols)

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

روش تميزکردن کامل

Illustration of a stylized human head with ornate patterns and a central abstract shape (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows and a central circular component (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing two water spray systems with bubbles and splashes, no text or symbols present

Diagram of a blender with an arrow pointing to its base, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Diagram showing a hand pouring liquid into a container with an inset magnified view of a lid (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of two different shoe foot designs showing changes in size and motion (no text or symbols)

Line drawing of a hand inserting a power button into a device (no text or symbols)

Diagram of a device with battery and checkmark indicators (no text or symbols)

Mechanical component diagram showing a lever and base with directional arrows (no text or symbols)

Diagram of a blender with an arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a close-up of a mechanical component (no text or symbols present)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a person using a hairdryer to apply product to their face (no text or symbols visible)

تميزکردن و نگلهداری

Simple line drawing of a paintbrush with a cross mark and motion lines (no text or symbols)

Mechanical component diagram showing a lever and base with directional arrows (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'SARAYA' (no other text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a mechanical device with a downward arrow and magnified inset showing a circular component (no text or symbols)

Illustration of a person applying a nasal swab or throat filter to their mouth (no text or symbols present)

Illustration of a medical or laboratory procedure showing a tool pressing down on a device with an inset showing a graduation cap and speech bubble (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a medical procedure showing a surgical tool impacting a patient's skin area, with an inset magnified view of the procedure (no text or symbols present)

Line drawing of a hairless machine with a brush and motion arrow (no text or symbols)

Diagram of a hand holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of a man eating with a toothbrush (no text or symbols)

Illustration of a person brushing teeth with a circular logo containing a stylized 'T' symbol (no text or symbols present)

Illustration of a mushroom-shaped object with a cross symbol and an upward arrow, placed on a curved surface (no text or symbols)

Illustration of a medical or laboratory procedure showing a device emitting particles onto a surface, with an inset magnified view of the process (no text or symbols present)

Illustration of a robotic arm interacting with a surface, showing motion and magnified detail (no text or symbols)

Simple line drawing of a chess piece with a downward arrow indicating compression (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

استفاده ازريش تراش

Illustration of a person applying makeup to their face with a brush (no text or symbols)

تعويض سريهاي اصدح

دکمه توريو (فقط مدلهاي خاص)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

شارز کردن

Diagram of a hairbrush connecting a power outlet to a cable with directional arrows indicating cable movement (no text or symbols)

Diagram showing a hand pressing down on a surface with an inset magnified view of a device (no text or symbols present)

Diagram of a test tube with a cap and magnified inset showing internal components (no text or labels)

يادآوری تمیزکردن

قفل مسافرتى

Line drawing of a smart device with a lock icon and speech bubble (no text or symbols)

Line drawing of a smart device with a lock icon and speech bubble (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing a star-shaped object (no text or symbols present)

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or labels)

Diagram of a hairbrush with a circular inset showing a single tooth (no text or symbols)

باتری ضعیف

Diagram of a hairbrush with a magnified inset showing the tip and base (no text or symbols)

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a star-shaped object (no text or symbols)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no fire or water discharge (no text present)

Simple black-and-white icon of a faucet with raindrops (no text or symbols)

صفحه نمايشى

شارزکون

Diagram of a hairbrush with a magnified inset showing internal structure (no text or symbols)

مقدمة

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no fire or water discharge (no text present)

Diagram showing two hands operating a device with an arrow indicating motion (no text or symbols present)

Illustration of a hand using a screwdriver to cut the tool, with no visible text or symbols

Illustration of two skis in motion, one on a diagonal line and the other on a slope (no text or symbols)

Two views of a mechanical component with arrows indicating direction (no text or symbols)

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands exchanging a tray with a bag, showing a drop and rotation (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows and circular components (no text or symbols)

Illustration of a hand holding a brush with an arrow indicating direction, next to a circular object and a small object (no text or symbols)

Diagram of a symmetrical mechanical or biological structure with three circular components and directional arrows, no text or symbols present.

Diagram of a mechanical or structural component with a circular top and triangular base, no visible text or symbols.

Two-step illustration showing a mushroom being placed on a surface, with no text or symbols present.

الاستبideal

Illustration of a human head with abstract patterns and a curved arrow indicating motion (no text or symbols)

Diagram of a mechanical assembly with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing two hands operating a tool with water droplets, separated by a diagonal line (no text or symbols)

Two cartoon fish on a diagonal line, one falling and one stepping down (no text or symbols)

Illustration of a funnel pouring liquid into a bottle (no text or symbols)

Illustration of a brush tip emitting small particles (no text or symbols)

ال tangزين

Illustration of two hands exchanging three circular objects with arrows indicating rotation or movement (no text or symbols)

Line drawing of a foot stepping on a shoe with a rope tied around it (no text or symbols)

Illustration of a funnel pouring liquid into a container with a magnified circular inset showing a pile of material (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical or structural component with a circular top and triangular base, no visible text or symbols.

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows and labeled points (no readable text or symbols)

Diagram showing a hand turning a device with an arrow indicating upward motion (no text or symbols present)

Diagram showing two mechanical components with water spray and fluid flow, no text or symbols present

Diagram of a mechanical component with a central downward arrow and concentric circles (no text or symbols)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Illustration of a stylized human head with ornate patterns and a tassel, no text or symbols present

Illustration of a medical procedure showing a tube inserted into a patient's bed with roots, no text or symbols present.

Illustration of a stylized human head with ornate patterns and a curved arrow, no text or symbols present

Line drawing of a hand inserting a power button into a device (no text or symbols)

Diagram of a device with battery and checkmark indicators (no text or symbols)

Mechanical component diagram showing a lever and base with directional arrows (no text or symbols)

Diagram of a blender with an arrow pointing to a battery (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a close-up of a mushroom-like structure (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Illustration of a pair of shoes with arrows indicating motion or change, no text or symbols present

التنظيف والصيانة

Simple line drawing of a paintbrush with a 'X' mark and motion lines, no text or symbols present.

Mechanical component diagram showing a piston-like structure with directional arrows and force indicators (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'MILK' (no text or symbols on the diagram itself)

Diagram of a blender with a plug inserted into a container (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Illustration of a person eating from a cup (no text or symbols present)

Illustration of a mechanical device emitting powder into a surface, with an inset showing a graduation cap and speech bubble (no text or symbols)

Illustration of a person using a hairdryer to apply facial hair (no text or symbols present)

Illustration of a medical or laboratory procedure showing a device emitting particles onto a surface, with an inset magnified view of the process (no text or symbols present)

Line drawing of a hairbrush cutting down a button with an arrow indicating compression (no text or symbols)

Illustration of a hand holding a hairdryer with directional arrows indicating motion (no text or symbols)

Illustration of a man with a beard and a pipe, showing hand positioning (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of a person's head with a toothbrush and a T-shaped logo, no text or symbols present

Diagram showing a mushroom-shaped object with a cross symbol and an upward arrow, above a curved surface (no text or labels)

Diagram showing a droplet being injected onto a surface with an inset magnified view of the droplet (no text or symbols present)

Diagram showing a robotic arm interacting with a surface, with an inset magnified view of the contact area (no text or symbols present)

Line drawing of a person using a hairdryer (no text or symbols present)

Illustration of two boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand pressing a circular button on a curved surface (no text or symbols)

الحادقة

Illustration of a person applying facial massage to their ear with a brush (no text or symbols)

Illustration of a hand pressing a button on a patient's knee area (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

الشحن

ت Connectivity Objective Shines Appearance Available.

Diagram of a hairbrush connecting a power outlet with a cable, showing two arrows indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

قال التسفر

Line drawing of a robot with a lock icon and speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and speech bubble (no text or symbols)

Diagram of a laboratory pipette with a magnified inset showing internal structure (no text or labels)

Diagram of a hairbrush with a circular indicator labeled 'I' pointing to the center (no text or symbols beyond the label)

البطارية ضعيفة

Diagram of a hairbrush with a magnified inset showing the tip and base (no text or symbols)

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no fire or water discharge (no text present)

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

بشاه العرض

الشحن

Diagram of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Illustration of a hairdryer with a magnified inset showing a starburst pattern (no text or symbols)

مقدمة

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no fire or water discharge (no text present)
