USER MANUAL K 6.550 KARCHER
K 6.550
K 6.560
K 7.560
K 7.650
Deutsch 5
English 15
Français 24
Italiano 34
Nederlands 44
Español 54
Português 64
Dansk 74
Norsk 83
Svenska 92
Suomi 101
Ελληνικά 110
Türkçe 120
Русский 129
Magyar 139
Čeština 149
Slovenščina 158
Polski 167
Românește 177
Slovenčina 186
Hrvatski 195
Srpski 204
Български 213
Eesti 223
Latviešu 232
Lietuviškai 241
Українська 250
Register and win!
www.karcher.com
Inhaltsverzeichnis
K 6.550, K 6.560 | K 7.560, K7.650
Gemessen: 90 92
Garantiert: 93 95
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Technische Daten
Safety instructions..... EN 6
Operation ...... EN 8
Transport..... EN 10
Storage EN 11
Maintenance and care ..... EN 11
Troubleshooting ..... EN 11
EC Declaration of Conformity . . . EN 12
Technical specifications ..... EN 13
Dear Customer,
Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.
Scope of delivery
The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.
In the event of missing accessories or any transport damage, please contact your dealer.
Proper Use
This high-pressure cleaner is designed for domestic use only:
– to clean machines, vehicles, buildings, tools, facades, terraces, garden equipment etc. using a high-pressure water jet (and detergents if required).
– with accessories, replacement parts and detergents approved by KÄRCH-ER. Observe the instructions provided with these detergents.
Symbols in the operating instructions
⚠️Danger
Immediate danger that can cause severe injury or even death.
⚠ Warning
Possible hazardous situation that could lead to severe injury or even death.
Caution
Possible hazardous situation that could lead to mild injury to persons or damage to property.
Symbols on the machine
The high pressure jet may not be directed at persons, animals, live electrical equipment or at the appliance itself. Protect the appliance against frost.
Environmental protection
The packaging material can be recycled. Please do not place the packag-to the ordinary refuse for disposal, but ge for the proper recycling.
Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of oldances. Please dispose your old appli- s using appropriate collection sys-
Notes about the ingredients (REACH)
You will find current information about the ingredients at:
www.kaercher.com/REACH
Warranty
The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.
Please submit the proof of purchase.
(See address on the reverse)
Safety instructions
⚠️Danger
■ Never touch the mains plug and the socket with wet hands.
■ The appliance must not be used if the power cord or important parts of the appliance, e.g. high pressure hoses, trigger gun or safety devices are damaged.
- Check the power cord and mains plug for damage before every use. If the power cord is damaged, please arrange for it to be replaced immediately by an authorised repair agent or a skilled electrician.
- Check the high pressure hose for damage before every use. Please arrange for the immediate replacement of a damaged high pressure hose.
■ The appliance may not be used in areas where a risk of explosion is present.
If the appliance is used in hazardous areas (e.g. filling stations) all of the safety provisions and operating instructions detailed in this manual must be observed.
■ High pressure jets can be dangerous if improperly used. The jet must not be directed at persons, animals, live electrical equipment or at the appliance itself.
■ The high pressure jet must not be directed at other persons or directed by the user at him/herself to clean clothing or footwear.
■ Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
■ Vehicle tyres or tyre valves are susceptible to damage from the high pressure jet and may burst. The first indication of this is a discolouration of the tyre. Damaged vehicle tyres/tyre valves are highly dangerous. Ensure that a distance of at least 30 cm is observed when cleaning with the jet!
■ Risk of explosion!
Do not spray flammable liquids.
Never draw in fluids containing solvents or undiluted acids! This includes petrol,
paint thinner and heating oil. The spray mist thus generated is highly inflammable, explosive and poisonous. Do not use acetone, undiluted acids or solvents as they are damaging to the materials from which the appliance is made.
⚠ Warning
■ The mains plug and the coupling of an extension cable must be watertight and must never lay in the water.
■ Unsuitable extension cables can be hazardous. Only use extension cables outdoors which have been approved for this purpose and labelled with a sufficient cable cross-section:
1 - 10 m: 1.5 mm 2 ; 10 - 30 m: 2.5 mm 2
■ Always fully unroll electrical cables from the cable drum.
■ High pressure hoses, fixtures and couplings are important for the safety of the appliance. Only use high pressure hoses, fixtures and couplings recommended by the manufacturer.
This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities.
The appliance must not be operated by children or persons who have not been instructed accordingly.
Children should be supervised to prevent them from playing with the appliance.
■ The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby.
■ Do not use the appliance when there are other persons around unless they are also wearing safety equipment.
■ Wear protective clothing and safety goggles to protect against splash back containing water or dirt.
Caution
In case of extended downtimes, switch the appliance off at the main switch / appliance switch or remove the mains plug.
■ Do not operate the appliance at temperatures below 0 °C.
- Observe a distance of at least 30 cm when using the jet to clean painted surfaces to avoid damaging paintwork.
■ Never leave the appliance unattended when it is in operation.
■ Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.
■ All current-conducting parts in the working area must be protected against jet water.
■ The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
■ The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.
■ For safety reasons, we recommend that you operate the appliance only via an earth-leakage circuit breaker (max. 30 mA).
■ Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.
This appliance was designed to be used with detergents which are supplied or recommended by the manufacturer. The use of other detergents or chemicals may compromise the safety of the appliance.
Safety Devices
Caution
Safety devices protect the user and must not be modified or bypassed.
Power switch
The appliance switch prevents unintentional operation of the appliance.
Lock trigger gun
This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance.
Overflow valve with pressure switch
The overflow valve prevents the permissible working pressure from being exceeded. If the lever on the trigger gun is released the pressure switch turns off the pump, the high pressure jet is stopped. If the lever is pulled the pump is turned on again.
Prerequisites for the appliance's stability
Caution
Create stability for the appliance prior to all work on or with the appliance to prevent accidents or damage.
- The stability of the appliance is warranted when it is placed onto an even surface.
Operation

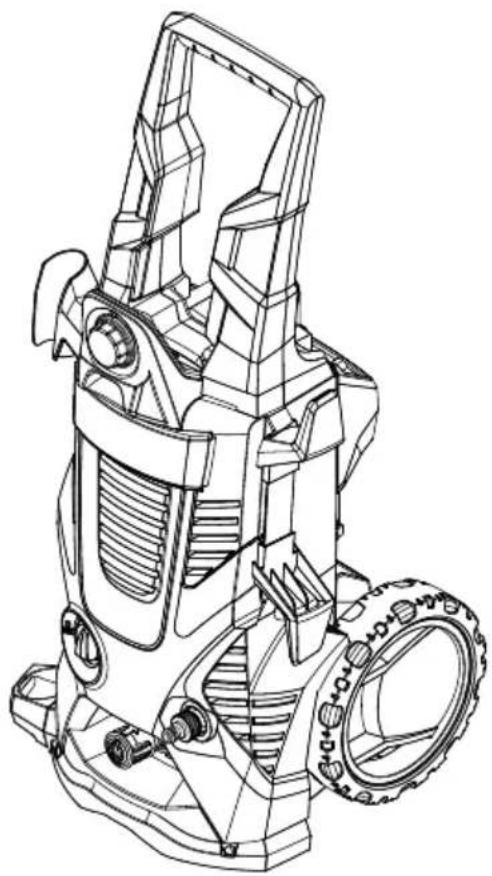

Description of the Appliance
These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).
Illustrations on fold-out pages!
1 Coupling element for water connection
2 High pressure connection
3 Water connection with integrated sieve
4 Appliance switch "0/OFF"/ „I/ON“
5 Dosage regulator for detergent
6 Storage for trigger gun
7 Transport handle
8 Plug 'n' Clean detergent bottle with locking lid
9 Storage of Plug 'n' Clean detergent bottle with detergent connection
10 Storage for accessories
11 Storage hook for mains connection cable
12 Mains cable with mains plug
13 Wheels
14 Trigger gun
15 Lock trigger gun
16 Key to detach the high pressure hose from the trigger gun
17 Washing brush
18 Spray lance with Dirtblaster
19 Spray lance with pressure regulation (Vario Power)
20 High pressure hose
Special accessories
Special accessories expand the possibilities of using your appliance. Please contact your KÄRCHER dealer for further information.
Before Startup
Mount loose parts delivered with appliance prior to start-up.
Install the storage for trigger gun

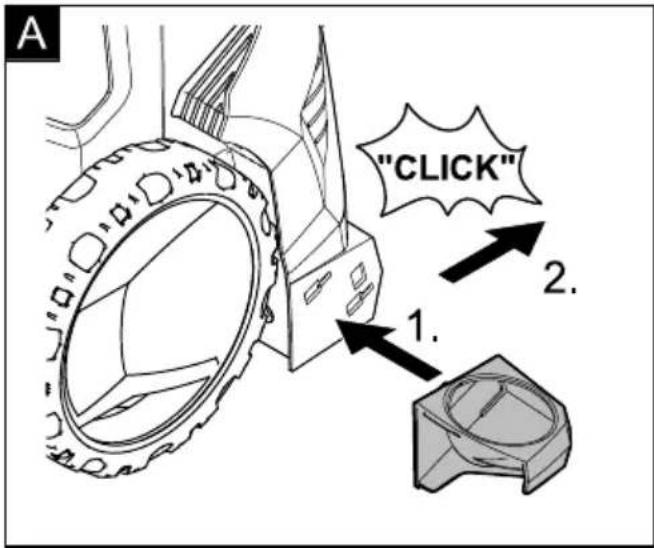

→ IllustrationA
Place the bottom holder into the recesses and push forward until it audibly locks in.

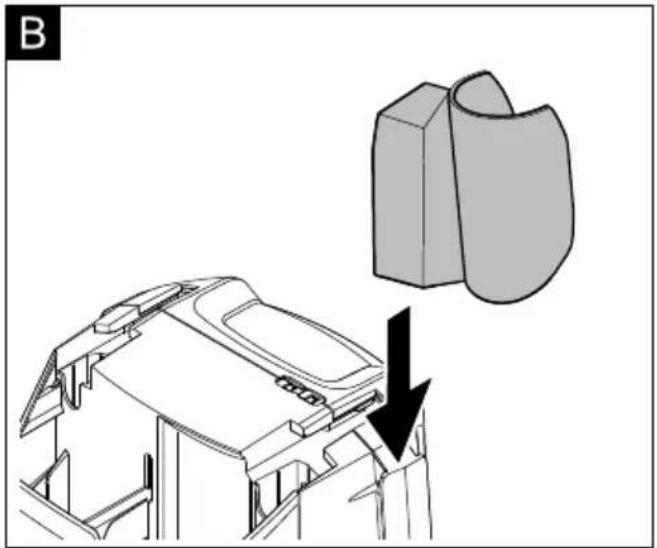

→ IllustrationB
Insert the top holder and push down all the way.
Install the storage hook for the mains connection cable
Option

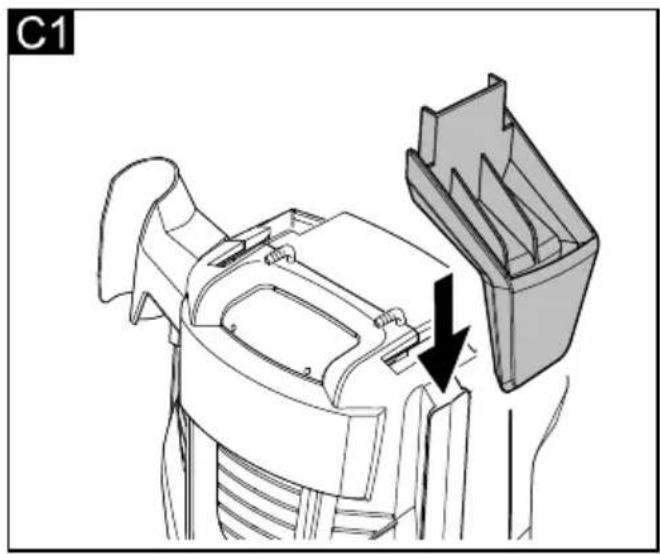

→ IllustrationC1
Install the bottom storage hook.

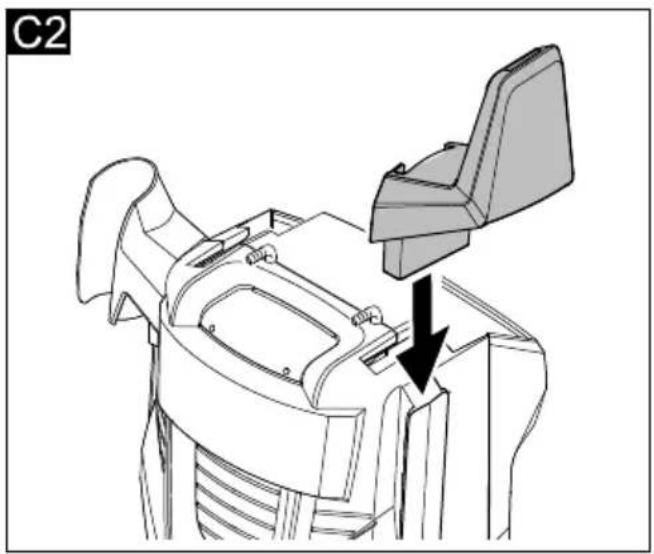

→ IllustrationC2
Install the top storage hook.
Install the dosage regulator for detergent
You will need the 2 included screws as well as a Phillips screwdriver PH 2.
→ IllustrationD
Insert both detergent hoses onto the hose fittings.
Install the dosage regulator and connect using 2 screws.
Install the transport handle Option

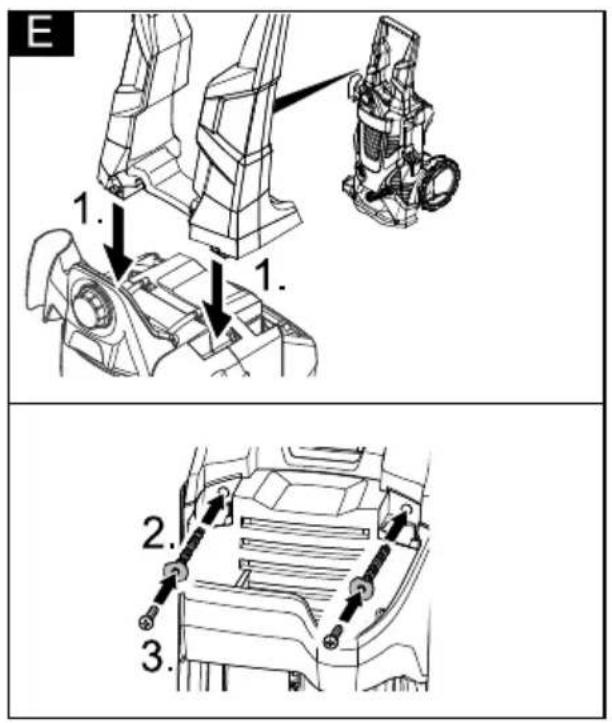

→ IllustrationE
Attach the transport handle, insert the bolts into the bores and screw them in.
Connect the high pressure hose to the trigger gun
Illustration F
→ Push the high pressure hose into the trigger gun until it locks audibly.
Note: Make sure the connection nipple is aligned correctly.
Check the secure connection by pulling on the high pressure hose.
Water supply
⚠ Warning
According to the applicable regulations, the appliance must never be used on the drinking water supply without a system separator. Use a suitable system separator manufactured by KÄRCHER; or, as an alternative, a system separator as per EN 12729 Type BA. Water flowing through a system separator is considered non-drinkable.
Caution
Always connect the system separator to the water supply, never directly to the appliance!
Note: Impurities in the water can damage the high-pressure pump and accessories. For protection, the use of the KÄRCHER water filter (optional accessory, order no. 4.730-059) is recommended.
Water supply from mains
Observe regulations of water supplier. For connection values, see type plate/technical data.
→ Use a fibre-reinforced water hose (not included) with a standard coupling. (Minimum diameter 1/2 inch (13 mm), minimum length 7.5 m).
Caution
Hose couplings made of metal with aquastop can damage the pump! Please use plastic couplings or KÄRCHER brass couplings.
→ IllustrationG
Screw the coupling element to the water connection on the appliance.
Push the water supply hose onto the coupling unit, then connect it to the water supply.
Drawing in water from open reservoirs
This high-pressure cleaner is suited to work with the KÄRCHER suction hose with backflow valve (Optional accessory, order no. 4.440-238) to draw in surface water, e.g. from water butts or ponds (see specifications for max. suction height).
→ Fill the KÄRCHER suction hose with backflow valve with water, screw to water supply and hang into the water butt.
→ Appliance ventilation: Switch the appliance on with the high-pressure hose detached and operate (max. 2 minutes) until the water exits the high-pressure connection without bubbles. Switch off appliance and reconnect high-pressure hose.
Start up
Caution
Dry runs lasting longer than two minutes lead to damages to the high pressure pump. If the appliance does not build up pressure within two minutes, switch it off and proceed as instructed in the Chapter "Troubleshooting".

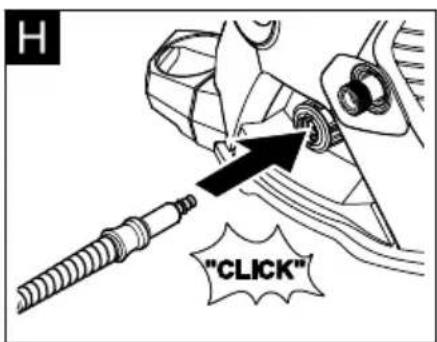

→ IllustrationH
Insert the high pressure hose tightly into the quick coupling on the appliance, it will lock in audibly.
Note: Make sure the connection nipple is aligned correctly.
Check the secure connection by pulling on the high pressure hose.

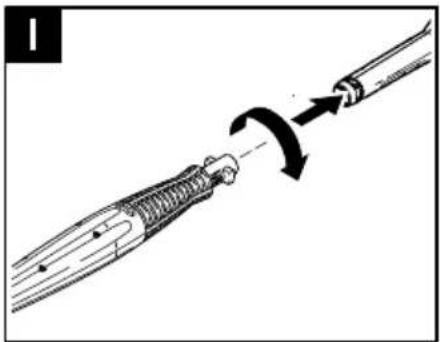

→ Illustration
Push the spray lance into the trigger gun and fasten it by turning it through 90°.
→ Completely open the water tap.
→ Insert the mains plug into the socket.
→ Turn on the appliance "I/ON".
Operation
⚠Danger
The trigger gun is subjected to a recoil force when the water jet is discharged. Make sure that you have a firm footing and are also holding the trigger gun and spray lance firmly.
Caution
Prior to cleaning, make sure that the high pressure is placed safely on level ground. Wear protective goggles and protective clothing during the cleaning process.
→ Unlock the lever on the trigger gun.
→ Pull on the lever of the trigger gun; the device will switch on.
Note: Release the lever of the trigger gun; the device will switch off again. High pressure remains in the system.
Spray lance with pressure regulation
Carrying out the most common cleaning tasks. The work pressure can be infinitely regulated between "Min" and "Max".
→ Release the lever on the trigger gun.
→ Turn the spray lance to the desired position.
Note: Suitable for working with detergent; for this, turn the spray lance to the "Mix" position.
Spray lance with Dirtblaster
For particularly dirty items or areas.
Caution
Car tyres, paint or sensitive surfaces such as wood should not be cleaned with the dirt blaster, as there is a risk of damage. Not suitable for use with detergents.
Washing brush
Note: Suitable for use with detergents.
Working with detergent
Please use exclusively KÄRCHER detergents and care products to carry out the respective cleaning task, as these were specifically developed for your appliance. The use of other detergents and care products may lead to premature wear and can invalidate your warranty claims. Please obtain information at your local dealer or request information directly from KÄRCHER.
Notes regarding the detergent: The most commonly used KÄRCHER detergents can be purchased ready to use in their Plug 'n' Clean detergent bottles with locking lids. This will make the pesky refilling and filling processes redundant.
Illustration J
→ Remove the lid from the Plug 'n' Clean detergent bottle and press the detergent bottle into the detergent connection with the opening facing down.
Illustration K
→ Adjust the suction volume of the detergent solution by means of the dosage regulator for detergents.
→ Use spray lance with pressure regulation (Vario Power).
→ Turn the spray lance to "Mix" position.
Note: This will mix the detergent with the water stream.
Note: If required, the washing brushes can be used to work with detergent.
Recommended cleaning method
→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
→ Spray off loosened dirt with the high pressure jet.
Interrupting operation
→ Release the lever on the trigger gun.
→ Lock the lever on the trigger gun.
→ During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.
Finish operation
Caution
Only separate the high-pressure hose from the trigger gun or the appliance while there is no pressure in the system.
→ Remove the Plug 'n' Clean detergent bottle from the intake and close it with the lid. To store, place into the intake rotated by 180°.
→ Release the lever on the trigger gun.
→ Turn off the appliance "0/OFF".
→ Turn off tap.
→ Press the lever on the trigger gun to release any remaining pressure in the system.
→ Detach the appliance from the water supply.
⚠ Warning
When disconnecting the supply or high pressure hose, hot water may leak from the connections after operation.
→ Lock the lever on the trigger gun.
→ Pull out the mains plug.
Transport
Caution
In order to prevent accidents or injuries, keep in mind the weight of the appliance during transport (see Specifications).
When transporting by hand
→ Lift appliance by the carrying handle and carry it.
→ Pull the appliance by its transport handle.
When transporting in vehicles
→ Prior to horizontal transport: Remove the Plug 'n' Clean detergent bottle from the intake and close it with the lid.
→ Secure the appliance against shifting and tipping over.
Storage
Caution
In order to prevent accidents or injuries, keep in mind the weight of the appliance when selecting a storage location for it (see Specifications).
Storing the Appliance
→ Park the machine on an even surface.
→ Press the disconnect on the trigger gun and remove the high pressure hose from the trigger gun.
→ Push the casing of the quick coupling for the high pressure hose toward the rear and disconnect the high pressure hose from the appliance.
→ Insert the trigger gun with the spray lance into the holder for the trigger gun.
→ Stow away the mains cable, the high-pressure hose and accessory on the appliance.
Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.
Frost protection
Caution
Protect the appliance and its accessories against frost.
The appliance and its accessories can get destroyed through frost if there is any water residues in them. To avoid damage to them:
→ Completely drain all water from the appliance: Switch the appliance on with detached high pressure hose and detached water supply (max. 1 minute) and wait, until no more water exits at the high pressure connection. Turn off the appliance.
→ Store the appliance and the entire accessories in a frost free room.
Maintenance and care
⚠️Danger
Turn off the appliance and remove the mains plug prior to any care and maintenance work.
Maintenance
The appliance is maintenance free.
Cleaning
Prior to longer periods of storage, e.g. in the winter:
→ Completely drain all water from the appliance: Switch the appliance on with detached high pressure hose and detached water supply (max. 1 minute) and wait, until no more water exits at the high pressure connection. Turn off the appliance.
Illustration L
→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.

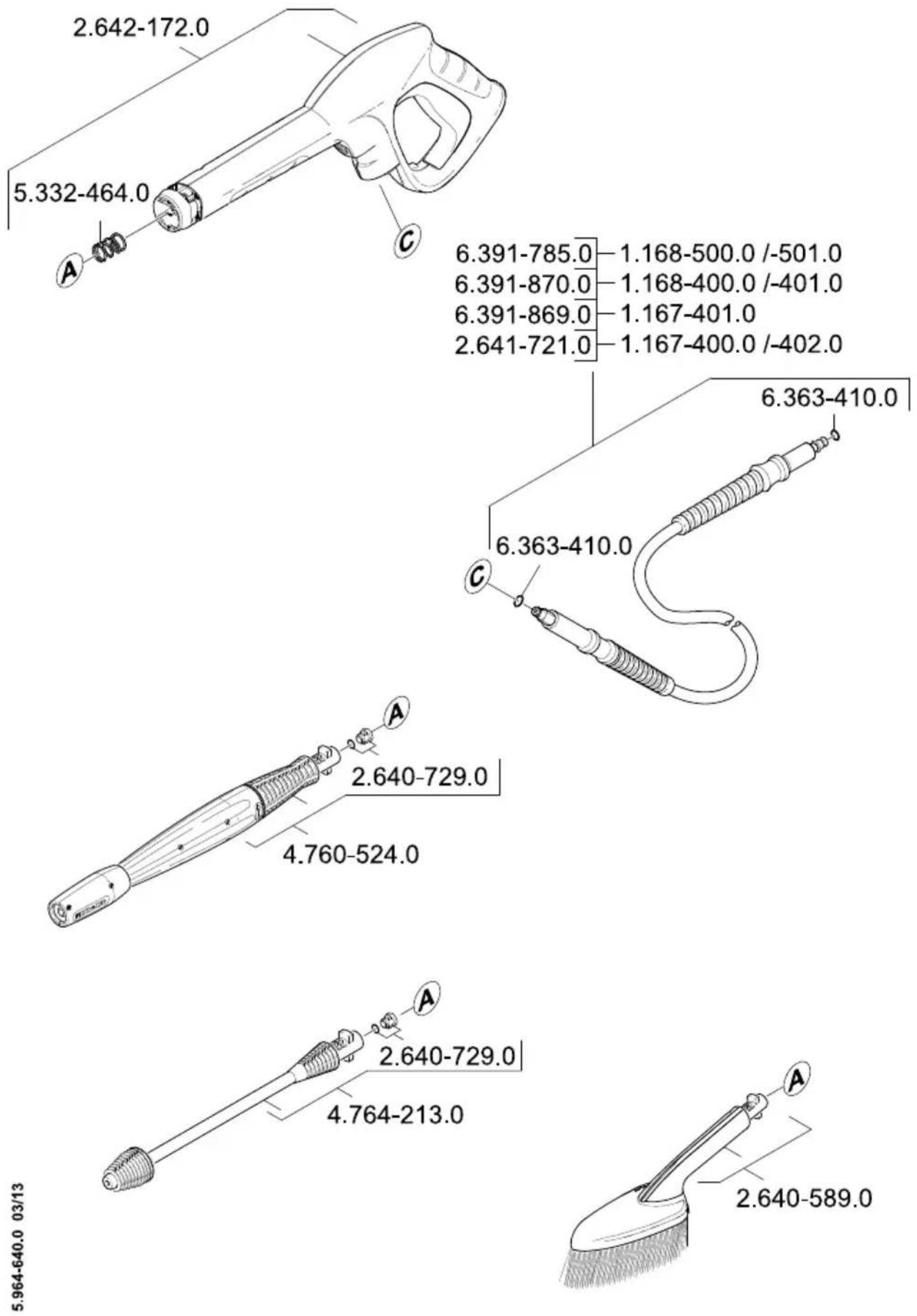

Spare parts
Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.
Troubleshooting
You can rectify minor faults yourself with the help of the following overview. If in doubt, please consult the authorized customer service.
⚠ Danger
Turn off the appliance and remove the mains plug prior to any care and maintenance work.
Repair works may only be performed by the authorized customer service.
Appliance is not running
→ Pull on the lever of the trigger gun; the device will switch on.
→ Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
→ Check the mains connection cable for damages.
Pressure does not build up in the appliance
→ Check setting at the spray lance.
→ Appliance ventilation: Switch the appliance on with the high-pressure hose detached and operate (max. 2 minutes) until the water exits the high-pressure connection without bubbles. Switch off appliance and reconnect high-pressure hose.
→ Check the water supply.
→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.
Appliance does not start, motor hums
Cause: Voltage reduction due to weak mains supply or when using an extension cable.
→ When switching on, first pull the lever of the trigger gun and then switch the appliance switch to "I/ON".
Strong pressure fluctuations
→ Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.
→ Check water flow quantity.
Appliance is leaking
→ Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service.
No detergent infeed
→ Use spray lance with pressure regulation (Vario Power).
Turn the spray lance to "Mix" position.
→ Check the settings at the dosage regulator for detergent.
→ Check the detergent suction hose for kinks.
We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.
Product: High pressure cleaner
Type: 1.167-xxx / 1.168-xxx
Relevant EU Directives
2006/42/EC (+2009/127/EC)
2004/108/EC
2000/14/EC
2011/65/EC
Applied harmonized standards
EN 50581
EN 55014-1: 2006+A1: 2009+A2: 2011
EN 55014-2: 1997+A1: 2001+A2: 2008
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2008
EN 62233: 2008
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
K 6.550, K 6.560 | K 7.560, K7.650
Measured: 90 92
Guaranteed: 93 95
The undersigned act on behalf and under the power of attorney of the company management.
CEO
S. Reiser
Head of Approbation
Authorised Documentation Representative
S. Reiser
71364 Winnenden (Germany)
Phone: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Technical specifications
| EU | |
| K 6.550 | K 6.560 | K 7.560 | K 7.650 | |
| Electrical connection |
| Voltage 230 - 240 230 V | 1~50 1~50 Hz | |
| Connected load 2,5 3,0 kW | | | |
| Protective class I I | | | |
| Protection class IP X5 IP X5 | | | |
| Mains fuse (slow-blow) 16 16 A | | | |
| Water connection |
| Max. feed pressure 0,6 0,6 MPa | | | |
| Max. feed temperature | 60 60 °C | | |
| Min. feed volume | 11 12 l/min | | |
| Max. Suction height | 1,0 1,0 m | | |
| Performance data |
| Working pressure | 13 15 MPa | | |
| Max. permissible pressure | 15 16 MPa | | |
| Water flow rate | 8,8 9,2 l/min | | |
| Detergent flow rate | 0 - 0,3 | 0 - 0,3 | l/min |
| Recoil force of trigger gun | 20 22 N | | |
| Dimensions and weights |
| Length | 377 | 377 | 404 | mm |
| Width | 461 | 461 | 461 | mm |
| Height | 968 | 905 | 968 | mm |
| Weight, ready to operate with accessories | 19,5 | 19,8 | 20,2 | 21,1 | kg |
| Values determined as per EN 60335-2-79 |
| Hand-arm vibration value | <2,5 | <2,5 | m/s 2 |
| Uncertainty K | 0,3 | 0,3 | m/s 2 |
| Sound pressure level L pA | 76 | 77 | dB(A) |
| Uncertainty K pA | 3 | 3 | dB(A) |
| Sound power level L WA + Uncertainty K WA | 93 95 dB(A) | |
Subject to technical modifications!
Table des matières
Entreposage .... FR 11
Entretien et maintenance ..... FR 12
Assistance en cas de panne .... FR 12
www.kaercher.com/REACH
Garantie
Type: 1.167-xxx / 1.168-xxx
2006/42/CE (+2009/127/CE)
2004/108/CE
2000/14/CE
2011/65/CE
S. Reiser
Head of Approbation
Responsable de la documentation:
S. Reiser
71364 Winnenden (Germany)
Winnenden, 2013/01/01
www.kaercher.com/REACH
Garanzia
2006/42/CE (+2009/127/CE)
2004/108/CE
2000/14/CE
2011/65/CE
K 6.550, K 6.560 | K 7.560, K7.650
Misurato: 90 92
Garantito: 93 95
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Dati tecnici
www.kaercher.com/REACH
Garantie
Type: 1.167-xxx / 1.168-xxx
K 6.550, K 6.560 | K 7.560, K7.650
Gemeten: 90 92
Gegaran- 93 | 95
deerd:
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Technische gegevens
www.kaercher.com/REACH
Garantía
2006/42/CE (+2009/127/CE)
2004/108/CE
2000/14/CE
2011/65/CE
K 6.550, K 6.560 | K 7.560, K7.650
Medido: 90 92
Garantizado: 93 95
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tele.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Datos técnicos
www.kaercher.com/REACH
Garantia
Tipo: 1.167-xxx / 1.168-xxx
Respectivas Directrizes da CE
2006/42/CE (+2009/127/CE)
2004/108/CE
2000/14/CE
2011/65/CE
K 6.550, K 6.560 | K 7.560, K7.650
Medido: 90 92
Garantido: 93 95
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Dados técnicos
www.kaercher.com/REACH
Garanti
71364 Winnenden (Germany)
Tlf.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Tekniske data
www.kaercher.com/REACH
Garanti
71364 Winnenden (Germany)
Tlf: +49 7195 14-0
Winnenden, 2013/01/01
Tekniske data
www.kaercher.com/REACH
Garanti
→ Starta aggregatet "I/ON".
Drift
⚠️Fara
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Tekniska data
www.kaercher.com/REACH
Takuu
71364 Winnenden (Germany)
Puh.: +49 7195 14-0
Winnenden, 2013/01/01
Tekniset tiedot
www.kaercher.com/REACH
Εγγύηση
K 6.550, K 6.560 K 7.560, K7.650
Μετρημένη: 90 92
Εγγυημένη: 93 95
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tηλ.: +49 7195 14-0
Φαξ: +49 7195 14-2212
Winnenden, 2013/01/01
www.kaercher.com/REACH
Garanti
Tip: 1.167-xxx / 1.168-xxx
K 6.550, K 6.560 | K 7.560, K7.650
Ölçülen: 90 92
Garanti edi- 93 | 95
len:
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2013/01/01
Teknik Bilgiler
www.kaercher.com/REACH
Гарантия
K 6.550, K 6.560 K 7.560, K7.650
Измерено: 90 92
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Тел.: +49 7195 14-0
Факс: +49 7195 14-2212
Winnenden, 2013/01/01
Технические данные
www.kaercher.com/REACH
Garancia
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Műszaki adatok
www.kaercher.com/REACH
Záruka
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Technické údaje
www.kaercher.com/REACH
Garancija
Tip: 1.167-xxx / 1.168-xxx
Zadevne ES-direktive:
2006/42/ES (+2009/127/ES)
2004/108/ES
2000/14/ES
2011/65/ES
K 6.550, K 6.560 | K 7.560, K7.650
Izmerjeno: 90 92
Zajamčeno: 93 95
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2013/01/01
Tehnični podatki
| EU | |
| K 6.550 | K 6.560 | K 7.560 | K 7.650 | |
| Električni priključek |
| Napetost 230 - 240 230 V | 1~50 1~50 Hz | |
| Priključna moč 2,5 3,0 kW | | | |
| Razred zaščite I I | | | |
| Stopnja zaščite IP X5 IP X5 | | | |
| Omrežna varovalka (inertna) 16 16 A | | | |
| Vodni priključek |
| Pritisk dotoka (maks.) 0,6 0,6 MPa | | | |
| Temperatura dotoka (maks.) | 60 60 °C | | |
| Količina dotoka (min.) | 11 12 l/min | | |
| Max. sesalna višina | 1,0 1,0 m | | |
| Podatki o zmogljivosti |
| Delovni tlak | 13 15 MPa | | |
| Maks. dovoljeni tlak | 15 16 MPa | | |
| Črpalna količina, voda | 8,8 9,2 l/min | | |
| Črpalna količina, čistilno sredstvo | 0 - 0,3 | 0 - 0,3 | l/min |
| Povratna sila ročne brizgalne pištole | 20 22 N | | |
| Mere in teža |
| Dolžina | 377 | 377 | 404 | mm |
| Širina | 461 | 461 | 461 | mm |
| Višina | 968 | 905 | 968 | mm |
| Teža, pripravljeno za uporabo s priborom | 19,5 | 19,8 | 20,2 | 21,1 | kg |
| Ugotovljene vrednosti v skladu z EN 60335-2-79 |
| Vrednost vibracij dlan-roka | <2,5 | <2,5 | m/s2 |
| Negotovost K | 0,3 | 0,3 | m/s2 |
| Nivo hrupa LpA | 76 | 77 | dB(A) |
| Negotovost KpA | 3 | 3 | dB(A) |
| Nivo hrupa ob obremenitviLWA + negotovost KWA | 93 95 dB(A) | |
Pridržana pravica do tehničnih sprememb!
Spis treści
www.kaercher.com/REACH
Gwarancja
2006/42/WE (+2009/127/WE)
2004/108/WE
2000/14/WE
2011/65/WE
71364 Winnenden (Germany)
tel.: +49 7195 14-0
faks: +49 7195 14-2212
Winnenden, 2013/01/01
Dane techniczne
Mult stimate client,
www.kaercher.com/REACH
Garantie
Tip: 1.167-xxx / 1.168-xxx
Directive EG respectate:
2006/42/CE (+2009/127/CE)
2004/108/CE
2000/14/CE
2011/65/CE
Norme armonizate utilize:
EN 50581
EN 55014-1: 2006+A1: 2009+A2: 2011
EN 55014-2: 1997+A1: 2001+A2: 2008
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2008
EN 62233: 2008
K 6.550, K 6.560 | K 7.560, K7.650
măsurat: 90 92
garantat: 93 95
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Date tehnice
www.kaercher.com/REACH
Záruka
2006/42/ES (+2009/127/ES)
2004/108/ES
2000/14/ES
2011/65/ES
Uplatňované harmonizované normy:
EN 50581
EN 55014-1: 2006+A1: 2009+A2: 2011
EN 55014-2: 1997+A1: 2001+A2: 2008
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2008
EN 62233: 2008
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2013/01/01
Technické údaje
www.kaercher.com/REACH
Jamstvo
Tip: 1.167-xxx / 1.168-xxx
2006/42/EZ (+2009/127/EZ)
2004/108/EZ
2000/14/EZ
2011/65/EZ
K 6.550, K 6.560 | K 7.560, K7.650
Izmjerena: 90 92
Zajamčena: 93 95
Potpisnici rade po nalogu i s ovlaštenjem poslovodstva.
CEO
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2013/01/01
Tehnički podaci
| EU | |
| K 6.550 | K 6.560 | K 7.560 | K 7.650 | |
| Električni priključak |
| Napon 230 - 240 230 V | 1~50 1~50 Hz | |
| Priključna snaga 2,5 3,0 kW | | | |
| Klasa zaštite I I | | | |
| Stupanj zaštite IP X5 IP X5 | | | |
| Strujna zaštita (inertna) 16 16 A | | | |
| Priključak za vodu |
| Dovodni tlak (maks.) 0,6 0,6 MPa | | | |
| Dovodna temperatura (maks.) | 60 60 °C | | |
| Dovodni protok (min.) | 11 12 l/min | | |
| Maks. usisna visina | 1,0 1,0 m | | |
| Podaci o snazi |
| Radni tlak | 13 15 MPa | |
| Maks. dozvoljeni tlak 15 16 MPa | | | |
| Protok vode | 8,8 9,2 l/min | |
| Protok sredstva za čišćenje | 0 - 0,3 | 0 - 0,3 | l/min |
| Povratna udarna sila ručnog pištolja za prska-nje | 20 22 N | | |
| Dimenzije i težine |
| Duljina | 377 | 377 | 404 | mm |
| Širina | 461 | 461 | 461 | mm |
| Visina | 968 | 905 | 968 | mm |
| Težina u stanju pripravnosti za rad, s priborom | 19,5 | 19,8 | 20,2 | 21,1 | kg |
| Utvrdene vrijednosti prema EN 60335-2-79 |
| Vrijednost vibracije na ruci | <2,5 | <2,5 | m/s 2 |
| Nepouzdanost K | 0,3 | 0,3 | m/s 2 |
| Razina zvučnog tlaka L pA | 76 | 77 | dB(A) |
| Nepouzdanost K pA | 3 | 3 | dB(A) |
| Razina zvučne snage L WA + nepouzdanost K WA | 93 95 dB(A) | |
www.kaercher.com/REACH
Garancija
U svakoj zemlji važe garantni uslovi koje je izdala naša nadležna distributivna organizacija. Eventualne smetnje na uređaju za vreme trajanja garancije uklanjamo besplatno, ukoliko je uzrok greška u materijalu ili proizvodnji. U slučaju koji podleže garanciji obratite se sa potvrdom o kupovini Vašem prodavcu ili najbližoj ovlašćenoj servisnoj službi. (Adresu ćete naći na poleđini)
Sigurnosne napomene
⚠️ Opasnost
■ Mrežni utikač in utičnicu nikada ne dodirujte vlažnim rukama.
■ Uređaj ne pokrećite ako su oštećeni strujni priključni kabl ili važni delovi uređaja, npr. crevo visokog pritiska, ručna prskalica ili sigurnosni elementi.
■ Pre svake upotrebe proverite da li na strujnom priključnom kablu sa utikačem ima oštećenja. Oštećen strujni priključni kabl odmah dajte na zamenu ovlašćenoj servisnoj službi/električaru.
■ Pre svakog pokretanja proverite da li na crevu visokog pritiska ima oštećenja. Oštećeno crevo visokog pritiska odmah zamenite.
■ Zabranjen je rad u područjima ugroženim eksplozijom.
Kod upotrebe uređaja u opasnim područjima (npr. benzinskim pumpama) treba da se poštuju odgovarajući sigurnosni propisi.
■ Mlazovi pod visokim pritiskom mogu kod nestručne upotrebe biti opasni. Mlaz se ne sme da usmerava prema ljudima, životinjama, aktivnoj električnoj opremi ili samom uređaju.
■ Mlaz pod visokim pritiskom ne usmeravajte prema drugima ili sebi kako biste očistili odeću ili obuću.
Parom ne prskajte predmete koji sadrže materijale opasne za zdravlje (na pr. azbest).
■ Automobilske gume/ventili guma se mogu oštetiti mlazom pod visokim pritiskom i pući. Prvi znak toga je promena boje gume: Oštećene automobilske gume/ventili guma su opasni po život. Kod čišćenja održavajte najmanje 30 cm razmaka!
■ Opasnost od eksplozije!
Nemojte rasprskavati zapaljive
tečnosti.
Nikada ne usisavajte tečnosti sa
rastvaračima ili nerazređene kiseline i
rastvarače! U to se na primer ubrajaju
benzin, razređivači za boje ili mazut.
Tip: 1.167-xxx / 1.168-xxx
2006/42/EZ (+2009/127/EZ)
2004/108/EZ
2000/14/EZ
2011/65/EZ
Primenjene uskladene norme:
EN 50581
EN 55014-1: 2006+A1: 2009+A2: 2011
EN 55014-2: 1997+A1: 2001+A2: 2008
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2008
EN 62233: 2008
K 6.550, K 6.560 | K 7.560, K7.650
Izmerena: 90 92
Zagarantovana: 93 | 95
Potpisnici rade po nalogu i sa ovlašćenjem poslovodstva.
CEO
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2013/01/01
Tehnički podaci
| EU | |
| K 6.550 | K 6.560 | K 7.560 | K 7.650 | |
| Električni priključak |
| Napon 230 - 240 230 V | 1~50 1~50 Hz | |
| Priključna snaga 2,5 3,0 kW | | | |
| Klasa zaštite I I | | | |
| Stepen zaštite IP X5 IP X5 | | | |
| Mrežni osigurač (inertan) 16 16 A | | | |
| Priključak za vodu |
| Dovodni pritisak (maks.) 0,6 0,6 MPa | | | |
| Dovodna temperatura (maks.) | 60 60 °C | | |
| Dovodni protok (min.) | 11 12 l/min | | |
| Maks. usisna visina | 1,0 1,0 m | | |
| Podaci o snazi |
| Radni pritisak | 13 15 MPa | |
| Maks. dozvoljeni pritisak 15 16 MPa | | | |
| Protok vode | 8,8 9,2 l/min | |
| Protok sredstva za čišćenje | 0 - 0,3 | 0 - 0,3 | l/min |
| Povratna udarna sila ručnog pištolja za prskanje | 20 22 N | | |
| Dimenzije i težine |
| Dužina | 377 | 377 | 404 | mm |
| Širina | 461 | 461 | 461 | mm |
| Visina | 968 | 905 | 968 | mm |
| Težina u stanju spremnom za rad, sa priborom | 19,5 | 19,8 | 20,2 | 21,1 | kg |
| Izračunate vrednosti prema EN 60335-2-79 |
| Vrednost vibracije na ruci | <2,5 | <2,5 | m/s 2 |
| Nepouzdanost K | 0,3 | 0,3 | m/s 2 |
| Nivo zvučnog pritiska L pA | 76 | 77 | dB(A) |
| Nepouzdanost K pA | 3 | 3 | dB(A) |
| Nivo zvučne snage L WA + nepouzdanost K WA | 93 95 dB(A) | |
www.kaercher.com/REACH
Гаранция
K 6.550, K 6.560 K 7.560, K7.650
Измерено: 90 92
Гарантирано: 93 95
71364 Winnenden (Germany)
Тел.: +49 7195 14-0
Факс: +49 7195 14-2212
Winnenden, 2013/01/01
Технически данни
www.kaercher.com/REACH
Garantii
Toode: Körgsurvepesur
Tüüp: 1.167-xxx / 1.168-xxx
K 6.550, K 6.560 | K 7.560, K7.650
71364 Winnenden (Germany)
Tel: +49 7195 14-0
Winnenden, 2013/01/01
Tehnilised andmed
www.kaercher.com/REACH
Garantija
K 6.550, K 6.560 | K 7.560, K7.650
Izmērītais: 90 92
Garantētais: 93 95
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tālr.: +49 7195 14-0
Fakss: +49 7195 14-2212
Winnenden, 2013/01/01
Tehniskie dati
www.kaercher.com/REACH
Garantija
Tipas: 1.167-xxx / 1.168-xxx
K 6.550, K 6.560 | K 7.560, K7.650
Išmatuotas: 90 92
Garantuotas: 93 95
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Faksas: +49 7195 14-2212
Winnenden, 2013/01/01
Techniniai duomenys
www.kaercher.com/REACH
Гарантія
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Тел.: +49 7195 14-0
Факс: +49 7195 14-2212
Winnenden, 2013/01/01
6.391-785.0-1.168-500.0/-501.0
6.391-870.0-1.168-400.0/-401.0
6.391-869.0-1.167-401.0
2.641-721.0-1.167-400.0/-402.0
http://www.kaercher.com/dealersearch
