Product Type	Propane Barbecue
Brand	Napoleon
Model	LA300RBN
Dimensions (L x W x H)	approx. 107 x 58 x 113 cm
Weight	approx. 34 kg
Fuel	Propane (standard gas bottle)
Main Cooking Area	approx. 2300 cm²
Main Burners	3 stainless steel burners
Total Power	approx. 30,000 BTU
Ignition	Electronic ignition
Material	Stainless steel and painted steel
Main Functions	Direct and indirect cooking, grilling, roasting
Maintenance and Cleaning	Clean grates after each use, empty grease tray regularly
Safety	Use outdoors away from combustible materials, check for gas leaks
Spare Parts and Repairability	Parts available through Napoleon after-sales service
General Information	User manual provided, limited warranty

Frequently Asked Questions - LA300RBN Napoleon

How to light the Napoleon LA300RBN barbecue?

Open the gas bottle valve, then turn the burner knob to the Ignite position while pressing the electronic ignition button. If ignition fails, use a long match.

What type of gas to use?

The LA300RBN model operates on propane. Use a standard propane bottle with a suitable regulator.

How to clean the cooking grates?

After each use, let cool then scrub the grates with a wire brush. For deep cleaning, use soapy water and rinse thoroughly.

Can the barbecue be used in rainy weather?

It is not recommended to use the barbecue in rain or strong wind. Place it in a sheltered but well-ventilated area, never indoors.

How to check for gas leaks?

Apply a soapy water solution to the connections and turn on the gas. If bubbles appear, there is a leak. Tighten connections or replace the seal.

Where to find spare parts?

Contact Napoleon after-sales service or visit the official website to order parts such as burners, grates, or thermocouple.

How to store the barbecue in winter?

Clean it thoroughly, disconnect the gas bottle, and store it in a dry place protected from weather. Use a protective cover.

What is the maximum temperature reached?

The barbecue can reach about 260°C (500°F) on full setting, depending on outdoor conditions.

Can the barbecue be used with charcoal?

No, the LA300RBN is designed only for propane gas. Do not use charcoal or wood.

How to maintain the burner?

Regularly inspect the burner ports for blockages. If necessary, clean them with a soft brush or compressed air.

USER MANUAL LA300RBN Napoleon

DO NOT PRINT THIS PAGE PRINTING INSTRUCTIONS ONLY

PRINT INSTRUCTIONS: PRINT FLIP INSTRUCTION MANUAL ENGLISH ONE SIDE - FRENCH THE OTHER SIDE AS PER ILLUSTRATION BELOW.

This gas grill must be used only outdoors in a well-ventilated space and must not be used inside a building, garage, screened-in porch, gazebo or any other enclosed area.

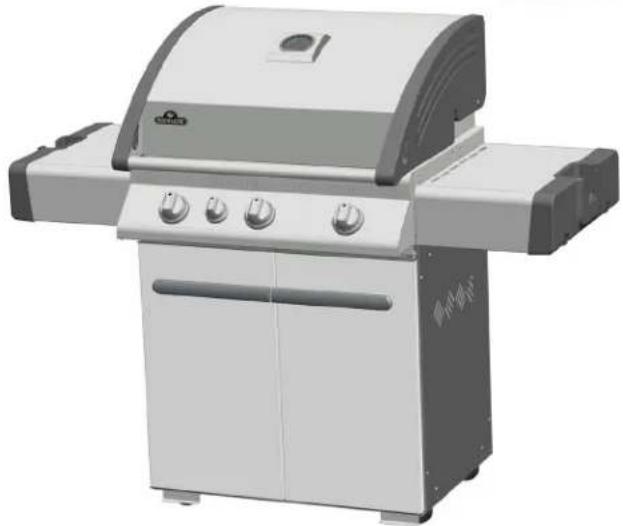

GOURMET GRILLS

Exterior view of a modern electric grill with visible flames and control knobs (no text or symbols)

LA300RB

DO NOT RETURN TO PLACE OF PURCHASE. PLEASE CONTACT 1-866-820-8686 FOR ASSISTANCE. WE CAN HELP WITH DAMAGED OR MISSING PARTS, ASSEMBLY AND OPERATION QUESTIONS.

DANGER

IF YOU SMELL GAS:

• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.

WARNING

Do not try to light this appliance without reading the "LIGHTING" instructions section of this manual.

Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance. An L.P. cylinder not connected for use must not be stored in the vicinity of this or any other appliance. If the information in these instructions is not followed exactly, a fire or explosion may result, causing property damage, personal injury or death.

Notice to Installer: Leave these instructions with the grill owner for future reference.

Conforms to ANSI

STD Z21.58a -2008

Certified to CSA

STD 1.6a -2008

Intertek

3194571

Wolf Steel USA.

103 Mliller Drive, Crittenden, Kentucky, USA, 41030. Phone: [phone]

Fax: [phone] email: [e-mail] web site: www.napoleongrills.com

N415-0262 APR 27/12

THANK YOU FOR CHOOSING NAPOLEON

NAPOLEON products are designed with superior components and materials, and are assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak tested and test-fired at a quality test station. This grill has been thoroughly inspected by a qualified technician before packaging and shipping to ensure that you, the customer, receive the quality product you expect from NAPOLEON.

We at Napoleon are dedicated to you, "our valued customer." It is our goal to provide you with the necessary tools for an unforgettable grilling experience. This manual is provided to assist you in assuring your new grill is assembled, installed, maintained and cared for properly. It is important to read and understand this entire manual before operating your new grill to ensure you fully understand all the safety precautions and features your grill has to offer. By carefully following these instructions, you will enjoy years of trouble-free grilling. If this product fails to meet your expectations, for any reason, please call our customer care department at 1-866-820-8686 between 9 AM and 5 PM (Eastern Standard Time) or visit our Website at www.napoleongrills.com.

Napoleon Gas Grill President's Limited Warranty

NAPOLEON warrants the following materials and workmanship in your new NAPOLEON gas grill against defects for 10 years. This covers aluminum castings (excluding paint), side shelves (excluding paint), stainless steel control panel (excluding screen printing), stainless steel burners, stainless steel or porcelain lid and base inserts, and lid handles, subject to the following conditions: During the first five years NAPOLEON will provide replacement parts at our option free of charge. From the sixth year to the tenth year, NAPOLEON will provide replacement parts at 50% of the current retail price.

Components such as stainless steel or porcelain sear plates, stainless steel or cast iron cooking grids, valves with ignition system, temperature gauges, knobs, and ceramic infrared burners (excluding screens) are covered and Napoleon will provide parts free of charge during the first two years of the limited warranty.

All other components including regulators, casters, warming racks, hoses and connectors, I-GLOW™, fasteners and accessories are covered and NAPOLEON will provide parts free of charge during the first year of the limited warranty.

NAPOLEON shall not be liable for any transportation charges, labor costs or export duties.

Conditions And Limitations

"NAPOLEON warrants its products against manufacturing defects to the original purchaser only, provided that the purchase was made through an authorized NAPOLEON dealer and is subject to the following conditions and limitations:"

This factory warranty is non-transferable and may not be extended what-so-ever by any of our representatives.

The gas grill must be installed by a licensed, authorized service technician or contractor. Installation must be done in accordance with the installation instructions included with the product and all local and national building and fire codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, grease fires, hostile environments, accident, alterations, abuse or neglect and parts installed from other manufacturers will nullify this warranty.

This limited warranty further does not cover any scratches, dents, painted finishes, corrosion or discoloring by heat, abrasive and chemical cleaners, nor chipping on porcelain enamel parts, nor any components used in the installation of the gas grill.

Should deterioration of parts occur to the degree of non-performance within the duration of the warranted coverage, a replacement part will be provided. In the first year only, this warranty extends to the replacement of warranted parts, which are defective in material or workmanship provided that the product has been operated in accordance with the operation instructions and under normal conditions.

After the first year, with respect to this President's Limited Lifetime Warranty NAPOLEON may, at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

NAPOLEON will not be responsible for the installation, labor or any other costs or expenses related to the re-installation of a warranted part, and such expenses are not covered by this warranty.

Notwithstanding any provision contained in this President's Limited Lifetime Warranty NAPOLEON's responsibility under this warranty is defined as above and it shall not in any event extend to any incidental, consequential, or indirect damages.

This warranty defines the obligation and liability of NAPOLEON with respect to the NAPOLEON gas grill and any other warranties expressed or implied with respect to this product, its components or accessories are excluded.

NAPOLEON neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product.

NAPOLEON will not be responsible for: over firing, blow outs caused by environmental conditions such as strong winds, or inadequate ventilation,

Any damages to the gas grill due to weather damage, hail, rough handling, damaging chemicals or cleaners will not be the responsibility of NAPOLEON.

The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from NAPOLEON.

NAPOLEON reserves the right to have its representative inspect any product or part prior to honoring any warranty claim.

NAPOLEON shall not be liable for any transportation charges, labor costs, or export duties.

WARNING! Failure to follow these instructions could result in property damage, personal injury or death. Read and follow all warnings and instructions in this manual prior to operating grill.

Safe Operating Practices

• This gas grill must be assembled exactly according to the instructions in the manual. If the grill was stored assembled, you must review the assembly instructions to confirm correct assembly and perform the required leak tests before operating the grill.
• Read the entire instruction manual before operating the gas grill.
• Under no circumstance should this gas grill be modified.
• Follow lighting instructions carefully when operating grill.
• Gas must be turned off at the propane cylinder or at the natural gas supply valve when the gas grill is not in use.
• Keep children and pets away from hot grill, DO NOT allow children to climb inside cabinet.
• Do not leave the grill unattended while in use.
• Do not move grill when hot or operating.
• This gas grill must not be installed in or on recreational vehicles and/or boats.
• This gas grill must only be stored outdoors in a well-ventilated area and must not be used inside a building, garage, screened -in porch or any other enclosed area.
• Maintain proper clearance to combustibles (16" (410mm) to rear of unit 7" (178mm) to sides). Additional clearance 24" (610mm) is recommended near vinyl siding or panes of glass.
• At all times keep the ventilation openings of the cylinder enclosure free and clear from debris.
• Do not operate unit under any combustible construction.
• Do not locate in windy settings. High winds adversely affect the cooking performance of the gas grill.
• When the gas grill is stored indoors, the propane cylinder must be disconnected from the grill and stored outdoors in a well-ventilated area, disconnected cylinders must not be stored in a building, garage or other enclosed area. Natural gas units must be disconnected from the supply when being stored indoors.
• Inspect the gas line hose before each use. If there is evidence of excessive abrasion or wear, it must be replaced before using the gas grill, with a replacement hose assembly specified by the grill manufacturer.
• Never store a spare LP gas cylinder under or near this grill.
• Never fill the cylinder beyond 80 % full.
• Do not attempt to use a cylinder, which is not equipped with a QCC1 type connection.
• Leak test all connections before initial use, even if the grill was purchased fully assembled, annually or whenever any gas component has been replaced.
• Never use natural gas in a unit designed for liquid propane gas.
• Never use lighter fluid in a gas grill.
• Use charcoal briquettes only with a Napoleon charcoal tray designed for this unit.
• Burner controls must be off when turning supply cylinder on.
• Do not light burners with lid closed.
• Do not operate rear burner with main burners operating.
• The lid is to be closed during the preheat period.
• Do not route hose underneath drip pan-proper hose clearance to bottom of unit must be maintained.

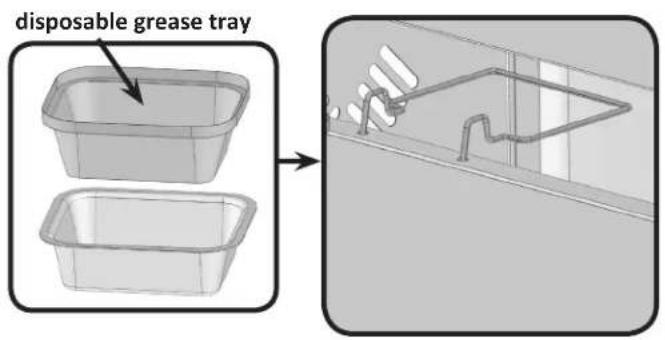

• Clean grease tray and sear plates regularly to avoid build-up, which may lead to grease fires.
• Remove warming rack before lighting rear burner. The extreme heat will damage the warming rack.
• Ensure sear plates are positioned properly according to sear plate installation instructions.
• Do not use side shelves to store lighters, matches or any other combustibles.
• Keep gas line away from heated surfaces
• Keep any electrical supply cord away from water or heated surfaces.
• Inspect infrared burner venturi tube for spider webs and other obstructions periodically. Clean the tubes completely if you find any such obstructions.
• The outdoor cooking gas grill and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 0.5psi (3.5kPa).
• The outdoor cooking gas grill must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).

Cylinder Specification/Gas Hook Up

This gas barbecue is certified under Canadian and American National Standards, CSA 1.6-2008 and ANSI Z21.58a -2008 respectively for outdoor gas grills and should be installed to conform with local codes. In absence of local codes, install to the current CAN/CSA-B149.1 Propane Installation Code in Canada or to the National Fuel Gas Code, ANSI Z223.1 in the United States.

When installed, the unit must be electrically grounded in accordance with local codes or, in absence of local codes, with the current CSA C22.1 Canadian electrical code in Canada or the National Electrical Code, ANSI/NFPA 70 in the United States.

If a rotisserie motor is used, it must be electrically grounded in accordance with local codes or, in absence of local codes, with the current CSA C22.1 Canadian electrical code in Canada or the National Electrical Code, ANSI/NFPA 70 in the United States.

California Proposition 65: The burning of gas fuel creates by-products, some of which are on the list as substances known by the State of California to cause cancer or reproductive harm. When cooking with gas, always ensure adequate ventilation to the unit, to minimize exposure to such substances.

Propane Cylinder Specifications

WARNING! If these instructions are not followed exactly, a fire causing death or serious injury may occur.

A dented or rusty cylinder may be hazardous and should be checked by your propane supplier. Never use a cylinder with a damaged valve. Use only a propane supply cylinder constructed and marked in accordance with the specifications for LP-gas cylinders of the National Standard of Canada, CAN/CSA-b339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and Commission, as applicable or the Specifications for LP-Gas Cylinders of the U.S. Department of Transportation (D.O.T.). This appliance has been designed for use with a 20 lb. (9.1 kg) size propane cylinder only (not supplied).

The propane cylinder must be provided with a cylinder connection device compatible with the connection for outdoor cooking appliances. The propane cylinder must be provided with a shut-off valve terminating in a propane cylinder valve type QCC1, and a safety relief device having direct communication with the vapor space of the cylinder. The cylinder supply system must be arranged for vapor withdrawal and the cylinder shall include a collar to protect the cylinder valve. The cylinder shall incorporate a listed OPD (overfill protection device). Do not store a spare LP-gas cylinder under or near this appliance. Never fill the cylinder beyond 80 percent full.

Propane Cylinder Installation

Cylinder Connection: Ensure that the gas regulator hose is kink free. Remove the cap or plug from the cylinder fuel valve. Insert the black QCC1 regulator nipple onto the QCC1 fuel valve. Hand tighten clockwise. Do not use tools. Leak test all joints prior to using the barbecue. A leak test must be performed annually, and each time a cylinder is hooked up, or if a part of the gas system is replaced.

• Check that the cylinder valve is closed by turning the knob clockwise.
• Check that the grill's burner knobs are in the off position.
• Open cabinet doors.

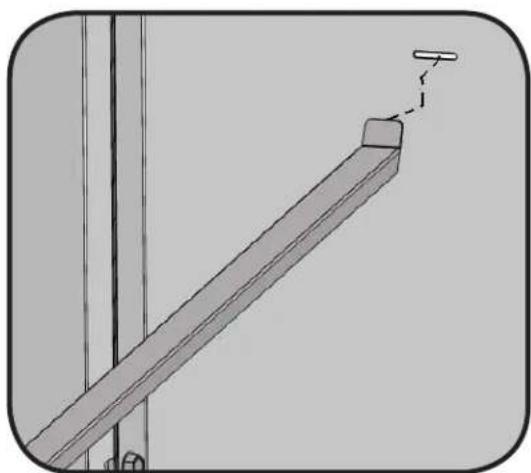

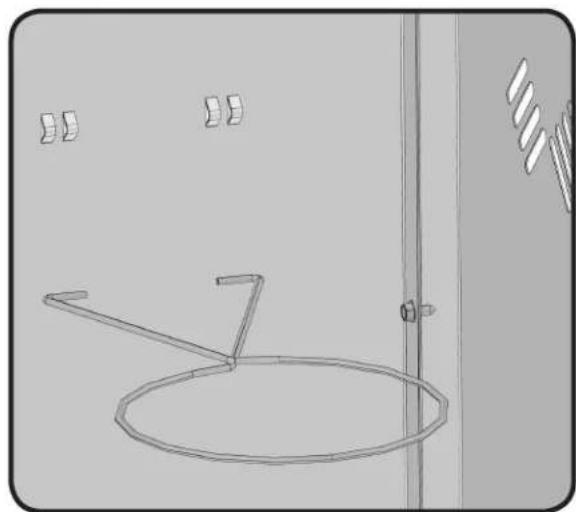

• Place the cylinder into the tank holder in bottom of shelf.
• Position the cylinder so that the valve faces toward the front of the unit.
• Attach regulator hose.

WARNING! Use only the pressure regulator and hose assembly provided with this barbecue. Replacement pressure regulators and hose assemblies must be specified by the manufacturer. Do not store a spare propane cylinder on the shelf beneath the barbecue. The regulator must be attached so that no part of the hose touches the underside of the grill or drippan. A fire will result if these directions are ignored.

The regulator supplies a pressure of 11 inches. water column to the gas grill and has a QCC1 type fitting. Cylinders to be used with this unit must be supplied with a QCC1 cylinder valve. A QCC1 cylinder has a positive seating connection, which will not allow gas flow until a positive seal has been achieved. It is also equipped with an excess flow device. In order to attain full flow to the grill, the valves must be in the off position when the cylinder valve is turned on.

Natural Gas Hook-Up

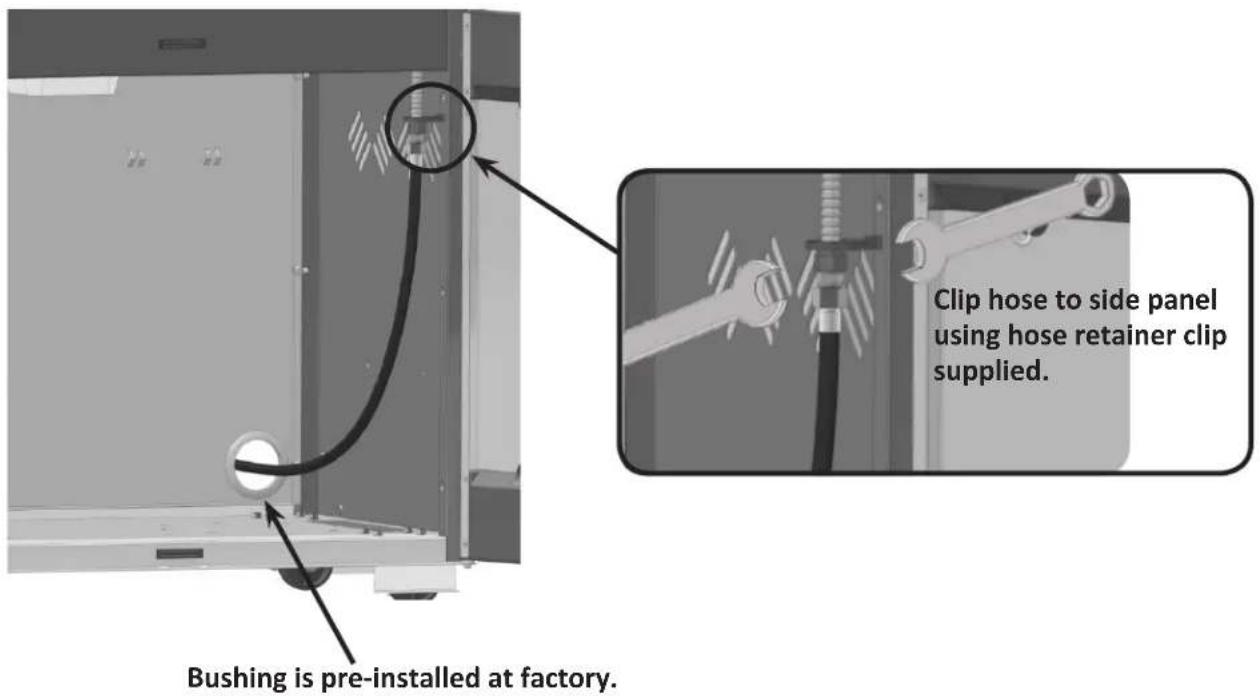

This natural gas grill is supplied with a 10ft supply hose (complete with a quick disconnect) designed for natural gas and certified for outdoor use. The gas grill is designed to operate at an inlet pressure of 7 inches water column. Piping and valves upstream of the quick disconnect are not supplied. The installation must comply with CAN B149.1 Natural Gas and Propane installation code in Canada, or to the National Fuel Gas Code, ANSI Z223.1 in the United States. The gas supply pipe must be sufficiently sized to supply the BTU/h specified on the rating plate, based on the length of the piping run. The quick disconnect must not be installed in an upward direction and a readily accessible manual shut-off valve must be installed upstream of, and as close to, the quick disconnect as is feasible. The flared end of the hose must be connected to the fitting on the end of the flex tube as illustrated in the Natural Gas Hose Attachment diagram. Tighten using two wrenches. (Do not use thread sealer/pipe dope.) These connections must be made by a licensed gas installer. Leak test all joints prior to using the gas grill.

WARNING! The installation must be performed by a licensed gas fitter, and all connections must be leak tested before operating the grill.

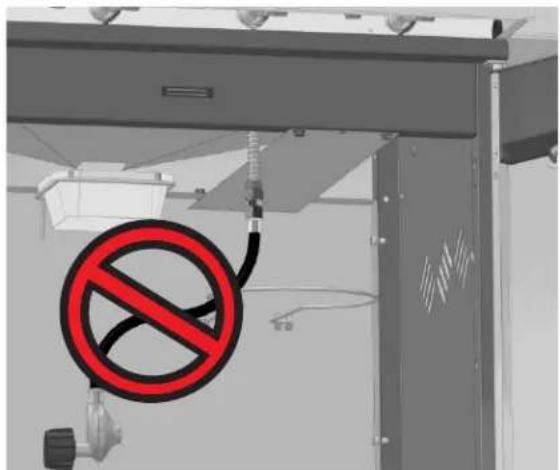

• Do not route hose underneath drip pan.

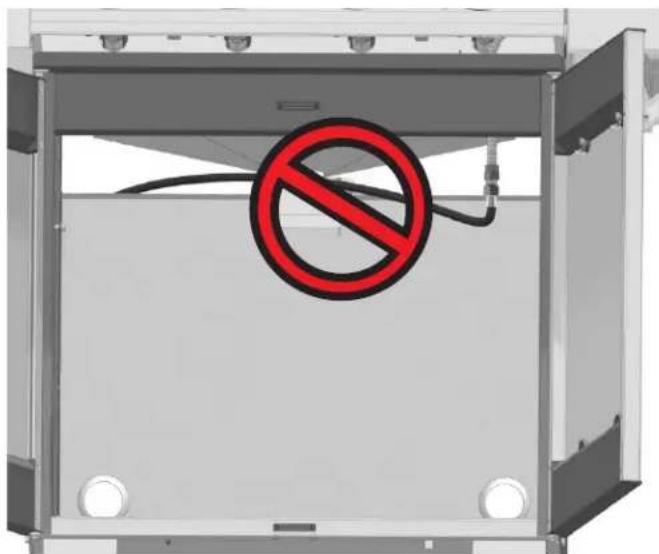

• Do not route hose between space in bottom shelf and back panel.
• Do not route hose over top of back panel.
• Ensure all hose connections are tightened using two wrenches. Do not use teflon tape or pipe dope on any hose connection.
• Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire.
• Do not use enclosure to store excess hose, as there is a greater chance of the hose contacting a hot surface, it may melt and leak causing a fire.
• Leak test all the connections using a soap and water solution, as per the leak testing instructions found in the this manual.

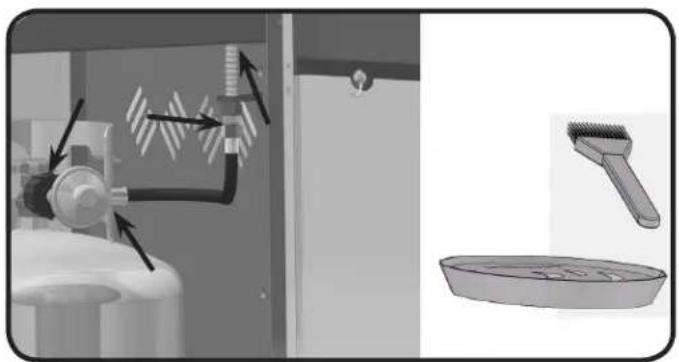

Leak Testing Instructions

WARNING! A leak test must be performed annually and each time a cylinder is hooked up or if a part of the gas system is replaced.

WARNING! Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to property, serious bodily injury, or death.

Leak testing: This must be done before initial use, annually, and whenever any gas components are replaced or serviced. Do not smoke while performing this test, and remove all sources of ignition. See Leak Testing Diagram for areas to check. Turn all burner controls to the off position. Turn gas supply valve on.

Brush a half-and-half solution of liquid soap and water onto all joints and connections of the regulator, hose, manifolds and valves.

Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Care department and have the grill inspected by a certified gas installer.

If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer. Do not use the grill until the leak has been corrected.

Lighting Instructions

Off Position

WARNING! Open lid.

WARNING! Ensure all burner controls are in the off position. Turn on the gas supply valve.

Main Tube Burner Lighting	Rear Burner Lighting (If equipped)	Side Burner Lighting (If equipped)
1. Open grill lid. 1. Open grill lid. 1. Open/Remove side burner cover.
2. Push and turn any main burner knob slowly to the 'hi' position. This action will ignite the pilot flame which will in turn light the selected burner. If the pilot lights, continue to push down on the control knob until the burner lights and then release.	2. Remove the warming rack 2. Push and turn side burner control to high position.
3. If the pilot does not ignite, then immediately turn the control knob back to the 'off position and repeat step 2 several times.	3. Clip a match into the supplied lighting rod. Hold a lit match to right end ports of rear burner. Turn rear burner to high.	3. Press and hold igniter button until burner lights, or light by match
4. If the pilot and burner will not ignite within 5 seconds, turn the control knob to the 'off' position and wait 5 minutes for any excess gas to dissipate. Either repeat steps 2 and 3 or light with a match.		4. If the burner will not ignite within 5 seconds, turn the control knob to the 'off' position and wait 5 minutes for any excess gas to dissipate. Either repeat steps 2 and 3 or light with a match.
5. If lighting the unit with a match, clip the match into the supplied lighting rod. Hold the lit match down through the grill and sear plate while turning the corresponding burner valve to high.

WARNING! The propane cylinder is equipped with an excess flow device. Unless all burners are turned off prior to turning the cylinder on, only small flames and low heat will be achievable.

WARNING! Do not use the rear burner (rotisserie burner) with the main burners operating.

Operating The Grill

Initial Lighting: When lit for the first time, the gas grill emits a slight odor. This is a normal temporary condition caused by the "burn-in" of internal paints and lubricants used in the manufacturing process and does not occur again. Simply run the main burners on high for approximately one-half hour.

Main Burner Use: When searing foods, we recommend preheating the grill by operating all main burners in the high position with the lid closed for approximately 10 minutes. Food cooked for short periods of time (fish, vegetables) can be grilled with the lid open. Cooking with the lid closed will ensure higher, more even temperatures that can reduce cooking time and cook meat more evenly. Food that has a cooking time longer than 30 minutes, such as roasts, can be cooked indirectly (with the burner lit opposite to the food placement). When cooking very lean meats, such as chicken breasts or lean pork, the grids can be oiled before pre-heating to reduce sticking. Cooking meat with a high degree of fat content can create flare-ups. Either trim the fat or reduce temperatures to inhibit this. Should a flare-up occur, move food away from the flames and reduce the heat. Leave the lid open. See Your All Season Grill cookbook by Napoleon for more detailed instructions.

Direct Cooking: Place food to be cooked on the grill directly over the heat. This method is generally used for searing or for foods that do not require prolonged cooking times such as hamburgers, steaks, chicken pieces, or vegetables. The food is first seared to trap-in the juices and flavor, and then the temperature is lowered to finish cooking the food to your preference.

Indirect Cooking: With one or more burners operating, place food to be cooked on the grill over a burner that is not operating. The heat circulates around the food, cooking slowly and evenly. Cooking with this method is much the same as cooking in your oven and is generally used for larger cuts of meats such as roasts, chickens or turkeys, but can also be used for cooking foods that are prone to flare-ups or for smoking foods. Lower temperatures and slower cooking times result in tender foods.

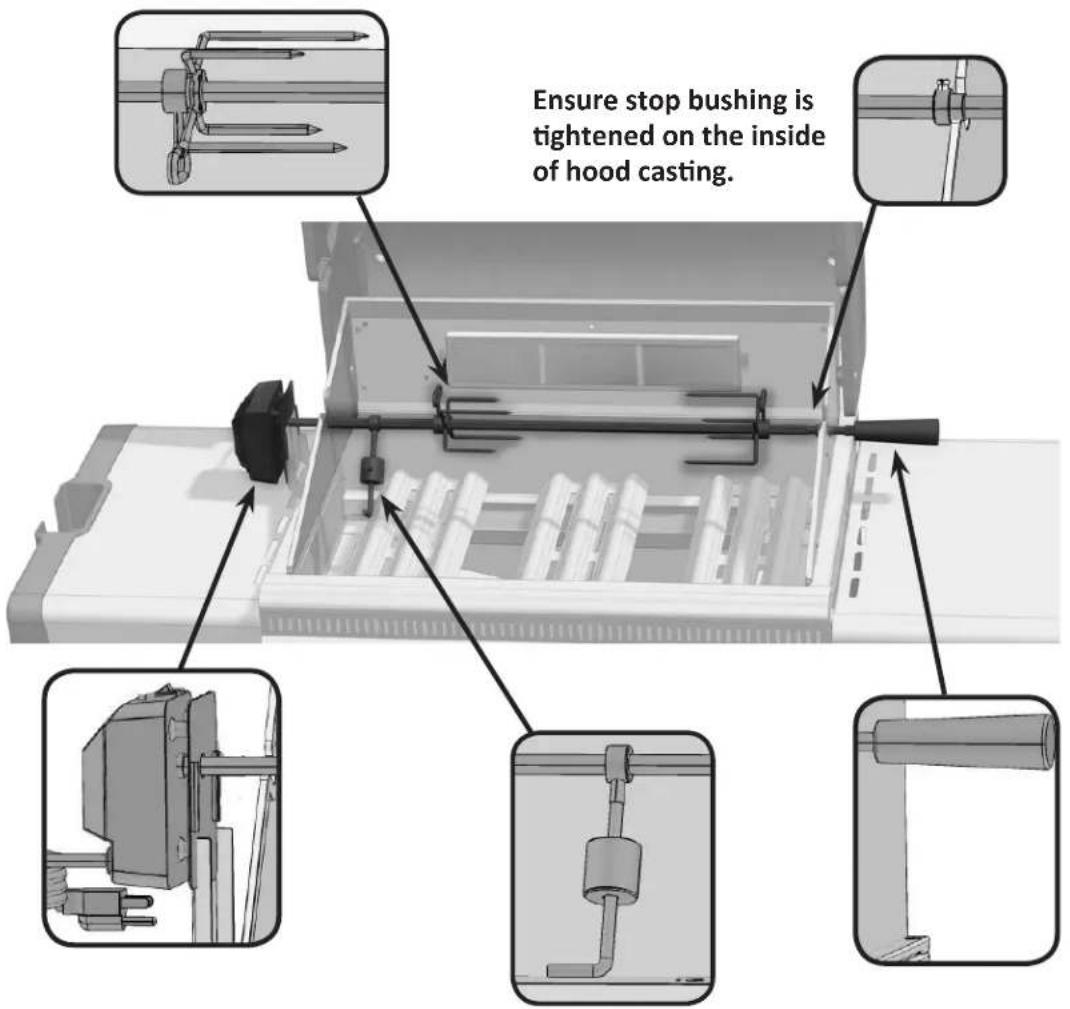

Rear Burner Use (If Equipped): Remove the warming rack prior to use, the extreme heat will damage the warming rack. Cooking grids should also be removed if they interfere with the rotisserie. The rear burner is designed to be used in conjunction with the rotisserie kit (included with most rear burner units) available from your dealer. See the rotisserie kit assembly instructions.

To use the counterbalance - remove the rotisserie motor from the gas grill. Place the spit with meat being cooked across the hangers inside the grill. The meat will naturally hang with the heavy side down. Tighten the counterbalance arm and weight so the arm is facing up. Slide the counterweight in or out to balance the load and tighten in place. Re-install the motor and begin cooking. Place a metal dish underneath the meat to collect drippings for basting and naturally delicious gravy. Basting liquid may be added as required. To seal in juices, first operate rear burner on high until brown, then reduce the heat to thoroughly cook foods. Keep the lid closed for best results. Your roasts and fowl will brown perfectly on the outside and stay moist and tender on the inside. For example, a 3 pound chicken on the rotisserie will be done in approximately 1 12 hours on medium to high. See 'Your all Season Grill' cookbook by Napoleon for more detailed instructions.

WARNING! Barbecue sauce and salt can be corrosive and will cause rapid deterioration of the gas grill components unless cleaned regularly. When finished cooking disassemble rotisserie components, wash thoroughly with warm soapy water and store indoors.

Maintenance / Cleaning Instructions

We recommend this gas grill be thoroughly inspected and serviced annually by a qualified service person. At all times keep the gas grill area free from combustible materials, gasoline and other flammable vapors and liquids. Do not obstruct the flow of ventilation and combustion air. Keep the cylinder enclosure ventilation openings (located on the cart sides and at the front and back of the bottom shelf) free and clear from debris.

WARNING! Always wear protective gloves and safety glasses when servicing your grill.

WARNING! To avoid the possibility of burns, maintenance should be done only when the grill is cool. Avoid unprotected contact with hot surfaces. Ensure all burners are turned off. Clean grill in an area where cleaning solutions will not harm decks, lawns, or patios. Do not use oven cleaner to clean any part of this gas grill. Do not use a self-cleaning oven to clean cooking grids or any other parts of the gas grill. Barbecue sauce and salt can be corrosive and will cause rapid deterioration of the gas grill components unless cleaned regularly.

Note: Stainless steel tends to oxidize or stain in the presence of chlorides and sulfides, particularly in coastal areas and other harsh environments, such as the warm, highly humid atmosphere around pools and hot tubs. These stains could be perceived as rust, but can be easily removed or prevented. To provide stain prevention and removal, wash all stainless steel surfaces every 3-4 weeks or as often as required with fresh water and/or stainless steel cleaner.

WARNING! Turn off the gas at the source and disconnect the unit before servicing. To avoid the possibility of burns, maintenance should be done only when the grill is cool. A leak test must be performed annually and whenever any component of the gas train is replaced or gas smell is present.

Combustion Air Adjustment: (This must be done by a qualified gas installer.) The air shutter is factory set and should not need adjusting under normal conditions. Under extreme field conditions, adjustments might be required. When the air shutter is adjusted correctly the flames will be dark blue, tipped with light blue and occasionally yellow.

• With too little air flow to the burner, the flames are lazy yellow and can produce soot.
• With too much air flow, the flames lift erratically and can cause difficulties when lighting.

Adjusting the air shutter:

1. Remove cooking grids and sear plates and leave lid open.
2. Loosen air-shutter lock screw located at the mouth of the burner and open or close air shutter as required. The normal opening settings are:

Main Tube Burner Propane 5/32" (4mm)

Natural 5/32" (4mm)

*Infra-Red burners have no air adjustment.

1. Light the burners and set to high. Visually inspect burner flames. When the shutters are set correctly, turn burners off, tighten locking screws, and replace removed parts. Ensure that the insect screens are installed.

Grids And Warming Rack: The grids and warming rack are best cleaned with a brass wire brush during the pre-heating period. Steel wool can be used for stubborn stains. It is normal that stainless grids (if equipped) will discolor permanently from regular usage due to the high temperature of the cooking surface.

Cast Iron Cooking Grids: The cast iron cooking grids supplied with your new grill offer superior heat retention and distribution. By regularly seasoning your grids you are adding a protective coating, which will aid in resisting corrosion and increase your grids non-stick capabilities.

First Time Use: Wash the cooking grids by hand with mild dish soap and water to remove any residue from the manufacturing process (never wash in a dish washer). Rinse thoroughly with hot water and dry completely with a soft cloth. This is important to avoid moisture from entering the cast iron.

Seasoning: Using a soft cloth, spread VEGETABLE SHORTENING over the entire grid surface ensuring all grooves and corners are covered. Do not use salted fats such as butter or margarine. Pre-heat your grill for 15 minutes, then place the seasoned cooking grids in the grill. Turn the burner control knobs to medium with the lid closed. Allow the cooking grids to heat for approximately one-half hour. Turn all the burners to the "OFF" position and turn the gas off at the source. Let the cooking grids stand until cool. This procedure should be repeated several times throughout the season, although it is not required for daily use (follow daily usage procedure below).

Daily Usage: Before pre-heating, and cleaning with a brass wire grill brush, coat the entire top surface of the cooking grids with VEGETABLE SHORTENING. Pre-heat the grill and then brush away any unwanted residue with a brass wire brush.

Stainless Steel Cooking Grids: (upgrade kit available - see replacement parts list). Stainless steel cooking grids are durable and corrosion resistant. They require less seasoning and maintenance than cast iron cooking grids. It is recommended that you follow the daily usage procedure listed above although you may find pre-heating and cleaning your grids with a wire brush is sufficient for your grilling needs.

Control Panel: The control panel text is printed directly on the stainless steel and with proper maintenance will remain dark and legible. To clean the panel, use only warm soapy water or stainless steel cleaner available from your Napoleon dealer. Never apply abrasive cleaners on any stainless surfaces, especially the printed portion of the control panel or the printing will gradually rub off.

Cleaning Inside The Gas Grill: Remove the cooking grids. Use a brass wire brush to clean loose debris from the casting sides and underneath the lid. Scrape the sear plates with a putty knife or scraper, and use a wire brush to remove the ash. Remove the sear plates and brush debris from the burners with the brass wire brush. Sweep all debris from inside the gas grill into the drip pan.

Drip Pan: Accumulated grease is a fire hazard. Clean the drip pan frequently (every 4 – 5 uses or as often as required) to avoid grease buildup. Grease and excess drippings pass through to the drip pan, located beneath the gas grill and accumulate in the disposable grease tray below the drip pan. To access the disposable grease tray or to clean the drip pan, slide the drip pan free of the grill. Never line the drip pan with aluminum foil, sand or any other material as this could prevent the grease from flowing properly. The pan should be scraped out with a putty knife or scraper. Replace the disposable grease tray every 2 – 4 weeks, depending on gas grill usage. For supplies, see your Napoleon Gas Grill dealer.

Cleaning The Outer Grill Surface: Do not use abrasive cleaners or steel wool on any painted, porcelain or stainless steel parts of your Napoleon Grill. Doing so will scratch the finish. Exterior grill surfaces should be cleaned with warm soapy water while the metal is still warm to the touch. To clean stainless surfaces, use a stainless steel or a non-abrasive cleaner. Always wipe in the direction of the grain. Over time, stainless steel parts discolor when heated, usually to a golden or brown hue. This discoloration is normal and does not affect the performance of the grill. Porcelain enamel components must be handled with additional care. The baked-on enamel finish is glass-like, and will chip if struck. Touch-up enamel is available from your Napoleon Grill dealer.

WARNING! Hose: Check for abrasions, melting, cuts, and cracks in the hose. If any of these conditions exist, do not use the gas grill. Have the part replaced by your Napoleon Gas Grill dealer or qualified gas installer.

Tube Burner: The burners are made from heavy wall 304 stainless steel, but extreme heat and a corrosive environment can cause surface corrosion to occur. This can be removed with a brass wire brush.

CAUTION! Beware of Spiders.

Spiders and insects are attracted to the smell of propane and natural gas. The burner is equipped with an insect screen on the air shutter, which reduces the likelihood of insects building nests inside the burner but does not entirely eliminate the problem. A nest or web can cause the burner to burn with a soft yellow or orange flame or cause a fire (flashback) at the air shutter beneath the control panel. To clean the inside of the burner, it must be removed from the gas grill: Remove the screw that attaches the burner to the back wall. Slide the burner back and upwards to remove. Cleaning: Use a flexible venturi tube brush to clean the inside

of the burner. Shake any loose debris from the burner through the gas inlet. Check the burner ports and valve orifices for blockages. Burner ports can close over time due to cooking debris and corrosion, use an opened paperclip or the supplied port maintenance bit to clean them. Drill out blocked ports using this drill bit in a small cordless drill. The ports are easier to clean if the burner is removed from the grill, but it can also be done with the burner installed. Do not flex the drill bit when drilling the ports, as this will cause the drill bit to break. This drill is for burner ports only, not for the brass orifices (jets) which regulate the flow into the burner. Take care not to enlarge the holes. Ensure the insect screen is clean, tight, and free of any lint or other debris.

Reinstallation: Reverse the procedure to reinstall the burner. Check that the valve enters the burner when installing.

WARNING! When reinstalling the burner after cleaning it is very important that the valve/orifice enters the burner tube before lighting your gas grill. If the valve is not inside the burner tube a fire or explosion could occur.

Mechanical assembly diagram showing a pipe fitting and housing component (no text or symbols visible)

Aluminum Castings: Clean castings periodically with warm soapy water. Aluminum will not rust, but high temperatures and weathering can cause oxidation to occur on aluminum surfaces. This appears as white spots on the castings. To refinish these areas, clean first and sand lightly with fine sandpaper. Wipe the surface to remove any residue and paint with high temperature barbecue paint. Protect surrounding areas from overspray. Follow the manufacture's directions for curing.

Troubleshooting

Problem Possible Causes Solution
Low heat / Low flame when valve turned to high.	For propane - improper lighting procedure.For natural gas - undersized supply line.For both gases - improper preheating.	Ensure lighting procedure is followed carefully. All gas grill valves must be in the off position when the tank valve is turned on. Turn tank on slowly to allow pressure to equalize. See lighting instructions.Pipe must be sized according to installation code.Preheat grill with both main burners on high for 10 to 15 minutes.
Excessive flare-ups/uneven heat.	Sear plates installed incorrectly.Improper preheating.Excessive grease and ash build on sear plates and in drip pan.	Ensure sear plates are installed with the holes towards the front and the slots on the bottom. See assembly instructions.Preheat grill with both main burners on high for 10 to 15 minutes.Clean sear plates and drip pan regularly. Do not line pan with aluminum foil. Refer to cleaning instructions.
Burners burn with yellow flame, accompanied by the smell of gas.	Possible spider web or other debris, or improper air shutter adjustment.	Thoroughly clean burner by removing. See general maintenance instructions. Open air shutter slightly according to combustion air adjustment instructions. (This must be done by a qualified gas installer.)
Problem Possible Causes	Solution
Flames lift away from burner, accompanied by the smell of gas, and possibly difficulties in lighting.	Improper air shutter adjustment. Close air shutter	slightly according to combustion air adjustment instructions. (This must be done by a qualified gas installer.)
Humming regulator. Normal occurrence on hot days. This is not a defect. It is caused by internal vibrations in the regulator and does not affect the performance or safety of the gas grill. Humming regulators will not be replaced.
Burners will not cross light each other.	Plugged ports at back of burner. Clean burner points. See burner maintenance instructions.
“Paint” appears to be peeling inside lid or hood.	Grease build-up on inside surfaces. This is not a defect. The finish on the lid and hood is porcelain, and will not peel. The peeling is caused by hardened grease, which dries into paint-like shards, that flake off. Regular cleaning will prevent this. See cleaning instructions.
Infrared burner (if equipped) flashes back (during operation the burner abruptly makes a loud “whoosh” sound, followed by a continuous blow-torch type sound and grows dim.)	Ceramic tiles overloaded with grease drippings and build-up. Ports are clogged.Burner overheated due to inadequate ventilation (too much grill surface covered by griddle or pan.)Cracked ceramic tile.Leaking gasket surrounding the ceramic tile, or a weld failure in the burner housing.	Turn burner off and allow to cool for at least two minutes. Relight burner and burn on high for at least five minutes or until the ceramic tiles are evenly glowing red.Ensure that no more than 75% of the grill surface is covered by objects or accessories. Turn burner off and allow to cool for at least two minutes, then relight.Allow burner to cool and inspect very closely for cracks. If any cracks are found, contact your authorized Napoleon dealer to order a replacement burner assembly.Contact your authorized Napoleon dealer for instructions on ordering a replacement burner assembly.

KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY.

Ordering Replacement Parts

Warranty Information

MODEL:

DATE OF PURCHASE:

SERIAL NUMBER:

(Record information here for easy reference)

Before contacting the Customer Care Department, check the NAC Website for more extensive cleaning, maintenance, troubleshooting and parts replacement instructions at www.napoleongrills.com. Contact the factory directly for replacement parts and warranty claims. Our Customer Care Department is available between 9 AM and 5 PM (Eastern Standard Time) at 1-866-820-8686 or fax at 1-705-727-4282. To process a claim, we must be provided with the following information:

1. Model and serial number of the unit.
2. Part number and description.
3. A concise description of the problem ('broken' is not sufficient).
4. Proof of purchase (photocopy of the invoice).

In some cases the Customer Care Representative could request to have the parts returned to the factory for inspection before providing replacement parts. These parts must be shipped prepaid to the attention of the Customer Care Department with the following information enclosed:

1. Model and serial number of the unit.
2. A concise description of the problem ('broken' is not sufficient).
3. Proof of purchase (photocopy of the invoice).
4. Return Authorization Number - provided by the Customer Care Representative.

Before contacting customer care, please note that the following items are not covered by the warranty:

• Costs for transportation, brokerage or export duties.
• Labor costs for removal and reinstallation.
• Costs for service calls to diagnose problems.
• Discoloration of stainless steel parts.
- Part failure due to lack of cleaning and maintenance, or use of improper cleaners (oven cleaner).

CAUTION! During unpacking and assembly we recommended you wear work gloves and safety glasses for your protection. Although we make every effort to make the assembly process as problem free and safe as possible, it is characteristic of fabricated steel parts that the edges and corners might be sharp and could cause cuts if handled incorrectly.

Getting Started

1. Remove all cart panels, hardware, and grill head from carton. Raise lid and remove any components packed inside. Use the parts list to ensure all necessary parts are included.
2. Do not destroy packaging until the grill has been fully assembled and operates to your satisfaction.
3. Assemble the grill where it is to be used, lay down cardboard or a towel to protect parts from being lost or damaged while assembling.
4. Most stainless steel parts are supplied with a protective plastic coating that must be removed prior to using grill.
5. Follow all instructions in the order that they are laid out in this manual.
6. Two people are required to lift the grill head onto the assembled cart.

If you have any questions about assembly or grill operation, or if there are damaged or missing parts please call our Customer Care Department at 1-866-820-8686 between 9 AM and 5 PM (Eastern Standard Time).

TOOLS REQUIRED FOR ASSEMBLY (tools not included)

Wrench, ratchet or driver

Flat and Philips screwdrivers

Pliers3/8 (10mm) Hammer

1 x N430-0002

1. Magnet Installation

Snap magnet into slot in front of bottom shelf.

3D rendering of a rectangular electronic device with ventilation grilles and a small connector pin (no text or symbols)

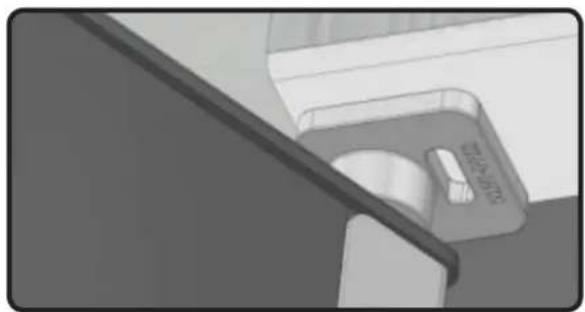

2. Caster/Bracket Installation

Attach (4) casters, using (4) 14 -20 x 3/8" screws and (4) 14 -20 lock nuts for each caster. Attach brackets under front casters as illustrated. Tighten securely.

Technical diagram of a mechanical assembly with mounting base and three vertical supports, no visible text or symbols

non relvolving caster- left side

Propane Only

3. Propane Tank Ring Installation

Insert propane tank ring into slots in bottom of shelf as shown. Fold tabs over to secure in place.

Technical line drawing of a mechanical housing or enclosure with a central circular component and side-mounted base (no text or symbols)

4 x N570-0080 (#14 x 1/2")

3/8"(10mm)

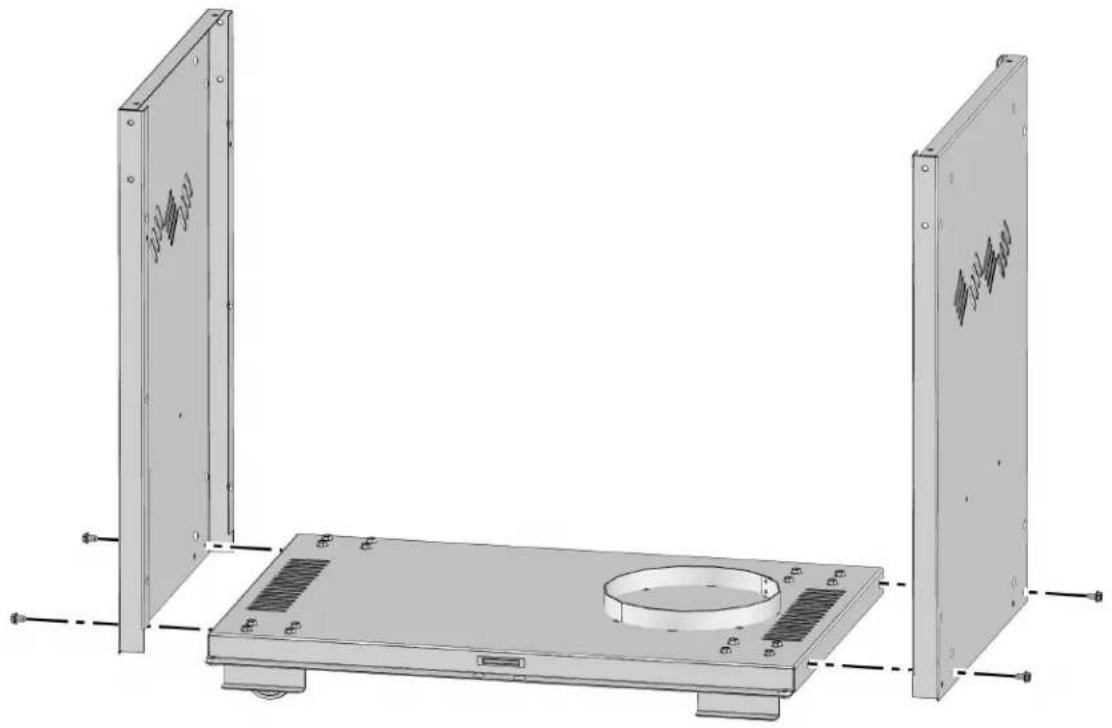

4. Left and Right Cart Panel Installation

Install end cart panels ensuring slots in panel are to the top, rest panel on bottom shelf and line up holes. Fasten using (4) #14 x 1/2" screws.

3D technical drawing of a mechanical assembly with two vertical panels and a central circular component, no visible text or symbols.

www.napoleongrills.com

6 x N570-0080 (#14 x 1/2")

3/8"(10mm)

5. Rear Cart Panel Installation

Fit rear cart panel between the two end panels; ensure large hole in panel is to the bottom right corner as illustrated. Fasten using (6) #14 x 1/2" screws, three on each side.

Technical line drawing of a mechanical enclosure with mounting holes and internal components, showing no text or symbols.

1 x N570-0080 (#14 x 1/2")

3/8"(10mm)

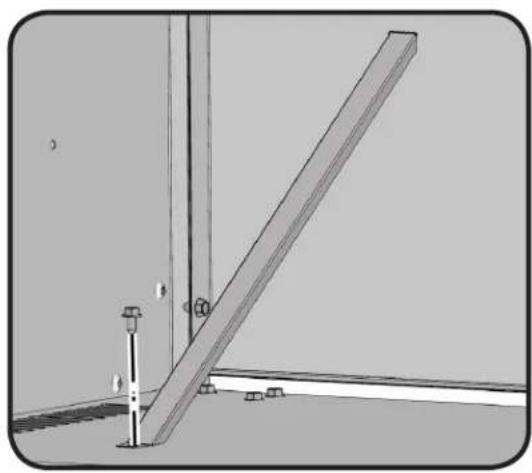

6. Tank Inhibitor Bracket / Propane Tank Mount Installation

Insert tank inhibitor bracket into slot in rear panel as illustrated. Fasten to bottom panel using (1) #14 x 1/2" screw. Clip top propane tank mount into slots in back panel. Insert one end at a time, gently bending wire. (When not in use tank mount will lay flat against back panel).

Propane Only

Simple line drawing of a wooden beam supported by vertical supports, with a small hanging object attached (no text or symbols)

Technical diagram of a structural support frame with mounting feet and a diagonal beam (no text or symbols)

Simple line drawing of a bathroom sink with a circular sink and wall-mounted fixtures (no text or symbols)

4 x N570-0080 (#14 x 1/2") 1 x N430-0002

3/8"(10mm)

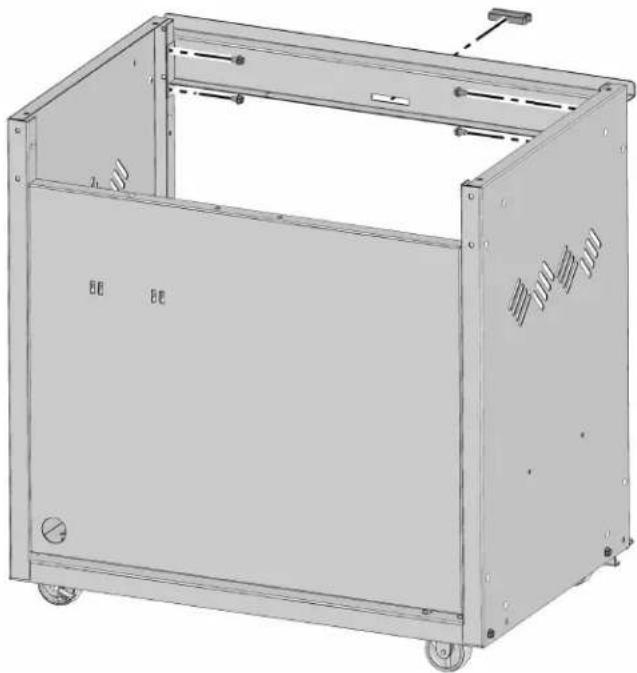

7. Front Cabinet Support Installation

Fasten top rail assembly to the front of side panels using (4) #14 x 1/2" screws. For ease of installation start all screws before tightening completely. Snap magnet into place as shown.

Technical line drawing of a metal enclosure with wheels and mounting holes (no text or symbols)

4 x N570-0080 (#14 x 1/2")

3/8"(10mm)

8. Heat Shield Installation

Attach heat shield using (4) #14 x 1/2» screws. Attach one end under lip of back panel and other end to underside of front cabinet support.

3D rendering of an open industrial enclosure with internal components and mounting holes (no text or symbols visible)

4 x N570-0091 (1/4-20 x 1/2")

3/8"(10mm)

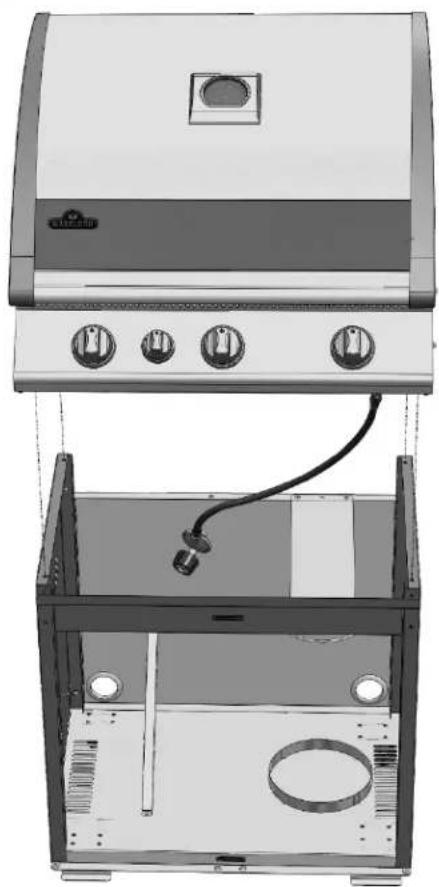

9. Grill Head Installation

PROPANE ONLY – To avoid assembly difficulties, prior to mounting the grill head, remove zip tie holding regulator up under control panel. This was installed at the factory to protect the regulator hose during shipping and is no longer required. (Take care when removing the tie not to damage the hose). Ensure the regulator drops into the small opening, between the tank heat shield and the right side of the cabinet.

Lift grill head and place on assembled cart, lining up holes in top of side cart panels with holes in bottom of base. Fasten from inside using (4) 1/4-20 x 1/2" screws, two per side.

Two people are required for this step.

Correct Assembly

Exterior view of a stainless steel gas stove unit with control knobs and open storage compartments (no visible text or symbols)

Incorrect Assembly

Technical illustration of a gas stove or oven system with control knobs and internal compartments (no text or symbols)

2 x N570-0073 (1/4-20 X 3/8")

3/8"(10mm)

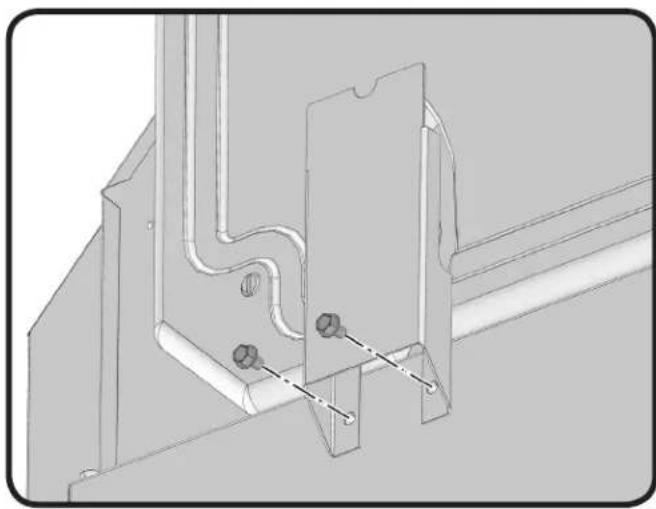

10. Rotisserie Mount Installation

Install rotisserie mount bracket to left side of barbecue as shown using (2) 1/4 - 20 x 3/8" screws.

Technical line drawing of a mechanical assembly with no visible text or symbols

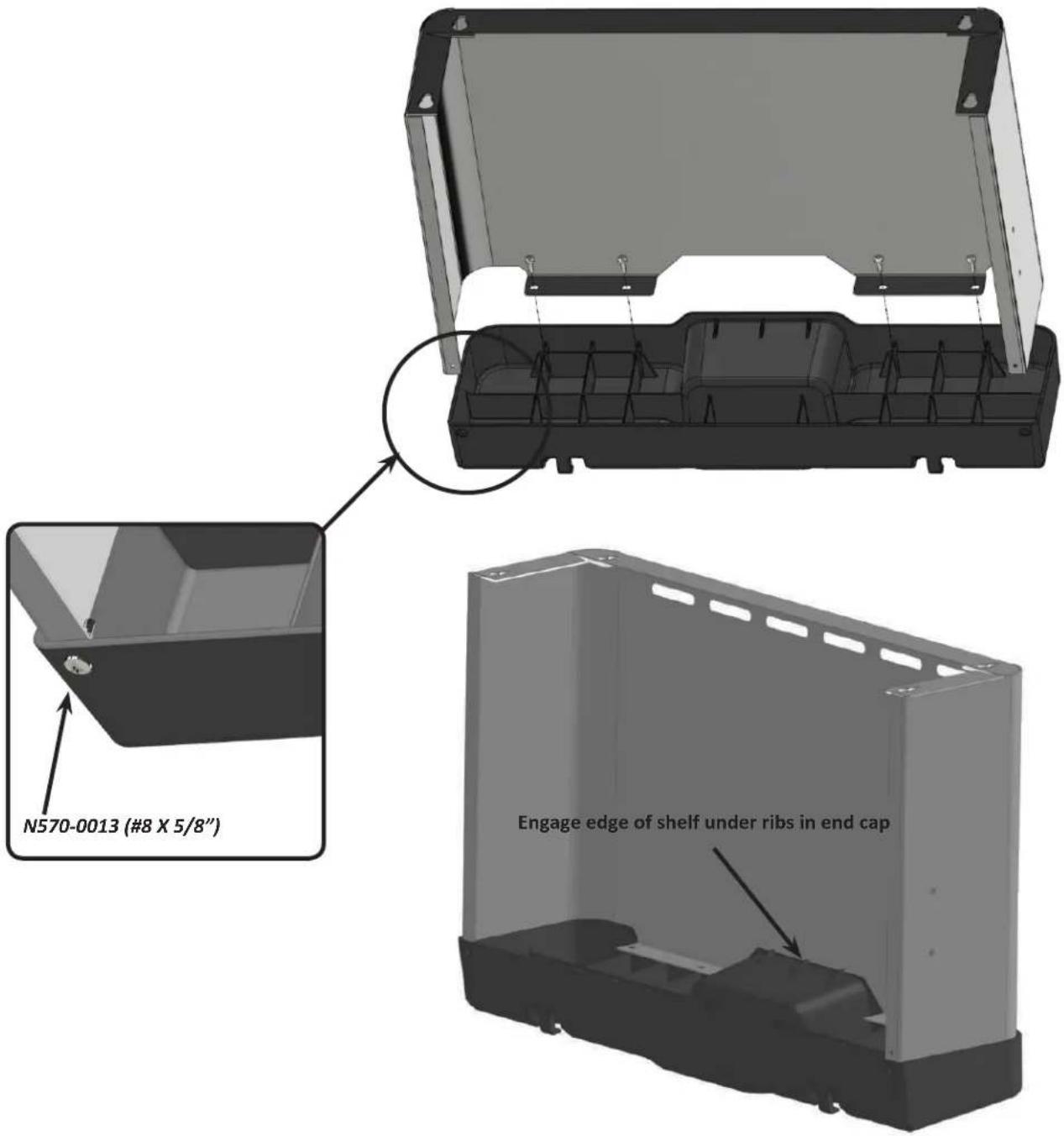

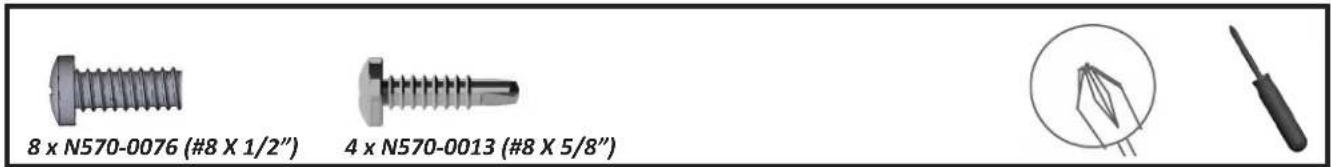

11. Side Shelf Assembly

Peel the protective coating from the side shelf. Insert the top of the side shelf into the end cap engaging the edge of the shelf under the ribs in the end cap as illustrated. Push the bottom tabs into the end cap and line up holes. Attach the end cap to the side shelf using (4) #8 x 1/2" screws per shelf. On the underside of the side shelf fasten the end cap using (2) #8 x 5/8" screws one on either end.

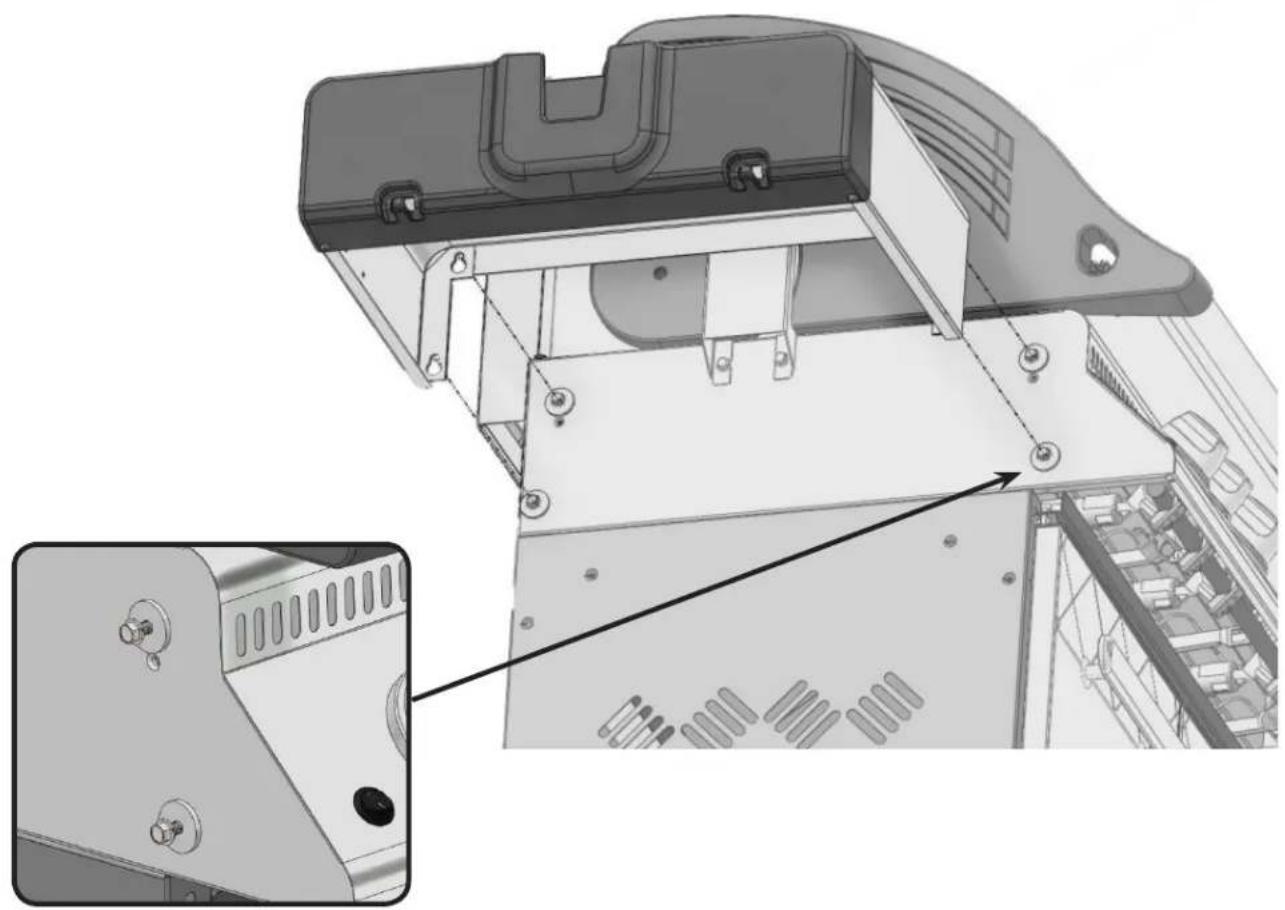

12. Side Shelf Installation

Insert (4) 1/4 - 20 x 5/8" screws through the washers into the threaded holes in the side of the base; do not tighten all the way. Slide the assembled side shelf over the screw heads and finish tightening.

Technical illustration of a mechanical device with internal components and a close-up inset showing a detail (no text or symbols)

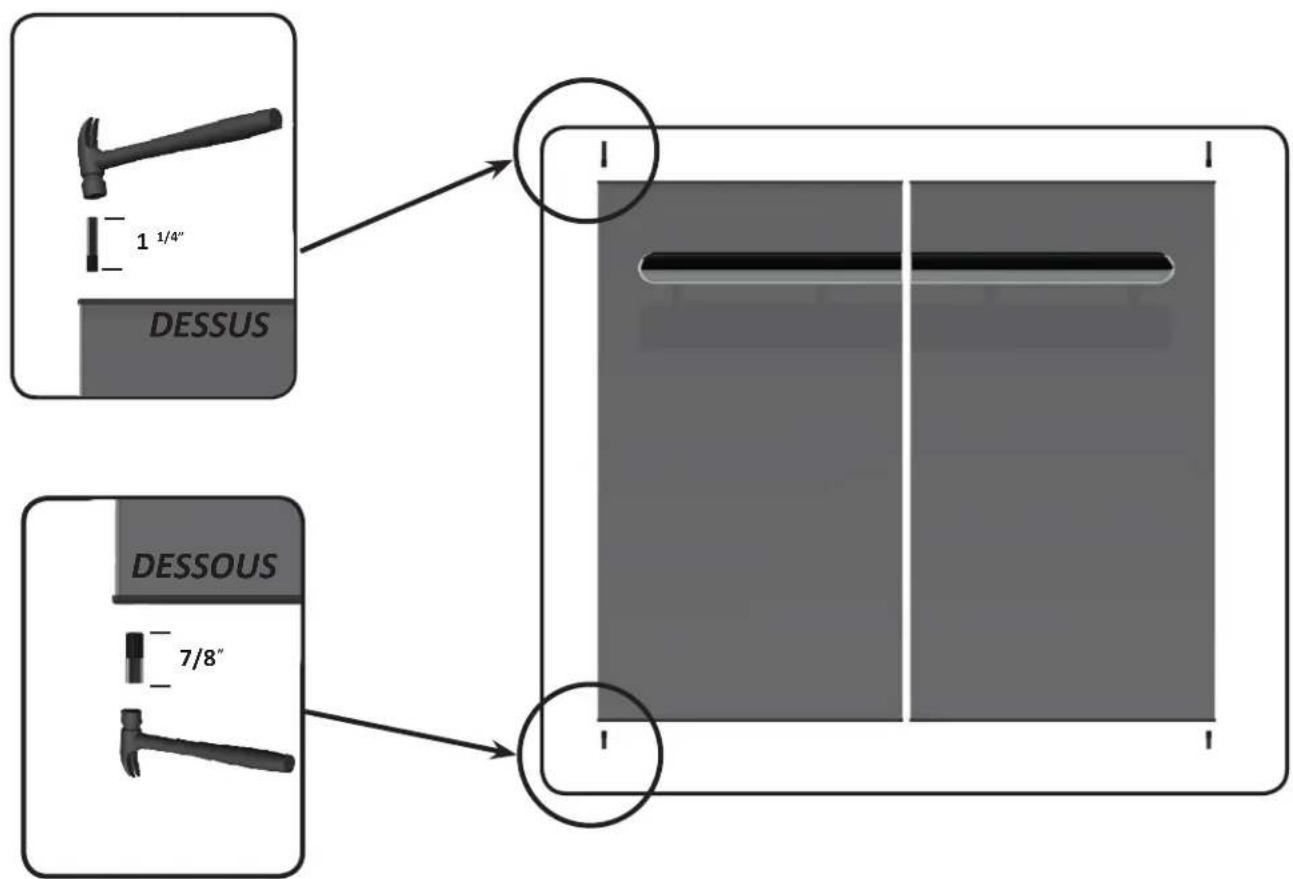

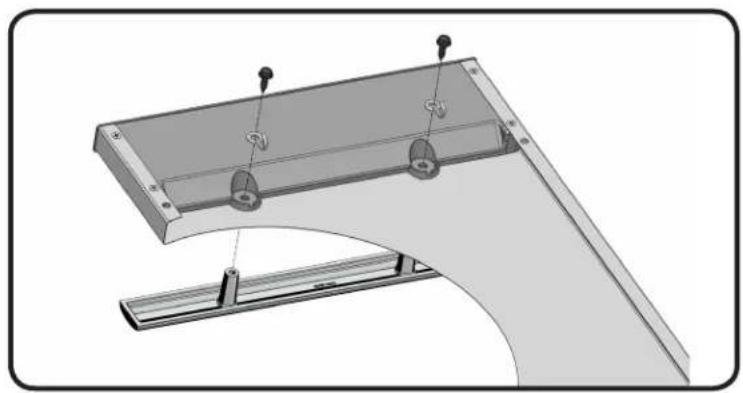

13. Door Assembly

Install the door handle onto the front of the door and the tool hooks onto the back of the door using (2) #14 x 3/4" screws per door. Press the door pivot pins into the holes in the top and bottom of each door as illustrated gently tapping with a hammer.

Technical diagram of a mechanical bracket assembly with mounting holes and a curved base (no text or symbols)

2 x N105-0011 (door bushing)

2 x N160-0022 (pivot pin clip)

14. Cabinet Door Installation

Slide the bushing over the pivot pin on the bottom of the door. Direct the top pivot pin into the hole in the underside of the front cabinet support and then lower the door fitting bushing into the hole in the bottom shelf. Once installed, snap the top pivot pin clip over the top pivot pin as illustrated.

15. Sear Plate Installation

Insert sear plates into base, position one over each tube burner with slots down to allow drippings to travel through.

Interior view of a portable oven with black ventilation grilles and control knobs (no text or symbols visible)

16. Grids and Warming Rack Installation

Position grids and warming rack into base as shown. Rest warming rack on brackets inside hood and grids on front and back lip of base.

Exterior view of a modern electric grill with open lid and grating (no visible text or symbols)

17. Grease Tray and Holder Installation

Clip the wire grease tray holder into the two holes located in the center of the back panel. Place the aluminum grease tray into the grease tray holder.

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

18. Drip Pan Installation

Slide drip pan into rear of base as shown. Ensure dip pan rides along rails on bottom of base.

Technical line drawing of a mechanical component with warning symbol (no text or labels)

Rotisserie Kit Assembly Instruction

(optional)

Assemble rotisserie kit components as shown.

1 x N640-0001

Propane Only – Proper Hose Connection

Propane Only – Improper Hose Connection

WARNING - FIRE HAZARD

The regulator must be attached so that no part of the hose touches the underside of the grill or drip pan. A fire will result if these directions are ignored.

1 x N640-0001

3/4"(19mm)

Natural Gas Only – Proper Hose Connection

WARNING! The installation must be performed by a licensed gas fitter, and all connections must be leak tested before operating the grill. Do not use pipe dope or teflon tape on this connection. Tighten the connection with two wrenches.

Natural Gas Only – Improper Hose Connection

WARNING - FIRE HAZARD

WARNING! Do not route hose underneath drip pan.

WARNING! Do not route hose over top of rear panel.

WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire.

Leak Testing Instructions

WARNING! A leak test must be performed annually and each time a cylinder is hooked up or if a part of the gas system is replaced.

WARNING! Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to property, serious bodily injury, or death.

Leak testing: This must be done before initial use, annually, and whenever any gas components are replaced or serviced. Do not smoke while performing this test, and remove all sources of ignition. See Leak Testing Diagram for areas to check. Turn all burner controls to the off position. Turn gas supply valve on.

Brush a half-and-half solution of liquid soap and water onto all joints and connections of the regulator, hose, manifolds and valves.

Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Care department and have the grill inspected by a certified gas installer.

If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer. Do not use the grill until the leak has been corrected.

Interior kitchen scene with shower pump, shower fixtures, and a cleaning brush (no text or symbols visible)

Interior view of a bathroom fixture with a brush and bowl, no visible text or symbols

Parts List

Item Part	# Description 300RB
1 N135-0038G lid side casting left x
2 N135-0039G lid side casting right x
3 N335-0050 stainless steel lid insert x
4 N585-0056 lid heat shield x
5 N510-0010 black silicone lid bumper x
6 N685-0006 temperature gauge x
7 N385-0129 NAPOLEON logo x
8 W450-0005 logo spring clips x
9 N010-0652 lid handle		x
10	N080-0252G lid handle cover x
11	N570-0015 lid pivot screw	x
12	N570-0073 1/4-20 x 3/8" screw	x
13	N735-0003 1/4" lockwasher x
14	N570-0080 #14 x 1/2" screw x
15	N570-0013 #8 x 5/8" screw	x
16	N520-0028K	warming rack	x
17	N475-0270K	base insert right	x
18	N035-0101 base side right x
19	N570-0093 screw M4 x 8mm"	x
20	N450-0032 M4 lock nut	x
21	N035-0102K	base insert rear	x
22	N200-0093S	rear corner cover base	x
23	N570-0008 #8 x 1/2" screw	x
24	N475-0269K	base insert left	x
25	N035-0100 base side left x
26	N475-0298 rotisserie mount	x
27	N305-0063 cooking grids - cast iron	x
	N370-0597 cooking grids - stainless steel upgrade kit	ac
28	N305-0057K	sear plate	x
29	N080-0250 main burner support	x
30	N100-0036 main burner	x
31	N215-0008 grease deflector base	x
32	N010-0501-M08	drip pan	x
33	N735-0001 insulated washer	x
34	N570-0082 1/4-20 x 5/8" screw	x
35	N010-0721-SV1SG	side shelf	x
36	N120-0020-GYOTX	end cap side shelf	x
37	N570-0076 #8 x 1/2" screw	x
38	N380-0011B	control knob x
39	N051-0006 control knob bezel x
40	N010-0718 manifold assembly c/w valves	P
	N010-0719 manifold assembly c/w valves	n
41	N120-0011 end cap control panel left	x
42	N585-0065 base heat shield	x
43	N035-0103K	base insert front	x
44	N120-0012 end cap control panel right	x
45	N325-0062 handle door	x
46	N475-0292 control panel x
47	N655-0124-GY1SG	front cabinet support	x

Parts List

Item Part	# Description 300RB
48 N475-0183-GY1SG left/right side panel cabinet enclosure x
49 N160-0014 grease tray holder x
50 N185-0001 grease tray foil x
	N710-0062 grease tray aluminium ac
51 N080-0202-M05 cross light bracket x
52 N475-0271-GY1SG rear cart panel x
53 N160-0015 propane tank clip p
54 N080-0254S propane tank inhibitor bracket p
55 N120-0019-GY0TX door end cap x
56 N475-0293-SV1SG door panel x
57 N105-0011 door bushings x
58 N570-0099 #14 x 3/4" screw x
59 N570-0073 1/4-20 x 3/8" screw x
60 N450-0027 locking nut 1/4-20 x
61 N080-0212S stabilizer brackets x
62 N130-0013 non revolving caster x
63 N130-0012 revolving caster x
64 N585-0064P heat shield x
65 N590-0147-GY1SG bottom shelf x
66 N430-0002 magnetic catch x
67 N255-0027 union fitting 3/8" - 3/8" x
68 N720-0044 manifold flex connector x
69 N655-0094P tank ring support p
70 N160-0022 clip door pivot pin x
71 N340-0007 tool hook x
72 N530-0003 1-outlet regulator p
	N345-0001 10ft n/g hose c/w quick disconnect n
73 N640-0001 hose retainer clip x
74 N105-0013 bushing x
75 N570-0100 #8 X 1/2" screw x
76 N570-0091 1/4-20 x 1/2" screw -sharp x
77 N570-0092 10-24 x 1/4" screw x
78 N485-0016 pivot pin door top x
79 N485-0017 pivot pin door bottom x
80 N380-0019B control knob x
81 N051-0008 control knob bezel x
82 N570-0013 #8 X 5/8" screw x
	N370-0585 main assembly blister pack x
	64485 rotisserie kit ac
	63488 vinyl cover ac
	56018 stainless steel griddle ac
	67731 charcoal tray ac
	62007 replacement grease trays foil (5 pieces) ac

p - propane units only n - natural gas units only

x - standard ac - accessory

GOURMET GRILLS

FAX TO: 705 727 4282

ACCESSORIES & PARTS ORDER FORM

PLEASE PRINT CLEARLY

CONTACT NAME:

SHIP TO :

Exterior view of a modern electric grill with control knobs and a door (no visible text or symbols)

LA300RB

NE PAS RETOURNER PAS À L'ENDROIT DE L'ACHAT. VEUILLEZ CONTACTER LE 1-866-820-8686 POUR DE 'ASSISTANCE. NOUS POUVONS VOUS AIDER POUR TOUTES QUESTIONS CONCERNANT DES PIÈCES MANQUANTES OU ENDOMMAGÉES AINSI QUE DES QUESTIONS À PROPOS DE L'ASSEMBLAGE ET DU FONCTIONNEMENT.

DANGER

SI VOUS DÉTECTEZ UNE ODEUR DE GAZ :

Conditions Et Limitations

Mechanical assembly diagram showing a lever and shaft assembly (no text or labels)

Guide De Dépannage

Illustration of a rectangular electronic device with ventilation grilles and a small rectangular component inserted (no text or symbols)

16 x N570-0073 (1/4-20 X 3/8")

16 X N450-0027 (1/4-20)

3/8"(10mm) 7/16"(11mm)

2. Installation des roulettes / support

Technical diagram of a mechanical assembly with mounting base and multiple cylindrical components (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with a central circular component and side supports (no text or symbols)

4 x N570-0080 (#14 x 1/2")

3/8"(10mm)

3D technical drawing of a mechanical assembly with two vertical panels and a central circular component, no visible text or symbols.

www.napoleongrills.com

6 x N570-0080 (#14 x 1/2")

3/8"(10mm)

Technical line drawing of a mechanical enclosure with mounting holes and internal components, showing no text or symbols.

1 x N570-0080 (#14 x 1/2")

3/8"(10mm)

Technical line drawing of a wooden beam with a small inset detail showing a hook or fastener (no text or symbols)

Technical diagram of a structural support frame with mounting feet and diagonal bracing (no text or symbols)

Simple line drawing of a bathroom sink with a circular sink and shower (no text or symbols)

4 x N570-0080 (#14 x 1/2") 1 X N430-0002

3/8"(10mm)

Technical line drawing of a mechanical enclosure or chassis with wheels and mounting holes (no text or symbols)

4 x N570-0080 (#14 x 1/2")

3/8"(10mm)

3D rendering of an open industrial enclosure with internal components and mounting holes (no text or symbols visible)

4 x N570-0091 (1/4-20 X 1/2")

3/8"(10mm)

Exterior view of a stainless steel gas stove with control knobs and open doors (no visible text or symbols)

Technical illustration of a portable appliance with control knobs and a coiled cable, shown from two views (top: front view; bottom: side view), no text or symbols present.

2 x N570-0073 (1/4-20 X 3/8")

1 x N640-0001

3/8"(10mm)

Technical line drawing of a mechanical assembly with pipes and connectors (no text or symbols)

8 x N570-0076 (#8 X 1/2")

4 x N570-0013 (#8 X 5/8")

Technical illustration of a mechanical device with internal components and a close-up inset showing a detail (no text or symbols)

Technical diagram of a mechanical assembly with mounting brackets and a curved base (no text or symbols)

2 x N105-0011 (bague de porte)

2 x N160-0022 (attache de pivot)

Diagram showing a mechanical component with an upward arrow, no text or symbols present

Close-up of a mechanical component with an arrow indicating direction, no visible text or symbols

Close-up of a mechanical component with a curved bracket and a slot, no visible text or symbols

Top-down view of a portable oven with black ventilation grilles and control knobs (no text or symbols visible)

Exterior view of a modern electric grill with open lid and grating (no visible text or symbols)

Technical diagram of a mechanical assembly with warning symbol and triangular connection (no text or labels)

1 x N640-0001

3/4"(19mm)

Interior view of a bathroom with shower fixtures and a cleaning brush (no text or symbols visible)

Diagram showing a wall-mounted fixture with a brush and bowl, no text or symbols present

Liste Des Pièces

LE GRIL DU GOURMET

TÉLÉCOPIEZ AU: 705 727 4282

BON DE COMMANDE POUR PIÈCES/ACCESSOIRES

NOM DU CLIENT

ADRESSE:
