IFBMW-C - Loudspeaker FOCAL - Free user manual and instructions

Brand	Focal
Model	IFBMW-C
Product type	Coaxial speaker
Use	Installation in BMW vehicles
Diameter	165 mm
RMS power handling	80 W
Peak power	160 W
Impedance	4 ohms
Frequency response	55 Hz - 20 kHz
Sensitivity	90 dB (2.83 V/1 m)
Cone material	Polyglass
Tweeter material	Aluminum / magnesium
Tweeter diameter	25 mm (1 in)
Weight	1.5 kg
Dimensions (diameter x depth)	165 x 75 mm
Power supply	Via vehicle electrical system (12 V)
Main functions	High-fidelity audio reproduction, BMW compatibility, direct installation
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Turn off the car stereo before intervention. Avoid any contact with water.
Spare parts and repairability	Protection grille, connection cables, mounting kit. Repair by Focal authorized center.
Warranty	2 years
General information	Designed for interior use in vehicle. Respect polarities when connecting.

Frequently Asked Questions - IFBMW-C FOCAL

Which BMW models are compatible with the Focal IFBMW-C?

This speaker is designed to fit most BMW 1, 3, 5, X1, X3 series, etc. Check the diameter of the location (165 mm) and mounting depth.

What is the recommended power for the amplifier?

It is recommended to use an amplifier delivering between 40 and 120 W RMS per channel to fully utilize the speaker without risk of damage.

Is the Focal IFBMW-C supplied with a mounting kit?

Yes, the product is usually supplied with the grilles, cables, and adapters necessary for installation in BMW vehicles.

How to install the speaker in my BMW?

Remove the original grille, disconnect the cables, secure the new speaker with the provided screws, then reconnect the cables respecting polarity (+ and -).
Refer to the full manual for detailed steps.

What is the impedance of the Focal IFBMW-C?

The impedance is 4 ohms, which is standard for automotive audio systems.

Can I use this speaker without an external amplifier?

Yes, it can work directly with the original car stereo, but an amplifier will provide better sound performance.

What type of tweeter is integrated?

The tweeter is 25 mm aluminum/magnesium, offering precise and detailed high-frequency reproduction.

How to clean the speaker?

Use a soft, dry cloth to dust the grille and membrane. Avoid any liquid or abrasive products.

What to do in case of sound distortion?

Check the volume level: distortion may come from overpowering. Reduce the volume or adjust the equalizer. Also ensure that connections are correct.

Where can I find spare parts?

Spare parts (grilles, cables, etc.) are available from Focal authorized dealers or on the official website. Contact customer service for more information.

USER MANUAL IFBMW-C FOCAL

Technical line drawings of two mechanical components, one showing a central hub and the other a speaker housing (no text or symbols)

English page 2

Français page 9

Thank you for choosing Focal Integration coaxial kits and for sharing our passion for the "Spirit of Sound". Designed using the latest technology, these speakers integrate Focal's perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user's manual. If not correctly followed, any fault observed may not be covered by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing.

Listening above 130dB can damage your hearing permanently.

The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available to fit the speakers into the vehicle.

Key points:

Conditions of guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Coaxial kit IFBMW-C installation

Installation 100% dedicated to BMW® (1/3/5/x1 Series) in less than an hour [BMW® is a trademark of BMW®]. Watch the demonstration video: http://mobi.focal.com/ifbmw-c/en/

• This kit has been designed for installation in a BMW® (1/3/5/x1 Series)
• The components of this dedicated kit are compatible with this vehicle's original connectors and fixings.
• Take extreme care when installing.
• Only the use of appropriate quality tools can guarantee optimal installation.
• Connectors are fragile electronic components. Handle with care.
• Follow these instructions correctly to ensure the proper functioning of the IFBMW-C kit.
• Before restarting your system, check your car radio settings (which differ according to the vehicle's model, version and engine).

Line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

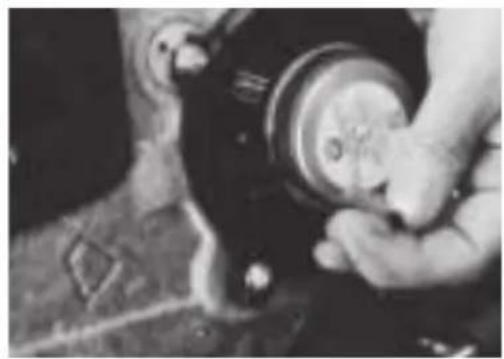

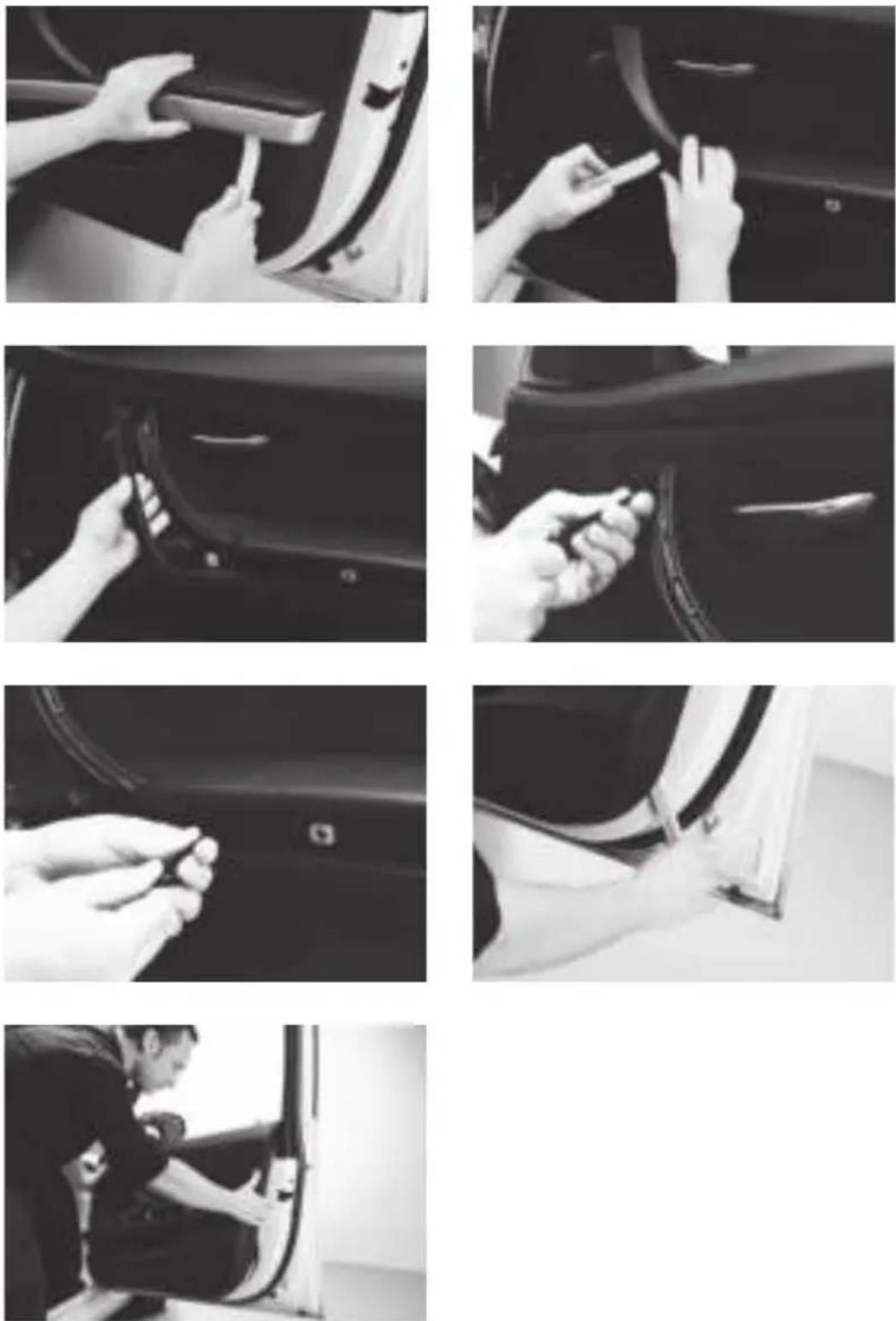

1. Dismantling the door panel with the focal and torx tool (supplied with the kit).

1. Dismantle the door control and the speaker connector.

Close-up of hands assembling or adjusting a small component on a mechanical part (no visible text or symbols)

Close-up of a hand turning a mechanical component with a circular dial (no visible text or symbols)

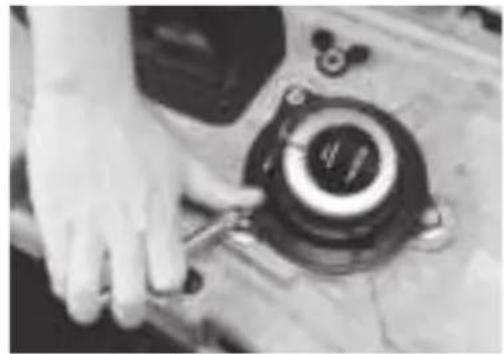

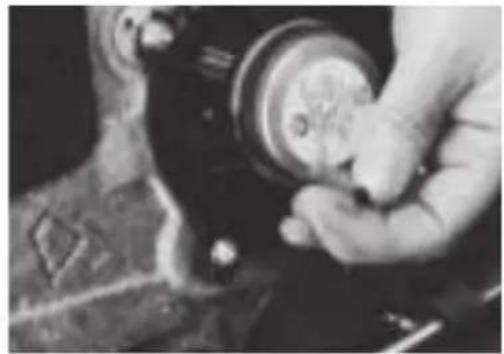

1. Speaker disassembly: used a 8 mm key (not supplied with the speaker kit).

Close-up of hands adjusting a mechanical component with a circular dial (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a circular dial (no visible text or symbols)

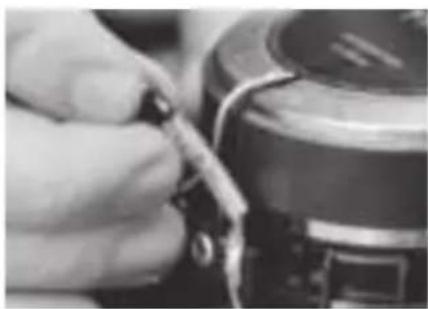

1. Focal wire plug on the driver and cable fixing inside the door panel (to reduce all parasite noises).

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

WARNING:

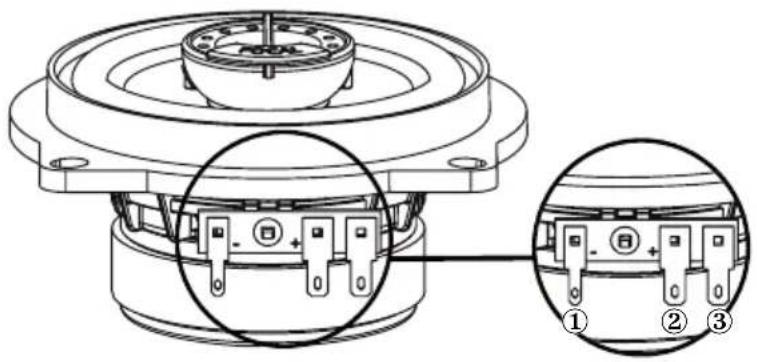

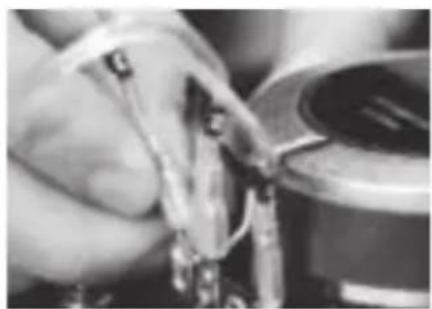

Please respect the connection as below (terminal location).

Close-up of hands using a tool to adjust or install electronic components (no visible text or symbols)

Close-up of hands using pliers to adjust or install a mechanical component (no visible text or symbols)

Close-up of hands using pliers to adjust or install a mechanical component (no visible text or symbols)

Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

See below the explanations to install our IFBMW-C speaker Kit in the last BMW cars models F20/F30/F31* Series (*Except convertible and coupe models).

Close-up of a camera lens assembly (no visible text or symbols)

Close-up of a mechanical component with circular features and mounting holes (no visible text or symbols)

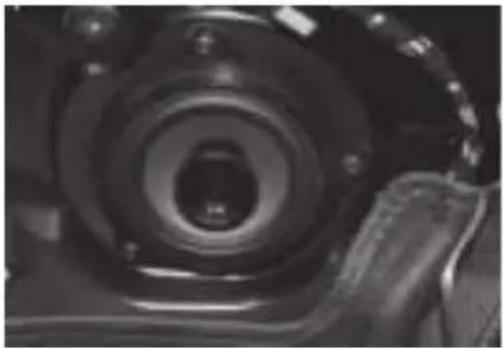

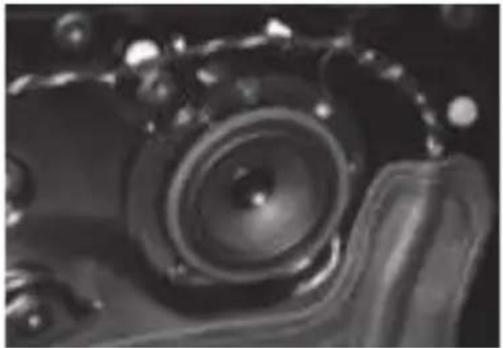

1. Factory speaker location. 2. Factory speaker removed.

Close-up of a mechanical component with no visible text or symbols

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

1. Remove the Foam protection to pass the wire inside the door.

2. IFBMW-C wire location.

Close-up of hands holding a small electronic component (no visible text or symbols)

Close-up of a camera lens assembly (no visible text or symbols)

1. IFBMW-C wire connection on the speaker terminal.

2. IFBMW-C assembled speaker in the door.

Close-up of hands adjusting a mechanical component with a circular head (no visible text or symbols)

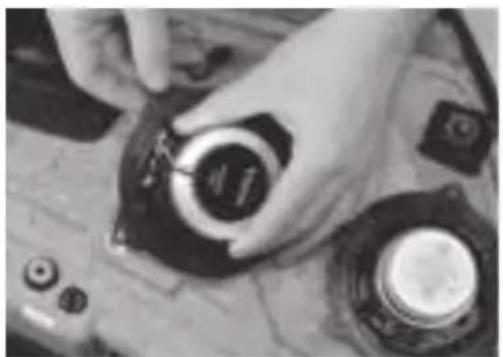

1. Plug the factory power connector to the IFBMW-C wire.

Close-up of hands holding a small object with wires, no visible text or symbols

1. Use the supplied strap to attach the wire.

Close-up of a mechanical component with circular features and a dial indicator (no visible text or symbols)

1. Factory speaker grille location. Be careful that the IFBMW-C cone doesn't come in contact with the panel.

Installation kit coaxial IFBMW-C

Line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

Close-up of hands assembling or adjusting a small object on a wooden surface (no visible text or symbols)

Close-up of hands operating a mechanical component, no visible text or symbols

Close-up of hands adjusting a mechanical component with no visible text or symbols

Close-up of a hand adjusting a mechanical component with a circular dial (no visible text or symbols)

Close-up of hands using a mechanical tool to adjust or install a component (no visible text or symbols)

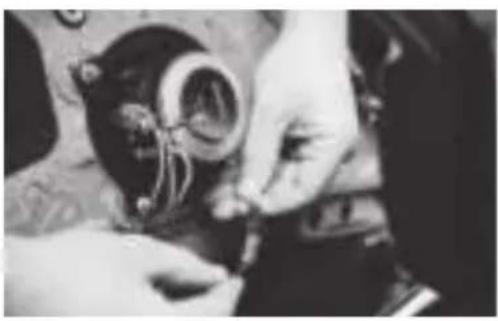

ATTENTION :

Close-up of hands adjusting a small electronic component (no visible text or symbols)

Close-up of hands using a tool to adjust or install electronic components (no visible text or symbols)

Close-up of hands using pliers to adjust or install electronic components (no visible text or symbols)

Close-up of hands assembling electronic components with wires (no visible text or symbols)

Close-up of hands assembling or repairing electronic components with wires and a circular component (no visible text or symbols)

Person working inside a vehicle or car compartment, handling the dashboard (no visible text or symbols)

Close-up of a hand using a tool to clean or repair a dark object (no visible text or symbols)

Person handling a car interior panel with visible wiring (no text or symbols)

Close-up of a camera lens assembly (no visible text or symbols)

Close-up of a mechanical component with circular features and mounting holes (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of hands holding a small electronic component (no visible text or symbols)

Close-up of a camera lens assembly (no visible text or symbols)

Close-up of hands adjusting a mechanical component with a circular head (no visible text or symbols)

Close-up of hands holding a small object with wires, no visible text or symbols

Close-up of a mechanical component with circular features and a dial indicator (no visible text or symbols)
