Product Type	Docking Station / Speaker Dock
Brand	Philips
Model	DS1155B
Compatible Devices	iPhone, iPod, smartphones, tablets (via Bluetooth or 30-pin/lightning)
Connectivity	Bluetooth v2.1 + EDR, auxiliary 3.5 mm input
Audio Output	2 x 1 W RMS speakers (stereo)
Frequency Response	200 Hz - 18 kHz
Power Supply	AC 100-240 V, 50/60 Hz; DC 9V 1A adapter (included)
Dimensions	200 x 120 x 80 mm (W x D x H)
Weight	0.55 kg
Remote Control	Yes, included
Additional Features	Clock radio, alarm function, sleep timer, USB charging for devices
Display	LED display (time, source, volume)
Cleaning Instructions	Wipe with a dry soft cloth. Do not use chemical cleaners.
Safety Notes	Keep away from water and moisture; do not place near heat sources; use only supplied AC adapter.
Spare Parts Availability	Contact Philips support; AC adapter and remote can be ordered separately.
Repair Information	Do not open the device. Refer to qualified service personnel.
Warranty	1 year limited warranty

Frequently Asked Questions - DS1155B PHILIPS

How do I pair my Bluetooth device with the Philips DS1155B?

Press the Source button repeatedly until Bluetooth appears on the display. Enable Bluetooth on your device, select 'Philips DS1155B' from the list, and confirm if prompted.

Can I charge my iPhone/iPod while playing music?

Yes. When you dock a compatible Apple device, it will charge automatically while playing music through the station.

What should I do if the remote control stops working?

First, check the battery (CR2032) and replace if necessary. Ensure the remote sensor on the unit is not blocked and that no obstacle is between the remote and the unit.

How do I set the alarm on the DS1155B?

Press and hold the Alarm 1/2 button until the hour flashes. Use the +/- buttons to set the hour and minutes. Choose the source (buzzer, radio, dock) and confirm. The alarm icon will appear on the display.

Why is there no sound from my docked iPod?

Make sure the iPod is properly inserted into the dock connector. Check the volume level on both the docking station and the iPod. Try selecting a different source (e.g., Bluetooth) and switch back to dock.

How can I reset the docking station?

Disconnect the AC power cord from the unit, wait for 30 seconds, and reconnect it. This will reset the internal electronics without affecting stored settings.

What is the sleep timer function?

Press the Sleep button repeatedly to set the time after which the device will automatically turn off (options: 15, 30, 45, 60, 90, 120 minutes). The radio or docked device will play until the timer ends.

Can I use a non-Apple device with the DS1155B?

Yes, via Bluetooth or the 3.5mm auxiliary input (cable not included). Simply select the appropriate source on the unit.

How do I clean the docking station?

Unplug the unit. Use a soft, dry cloth to wipe the exterior. For tougher dirt, slightly dampen the cloth with water. Never use solvents or abrasive cleaners. Avoid getting moisture into the dock connector.

What is the power consumption in standby mode?

In standby mode, the Philips DS1155B consumes less than 1 W when the display is off. The clock display adds about 1 W.

USER MANUAL DS1155B PHILIPS

Always there to help you

Register your product and get support at

www.philips.com/welcome

DS1155/93

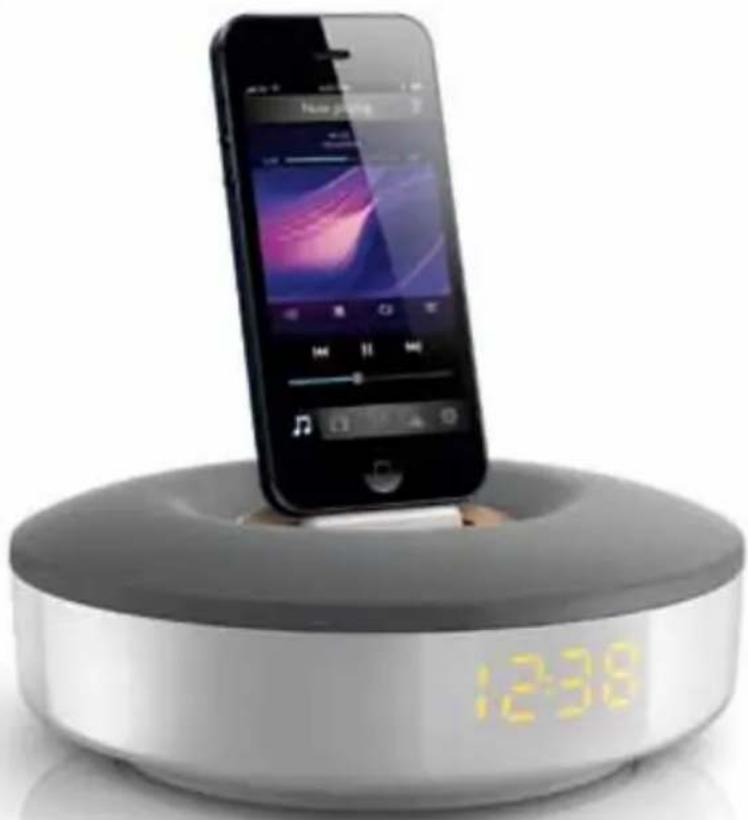

Smartphone with digital display showing music playback and time (no text or symbols on device)

User manual

PHILIPS

Contents

1 Important 2 Safety 2
2 Your Docking Speaker 3 Introduction 3 What's in the box 3 Overview of the main unit 3
3 Get started 4 Connect power 4 Adjust time 4 Turn on 4
4 Play 5 Play from iPod/iPhone 5 Charge your mobile phone 5 Adjust volume 6 Adjust brightness 6
5 Product information 7 Specifications 7
6 Troubleshooting 8
7 Notice 9 Disposal of your old product 9

1 Important

Safety

Important Safety Instructions

• Heed all warnings.
  • Follow all instructions.
  • Do not use this apparatus near water.
  • Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Apparatus shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
  • Where the plug of the Direct Plug-in Adapter is used as the disconnect device,

the disconnect device shall remain readily operable.

Warning

• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
- Never place this apparatus on other electrical equipment.
- Keep this apparatus away from direct sunlight, naked flames or heat.
• Make sure that you always have easy access to the power cord, plug, or adaptor to disconnect the apparatus from the power.

2 Your Docking Speaker

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this docking speaker, you can:

- set time;

• enjoy audio from your iPod/iPhone.

What's in the box

Check and identify the contents of your package:

- Main unit

• 1 × AC adaptor

- Short user manual

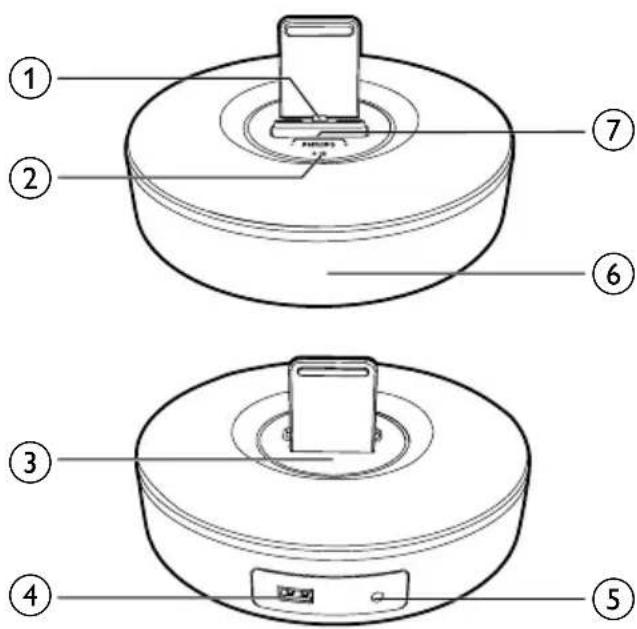

Overview of the main unit

① Dock for iPod/iPhone

- Adjust brightness of bottom light.

CLOCK

• Adjust brightness of the display.
  • Press and hold to set the clock.

- Charge your mobile phone through a USB cable.

DC IN

- Connect AC power.

Display

+ / -

- Adjust volume.

3 Get started

Always follow the instructions in this chapter in sequence.

If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the bottom of the apparatus. Write the numbers here:

Model No.

Serial No.

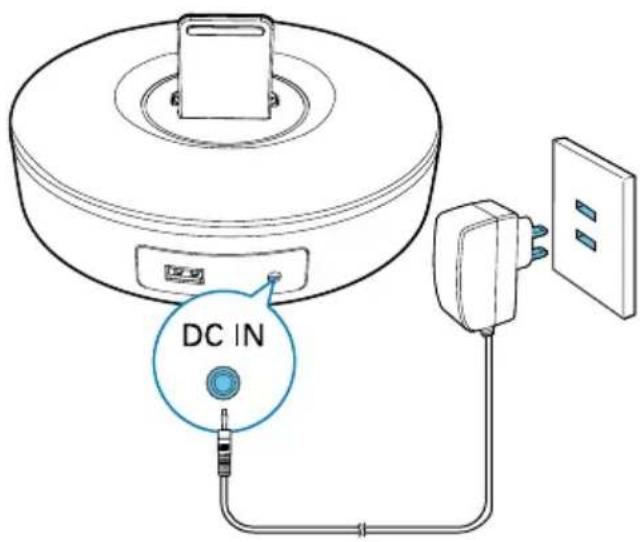

Connect power

Caution

• Risk of product damage! Make sure that the power supply voltage corresponds to the voltage printed on the back of the unit.
• Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the socket. Never pull the cord.
  • Before connecting the AC adaptor, make sure that you have completed all other connections.

Adjust time

1 In standby mode, press and hold CLOCK to enter the clock setting mode.

→ [24H] or [12H] hour format is displayed.

2 Press +/- to select [24H] or [12H] hour format, and then press CLOCK.

→ The hour digits are displayed and begin to blink.

3 Press +/- to set hour, and then press CLOCK.

→ The minute digits are displayed and begin to blink.

4 Repeat step 3 to set minute.

Turn on

In standby mode, the docking speaker turns on automatically when it detects an audio signal from docked iPod/iPhone.

Switch to standby mode

The unit switches to standby mode if there is no audio signal from docked iPod/iPhone over 15 minutes.

4 Play

Play from iPod/iPhone

You can enjoy audio from iPod/iPhone through this docking speaker.

Compatible iPod/iPhone

The docking speaker supports the following iPod/iPhone models.

Made for:

• iPhone 5
  • iPod nano (7th generation)
  • iPod touch (5th generation)

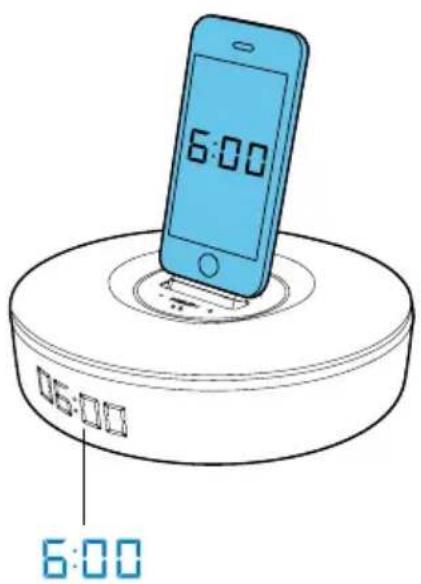

Load the iPod/iPhone

Insert your iPod/iPhone into the dock.

→ The docking speaker synchronizes time from the docked iPod/iPhone.

To remove the iPod/iPhone:

• Pull your iPod/iPhone out of the dock.

Listen to the iPod/iPhone

Note

• Make sure that the iPod/iPhone is loaded correctly.

Start to play music from your iPod/iPhone.

→ Music streams from the docking speaker automatically.

Charge the iPod/iPhone

The docked iPod/iPhone begins to charge automatically after connected to power.

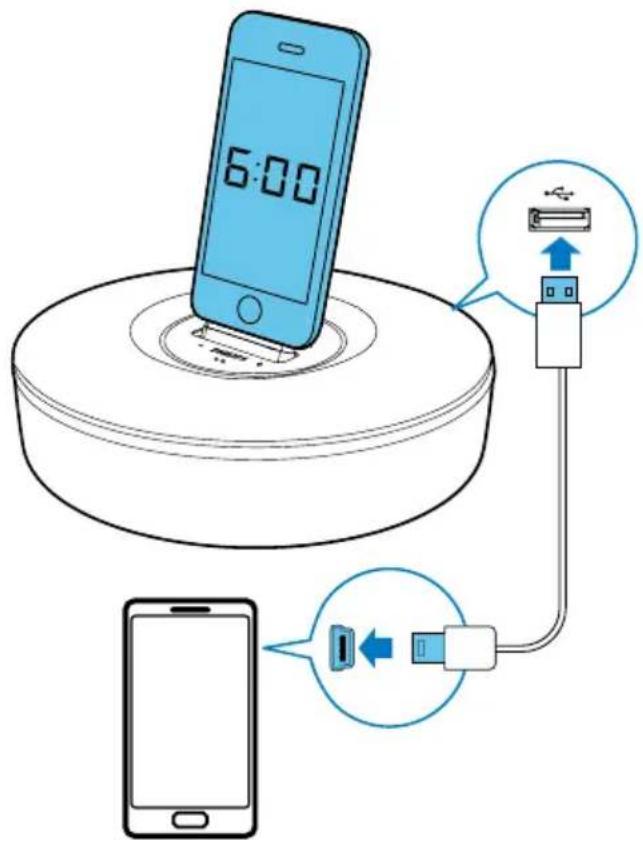

Charge your mobile phone

You can charge your mobile phone through the USB socket in this device with a USB cable (not supplied)

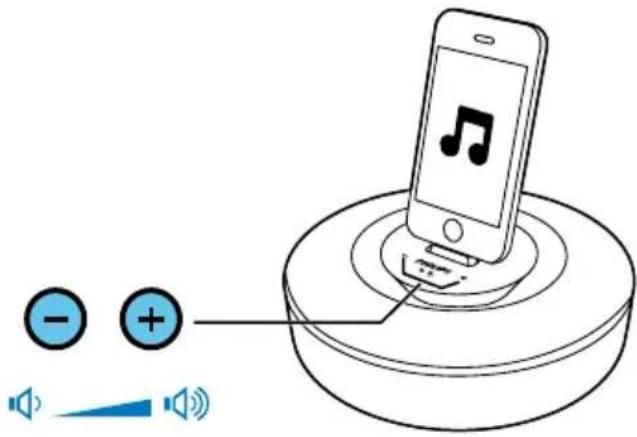

Adjust volume

During play, press +/- repeatedly to increase or decrease the volume.

Adjust brightness

• Press CLOCK repeatedly to select different levels of display brightness.
• Press * * repeatedly to select different levels of bottom light brightness.

5 Product information

Note

- Product information is subject to change without prior notice.

Specifications

Amplifier

Rated Output Power 2 x 3 W

RMS

Signal to Noise Ratio 77 dBA

General information

AC power adaptor Model: OH-1018A0602400U-CCC(Philips)Input: 100-240 V, 50/60Hz, 650 mA;Output: 6V==2.4 A;

Operation Power	18 W
Consumption

Charging (USB)

≤500 mA

Dimensions: Main	177 × 177 × 100 mm
Unit (W × H × D)

Weight: Main Unit 0.88 kg

6 Troubleshooting

Warning

• Never remove the casing of this device.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this device, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www.philips.com/support). When you contact Philips, make sure that the device is nearby and the model number and serial number are available.

No power

• Make sure that the AC power plug of the unit is connected properly.
• Make sure that there is power at the AC outlet.

No sound or poor sound

• Adjust the volume of your docking speaker.
• Adjust the volume of your iPod/iPhone or external audio device.

No response from the unit

- Disconnect and reconnect the AC power plug, and then turn on the docking speaker again.

7 Notice

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health.

Please visit www.recycle.philips.com for additional information on a recycling center in your area.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes.

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

Note

•The type plate is located on the bottom of the apparatus.

Specifications are subject to change without notice

All rights reserved.

DS1155_93_UM_V1.0
