Product Type	Electric Shaver
Brand	Philips
Model	Series 5000 S5310
Dimensions (approx)	5.5 x 2.5 x 2 inches
Weight	0.55 lbs (250 g)
Power Source	Rechargeable Li-ion battery
Charging Time	1 hour for full charge
Shaving Time	60 minutes cordless use
Shaving System	3D contour-following heads with ComfortCoating
Wet/Dry Use	Yes, suitable for dry or wet shaving with gel/foam
Pop-up Trimmer	Yes, for precise edging and sideburns
Display	LED battery indicator and cleaning reminder
Travel Lock	Yes, to prevent accidental activation
Waterproof	Rinseable under tap (IPX7 rated)
Maintenance	Rinse heads after each use; replace heads every 2 years
Replacement Heads	Philips SH50 (compatible)
Accessories	Charging cord, protective cap
Color	Black with matte finish
Series	5000 series
Warranty	2 years limited manufacturer warranty

Frequently Asked Questions - Series 5000 S5310 PHILIPS

Can I use the Philips Series 5000 S5310 in the shower?

Yes, the S5310 is waterproof and rated IPX7, meaning it can be used in the shower and rinsed clean under running water.

How long does the battery last on a full charge?

A full charge provides up to 60 minutes of cordless shaving, which typically lasts about 2-3 weeks depending on usage.

How do I clean the shaver?

After each use, remove the shaving head and rinse thoroughly under warm water. Let it air dry. For deeper cleaning, use the Philips cleaning brush provided.

Can I use shaving foam or gel with this shaver?

Absolutely! The S5310 is designed for wet and dry shaving. For a more comfortable glide, apply gel or foam before shaving.

How often should I replace the shaving heads?

Philips recommends replacing the shaving heads every 2 years for optimal performance. The LED indicator will remind you when it's time.

What replacement heads are compatible?

The S5310 uses Philips SH50 replacement heads. You can purchase them online or at most retailers.

Does it have a pop-up trimmer?

Yes, it features a pop-up trimmer for precise edging, sideburns, and mustache grooming.

Is the shaver suitable for sensitive skin?

Yes, the ComfortCoating on the heads and the rounded caps are designed to be gentle on the skin, reducing irritation.

How do I activate travel lock?

Press and hold the on/off button for 3 seconds to lock or unlock the shaver. The LED will flash to confirm.

What is the warranty period?

Philips offers a 2-year limited warranty against manufacturing defects. Keep your proof of purchase for any claims.

USER MANUAL Series 5000 S5310 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

series S5000

Black Philips Aquatouch electric shaver with three rotary buttons and power button (no visible text beyond brand name)

ENGLISH 4

DANSK 36

DEUTSCH 69

ΕΛΛΗΝΙΚΑ 105

ESPAÑOL 143

SUOMI 179

FRANÇAIS 211

ITALIANO 245

NEDERLANDS 279

NORSK 313

PORTUGUÊS 344

SVENSKA 379

TÜRKÇE 411

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

1 Protection cap for nose trimmer attachment (specific types only)
2 Click-on nose trimmer attachment (specific types only)
3 Comb for beard styler attachment (specific types only)
4 Click-on beard styler attachment (specific types only)
5 Click-on trimmer attachment (specific types only)
6 Protection cap for shaving unit (specific types only)
7 Click-on shaving unit
8 On/off button
9 Turbo button (specific types only)
10 Handle
11 Socket for small plug
12 Battery charge indicator with 1 light
13 Battery charge indicator with 3 lights
14 Travel lock symbol
15 Replacement reminder
16 Cleaning reminder
17 Cleaning cartridge for SmartClean system
18 SmartClean system (specific types only)
19 Cap of SmartClean system
20 On/off button
21 Battery symbol
22 Cleaning symbol

23 Replacement symbol
24 Ready symbol
25 Adapter
26 Small plug
27 Pouch (specific types only)

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Always unplug the shaver before you clean it under the tap.

• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet with no text or symbols

Caution

- Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.

- Never immerse the shaver in water. Do not use the shaver in the bath or in the shower.

- Never use water hotter than 80^ C to rinse the shaver.

- Only use this appliance for its intended purpose as shown in the user manual.

- For hygienic reasons, the appliance should only be used by one person.

- Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter

- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

- If your shaver comes with a cleaning system, always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).

- Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.

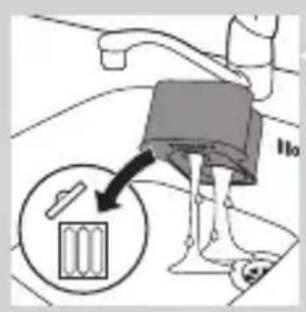

- If your cleaning system uses a cleaning cartridge, always make sure that the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.

- When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.

- Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Electromagnetic fields (EMF)

- This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• This shaver can be safely cleaned under the tap.
• The appliance is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.
• Maximum noise level: Lc = 69dB(A)

The display

Charging

Battery charge indicator with 3 lights

• Charging takes approx. 1 hour
• Quick charge (specific types only): When the appliance is connected to the mains, the lights of the battery charge indicator light up one after the other continuously. When the appliance contains enough energy for one shave, the bottom light of the battery charge indicator flashes slowly.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, first the bottom light flashes and then lights up continuously.
  Then the second light flashes and then lights up continuously, and so on until the appliance is fully charged.

Illustration of a hairdryer with a magnified inset showing the tip and starburst pattern (no text or symbols)

ENGLISH8

Diagram of a laboratory test tube with a magnified inset showing a star-shaped object (no text or symbols present)

Battery charge indicator with 1 light

• Charging takes approx. 1 hour.
• Quick charge (specific types only): When the appliance does not contain enough energy for one shave, the battery charge indicator flashes quickly. When the battery charge indicator starts flashing slowly, the appliance contains enough energy for oneshave.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, the battery charge indicator flashes slowly.

Battery fully charged

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Note: You can also use this appliance directly from the mains.

Note: When the battery is full, the display switches off automatically after 30 minutes.

When the battery is fully charged, all lights of the battery charge indicator light up continuously.

- Battery charge indicator with 3 lights

Diagram of a mechanical component with a labeled circular feature and arrow pointing to a small circular area (no text or symbols present)

- Battery charge indicator with 1 light

Battery low

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

When the battery is almost empty, the battery charge indicator flashes orange.

- Battery charge indicator with 3 lights

Diagram of a device with a starburst pattern and a magnified view of its internal structure (no text or symbols)

- Battery charge indicator with 1 light

Remaining battery capacity

Diagram of a syringe with a magnified inset showing internal components (no text or labels)

Battery charge indicator with 3 lights

- The remaining battery capacity is indicated by the lights of the battery charge indicator that light up continuously.

Cleaning reminder

For optimal shaving performance, we advise you to clean the shaver after every use.

- When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.

Travel lock

You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident.

Activating the travel lock

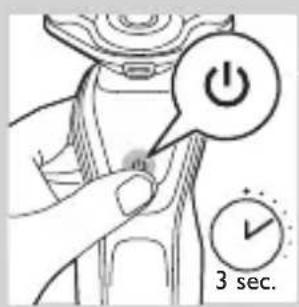

1 Press the on/off button for 3 seconds to enter the travel lock mode.

- While you activate the travel lock, the travel lock symbol lights up continuously. When the travel lock is activated, the travel lock symbol flashes.

Deactivating the travel lock

1 Press the on/off button for 3 seconds.

- The travel lock symbol flashes and then lights up continuously. The shaver is now ready for use again.

Replacing shaving heads

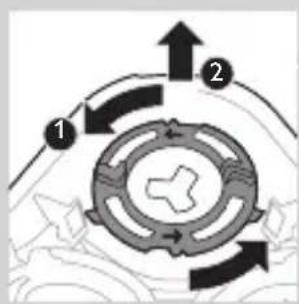

For maximum shaving performance, we advise you to replace the shaving heads every two years.

- The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The replacement reminder lights up white continuously.

Note: After replacing the shaving heads, you need to reset the replacement reminder by pressing the on/off button for 7 seconds.

Illustration of a robotic arm with a lock icon and a speech bubble (no text or symbols)

Illustration of a robotic device with a lock icon and speech bubble (no text or symbols)

Illustration of a robotic arm with a speech bubble containing icons (no text or symbols present)

Turbo setting (specific types only)

- The appliance is equipped with a Turbo or Turbo+ setting. This setting is intended for quicker and more intense shaving and makes hard-to-reach areas easier to shave.

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Activating the Turbo setting

1 To activate the Turbo setting, press the Turbo button once.

Deactivating the Turbo setting

1 To deactivate the Turbo setting, simply press the Turbo button once again.

Charging

Charging takes approx. 1 hour.

Note: You can also use this appliance directly from the mains.

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

Charging with the adapter

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

1 Insert the small plug into the appliance and put the adapter in the wall socket.

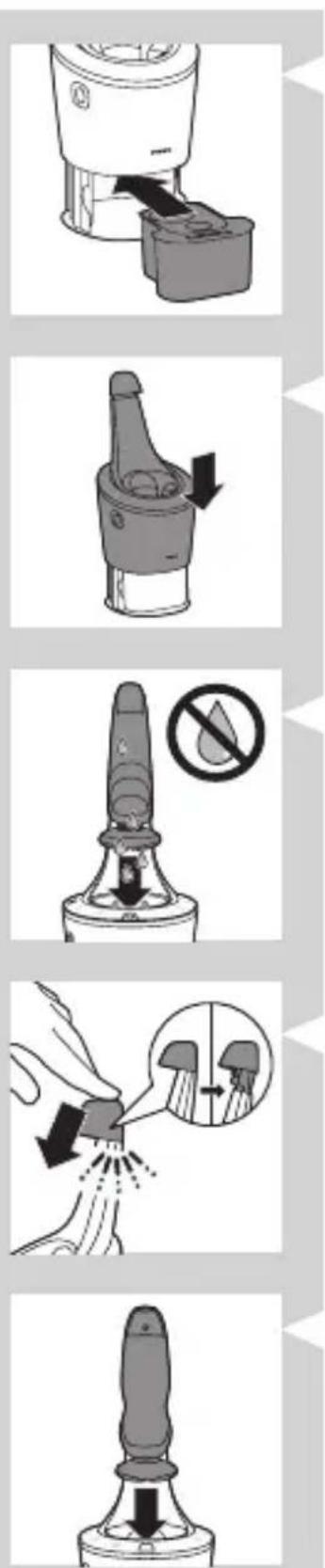

Charging in the SmartClean system (specific types only)

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

1 Put the small plug in the SmartClean system.
2 Put the adapter in the wall socket.
3 Press down the top cap to be able to place the shaver in the holder ('click').

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

4 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

5 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate the shaver is charging.

Using the shaver

Switching the appliance on and off

Illustration of a hand holding a circular object with an arrow pointing to it, against a stylized background (no text or symbols)

1 To switch on the appliance, press the on/off button once.
2 To switch off the appliance, press the on/off button once.
- Battery charge indicator with 3 lights: The display lights up for a few seconds to show the remaining battery status.

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system.

We advise you to shave regularly (at least 3 times a week) with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver.

Note: You can also use the shaver directly from the mains.

Illustration of a person applying a hairpin to their face (no text or symbols present)

1 Switch on the appliance.
2 Move the shaving heads over your skin in circular movements.

Note: Do not make straight movements.

3 Clean the shaver after use (see chapter 'Cleaning and maintenance').

Turbo setting (specific types only)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

The appliance is equipped with a Turbo or Turbo+ setting for easy shaving of hard-to reach areas.

1 Switch on the shaver.
2 Press the Turbo button once to switch on the Turbo setting if you want to shave hard-to-reach areas more quickly.
3 Move the shaving heads over your skin in circular movements.

Note: Do not make straight movements.

4 To deactivate the Turbo setting simply press the Turbo button once.

Illustration of a person's beard and ear with a T-shaped symbol overlay (no text or symbols present)

Using the click-on attachments

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Removing or attaching the click-on attachments

Illustration of a hand holding a device with a bulb and a cross symbol, no text or labels present

1 Make sure the appliance is switched off.
2 Pull the attachment straight off the appliance.

Note: Do not twist the attachment while you pull it off the appliance.

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of a droplet (no text or symbols)

3 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the trimmer attachment

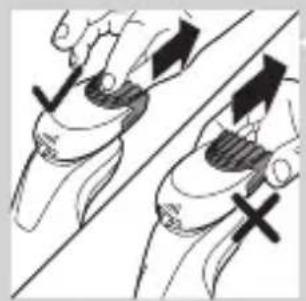

You can use the trimmer attachment to groom your sideburns and moustache.

Illustration of a robotic arm with motion lines and a magnified inset showing a robot head (no text or symbols)

1 Make sure the appliance is switched off.
2 Insert the lug of the attachment into the slot in the top of the shaver. Then press down the trimmer attachment to attach it to the appliance ('click').
3 Switch on the appliance.
4 You can now start trimming.
5 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Line drawing of a person applying makeup to their hair (no text or symbols)

Illustration of a spray gun interacting with a surface, showing spray effect and magnified view (no text or symbols)

Using the beard styler attachment

1 Make sure the appliance is switched off.
2 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the beard styler attachment with comb

You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. You can use it also to pre-trim any long hairs before shaving to have a more comfortable shave.

The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.

Line drawing of a hairbrush cutting into a toothbrush with motion lines indicating brush direction (no text or symbols)

Illustration of a man with a beard eating a spoon (no text or symbols)

1 Slide the comb straight into the guiding grooves on both sides of the attachment ('click').
2 Press the length selector and then push it to the left or right to select the desired hair length setting.
3 Switch on the appliance.
4 You can now start styling your beard by moving the attachment upwards with gentle pressure making sure the front of the comb is in full contact with the skin.
5 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset magnified view (no text or symbols)

Using the beard styler attachment without comb

You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline to a length of 0.5mm.

1 Pull the comb off the attachment.

Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.

2 Switch on the appliance.

3 You can now start contouring your beard, moustache, sideburns or neckline by moving the styler downwards with gentle pressure while holding it perpendicular to the skin.

4 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Using the nose trimmer attachment

You can use the nose trimmer attachment to trim your nose hair.

Make sure your nostrils are clean.

1 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

2 Switch on the appliance.

3 Carefully insert the attachment into one of your nostrils.

Do not insert the attachment more than 0.5cm into your nostrils.

Illustration of a person applying a nasal swab or throat filter to their mouth (no text or symbols present)

4 Slowly move the attachment around to remove all unwanted hairs in your nostrils.
5 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Trimming ear hair

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

You can use the nose trimmer attachment to trim your ear hair. Make sure your outer ear channels are clean and free from wax.

1 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').
2 Switch on the appliance.
3 Slowly move the attachment along the rim of the ear to remove hairs that stick out beyond the rim.
4 Insert the attachment into the outer ear channel.

Do not insert the attachment more than 0.5cm into your ear channel, as this could damage the eardrum.

Illustration of a person using a hairdryer to clean their face (no text or symbols visible)

5 Slowly turn the attachment around to remove all unwanted hairs from your outer ear channel.
6 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Cleaning and maintenance

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Cleaning the shaver in the SmartClean system (specific types only)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Do not tilt the SmartClean system to prevent leakage.

Note: Hold the SmartClean system while you prepare it for use.

Note: If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

Preparing the SmartClean system for use

1 Put the small plug in the back of the SmartClean system.
2 Put the adapter in the wall socket.
3 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.
4 Pull the seal off the cleaning cartridge.

Simple line drawing of a container with an upward arrow and label 'POT' (no text or symbols on the diagram itself)

5 Place the cleaning cartridge in the SmartClean system.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Illustration of a spray gun with a stop sign and downward arrow (no text or symbols)

Using the SmartClean system

Always make sure to shake excess water off the shaver before you place it in the SmartClean system.

1 Press down the top cap to be able to place the shaver in the holder ('click').

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols visible)

2 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

3 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate that the shaver is charging.

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

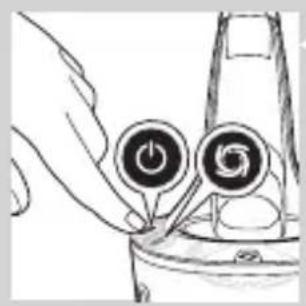

4 Press the on/off button on the SmartClean system to start the cleaning program.

- During the cleaning program (which takes approx. 10 minutes), the cleaning symbol flashes.

- When the cleaning program has been completed, the ready symbol lights up continuously.

- The battery symbol lights up continuously to indicate that the shaver is fully charged. This takes approx. 1 hour.

Note: If you press the on/off button of the SmartClean system during the cleaning program, the program aborts. In this case, the cleaning symbol stops flashing.

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts.

Note: 30 minutes after the charging phase has been completed, the SmartClean system switches off automatically.

5 To let the shaver dry, you can leave it in the SmartClean system until your next shave. You can also remove the shaver from the SmartClean system, shake off excess water, open the shaving unit and let the shaver air dry.

Replacing the cartridge of the SmartClean System

Replace the cleaning cartridge when the replacement symbol flashes orange or when you are no longer satisfied with the cleaning result.

If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

Diagram of a blender with a black arrow pointing to its interior component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

1 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.
2 Take the empty cleaning cartridge from the SmartClean system and pour any remaining cleaning fluid out of the cleaning cartridge. You can simply pour the cleaning fluid down the sink.
3 Throw away the empty cleaning cartridge.
4 Unpack the new cleaning cartridge and pull the seal off the cartridge.
5 Place the new cleaning cartridge in the SmartClean system.
6 Push the top part of the SmartClean system back down ('click').

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal shaving performance.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

ENGLISH22

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

1 Rinse the shaving unit under a warm tap for some time.

Anatomical illustration of a human head with internal organs and a curved arrow indicating a specific structure (no text or labels present)

2 Press the release button and open the shaving unit.

Illustration of a fork and chopsticks lifting a bowl of noodles (no text or symbols)

3 Rinse the shaving head holder under a warm tap for 30 seconds.
4 Carefully shake off excess water and let the shaving head holder dry.
5 Close the shaving head holder ('click').

Thorough cleaning method

Diagram of a biological structure with layered patterns and directional arrows, no visible text or symbols

Make sure the appliance is switched off.

1 Press the release button and open the shaving unit.

Illustration of a mechanical component with an upward arrow, no text or symbols present

2 Pull the shaving head holder off the bottom part of the shaving unit.

3 Turn the retaining rings anticlockwise and remove them.

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

4 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Illustration of a showerhead spraying water onto a surface, showing mechanical components and spray (no text or symbols)

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

5 Clean the cutter and guard under the tap.

Mechanical component diagram showing a gear and shaft assembly (no text or symbols)

6 After cleaning, place the cutter back into the guard.

7 Put the shaving heads back into the shaving head holder.

ENGLISH24

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Note: Make sure the projections of the shaving heads fit exactly into the recesses of the shaving-head holder.

8 Place the retaining rings back onto the shaving head holder and turn them clockwise.

- Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

- Turn the ring clockwise until your hear 'click' and the ring is fixed.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

9 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder ('click').

Cleaning the click-on attachments

Never dry the trimmer or beard styler attachments with a towel or tissue, as this may damage the trimming teeth.

Cleaning the trimmer attachment

Clean the trimmer attachment every time you have used it.

Illustration of a hand holding a shoe with a tool above it, showing a bundle of wires or fibers emerging from the cup (no text or symbols)

1 Switch on the appliance with the trimmer attachment attached.
2 Rinse the trimmer attachment under a hot tap for some time.
3 After cleaning, switch off the appliance.
4 Carefully shake off excess water and let the trimmer attachment dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the beard styler attachment

Clean the beard styler attachment every time you have used it.

1 Pull the comb off the beard styler attachment.

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two kitchen utensils with liquid, one above and one below, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a showerhead spraying water onto a surface (no text or symbols)

Illustration of a funnel-shaped object emitting particles (no text or symbols)

Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.

2 Switch on the appliance.
3 Rinse the beard styler attachment and the comb separately under a hot tap for some time.
4 After cleaning, switch off the appliance.
5 Carefully shake off excess water and let the beard styler attachment and comb dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the nose trimmer attachment

Clean the nose trimmer attachment every time you have used it.

1 Make sure the appliance is switched off.
2 Rinse the cutting element of the nose trimming head with hot water.
3 Switch on the appliance and rinse the cutting element once more to remove any remaining hairs. Then switch off the appliance again.
4 Carefully shake off excess water and let the nose trimmer attachment dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage

Three-step illustration showing a hairpin being inserted into a body, with arrows indicating the process (no text or symbols present)

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Note: We advise you to let the appliance and its attachments dry before you put the protection caps on the attachments and store the shaver in the pouch.

- Place the protection cap on the nose trimming head.

- Put the protection cap on the shaving head to protect it from dirt accumulation.

- Store the shaver in the pouch supplied.

Replacement

Replacing the shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving unit symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads immediately. Only replace the shaving heads with original Philips shaving heads as specified in chapter ‘Ordering accessories’.

ENGLISH28

1 The shaving unit symbol lights up continuously when you switch off the shaver to indicate that the shaving heads need to be replaced.

Illustration of a stylized human head with ornate patterns and a black arrow pointing to the ear (no text or symbols)

2 Press the release button and open the shaving unit.

Illustration of a mechanical component with an upward arrow, no text or symbols present

3 Pull the shaving head holder off the bottom part of the shaving unit.

4 Turn the retaining rings anticlockwise and remove them.

Diagram showing a hand holding a circular object with arrows indicating motion or assembly (no text or symbols present)

5 Remove the shavings heads from the shaving head holder and throw them away.

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

6 Place new shaving heads in the holder.

Pure diagram of a mechanical or architectural structure with no text, numbers, or symbols

Note: Make sure the projections of the shaving heads fit exactly into the recesses of the shaving head holder.

7 Place the retaining rings back onto the shaving heads and turn them clockwise.

- Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

- Turn the ring clockwise until your hear 'click' and the ring is fixed.

Note: Hold te shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

8 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder ('click').

9 To reset the replacement reminder, press and hold the on/off button for approx. 7 seconds.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your

Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

The following parts are available:

• HQ8505 adapter
• SH50 Philips shaving heads
• HQ110 Philips Shaving Head Cleaning Spray
• RQ111 Philips beard styler attachment
• JC301, JC302, JC303, JC304, JC305 cleaning cartridge

Note: Availability of the accessories may differ per country.

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace the shaving heads with original SH50 Philips shaving heads.

Recycling

Symbol of a waste bin with no text or labels, including a crossed-out box and a solid rectangle below (no readable text or symbols)

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery.

- Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it.

Be careful, the battery strips are sharp.

ENGLISH32

Illustration showing a hand using a screwdriver to cut a cylindrical object, with another hand holding a small boat (no text or symbols present)

1 Remove the screw in the backpanel with a screwdriver. Then remove the back panel.

Illustration of two skis with directional arrows indicating motion (no text or symbols)

2 Bend the hooks aside and remove the power unit.

Two mechanical components with a diagonal line and an upward arrow, no visible text or symbols

3 Break the snap hooks and remove the front panel of the power unit.

Illustration of two robotic arms with a tool, one holding a tool and the other in use, against a diagonal line (no text or symbols)

4 Take out the battery holder and cut the battery tags with a pair of cutting pliers.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Hairs or dirt obstruct the shaving heads.	Clean the shaving heads by following the steps of the thorough cleaning method (see chapter ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’).
	The travel lock is activated.	Press the on/off button for 3 seconds to deactivate the travel lock.
	The shaving unit is soiled or damaged to such an extent that the motor cannot run.	Clean the shaving heads or replace them (see chapters ‘Cleaning and maintenance’ and ‘Replacement’).

Problem Possible cause Solution

The shaver is not entirely clean after I clean it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly, so there is no electrical connection between the SmartClean system and the shaver.	Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.
	The cleaning cartridge is empty. The replacement symbol flashes to indicate you have to replace the cleaning cartridge.	Place a new cleaning cartridge in the SmartClean system (see chapter 'Cleaning and maintenance').
	You have used another cleaning fluid than the original Philips cleaning cartridge.	Only use the original Philips cleaning cartridges.
The SmartClean system does not work when I press the on/off button.	The SmartClean system is not connected to the mains.	Put the small plug in SmartClean system and put the adapter in the wall socket.
The shaver is not fully charged after I charge it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly.	Make sure you press the shaver in the SmartClean system until it locks into place and press down the top cap.

Problem Possible cause Solution

I replaced the shaving heads, but the replacement reminder symbol is still showing.	You have not reset the shaver.	Reset the shaver by pressing the on/off button for approx. 7 seconds (see chapter ‘Replacement’).
A shaving head symbol has suddenly appeared on the display.	This symbol is a replacement reminder.	Replace the shaving heads (see chapter ‘Replacement’).
The nose trimmer attachment pulls at the hairs.	You move the appliance too fast.	Do not move the appliance too fast.
The nose trimmer attachment does not work.	The cutting element of the attachment is very dirty, for instance because some nasal mucus has dried inside the cutting element.	Clean the cutting element by rinsing it under the tap with hot water. Switch on the appliance and rinse the cutting element once more to remove any remaining hairs.
		If rinsing the nose trimmer under the tap does not unblock the cutting element, then immerse it in a glass with warm water for a few minutes. Then switch on the appliance and rinse it under the tap.

Introduktion

No sign depicting a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet with a diagonal line and a diagonal line, indicating no restrictions or water use.

Forsigtig

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Elektromagnetiske felter (EMF)

Illustration of a laboratory test tube with a magnified inset showing internal structures (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing a star-shaped object (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a mechanical component with a labeled circular feature and arrow pointing to a small circular area (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Diagram of a device with a starburst pattern and a magnified view of its internal structure (no text or symbols)

Diagram of a syringe with a magnified inset showing internal components (no text or labels)

Illustration of a robotic arm with a lock icon and a speech bubble (no text or symbols)

Diagram of a robotic device with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Diagram of a hairbrush connecting a power outlet with a cable, showing two arrows indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

5 Sæt shaveren i holderen, vip shaveren bagud, og tryk ned på den øverste hætte for at tilslutte shaveren ("klik").

- Batterisymbolet blinker langsomt for at indikere, at shaveren oplades.

Brug af shaveren

Illustration of a hand holding a circular object with an arrow pointing to it, against a stylized background (no text or symbols)

Illustration of a person applying a hairpin to their ear (no text or symbols present)

Illustration of a hand pressing a button on a curved surface with a power symbol (no text or labels)

Illustration of a person's head with a T-shaped symbol overlay (no text or symbols present)

Illustration of a hand holding a small object with an arrow indicating upward motion, no text or symbols present.

Illustration of a medical or laboratory procedure showing a funnel and a magnified view of a test tube (no text or symbols present)

Illustration of a robotic arm interacting with a surface, showing motion and magnified detail (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a medical or laboratory procedure showing a device emitting particles onto a surface, with an inset magnified view of a graduation cap (no text or symbols present)

Line drawing of a hairbrush cutting into a jaw with motion arrows indicating compression (no text or symbols)

Illustration of a man with a beard eating a spoon (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap and a speech bubble (no text or symbols)

Illustration of a person applying a nasal swab or throat filter to their mouth (no text or symbols present)

Illustration of a dental implant tool with a magnified inset showing a graduation cap and a speech bubble (no text or symbols)

Illustration of a person using a handheld tool to clean their face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'POTATO' (no text or symbols on the diagram itself)

5 Placer rengøringspatronen i SmartClean-systemet.

Diagram of a blender with a black arrow pointing to its base, showing mechanical components (no text or symbols)

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a cross-section of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

3 Sæt shaveren i holderen, vip shaveren bagud, og tryk ned på den øverste hætte for at tilslutte shaveren ("klik").

- Batterisymbolet blinker langsomt for at indikere, at shaveren oplades.

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human head with internal organs and a curved arrow indicating a specific structure (no text or labels present)

Illustration of a fork being inserted into a bowl of noodles (no text or symbols)

Anatomical illustration of a human digestive system with arrows indicating movement or force (no text or labels)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram showing fluid flow between two vessels with a gear and bubbles (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a hand holding a shoe with a fork inserted into the cup (no text or symbols)

Illustration of a hand crushing debris with an inset showing a pile of debris (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two kitchen utensils with liquid, one above and one below, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a showerhead spraying water onto a surface (no text or symbols)

Illustration of a funnel-shaped object emitting particles (no text or symbols)

Three-step illustration showing a hairpin being inserted into a body, with arrows indicating the process (no text or symbols present)

Illustration of a stylized human head with ornate hair and decorative patterns, no text or symbols present

Illustration of a mechanical component with an upward arrow, no visible text or symbols

Diagram showing a hand holding a circular object with arrows indicating direction, alongside a battery and a separate component (no text or symbols present)

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

Pure diagram of a mechanical or architectural structure with no text, numbers, or symbols

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

Symbol of a waste bin with no text or labels, crossed by two crossed lines and a solid rectangle below (no text or symbols present)

Illustration of a sewing machine tool and foot presser (no text or symbols)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with a diagonal line and an upward arrow, no visible text or symbols

Diagram showing two hands operating a tool on a mechanical component, with an arrow indicating the tool's direction (no text or symbols present)

No sign depicting a faucet with a diagonal line and a showerhead, enclosed in a circle (no text or symbols)

No smoking sign with faucet symbol (no text)

Simple black-and-white icon of a faucet with a showerhead, enclosed in a square frame (no text or symbols)

Illustration of a droplet with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory pipette with a spool stopper and a magnified inset showing a test tube (no text or labels)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a mechanical component with a circular annotation and arrow pointing to a specific area (no text or symbols present)

Diagram of a dropper with a magnified inset showing internal structure (no text or symbols)

Diagram of a syringe with a spool and a magnified inset showing internal structure (no text or symbols)

Diagram of a test tube with a magnified inset showing internal components (no text or labels)

Line drawing of a robot's torso with a lock icon and speech bubble (no text or symbols)

Illustration of a human robot with a lock icon and speech bubble (no text or symbols)

Illustration of a hand holding a button with a circular icon, pointing to the right side of the device (no text or symbols present)

Diagram of a plug and cable with directional arrows indicating connection (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a cross-section of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or force, no text or symbols present

Illustration of a person applying a hairpin to their ear (no text or symbols present)

Illustration of a man with a beard and a circular icon containing a stylized 'T' symbol (no text or symbols present)

Illustration of a mushroom-shaped object with an arrow indicating upward motion, accompanied by a cross symbol (no text or labels)

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing a mechanical component (no text or symbols)

Illustration of a person using a hairdryer to clean or remove hair (no text or symbols)

Illustration of a man with a beard eating a spoon (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a mechanical device with a downward arrow and magnified inset showing a circular component (no text or symbols)

Illustration of a person's face with a textured scarf and a pointing finger (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Illustration of a person using a handheld tool to clean or brush the face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'SWEET' (no text or symbols on the diagram itself)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Diagram of a device component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a black arrow pointing to its interior (no text or symbols present)

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a food item being lifted from a piping bag into a bowl (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Diagram showing a mechanical component with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Illustration of two mechanical devices with water spray and a circular component, no text or symbols present

Diagram of a mechanical or electrical component with a central shaft and surrounding gear (no text or symbols)

Abstract diagram of a symmetrical geometric structure with three circular elements and a top node (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand crushing a small object with waste, accompanied by a circular icon showing a mountain (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement (no text or symbols)

Illustration of two mechanical components with ropes and springs, connected by a diagonal line (no text or symbols)

Illustration of two fish separated by a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a mechanical component pouring liquid into a bottle (no text or symbols)

Illustration of a toothbrush tip with teeth and surrounding particles (no text or symbols)

Simple line drawing of a bottle with a lid and arrow indicating downward motion (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a medical device with a downward arrow indicating compression or dissection (no text or symbols)

Anatomical illustration of a human digestive system with an arrow indicating a specific region (no text or labels present)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a hand holding a circular object with arrows indicating motion or force (no text or symbols present)

Abstract diagram of a symmetrical geometric structure with three circular elements and an upward arrow, no text or symbols present.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Illustration of two hands holding a heart-shaped object with arrows indicating motion or change (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Illustration of a hand holding a screwdriver and a foot, with no visible text or symbols

Illustration of two skis under a diagonal line, showing motion and movement directions (no text or symbols)

Diagram showing two car body components with an arrow indicating a specific part (no text or labels present)

Illustration of a robotic hand holding a tool, with an arrow indicating the process (no text or symbols present)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Simple black-and-white icon of a faucet with a showerhead, no text or symbols present.

Γενικά

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a star-shaped object (no text or symbols)

Diagram of a laboratory test tube with a capillary top and a magnified inset showing internal structure (no text or labels)

Diagram of a mechanical component with a labeled section (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a dropper with a cap and a starburst pattern, no text or symbols present

Diagram of a test tube with a cap and a magnified inset showing internal components (no text or labels)

Illustration of a robotic device with a lock icon and speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots on a diagonal line, one with arrows indicating motion or force (no text or symbols)

Illustration of a person applying facial contour or mask to their ear (no text or symbols)

Illustration of a hand pressing a button on a curved surface with a power symbol (no text or labels)

Illustration of a person applying a toothpaste to their beaded area, with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Illustration of a hand holding a device with a bulb and a cross symbol, no text or labels present

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Diagram showing a hairdryer tip interacting with a surface, with an inset magnified view of the hairdryer's surface (no text or symbols present)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a medical procedure showing a surgical tool impacting a patient's skin area, with an inset magnified view of the procedure (no text or symbols present)

Illustration of a hairbrush cutting down a button with a downward arrow (no text or symbols)

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool pressing down on a device with an inset image of a graduation cap and speech bubble (no text or symbols)

Illustration of a person applying a nasal swab or throat filter to their mouth (no text or symbols present)

Illustration of a mechanical device with a downward arrow and a magnified inset showing a graduation cap (no text or symbols)

Illustration of a person using a hairdryer to clean their face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark and motion lines, no text or symbols present.

Simple line drawing of a container with an upward arrow, no text or symbols present

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Close-up of a mechanical component with a downward arrow and a prohibition symbol (no text or labels)

Diagram showing a hand holding a small object with arrows indicating motion or force, and an inset magnified view of a mechanical component (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand inserting a power button into a device (no text or symbols visible)

Diagram of a mechanical component with two circular indicators (circle with 'B' and checkmark) and a central triangular structure (no text or symbols)

Diagram of a blender with a black arrow pointing to its base, showing no text or symbols.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a food item being lifted by a fork, showing a bowl with noodles and a spoon (no text or symbols)

Anatomical illustration of a human digestive system with internal organs and a curved arrow indicating movement (no text or labels)

Diagram of a mechanical assembly with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing two mechanical components with directional arrows, no text or symbols present

Illustration of a mechanical device with gears and fluid flow, no text or symbols present

Diagram of a mechanical or electrical component with a central shaft and surrounding circular elements (no text or symbols)

Pure diagram of a mechanical or structural component with a circular top and triangular base, no text or symbols present.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Illustration of two hands exchanging a cloud-like object with arrows indicating rotation or movement (no text or symbols)

Line drawing of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand blowing bubbles with motion lines, accompanied by a circular icon showing a warning symbol (no text or labels)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands holding small objects above a diagonal line, no text or symbols present

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a pipe being compressed with a hose (no text or symbols)

Illustration of a funnel-shaped object emitting particles (no text or symbols)

Three-step illustration showing a hairpin being inserted into a jawbone, then to press down the jawbone (no text or symbols present)

Illustration of a stylized abstract shape with swirling patterns, possibly a decorative or organic form (no text or symbols)

Illustration of a mechanical component with an upward arrow, showing internal gear-like structure (no text or symbols)

Diagram showing a hand holding a circular object with arrows indicating direction, alongside a cylindrical object (no text or symbols present)

Diagram showing a circular object falling into a triangular structure with internal rings (no text or symbols)

Diagram showing two circular components with arrows indicating direction, one crossed over the other by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a tool interacting with a device, showing a brush and a separate tool (no text or symbols present)

Illustration of two mechanical components with directional arrows indicating motion (no text or symbols)

Two car seats with a diagonal line dividing them, one showing an upward arrow (no text or symbols)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

No sign depicting a faucet without any text or symbols

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Diagram of a laboratory test tube with a capillary top and a magnified inset showing internal structures (no text or labels)

Diagram of a test tube with a cap and bulb, showing a small object inside (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a handheld device with a circular indicator and arrow pointing to the bottom (no text or symbols present)

Illustration of a test tube with a magnified inset showing internal components (no text or symbols)

Diagram of a test tube with a cap and a magnified inset showing a star-shaped object (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Illustration of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Diagram of a hairpin plug connecting a socket to a cable with an arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or force (no text or symbols)

Illustration of a hand pressing down on a circular object with an arrow (no text or symbols)

Illustration of a person applying a hairpin to their ear (no text or symbols present)

Illustration of a hand pressing a button on a curved surface with a power symbol (no text or labels)

Illustration of a person applying a toothpaste to their beaded area, with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Diagram showing a funnel with a cross symbol and an upward arrow, no text or labels present

Diagram showing a droplet on a surface with an arrow indicating light emission, and a magnified inset showing a graduation cap (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing a small object (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a hairdryer with an inset showing the tip and mouth area (no text or symbols)

Illustration of a hairbrush cutting down a button with a downward arrow (no text or symbols)

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a tool, with arrows indicating movement or force direction (no text or symbols)

Illustration of a dental implant being injected onto a tooth, with an inset showing a graduation cap (no text or symbols present)

Illustration of a person applying a toothbrush to their mouth (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset showing a graduation cap (no text or symbols present)

Illustration of a person using a hairbrush to clean their face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark and spray, no text or symbols present

Simple line drawing of a container with an upward arrow, no text or symbols present

Illustration of a blender with a black arrow pointing to its lid (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a spray bottle with a stopper and a prohibition symbol (no text or labels)

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of two different shoe boots with arrows indicating motion or change (no text or symbols)

Hand holding two circular buttons with power and spiral symbols, next to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Illustration of a blender with a black arrow pointing to its lid (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human head and neck with internal organs, showing no text or labels.

Illustration of a food item being lifted from a tube into a bowl (no text or symbols)

Illustration of a stylized human head with decorative patterns and an arrow indicating motion (no text or symbols)

Illustration of a mushroom-shaped object with an upward arrow, placed on top of a textured base (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Illustration of two mechanical devices with water spray and a gear-like component, no text or symbols present

Cross-sectional diagram of a mechanical component with no visible text or symbols

Diagram of a mechanical or structural component with a circular top and triangular base, no visible text or symbols.

Diagram showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of two hands holding cloud-like objects with arrows indicating motion or transformation (no text or symbols)

Illustration of a shoe being lifted by a bag, showing the ball being lifted (no text or symbols present)

Illustration of a hand crushing debris with a magnified circular inset showing a pile of material (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a shoe and a shoe with a handle, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a showerhead spraying water from a pipe (no text or symbols)

Illustration of a brush tip emitting powder particles (no text or symbols)

Almacenamiento

Three-step illustration showing a hairpin being inserted into a body, with arrows indicating the process (no text or symbols present)

Illustration of a biological structure with ornate topography and internal components, no visible text or symbols

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram of a hand holding a circular component with arrows indicating direction (no text or symbols)

Abstract diagram of a symmetrical geometric structure with three connected nodes (no text or symbols)

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with a downward arrow and a light burst, no text or symbols present.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with no text or symbols

Illustration of a hand holding a tool over a slide, with no visible text or symbols

Illustration of two mechanical components with directional arrows indicating motion (no text or symbols)

Diagram showing two mechanical components with an arrow indicating motion or force (no text or symbols present)

Diagram showing two mechanical components with a tool, one being inserted and the other holding a pliers (no text or symbols present)

No sign depicting a faucet without any text or symbols

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Varoitus

Simple black-and-white icon of a faucet with raindrops, enclosed in a square frame (no text or symbols)

Illustration of a hairdryer with a magnified inset showing the tip and starburst pattern (no text or symbols)

Illustration of a hairbrush with a circular annotation highlighting a warning symbol (no text or labels present)

Diagram of a dropper with a cap and droplet, showing internal structure (no text or symbols)

Diagram of a mechanical component with a circular annotation and pointer, no readable text or symbols present.

Diagram of a test tube with a magnified inset showing internal components (no text or labels)

Diagram of a test tube with a cap and a magnified inset showing a star-shaped object (no text or symbols)

Diagram of a test tube with a cap and magnified inset showing internal components (no text or labels)

Illustration of a person wearing a smartwatch with a lock icon and a speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Illustration of a human robot with a speech bubble containing a heart symbol (no text or labels present)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Diagram of a hairbrush connecting a power outlet to a cable with directional arrows indicating cable movement (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a close-up of a mechanical component (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pressing down on a circular object with an arrow, no text or symbols present

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Hand holding a button with a circular icon, pointing to a device (no text or symbols visible)

Illustration of a person applying a toothpaste to their beaded ear (no text or symbols present)

Illustration of a mushroom-shaped object with an arrow pointing upward, above a stylized leaf or crown (no text or symbols)

Illustration of a medical device with a magnified view showing internal components (no text or symbols)

Illustration of a robotic arm interacting with a surface, showing motion and magnified detail (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a hairdryer with a magnified inset showing the tip and mouth area (no text or symbols)

Line drawing of a hairbrush cutting into a toothbrush with a downward arrow (no text or symbols)

Illustration of a man with a beard and a pipe, showing facial features (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Illustration of a dental implant being injected onto a tooth, with an inset showing a graduation cap (no text or symbols present)

Illustration of a person applying a nasal swab or throat filter to their mouth (no text or symbols present)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Illustration of a person using a hairpin to clean their face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow, no text or symbols present

Illustration of a blender with a black arrow pointing to its interior (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a spray bottle with a stopper and a prohibition symbol (no text or labels)

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Line drawing of a hand holding two circular buttons with power and spiral symbols (no text or labels)

Diagram of a mechanical component with two circular indicators (one checked, one checked) and a checkmark symbol, no readable text or labels present.

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Diagram of a biological structure with arrows indicating direction (no text or labels)

Illustration of a food item being lifted from a pipette into a bowl (no text or symbols)

Anatomical illustration of a human digestive system with an arrow indicating a specific structure (no text or labels present)

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing a hand operating a device with an arrow indicating direction (no text or symbols present)

Illustration of two identical water purifiers with splashing liquid, no text or symbols present

Cross-sectional diagram of a mechanical component with internal structure (no text or labels)

Abstract diagram of a symmetrical geometric structure with three circular elements and a top node (no text or symbols)

Diagram showing a circular object with a downward arrow pointing to a triangular structure (no text or symbols)

Diagram showing two circular components with arrows indicating motion or flow, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a light burst, no text or symbols present.

Line drawing of a shoe being dispensed from a bottle onto a textured surface (no text or symbols)

Illustration of a hand blowing bubbles with a magnified circular inset showing a landscape (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a showerhead spraying water from a pipe (no text or symbols)

Illustration of a pipette tip emitting powder particles (no text or symbols)

Säilytys

Anatomical illustration of a human head and neck with decorative patterns, showing internal organs (no text or labels)

Illustration of a mushroom-shaped container with internal swirling patterns and an upward arrow, no text or symbols present.

Diagram showing a hand holding a brush and a circular object with arrows indicating direction (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Symbol of a waste bin with crossed lines and a blank rectangular base (no text or labels)

Symbol of a trash bin crossed out by two crossed lines, representing waste sorting or disposal (no text or labels)

Illustration of a sewing machine tool and a sewing machine base, showing mechanical components without any text or symbols.

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Diagram showing two car body parts with arrows indicating movement or force, no text or symbols present

Illustration of a hand holding a tool with a device, divided by a diagonal line (no text or symbols)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Simple black-and-white icon of a faucet with a showerhead, enclosed in a square frame (no text or symbols)

Illustration of a device with a starburst pattern and a magnified inset showing a vertical line (no text or symbols)

Illustration of a test tube with a knob and a speech bubble containing an 'I' (no text or symbols on the tube itself)

Diagram of a test tube with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory pipette with a labeled stopper (no text or symbols present)

Piles faibles

Illustration of a hairbrush with a magnified inset showing internal structure (no text or symbols)

Illustration of a mechanical device with a circular annotation and starburst pattern (no text or symbols)

Diagram of a laboratory pipette with a magnified inset showing internal structure (no text or labels)

Illustration of a person's torso with a lock icon and a speech bubble containing a black lock symbol (no text or labels present)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Diagram of a hairbrush connecting a power outlet with an attached cable, showing two arrows indicating direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a close-up of a mechanical component (no text or symbols)

Close-up of a mechanical component with a handle and arrow indicator (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand pressing down on a circular object with an arrow, no text or symbols present

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a person's beard and ear with a T-shaped logo overlay (no text or symbols on the main subject)

Illustration of a mushroom-shaped object with an arrow pointing upward, above a stylized leaf or crown (no text or symbols)

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a medical or laboratory procedure showing a device interacting with tissue, with an inset magnified view (no text or symbols)

Illustration of a medical procedure showing a device emitting heat to a patient's ear with an inset image of a graduation cap (no text or symbols present)

Line drawing of a hairbrush cutting into a button with a downward arrow (no text or symbols)

Illustration of a man with a beard and pipe, showing hand gesture (no text or symbols)

Illustration of a hand holding a tool with directional arrows indicating movement (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Side profile illustration of a person's face and mouth, showing textured skin and hair accessory (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Illustration of a person using a handheld tool to clean their face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow, no text or symbols present

Diagram of a blender with a black arrow pointing to its base, showing no text or symbols.

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a spray bottle with a stopper and a no-smoking symbol (no text or labels)

Diagram showing a hand pouring liquid into a container with an inset magnified view of a lid (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Diagram showing two different foot positions: one with a handle and arrow, the other with a handle and arrow (no text or symbols)

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Technical line drawing of a mechanical component with two circular indicators (no text or symbols)

Diagram of a blender with a black arrow pointing to its base, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement (no text or symbols)

Illustration of a stylized human head with decorative patterns and an arrow indicating motion (no text or symbols)

Illustration of a hand holding a spoon above a bowl of noodles, with no visible text or symbols.

Anatomical illustration of a human head and neck with internal organs, no text or labels present.

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating motion or assembly (no text or symbols)

Diagram showing two mechanical components with fluid flow, no text or symbols present

Diagram of a mechanical component with a central gear and base, no visible text or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Illustration of two hands exchanging a cloud-like object with arrows indicating motion (no text or symbols)

Illustration of a hand holding a shoe with a tool above it, showing a bundle of wires or fibers (no text or symbols present)

Illustration of a hand blowing bubbles with a magnified inset showing a person's face (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Illustration of two kitchen utensils with liquid, one above and one below, separated by a diagonal line (no text or symbols)

Illustration of two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a showerhead spraying water onto a surface (no text or symbols)

Illustration of a funnel-shaped object emitting particles (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a hand holding a device with a circular component and an arrow indicating direction (no text or symbols)

Pure diagram of a mechanical or structural component with a circular top and triangular base, no text or symbols present.

Diagram showing two mechanical components with a checkmark indicating a specific section (no text or symbols present)

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Illustration of a hand tool interacting with a small object, showing two views (no text or symbols present)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Diagram of two mechanical components with arrows indicating motion or assembly (no text or symbols)

Illustration of a robotic hand holding a tool, with an arrow indicating the process (no text or symbols present)

No sign depicting a faucet without any text or symbols

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Illustration of a dropper with a magnified inset showing internal structure (no text or symbols)

Illustration of a laboratory test tube with a cap and bulb, accompanied by a speech bubble containing a starburst symbol (no text or labels present)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Diagram of a hairbrush with a circular indicator labeled 'I' pointing to the tip (no text or symbols on the diagram itself)

Diagram of a hairdryer with a magnified inset showing internal structure (no text or labels)

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a star-shaped object (no text or symbols)

Diagram of a syringe with a magnified inset showing internal components (no text or labels)

Line drawing of a robot's leg with a lock icon and speech bubble (no text or symbols)

Diagram of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Diagram of a hairpin with two clips connected to a power outlet, showing directional arrows (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a cross-section of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or damage, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, against a plain background (no text or symbols)

Illustration of a person applying a hair product to their ear (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a hand holding a device with a bulb and a cross symbol, no text or labels present

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a robotic arm with motion arrows and a magnified inset showing a hand holding a device (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a medical procedure showing a surgical tool impacting a patient's skin area, with an inset magnified view (no text or symbols)

Illustration of a person using a hairdryer with a downward arrow indicating compression (no text or symbols)

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a hairdryer with a magnified inset showing a graduation cap and a speech bubble (no text or symbols)

Illustration of a person's face with a toothbrush and textured skin (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool pressing down on a device with an inset image of a graduation cap (no text or symbols present)

Illustration of a person using a hairpin to apply product to their face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'BANANA' (no text or symbols on the diagram itself)

Illustration of a blender with a black arrow pointing to its interior (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a spray bottle with a stopper and a prohibition symbol (no text or labels)

Illustration of a hand pouring liquid into a container with arrows indicating flow direction, accompanied by an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding a device with two circular buttons labeled 'Power' and 'Spiral', no text or symbols present

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of internal organs with a black arrow indicating a specific structure (no text or labels present)

Illustration of a food item being lifted by a pipette (no text or symbols)

Anatomical illustration of a human head with internal organs and a curved arrow indicating movement or force (no text or labels)

Illustration of a mushroom-shaped container with internal compartments and an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing two mechanical components with fluid flow, no text or symbols present

Diagram of a mechanical or biological structure with a central circular component and a downward arrow, no visible text or symbols.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating rotation or movement (no text or symbols)

Illustration of a hand cleaning a shoe with a cloth (no text or symbols)

Illustration of a hand crushing debris with an inset showing a pile of debris (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Illustration of two cartoon fish separated by a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a pipe being compressed with a funnel (no text or symbols)

Illustration of a toothbrush tip with small particles spilling out (no text or symbols)

Simple line drawing of a device with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a stylized object with a downward arrow, no text or symbols present

Sostituzione

Illustration of a biological structure with ornamental patterns and directional arrows (no text or symbols)

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing a hand holding a circular object with arrows indicating direction, alongside a divided line and a battery-like component (no text or symbols)

Pure diagram of a mechanical or structural component with a circular top and triangular base, no text or symbols present.

Diagram showing two circular components with arrows indicating motion or flow, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with no text or symbols

Illustration of a sewing machine tool and a sewing machine blade assembly (no text or symbols)

Illustration of two skis, one on a diagonal line and the other on a slope, with arrows indicating motion direction (no text or symbols)

Diagram showing two car body components with arrows indicating movement or force, no text or symbols present

Diagram showing a robotic arm gripping a tool, with no visible text or symbols

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

No smoking sign with faucet symbol (no text or numbers)

Simple black-and-white icon of a faucet with a showerhead, enclosed in a square frame (no text or symbols)

Illustration of a hairdryer with a magnified inset showing hair follicle structure (no text or symbols)

Diagram of a laboratory test tube with a cap and bulb, showing a magnified view of the test tube (no text or labels present)

Accu vol

Diagram of a laboratory test tube with a capillary top and a magnified inset showing internal structures (no text or labels)

Diagram of a mechanical component with a circular annotation and pointer, no readable text or symbols present.

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a dropper with a cap and star-shaped label (no text or symbols)

Diagram of a test tube with a cap and magnified inset showing internal components (no text or labels)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and speech bubble (no text or symbols)

De reisvergrendeling deactiveren

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

De Turbo-instelling activeren

Diagram of a hairpin with two clips connected to a power outlet, showing directional arrows (no text or symbols)

Diagram showing a hand pressing down on a surface with arrows indicating direction, and a magnified inset showing two figures (no text or symbols present)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Illustration of a hand holding a button labeled '7' on a curved surface, with no visible text or symbols beyond the button.

Illustration of a person applying a toothpaste to their beaded jaw (no text or symbols)

Illustration of a hand holding a mushroom with a skull and a cross symbol, no text or labels present

Illustration of a funnel pouring liquid into a curved surface, with an inset showing a graduation cap (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Illustration of a hairdryer with an inset showing the tip and mouth area (no text or symbols)

Illustration of a person using a hairdryer with a downward arrow indicating compression (no text or symbols)

Illustration of a man with a beard eating a spoon (no text or symbols)

Illustration of two hands holding a tool, with arrows indicating movement or force direction (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a mechanical device with a downward arrow and magnified inset showing a circular component (no text or symbols)

Side profile illustration of a person's face and mouth, showing textured skin and hair accessory (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool emitting particles into a device, with an inset showing a graduation cap and a speech bubble (no text or symbols present)

Illustration of a person using a hairdryer to clean their face (no text or symbols visible)

Simple line drawing of a container with an upward arrow, no text or symbols present

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with power and spiral symbols, next to a device (no text or labels visible)

Diagram of a device with two circular indicators (one checked, one not checked) and a central funnel-like structure (no text or symbols)

Diagram of a blender with an arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Illustration of a decorative ornamental object with swirling patterns and a curved arrow, no text or symbols present.

Illustration of a medical procedure showing a surgical tool interacting with a patient's ear canal (no text or symbols present)

Anatomical illustration of a human head with internal organs and a curved arrow indicating movement or force (no text or labels)

Illustration of a mushroom-shaped container with internal compartments and an upward arrow indicating growth (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing two mechanical components with fluid flow, no text or symbols present

Diagram of a mechanical or biological structure with a central circular component and a downward arrow, no visible text or symbols.

Abstract diagram with three connected nodes and arrows forming a triangular structure (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two mechanical components with arrows indicating motion, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Simple line drawing of a hand holding a shoe next to a bottle with a cloth-like object (no text or symbols)

Illustration of a funnel-shaped object emitting particles with a magnified circular inset showing a mountain trail (no text or symbols)

Illustration of two hands holding a tool, with arrows indicating movement or force direction (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Illustration of two cartoon fish separated by a diagonal line, one falling and the other running with motion lines (no text or symbols)

Illustration of a hand pouring liquid from a bottle onto a tool (no text or symbols)

Illustration of a funnel-shaped object emitting particles (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a hairpin with a mushroom inserted, showing the base and handle (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating motion (no text or symbols)

Vervanging

Anatomical illustration of a human head with internal organs and a curved arrow indicating a specific structure (no text or labels present)

Diagram showing a mechanical component with an upward arrow, no text or symbols present

Diagram showing a hand holding three circular components with an arrow indicating direction, alongside a battery and a separate cylindrical component (no text or symbols present)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows indicating direction, one crossed over the other by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with crossed x-axes (no text or symbols)

Illustration of a hand holding a small object, with no visible text or symbols

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with arrows indicating motion or assembly, no visible text or symbols

Diagram showing a hand holding a tool with an arrow indicating force or movement, crossed out by a diagonal line (no text or symbols present)

Prohibition sign of a faucet without any text or symbols

No smoking sign with faucet symbol (no text)

Forsiktig

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Diagram of a test tube with a cap and a magnified inset showing internal structures (no text or labels)

Diagram of a laboratory test tube with a cap and bulb, showing a magnified view of the test tube (no text or labels present)

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or labels)

Diagram of a mechanical component with a labeled section and a magnified inset (no text or symbols)

Lav batterikapasitet

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Diagram of a laboratory test tube with a magnified inset showing a labeled spike (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Illustration of a robotic arm with a lock icon and a speech bubble (no text or symbols)

- Når du aktiverer transportlåsen, lyser symbolet for transportlås kontinuerlig. Når transportlåsen er aktivert, blinker symbolet for transportlås.

Illustration of a robotic device with a lock icon and speech bubble (no text or symbols)

Aktivere turboinnstillingen

Ladingen tar ca. én time.

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

4 Hold barbermaskinen opp ned over holderen. Kontroller at forsiden av barbermaskinen vender mot SmartClean-systemet.

Illustration of a pair of boots with arrows indicating motion or force (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying a hairpin to their face (no text or symbols present)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a person's head with a T-shaped symbol overlay (no text or symbols present)

Illustration of a hand holding a device with a cross symbol and an upward arrow, no text or labels present.

Illustration of a medical or laboratory procedure showing a funnel and a magnified view of a device (no text or symbols present)

Illustration of a robotic arm interacting with a surface, showing motion and magnified detail (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a medical or laboratory procedure showing a device emitting particles into a curved surface, with an inset magnified view of a graduation cap and a speech bubble (no text or symbols)

Illustration of a hairbrush cutting into a button, with no text or symbols present

Illustration of a man with a beard and pipe, showing hand gesture (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Illustration of a person applying a nasal swab or throat filter to their mouth (no text or symbols present)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Illustration of a person using a handheld tool to clean their face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark, no text or symbols present

Ikke vipp SmartClean-systemet. På den måten unngår du lekkasje.

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

2 Hold barbermaskinen opp ned over holderen. Kontroller at forsiden av barbermaskinen vender mot SmartClean-systemet.

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Line drawing of a hand holding two circular buttons with power and spiral symbols (no text or labels)

Diagram of a mechanical component with two circular indicators (one checked, one checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a handle and base, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

6 Skyv den øvre delen av SmartClean-systemet tilbake ned (du skal høre et klikk).

Rengjøre barbermaskinen under springen

Illustration of a hand holding a small object with motion lines, possibly a tool or device, emitting a bundle of wires or fibers (no text or symbols present)

1 Skyll skjæreenheten under varmt rennende vann en liten stund.

Anatomical illustration of a human head with internal organs and a decorative headpiece, no text or labels present.

Illustration of a fork lifting noodles into a bowl (no text or symbols)

3 Skyll skjærehodeholderen under varmt rennende vann i 30 sekunder.

Anatomical illustration of a human head with internal organs and a curved arrow indicating movement or force (no text or labels)

Illustration of a mushroom-shaped container with internal compartments and an upward arrow, no text or symbols present

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram showing two mechanical components with fluid flow, no text or symbols present

Diagram of a mechanical or electrical component with a central shaft and surrounding gear (no text or symbols)

Diagram showing a circular object with a downward arrow pointing to a triangular structure (no text or symbols)

Diagram showing two circular components with arrows indicating motion or flow, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Illustration of a hand cleaning a shoe with a cloth (no text or symbols)

Illustration of a hand crushing debris with a magnified inset showing a pile of debris (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands pouring liquid from a bottle onto a surface, with no text or symbols present.

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a pipe being lifted by a hose (no text or symbols)

2 Skyll kutteenheten på trimmehodet for nesehår med varmt vann.
3 Slå på apparatet og skyll klippeelementet en gang til for å fjerne gjenværende här. Slå deretter av apparatet igjen.
4 Rist forsiktig av overflödig vann, og la nesehårstrimmeren tørke.

Simple line drawing of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Diagram of a hairpin with a downward arrow indicating compression or insertion (no text or symbols)

Illustration of a medical device with a downward arrow indicating motion (no text or symbols)

Utskiftning

Bytte skjærehoder

Anatomical illustration of a human head with decorative patterns and an arrow indicating a specific region (no text or labels present)

Illustration of a mushroom-shaped container with internal compartments and an upward arrow, no text or symbols present

Illustration of a hand holding a circular object with arrows indicating motion or assembly (no text or symbols)

Abstract diagram with three connected nodes and arrows, no text or symbols present

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows indicating motion or flow, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

• HQ110 Philips Shaving Head Cleaning Spray (rensespray for skjærehoder)
• Philips RQ111-skjeggstylertilbehør
• JC301, JC302, JC303, JC304, JC305-rengjøringspatron

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Illustration of a hand holding a pen and a shoe, with no visible text or symbols

Ta bare ut det oppladbare batteriet når du avhender barbermaskinen. Kontroller at batteriet er helt tomt når du tar det ut.

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Diagram showing two car body components with arrows indicating movement or force, separated by a diagonal line (no text or symbols)

Illustration of a hand using a tool to lift a car, showing mechanical components and motion (no text or symbols)

4 Ta ut batteriholderen, og klipp over batteriflikene med en avbitertang.

Garanti og støtte

Hvis du trenger kundestøtte eller informasjon, kan du gå til www.philips.com/support eller lese i garantiheftet.

Begrensninger i garantien

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

No smoking sign with faucet symbol (no text or numbers)

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Illustration of a test tube with a magnified inset showing internal structure (no text or symbols)

Diagram of a test tube with a cap and a starburst symbol, no text or labels present

Diagram of a test tube with a magnified inset showing internal structure (no text or symbols)

- Indicador de carga da bateria com 1 luz

Diagram of a laboratory test tube with a stopper and a magnified inset showing the test chamber (no text or labels)

Bateria fraca

Illustration of a hairbrush with a magnified inset showing internal structure (no text or symbols)

- Indicador de carga da bateria com 1 luz

Illustration of a syringe with a spool stopper and a warning symbol (no text or labels)

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Indicador de carga da bateria com 3 luzes

Illustration of a robot's interior with a lock icon and speech bubble (no text or symbols)

Illustration of a medical or robotic device with a lock icon and a speech bubble (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Diagram of a hairbrush connecting a socket to a cable with an arrow indicating direction (no text or symbols)

1 Introduza a ficha pequena no aparelho e coloque o adaptador na tomada eléctrica.

Carregamento no sistema SmartClean (apenas modelos específicos)

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a close-up of a mechanical component (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying a hair product to their face (no text or symbols)

Illustration of a hand holding a circular button with a black arrow, pointing to a device (no text or symbols present)

Illustration of a mushroom-shaped object with an arrow indicating upward motion, no text or symbols present

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the tip (no text or symbols)

Illustration of a robotic arm with motion lines and a magnified inset showing a spray or droplet (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

PORTUGUÊS356

Illustration of a medical procedure showing a surgical tool impacting tissue with an inset magnified view (no text or symbols)

Line drawing of a hairbrush cutting down a button (no text or symbols)

Illustration of a man eating with a spoon (no text or symbols)

3 Ligue o aparelho.

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a dental implant being inserted into a tooth, with an inset showing the same component (no text or symbols present)

Illustration of a person using a handheld device to interact (no text or symbols visible)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Illustration of a person using a handheld device to interact with a beaded face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'WATER' (no text or symbols on the diagram itself)

PORTUGUÊS360

Diagram of a blender with a black arrow pointing to its base, showing no text or symbols.

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Close-up of a bottle tip with a stopper and a prohibition symbol (no text or labels)

Utilizar o sistema SmartClean

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a cross-section of a mechanical component (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a shoe being cut off into a pair, showing the blade and base with motion arrows (no text or symbols)

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Technical diagram of a mechanical component with two circular indicators (no text or symbols)

Diagram of a blender with an arrow pointing to its base (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human head with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a noodle being lifted by a fork, showing noodles and a bowl (no text or symbols)

Anatomical illustration of a human digestive system with an arrow indicating a specific region (no text or labels present)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of a hand washing a tooth with water spray, showing two different methods (no text or symbols present)

Diagram of a mechanical or electrical component with a central shaft and surrounding gear (no text or symbols)

Abstract diagram of a symmetrical geometric structure with three circular elements and a top node (no text or symbols)

Diagram showing a circular object with a downward arrow pointing to a triangular structure (no text or symbols)

Diagram showing two circular components with arrows indicating direction, one crossed over the other by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Line drawing of a shoe being squeezed from a bottle into a cloth (no text or symbols)

Illustration of a hand crushing a rock with a magnified circular inset showing a pile of rocks (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a showerhead spraying water onto a surface (no text or symbols)

Illustration of a funnel-shaped object emitting particles (no text or symbols)

Illustration of a medical device with a downward arrow indicating compression or disassembly (no text or symbols)

- Guarde a máquina de barbear na bolsa fornecida.

Substituição

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

PORTUGUÊS370

Diagram of a mechanical device with internal components and an upward arrow, no text or symbols present

Diagram showing a hand holding a circular object with arrows indicating motion or force (no text or symbols present)

Diagram showing a circular object with a downward arrow pointing to a ring structure (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, separated by a diagonal line (no text or symbols)

Illustration of two hands exchanging a cloud-like object, one with a downward arrow and the other with a radiating arrow (no text or symbols)

Encomendar acessórios

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Illustration showing a hand using a screwdriver to cut a cylindrical object, with another hand holding a small boat (no text or symbols present)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with a diagonal line and an upward arrow, no visible text or symbols

Illustration of two hands using a tool to lift or adjust a mechanical component, no text or symbols present

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

No smoking sign with faucet symbol (no text)

Försiktighet

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Illustration of a laboratory test tube with a magnified inset showing internal structures (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing a star-shaped object (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a mechanical component with a labeled circular feature and arrow pointing to a small circular area (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Diagram of a device with a starburst pattern and a magnified view of its internal structure (no text or symbols)

Diagram of a dropper with a magnified inset showing internal structure (no text or labels)

Illustration of a robotic arm with a lock icon and speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Diagram showing a hand pressing down on a surface with arrows indicating force direction, and an inset magnified view of a textured surface (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or damage, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying a hairpin to their ear (no text or symbols present)

Illustration of a hand holding a finger with a circular button labeled 'F' (no text or symbols beyond the icon)

Illustration of a person applying a toothbrush to their beaded area, with a circular logo containing the number 'T' (no text or symbols on the diagram itself)

Illustration of a hand holding a device with a warning symbol (no text or labels)

Diagram showing a device emitting heat or vibration to a surface, with an inset magnified view of the device's effect (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a hairdryer with an inset showing the tip and base (no text or symbols)

Illustration of a hairdryer with a brush and motion arrow indicating hair direction (no text or symbols)

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Illustration of a person's face with a toothbrush and jawbone (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset magnified view (no text or symbols)

Illustration of a person using a handheld device to address their face (no text or symbols visible)

Simple line drawing of a paintbrush with a cross mark and smoke trail (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'SWE' (no text or symbols on the diagram itself)

Diagram of a blender with a black arrow pointing to its side panel (no text or symbols present)

5 Placera rengöringspatronen i SmartClean-systemet.

Mechanical component diagram showing a piston-like structure with a downward arrow indicating force or motion (no text or symbols)

Close-up of a mechanical component with a downward arrow and a prohibition symbol (no text or labels)

Diagram showing fluid flow around a container with an inset illustrating the process (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or force (no text or symbols)

Hand holding two circular buttons with 'Power' and 'Spiral' symbols, connected to a device (no text or labels visible)

Diagram of a funnel-shaped container with two circular indicators (one checked, one not checked) and no visible text or symbols.

Diagram of a blender with a black arrow pointing to its interior component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a food item being lifted from a pipette into a bowl (no text or symbols)

Anatomical illustration of a human head and neck with internal organs, showing a highlighted region with arrows (no text or labels)

Diagram showing a cross-section of a biological structure with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

Diagram showing fluid flow between two vessels with a central pipe and a valve (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands exchanging a heart-shaped object, with arrows indicating motion (no text or symbols)

Illustration of a shoe being lifted by a fork (no text or symbols)

Illustration of a hand blowing bubbles with a magnified circular inset showing a mountain (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a mechanical device emitting steam or fluid from a nozzle (no text or symbols)

Illustration of a funnel-shaped object emitting particles (no text or symbols)

Förvaring

Three-step illustration showing a hairpin being inserted into a jawbone, then to press down the jawbone (no text or symbols present)

Illustration of a stylized human head with ornate patterns and a black arrow indicating motion (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a hand holding a circular object with arrows indicating motion or assembly (no text or symbols present)

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

Pure diagram of a mechanical or architectural component with a circular top and triangular base, no text or symbols present.

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or numbers present)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Illustration of a hand holding a tool over a small object, with another hand partially visible below (no text or symbols)

Illustration of two skis in motion, one curved and one linear, with arrows indicating movement direction (no text or symbols)

Two mechanical components with a diagonal line and an arrow indicating motion or assembly (no text or symbols)

Diagram showing two robotic arms with a tool, one holding a device and the other handling a tool, separated by a diagonal line (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Dikkat

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Elektromanyetik alanlar (EMF)

Illustration of a laboratory test tube with a magnified inset showing internal structures (no text or symbols)

Illustration of a laboratory test tube with a magnified inset showing a test tube tip (no text or symbols present)

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or labels)

Diagram of a test tube with a circular indicator and arrow pointing to the tip (no text or symbols present)

Düşük pil

Diagram of a hairdryer with a magnified inset showing internal structure (no text or labels)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Diagram of a dropper with a magnified inset showing internal structure (no text or labels)

Illustration of a robotic arm with a lock icon and a speech bubble (no text or symbols)

Illustration of a robotic device with a lock icon and speech bubble (no text or symbols)

Diagram of a hairbrush connecting a power outlet with a cable, showing two arrows indicating direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, and a magnified inset showing a close-up of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots on a diagonal line, showing foot movement and impact (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying a facial massage device to their ear (no text or symbols present)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a mushroom-shaped object with an arrow pointing upward, above a stylized leaf or crown (no text or symbols)

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a robotic arm interacting with a surface, showing motion and impact (no text or symbols)

Illustration of a medical procedure showing a device emitting laser waves into tissue, with an inset showing a graduation cap and a magnified view of the process (no text or symbols)

Line drawing of a hairbrush cutting into a circular opening with a downward arrow indicating compression (no text or symbols)

Illustration of a man with a beard and pipe, no text or symbols present

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a dental implant with a tool and a magnified inset showing a graduation cap (no text or symbols)

Illustration of a person applying a nasal swab or throat filter to their mouth (no text or symbols present)

Illustration of a medical or laboratory procedure showing a tool striking a surface with an inset image of a graduation cap (no text or symbols present)

Illustration of a person using a hairdryer to clean their face (no text or symbols visible)

Temizlik ve bakım

Simple line drawing of a paintbrush with a cross mark and a warning symbol (no text or labels)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Line drawing of a hand holding two circular buttons with power and spiral symbols (no text or labels)

Diagram of a mechanical component with two circular indicators (one checked, one checked) and a checkmark symbol, no readable text or labels present.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines, possibly a device or tool, emitting a bundle of wires or fibers (no text or symbols present)

Illustration of a decorative ornamental object with curved lines and arrows, no visible text or symbols

Illustration of a noodle being lifted from a pipette into a bowl (no text or symbols)

Anatomical illustration of a human head with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a mushroom-shaped container with internal swirling patterns and an upward arrow, no text or symbols present.

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing two mechanical components with fluid flow, no text or symbols present

Diagram of a mechanical or electrical component with a central shaft and surrounding gear (no text or symbols)

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a light burst, no text or symbols present.

Illustration of a shoe being lifted by a fork (no text or symbols)

Illustration of a hand blowing bubbles with a magnified circular inset showing a landslide (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a shoe and a shoe, separated by a diagonal line (no text or symbols)

Illustration of two fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a pipe being lifted by a hose (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Diagram of a hairbrush with a curved blade and three circular blades, showing mechanical components (no text or symbols)

Illustration of a medical device with a downward arrow indicating compression or disassembly (no text or symbols)

Anatomical illustration of a human head with decorative patterns and an arrow indicating a specific region (no text or labels present)

Illustration of a mushroom-shaped container with internal compartments and an upward arrow, no text or symbols present

Illustration of a hand holding a circular object with arrows indicating motion or assembly (no text or symbols)

Abstract diagram with three connected nodes and arrows forming a triangular structure (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows indicating motion or flow, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Illustration of a hand holding a small object with a tool, alongside a close-up of a hand holding a small object (no text or symbols present)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Diagram showing two car body cross-sections with arrows indicating movement or force, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.
