Product Type	Wireless Indoor/Outdoor Thermometer with Humidity
Model Number	00621A2
Brand	AcuRite
Display Type	LCD with large digits
Temperature Range (Indoor)	32°F to 122°F (0°C to 50°C)
Temperature Range (Outdoor)	-40°F to 158°F (-40°C to 70°C)
Humidity Range	1% to 99% RH
Wireless Range	Up to 330 ft (100 m) open air
Transmission Frequency	433 MHz
Number of Sensors Supported	1 outdoor sensor included
Power Source (Display)	2 x AA batteries (not included)
Power Source (Sensor)	2 x AAA batteries (not included)
Battery Life	Approximately 12 months for display, 18 months for sensor
Dimensions (Display)	4.9 x 1.1 x 4.7 inches (124 x 28 x 119 mm)
Dimensions (Sensor)	2.2 x 0.8 x 3.5 inches (56 x 20 x 89 mm)
Weight (Display with batteries)	5.3 oz (150 g)
Weight (Sensor with batteries)	2.8 oz (79 g)
Features	Indoor/outdoor temperature and humidity, min/max memory, trend arrows, comfort indicator, clock with time stamp
Mounting Options	Tabletop stand or wall mount for display; sensor can be hung or placed on a flat surface
Care and Cleaning	Clean with a soft damp cloth; do not use abrasive or chemical cleaners
Safety Instructions	Keep away from direct sunlight and heat sources; do not immerse in water; use only recommended batteries
Spare Parts and Repair	Contact AcuRite customer service for replacement sensors or repair information
General Information	Designed for residential use; not for medical or critical applications

Frequently Asked Questions - 00621A2 AcuRite

How often does the display update?

The display updates every 30 seconds for temperature and humidity readings from the outdoor sensor.

What is the maximum distance between the sensor and display?

The maximum wireless range is 330 feet (100 meters) in open air. Walls, metal, and interference can reduce this range.

What type of batteries does the sensor use?

The outdoor sensor requires 2 AAA alkaline batteries. The display uses 2 AA alkaline batteries.

How do I reset the min/max records?

Press and hold the MIN/MAX button for 3 seconds to clear all minimum and maximum records.

The display shows 'Out of Range' for the outdoor sensor. What should I do?

Check that the sensor is within range and that the batteries are fresh. Try moving the sensor closer to the display or away from metal objects. Press the RESET button on the sensor and wait 10 seconds for a signal.

Can I add additional sensors to this thermometer?

No, the 00621A2 supports only one outdoor sensor included in the package.

How do I change from Fahrenheit to Celsius?

Press the °C/°F button on the back of the display to toggle between units.

Why is my humidity reading inaccurate?

Ensure the sensor is placed outdoors but protected from direct rain or sun. Humidity readings can be affected by nearby heat sources or moisture. Allow the sensor to acclimate for at least 1 hour.

How do I mount the sensor outdoors?

The sensor has a built-in hang hole or can be placed on a flat surface. For best accuracy, mount it under an eave or in a shaded area about 5 feet off the ground, avoiding direct sunlight.

What does the comfort indicator show?

The comfort indicator on the display shows a happy face for comfortable humidity (25%-60%), a sad face for too dry (<25%), and a worried face for too humid (>60%).

USER MANUAL 00621A2 AcuRite

White remote control device with ACURTE logo and ventilation slots (no readable text or symbols beyond branding)

CONTENTS

Unpacking Instructions ...... 2

Package Contents 2

Product Registration 2

Features & Benefits: Sensor.....2

Features & Benefits: Display....3

Setup 4

Sensor Setup 4

Display Setup 4

Intelli-Time® Clock 5

Set the Time, Date & Units ..... 5

Placement Guidelines ...... 6

Using the Forecaster...... 7

Troubleshooting 8

Care & Maintenance......9

Replace Intelli-Time® battery ... 9

Specifications....10

FCC Information 10

Customer Support...... 11

Warranty....11

Questions? Contact Customer Support at [phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

ACU-RITE®

Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference.

Unpacking Instructions

Remove the protective film that is applied to the LCD screen prior to using this product. Locate the tab and peel off to remove.

Package Contents

1. Display unit
2. Outdoor sensor
3. Instruction Manual

Features & Benefits

OUTDOOR SENSOR

1. Integrated Hanger
   For easy placement.
2. Wireless Signal Indicator
   Flashes when data is being sent to the display unit.
3. Battery Compartment
4. Battery Compartment Cover

Features & Benefits

DISPLAY UNIT

1. 12 to 24 Hour Weather Forecast
   Self-Calibrating Forecasting pulls data from the outdoor sensor to generate your personal forecast.

2. Learning Mode Icon

Disappears after weather forecast self-calibration is complete.

1. Sensor Low Battery Indicator

2. Current Outdoor Temperature

3. Outdoor Sensor Signal Strength

4. Moon Phase

5. Pressure History Graph

Tracks and displays the barometric pressure history.

1. Current Barometric Pressure

1. Date

2. Intelli-Time Clock

Automatically updates for Daylight Saving Time.

1. Current Indoor Temperature
2. Display Low Battery Indicator

BACK OF DISPLAY UNIT

1. "▲" Button

For setup preferences and viewing records.

1. "▼" Button

For setup preferences and viewing records.

1. SET Button

For setup preferences.

1. Fold-out Tabletop Stand

2. Battery Compartment

3. Intelli-Time Battery Compartment

4. Integrated Hang Hole

For easy placement.

1. Battery Compartment Cover

Simple black rectangular object with a small protrusion and a numbered line labeled '8' pointing to its base (no text or symbols on the object itself)

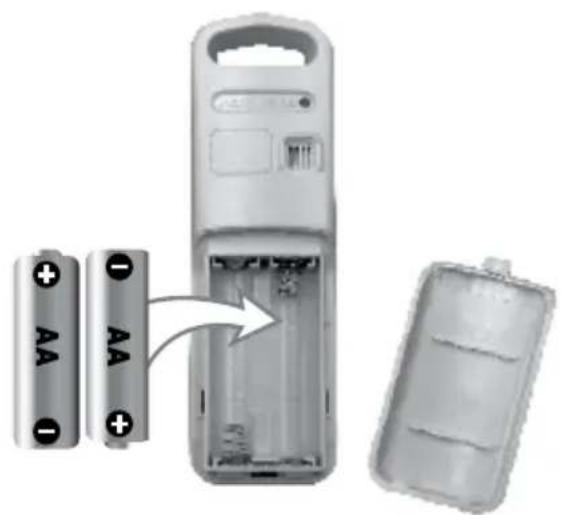

Install or Replace Batteries

AcuRite recommends high quality alkaline batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended.

The outdoor sensor requires lithium batteries in low temperature conditions. Cold temperatures can cause alkaline batteries to function improperly. Use lithium batteries in the outdoor sensor for temperatures below -4°F / -20°C.

Diagram showing battery internal structure with two batteries and one open case, no text or symbols present

Outdoor Sensor

1. Slide off the battery compartment cover.
2. Insert 2 x AA batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
3. Replace the battery cover.

LITHIUM BATTERIES

-40°F (-40°C) (70°C) 158°F

ALKALINE BATTERIES

-4°F (-20°C) (70°C) 158°F

Display Unit

1. Slide off the battery compartment cover.
2. Insert 2 x AA batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
3. Replace the battery cover.

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Intelli-Time® Clock

Intelli-Time products are pre-programmed with the correct time and date. Intelli-Time technology instructs the time and date to set themselves. All you need to do is select your Time Zone and Daylight Saving Time preferences. The clock will then automatically set itself and change for Daylight Saving Time.

Set the Time, Date & Units

Press the "SET" button, located on the back of the display unit, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display.

To adjust the currently selected (flashing) item, press and release the “▲” or “▼” buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the "SET" button again to adjust the next preference. The preference set order is as follows:

TIME ZONE ( PST MST CST EST AST HAST AKST)

DST (Daylight Saving Time ON or OFF)*

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

TEMPERATURE SCALE (°F or °C)

BAROMETRIC PRESSURE SCALE (inHg or hPa)

*If you live in an area that observes DST, DST should be set to ON, even if it is not currently Daylight Saving Time.

You will automatically exit SET MODE if no buttons are pressed for 30 seconds. Enter setup mode at any time by pressing the "SET" button.

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display unit and outdoor sensor are critical to the accuracy and performance of this product.

Display Unit Placement

Place the display unit in a dry area free of dirt and dust. Display unit stands upright for tabletop use or is wall-mountable.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions. Sensor is water resistant and is designed for general outdoor use, however, to extend its life place the sensor in an area protected from direct weather elements.

Hang the sensor using the integrated hang holes or hanger, or by using string (not included) to hang it from a suitable location, like a well covered tree branch. The best location is 4 to 8 feet above the ground with permanent shade and plenty of fresh air to circulate around the sensor.

Important Placement Guidelines

• To ensure accurate temperature measurement, place units out of direct sunlight and away from any heat sources or vents.
• Display unit and outdoor sensor must be within 165 ft (50 m) of each other.
• To maximize wireless range, place units away from large metallic items, thick walls, metal surfaces, or other objects that may limit wireless communication.
• To prevent wireless interference, place both units at least 3 ft (.9 m) away from electronic devices (TV, computer, microwave, radio, etc.).

Setup is Complete

The sensor will now synchronize with the display unit. It may take a few minutes for synchronization to complete. Please refer to the troubleshooting section of this manual if anything appears to be functioning improperly.

Using the Weather Forecaster Learning Mode

Self-Calibrating Forecasting uses a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction.

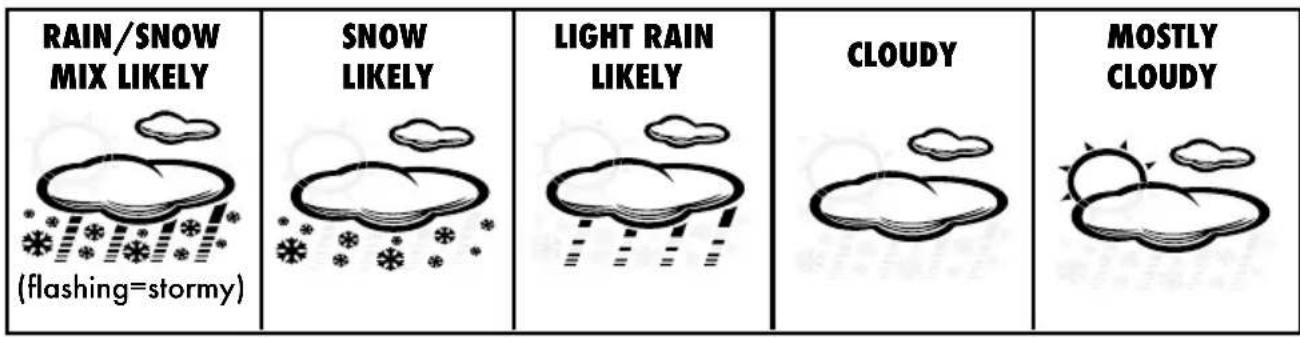

Weather Forecast

AcuRite's patented Self-Calibrating Forecasting provides your personal forecast of weather conditions for the next 12 to 24 hours by collecting data from the sensor in your backyard. It generates a forecast with pinpoint accuracy - personalized for your exact location.

View the complete list of icons at www.AcuRite.com/acurite-icons

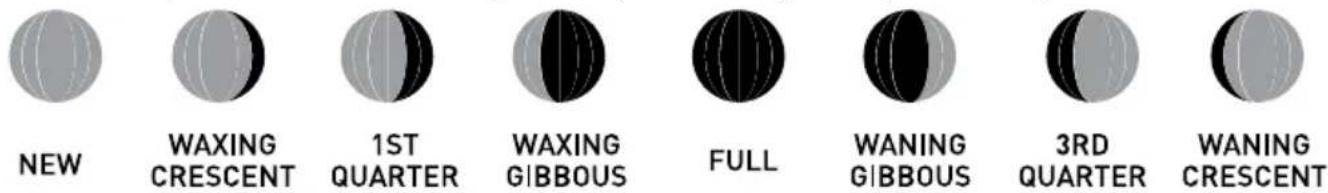

Moon Phase

Track the phases of the moon, conveyed through simple lunar phase icons.

Barometric Pressure

Subtle variations in barometric pressure greatly impact the weather. This weather forecaster displays the current pressure in inHg or hPa. The history chart lets you monitor the change in pressure over time.

High & Low Records

Today's high and low records are displayed for indoor and outdoor temperature. Today's records automatically clear at 12:00am midnight every day.

To view today's LOW records, press the "▼" button on the back of the unit. To manually clear today's LOW recorded values, press and hold the "▼" button for 2 seconds. Dashes display to confirm you have cleared the LOW records.

To view today's HIGH records, press the "▲" button on the back of the unit. To manually clear today's HIGH recorded values, press and hold the "▲" button for 2 seconds. Dashes display to confirm you have cleared the HIGH records.

Troubleshooting

No outdoor sensor receptionT no bars	If the wireless signal indicator shows no bars:Relocate the display unit and/or the outdoor sensor. The units must be within 165 ft (50 m) of each other.Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc).Use standard alkaline batteries (or lithium batteries in sensor when temperature is below -4°F/-20°C). Do not use heavy duty or rechargeable batteries. NOTE: It may take up to 20 minutes for display unit and sensor to synchronize after batteries are replaced.
Display screen not working	Check that the batteries are installed correctly. Batteries may need to be replaced.
Outdoor temperature is flashing or showing dashes	Flashing of the outdoor temperature is generally an indication of wireless interference.Bring both the sensor and display unit indoors and remove at least one battery from each.Reinstall the battery in the outdoor sensor.Reinstall the battery in the display unit.Let the units sit within a couple feet of each other for about 20 minutes to gain a strong connection.
Inaccurate forecast	Weather Forecast icon predicts conditions for the next 12 to 24 hours, not current conditions.Has Learning Mode icon disappeared from the display unit? Learning Mode must complete before forecast and pressure will be accurate.Allow unit to run continuously for 33 days. Battery removal or resetting the display unit will restart Learning Mode. After 14 days, forecast should be fairly accurate, however Learning Mode calibrates for a total of 33 days.
Inaccurate temperature	Make sure both the display unit and sensor are placed out of direct sunlight and away from any heat sources or vents (see page 6).

If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call [phone] for assistance.

Care & Maintenance

Display Unit Care

Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air.

Outdoor Sensor Care

Clean with a soft damp cloth. Do not use caustic cleaners or abrasives.

Replace Intelli-Time Battery

Intelli-Time technology is powered by a pre-installed coin-cell battery that stores the time and date settings. The battery has a shelf life of several years. To replace the Intelli-Time battery:

1. Locate the coin cell battery compartment door on the back of the display unit, inside the battery compartment. Unscrew and remove the compartment cover.

1. Insert 1 x CR2032 coin cell battery into the battery compartment, as shown. Install battery with "+" positive terminal facing OUT.
2. Screw in the battery cover.

Specifications

TEMPERATURE RANGE	Outdoor: -40°F to 158°F; -40°C to 70°C
	Indoor: 32°F to 122°F; 0°C to 50°C
WIRELESS RANGE	165 ft / 50 m depending on home construction materials
OPERATING FREQUENCY	433 MHz
POWER	Display: 2 x AA alkaline batteries
	Sensor: 2 x AA alkaline or lithium batteries
DATA REPORTING	30 second updates

FCC Information

This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:

1- This device may NOT cause harmful interference, and

2- This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation of the device.

Customer Support

AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways:

[phone]

[e-mail]

24/7 support at www.AcuRite.com

▶ Installation Videos

▶ Register your Product

▶ Instruction Manuals

▶ Support User Forum

▶ Replacement Parts

▶ Submit Feedback & Ideas

IMPORTANT

PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

Register online to receive 1 year warranty protection

www.AcuRite.com

SUPPORT

Support Forum

Archived Products

▶Register a Product

Limited One Year Warranty

At AcuRite, we proudly uphold our commitment to quality technology. Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase.

We recommend that you visit us at www.AcuRite.com for the fastest way to register your product. However, product registration does not eliminate the need to retain your original proof of purchase in order to obtain warranty benefits.

Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase. Remedy for breach of this warranty is limited to repair or replacement of the defective item(s). Any product which, under normal use and service, is proven to breach the warranty contained herein within ONE YEAR from date of sale will, upon examination by Chaney, and at its sole option, be repaired or replaced by Chaney. Transportation costs and charges for returned goods shall be paid for by the purchaser. Chaney hereby disclaims all responsibility for such transportation costs and charges. This

warranty will not be breached, and Chaney will give no credit for products it manufactures which have received normal wear and tear, been damaged (including by acts of nature), tampered, abused, improperly installed, damaged in shipping, or repaired or altered by others than authorized representatives of Chaney. The above-described warranty is expressly in lieu of all other warranties, express or implied, and all other warranties are hereby expressly disclaimed, including without limitation the implied warranty of merchantability and the implied warranty of fitness for a particular purpose. Chaney expressly disclaims all liability for special, consequential or incidental damages, whether arising in tort or by contract from any breach of this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Chaney further disclaims all liability from personal injury relating to its products to the extent permitted by law. By acceptance of any of Chaney's products, the purchaser assumes all liability for the consequences arising from their use or misuse. No person, firm or corporation is authorized to assume for Chaney any other liability in connection with the sale of its products. Furthermore, no person, firm or corporation is authorized to modify or waive the terms of this paragraph, and the preceding paragraph, unless done in writing and signed by a duly authorized agent of Chaney. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

For in-warranty claims: Chaney Instrument Co. 965 Wells St., Lake Geneva, WI 53147
