Product Type	CD Player/Recorder
Brand	Hyundai
Model	TRC 512 AU3R
Disc Compatibility	CD, CD-R, CD-RW
Playback Functions	Program, Repeat, Random, Intro Scan
Recording Functions	CD to CD, CD to USB (if equipped)
Power Supply	AC 230V, 50Hz
Power Consumption	15 W
Dimensions (W x H x D)	430 x 95 x 280 mm
Weight	3.5 kg
Output Power (RMS)	2 x 10 W (speakers not included)
Audio Outputs	RCA Line Out, Headphone Jack 3.5mm
Audio Inputs	RCA Line In, Microphone (optional)
USB Port	USB-A for MP3 playback and recording
Remote Control	Included, IR
Display	LCD with track/time info
Maintenance	Clean lens with CD lens cleaner; wipe exterior with dry cloth
Safety	Class II appliance; do not expose to moisture
Spare Parts Availability	Contact Hyundai service center for remote control, power cable
Repairability	User-replaceable fuse; other repairs by qualified technician
General Information	User manual on notice-facile.com; 52 pages, EN

Frequently Asked Questions - TRC 512 AU3R HYUNDAI

How do I record a CD using the TRC 512 AU3R?

Insert the source CD and a blank CD-R/RW. Press REC to start recording. Ensure the blank disc is compatible.

Can I play MP3 files from a USB drive?

Yes, insert a USB drive with MP3 files into the USB port. Use the source button to select USB mode.

Why doesn't the CD player read my disc?

Check if the disc is scratched or dirty. Clean it with a soft cloth. Also ensure the disc format is CD, CD-R, or CD-RW.

How do I set the timer to start playback?

Press TIMER on the remote, set the on/off times. The unit must be in standby mode.

The remote control doesn't work. What should I do?

Replace the batteries with fresh CR2025. Ensure no obstructions between remote and sensor. Point remote directly at unit.

How do I clean the laser lens?

Use a CD lens cleaner disc. Insert it and play for a few seconds. Do not use liquids.

Can I connect this unit to external speakers?

Yes, use the RCA line out jacks to connect to an amplifier or powered speakers. Headphone jack also available.

What is the power consumption in standby?

Less than 1 W when in standby mode. Unplug for extended non-use.

How do I prevent skipping during playback?

Place the unit on a stable, level surface away from vibrations. Ensure the disc is not scratched.

Where can I find the spare parts for this model?

Contact Hyundai customer service or authorized service centers. Common parts like remote and power cable are available.

USER MANUAL TRC 512 AU3R HYUNDAI

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ

PŘENOSNÝ PŘEHRÁVAČ USB, MP3 A CD S RÁDIEM PRENOSNÝ PREHRÁVAČ USB, MP3 A CD S RÁDIOM PRZENOŚNY ODTWARZACZ USB/ MP3/ CD/ RADIO USB/ MP3/ CD/ RADIO PORTABLE PLAYER HORDOZHATÓ MP3 CD LEJÁTSZÓRÁDIÓVAL USB BEMENETTEL

UPOZORNĚNÍ

PŘÍJEM FM / FM STEREO

POUŽÍVÁNÍ CD / MP3

VŠEOBECNÝ PROVOZ

PRÍJEM FM / FM STEREO

POUŽÍVANIE CD / MP3

VŠEOBECNÁ PREVÁDZKA

PLAY / PAUSE ▶ II Stisnutím spustíte prehrávanie disku CD / MP3.

FUNKCJE ODTWARZACZA CD / MP3

DZIAŁANIA PODSTAWOWE

1) WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.
2) WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall not be placed on apparatus.
3) WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
4) WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
5) Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.
6) Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
7) No naked flame sources, such as lighted candles, should be placed on the apparatus.
8) Attention should be drawn to environmental aspects of battery disposal.
9) Use of the apparatus in moderate climates.
10) The rating and marking information are located at the bottom of the unit.
11) Excessive sound pressure from earphone and headphones can cause hearing loss.
12) The mains plug of unit should be obstructed or should be easily accessed during intended use.
13) To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.
14) WARNING: The excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

LIGHTING FLASH WITH ARROWHEAD SYMBOL - within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

EXCLAMATION POINT - within an equilateral triangle, is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reason.

The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:

CLASS 1 LASER PRODUCT LABEL - This label is attached to the place as illustrated to inform that the apparatus contains a laser component.

WARNING LABEL INFORMING OF RADIATION

- This label is placed inside the unit. As shown in the illustration. To warn against further measures on the unit. The equipment contains a laser radiating laser rays according to the limit of laser product of class 1.

SAFETY INSTRUCTIONS

1) READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2) RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference.
3) HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
4) FOLLOW INSTRUCTIONS - All operating instructions should be followed.
5) WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl, kitchen sink, laundrytub, swimming pool or in a wet basement.
6) VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7) HEAT - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances (including amplifiers) that produce heat.
8) POWER SOURCE - The appliance should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
9) POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.
10) POWER LINES - An outdoor antenna should be located away from power lines.
11) OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
12) ESD WARNING - The display does not function properly or no reaction to operation of any the control may due to the electrostatic discharge. Switch off and unplug the set. Reconnect after a few seconds.
13) DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service personnel when:
a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
c. The appliance has been exposed to rain.
d. The appliance has been dropped, or the enclosure damaged.
e. The appliance does not appear to operate normally.
14) SERVICING - The user should not attempt to service the appliance beyond that described in the user operating instructions. All other servicing should be referred to qualified service personnel.

Notes:

a) Dirty or scratched CD may cause a skipping problem. Clean or replace the CD.
b) If an error display or malfunction occurs, disconnect the AC cord and remove all the batteries. Then turn the power back on.

BEFORE OPERATION

Notes: CONCERNING COMPACT DISCS.

Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items:

a) Usable compact discs. Use only compact disc with the mark shown below.

b) CD compact disc only with digital audio signals.

a) Usable compact discs. Use only compact disc with the mark shown below. b) CD compact disc only with digital audio signals.

POWER SOURCES

AC POWER

You can power your portable system by plugging the detachable AC power cord into the AC inlet at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance.

BATTERY POWER

Insert 6 x “C” size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Notes:

• Use batteries of the same type. Never use different types of batteries together.
• To use the appliance with batteries, disconnect the AC power cord from it.

LOCATION OF CONTROL

RADIO OPERATION

GENERAL OPERATION

1) Set the "FUNCTION" selector to "RADIO" mode.
2) Select desired band by using the "BAND" selector.
3) Adjust radio frequency to your desired station by using the "TUNING" control.
4) Adjust the "VOLUME" control to the desired level.

FM / FM-STEREO RECEPTION

-Set the "BAND" selector to FM mode for MONO reception.
- Set the "BAND" selector to FM ST. mode for FM STEREO reception.
The Stereo indicator light up to show FM ST. mode.

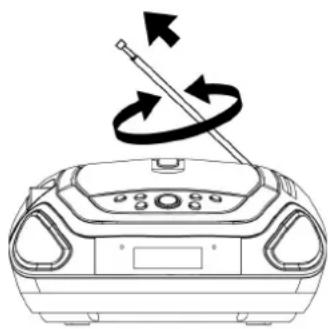

FOR BETTER RECEPTION

- Reorient the antenna for better reception.

- Reorient the appliance to get better AM reception.

CD / MP3 OPERATION

GENERAL OPERATION

PLAY / PAUSE ▶ II Press to start playing CD / MP3 disc.

Press again to stop playing CD / MP3 operation temporarily.

Press again to resume playback.

SKIP + ▶ & Press to go to the next track or back to the previous track.
SKIP - ◀️ Press and hold while playing until you find the point of the sound.

STOP ■ Press to stop all CD / MP3 operation.

PLAYBACK

1) Set the "FUNCTION" selector to "CD / MP3 / USB" mode.
2) Open the CD door and place a CD / MP3 disc with the label up in the CD compartment.
3) Close the CD door.
4) Focus search is performed if disc is inside.
For CD disc - Total number of tracks is read and appears on the display. For MP3 disc - "MP3" appears on the display.
5) Press the "PLAY / PAUSE" button to start playing CD / MP3 disc.
6) Adjust the "VOLUME" control to the desired level.
7) Press the "PLAY / PAUSE" button again when you want to stop playback temporarily.
8) Press the "STOP" button when finished.

CD / MP3 OPERATION

PROGRAM

Up to 20 tracks of CD disk, 99 tracks of MP3 disc can be programmed for disc play in any order. Be sure to press the "STOP" button before use.

1) Press the "MODE" button, the display will show "P01" and "MEMORY".
2) Press the "ALBUM +" button to select folder. (For MP3 only, folder select function can only operate if disc store with at least 2 directories / files.)
3) Select desired track by using the "SKIP +" or "SKIP -" button.
4) Press the "MODE" button again to confirm desired track into the program memory.
5) Repeat step 2 to 4 to enter additional tracks into the program memory.
6) When all the desired tracks have programmed.
Press the "PLAY / PAUSE" button to play the disc in the order you have programmed.

7) Press the "STOP" button twice to terminate programmed playback.

MODE

Press the "MODE" button during playing CD / MP3 disc, each press switches the repeat function as follows:

1) REPEAT 1
2) REPEAT ALL
3) REPEAT FOLDER (For MP3 only)
4) RANDOM
5) INTRO
6) NORMAL PLAYBACK

GENERAL OPERATION

PLAY / PAUSE ▶ II Press to start playing tracks from the USB.

Press again to stop playing USB operation temporarily.

Press again to resume playback.

SKIP + ▶ & Press to go to the next track or back to the previous track.

SKIP - Press and hold while playing until you find the point of the sound.

STOP ■ Press to stop all USB operation.

PLAYBACK

1) Plug or slot in USB device to the port. (Make sure no disc on disc tray)
2) Set the "FUNCTION" selector to "CD / MP3" mode.
3) Press and hold the "PLAY / PAUSE" button for a few seconds to entry USB mode.
4) Playback will start automatically from the first track.
5) Press the "STOP" button when finished.
6) Press the "PLAY / PAUSE" button again, playback will start from the first track.

PROGRAM, MODE

The operation of PROGRAM, MODE are as the same as that of CD / MP3.

Please refer to CD / MP3 OPERATION.

OTHER FEATURES

1) Press the "INFO" button on unit.
2) ID3 information will show on display.
3) Press the "INFO" button agian to terminate.

We reserve the right to change technical specifications.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

Weight (NETTO): 1,42 kg
