Product type	Compact Hi-Fi system
Brand	Pioneer
Model	X-HM21DAB-K
Dimensions (W x H x D)	290 x 135 x 280 mm
Weight	4.5 kg
Power supply	230 V ~ 50 Hz
Power consumption	55 W (standby: 0.5 W)
Output power	2 x 50 W RMS
Radio tuner	DAB+, FM (RDS)
Player	CD, CD-R/RW, MP3
Connectivity	Bluetooth, USB (front), AUX (3.5 mm)
Speakers	2-way, bass-reflex, 2 x 6.5 cm
Main functions	Clock, alarm, timer, equalizer, random/repeat playback
Remote control	Included (infrared)
Care and cleaning	Unplug before cleaning; use a soft, dry cloth; do not use solvents
Safety	Do not expose to moisture, do not block ventilation openings, keep out of reach of children
Spare parts and repairability	Parts available via authorized after-sales service; repairability index 6.5/10
Package contents	Main unit, 2 speakers, remote control, DAB/FM antenna cable, user manual
Warranty	2 years (parts and labor)

Frequently Asked Questions - X-HM21DAB-K PIONEER

How to tune DAB+ stations?

Press the DAB button to switch to DAB mode. The automatic scan is performed at first power-on. For a new scan, hold down the TUNING button. Stations are stored automatically.

Sound is weak or there is interference on FM, what to do?

Check that the FM antenna is properly deployed and oriented. Keep the system away from interference sources (screens, microwaves). Try switching to MONO mode to reduce noise.

How to pair my smartphone via Bluetooth?

Press SOURCE several times to select BLUETOOTH. Enable Bluetooth on your smartphone, select Pioneer X-HM21DAB from the list. The pairing code, if requested, is 0000.

Can I play MP3 files from a USB drive?

Yes, plug a USB drive (FAT32 format) into the front port. Use the SOURCE button to select USB. Navigate with the +/– or PRESET buttons to choose folders.

The CD does not play or skips, what to do?

Clean the disc with a soft cloth from the center outwards. Check that it is not scratched. If the problem persists, turn off the unit, unplug it for 30 seconds, then try again.

How to set the clock and alarm?

Press CLOCK to set the time (+/– buttons). For the alarm, hold down ALARM on the remote, choose wake by Buzzer or Radio, then set the alarm time.

Can I connect headphones?

Yes, connect your headphones to the PHONES jack on the front. The speaker sound is then muted automatically. Adjust the volume before using.

How to clean the device?

Always unplug the device before cleaning. Use a soft, dry cloth. Never use chemical or abrasive products. For the front panel, a slightly damp cloth can be used, but avoid moisture near the openings.

What to do if the remote control does not work?

Check the battery (CR2025) and its orientation. Replace it if necessary. Point the remote directly at the device's sensor (no obstacles). Keep away any strong light source (LED lamp) that could interfere.

Where to find spare parts?

Contact an authorized Pioneer service center. Visit notice-facile.com for contact details. Common parts (remote, antenna) are available online. Keep the receipt for warranty.

USER MANUAL X-HM21DAB-K PIONEER

Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu).

Operating Instructions

Mode d'emploi

Bedienungsanleitung

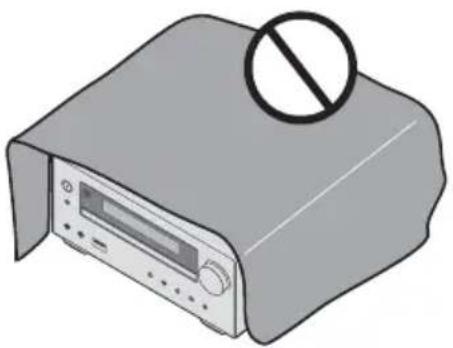

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 25 cm at top, 10 cm at rear, and 5 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*_A1_En

Illustration of a CD-ROM device with a prohibition symbol on top (no text or labels)

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c ^* _A1_En

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

D41-6-4_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

CAUTION

The ⬆STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power plug can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*_A1_En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

CLASS 1 LASER PRODUCT

D58-5-2-2a_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

S002 ^* A1 En

Do not install your speakers overhead on the ceiling or wall. The grill is designed to be detachable, and as such it may fall and cause damage or personal injury if installed overhead.

SGK004_A1_En

Information for users on collection and disposal of old equipment and used batteries

(Symbol for equipment)

(Symbol examples for batteries)

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

01 Before you start

What's in the box 5

Loading the batteries in the remote control ..... 5

Using the remote control 5

02 Part names and functions

Remote control 6

Speaker system 7

Front panel 8

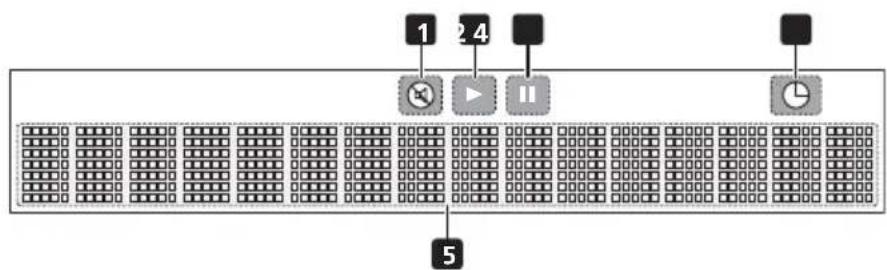

Display 9

03 Connections

Speaker connection 10

Connecting antennas 11

Using external antennas 11

Plugging in 11

04 Getting started

To turn the power on 12

Setting the clock 12

General control 12

Input function.... 12

Display brightness control 12

Volume auto setting.... 12

Volume control.... 12

Muting....12

Sound controls 13

Equalizer.... 13

P.BASS control 13

Bass/treble control 13

Setting the wake-up timer 13

Calling the wake-up timer 14

Cancelling the wake-up timer. 14

Using the wake-up timer.... 14

Using the sleep timer 14

Using Headphones 14

05 iPod/iPhone/iPad playback (X-HM21 only)

Confirming what iPod/iPhone/iPad models are

supported 15

Connecting your iPod/iPhone/iPad 15

Connecting iPod/iPhone/iPad using supplied stand 15

Playing iPod/iPhone/iPad 16

06 Disc playback

Playing discs or files 17

Advanced CD or MP3/WMA disc playback ..... 18

Direct track search 18

Repeat play. 18

Random play 18

Programmed play (CD or MP3/WMA).... 19

About downloading MP3/WMA 19

About folder playback order 19

Specify the folder to play. 20

Switch the display contents 20

07 USB playback

Playing USB storage devices 21

Repeat play. 21

Random play 21

Specify the folder to play. 22

Switch the display contents 22

Playing in the desired order (Programmed Play) .... 22

08 Using the tuner

Listening to the radio broadcasts 23

Tuning.... 23

Saving station presets.... 23

To recall a memorised station 24

To scan the preset stations. 24

To erase entire preset memory. 24

Using the Radio Data System (RDS) 24

An introduction to RDS. 24

Searching for RDS programs.... 24

Information provided by RDS 25

Using the Auto Station Program Memory (ASPM).... 25

Notes for RDS operation.... 25

09 Other connections

Connecting auxiliary components 26

10 Additional information

Troubleshooting 27

Playable discs and formats 29

Regarding copy protected CDs 29

Supported audio file formats 29

Cautions on use 29

When moving this unit 29

Place of installation. 29

Do not place objects on this unit 30

About condensation 30

Cleaning the product. 30

Cleaning the lens. 30

Handling discs 30

Storing 30

Cleaning discs 30

About specially shaped discs. 30

About iPod/iPhone/iPad 31

Restoring all the settings to the defaults ..... 31

Specifications 32

Chapter 1:

Before you start

What's in the box

Please confirm that the following accessories are in the box when you open it.

• Remote Control
• Power cord
• AM antenna cable
• FM wire antenna
  • AAA batteries (R03) x 2
• iPad stand (X-HM21 only)
• Warranty card
• Operating instructions (this document)

Loading the batteries in the remote control

1 Open the rear lid and load the batteries as illustrated below.

Diagram of a soldering iron being inserted into a sample holder (no text or symbols present)

2 Close the rear lid.

Simple line drawing of a mechanical component or tool (no text or symbols)

CAUTION

• When inserting the batteries, make sure not to damage the springs on the battery's terminals. This can cause batteries to leak or over heat.
• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.

• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks (⊕ and ⊖).

• Do not heat batteries, disassemble them, or throw them into flames or water.

• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.
• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.
  Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

- WARNING

Using the remote control

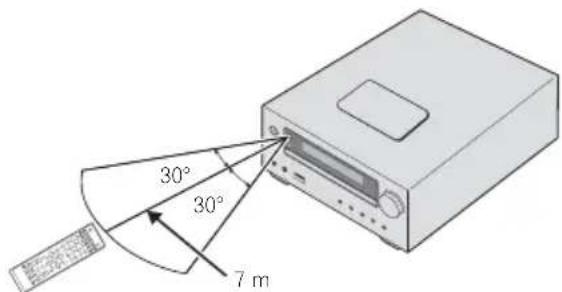

The remote has a range of about 7 m at an angle of about 30° from the remote sensor.

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
• Replace the batteries when you notice a fall off in the operating range of the remote.

Chapter 2:

Part names and functions

Remote control

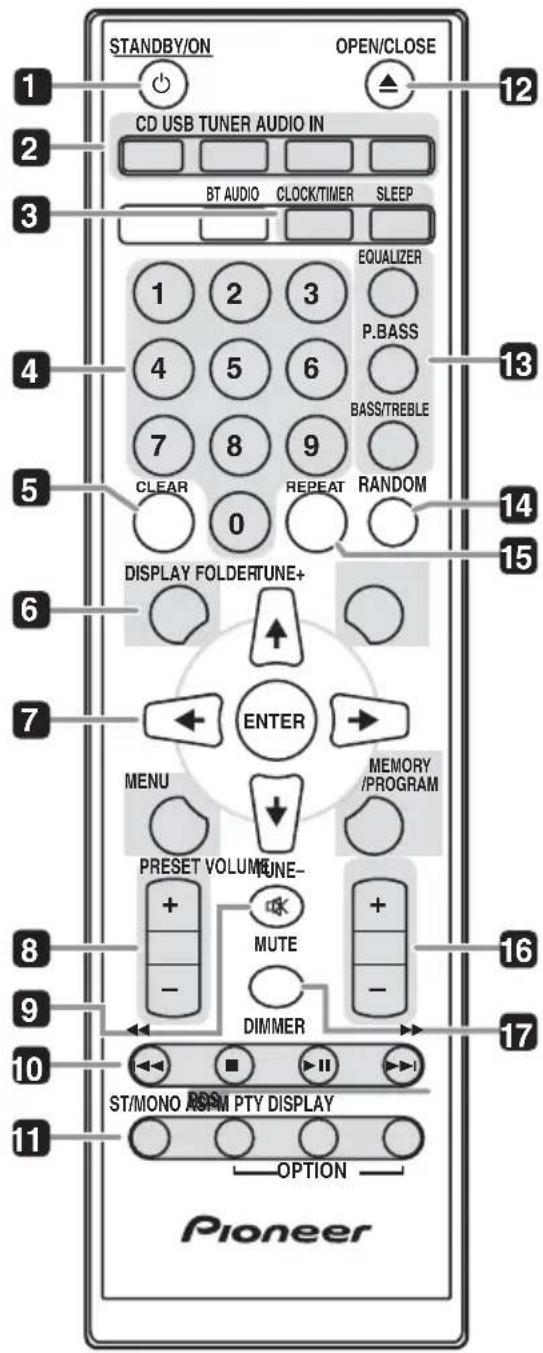

1 ⏻ STANDBY/ON

Switches the receiver between standby and on (page 12).

2 Input function buttons

Use to select the input source to this receiver (pages 16, 17, 21, 23, 26).

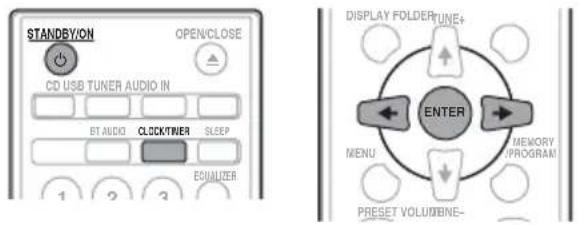

3 CD Receiver control buttons CLOCK/TIMER

Use for setting the clock, as well as for setting and checking the timers (page 12).

SLEEP

See Using the sleep timer on page 14.

4 Numeric buttons (0 to 9)

Use to enter the number (page 18).

5 CLEAR

Use to clear the programmed play (page 19).

6 CD Receiver control buttons DISPLAY

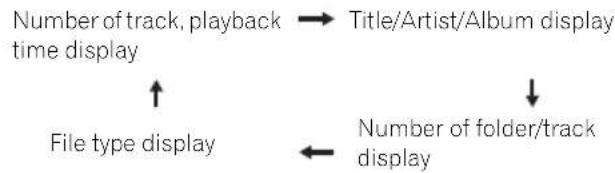

Press to change the display for songs playing back from CD or USB (page 20).

FOLDER

Use to select the folder of the MP3/WMA disc or USB mass storage device (page 19).

MENU

Use to access the menu.

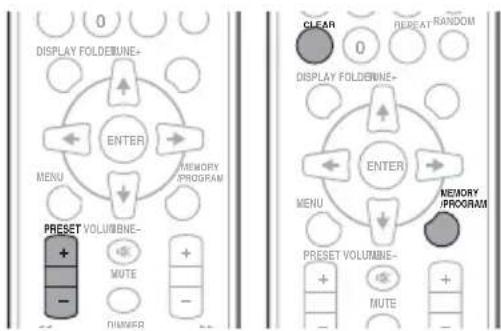

MEMORY/PROGRAM

Use to memory or program the MP3/WMA disc (page 19).

7 ↑/↓/←/→ (TUNE +/-), ENTER

Use to select/switch system settings and modes, and to confirm actions.

Use TUNE +/- can be used to find radio frequencies (page 23).

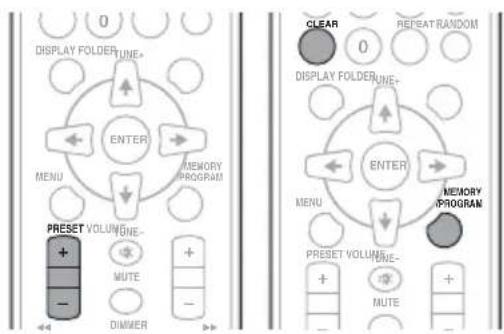

8 PRESET +/-

Use to select preset radio stations (page 24).

9 MUTE

Mutes/unmutes the sound (page 12).

10 Playback control buttons

Use to control each function after you have selected it using the input function buttons (page 17).

11 Tuner control buttons ST/MONO

Use to switch the sound mode between stereo and monaural. (page 23)

RDS ASPM

Use to search for RDS Auto station program memory (page 24).

RDS PTY

Use to search for RDS program types (page 24).

RDS DISPLAY

Press to change the RDS display for information mode (page 24).

12 OPEN/CLOSE

Use to open or close the disc tray (page 17).

13 Sound control buttons

Adjust the sound quality (page 13).

14 RANDOM

Randomize order of track playback from a CD, iPod or USB (page 18).

15 REPEAT

Press to change the repeat play setting from a CD, iPod or USB (page 18).

16 Volume control buttons

Use to set the listening volume (page 12).

17 DIMMER

Dims or brightens the display. The brightness can be controlled in four steps (page 12).

Note

- The BT AUDIO button is not available for this unit.

Speaker system

1 Tweeter

2 Woofer

3 Bass Reflex Duct

Important

• Speaker grille cannot be removed. (X-HM11)
• Make sure nothing comes into contact with the speaker diaphragms when you remove the speaker grilles. (X-HM21)

Front panel

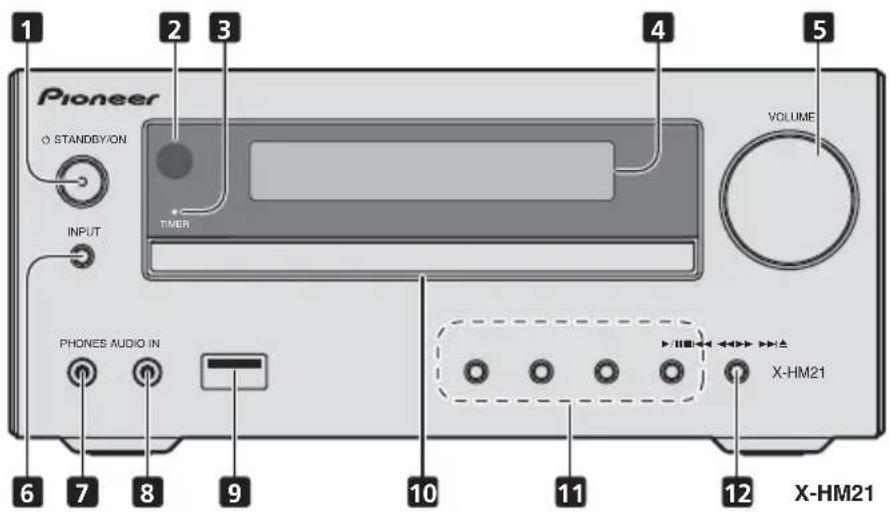

1 ⏻ STANDBY/ON button

Switches the receiver between standby and on (page 12).

2 Remote sensor

Receives the signals from the remote control.

3 TIMER indicator

Lights when the unit power is off but when the timer setting is activated.

4 Character display

See Display on page 9.

5 Volume control

Use to set the listening volume (page 12).

6 INPUT button

Selects the input source.

7 Headphone socket

Use to connect headphones. When the headphones are connected, there is no sound output from the speakers (page 14).

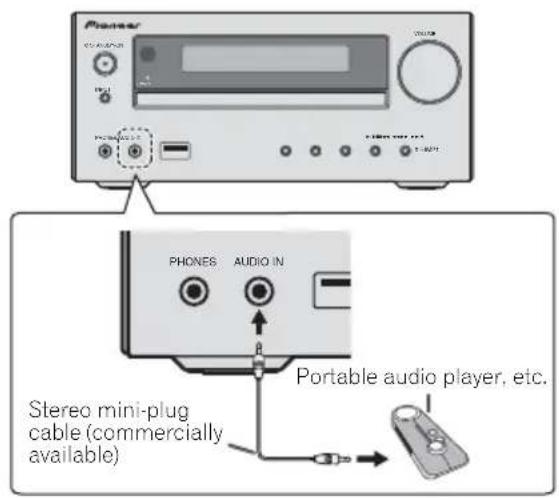

8 AUDIO IN socket

Use to connect an auxiliary component using a stereo minijack cable (page 26).

9 USB terminal (X-HM21)

Use to connect your USB mass storage device or Apple iPod/iPhone/iPad as an audio source (page 21).

USB terminal (X-HM11)

Use to connect your USB mass storage device as an audio source (page 21).

10 Disc tray

Place the disc, label side up (page 17).

11 Playback control buttons

Select the desired track or file to be played back. Stop current playback. Stop playback or resume playback from the point where it was paused.

12 Disc tray open/close button

Use to open or close the disc tray (page 17).

Display

1

Lights when the sound is muted.

Note

• The mute icon will be displayed in red.

2

Start playback.

311

Pause playback.

4

Timer function is set.

5 Character display

Displays various system information.

Chapter 3:

Connections

CAUTION

• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
• Connect the power cord after all the connections between devices have been completed.

Speaker connection

• Push open the tabs and insert exposed wire.
• Connect the black wire to (-) terminal, and the red wire to the (+) terminal.

CAUTION

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
- Do not connect any speakers other than those supplied to this system.
- Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.

• Do not attach these speakers to the wall or ceiling. They may fall off and cause injury.
  • These speakers are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker system is installed extremely close to the screen of a television set. If this happens, turn off the television set, and then turn it on after 15 to 30 minutes. If the problem persists, move the speaker system away from the television set.
• Make sure that the speaker cable cores do not become exposed and make contact with other cable cores. This may cause malfunction of the product.
• Do not allow the speaker cable core to come into contact with the receiver body.

Illustration of a cable plugged into a wall socket with a starburst effect (no text or symbols)

- If the speaker cable core comes into contact with any metal portion of the receiver's body, it may damage the speakers and cause smoke and fire. Insert speaker cables securely into the terminals and check that the cable does not come out of easily.

Note

• There is no difference between L and R speakers.

Connecting antennas

Connect the AM loop antenna and the FM wire antenna as shown below. To improve reception and sound quality, connect external antennas (see Using external antennas below).

1 Connect the AM antenna wires.

Hold the terminal part of the wire when connecting.

2 Fix the AM loop antenna to the attached stand.

To fix the stand to the antenna, bend in the direction indicated by the arrow (fig. a) then clip the loop onto the stand (fig. b).

3 Place the AM antenna on a flat surface and in a direction giving the best reception.

4 Connect the FM wire antenna into the FM antenna socket.

For best results, extend the FM antenna fully and fix to a wall or door frame. Don't drape loosely or leave coiled up.

Using external antennas

To improve FM reception

Use a PAL connector (not supplied) to connect an external FM antenna.

Plugging in

CAUTION

• Do not use any power cord other than the one supplied with this unit.
• Do not use the supplied power cord for any purpose other than that described below.

Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet. After you've finished making all connections, plug the unit into an AC outlet.

Chapter 4:

Getting started

To turn the power on

Press the Ⓧ STANDBY/ON to turn the power on.

After use:

Press the ⏻ STANDBY/ON to enter the power stand-by mode.

Note

- In standby mode, if iPod/iPhone/iPad is connected, the unit turns charge mode.

Setting the clock

1 Press ⏻ STANDBY/ON to turn the power on.

2 Press CLOCK/TIMER on the remote control.

"CLOCK" is shown on the main display.

3 Press ENTER.

4 Press ←/→ to set the day, then press ENTER.

5 Press ←/→ to set the hour, then press ENTER.

6 Press ←/→ to set the minute, then press ENTER to confirm.

7 Press ENTER.

To confirm the time display:

Press the CLOCK/TIMER. The time display will appear for about 10 seconds.

To readjust the clock:

Perform "Setting the clock" from step 1.

Note

- When power supply is restored after unit is plugged in again or after a power failure, reset the clock.

General control

Input function

When the INPUT on main unit is pressed, the current function will change to different mode. Press the INPUT repeatedly to select desired function.

X-HM21

X-HM11

Display brightness control

Press DIMMER to dims the display brightness. The brightness can be controlled in four steps.

Volume auto setting

If you turn off and on the main unit with the volume set to 31 or higher, the volume starts at 30 and sets in to the last set level.

Volume control

Turn the VOLUME on the unit or press VOLUME +/- on the remote control to increase or decrease the volume.

CAUTION

- The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

Muting

The volume is muted temporarily when pressing the MUTE on the remote control. Press again to restore the volume.

Sound controls

Equalizer

When the EQUALIZER is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER repeatedly until the desired sound mode appears.

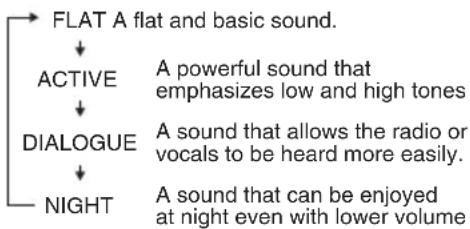


P.BASS control

When the power is first turned on, the unit will enter the P.BASS mode which emphasises the bass frequencies. To cancel the P.BASS mode, press the P.BASS on the remote control.

Bass/treble control

Press the BASS/TREBLE, then press /// to adjust the bass or treble.

Note

Simultaneous operation of EQUALIZER, P.BASS and BASS/TREBLE is not possible. Only the functions that you have selected will be active.

If you select one of three functions, features that are not selected will be set as follows.

1 If you change the settings of P.BASS (ON/OFF).

• EQUALIZER : FLAT
• BASS/TREBLE : BASS=0, TREBLE=0

2 If you change the settings of EQUALIZER.

• P.BASS : OFF
• BASS/TREBLE : BASS=0, TREBLE=0

3 If you change the settings of BASS/TREBLE.

• P.BASS : OFF
• EQUALIZER : FLAT

Setting the wake-up timer

Used to change the existing timer setting, or to set a new timer.

1 Press ⏻ STANDBY/ON to turn the power on.

2 Press and hold CLOCK/TIMER.

3 Press ←/→ to select "ONCE" or "DAILY", then press ENTER.

ONCE – Works once only at a preset time.

DAILY – Works at the preset time on a preset day.

4 Press ←/→ to select "TIMER SET", then press ENTER.

5 Press ←/→ to select the timer playback source, then press ENTER.

- CD, FM, AM, USB/iPod, USB, AUDIO IN and LINE can be selected as the playback source.

6 Press ←/→ to select the timer day, then press ENTER.

7 Press ←/→ to set the hour, then press ENTER.

8 Press ←/→ to set the minute, then press ENTER.

- Set the time to finish as in steps 7 and 8 above.

9 Adjust the volume press VOLUME +/-, then press ENTER.

10 Press ⏻ STANDBY/ON to enter the power standby mode.

• The TIMER indicator lights up.

Calling the wake-up timer

An existing timer setting can be reused.

1 Follow steps 1 to 3 in "Setting the wake-up timer".

2 Press ←/→ to select "TIMER ON", then press ENTER.

Cancelling the wake-up timer

Turn off the timer setting.

1 Follow steps 1 to 3 in "Setting the wake-up timer".

2 Press ←/→ to select "TIMER OFF", then press ENTER.

Using the wake-up timer

1 Press ⏻ STANDBY/ON to turn the power off.

2 At the wake-up time, this unit will turn on automatically and play the selected input function.

Note

• If at the wake-up time an iPod/iPhone/iPad is not connected to the unit or a disc is not inserted, the unit will be turned on but will not play back the track.
• Some discs may not be played automatically at the wake-up time.
• When setting the timer set at least one minute between the start and end time.

Using the sleep timer

The sleep timer switches off the unit after a specified time so you can fall asleep without worrying about it.

1 Press SLEEP repeatedly to select a switch off time.

Choose between 10 min, 20 min, 30 min, 60 min, 90 min, 120 min, 150 min, 180 min or OFF. The newly set value displays for 3 seconds, and then the setting is completed.

Note

- The sleep timer can be set by pressing SLEEP while the remaining time is displayed.

Using Headphones

Insert the headphone's jack plug into the connector. When the headphones are connected, there is no sound output from the speakers.

• Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.
• Before plugging in or unplugging the headphone, reduce the volume.
• Be sure your headphone has a 3.5 mm diameter plug and impedance between 16 Ω and 50 Ω. The recommended impedance is 32 Ω.
• Audio from the iPod/iPhone/iPad cannot be heard via the headphones connected to the unit. "HP MUTE" will be displayed if you connect the headphones when the iPod/iPhone/iPad function is selected.

Chapter 5:

iPod/iPhone/iPad playback (X-HM21 only)

Merely by connecting your iPod/iPhone/iPad to this unit, you can enjoy high-quality sound from your iPod/iPhone/iPad. Playback setting for iPod/iPhone/iPad music can be performed from this unit or the iPod/iPhone/iPad itself.

Confirming what iPod/iPhone/iPad models are supported

The iPod/iPhone/iPad playable on this unit are shown below.

iPod/iPhone/iPad USB Terminal (Audio only)

iPod nano 3G/4G/5G/6G/7G √
iPod touch 1G/2G/3G/4G/5G √
iPhone 5 √
iPhone 4S √
iPhone 4 √
iPhone 3GS √
iPhone 3G √
iPhone √
iPad mini	√
iPad (4th generation)	√
iPad (3rd generation)	√
iPad 2	√
iPad	√

Note

• Pioneer does not guarantee that this unit plays iPod/iPhone/iPad models other than the ones specified.
• Some functions may be restricted depending on the model or software version.
• iPod/iPhone/iPad is licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.
• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.
• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from iPod/iPhone/iPad failure.

• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/iPhone/iPad.

• This system has been developed and tested for the software version of iPod/iPhone/iPad indicated on the website of Pioneer (http://pioneer.jp/homeav/support/ios/eu/).

• Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone/iPad may result in incompatibility with this system.
• This unit cannot be used to record CD, tuner or other content on an iPod/iPhone/iPad.

Connecting your iPod/iPhone/iPad

Connecting iPod/iPhone/iPad using supplied stand

1 Connect the iPod/iPhone/iPad cable to the unit.
2 Pass the iPod/iPhone/iPad cable through the bottom of the stand and connect it to the iPod/ iPhone/iPad.

Illustration of a device with a handle and cable, no text or symbols present

3 Set the iPod/iPhone/iPad on the stand.

Illustration of a tablet device with a download arrow pointing to a file folder (no text or symbols present)

Playing iPod/iPhone/iPad

1 Connect your iPod/iPhone/iPad.

- If an iPod/iPhone/iPad is connected while the unit is turned on, playback of the iPod/iPhone/iPad will not begin.

2 Press USB as the input source.

"USB/iPod" is shown on the main display.

3 When the recognition is completed, will begin playing automatically.

• The available iPod/iPhone/iPad playback controls from the unit are ▶/Ⅱ, Ⅰ◀◀ ◀◀, ▶▶ ▶▶.
• In the following case, operate your iPod/iPhone/iPad directly:

- Searching a file by artist name or genre.

- Playing in the repeat or random mode.

CAUTION

- When your iPod/iPhone/iPad is connected to this unit and you wish to operate the iPod/iPhone/iPad directly, be sure to steady the iPod/iPhone/iPad with the other hand to prevent malfunctions due to faulty contacts.

Note

• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/iPhone/iPad.
• iPod/iPhone/iPad recharging occurs whenever an iPod/iPhone/iPad is connected to this unit. (This function is supported in standby mode as well.)
• When input is switched from USB/iPod to another function, iPod/iPhone/iPad playback is temporarily stopped.

Important

If this unit cannot play your iPod/iPhone/iPad, perform the following troubleshooting checks:

• Check whether the iPod/iPhone/iPad is supported by this unit.
• Reconnect the iPod/iPhone/iPad to the unit. If this doesn't seem to work, try resetting your iPod/iPhone/iPad.
• Check that iPod/iPhone/iPad software is supported by the unit.

If the iPod/iPhone/iPad cannot be operated, check the following items:

• Is the iPod/iPhone/iPad connected correctly? Reconnect the iPod/iPhone/iPad to the unit.
• Is the iPod/iPhone/iPad experiencing a hangup? Try resetting the iPod/iPhone/iPad, and reconnect it to the unit.

Chapter 6:

Disc playback

This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA files, but cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.

MP3:

MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality.

• This system supports MPEG-1/2 Audio Layer 3 (Sampling rates: 8 kHz to 48 kHz; Bit rates: 64 kbps to 384 kbps).
- During VBR file playback, time counter in the display may differ from its actual playback time.

WMA:

WMA (Windows Media Audio) files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.

• This system supports WMA (Sampling rates: 32 kHz/44.1 kHz/48 kHz; Bit rates: 64 kbps to 320 kbps).
• During VBR file playback, time counter in the display may differ from its actual playback time.

Playing discs or files

1 Press ⏻ STANDBY/ON to turn the power on.

2 Press CD on the remote control or INPUT repeatedly on the main unit to select CD input.

3 Press ▲ OPEN/CLOSE to open the disc tray.

4 Place the disc on the disc tray, label side up.

Illustration of a hand holding a circular object above a square base with concentric rings (no text or symbols)

5 Press ▲ OPEN/CLOSE to close the disc tray.

6 Press ▶/II to start playback.

After the last track is played, the unit will stop automatically.

CAUTION

• Do not place two discs in one disc tray.
• Do not play discs of special shapes (heart, octagon, etc). It may cause malfunctions.
• Do not push the disc tray whilst it is moving.
• If the power fails whilst the tray is open, wait until the power is restored.
• Be sure to place 8cm disc in the middle of the disc tray.

Note

• Due to the structure of the disc information, it takes longer to read an MP3/WMA disc than a normal CD (approximately 20 to 90 seconds).
• When the beginning of the first track is reached during fast reverse, the unit will enter the playback mode (only for CD).
• Rewritable multi-session discs with unfinished writing, can still be played.
• If TV or radio interference occurs during CD operation, move the unit away from the TV or radio.

Tip

- When no operation has done in CD mode and the audio file is not played for more than 30 minutes, the power will automatically turn off.

Various disc functions

Function	Main unit	Remote control	Operation
Play			Press in the stop mode.
Stop			Press in the playback mode.
Pause			Press in the playback mode. Press ▶/□ to resume playback from the paused point.
Track up/down			Press in the playback or stop mode. If you press the button in the stop mode, press ▶/□ to start the desired track.
Fast forward/reverse			Press and hold down in the playback mode. Release the button to resume playback.

Advanced CD or MP3/WMA disc playback

Direct track search

By using the numeric buttons, the desired tracks on the current disc can be played.

Use the numeric buttons on the remote control to select the desired track whilst playing the selected disc.

Note

- A track number higher than the number of tracks on the disc cannot be selected.

To stop playback:

Press ■.

Repeat play

Repeat play can play one track, all tracks or a programmed sequence continuously.

To repeat one track:

Press REPEAT repeatedly until "REPEAT ONE" appears. Press ENTER.

To repeat all tracks:

Press REPEAT repeatedly until "REPEAT ALL" appears. Press ENTER.

To repeat desired tracks:

Perform steps 1 to 5 in "Programmed play (CD or MP3/WMA)" section on next page and then press REPEAT repeatedly until "REPEAT ALL" appears. Press ENTER.

To cancel repeat play:

Press REPEAT repeatedly until "REPEAT OFF" appears. Press ENTER.

Note

• After performing repeat play, be sure to press ■. Otherwise, the disc will play continuously.
- During repeat play, random play is not possible.

Random play

The tracks on the disc can be played in random order automatically.

To random play all tracks:

Press RANDOM repeatedly until "RANDOM ON" appears. Press ENTER.

To cancel random play:

Press RANDOM repeatedly until "RANDOM OFF" appears. Press ENTER.

Note

• If you press the ▶▶▶ during random play, you can move to the track selected next by the random operation. On the other hand, the ◀◀◀ does not allow you to move to the previous track. The beginning of the track being played will be located.
• In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)
• During random play, repeat play is not possible.

Programmed play (CD or MP3/WMA)

You can choose up to 32 selections for playback in the order you like.

1 Whilst in the stop mode, press MEMORY/PROGRAM on the remote control to enter the programming save mode.

2 Press |◀◀▶▶| or the numeric buttons on the remote control to select the desired tracks.

3 Press ENTER to save folder and track number.

4 Repeat steps 2 to 3 for other folder/tracks. Up to 32 tracks can be programmed.

• If you want to check the programmed tracks, press MEMORY/PROGRAM.
• If you make a mistake, the last programmed tracks will be canceled by pressing CLEAR.

5 Press ▶/II to start playback.

To cancel the programmed play mode:

To cancel the programmed play, press ■ twice on the remote control. The display will show "PRG CLEAR" and all the programmed content will be cleared.

Adding tracks to the program:

Press the MEMORY/PROGRAM. Then follow steps 2 to 3 to add tracks.

Note

• When a disc is ejected anything programmed is cleared.
• If you press the ⏻ STANDBY/ON to enter the standby mode or change the function from CD to another, the programmed selections will be cleared.
• During the program operation, random play is not possible.

About downloading MP3/WMA

There are many music sites on the internet that you can download MP3/WMA music files. Follow the instructions from the website on how to download the music files. You can then play back these downloaded music files by burning them to a CD-R/RW disc.

- Your downloaded song/files are for personal use only. Any other usage of the song without owner's permission, is against the law.

About folder playback order

If MP3/WMA files are recorded in several folders, a folder number will be set to each folder automatically.

These folders can be selected by the FOLDER on the remote control. If there is no supported file formats inside the selected folder, the folder is skipped and the next folder will be selected.

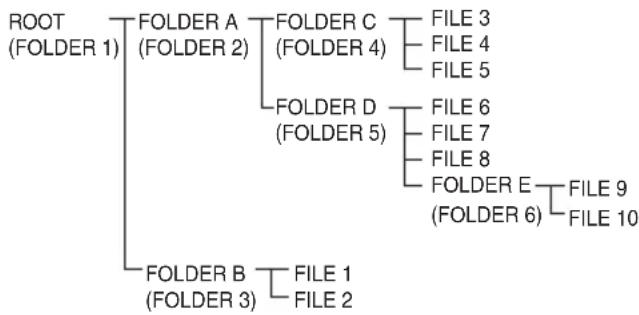

Example: How the folder numbers are assigned if MP3/WMA format files are recorded are as shown below.

1 ROOT folder is set as FOLDER 1.
2 As for folders inside ROOT folder (FOLDER A and FOLDER B), the folder which is recorded earlier on the disc will be set as FOLDER 2 and FOLDER 3.
3 As for folder inside FOLDER A (FOLDER C and FOLDER D), the folder which is recorded earlier on the disc will be set as FOLDER 4 and FOLDER 5.
4 FOLDER E that is inside FOLDER D will be set as FOLDER 6.

- The folder and file order information which is recorded on the disc depends on the writing software. There maybe possibilities that this unit will playback the files not according to our expected playback order.

- From a disc with MP3/WMA files up to 255 folders and 999 files (including non playable files) can be read.

Specify the folder to play

To specify the folder to play, perform the following steps.

1 Press CD, and load an MP3/WMA disc.

2 Press FOLDER, and press ↑/↓ to select desired playback folder.

3 Press ENTER.

Playback will start from the first song of the selected folder.

- Even if it is stopped, it is possible to press / , to select a folder.

Switch the display contents

1 Press DISPLAY.

If the title, artist and album name has been written to the file, that information will be displayed. (The unit can only display alphanumeric characters. Non-alphanumeric character are displayed as "*".)

Note

• "Copyright protected WMA files" or "Unsupported files" cannot be played back. In these case the files will be skipped automatically.
• There may be cases where no information can be displayed.
• Displaying title, artist and album name is only supported for MP3 files.

Chapter 7:

USB playback

Playing USB storage devices

It is possible to listen to two-channel audio using the USB interface on the front of this receiver.

- Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit.

1 Press USB as the input source.

"USB/iPod" is shown on the main display.

2 Connect the USB storage device.

The number of folders or files stored on the connected USB storage device appear on the main display automatically.

• This receiver does not support a USB hub.
- If an iPod/iPhone/iPad is connected to the unit, the unit will automatically begin charging it.

3 When the recognition is completed, press ▶/II to start playback.

- When changing to a different input source, stop the USB memory playback first before changing.

4 Disconnect USB storage device from the USB terminal.

Turn the power off before removing the USB storage device.

Note

• USB flash drive that supports USB 2.0 can be used.
• This unit may not recognize a USB storage device, play files or supply power to a USB storage device. For details, see When a USB storage device is connected on page 28.
• When a USB storage device is not playing and no operations have been performed for more than 30 minutes, the unit will automatically power off.

Repeat play

Repeat play can play one track, all tracks or a programmed sequence continuously.

To repeat one track:

Press REPEAT repeatedly until "REPEAT ONE" appears. Press ENTER.

To repeat all tracks:

Press REPEAT repeatedly until "REPEAT ALL" appears. Press ENTER.

To repeat desired tracks:

Perform steps 1 to 5 in "Programmed play (CD or MP3/WMA)" section on next page and then press REPEAT repeatedly until "REPEAT ALL" appears. Press ENTER.

To cancel repeat play:

Press REPEAT repeatedly until "REPEAT OFF" appears. Press ENTER.

Note

• After performing repeat play, be sure to press ■. Otherwise, the file of USB storage device will play continuously.
- During repeat play, random play is not possible.

Random play

The file of USB storage device can be played in random order automatically.

To random play all tracks:

Press RANDOM repeatedly until "RANDOM ON" appears. Press ENTER.

To cancel random play:

Press RANDOM repeatedly until "RANDOM OFF" appears. Press ENTER.

Note

• If you press the ▶▶▶ during random play, you can move to the track selected next by the random operation. On the other hand, the ◀◀◀ does not allow you to move to the previous track. The beginning of the track being played will be located.
• In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)
• During random play, repeat play is not possible.

Specify the folder to play

To specify the folder to play, perform the following steps.

1 Press USB, and connect the USB storage device.

2 Press FOLDER, and press ↑/↓ to select desired playback folder.

3 Press ENTER.

Playback will start from the first song of the selected folder.

- Even if it is stopped, it is possible to press / , to select a folder.

Switch the display contents

The unit can display the information recorded in the USB storage device. For details, see Switch the display contents on page 20.

Playing in the desired order (Programmed Play)

The unit can play folders stored on a USB storage device in the desired order. For details, see Programmed play (CD or MP3/WMA) on page 19.

Chapter 8:

Using the tuner

Listening to the radio broadcasts

The following steps show you how to tune in to FM and AM radio broadcasts using the automatic (search) and manual (step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later. See Saving station presets below for more on how to do this.

Tuning

1 Press the ⏻ STANDBY/ON to turn the power on.

2 Press TUNER repeatedly to select desired frequency band (FM or AM).

3 Press TUNE +/- on the remote control to tune in to the desired station.

Automatic tuning:

Press and hold TUNE +/- , scanning will start automatically and the tuner will stop at the first receivable broadcast station.

Manual tuning:

Press the TUNE +/- repeatedly to tune in to the desired station.

Note

• When radio interference occurs, automatic tuning may stop automatically at that point.
  • Automatic tuning will skip weak signal stations.
  • To stop the automatic tuning, press ■.
• When an RDS (Radio Data System) station is tuned in, the frequency will be displayed first. Finally, the station name will appear.
• Full auto tuning can be achieved for RDS stations using Auto Station Program Memory (ASPM) mode, see page 25.

To receive an FM stereo transmission:

- Press ST/MONO to select stereo mode and "AUTO" will be displayed.

Improving poor FM reception:

1 Press ST/MONO repeatedly to select MONO.

This will change the tuner from stereo to mono and usually improve the reception.

Saving station presets

If you often listen to a particular radio station, it's convenient to have the receiver store the frequency for easy recall whenever you want to listen to that station (Preset tuning). This saves the effort of manually tuning in each time. This unit can memorize up to 45 stations. (FM 30 stations/AM 15 stations)

1 Tune to a station you want to memorize.

See Tuning above for more on this.

2 Press MEMORY/PROGRAM.

The preset number will flash.

3 Press PRESET +/- to select the preset channel number.

4 Press MEMORY/PROGRAM to store that station in memory.

If the preset number has changed from flashing to lighting, before the station is memorised, repeat the operation from step 2.

- Repeat steps 1 to 4 to set other stations, or to change a preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased.

Note

- The backup function protects the memorised stations for a few hours should there be a power failure or the AC power cord become disconnected.

To recall a memorised station

1 Press PRESET +/- to select the desired station.

To scan the preset stations

The stations saved in the memory can be scanned automatically. (Preset memory scan)

1 Press and hold PRESET +/-.

The preset number will appear and the programmed stations will be tuned in sequentially, for 5 seconds each.

2 Press PRESET +/- again when the desired station is located.

To erase entire preset memory

1 Press TUNER on the remote control.

2 Press CLEAR until "MEMORY CLEAR" appears.

Note

- All stations will be erased.

Using the Radio Data System (RDS)

An introduction to RDS

Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they're broadcasting, for example.

One feature of RDS is that you can search by type of program. For example, you can search for a station that's broadcasting a show with the program type, JAZZ.

You can search the following program types:

News – News

Current Affairs – Current Affairs

Information – General Information

Sport - Sport

Education – Educational Drama – Radio plays, etc

Cultures – National or regional culture, theater, etc.

Science – Science and technology

Varied Speech – Usually talk-based material, such as quiz shows or interviews.

Pop Music – Pop music

Rock Music – Rock music Easy Listening – Easy listening

Light Classics M – 'Light' classical music

Serious Classics – 'Serious' classical music

Other Music – Music not fitting above categories

Weather & Metr – Weather reports

Finance – Stock market reports, commerce, trading, etc.

Children's Progs – Programs for children

Social Affairs – Social affairs Religion – Programs concerning religion

Phone In – Public expressing their views by Phone

Travel & Touring – Holiday-type travel rather than traffic announcements

Leisure & Hobby – Leisure interests and hobbies

Jazz Music – Jazz

Country Music – Country music

National Music – Popular music in a language other than English

Oldies Music – Popular music from the '50s and' 60s

Folk Music – Folk music

Documentary – Documentary Alarm Test – Broadcasting when testing emergency broadcast equipment or receivers.

Alarm - Alarm!

Searching for RDS programs

You can search a program type listed above.

1 Press TUNER on the remote control.

• RDS is only possible in the FM.

2 Press RDS PTY on the remote control.

"SELECT" will appear for about 6 seconds.

3 Press ←/→ to select the program type you want to hear.

Each time the button is pressed, the program type will appear. If the button is held down, the program type will appear continuously.

4 Whilst the selected program type is displayed (within 6 seconds), Press RDS PTY again.

After the selected program type has been lit for 2 seconds, "SEARCH" will appear, and the search operation will start.

Note

- If the display has stopped flashing, start again from step 2. If the unit finds a desired program type, the corresponding channel number will be lit for about 8 seconds, and then the station name will be displayed.

• If you want to listen to the same program type of another station, press the RDS PTY whilst the channel number or station name is flashing. The unit will look for the next station.
• If no station can be found, "NOT FOUND" will appear for 4 seconds.

Information provided by RDS

Each time the RDS DISPLAY is pressed, the display will switch as follows:

When tuning in to a station other than an RDS station or to an RDS station which sends weak signal, the display will change in the following order:

Using the Auto Station Program Memory (ASPM)

Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 30 stations can be stored.

If you have already stored some stations in memory, the number of new stations you can store will be less.

1 Press TUNER on the remote control.

2 Press and hold down RDS ASPM on the remote control.

After "ASPM" has flashed for about 4 seconds, scanning will start (87.5 MHz to 108 MHz).

After scanning, the number of stations stored in memory will be displayed for 4 seconds, and then "END" will appear for 4 seconds.

To stop the ASPM operation before it is complete:

Press ■ whilst it is scanning for stations. The stations which are already stored in memory will be kept there.

Note

• If the same station is broadcasting on different frequencies, the strongest frequency will be stored in memory.
• Any station which has the same frequency as the one stored in memory will not be stored.
• If 30 stations have already been stored in memory, the scan will be aborted. If you want to redo the ASPM operation, erase the preset memory.
• If no station have been stored in memory, "END" will appear for about 4 seconds.
• If the RDS signals are very weak, station names may not be stored in memory.
• The same station name can be stored in different channels.
• In a certain area or during certain time periods, the station names may temporarily be different.

Notes for RDS operation

If any of the following events occur, it does not mean that the unit is faulty:

• "PS", "NO PS" and a station name appear alternately, and properly.
• If a particular station is not broadcasting properly or a station is conducting tests, the RDS reception function may not work properly.
• When you receive an RDS station whose signal is too weak, information like the station name may not be displayed.
• "NO PS", "NO PTY" or "NO RT" will flash for about 5 seconds, and then the frequency will be displayed.

Notes for radio text:

• The first 16 characters of the radio text will appear and then they will scroll across the display.
• If you tune in to an RDS station which is not broadcasting any radio text, "NO RT" will be displayed when you switch to the radio text position.
• Whilst radio text data is received or when the text contents change, "RT" will be displayed.

Chapter 9:

Other connections

CAUTION

- Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

Connecting auxiliary components

Connect the front panel AUDIO IN mini-plug jack to your auxiliary playback component.

- This method can be used to play music on this unit from iPods/iPhones/iPads that do not support use of an iPod Dock and USB terminal.

1 Press AUDIO IN as the input source.

When AUDIO IN is selected "AUDIO IN" will be displayed on the main display.

Note

- If the AUDIO IN mini-plug jack is connected to auxiliary phones jack, the volume of the unit will be adjusted by the volume on the playback component. If the sound is distorted after you lower the volume of the unit, try lowering the volume on the auxiliary playback component.

Connect the rear panel LINE IN audio jacks to your auxiliary playback component.

1 Press AUDIO IN twice as the input source.

When LINE is selected "LINE" will be displayed on the main display.

Chapter 10:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

- If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

General problem

Problem Check Remedy
Settings you have made have been cleared.	Was the power cord unplugged? When power cord is unplugged, the settings you have made is cleared. Please set the clock again. If you do not want to clear the settings, do not unplug the power cord.
Difference in volume between CDs, MP3, WMA, iPod/iPhone/iPad, Tuner, AUDIO IN and LINE.	This is not a problem with this unit.	The volume may sound differently depending on the input source and recording format.
This unit cannot be operated with the remote control.	Are you operating from far away? Operate within 7 m, (page 5).	30^ of the remote sensor on the front panel
	Is the remote control sensor exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.?	The remote control signals may not be received properly if the remote control sensor is exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.
	Are the batteries dead? Replace the batteries (page 5).
Disc cannot be played or disc is ejected automatically.	Is the disc scratched? Scratched discs may not play.
	Is the disc dirty? Wipe the dirt off the disc (page 30).
	Is this unit placed in a humid location?	There could be condensation inside. Wait a while for the condensation to evaporate. Do not place this unit near an air-conditioner, etc. (page 30).
Folder or file names are not recognized. (WMA, MP3).	Have you exceeded the maximum number of folder or file names this unit can recognize?	Up to 255 folders can be recognized on one disc. Up to 999 files can be recognized within one folder. Depending on the folder structure, however, this unit may not be able to recognize certain folders or files.
The unit turns off automatically.		If no play back and no operation has done for 30 minutes or more, the unit turns off automatically.

When a USB storage device is connected

Problem Check Remedy
USB storage device is not recognized.	Is the USB storage device properly connected?	Connect the device securely (all the way in).
	Is the USB storage device connected via a USB hub?	This unit does not support USB hubs. Connect the USB storage device directly.
	Is the USB storage device supported by this unit?	This unit only supports USB mass storage class devices.
		This unit supports portable flash memory and digital audio playback devices.
		Only the FAT16 and FAT32 file systems are supported. Other file systems (exFAT, NTFS, HFS etc.) are not supported.
		USB flash drive that supports USB 2.0 can be used.
		This device does not support the use of external hard disc drives.
	This is not a problem with this unit. Turn the power off then back on.
			Some USB storage devices may not be recognized properly.
File cannot be played. Is the file copyright-protected (by DRM)?		Copyright-protected files cannot be played.
		This is not a problem with this unit. Files stored on a computer cannot be played.
		It may not be possible to play some files.
Folder or file names are not displayed or are not properly displayed.	Do the folder or file names contain more than 30 characters?	The maximum number of characters displayable for the folder and file names is 30.
Folder or file names are not displayed in alphabetical order.	This is not a problem with this unit. The order in which the folder and file names are displayed depends on the order in which the folders or files were recorded on the USB storage device.
Much time is required to recognize the USB storage device.	What is the USB storage devices capacity?	Some time may be required to load the data when large capacity USB storage devices are connected (this could take several minutes).
Power is not supplied to the USB storage device.	Is AUTH ERROR displayed on the front panel display? No power is supplied if the power consumption is too high.	Turn the power off then back on.
		Turn the power off, then disconnect and reconnect the USB storage device.
		Press INPUT to switch to the other input, then switch again to the USB/iPod input.

When an iPod/iPhone/iPad is connected

Problem Remedy
Can't operate the iPod/iPhone/iPad by the remote control.	Make sure the iPod/iPhone/iPad is connected correctly (refer to Connecting your iPod/iPhone/iPad on page 15).
Can't operate the iPod/iPhone/iPad. Make sure the iPod/iPhone/iPad is connected correctly (refer to Connecting your iPod/iPhone/iPad on page 15).If the iPod/iPhone/iPad is experiencing a hangup, try resetting the iPod/iPhone/iPad, and reconnect it to the unit.

playable discs and formats

Audio CD	• Commercially available audio CDs• CD-R/ -RW/ -ROM discs containing music recorded in the CD-DA format
WMA	WMA files recorded on CD-R/ -RW/ -ROM discs or USB storage devices
MP3	MP3 files recorded on CD-R/ -RW/ -ROM discs or USB storage devices

• Only the discs that have been finalized can be played.
• Discs recorded in packet write mode (UDF format) are not compatible with this unit.
• Only discs recorded in ISO9660 Level 1, Level 2 and Joliet can be played.
• Files protected by DRM (Digital Rights Management) cannot be played.
• Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations.

Note

• This unit does not support multisession discs or multiborder recording.
• Multisession/multiborder recording is a method in which data is recorded on a single disc in two or more sessions/borders. A "session" or "border" is one recording unit, consisting of a complete set of data from lead-in to lead-out.

Regarding copy protected CDs

This unit is designed to conform to the specifications of the audio CD format. This unit does not support the playback or function of discs that do not conform to these specifications.

Supported audio file formats

- This unit does not support lossless encoding.

Cautions on use

When moving this unit

When moving this unit, be sure to first check that there is no disc loaded and disconnect the iPod/iPhone/iPad. Then press Ⓧ STANDBY/ON, wait for "STAND BY" disappears on main display to turn off, then unplug the power cord. Damage may occur if the unit is transported or moved with a disc inserted, or when another device is connected to the USB terminal or AUDIO IN mini-plug jack.

Place of installation

• Choose a stable place near the TV or stereo system being used with this unit.
• Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces.

Avoid the following locations:

• Places exposed to direct sunlight
  • Humid or poorly ventilated places
  • Extremely hot places
• Places exposed to vibrations
• Places in which there is much dust or cigarette smoke
• Places exposed to soot, steam or heat (kitchens, etc.)

Do not place objects on this unit

Do not place any objects on top of this unit.

Do not obstruct the ventilation holes.

Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage.

Do not expose to heat.

Do not place this unit on top of an amplifier or other component that generates heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier.

• Turn off the unit's power when not using it.
• Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit's power is on. If this happens, turn the unit's power off.

About condensation

If this unit is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which this unit is installed rises suddenly due to heater operation, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, this unit will not operate properly and playback is not possible. Let this unit stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can also occur in the summer if this unit is directly exposed to the air flow from an air-conditioner. If this happens, move this unit to a different place.

Cleaning the product

• Unplug the power cord from the power outlet when cleaning this unit.
• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth.
• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.
• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully.

Cleaning the lens

- This unit's lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens.

Handling discs

Storing

• Always place discs in their cases and store them vertically, avoiding hot, humid places, places exposed to direct sunlight and extremely cold places.
- Be sure to read the cautions included with the disc.

Cleaning discs

- Discs may not play if there are fingerprints or dust on them. In this case, use a cleaning cloth, etc., to gently wipe the disc from the inside towards the outside. Do not use dirty cleaning cloths.

Illustration of hands using a tool to remove or restore a circular object (no text or symbols visible)

• Do not use benzene, thinner or other volatile chemicals. Also do not use record spray or antistatic agents.
• For tough dirt, apply some water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe off the moisture with a dry cloth.
• Do not use damaged (cracked or warped) discs.
• Do not let the signal surface of discs get scratched or dirty.
• Do not attach pieces of paper or stickers to discs. Doing so could warp discs, making it impossible to play them. Also note that rental discs often have labels attached to them, and the label's glue may have oozed out. Check that there is no glue around the edges of such labels before using rented discs.

Two circular objects with a diagonal line and a circle, no text or symbols present

About specially shaped discs

Specially shaped discs (heart-shaped, hexagonal, etc.) cannot be played on this unit. Do not attempt to play such discs, as they could damage this unit.

About iPod/iPhone/iPad

Made for

iPod

iPhone

iPad

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

iPad, iPhone, iPod, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Restoring all the settings to the defaults

Use the steps below to restore the all settings to their defaults.

1 Press ⏻ STANDBY/ON to turn the power on.

2 Press CD on the remote control or INPUT on the main unit repeatedly to select CD input.

3 Press ▲ OPEN/CLOSE to open the disc tray.

4 Press ⏻ STANDBY/ON while pressing ■.

Use the buttons on this unit's top panel. "DEFAULT" is displayed while the settings are being restored. Power is turned off.

Specifications

- Amplifier section

RMS Power Output: 15 W + 15 W

(1 kHz, 10 %, T.H.D., 8 Ω)

- Tuner section

Frequency Range (FM) 87.5 MHz to 108 MHz

Antenna Input (FM)....75 Ω unbalanced

Frequency Range (AM)....522 kHz to 1620 kHz

Antenna (AM).... Loop antenna

- Miscellaneous

USB terminal (X-HM21) 5 V, 2.1 A

USB terminal (X-HM11) 5 V, 500 mA

Power source.....AC 220 V to 240 V, 50 Hz/60 Hz

Power consumption

Power on (X-HM21)....30 W

Power on (X-HM11)....21 W

Power stand-by 0.5 W or less

Dimensions ..... 215 mm (W) x 95 mm (H) x 315 mm (D)

Weight (without package) 2.0 kg

- Speaker (S-HM21)

Magnetically shieled speaker system

Type

2-way type speaker system

5 cm Tweeter

10 cm Woofer

Maximum input power....15 W

Impedance....8Ω

Dimensions . . . . 130 mm (W) x 211.5 mm (H) x 240 mm (D)

Weight 2.0 kg/each

- Speaker (S-HM11)

Magnetically shieled speaker system

Type

2-way type speaker system

Piezoelectric Tweeter

10 cm Woofer

Maximum input power....15 W

Impedance....8Ω

Dimensions . . . . 130 mm (W) x 212 mm (H) x 228.5 mm (D)

Weight 2.0 kg/each

- Accessories

Remote control....1

AAA batteries (R03) 2

AM antenna cable....1

FM wire antenna....1

Power cord

iPad Stand (X-HM21 only)

Warranty card

Operating instructions (This document)

Note

• The specifications are applicable when the power supply is 230 V.
• Specifications and the design are subject to possible modifications without notice, due to improvements.

© 2012 PIONEER CORPORATION.

All rights reserved.

Additional information

ATTENTION

POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION, NE PAS ENLEVER LE COUVERCLE (NI LE PANNEAU ARRIÈRE). AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR NE SE TROUVE À L'INTÉRIEUR. CONFIER TOUT ENTRETIEN À UN PERSONNEL QUALIFIÉ UNIQUEMENT.

D3-4-2-1-1_B1_Fr

AVERTISSEMENT

Illustration of a CD-ROM device with a prohibition symbol on top (no text or labels)

Diagram of a switch mechanism with four terminals and a lever (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

ATTENTION

Illustration of a cable plugged into a wall socket with a starburst explosion above (no text or symbols)

Diagram of a device with a curved arrow and cable, no visible text or symbols

3 Placez l'iPod/iPhone/iPad sur le support.

Illustration of a tablet device with a download arrow and file folder (no text or symbols)

Illustration of a hand holding a circular object above a square base with concentric rings (no text or symbols)

Education – Éducation

Drama – Pièces radiophoniques, etc.

Illustration of hands using a disc to clean or restore a circular object (no text or symbols visible)

Two icons showing a CD or DVD disc with no prohibition symbols, no text or labels present.

215 mm (L) × 95 mm (H) × 315 mm (P)

Poids (sans emballage) 2,0 kg

Piles AAA (R03)....2

© 2012 PIONEER CORPORATION.

Illustration of a gray electronic device with a prohibition symbol on top (no text or labels)

Betriebsumgebung

RDS-INFORMATIONEN. 25

Verwendung des Auto Station Program Memory (ASPM)

Diagram of a switch mechanism with four resistors and a base, no text or symbols present

Simple line drawing of a mechanical component or tool (no text or symbols)

ACHTUNG

Illustration of a cable being inserted into an electrical socket with a explosion effect (no text or symbols)

Diagram of a device with a handle and cable, no text or symbols present

iPod/iPhone/iPad-Wiedergabe (nur X-HM21)

Illustration of a tablet device with a download arrow and file folder (no text or symbols)

Illustration of a hand holding a circular object above a square base with concentric rings (no text or symbols)

Illustration of hands using a tool to clean or restore a fish (no text or symbols visible)

Two diagrams showing a landfill with no restrictions on the left and a cross-section of a landfill with no restrictions on the right (no text or symbols present)

© 2012 PIONEER CORPORATION.

Illustration of a gray electronic device with a circular prohibition symbol on top (no text or labels)

Diagram of a switch mechanism with four terminals and a lever (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

ATTENZIONE

Illustration of a cable plugged into a wall socket with a explosion effect (no text or symbols)

Diagram of a device with a curved arrow and wire, no visible text or symbols

Illustration of a tablet device with a download arrow and file folder (no text or symbols)

Illustration of a hand holding a circular object above a square base with concentric rings (no text or symbols)

Education – Programmi educativi

Varied Speech – Talk show, quali quiz o interviste.

Pop Music – Musica pop

Rock Music – Musica rock

Easy Listening – Musica leggera

Usare il programma Auto Station Memory (ASPM)

Illustration of hands using a tool to cut a CD or DVD disc (no text or symbols visible)

Two circular objects with a diagonal line and a circle, no text or symbols present

© 2012 PIONEER CORPORATION.

Illustration of a portable electronic device with a prohibition symbol on top (no text or labels)

Gebruiksomgeving

KLASSE 1 LASERPRODUCT

D58-5-2-2a_A1_NI

WAARSCHUWING NETSNOER

Diagram of a soldering iron being inserted into a sample holder (no text or symbols present)

Simple line drawing of a mechanical component or tool (no text or symbols)

WAARSCHUWING

Illustration of a cable being inserted into a wall socket with a starburst effect (no text or symbols)

Diagram of a device with a curved panel and internal components, showing no text or symbols

Illustration of a tablet device with a download arrow pointing to a file folder (no text or symbols present)

Illustration of a hand holding a circular object above a square base with concentric rings (no text or symbols)

(FM 30 stations/AM 15 stations)

Education – Educatief

Drama – Hoorspelen e.d.

Cultures – Nationale of regionale cultuur, theater enz.

Science – Wetenschap en technologie

Varied Speech – Meestal praatprogramma's, zoals quizzen of interviews.

Illustration of hands using a tool to cut a fish (no text or symbols present)

Two overlapping circular objects with a diagonal line and a circle, no text or symbols present.

Power on (X-HM21)....30 W

Power on (X-HM11)....21 W

Stroom standby....0,5 W of minder

Afmetingen . . . . . . 215 mm (B) x 95 mm (H) x 315 mm (D)

© 2012 PIONEER CORPORATION.

Illustration of a gray electronic device with a black prohibition symbol on top (no text or labels)

Diagram of a soldering iron being inserted into a sample holder (no text or symbols present)

Simple line drawing of a mechanical component or tool (no text or symbols)

PRECAUCIÓN

Diagram of a cable installation with a starburst impact on the wall (no text or symbols)

iPod/iPhone/iPad Terminal USB (solo audio)

iPod nano 3G/4G/5G/6G/7G √
iPod touch 1G/2G/3G/4G/5G √
iPhone 5 √
iPhone 4S √
iPhone 4 √
iPhone 3GS √
iPhone 3G √
iPhone	√
iPad mini	√
iPad (4.a generación)	√
iPad (3.a generación)	√
iPad 2	√
iPad	√

Nota

Diagram of a device with a curved internal component and a white arrow indicating a connection or force (no text or symbols present)

Illustration of a tablet device with a download arrow and file folder (no text or symbols)

Illustration of a hand holding a circular object above a square base with concentric rings (no text or symbols)

5 P u ▲ OPEN/©LOSE para cerrar la bandeja del disco.

Education – Material educativo

Drama – Radionovelas, etc.

Cultures – Cultura nacional o regional, teatro, etc.

Children's Progs – Programas infantiles

Social Affairs – Asuntos sociales

Illustration of hands using a tool to cut a fish (no text or symbols present)

Two overlapping circular icons with a diagonal line and concentric circles, no text or symbols present.

© 2012 PIONEER CORPORATION.

Illustration of a gray electronic device with a prohibition symbol on top (no text or labels)

Diagram of a mechanical device with labeled components and an arrow indicating motion (no text or symbols present)

Simple line drawing of a rectangular object with a triangular handle and a small protrusion (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ

Diagram of a cable installation with a fuse and explosion effect (no text or symbols)

Diagram of a device casing with internal components and a cable, no text or symbols present

Illustration of a tablet device with a download arrow pointing to a file folder (no text or symbols present)

Illustration of a hand holding a circular object above a square base with concentric rings (no text or symbols)

Illustration of hands cleaning a disc with a cloth (no text or symbols)

Two overlapping circular objects with a diagonal line and circle, no text or symbols present

© PIONEER CORPORATION, 2012.

Все права защищены.

Примечание:

http://www.pioneer.co.uk

http://www.pioneer.fr

http://www.pioneer.de

http://www.pioneer.it

http://www.pioneer.nl

http://www.pioneer.be

http://www.pioneer.es

http://www.pioneer-rus.ru

http://www.pioneer.eu

© 2012 PIONEER CORPORATION.

All rights reserved.

© 2012 PIONEER CORPORATION.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002_B4_Ru
