Operating Instructions

FZ61P.1/HA FZ61P.1 IX/HA FZ62P.1/HA FZ62P.1 IX/HA FR Français, 22

Positioning Electrical connections Data plate

Description of the appliance, 15

Overall view Control panel

Start-up and use, 16

Starting the oven How to use the timer

Cooking modes, 17-18

Cooking modes Practical cooking advice Cooking advice table

Precautions and tips, 19

Disposal Respecting and conserving the environment

Maintenance and care, 20-21

Switching the appliance off

Cleaning the appliance Cleaning the oven door Replacing the light bulb Automatic cleaning with the FAST CLEAN function Assistance

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

GB To ensure good ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x

560 mm (see diagrams).

! Keep packaging material out of the reach of children.It can become a choking or suffocation hazard (see Precautions and tips).

! The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property. Fitting the appliance Use the appropriate cabinet to ensure that the appliance functions properly. • The panels adjacent to the oven must be made of heat-resistant material.

Centring and fastening

Position the 4 tabs on the side of the oven according to the 4 holes of the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below: thickness of 20 mm: take off the removable part of the tab (see diagram)

• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

thickness of 18 mm: use the first groove, which has already been set in the factory (see diagram)

thickness of 16 mm: use the second groove (see diagram)

• to install the oven under the counter (see diagram) and in a kitchen unit, the cabinet must have the following dimensions:

! The appliance must not come into contact with electrical parts once it has been installed.

The consumption indications on the data plate have been calculated for this type of installation.

Secure the appliance to the cabinet by opening the oven door and putting 4 screws into the 4 holes of the outer frame.

! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.

GB Electrical connections

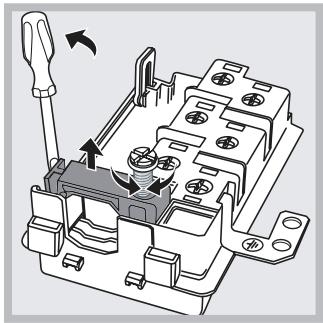

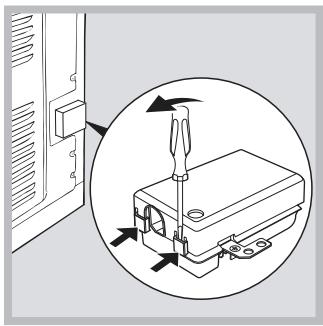

! Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below). Fitting the power supply cable 1. Open the terminal board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram). 2. Loosen the cable clamp screw and remove it, using a screwdriver as a lever (see figure). 3. Remove the wire contact screws L-N, then fasten the wires under the screw heads, respecting the colour code: Blue (N), Brown (L) and Yellow-Green Verde ( ).

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate

(see below). • The voltage must be in the range between the values indicated on the data plate (see below). • The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.

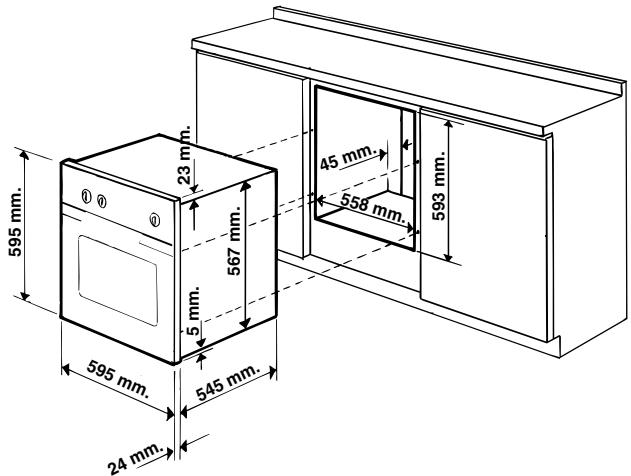

DATA PLATE Dimensions

voltage: 220-240V ~ 50/60Hz maximum power absorbed

2560-3050W Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate (see side). The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains, suitable for the load indicated and complying with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C. ! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. Before connecting to the power supply, make sure that: • The appliance is earthed and the plug is compliant with the law.

Directive 2002/40/EC on the label of electric ovens.

ENERGY LABEL Energy consumption for Natural convection – heating mode:

Convection mode. Declared energy consumption for Forced convection Class – heating mode: Baking. This appliance conforms to the following European Economic Community directives: 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments; - 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments; - 93/68/EEC of 22/07/93 and subsequent amendments.

- 2002/96/EC Description of the appliance

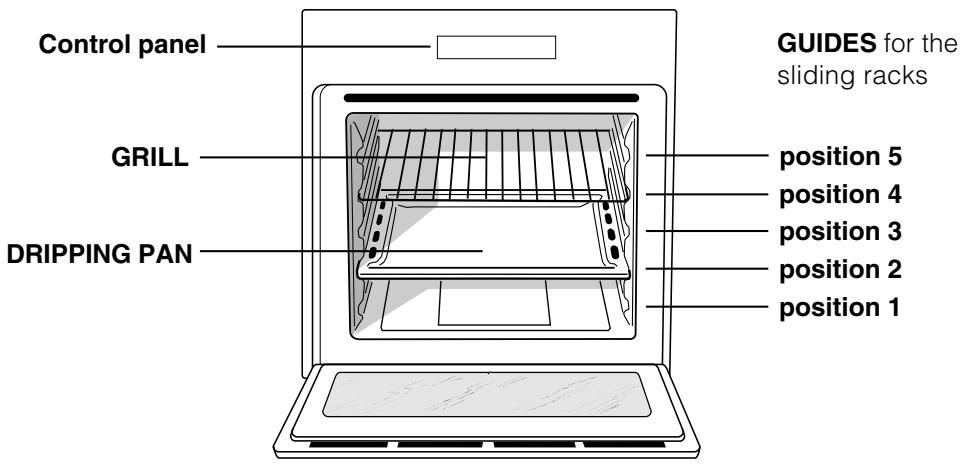

GB GUIDES for the sliding racks

position 5 position 4 position 3 position 2 position 1

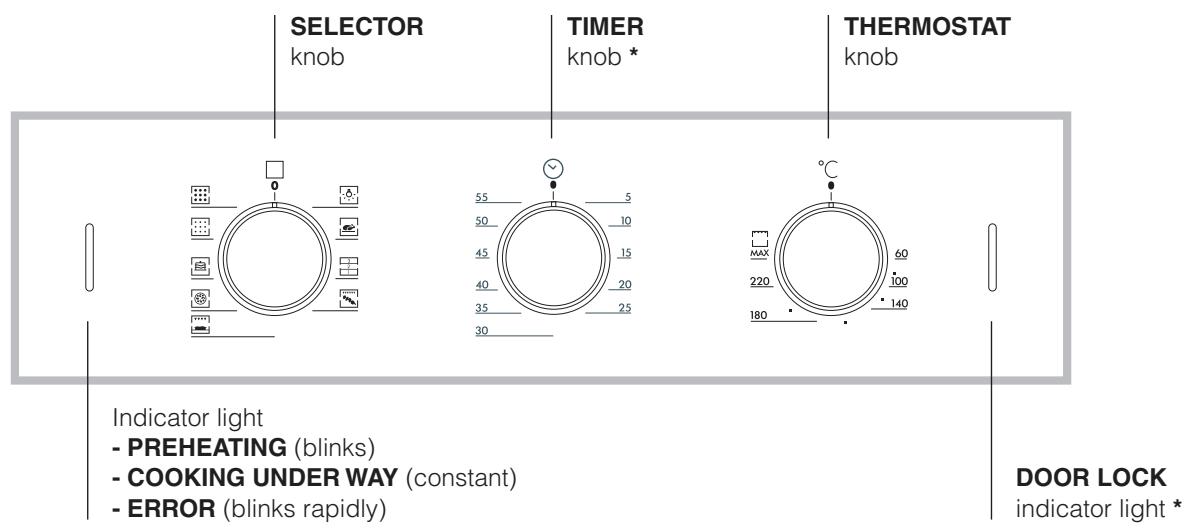

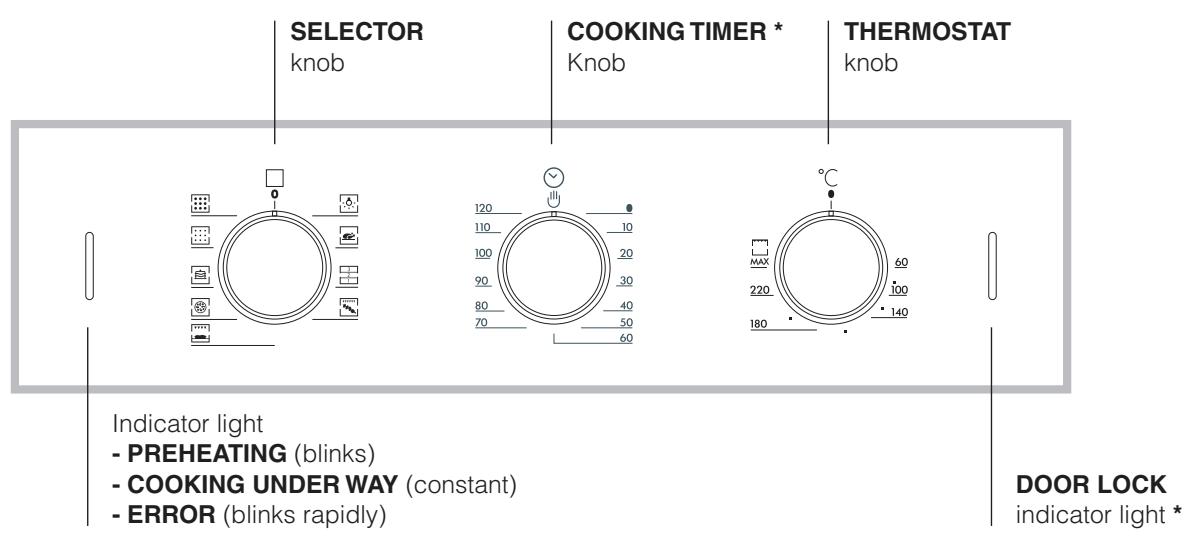

GRILL DRIPPING PAN Indicator light

- PREHEATING (blinks) - COOKING UNDER WAY (constant) - ERROR (blinks rapidly)

- PREHEATING (blinks) - COOKING UNDER WAY (constant) - ERROR (blinks rapidly)

* Only available on certain models

! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may produce a slightly unpleasant odour caused by the burning away of protective substances used during the manufacturing process.

Once the cooking has been completed, the cooling fan remains on until the oven has cooled down sufficiently. In the BAKING mode, the cooling fan goes on only when the oven is hot. At the beginning of the

FAST CLEAN modes, the cooling fan operates at low speed. ! Once the cooking has been completed, the cooling fan remains on until the oven has cooled down sufficiently.

1. Select the desired cooking mode by turning the

SELECTOR knob. 2. The oven will start the preheating phase, on the control panel the indicator light PREHEATING will blink. 3. Select the desired temperature with the THERMOSTAT knob. See the Cooking advice table for cooking modes and the suggested cooking temperatures (see Cooking Modes). 4. When preheating is finished, the COOKING UNDER WAY indicator light will stay on: place the food in the oven. 5. You may do the following during cooking: - change the cooking mode by turning the SELECTOR knob - change the temperature by turning the THERMOSTAT knob - stop cooking by turning the SELECTOR knob to the “0” position. 6. In case of a blackout, if the oven was already operating, an automatic system within the appliance will reactivate the cooking mode from where it was interrupted as long as the temperature did not drop below a certain level.

It goes on when selecting with the SELECTOR knob. It stays on when a cooking mode is selected.

When a FAST CLEAN mode is selected the oven light turns off automatically.

! There is no preheating in the BARBECUE mode.

Never put objects directly on the oven bottom to avoid damaging the enamel coating. Always place cookware on the rack(s) provided. Cooling ventilation In order to cool down the external temperature of the oven, some models are fitted with a cooling fan that blows out air between the control panel and the oven door.

How to use the timer *

1. To set the buzzer, turn the TIMER knob clockwise almost one complete revolution. 2. Turn the knob anticlockwise to set the desired time: align the minutes shown on the knob with the indicator on the control panel. 3. The timer operates in minutes: when the selected time has elapsed, a buzzer will sound. The timer does not turn the oven on or off.

Using the cooking timer*

1. To set the buzzer, turn the COOKING TIMER knob clockwise almost one complete revolution. 2. Turn the knob anticlockwise to set the desired time: align the minutes shown on the COOKING TIMER knob with the indicator on the control panel. 3. When the selected time has elapsed, a buzzer sounds and the oven turns off. 4. When the oven is off the cooking timer can be used as a normal timer. To use the oven manually, in other words when you do not wish to use the end of cooking timer, turn the COOKING TIMER knob until it reaches the ' symbol.

* Only available on certain models

Cooking modes A temperature value can be set for all cooking modes between 60°C and Max, except for the following modes • BARBECUE (recommended: set only to MAX power level) • GRATIN (recommended: do not exceed 200°C). TRADITIONAL OVEN mode Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only; if more than one rack is used, the heat will be distributed unevenly. MULTI-COOKING mode All the heating elements (top, bottom and circular), as well as the fan, will come on. Since the heat remains constant throughout the oven, the air cooks and browns food uniformly. A maximum of two racks may be used at the same time. BARBECUE mode The top heating element comes on. The high and direct temperature of the grill is recommended for food that requires high surface temperature. Always cook in this mode with the oven door closed. GRATIN mode The top heating element, as well as the fan, will come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Always cook in this mode with the oven door closed. PIZZA mode The bottom and circular heating elements, as well as the fan, will come on. This combination heats the oven rapidly by producing a considerable amount of heat, particularly from the bottom element. If you use more than one rack simultaneously, switch the position of the dishes halfway through the cooking process.

GB The rear heating element and the fan come on, guaranteeing the distribution of heat delicately and uniformly throughout the oven. This mode is ideal for baking and cooking temperature sensitive foods such as cakes that need to rise and to prepare certain tartlets on 3 shelves simultaneously.

FAST CLEAN mode This mode cleans the oven automatically and thoroughly by pyrolysis (see Maintenance and care). ! The default setting is 90 minutes. INTENSIVE FAST CLEAN mode This mode cleans the oven automatically and thoroughly by pyrolysis (see Maintenance and care). ! The default setting is 120 minutes.

Practical cooking advice

! Do not place racks in position 1 and 5 during fanassisted cooking. Excessive direct heat can burn temperature sensitive foods. ! In the BARBECUE and GRATIN cooking modes, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTI-COOKING • Use position 2 and 4, placing the food that requires more heat on 2. • Place the dripping pan on the bottom and the rack on top. BARBECUE • Insert the rack in position 3 or 4. Place the food in the centre of the rack. • We recommend that you set the maximum power level. The top heating element is regulated by a thermostat and may not always be on. PIZZA MODE • Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time). • If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.

GB Cooking advice table

Cooking modes Convection Oven

Pizza Mode Baking Mode

Roast veal or beef Pork roast Biscuits (short pastry) Tarts Pizza (on 2 racks) Lasagne Lamb Roast chicken + potatoes Mackerel Plum cake Cream puffs (on 2 racks) Biscuits (on 2 racks) Sponge cake (on 1 rack) Sponge cake (on 2 racks) Savoury pies Soles and cuttlefish Squid and prawn kebabs Cod filet Grilled vegetables Veal steak Cutlets Hamburgers Mackerels Toasted sandwiches Grilled chicken Cuttlefish Pizza Roast veal or beef Chicken Tarts Fruit cakes Plum cake Sponge cake Stuffed pancakes (on 2 racks) Small cakes (on 2 racks) Cheese puffs (on 2 racks) Cream puffs (on 3 racks) Biscuits (on 3 racks) Meringues (on 3 racks)

Pre-heating time (min)

Recommended temperature

3 3 3 3 2 and 4 3 2 2 and 4 2 2 2 and 4 2 and 4 2 2 and 4 3 4 4 4 3 or 4 4 4 4 4 4 2 2 3 2 2 or 3 3 2 or 3 3 3 2 and 4 2 and 4 2 and 4 1 and 3 and 5 1 and 3 and 5 1 and 3 and 5

15 15 15 15 15 10 10 15 10 10 10 10 10 10 15 5 5 5 5 5 5 5 5 5 10 10 15 10 10 15 15 15 15 15 15 15 15 15 15

200 200 180 180 230 180 180 200 180 170 190 180 170 170 200 MAX MAX MAX MAX MAX MAX MAX MAX MAX 200 200 220 220 180 180 180 180 160 200 190 210 180 180 90

70-75 70-80 15-20 30-35 15-20 30-35 40-45 60-70 30-35 40-50 20-25 10-15 15-20 20-25 25-30 8-10 6-8 10 10-15 15-20 15-20 7-10 15-20 2-3 55-60 30-35 15-20 25-30 60-70 20-30 40-45 40-50 25-30 30-35 20-25 15-20 20-25 20-25 180

Precautions and tips

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. • The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. • When handling the appliance, always use the handles provided on the sides of the oven. • Do not touch the appliance with bare feet or with wet or moist hands and feet. • The appliance must be used to cook food by adults only and according to the instructions in this manual. • When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don't touch them and keep children well away. • Ensure that the power supply cable of other electrical appliances does not come into contact with the hot parts of the oven. • The openings used for ventilation and dispersion of heat must never be covered. • Always grip the oven door handle in the centre: the ends may be hot. • Always use oven gloves to place cookware in the oven or when removing it.

• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

• Never carry out any cleaning or maintenance work without having unplugged the plug from the mains.

• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance). • Do not rest heavy objects on the open oven door.

• Observe local environmental standards when disposing packaging material for recycling purposes. Observe existing legislation when disposing of the old appliance. • The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Do not use aluminium foil to line the bottom of the oven.

• By using the appliance in the hours between late afternoon and early morning, you can help reduce the energy consumption, especially when using the

• Do not place flammable materials in the oven: if the appliance is switched on by mistake, it could catch fire.

• Always keep the oven door closed when using the

BARBECUE and GRATIN mode to attain best results and to save energy (approximately 10%).

• Always make sure the knobs are in the “l”/“¡” position when the appliance is not in use.

• Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse.

Maintenance and care

GB Switching the appliance off

3. Grip the door on the two external sides and close it approximately half way.

Pull the door towards you lifting it out of its seat (see diagram). To replace the door, reverse this sequence.

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

• The stainless-steel or enamel-coated external parts as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. If these stains are difficult to remove, use only specialised products. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances. • Ideally, the inside of the oven should be cleaned after each use, when it is still lukewarm. Use hot water and detergent, rinse and dry with a soft cloth. Do not use abrasive products. • The accessories can be washed like everyday crockery (even in your dishwasher).

Inspecting the seals

Check the door seals around the oven periodically. If the seals are damaged, please contact your nearest After-sales Service Centre (see Assistance). We recommend not using the oven until the seals have been replaced.

Replacing the light bulb

To replace the oven light bulb:

! Never use steam cleaners or pressure cleaners on the appliance.

Cleaning the oven door

Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack. To clean more thoroughly, you can remove the oven door. 1. Open the oven door fully (see diagram)

2. Lift up and turn the small levers located on the two hinges (see diagram)

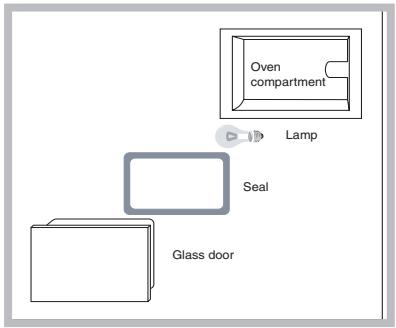

1. Remove the glass lid using a screwdriver.

2. Remove the light bulb and replace it with a similar one: Wattage 15 W, cap E 14. Replace the glass cover taking care to position the seal correctly (see diagram).

Automatic cleaning with the FAST CLEAN function

With the FAST CLEAN modes, the internal temperature of the oven reaches 500°C. The pyrolysis process is activated and burns away food and grime residues. Keep children away from the appliance during the automatic cleaning cycle as surfaces may become very hot. Particles may ignite inside the oven due to the spontaneous combustion process. Do not worry, this process is both normal and hazard-free. Before initiating the FAST CLEAN modes: • Remove large or course food residues from inside of the oven using a damp sponge. Do not use detergents.

Once the automatic cleaning cycle is over

GB The COOKING UNDER WAY indicator light will turn off and the DOOR LOCK indicator light will stay on. You will have to wait until the temperature inside the oven has cooled down sufficiently before you can open the oven door and the DOOR LOCK indicator light will turn off.

White powder deposits may remain on the bottom and sides of the oven, remove these deposits with a damp sponge once the oven has cooled down completely. Alternatively, you can make use of the already heated oven, in which case it is not necessary to remove the deposits, they are completely harmless and will not affect your food in any way.

• Remove all accessories.

• Do not place tea towels or pot holders over the oven handle.

• appliance model (Mod.) • serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging.

! The programme may only be started once the oven door has been closed.

To enable the FAST CLEAN NORMAL mode (90 min.), turn the SELECTOR knob to . To enable the FAST CLEAN INTENSIVE mode (120 min.), turn the SELECTOR knob to . ! Select the FAST CLEAN INTENSIVE mode only when the oven is exceptionally soiled. Safety devices • The door is locked automatically as soon as the temperature exceeds a certain value. • Should a malfunction occur, the heating elements will switch off.
