Product Type	Air purifier
Brand	Philips
Model	AC4076
Dimensions (W x D x H)	590 x 400 x 240 mm
Weight	8.0 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	60 W (max)
Noise Level	20 - 50 dB
Filtration Stages	Pre-filter, Activated Carbon, HEPA, Nanoprotec
CADR (Clean Air Delivery Rate)	300 m³/h
Room Size Recommendation	Up to 60 m²
Fan Speeds	5 speeds (including turbo mode)
Filter Replacement Indicator	Yes
Filter Lifetime	Approx. 2 years (depending on usage)
Auto Mode	Yes, with AeraSense sensor
Sleep Mode	Yes
Child Lock	Yes
Safety Certifications	CE, WEEE
Maintenance	Clean pre-filter every 2 weeks; replace filters as indicated
Spare Parts Available	Replacement filters (type: AC4156, etc.)

Frequently Asked Questions - AC4076 PHILIPS

How often should I replace the filters on my Philips AC4076?

The HEPA and carbon filters typically need replacement every 2 years. The pre-filter should be cleaned every 2 weeks and replaced if damaged. The device has a filter replacement indicator to guide you.

What is the recommended room size for the AC4076?

The Philips AC4076 is suitable for rooms up to 60 square meters (approx. 650 sq ft). For optimal performance, use in a closed room.

Can I wash the HEPA filter?

No, the HEPA filter is not washable and must be replaced. Only the pre-filter can be vacuumed or washed with water.

How do I reset the filter replacement indicator?

After replacing the filters, press and hold the filter reset button (usually located on the control panel) for 3 seconds until the indicator turns off.

Why is my AC4076 making a loud noise?

Check if the pre-filter is clogged or if the fan is obstructed. Also ensure the device is on a flat, stable surface. If the noise persists, contact Philips support.

What does the auto mode do?

In auto mode, the purifier uses its AeraSense sensor to detect air quality and automatically adjusts the fan speed to maintain clean air.

Is it safe to leave the purifier on 24/7?

Yes, the Philips AC4076 is designed for continuous operation. It is energy-efficient and safe to run around the clock.

How do I clean the pre-filter?

Remove the front panel and take out the pre-filter. Vacuum it or rinse under running water. Let it dry completely before reinserting.

What is the power consumption of the AC4076?

The maximum power consumption is 60 watts. In sleep mode, it uses significantly less power.

Can I use the purifier without a filter?

No, operating without filters can damage the device and will not purify the air. Always use genuine Philips replacement filters.

USER MANUAL AC4076 PHILIPS

ZH-S User Manual 2

EN User Manual 19

Environmental friendly paper used. Thanks for your contribution to save trees.

Table of Contents

1 Important Safety Instructions 2

Safety 2

2 Your Air Purifier 4

Product Overview 4

Controls Overview 5

3 Getting Started 6

Installing the Filter 6

4 Using the Product 7

Understanding the Air Quality Indicator 7

Turning On and Off 8

Changing Auto Mode Settings 9

Changing the wind speed 9

Using the light on/off function 10

Setting the child lock 11

5 Cleaning 11

Cleaning schedule 11

Cleaning the product body 11

Cleaning the air quality sensor 12

Cleaning the pre-filter 12

6 Replacing the air purification filter 14

Understanding the Healthy Air Intelligent Lock 14

Replacing the filter 14

7 Storage 15

8 Troubleshooting 16

9 Warranty and service 18

Ordering parts or accessories 18

10 Notes 18

Electromagnetic fields (EMF) 18

Recycling 18

1 Important

Safety

A Display panel

E Front cover

B Air quality indicator

F Air quality sensor

Control buttons

2 Pull the top of the front cover to remove it from the product.

5 Put the pre-filter back inside the product.

Note

4 Using the product

Understanding the air quality indicator

Manual

2 Remove the protective cover of the air quality sensor.

Clean the pre-filter

Note

Note

4 Place the unpackaged air purification filter back into the product.

3 Getting started 25

Installing filters 25

4 Using the appliance 26

Understanding the air quality light 26

Turning on and off 27

Changing the Auto mode setting 28

Changing the fan speed 29

Using the light on/off function 30

Setting the child lock 30

5 Cleaning 31

Cleaning schedule 31

Cleaning the body of the appliance 31

Cleaning the air quality sensor 31

Cleaning the pre-filter 32

6 Replacing the air purification filter 34

Understanding the healthy air protect lock 34

Replacing the filter 34

7 Storage 35

8 Troubleshooting 36

9 Guarantee and service 38

Order parts or accessories 38

10 Notices 38

Electromagnetic fields (EMF) 38

Recycling 38

1 Important

Safety

Read this user manual carefully before you use the appliance, and save it for future reference.

Danger

• Do not let water or any other liquid or flammable detergent enter the appliance to avoid electric shock and/or a fire hazard.
• Do not clean the appliance with water, any other liquid, or a (flammable) detergent to avoid electric shock and/or a fire hazard.
• Do not spray any flammable materials such as insecticides or fragrance around the appliance.

Warning

- Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect the appliance.

- If the power cord is damaged, you must have it replaced by Philips, a service center authorized by Philips, or similarly qualified persons in order to avoid a hazard.

- Do not use the appliance if the plug, the power cord, or the appliance itself is damaged.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.

- Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in front of the air inlet.

• Make sure that foreign objects do not fall into the appliance through the air outlet.

Caution

- This appliance is not a substitute for proper ventilation, regular vacuum cleaning, or use of an extractor hood or fan while cooking.

- If the power socket used to power the appliance has poor connections, the plug of the appliance becomes hot. Make sure that you plug the appliance into a properly connected power socket.

- Always place and use the appliance on a dry, stable, level, and horizontal surface.

- Leave at least 20cm free space behind and on both sides of the appliance and leave at least 30cm free space above the appliance.

- Do not place anything on top of the appliance.

- Do not sit or stand on the appliance. Sitting or standing on the appliance may lead to potential injury.

- Do not place the appliance directly below an air conditioner to prevent condensation from dripping onto the appliance.

- Make sure all filters are properly installed before you switch on the appliance.

- Only use the original Philips filters specially intended for this appliance. Do not use any other filters.

- Combustion of the filter may cause irreversible human hazard and/or jeopardize other lives. Do not use the filter as fuel or for similar purpose.

- Avoid knocking against the appliance (the air inlet and outlet in particular) with hard objects.

- Always lift or move the appliance by the handle on back side of the appliance.

• - Do not insert your fingers or objects into the air outlet or the air inlet to prevent physical injury or malfunctioning of the appliance.
• - Do not use this appliance when you have used indoor smoke-type insect repellents or in places with oily residues, burning incense, or chemical fumes.
• - Do not use the appliance near gas appliances, heating devices or fireplaces. Always unplug the appliance after use and before cleaning, or carrying out other maintenance or replacing the filters.
• Do not use the appliance in a room with major temperature changes, as this may cause condensation inside the appliance. To prevent interference, place the appliance at least 2 meters away from electrical appliances that use airborne radio waves

such as TVs, radios, and radio-controlled clocks.

The appliance is only intended for household use under normal operating conditions.

Do not use the appliance in wet surroundings or in surroundings with high ambient temperatures, such as the bathroom, toilet, or kitchen.

The appliance does not remove carbon monoxide (CO) or radon (Rn). It cannot be used as a safety device in case of accidents with combustion processes and hazardous chemicals.

If you need to move the appliance, disconnect the appliance from the power supply first.

Do not move the appliance by pulling its power cord.

Always cleanse your hands after changing the filters.

2 Your air purifier

Congratulations on your purchase, and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

This appliance works with an air filtration system. Read this user manual carefully before you use the appliance, and save it for future reference.

Product Overview

A Display panel E Front cover

B Air quality light F Air quality sensors

C NanoProtect filter Pro S3 * (FY4152)

G Control buttons

D Pre-filter

*Hereinafter referred to as "air purification filter".

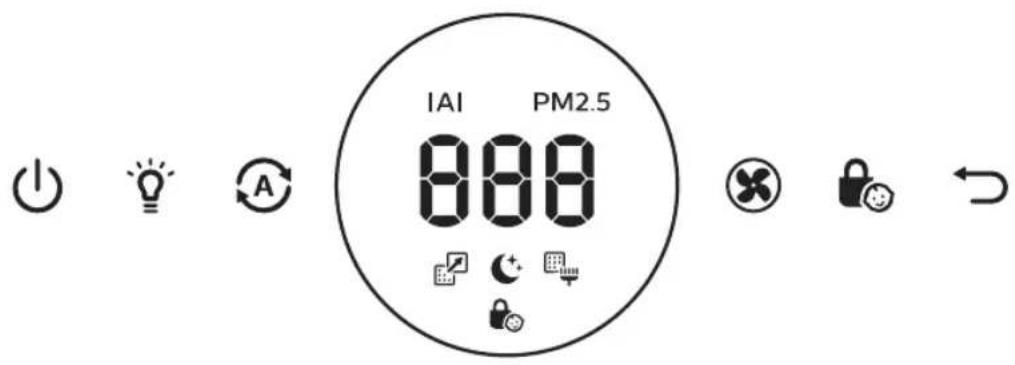

Controls overview

Control buttons

	Power on/off button Fan speed button
	Light on/off button Filter reset button
[H000]	Auto mode button		Child lock button

Display panel

IAI	Indoor Allergen Index display PM	PM25	display
[WDAB]	Filter replacement alert Sleep mod
	Pre-filter cleaning alert		Child lock indicator

3 Getting started

Installing filters

Remove all packaging of the filters before using the appliance. Unpack them and place them into the appliance as described below:

Note

- Make sure that you place the air purification filter in the appliance first and then the pre-filter. - Make sure that the side with the tag is pointing towards you when installing the filter.

1 Remove all packaging materials of the air purification filter.

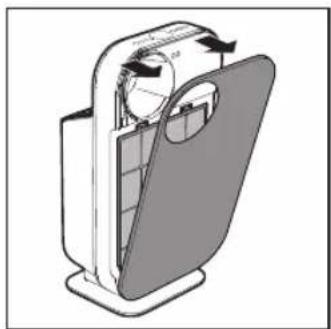

2 Pull the top part of the front cover to remove it from the appliance.

3 Press the two clips down and pull the pre-filter towards you.

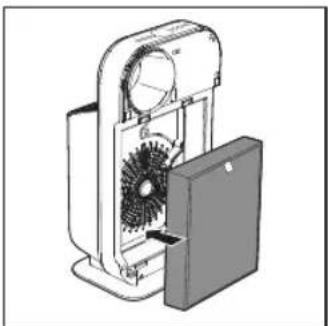

4 Put the unpacked air purification filter into the appliance.

5 Put the pre-filter back into the appliance.

Note

• Make sure that all hooks of the pre-filter are properly attached to the purifier.

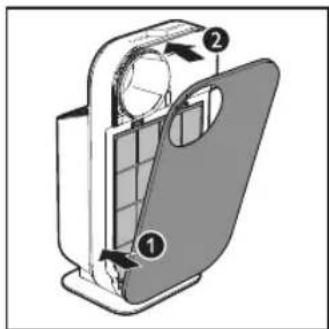

6 To reattach the front cover, mount the cover onto the bottom of the appliance first (1). Then, gently push the top of the cover against the body of the appliance (2).

4 Using the appliance

Understanding the air quality light

Air quality light color	Air quality level
Blue	Good
Blue-purple	Fair
Purple-red	Poor
Red	Very poor

The air quality light automatically goes on when the air purifier is switched on, and lights up all colors in sequence. After approximately 30 seconds, the air quality sensors select the color that corresponds to the surrounding air quality of airborne particles.

PM2.5

AeraSense sensing technology accurately detects and quickly responds to even the slightest particle change in the air. It provides you with reassurance with real-time PM2.5 feedback.

Most of the indoor air pollutants fall under PM2.5 – which refers to airborne particle pollutants smaller than 2.5 micrometers. Common indoor sources of fine particles are tobacco smoke, cooking, burning candles. Some airborne bacteria and the smallest mold spores, pet allergen and dust mite allergen particles also fall under PM2.5.

PM2.5 level Air quality light color
≤35 Blue
36-75 Blue-purple
76-115 Purple-red
>115 Red

|AI

The professional-grade AeraSense sensor detects the level of indoor air allergen and with numerical feedback from 1 to 12 the potential risk level of indoor air allergens can be displayed. 1 indicates best air quality.

IAI level Air quality	light color
1-3 Blue
4-6 Blue-purple
7-9 Purple-red
10-12 Red

Turning on and off

Note

• Always place the air purifier on a stable, horizontal, and level surface with the front of the unit facing away from walls or furniture. - For optimum purification performance, close doors and windows. - Keep curtains away from the air inlet or air outlet. - Do not block the inlet or outlet with clothing.

1. Plug the air purifier into a wall outlet.

→ The air purifier beeps. → All lights turn on once and then go out.

2. Touch the ⏻ button to switch on the appliance.

→ The air purifier operates under the Auto pollution mode by default. When the air purifier is warming up, "---" displays on the screen.

→ After 30 seconds, the air purifier shows the PM2.5 level on the screen. The air quality sensor automatically selects the appropriate air quality light color.

3. Touch and hold the button for 3 seconds to switch off the air purifier.

Note:

- If the air purifier stays connected to the electrical outlet after turning OFF, it will operate under the previous settings when turned ON again.

Changing the Auto mode setting

You can choose 2 auto modes: the Pollution mode and the Allergen mode.

Auto pollution mode

The specially designed auto pollution mode responds to real-time particle levels and effectively removes airborne pollutants such as PM2.5.

- Touch the Auto mode button Ⓐ to select the Auto pollution mode. → Then the PM2.5 level displays on the screen.

Auto allergen mode

The extra-sensitive Auto allergen mode is designed to react to even a small change in allergen levels in the surrounding air.

- Touch the Auto mode button Ⓐ to select the Auto allergen mode. → The IAI level displays on the screen.

Changing the fan speed

There are several fan speeds available.

When using the manual fan speed settings, the purifier will still monitor the air quality, but it will not automatically adjust the fan speed if it detects changes in the air quality.

Sleep mode ( Ⓐ

In sleep mode, the air purifier operates quietly at a very low speed.

- Touch the fan speed button select the sleep mode.

→ The "L" displays on the screen for 3 seconds and then disappears. → The sleep mode indicator goes on. → After 3 seconds, all the icons are off, only the sleep mode indicator goes on.

Manual

- Touch the fan speed button ✗ repeatedly to select the fan speed you need (speed 1 or speed 2):

→ After 3 seconds, the display shows the previous mode.

Tip

- If the air quality light lights up blue, it indicates that the air quality is good, and you can select a lower fan speed. On the other hand, if the air quality light lights up red-purple or red, it indicates that the air quality is unhealthy, and you can select a higher fan speed to purify the air more quickly.

Turbo(t)

In Turbo mode, the air purifier operates on the highest speed.

Touch the fan speed button to select Turbo mode (t).

The display shows the Turbo mode icon.

After 3 seconds, the display returns to the previous mode.

Using the light on/off function

With the light on/off button, you can switch on or off the air quality light, the display screen, and the function indicator if desired.

1. Touch the light on/off button once; the air quality light and all buttons will go off, and the screen will be dimmed.

2. Touch the light on/off button again; all lights will turn on again.

Setting the child lock

1. Touch and hold the child lock button for 3 seconds to activate the child lock.

The child lock icon displays on the screen.

When the child lock is on, all other buttons are not responsive.

2. Touch and hold the child lock button for 3 seconds again to deactivate the child lock.

The child lock icon disappears.

5 Cleaning

Note

• Always unplug the appliance before you clean it. - Never immerse the appliance in water or any other liquid. - Never use abrasive, aggressive, or flammable cleaning agents such as bleach or alcohol to clean any part of the appliance. - Only the pre-filter is washable. The air purifier filter is not washable nor vacuum cleanable.

Cleaning schedule

Frequency Cleaning method
When necessary	Wipe the surface of the appliance with a soft dry cloth
	Clean the air outlet cover
Every two months	Clean the air quality sensor with a dry cotton swab
When the pre-filter cleaning indicator lights up and F0 displays on the screen	Clean the pre-filter

Cleaning the body of the appliance

Regularly clean the inside and outside of the appliance to prevent dusts from collecting.

1 Wipe away dust with a soft dry cloth from the body of the appliance.

Cleaning the air quality sensor

Clean the air quality sensor every two months for optimal functioning of the appliance. Clean it more frequently if you use the appliance in a dusty environment.

Note

• If the air purifier is used in a dusty environment, it may need to be cleaned more often.
• If the humidity level in the room is very high, condensation may develop on the air quality sensor and the air quality light may indicate a more poor air quality even though the air quality is actually good. If this occurs, clean the air quality sensor or use the air purifier on a manual speed setting.

1 Clean the inlet and outlet of the air quality sensor with a soft brush.

2 Remove the air quality sensor cover.

3 Clean the air quality sensor, the dust inlet and the dust outlet with a damp cotton swab.

4 Dry all parts thoroughly with a dry cotton swab.

5 Reattach the air quality sensor cover.

Cleaning the pre-filter

Clean the pre-filter when lights up and F0 is displayed on the screen.

1 Switch off the air purifier and unplug from the wall outlet.

2 Pull the top part of front cover to remove it from the appliance.

3 Press the two clips down and pull the pre-filter towards you.

4 If the pre-filter is very dirty, use a soft brush to brush away the dust. Then wash the pre-filter under running tap water.

5 Allow the pre-filter to air dry thoroughly before placing back in the air purifier.

6 Put the pre-filter back into the appliance.

Note

• Make sure that the pre-filters are completely dry before you put them back in the appliance. If they are still wet, bacteria may multiply in them and shorten the lifetime of the pre-filters.

7 To reattach the front cover, mount the cover onto the bottom of the appliance first (1). Then, gently push the top of the cover against the body of the appliance (2).

8 Put the plug of the air purifier in the wall outlet.

9 Touch the ⏻ button to switch on the appliance.

10 Touch and hold the reset button ← for 3 seconds to reset the pre-filter cleaning time.

11 Wash your hands thoroughly after installing filters.

6 Replacing the air purification filter

Understanding the healthy air protect lock

This air purifier is equipped with a filter replacement indicator to make sure that the air purification filter is in optimal condition when the air purifier is operating. When the filters need to be replaced, the filter code displays on the screen and the filter replacement alert lights up red. If the filters are not replaced in time, the air purifier will stop operating and automatically lock to protect the air quality in the room. Replace the filters as soon as possible according to the filter code.

Replacing the filter

Note

• The air purification filter is not washable or reusable. • Always turn off the air purifier and unplug from the electrical outlet before replacing the filters. - Do not clean the filters with a vacuum. - If the pre-filter is damaged, worn or broken, do not use. Visit www.philips.com/support or contact the Consumer Care Center in your country.

Filter alert light status	Action
A3 displays on the screen and the filter replacement alert ☑ Boes on.	Replace the NanoProtect filter Pro S3 (FY4152)

1 Take out the pre-filter on the appliance. 2 Take out the expired filter. Discard used filter.

Note

- Do not touch the pleated filter surface, or smell the filter as it has collected pollutants from the air.

3 Remove all packaging material of the new filter.

4 Put the unpacked air purification filter back into the appliance.

5 Put the plug of the air purifier in the power socket.

6 Touch the ⏻ button to switch on the appliance.

7 Touch and hold the reset button for 3 seconds to reset the filter lifetime counter

Note

- Wash your hands after changing a filter.

7 Storage

1 Turn off the air purifier and unplug from the wall outlet.

2 Clean the air purifier, air quality sensor and pre-filter (see chapter 'Cleaning').

3 Let all parts air dry thoroughly before storing.

4 Wrap the filters and pre-filter separately in air tight plastic bags.

5 Store the air purifier, filters and pre-filters in a cool, dry location.

6 Always thoroughly wash hands after handling filters.

8 Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Center in your country.

Problem Possible solution
The appliance does not work even though it is plugged in.	·Check if the top cover is properly installed.·The filter replacement light has been on continuously but you have not replaced the corresponding filter. As a result, the appliance is now locked. In this case, replace the filter and reset the filter lifetime counter.
The airflow that comes out of the air outlet is significantly weaker than before.	·The pre-filter is dirty. Clean the pre-filter (see the chapter "Cleaning").
The air quality does not improve, even though the appliance has been operating for a long time.	·Check if the packing material is removed from the filters.·One of the filters has not been placed in the appliance. Make sure that all filters are properly installed in the following order, starting with the innermost filter: 1) NanoProtect filter Pro S3 (FY4152); 2) pre-filter.·The air quality sensor is wet. The humidity level in your room is high and causes condensation. Make sure that the air quality sensor is clean and dry (see the chapter "Cleaning").
The color of the air quality light always stays the same.	·The air quality sensor is dirty. Clean the air quality sensor (see the chapter "Cleaning").

Problem Possible solution

The appliance produces a strange smell.	· The first few times you use the appliance, it may produce a plastic smell. This is normal. However, if the appliance produces a burnt smell even if removing filters, contact your Philips dealer or an authorized Philips service center. The filter may produce smell after being used for a while because of the absorption of indoor gases. It's recommended that you reactivate the filter by putting it in direct sunlight for repeated use. If odor still exists, replace the filter.
The appliance is extra loud.	· If the appliance is too loud, you can change the fan speed to a lower fan speed level. When using the appliance in a bedroom at night, choose the silent speed.
The appliance still indicates that I need to replace a filter, but I already did.	· Perhaps you did not reset the filter lifetime counter. Switch on the appliance. Then touch and hold the reset button ( ↗) for 3 seconds.
Error code "E1" displays on the screen.	· The motor has malfunctions. Contact the Consumer Care Center in your country.
Error codes "E2", "E3", "E4" or "E5" displays on the screen.	· The sensor has malfunctions. Contact the Consumer Care Center in your country.

9 Guarantee and service

If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Center in your country (you can find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Center in your country, go to your local Philips dealer.

Order parts or accessories

If you have to replace a part or want to purchase an additional part, go to your Philips dealer or visit www.philips.com/support.

If you have problems obtaining the parts, please contact the Philips Consumer Care Center in your country (you can find its phone number in the worldwide guarantee leaflet).

10 Notices

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Recycling

Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.
