Product Type	Bookshelf Speaker
Model	Reference Premiere RP-160M
Configuration	2-Way Bass Reflex
Tweeter	1-inch Titanium LTS Vented
Woofer	6.5-inch Copper-Spun Cerametallic Cone
Frequency Response	45 Hz - 25 kHz ±3 dB
Sensitivity	95 dB @ 2.83V / 1m
Power Handling (Continuous)	100 Watts
Power Handling (Peak)	400 Watts
Impedance	8 Ohms Compatible
Crossover Frequency	1,500 Hz
Enclosure Type	Bass Reflex via Rear-Firing Port
Inputs	Dual Binding Posts (Bi-wire/Bi-amp capable)
Dimensions (H x W x D)	14.5 x 7.68 x 10.34 inches (368 x 195 x 263 mm)
Weight	15 lbs (6.8 kg) each
Main Functions	High-fidelity audio reproduction for stereo and home theater
Maintenance & Cleaning	Wipe with a dry cloth; avoid solvents or abrasive cleaners
Safety Precautions	Place on stable surface; avoid exposure to moisture or extreme temperatures
Spare Parts & Repairability	Contact Klipsch authorized service centers for replacement drivers or parts
General Information	Part of the Reference Premiere series known for superior clarity and dynamics

Frequently Asked Questions - Reference Premiere RP-160M KLIPSCH

How should I position the RP-160M speakers for best sound?

Place them at ear level when seated, at least 6-12 inches from walls to avoid bass boom. Angle them slightly toward the listening position for optimal imaging.

Can I use the RP-160M as surround speakers in a home theater setup?

Yes, the RP-160M works as front, center, or surround speakers. Their wide dispersion and high sensitivity make them versatile for any channel.

What amplifier power is recommended for the RP-160M?

An amplifier delivering 20-100 watts per channel is ideal. The speaker handles up to 100W continuous, but even low-powered tube amps can drive them thanks to 95dB sensitivity.

Do I need to break in the RP-160M speakers?

Klipsch recommends a break-in period of 20-40 hours at moderate volume. This allows the suspension and driver components to reach optimal performance.

Can I bi-wire or bi-amp the RP-160M?

Yes, the dual binding posts allow bi-wiring or bi-amping. Remove the jumpers to split the signal to the tweeter and woofer independently.

What is the recommended listening distance for the RP-160M?

For best results, sit 6-10 feet away. The speaker's transition frequency and dispersion are optimized for typical near-field to mid-field listening.

How do I clean the RP-160M cabinet?

Use a soft dry microfibre cloth to gently dust the cabinet. Avoid chemical cleaners which may damage the wood veneer or painted finish.

Are the RP-160M speakers magnetically shielded?

No, they are not shielded. Keep them at least 12 inches away from CRT TVs or magnetic media to avoid interference.

What type of speaker wire should I use with the RP-160M?

Use quality 14-16 AWG speaker wire for runs up to 50 feet. For longer distances, use 12 AWG to minimize resistance and signal loss.

Can I mount the RP-160M on a wall?

The RP-160M is designed for bookshelf or stand placement. For wall mounting, use a sturdy bracket that supports its weight (15 lbs) and secure to studs.

USER MANUAL Reference Premiere RP-160M KLIPSCH

USER MANUAL

Klipsch®

REFERENCE

PREMIERE

1/2 = 1/2( x/2 - y/2 ) + 1/2( z/2 - x/2 ) + 1/2( z/2 - x/2 ) + 1/2( z/2 - x/2 ) + 1/2( z/2 - x/2 ) + x/2( z/2 - x/2 ) + x/2( z/2 - x/2 ) + x/2( z/2 - x/2 ) + x/2( z/2-x/2 ) + x/2( z/2-x/2 ) + x/2( z/2-x/2 ) + x/2( z/2-x/2 ) + x/2( z/3-x/3 ) + x/3( z/3-x/3 ) + x/3( z/3-x/3 ) + x/3( z/3-x/3 ) + x/3( z/3-x/3 ) + 0. 1,1

REFERENCE (n):

1) the standard, the benchmark, the point used for comparison
2) the embodiment of the legendary Klipsch sound

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound. Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch Reference Series.

We are the Keepers of the Sound®.

ENGLISH

REFERENCE PREMIERE SPEAKERS

BEFORE YOU START

Some Klipsch ^® speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2, 3 and 4 for installation.

ROOM PLACEMENT

Left and Right Main Channel Speakers – For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

Center Channel Speakers – Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers – Klipsch WDST surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

CONNECTION

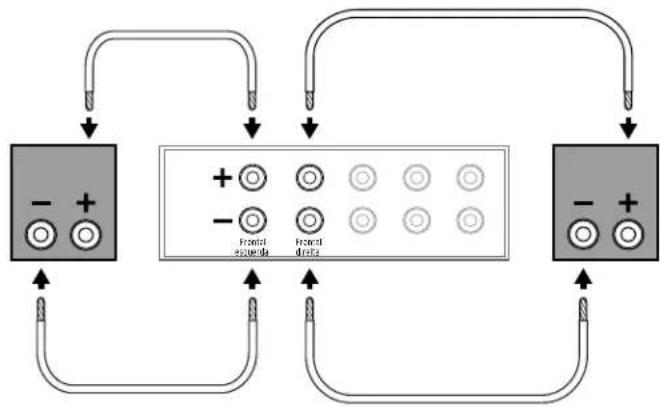

Conventional Connection – Using 16-12 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (-) terminal of the LEFT speaker to the BLACK "negative" (-) terminal of your amplifier's LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Reference Premiere models RP-280F, RP-260F, RP-250F and RP-160M are equipped with dual binding posts. If single wire connection is used, the terminal connecting bar should remain in place. If Bi-wire or Bi-amp connection is used, the terminal connecting bar must be removed. Please see your receiver's manual for further instructions.

Amplifier Requirements – Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

FIGURE 1 SPEAKER PLACEMENT IN LISTENING AREA

FIGURE 2 CENTER CHANNEL

FIGURE 3 STANDARD CONNECTIONS

FIGURE 4 WALL MOUNTING

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

RP-140SARP-280FA

1 MANDATORY
2 SECONDARY
3 OPTIONAL

SPEAKER PLACEMENT IN LISTENING AREA

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

The RP-140SA can be added to any passive loudspeaker setup.
CAUTION! Do not use keyhole for ceiling mounting!

10

2.5" - 3" panhead wood screws Mount in wall stud or use anchors - leave 1/4" exposed

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register
- Keep up-to-date on new products and promotions.
- Your personal information will never be resold.
- This registration information is not used for warranty purposes.
Please retain your receipt for warranty claims.
