Brand	JVC
Model	TM-A101G
Category	Monitor
Product Type	Professional CRT Monitor
Screen Size	10 inches (diagonal)
Display Type	Color CRT
Aspect Ratio	4:3
Resolution (TV Lines)	450 lines (horizontal)
Inputs	Composite (BNC) x2, S-Video (4-pin mini DIN)
Outputs	Loop-through BNC (composite)
Power Supply	AC 120V, 60Hz
Power Consumption	65W (approx)
Dimensions (W x H x D)	8.7 x 10.2 x 12.6 inches
Weight	13.2 lbs (6 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Mounting Options	Desktop, optional rack mount kit
Built-in Speakers	Yes, mono speaker (0.5W)
Front Panel Controls	Power, Volume, Brightness, Contrast, Tint, Color, Sharpness
Special Features	Underscan/Overscan, Blue Only, Pulse Cross, On-Screen Menu
Included Accessories	Power cord, BNC-to-RCA adapter
Compliance	UL, FCC Class B

Frequently Asked Questions - TM-A101G JVC

How do I connect a composite video source to the TM-A101G?

Use a BNC cable (or RCA-to-BNC adapter) to connect the video output to the Composite Input (labeled VIDEO IN). Select the corresponding input via the front panel or menu.

Can I connect a DVD player or game console via S-Video?

Yes, connect the S-Video cable from your device to the S-Video (Y/C) input on the rear. The monitor will automatically detect the signal.

What does the 'Blue Only' mode do?

Blue Only turns off the red and green electron guns, displaying only the blue channel. It is useful for adjusting tint and color balance using color bars.

How do I clean the CRT screen?

Turn off the monitor and unplug it. Wipe the screen gently with a soft, dry microfiber cloth. For stubborn marks, dampen the cloth slightly with distilled water. Do not use harsh chemicals.

Why is there no picture but the power LED is on?

Check that the video source is turned on and connected properly. Ensure the correct input is selected. Try adjusting Brightness and Contrast controls. If still blank, test with another source.

What is the difference between Underscan and Overscan?

Overscan enlarges the image slightly beyond the visible area (standard for TV). Underscan shrinks the image to show the full frame, including edges, useful for production.

Can I mount this monitor on a wall?

The TM-A101G is designed for desktop use. For wall or rack mounting, use the optional JVC Rack Mount Kit (model number may vary).

How do I adjust the speaker volume?

Turn the Volume knob on the front panel clockwise to increase, counterclockwise to decrease. The speaker is mono and located on the front.

What power cord does the TM-A101G use?

It uses a standard IEC C13 power cord (often called a 'kettle plug') rated for 10A. The monitor works with 120V AC 60Hz.

Is there a remote control available?

The TM-A101G does not include a remote control. All functions are accessed via the front panel buttons and knobs.

USER MANUAL TM-A101G JVC

OPERATING INSTRUCTIONS

JVC

COLOR VIDEO MONITOR

TM-A101G

INSTRUCTIONS

For Customer Use:

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

In order to prevent any fatal accidents caused by misoperation or mishandling the monitor, be fully aware of all the following precautions.

WARNINGS

To prevent fire or shock hazard, do not expose this monitor to rain or moisture. Dangerous high voltages are present inside the unit. Do not remove the back cover of the cabinet. When servicing the monitor, consult qualified service personnel. Never try to service it yourself.

WARNING: THIS APPARATUS MUST BE EARTHED.

Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB(A) according to ISO 7779.

Improper operations. In particular alternation of high voltage or changing the type of tube may result in x-ray emission of considerable dose. A unit altered in such a way no longer meets the standards of certification, and must therefore no longer be operated.

This monitor is equipped with a 3-blade grounding-type plug to satisfy FCC rule. If you are unable to insert the plug into the outlet, contact your electrician.

FCC INFORMATION (U.S.A. only)

CAUTION: Changes or modifications not approved by JVC could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Notice (U.S.A. only)

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: http://www.ciac.org

PRECAUTIONS

- Use only the power source specified on the unit. (120 V AC/230 V AC, 50 Hz/60Hz)

- When not using this unit for a long period of time, or when cleaning it, be sure to disconnect the power plug from the AC outlet.

- Do not allow anything to rest on the power cord. And do not place this unit where people will tread on the cord. Do not overload wall outlets or power cords as this can result in a

fire or electric shock. - Avoid using this unit under the following conditions:

– in extremely hot, cold or humid places.

- in dusty places,

- near appliances generating strong magnetic fields,

– in places subject to direct sunlight,

- In daily ventilated places, in automobiles with doors

- In automobiles with doors closed.

- Do not cover the ventilation slots while in operation as this could obstruct the required ventilation flow.

- When dust accumulates on the screen surface, clean it with a soft cloth.

- Unplug this unit from the AC outlet and refer servicing to qualified service personnel under the following conditions: - when the power cord is damaged or the plug is damaged,

- if liquid has been spilled into the unit, - if the unit has been dropped or the cabinet has been damaged,

- when the unit exhibits a distinct change in performance. - Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Always refer servicing to qualified service personnel.

- When replacement parts are required, have the service personnel verify in writing that the replacement parts have the same safety characteristics as the original parts. Use of manufacturer's specified replacement parts can prevent fire, shock, or other hazards.

- Upon completion of any servicing or repair work to this unit, please ask the service personnel to perform the safety check described in the manufacturer's service literature.

- When this unit reaches the end of its useful life, improper disposal could result in a picture tube implosion. Ask qualified service personnel to dispose of this unit.

POWER CONNECTION

The power supply voltage rating of this product is AC 120 V (For U.S.A. and Canada only) and AC 230 V (For European countries or United Kingdom), the power cord attached conforms to the following power supply voltage and countries. Use only the power cord designated to ensure Safety and EMC regulations of each country.

Power cord

Power supply voltage : AC 120 V AC 230 V AC 230 V

Countries : U.S.A. and Canada European countries United Kingdom

Warning:

- Do not use the same Power Cord for AC 120 V as for AC 230 V. Doing so may cause malfunction, electric shock or fire.

Note for the United Kingdom power cord only

The plug on the United Kingdom power cord has a built-in fuse. When replacing the fuse, be sure to use only a correctly rated approved type, re-fill the fuse cover. (Consult your dealer or qualified service personnel.)

How to replace the fuse

Open the fuse compartment with the blade screw driver, and

replace the fuse.

(* An example is shown in the illustration.)

SCREEN BURN

- It is not recommended to keep a certain still image displayed on screen for a long time as well as displaying extremely bright images on screen. This may cause a burning (sticking) phenomenon on the screen of cathode-ray tube. This problem does not occur as far as displaying normal video playback motion images.

CONTENTS

SAFETY PRECAUTIONS 2

CONTROLS AND FEATURES .... 4

HOW TO HANDLE BASIC OPERATIONS .... 7

HOW TO USE THE MENU FUNCTIONS....8

HOW TO INITIALIZE THE SETTING....11

BASIC CONNECTION EXAMPLE....12

TROUBLESHOOTING.... 13

SPECIFICATIONS 14

CONTROLS AND FEATURES

FRONT VIEW

1 Chroma/Phase button

CHROMA PHASE

Press this button to activate the picture color density adjustment mode or picture hue adjustment mode. Each time you press the button, the adjustment item changes. Picture color density → Picture hue

Adjust the value with the VOLUME/SELECT buttons 1. Also used as a control button in the menu function mode.

2 Contrast/Brightness button [CONTRAST] BRIGHT

Press this button to activate the picture contrast adjustment mode or picture brightness adjustment mode. Each time you press the button, the adjustment item changes.

Picture contrast → Picture brightness

Adjust the value with the VOLUME/SELECT buttons 3. Also used as a control button in the menu function mode.

3 Volume/Select buttons

[VOLUME/SELECT - △+]

Adjusts the speaker volume. Also used as a control button in the menu function mode.

4 Menu button [MENU]

Displays and hides the

screen. Pressing the CHROMA/PHASE button [1] with the Menu button depressed will display the screen.

5 Input A (VIDEO) button [INPUT SELECT A]

Selects the video and audio signals input to the VIDEO A and AUDIO A terminals on the rear panel. The button lights when selected.

6 Input B (VIDEO) button [INPUT SELECT B]

Selects the video and audio signals input to the VIDEO B and AUDIO B terminals on the rear panel. The button lights when selected.

7 Power indicator

Lights in green when the power is ON.

Lit: When the power is on.

Unlit: When the power is off.

8 Power switch [POWER]

Press this switch to turn the power on or off.

- ON: Power is turned on.

- OFF: Power is turned off.

9 Speaker

A built-in speaker is located inside the left side panel

when the monitor is viewed from the front.

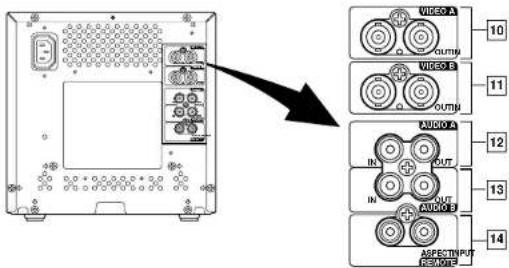

REAR VIEW

10 Video A terminals [VIDEO A IN/OUT]

Video signal input (IN) and output (OUT) terminals. The output terminal is bridge-connected. IN : Video signal input terminal

OUT : Bridge connected video signal output terminal

Notes:

* For corresponding audio signals, use the AUDIO A terminals [12].

* Also refer to BASIC CONNECTION EXAMPLE on page 12.

11 Video B terminals [VIDEO B IN/OUT]

Video signal input (IN) and output (OUT) terminals. The output terminal is bridge-connected.

OUT : Bridge-connected video signal output terminal

Notes:

* For corresponding audio signals, use the AUDIO B

terminals ①. * Also refer to BASIC CONNECTION EXAMPLE on page 12.

12 Audio A terminals [AUDIO A IN/OUT]

Input (IN) and output (OUT) terminals for the audio signal corresponding to the VIDEO A terminals [10].

The output terminal is bridge-connected.

IN: Audio signal input terminal OUT: Bridge-connected audio signal output terminal

Notes:

* For corresponding video signals, use the VIDEO A

terminal.

* Also refer to BASIC CONNECTION EXAMPLE on page 12.

13 Audio B terminals [AUDIO B IN/OUT]

Input (IN) and output (OUT) terminals for the audio signals corresponding to the VIDEO B terminals [1]. The output terminal is bridge-connected.

IN: Audio signal input terminal OUT: Bridge-connected audio signal output terminal

Notes:

* For corresponding video signals, use the VIDEO B terminals.

* Also refer to BASIC CONNECTION EXAMPLE on page 12.

14 Remote terminals

[REMOTE INPUT, ASPECT]

Remote terminals for external control. Selecting VIDEO A or VIDEO B and ASPECT RATIO is available via external control. External control is set in the screen.

To use external control, you must build a switch cable and connect it to the REMOTE terminals.

External control functions	External control switch
	Open circuit C (open)	closed circuit (short)
ASPECT RATIO 4-3 (4:3) 16-9 (16:9)
INPUT INPUT A INPUT B

Note:

- Also refer to BASIC CONNECTION EXAMPLE on page 12.

I CONTROLS AND FEATURES (cont'd)

REAR VIEW

15 AC inlet [AC IN]

Power input connector. Connect the provided AC power cord to an AC outlet (120 V AC or 230 V AC, 50 Hz/80 Hz).

16 Power cord

Connects the provided power cord (120 V AC or 230 V AC, 50 Hz/60 Hz) to the AC IN connector

In North America (USA and Canada), this monitor comes with one power cable. In Europe and the United Kingdom, two power cables are provided (one for use in continental European countries and the other for the UK). Be sure to use the power cable that is appropriate for the AC outlets used in your region. If none of the power cables provided is suitable, please contact your dealer or qualified service personnel to obtain the correct type of power cable.

I HOW TO HANDLE BASIC OPERATIONS

BASIC OPERATION

1. Press the POWER switch to turn on the power.

1. Press the INPUT SELECT buttons to choose input. Select video/audio signals input to terminals on the rear panel. The selected button lights in green.

INPUT SELECT button	Terminals on the rear panel
	Video signal input	Audio signal input
Input A (VIDEO)	VIDEO A terminal	AUDIO A terminal
Input B (VIDEO)	VIDEO B terminal	AUDIO B terminal

1. Press the VOLUME/SELECT buttons to adjust the speaker volume.

Press this button to display the speaker volume level on the screen. +: The Built-in speaker volume is increased. (00 → 50) -: The Built-in speaker volume is decreased. (50 → 00) * Screen indication will disappear about 10 seconds after operating or immediately when you press the MENU button.

About the STATUS indication ● With the COLOR SYSTEM setting set to AUTO mode, when you turn on the power or select inputs. The color system indication appears for about 8 seconds on the screen while PAL or NTSC signals are being detected. It does not appear when receiving a B/W signal or when no signal is input. Refer to page 8 for more information about COLOR SYSTEM setting and page 9 for more information about STATUS indication setting.

PICTURE ADJUSTMENT

1. Press select buttons corresponding to the item you want to adjust.

The item you select is displayed on the screen. (1) Phase control: Press the CHINOVA-PHASE button once. (2) Chroma control: Press the CHINOVA-PHASE button once. (3) Brightness control: Press the CONTRAST-BRIGHT button once. (4) Contrast control: Press the CONTRAST-BRIGHT button once.

1. Adjust with the VOLUME/SELECT buttons.

Items	VOLUME/SELECT button
	- +
PHASE (Phase)	reddish greenish
CHROMA (Chrona)	lighter deeper
BRIGHT (Brightness)	darker brighter
CONTRAST (Contrast)	lower higher

* Screen indication will disappear about 10 seconds after operating or immediately when you press the MENU button.

Notes:

• Phase control is effective only in the NTSC color system mode.
• Chroma control is not effective when receiving B/W or when no signal is
• When CHROMA is adjusted to "-20," the picture becomes into colorful.
• 'NO EFFECT' is displayed (for about 3 seconds) when your selected function has no effect.

HOW TO USE THE MENU FUNCTIONS

DISPLAY AND SELECTION IN THE SCREEN MODE (SETTING)

You can set the following menu items.

Set them depending on your needs.

• SHARPNESS • ASPECT RATIO

• COLOR SYSTEM

1. Press the MENU button.

The

screen is displayed.

-

2. Press the CHROMA/PHASE or CONTRAST/BRIGHT button to select MENU items.

A selection mark (▶) is put next to the selected item. ② CHRONA CONTRAST

PHASE	BRIGHT
SHIFTING
QUICK SYSTEM
ASTROOT DATE

Front panel button	Function displayed	Contents
CHROMA/PHASE	▼	Forward selection mark (▶)
CONTRAST/BRIGHT	▲	Reverse selection mark (▶)

Front page buttons>

Selection mark (▶) Indicates the

menu item you select.

②Menu Item: Menu Items you can

select.

③ Batting display: Indexes the current

settings (value)

① Function display: The functions of

the front panel buttons (10 buttons on

the 14th is

3. Press the VOLUME/SELECT buttons to set.

VOLUME/SELECT - +

Front panel Function button	displayed	Contents
VOLUME/SELECT (-)	↑	Increase (to max. value)
	▶	Forward the setting value
VOLUME/SELECT (-)	-	Decrease (to min. value)
	◀	Reverse the setting value

Menu Items	Purpose	Setting range
SHARDNESS	Picture sharpness	0D → 1 → → 1M → 1K
COLOR SYSTEM	Color system	Auto — ATSC — PAL
ASPECT RATIO Aspect ratio		4-3-16-9

4. If you want to set the other menu items, repeat procedures 2 and 3.

5. Press the MENU button to quit.

Front panel Function button	displayed	Contents
MENU	EXIT	Quit (or Release) the <MENU> screen

■ When the screen aspect ratio is set to

1. 9 (16:9) in ASPECT RATIO, the

picture will be vertically reduced.

- When ASPECT REMOTE is set to ON in the SET-UP MENU screen, REMOTE is displayed in ASPECT RATIO. ASPECT RATIO cannot be set in the MENU when ASPECT REMOTE is ON.

DISPLAY AND SELECTIONS IN THE MODE (SETTING)

You can set the following set-up menu items.

• H. POSITION

- WHITE BALANCE

• CONTROL_LOCK

- STATUS DISPLAY

• INPUT REMOTE

-ASPECT REMOTE

Note:

- Parameter for H. POSITION can be set separately depending on the video input (Input A (VIDEO) or Input B (VIDEO)) selected by the input select buttons on the front panel.

Select the required video input with the input select buttons on the front panel in advance.

1. While pressing the MENU button, press the CHROMA/PHASE button.

The screen is displayed.

[Non-Text]

[Non-Text]

[Non-Text]

① Selection mark (▶): Indicates the menu item you select. ① Many Item: Many Home you can xin ③ Sailing display (index) current settings (value). ① Function display: The functions of the front panel buttons [5 buttons] on the left correspond to the function displayed

2. Press the CHROMA/PHASE or CONTRAST/BRIGHT button to select the desired menu item.

● CHROMA CONTRAST ● A selection mark (▶) is placed next to the selected item.

Front panel Function button	displayed	Contents
CHROMA/PHASE	▼	Forward selection mark (▶)
CONTRAST/BRIGHT	▲	Reverse selection mark (▶)

3. Press the VOLUME/SELECT buttons to set.

Front panel button	Function displayed	Contents
VOLUME/ SELECT (+)	+	Increase (to max. value)
	▶	Forward the setting value
	CUTO	Selects CUT OFF setting screen
VOLUME/ SELECT (-)	-	Decrease (to min. value)
	◀	Reverse the setting value
	DIV	Selects DRIVE setting screen

Notes:

• To adjust the white balance, select WHITE BALANCE and

press the VOLUME/SELECT (1) or (-) button to display the

CUT OFF or DRIVE setting screen, then adjust each setting.

- Press the EXIT (MENU) button to return to the <SET-UP

MENU> screen.

Function displayed	Contents
▼	Forward the menu item.
▲	Resource the menu item.
-	Lower the adjustment value. (to the minimum)
+	Ratio the adjustment value. (to the maximum)
▼	Forward the setting value.
◀	Resource the setting value.
EXIT	From the OFFSET INPUTS action (release).
DRY Select DRIVE adjustment
CUTO	Selects OUT OFF adjustment.
RGB	Adjusts rod and blue signal level.
RGB	Adjusts rod, green and blue signal level.
DISP	Turns the ON-SCREEN pressing in oil. (The counter is effective only in the DRIVE or OUT OFF adjustment mode.)

HOW TO USE THE MENU FUNCTIONS (cont'd)

Set-up menu items		Purpose	Settings
H. POSITION		Adjusts the horizontal position of the screen (+:- Horizontal position shifts to the right(-: Horizontal position shifts to the left))	-06←-04→······+01=00←-01=······+04=+05
WHITE BALANCE		Adjusts the white balance	Selects DRIVE (DRV) or CUT OFF (CUTO) adjustment.Screen setting is changed to the selected setting mode
DRIVE	R DRIVE	Adjusts rod level	-09←-08→······+01=00←-01=······+38←+38
	B DRIVE	Adjusts blue level	-09←-08→······+01=00←-01=······+38←+38
CUT OFF	L CUT OFF	Adjusts rod cut off	-09←-08→······+01=00←-01=······+38←+38
	G CUT OFF	Adjusts green cut off	-09←-08→······+01=00←-01=······+38←+38
	B CUT OFF	Adjusts blue cut off	-09←-08→······+01=00←-01=······+38←+38
CONTROL LOCK		Sets the operation buttons on the front panel to control lock mode	OFF←ON
STATUS DISPLAY		Sets the status display of the color system	ON←OFF
INPUT REMOTE		Sets external control of input selection (INPUT A/B)	OFF←ON
ASPECT REMOTE Sets external control of the aspect ratio			OFF←ON

1. To set the other set-up menu items, repeat procedures 2 and 3.
2. Press the MENU button to quit.

MENU	Front panel button	Function displayed	Contents
	MENU	EXIT	Quit (or Release) thescreen

Notes:

■ When the CONTROL LOCK function is

S&P 50 CN, Crossing Operation Euronics to the (ren) panel will display the

message CONTROL LOCK ON" an

The order for 80% 3 seconds.

maintained even when the power is

lumped oil.

- To turn off the CONTROL LOCK

TURSD, while holding this MLND SUISS over the CHROM/THASE button

Due set to CONTROL LOCK Lgrice

bOFF

• Even when the CONTROL LOCK

lucation is set in CN, the following

operations are available:

Power switch operating volume control with the VOLUME

SELECT b three

External control with

REMOTE OR ASPECT REMOTE IS

Valid • Check any disagreement of the .EST.LIF

- Display of Desktop or the RESET OF MENU, screen

■ The STATUS DISPLAY LINESE CAN BE

set to display (ON) or not display (OFF)

The present color system when the power is burned on or the level channel is

power is called off of the power signals is charged. Belts to issue 7 for more

iriforme

- When the INPUT REMOTE function is

valid (ON), pressing the input A of level B is these will display the reason

ITEMS: 10000000000000000000000000000000000000000000000

3 seconds.

• To reach INPUT REMOTE or ASPFCT

REACTE. Select the function of 1% SET UP MENH, versus and set in

HOW TO INITIALIZE THE SETTING

SCREEN DISPLAY AND SELECTIONS IN THE RESET MODE

You can set

and screen items, picture adjustment items and the volume level to their factory-set (initial) values.

1. Press the Power (①) switch to turn the power OFF (■).

1. While pressing both MENU button and CHROMA/PHASE button, press the Power (①) switch to turn the power ON (—).

The RESET screen is displayed. * The screen automatically disappears when no operation is performed after about 5 minutes.

- The RESET screen will not be displayed if the MENU or CHROM/PHASE buttons are pressed for a very short time. Keep pressing them until the display screen appears.

1. Setting

● Initialization is required.

Press the VOLUME/SELECT (−) button. * Initialization is completed, and the RESET screen disappears.

● Initialization is not required.

Press the MENU button. * Initialization is aborted, and the RESET screen disappears.

RESET screen

→SET-UP MENU→RESET

Are you sure?

'Yes' then <is>

'No' then <MENIs>

Initial settings

Name	FUNCTIONS (Items)	Initialization (setting)
UNITED BY:	SHARPNESS 63COLOR ASPECT RATIO 4-9	AUTO
	H. POSITION 00WHITE BALANCER. CUT OFF 00G. CUT OFF 00D. CUT OFF 00R. DRIVE 00B. DRIVE 00CONTRI LOCK OFFSTATUS DISPLAY ONINPUT REMOTE OFFASPECT REMOTE OFF
	PHASE 00CHROMA 00CONTRAST 00DRIGHT 00
	VOLUME 20

I BASIC CONNECTION EXAMPLE

Notes:

* Before connecting your system, make sure that all units are turned off. The illustration below shows some examples of different connections. Terminal connections may differ depending on the component connected. Be sure to refer to the instructions provided with the unit you are connecting. Each pair of input (IN) and output (OUT) terminals are bridge connected. If you are not connecting any equipment to a bridged output (OUT) terminal, be sure not to connect any other cables to the bridged output (OUT) terminal on this unit, and set the termination condition switch to open to an incremental level. When making a bridge connection, connect the input (IN) and output (OUT) terminals on the monitor to separate video components. For example, if both terminals are connected to the same VCR, resonance may occur except during playback. This is caused by the same video signal "tipping" between the VCRs, and is not a malfunction. Select the input as INPUT A (VIDEO) or INPUT B (VIDEO). The ASPECT RATIO or INPUT A/B settings can be controlled via the REMOTE terminal by setting ASPECT REMOTE or INPUT REMOTE in the SET-UP MENUS screen to valid. (Refer to pages 5 and 10.)

■ VIDEO A Connection Example (Select Input A (VIDEO))

12

I TROUBLESHOOTING

Solutions to common problems related to your monitor are described here. If none of the solutions presented here solves the problem, unplug the monitor and consult a JVC-authorized dealer or service center for assistance.

Problems	Points to be checked	Measures (Remedy)
No power supply.	Is the power plug focused or disconnected?	Firmly insert the power plug.
No picture with the power on.	Is the video signal output from the connected component?	Set the connected component correctly.
	Is the input signal selected property?	Select the required video signal input with the input socket button. (See page 7.)
	Is the video cable disconnected?	Connect the video signal cable firmly. (See page 12.)
No sound.	Is the audio signal output from the connected component?	Set the connected component correctly.
	Is the volume output set to minimum?	Adjust the speaker volume with the VOLUME/ SELECT button. (See page 7.)
	Is the audio cable disconnected?	Correct the audio signal cable firmly. (See page 12.)
Shaking picture.	Is the monitor close to a device generating a strong magnetic hold?	Move the device away from the monitor until the picture stabilizes.
No colors, wrong color, or dark picture.	Is the color system selected properly?	Set COLOR SYSTEM in thescreen to AUTO. (See page 8.)
	Has the picture control setting (CONTRAST, BRIGHT, CHROMA or PHASE) been changed?	Set each picture control to the standard setting. (See page 7.)
Unnatural, irregularly colored, or distorted picture.	Is the monitor close to a speaker, magnet or any other device generating a strong magnetic hold?	Move the device away from the monitor and turn the monitor's power off. Wait at least 30 minutes, then turn the power on again.
Dark stripes appear at the top and bottom of the screen, picture vertically squeezed.	Is the aspect ratio set to 16:0?	Set ASPECT RATIO in thescreen to [4 : 3 (4 - 3)]. (See page 8.)When controlling externality, ASPECT RATIO should be set to [4 : 5 (4 - 5)]. (See page 12.)
Function buttons on the front panel do not function.	Has control of the buttons been locked? (Has the CONTROL LOCK function boom set to ON?)	Set CONTROL LOCK in thescreen to OFF. (See pages 9 and 10.)
The INPUT SELECT buttons do not function.	Is input selection under external control? (Has the INPUT REMOTE function boom set to valid (A/B)?)	Set INPUT REMOTE in thescreen to OFF. (See pages 9 and 10.)

The following are not malfunctions:

- When a bright still image (such as a white cloth) is displayed for a long period, it may appear to be colored. This is due to the structure of the cathode ray tube and will be deleted when another image is displayed.

- You experience a mild electric shock when you touch the picture tube. This phenomenon is due to a normal buildup of static electricity on the CRT and is not harmful.

- The monitor omits a strange sound when the room temperature changes suddenly. This is only a problem if an abnormality appears on the screen as well.

- If two or more monitors are operated next to each other, their images may shake or be distorted. This phenomenon is due to mutual interference. It is not a malfunction. Move the monitors away from each other until the interference disappears or turn the power off on any monitor that is not being used.

13

I SPECIFICATIONS

■ Type

■ Color system

■ Picture tube

Color video monitor

PAL, NTSC (3.58)

9-7/8" (25 cm) measured

diagonally

90° deflection, in-line run

36 donucion, irino gun, trio det tuno (johnsber eint frio

mIo-dut type (pitch 2.5 mm)

pitch 0.5 mm

■ Effective screen size

[Non-Text]

Height 5-7/16" (137 mm)

Diagonal 8-3/4" (222 mm)

(H) 15.734 kHz (NTSC)

15.625 kHz /PAL

15.025 kHz (PAL) 00 59.94 Hz (NTSC)

V) 50.54 Hz; N

50 Hz (PAL)

■ Scanning frequency

■ Horizontal resolution

■ Input termina

280 TV lines or more

[Non-Text]

Composite video:

1 line. BNC connector x 2

1. Vin-p), 75.0 negative sync

+ V(p-p), 15 Ω, Negative sync

(Storage connection)

aub termination

VIDEO B

Composite video:

1 line, BNC connector x 2,

1 V(p-p), 75 Ω negative sync

bridge connection possible.

auto termination)

AUDIO A

1 line (monaural), RCA pin x 2

(0.5 Vrms) high-impedance

(bridge connection possible)

1 line /reparatory, PCA pie x 2

Time (monadra), HOA pin x 2

0.5 V/(mE), high-impedance (bridging connection possible)

(bridge connection possible)

1 line, RCA pin x 1

1 line, RCA pin x 1

■ Audio power output

■ Built-in speaker

- 2018 in 2p

■ Environmental

conditions

conditions

■ POWER TO INDUSTRIES

■ Power requirements

■ Power consumption

■ Dimensions

Weight

Weight Conservation

1 W (monaural)

8 cm round x 1

Impedance of 8 Ω

•

Operation temperature:

0°C - 40°C (32°F - 104°F)

Operating humidity

Operating Humidity.

25% - 80% [non-condensing]

120 V/230 V AC, 50 Hz/60 Hz

0.61 A (120 V AC) 0.43 A (230 V

AC

Width 8-3/4" (222 mm)

Height 9-11/16" (220 mm)

Depth 12-1/2" (316.3 mm)

15 lb (6.8 kg)

15.0 lbs (0.0 kg) AC power vent (8.6 ft/2 m)

AC power cord [4.0 ft (2 in) 800 VAC, 7.0 ft (3.4 m) for

230 V AC, 7.9 ft (2.4 m) for

120 V AC]

Dimensions

Unit: inch (mm)

< Front View > * Asterisks (2) are used to indicate front panel dimensions.

< Side View >

* Illustrations used in this manual are for explanatory purposes only. The appearance of the actual product may differ slightly. * Dimensions and weight are approximate. * E. & O. E. Design and specifications subject to change without notice.
