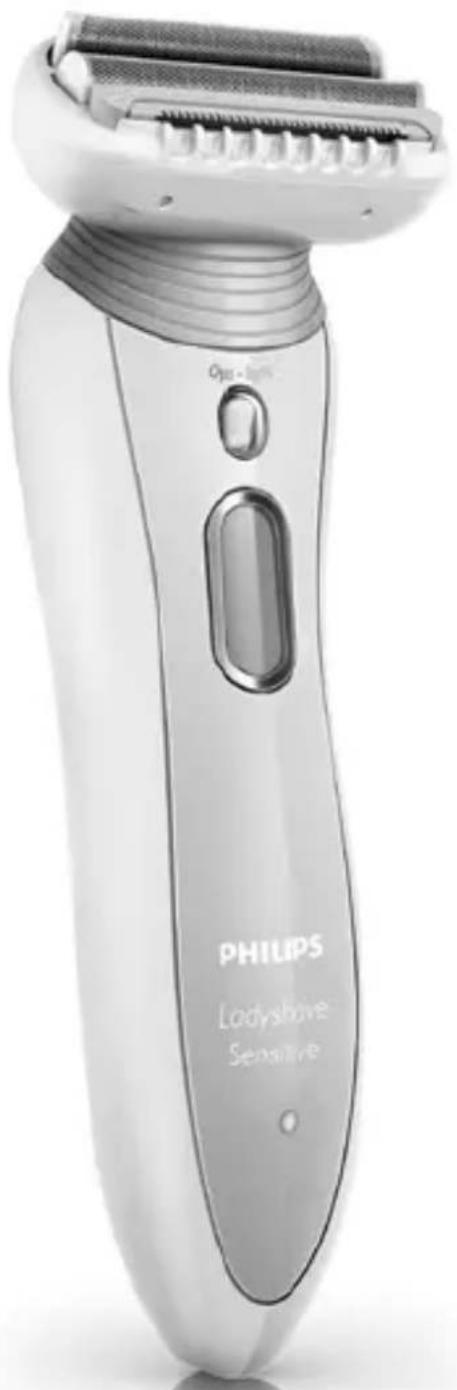

Ladyshave Double Contour Sensitive HP6370 - Razor PHILIPS - Free user manual and instructions

Brand	Philips
Model	Ladyshave Double Contour Sensitive HP6370
Product type	Electric shaver for women
Dimensions (L x W x H)	Approximately 15 x 5 x 4 cm
Weight	Approximately 150 g
Power supply	Rechargeable (Li-ion battery)
Charging time	Approximately 8 hours
Battery life	Approximately 20 minutes
Usage	Dry or in the shower (waterproof)
Cutting head	Floating Double Contour head with sensitive foil
Included accessories	Cleaning brush, protection cap
Care and cleaning	Rinse under running water after each use
Spare parts	Replacement blades (ref. HP...)
Warranty	2 years
EAN code	8710103276375 (example)

Frequently Asked Questions - Ladyshave Double Contour Sensitive HP6370 PHILIPS

How to clean my Philips Ladyshave HP6370 shaver?

Rinse the shaving head under warm running water after each use. Use the supplied brush to remove hair residues. Do not immerse the device completely in water.

Can I use the shaver in the shower?

Yes, the Philips Ladyshave Double Contour Sensitive HP6370 is waterproof and can be used in the shower for wet shaving.

How long does a full charge take?

A full charge takes about 8 hours. Use the supplied charger and make sure the device is switched off during charging.

How to change the blades of my shaver?

Replacement blades are sold separately (ref. HP...). To replace them, pull the shaving head upwards, remove the old foil and clip on the new one. Refer to the manual for more details.

Is the shaver suitable for long hairs?

The shaver is designed for short hairs. For long hairs, it is advisable to trim them first with a clipper or shorten them before shaving.

What to do if the shaver does not turn on?

Check that the battery is charged. If the problem persists, clean the charging contacts and try again. If still faulty, contact Philips customer service.

Can I use the shaver dry?

Yes, you can use it dry or with shaving foam. Wet shaving may be more comfortable for sensitive skin.

How to get replacement blades?

Replacement blades are available on the official Philips website or from authorized dealers. Check the exact reference in the manual or under the shaving head.

Is the shaver under warranty?

Yes, Philips offers a 2-year warranty from the date of purchase, covering manufacturing defects. Keep your receipt.

How to know if the battery is low?

The shaver may slow down or stop abruptly. It is recommended to fully recharge it after each use to avoid running out during shaving.

USER MANUAL Ladyshave Double Contour Sensitive HP6370 PHILIPS

Register your product and get support at www.philips.com/welcome

HP6370

PHILIPS

ENGLISH 8

FRANÇAIS 21

한국어 35

ภาษาไทย 49

繁體中文 59

简体中文 70

89 فارسی

99 العربية

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

This innovative Ladyshave protects your skin while providing you with beautifully smooth results. Its double-foil pivoting head makes light work of even the toughest hairs, without fear of nicks and cuts. The Opti-light is a built-in light that reveals even the finest hairs clearly so that you do not miss a hair.

With your new Philips Ladyshave, you can easily and comfortably shave your legs, underarms and bikini zone. You can use the Ladyshave either dry or wet. If you shave while taking a bath or shower, we advise you to use soap or shaving foam for the most comfortable shave. After use, you can clean the Ladyshave under the tap for extra hygiene. This ladyshave is a cordless appliance equipped with a rechargeable battery that can be recharged with the charger.

General description (Fig. 1)

A Shaving head with cutting unit (trimmer, aloe vera strip, gentle hair lifter and gold-plated double shaving foil)
B Opti-light
C On/off button
D Handle
E Battery low light
F Socket for appliance plug
G Guiding grooves
H Cutting unit release slide
Precision trimming head
J 3mm comb
K 5mm comb
L Cleaning brush
M Adapter
N Charging light

Not shown: Storage pouch

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the adapter dry.

Warning

• Only use the Ladyshave with the adapter supplied.
• Do not use the appliance, an attachment or the adapter if it is damaged or broken to avoid injuries.
• If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.
• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not insert metal-containing material into the socket for the appliance plug to avoid short circuiting.

Caution

- Do not clean the Ladyshave with water that is hotter than shower temperature (max. 40° C).

- Charge, use and store the appliance at a temperature between 10° C and 40° C.

- This appliance is only intended to be used by women to shave and trim their body hair. It is not intended for shaving or trimming scalp hair or for any other purpose.

- Only use the shaving head and the precision trimming head on the legs, the arms, the underarms and the bikini area. Never use the shaving head on other body areas (e.g. the face).

ENGLISH8

• Other than on the bikini line, do not use the precision trimming head without comb on the intimate area because skin injuries can occur.
• Make sure the socket is live when you charge the appliance. The electricity supply to sockets in mirror cabinets over washbasins or shaver sockets in bathrooms may be cut off when the light is turned off.
• Do not look directly into the Opti-light to avoid being dazzled by the light.

General

• The appliance complies with the internationally approved IEC safety regulations and can be safely used in the bath or shower and cleaned under the tap (Fig. 2).
• The appliance is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Preparing for use

Charging

It takes approximately 10 hours to charge the batteries fully.

Make sure your hands and the appliance are dry when you prepare the appliance for charging.

When the batteries are fully charged, the appliance has a cordless shaving time of up to 40 minutes.

Always switch off the appliance before you connect it to the mains.

1 Make sure the appliance is switched off.
2 Insert the appliance plug into the appliance (1). Plug the adapter into a wall socket (2) (Fig. 3).
The charging light on the adapter goes on.

Note: The charging light on the adapter remains on after the appliance is fully charged.

3 Unplug the appliance when the batteries are fully charged.

Note: Do not leave the adapter plugged in for longer than 14 hours, as this may affect the lifetime of the batteries.

Rechargeable batteries low or empty

• When the battery low light is on, the batteries are almost empty. In this case, you can continue to shave for a few minutes (Fig. 4).
• When the batteries are empty, the battery low light goes out and the appliance stops operating.
• Charge the batteries immediately. If you switch off the appliance when the batteries are nearly empty, the battery low light flashes 4 times.

Attaching/detaching attachments

Attaching/detaching the shaving head

1 To attach the shaving head, slide it into the guiding grooves on both sides of the opening in the handle. Then press the shaving head onto the appliance ('click') (Fig. 5).
2 To detach the shaving head, pull it off the appliance (Fig. 6).

Caution: Do not exert excessive pressure on the double shaving foil to avoid damage.

Attaching/detaching the precision trimming head

1 Pull the shaving head off the appliance (Fig. 6).
2 To attach the precision trimming head, slide it into the guiding grooves on both sides of the opening in the handle. Then press the precision trimming head onto the appliance ('click') (Fig. 7).
3 To detach the precision trimming head, hold it at the protrusions while you pull. (Fig. 8)

ENGLISH10

Attaching/detaching the combs

1 Attach the precision trimming head onto the appliance (see section ‘Attaching/detaching the precision trimming head’ above).
2 To attach the 3mm or 5mm comb onto the precision trimming head, place the teeth of the comb onto the teeth of the trimming head and push down the comb ('click'). The projections on the inside of the comb should fit exactly into the guiding grooves of the precision trimming head (Fig. 9).
3 To detach the 3mm or 5mm comb, slide it forward with your thumb (Fig. 10).

Using the appliance

Make sure that the appliance is fully charged before you use it for the first time.

Note: You cannot use the Ladyshave while it is connected to the mains.

Shaving

Note: When you use the appliance for shaving, you can use it under both dry and wet conditions.

1 Press the on/off button to switch on the appliance (Fig. 11).
2 Place the double shaving foil and the integrated trimmer gently on the skin. Stretch the skin with your free hand while you shave your bikini line. (Fig. 12)

Note: Do not press the appliance too firmly onto the skin.

Note: When you shave the underarms, raise your arm to stretch the skin.

3 Move the appliance slowly over the skin against the direction of hair growth while you press it lightly. Make sure that the trimmer and the double shaving foil are always in full contact with the skin (Fig. 13).

Note: If you move the appliance over the skin too fast, you may not obtain a smooth result.

Tip: To achieve the best result when you shave wet, lather your skin with soap or shaving cream before you start to shave.

Caution: Never apply any creams or additives before you start to shave under dry conditions.

Trimming the bikini line with the precision trimming head and the 3mm or 5mm comb

To trim your bikini line, use the precision trimming head with the 3mm or 5mm comb. The resulting length is indicated on the comb.

Note: To achieve the best result, only trim your bikini line when your skin and the appliance are dry.

1 Attach the precision trimming head onto the appliance (see chapter ‘Preparing for use’, section ‘Attaching/detaching the precision trimming head’).
2 Attach the 3mm comb or the 5mm comb onto the precision trimming head (see chapter ‘Preparing for use’, section ‘Attaching/ detaching the combs’).
3 Press the on/off button to switch on the appliance (Fig. 11).
4 Place the comb on the skin. To obtain an even result, make sure that the flat part of the comb is in contact with the skin (Fig. 14).

Note: Do not use the front part of the comb (Fig. 15).

Note: Do not place the appliance on the skin too steeply.

5 Move the comb slowly against the direction of hair growth.

Note: To make trimming easier, stretch the skin with your free hand during trimming (Fig. 16).

6 Since not all hair grows in the same direction, you need to move the appliance in different directions (upwards, downwards and across) (Fig. 17).
7 Regularly remove cut hair from the comb.

8 To detach the comb, slide it forward with your thumb (Fig. 10).

Styling the bikini line with the precision trimming head

To style the bikini line, use the precision trimming head without the combs.

Note: Only style your bikini line when your skin and the appliance are dry.

1 Attach the precision trimming head (without comb) onto the appliance (see chapter ‘Preparing for use’, section ‘Attaching/detaching the precision trimming head’).

Note: Trimming without a comb results in a hair length of approximately 0.5mm.

2 Press the on/off button to switch on the appliance (Fig. 11).
3 Move the appliance towards the desired contour of your bikini line. Touch the skin lightly with the precision trimming head (Fig. 18).

Note: Make sure you stretch your skin with your free hand to avoid possible injuries.

Note: Do not press the appliance too firmly onto the skin.

You can use the appliance:

• with the trimmer teeth vertically on the skin. Use this method to create straight lines or other shapes. Do not make long strokes, but tap the skin lightly with the trimmer teeth (Fig. 19).
• with the teeth of the trimming head parallel to the skin. Use this method to shorten the hairs to a minimum length around the contours of your bikini line (Fig. 20).

Cleaning and maintenance

Always detach the appliance from the adapter before you clean the appliance under the tap.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Never switch on the appliance while you clean it or while the cutting unit is not attached.

Cleaning the handle and adapter

1 Clean the handle with the cleaning brush or under a running tap.

Note: Make sure that the handle is completely dry before you reassemble the appliance.

2 If necessary, clean the adapter with the cleaning brush or a dry cloth.

Always keep the adapter dry. Never rinse it under the tap or immerse it in water.

Cleaning the shaving head

1 Press the on/off button to switch off the appliance (Fig. 11).
2 Pull the shaving head off the appliance (Fig. 6).
Do not exert pressure on the double shaving foil to avoid damage.
3 Push the cutting unit release slide to the right (1) and remove the cutting unit (2) (Fig. 21).
4 Clean the cutting unit and the inside of the shaving head with the cleaning brush. Also brush away any hairs that have collected under the trimmer (Fig. 22).
Caution: Do not brush the foil to avoid damage to the brush or the foil.
5 You can also rinse the cutting unit and the shaving head under the tap (Fig. 23).
6 To dry the cutting unit and the shaving head, shake them firmly (Fig. 24).
7 Place the cutting unit back onto the shaving head ('click') (Fig. 25).

Note: Make sure that the shaving head and the cutting unit are completely dry before you reattach them onto the appliance.

Cleaning the precision trimming head and combs

After every use

1 Press the on/off button to switch off the appliance (Fig. 11).
2 If a comb is attached to the precision trimming head, remove the comb (Fig. 10).
3 Remove the precision trimming head (Fig. 8).
4 Brush the hairs off the precision trimming head or rinse it under the tap (Fig. 26).
5 Brush the hairs off the combs or rinse them under the tap.
6 To dry the precision trimming head and the combs, shake them firmly or use a tea towel (Fig. 27).
7 To reattach the precision trimming head, slide it into the guiding grooves on both sides of the opening in the handle ('click') (Fig. 7).

Note: Make sure that the precision trimming head is completely dry before you reattach it onto the appliance.

Maintenance

1 Lubricate the cutting unit (double shaving foil and trimmer) and the precision trimming head with a drop of sewing machine oil twice a year (Fig. 28).
2 After you have put the oil on the cutting unit and the precision trimming head, assemble them onto the handle and let the appliance operate briefly to spread the oil.

Replacement

The shaving head, the precision trimming head, both combs (3mm and 5mm) and the adapter of the appliance can be replaced. If you need to replace one or more parts, go to your Philips dealer or an authorised Philips service centre. If you use the Ladyshave two or more times a week, we advise you to replace the shaving head after one or two years or if it is damaged.

Storage

1 Store the appliance and the accessories in the storage pouch supplied.

Note: Make sure the appliance is dry before you put it back into the storage pouch.

2 Store the appliance in a safe, dry place.

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 29).
• The built-in rechargeable batteries contains substances that may pollute the environment. Always remove the batteries before you discard and hand in the appliance at an official collection point. Dispose of the batteries at an official collection point for batteries. If you have trouble removing the batteries, you can also take the appliance to a Philips service centre. The staff of this centre will remove the batteries for you and will dispose of it in an environmentally safe way (Fig. 30).

Removing the rechargeable batteries

1 Disconnect the appliance from the adapter.
2 Let the motor run until the batteries are completely empty.
3 Remove the shaving head or the precision trimming head from the appliance.
4 Release the side panels on both sides of the appliance with a screwdriver and remove them from the appliance (Fig. 31).
5 Remove the front panels of the appliance by pushing them upwards with a screwdriver (Fig. 32).
6 Cut the wires at the end of the handle with a pair of household scissors and pull out the inner part of the appliance (Fig. 33).

ENGLISH16

7 Remove the rechargeable batteries (Fig. 34).

Do not attempt to replace the rechargeable batteries.

Do not connect the appliance to the mains again after you have removed the rechargeable batteries.

Guarantee and service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem Solution

The appliance does not shave or contour as well as it should.

Make sure you move the shaving head or the precision trimming head against the direction of hair growth.

Make sure that the batteries are charged sufficiently.

Clean the shaving head or the precision trimming head after every use (see chapter ‘Cleaning and maintenance’). Also brush away any hairs that have collected under the trimmer teeth.

Apply a drop of sewing machine oil onto the shaving head or the precision trimming head.

Problem Solution

	If the above-mentioned solutions do not solve the problem, you have to replace the shaving head or the precision trimming head. Take the shaving head or precision trimming head to your dealer or the nearest Philips service centre.
The appliance does not work properly during trimming and does not cut long hairs.	Make sure that the batteries are charged sufficiently and that the comb is attached correctly.
	Make sure that you clean the appliance properly (see chapter ‘Cleaning and maintenance’).
	Make sure that the flat part of the comb is in contact with the skin to obtain an even result. Do not put the appliance on the skin too steeply.
	If the above-mentioned solutions do not solve the problem, take the appliance to your dealer or the nearest Philips service centre.
The precision trimming head with comb produces an uneven cut.	Do not press the precision trimming head with comb too firmly onto the skin, as this may cause a shorter hair length than 3mm or 5mm. Make sure that the front part of the comb is always fully in contact with the skin. Move the trimming head against the direction of hair growth. Move the trimming head in different directions (upwards, downwards and across), as not all hairs grow in the same direction.

Problem Solution

My skin is irritated after shaving or trimming.

Slight skin irritation like red skin or red dots may occur. This is normal. To avoid irritated skin, make sure the shaving head and the precision trimming head are always in full contact with the skin and that you gently move the appliance against the direction of hair growth (see chapter ‘Using the appliance’). Do not apply too much pressure during shaving and trimming, as this may cause skin irritation.

Always stretch the skin with your free hand. When you shave the underarms raise your arm to stretch the skin.

Make sure that you clean the appliance properly (see chapter ‘Cleaning and maintenance’).

If you have very sensitive skin, a certain degree of irritation is unavoidable. Do not apply deodorant or cream on the irritated skin. If the irritation lasts longer than 3 days, we advise you to consult a doctor.

Check if the shaving head or the precision trimming head is broken. Only replace damaged or broken parts with original Philips parts.

Introduction
