PA411KIT - Powerline Adapter TP-LINK - Free user manual and instructions

Product Type	Powerline Adapter
Brand	TP-Link
Model	PA411KIT
Maximum Speed	500 Mbps
Network Standard	IEEE 802.3, IEEE 802.3u, HomePlug AV
Ports	1 Ethernet RJ45 10/100 Mbps port
Button	Pair button to secure the network
Built-in Outlet	Yes (female socket)
Indicators	Power LED, PLC LED, Ethernet LED
Dimensions	approximately 95 x 56 x 29 mm
Weight	approximately 150 g
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	< 5 W
Operating Temperature	0 °C to 40 °C
Humidity	10 % to 90 % non-condensing
Security	AES 128-bit encryption
Compatible with	All HomePlug AV Powerline adapters
Kit Contents	2 adapters, Ethernet cable, installation guide
Care and Cleaning	Clean with a soft, dry cloth; do not use solvents
Safety of Use	Do not open the device; unplug before cleaning
Spare Parts and Repairability	Not available; device not repairable by user
Recycling	Follow WEEE regulations

Frequently Asked Questions - PA411KIT TP-LINK

How to install the TP-Link PA411KIT Powerline adapter?

To install, plug one adapter near your router and connect it via Ethernet cable. Plug the second adapter in the desired room. Press the Pair button on each adapter to pair them. The PLC LEDs should light up solid.

What to do if the Power LED does not turn on?

Check that the adapter is properly plugged into a working power outlet. If the LED remains off, the adapter may be defective. Contact technical support.

How to secure my Powerline network?

Use the Pair button to create a secure network with AES 128-bit encryption. To customize the key, use the TP-Link Powerline Utility software on a computer.

Can I use the PA411KIT with other brands of Powerline adapters?

Yes, if they are HomePlug AV compatible. Compatibility is guaranteed for adapters meeting the HomePlug AV standard. Advanced features may not be available.

What is the maximum distance between two Powerline adapters?

The Powerline network can work up to 300 meters on the electrical circuit, but the effective distance depends on wiring quality and interference. For best performance, avoid power strips.

What to do if the speed is low?

Check that the adapters are plugged directly into a wall outlet, not a power strip. Avoid interference from electrical devices. Use the diagnostic software to test signal quality.

How to reset the PA411KIT adapter?

Press and hold the Pair button for about 10 seconds until the LEDs flash. The adapter returns to factory settings and will need to be re-paired.

Does the adapter work with a power strip?

It is recommended to plug the adapter directly into a wall outlet. Power strips can filter the Powerline signal and reduce performance. Use a direct outlet if possible.

How to add a new Powerline adapter to my existing network?

Plug the new adapter near one of the existing adapters. Press the Pair button on an existing adapter for 2 seconds, then press the Pair button on the new one within 2 minutes. The PLC LEDs confirm pairing.

What to do if the PLC LED blinks or is off?

A blinking PLC LED indicates poor link quality. Try moving the adapter to another outlet. If it is off, the adapters are not paired. Repeat the pairing procedure.

USER MANUAL PA411KIT TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2018 TP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904 REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

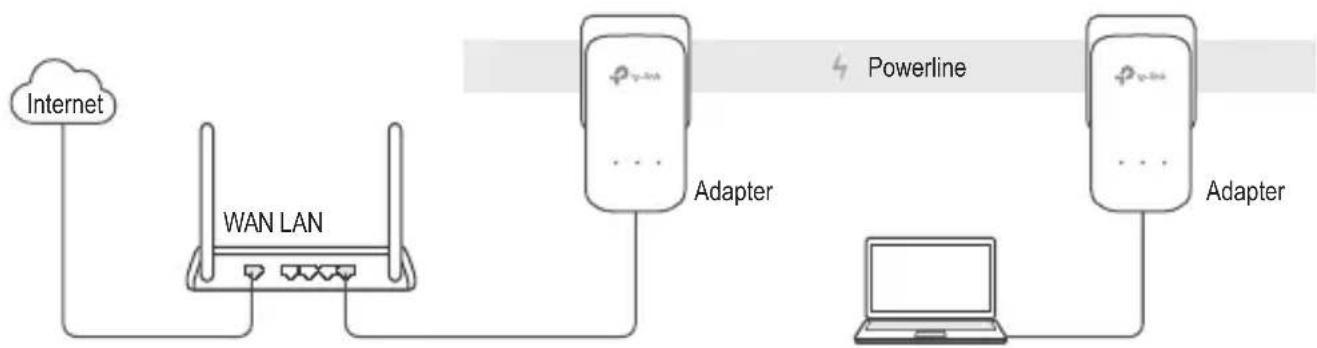

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED 📁 on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

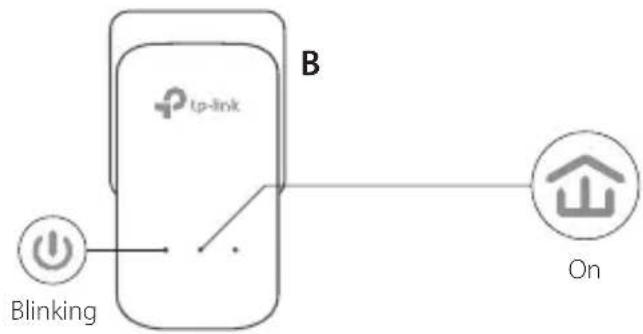

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

3 Done.

English

If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED ⏻ goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.

A2. Try to pair it again, and make sure the Powerline LED is on.

A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

Plug and Play

FAQ (Perguntas Frequentes)

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.
