Product Type	Refrigerator with freezer compartment
Brand	AEG
Model	SC 91844 5I
Total Net Capacity	350 L
Refrigerator Capacity	250 L
Freezer Capacity	100 L
Energy Efficiency Class	A+
Annual Energy Consumption	280 kWh
Noise Level	42 dB
Climate Class	SN-T
Dimensions (H x W x D)	185 x 60 x 65 cm
Weight	70 kg
Power Supply	220-240 V, 50 Hz
Cooling System	FrostFree (No Frost)
Temperature Control	Electronic with LED display
Lighting	LED interior light
Shelves	4 glass shelves
Door Hinge	Reversible (right/left)
Water Dispenser	None
Ice Maker	None
Special Features	Holiday mode, FastFreeze
Maintenance	Clean condenser annually; replace door seals if damaged
Safety	Child lock; overheat protection
Spare Parts Availability	Through AEG authorized service centers

Frequently Asked Questions - SC 91844 5I AEG

What is the correct temperature setting for the refrigerator?

For optimal food preservation, set the refrigerator compartment to 4°C and the freezer compartment to -18°C.

How do I clean the refrigerator?

Unplug the appliance, remove all food, and wipe interior with a soft cloth dipped in warm water and mild detergent. Avoid abrasive cleaners. Dry thoroughly before restarting.

Why is my refrigerator making unusual noises?

Normal operating sounds include a humming compressor, clicking thermostat, and flowing refrigerant. If noises are loud or persistent, check if the appliance is level and not touching walls.

How do I defrost the freezer?

This model features FrostFree technology, so manual defrosting is not required. However, if a thick layer of ice forms, contact service.

Can I reverse the door opening direction?

Yes, the door hinge is reversible. Refer to the user manual for step-by-step instructions. You may need a screwdriver and an assistant.

What should I do if the refrigerator is not cooling properly?

First, check that the power cord is plugged in and the thermostat is set correctly. Ensure vents are not blocked. If problem persists, contact AEG support.

How often should I clean the condenser?

Clean the condenser coils at least once a year using a vacuum cleaner or soft brush. This improves energy efficiency.

Is there a child lock feature?

Yes, the appliance includes a child lock function to prevent accidental temperature changes. Activate it via the control panel.

What does Holiday mode do?

Holiday mode keeps the freezer working while the refrigerator compartment runs at a higher temperature to save energy when you are away. Activate before leaving.

How do I change the interior light bulb?

The appliance uses an LED light that should last the lifetime of the product. If it fails, contact a qualified technician for replacement.

USER MANUAL SC 91844 5I AEG

Line drawing of a hand installing or adjusting a shelf panel on a cabinet (no text or symbols)

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Mechanical assembly diagram showing a lever mechanism interacting with a base plate (no text or symbols)

Diagram showing a mechanical component being inserted into a housing, with an inset magnified view of the internal structure (no text or symbols present)

De deur sluiten

1. Maak de afdichtingen van de deur schoon.
2. Stel de deur, indien nodig, af. Raadpleeg "Montage".
3. Vervang, indien nodig, de defecte deurafdichtingen. Neem contact met de service-afdeling.

TECHNISCHE GEGEVENS

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

CONTENTS

SAFETY INFORMATION 18

Children and vulnerable people safety 19General safety 19Daily Use 20Care and cleaning 20InstallationService
CONTROL PANEL 21
Switching on 21Switching off 21Temperature regulation 21Fast Freezing function 22
FIRST USE 22
Cleaning the interior 22
DAILY USE 22
Freezing fresh food	22
Storage of frozen food	22
Frozen Food Calendar	23
Thawing	23
Ice-cube production	23
Cold accumulators	23
Movable shelves	24
Positioning the door shelves	24

Positioning the door half shelf 24

Humidity control 25

HELPFUL HINTS AND TIPS 25

Hints for energy saving	25
Hints for fresh food refrigeration	25
Hints for refrigeration 20 25
Hints for freezing 21	26
Hints for storage of frozen food	26
CARE AND CLEANING	26
Periodic cleaning	26
Defrosting of the refrigerator	27
Defrosting the freezer 27
Periods of non-operation	28
WHAT TO DO IF...	28
Replacing the lamp	30
Closing the door	30
TECHNICAL DATA	30
INSTALLATION	31
Positioning
Electrical connection	31
Ventilation requirements	31
ENVIRONMENTAL CONCERNS	32

Subject to change without notice

SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

CAUTION!

Keep ventilation openings clear of obstruction.

- The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.

- Do not use a mechanical device or any artificial means to speed up the thawing process.

- Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

- Do not damage the refrigerant circuit.

- The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

- avoid open flames and sources of ignition

– thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

WARNING!

Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover ^6) of interior lighting.

- This appliance is heavy. Care should be taken when moving it.

• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
• Bulb lamps ^7) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

Daily Use

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Do not place food products directly against the air outlet on the rear wall. ^8)
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

Installation

For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.

• Make sure that the mains plug is accessible after the installation of the appliance.

• Connect to potable water supply only. 9)

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

CONTROL PANEL

1 Pilot light
2 Fast Freezing light
3 Fast Freezing switch
4 Temperature regulator

Switching on

Insert the plug into the wall socket.

Turn the Temperature setting regulator clockwise to a medium setting.

The pilot light will light up.

Switching off

To turn off the appliance, turn the Temperature regulator to the "0" position.

The pilot light will switch off.

Temperature regulation

The temperature is automatically regulated.

To operate the appliance, proceed as follows:

• turn the Temperature regulator toward lower settings to obtain the minimum coldness.
• turn the Temperature regulator toward higher settings to obtain the maximum coldness.

9) If a water connection is foreseen.

A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature
  • how often the door is opened
  • the quantity of food stored
• the location of the appliance.

Fast Freezing function

You can activate the Fast Freezing function by pressing the Fast Freezing switch.

The Fast Freezing light will light up.

It is possible to deactivate the function at any time by pressing Fast Freezing switch.

The Fast Freezing light will switch off.

FIRST USE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

DAILY USE

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh food activate the Fast Freezing function at least 24 hours before placing the food to be frozen in the freezer compartment.

Place the fresh food to be frozen in the top compartment.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings.

If large quantities of food are to be stored, remove all drawers and baskets from appliance and place food on cooling shelves to obtain the best performance.

WARNING!

Make sure that foods do not exceed the load limit stated on the side of the upper section (where applicable)

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

Frozen Food Calendar

The symbols show different types of frozen goods.

The numbers indicate storage times in months for the appropriate types of frozen goods.

Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and treating before freezing.

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes. Fill these trays with water, then put them in the freezer compartment.

Do not use metallic instruments to remove the trays from the freezer.

Cold accumulators

One or more cold accumulators are supplied in the freezer; these increase the length of time for which food will keep in the event of a power failure or breakdown.

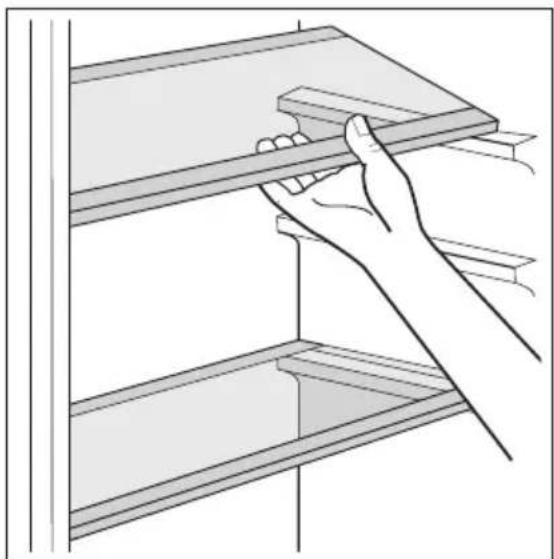

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

For better use of space, the front half-shelves can lie over the rear ones.

Line drawing of a hand holding a shelf with a small object, no text or symbols present

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

Positioning the door half shelf

The door half shelf can be placed at different heights.

To make these adjustments proceed as follow:

1. lift the shelf with the door half shelf upwards and out of the holders in the door

2. remove the retaining bracket out of the guide under the shelf

3. Reverse the above operation to insert the half shelf at a different height.

Humidity control

The glass shelf incorporates a device with slits (adjustable by means of a sliding lever), which makes it possible to regulate the temperature in the vegetable drawer(s).

When the ventilation slots are closed:

the natural moisture content of the food in the fruit and vegetable compartments is preserved for longer.

When the ventilation slots are opened:

more air circulation results in a lower air moisture content in the fruit and vegetable compartments.

HELPFUL HINTS AND TIPS

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

CARE AND CLEANING

CAUTION!

Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.

Do not pull, move or damage any pipes and/or cables inside the cabinet.

Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum cleaner. This operation will improve the performance of the appliance and save electricity consumption.

Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Defrosting the freezer

A certain amount of frost will always form on the freezer shelves and around the top compartment.

Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.

About 12 hours prior to defrosting, set the Temperature regulator toward higher settings, in order to build up sufficient chill reserve for the interruption in operation.

To remove the frost, follow the instructions below:

1. Switch off the appliance.
2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.

CAUTION!

Do not touch frozen goods with wet hands. Hands can freeze to the goods.

1. Leave the door open and insert the plastic scraper in the appropriate seating at the bottom centre, placing a basin underneath to collect the defrost water

In order to speed up the defrosting process, place a pot of warm water in the freezer compartment. In addition, remove pieces of ice that break away before defrosting is complete.

1. When defrosting is completed, dry the interior thoroughly and keep the scraper for future use.
2. Switch on the appliance.
3. After two or three hours, reload the previously removed food into the compartment.

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Mechanical component diagram showing a lever mechanism interacting with two plates (no text or symbols)

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply
• remove all food
• defrost ^10 and clean the appliance and all accessories
• leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WHAT TO DO IF...

WARNING!

Before troubleshooting, disconnect the mains plug from the mains socket.

Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
The appliance does not operate. The lamp does not operate.		The appliance is switched off. Switch on the appliance.
Problem Possible cause Solution
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
The appliance has no power.	There is no voltage in the mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The lamp does not work.	The lamp is in stand-by. Close and	open the door.
	The lamp is defective.	Refer to "Replacing the lamp".
The compressor operates continually.	The temperature is not set correctly.	Set a higher temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The door has been opened too frequently.		Do not keep the door open longer than necessary.
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
The room temperature is too high.		Decrease the room temperature.
Water flows on the rear plate of the refrigerator.	During the automatic defrosting process, frost defrosts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged. Clean the water outlet.
Products prevent that water flows into the water collector.		Make sure that products do not touch the rear plate.
Water flows on the ground.	The melting water outlet does not flow in the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
The temperature in the appliance is too low.	The temperature regulator is not set correctly.	Set a higher temperature.
The temperature in the appliance is too high.	The temperature regulator is not set correctly.	Set a lower temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
Many products are stored at the same time.		Store less products at the same time.
The temperature in the refrigerator is too high.	There is no cold air circulation in the appliance.	Make sure that there is cold air circulation in the appliance.
The temperature in the freezer is too high.	Products are too near to each other.	Store products so that there is cold air circulation.
There is too much frost.	Food is not wrapped correctly. Wrap the food correctly.
	The door is not closed correctly.	Refer to "Closing the door".
The temperature regulator is not set correctly.		Set a higher temperature.

Replacing the lamp

1. Switch off the appliance.
2. Press on the rear hook and at the same time slide the cover in the direction of the arrow.
3. Replace the lamp with one of the same power and specifically designed for household appliances. (the maximum power is shown on the lamp cover).
4. Install the lamp cover by sliding it into its original position.
5. Switch on the appliance.
6. Open the door. Make sure that the light comes on.

Diagram showing a mechanical device with a close-up inset of its internal structure (no text or symbols)

Closing the door

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.

TECHNICAL DATA

Dimension of the recess
Height 1780 mm
Width 560 mm
Depth 550 mm
Rising Time 24 h
Voltage 230-240 V
Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

INSTALLATION

Positioning

WARNING!

If you are discarding an old appliance that has a lock or catch on the door, you must ensure that it is made unusable to prevent young children being trapped inside.

The appliance shall have the plug accessible after installation.

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

Ventilation requirements

The airflow behind the appliance must be sufficient.

ENVIRONMENTAL CONCERNS

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Akumulatory zimna 39

Illustration of a hand holding a shelf with a small object, no text or symbols present

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Mechanical assembly diagram showing a lever mechanism interacting with a base plate (no text or symbols)

Diagram showing a mechanical component being inserted into a housing, with an inset close-up highlighting the internal structure (no text or symbols present)

Zamykanie drzwi

Line drawing of a hand holding a shelf with a small object, no text or symbols present

Контроль влажности

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Mechanical assembly diagram showing a clamping mechanism with an arrow indicating direction (no text or symbols present)

Diagram showing a mechanical device with a close-up inset of its internal structure (no text or symbols)

Закрытие дверцы

www.aeg-electrolux.com/shop

Four icon-based visualizations showing different consumer electronics: washing machine, gear, shopping cart, and shopping cart (no text or symbols)

CE
