Series 3000 HQ6645 - Razor PHILIPS - Free user manual and instructions

Product Type	Electric Shaver
Brand	Philips
Model	Series 3000 HQ6645
Shaving System	Rotary
Number of Heads	3
Floating Heads	Yes
Pop-up Trimmer	Yes
Power Source	Rechargeable Battery
Battery Type	NiMH
Charging Time	8 hours
Usage Time	30 minutes
Voltage	100-240 V
Washable	Yes, fully waterproof
Wet & Dry Use	Yes
Cleaning	Rinse under running water
Dimensions (approx)	6.5 x 2.5 x 8.5 inches
Weight (approx)	0.5 lbs
Replacement Heads	Philips HQ4 or HQ8 series
Accessories Included	Charger, protective cap
Warranty	2 years

Frequently Asked Questions - Series 3000 HQ6645 PHILIPS

How often should I replace the shaver heads?

For optimal performance, replace the shaver heads every 12 months or when you notice reduced shaving efficiency. Use Philips HQ4 or HQ8 replacement heads.

Can I use this shaver in the shower?

Yes, the Philips Series 3000 HQ6645 is fully waterproof and can be used in the shower with shaving foam or gel for a more comfortable experience.

How long does the battery take to charge?

The shaver requires an 8-hour full charge. It provides up to 30 minutes of cordless shaving.

How do I clean the shaver?

Rinse the shaver head under running water. For a deeper clean, remove the heads and rinse separately. Ensure the shaver is turned off.

Can I use the shaver while it's charging?

No, this model does not support corded use. You must unplug it before shaving.

What does the pop-up trimmer do?

The pop-up trimmer is designed for detailing sideburns, mustache, or beard edges. Slide it up when needed.

Is the shaver suitable for sensitive skin?

Yes, the rotary system with floating heads adapts to facial contours, minimizing irritation. Use with a pre-shave lotion for added comfort.

How do I know when the battery is low?

The shaver may have a LED indicator or you may notice reduced power. Some models beep or flash when battery is low.

Can I travel with this shaver?

Yes, it is compact and comes with a protective cap. The charger supports 100-240V voltage, suitable for worldwide use with a plug adapter.

Where can I find replacement parts?

Replacement heads and other accessories are available online or at Philips service centers. Use genuine Philips parts for best results.

USER MANUAL Series 3000 HQ6645 PHILIPS

Read this user manual carefully before you use the appliance and save it for future reference.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Only use the mains cord supplied.
• Do not use a damaged mains cord.
• If the mains cord is damaged, always have it replaced with one of the original type in order to avoid a hazard.
• The appliance is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.
• Use and store the appliance at a temperature between 5° C and 35° C.
• Keep the appliance and the mains cord dry.

Electromagnetic field (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Using the appliance

Shaving

1 Put the appliance plug in the shaver.
2 Put the mains plug in the wall socket.
3 Switch on the shaver by pushing the on/off slide to position I.
4 Move the shaving heads quickly over your skin, making both straight and circular movements.

Shaving on a dry face gives the best results.

Your skin may need 2 or 3 weeks to get accustomed to the Philips shaving system.

5 Switch off the shaver by pushing the on/off slide to position 0.
6 Put the protection cap on the shaver every time you have used it, to prevent damage to the shaving heads.

Trimming

For grooming sideburns and moustache.

1 Open the trimmer by pushing the slide upwards.

The trimmer can be activated while the motor is running.

2 Close the trimmer ('click').

Cleaning and maintenance

Regular cleaning guarantees better shaving performance.

ENGLISH6

For easy and optimal cleaning, the Philips Shaving Head Cleaner (type HQ100) is available. Ask your Philips dealer for information.

The Philips Shaving Head Cleaner may not be available in all countries. Contact the Customer Care Centre in your country about the availability of this accessory.

You can also clean the shaver in the following way:

Every week: shaving unit and hair chamber

1 Switch off the shaver, remove the mains plug from the wall socket and pull the appliance plug out of the shaver.

2 Clean the top of the appliance first, using the brush supplied.

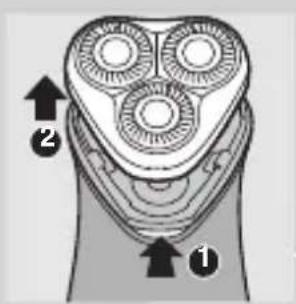

3 Press the release button (1) and remove the shaving unit (2).

4 Clean the inside of the shaving unit and the hair chamber with the brush.

5 Put the shaving unit back onto the shaver.

Every two months: shaving heads

1 Switch off the shaver, remove the mains plug from the wall socket and pull the appliance plug out of the shaver.

2 Press the release button (1) and remove the shaving unit (2).

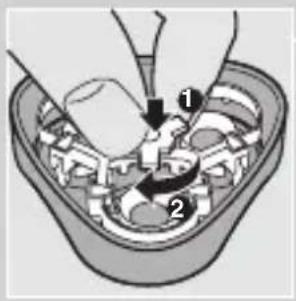

3 Turn the wheel anticlockwise (1) and remove the retaining frame (2).

4 Remove the cutters and guards and clean them with the brush supplied.

Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.

5 Clean the cutter with the short-bristled side of the brush.

Brush carefully in the direction of the arrow.

6 Brush the guard.

ENGLISH8

7 Put the shaving heads back into the shaving unit. Put the retaining frame back into the shaving unit (1) and turn the wheel clockwise (2).
8 Put the shaving unit back onto the shaver. For extra thorough cleaning, clean the shaving heads by putting them in a degreasing liquid (e.g. alcohol) every six months. To remove the shaving heads, follow steps 1 to 4 described above. After cleaning, lubricate the central point on the inside of the guards with a drop of sewing machine oil to prevent wear of the shaving heads.

Trimmer

Clean the trimmer every time you have used it.

1 Switch off the shaver, remove the mains plug from the wall socket and pull the appliance plug out of the shaver.
2 Clean the trimmer with the brush supplied.
3 Lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage

Put the protection cap on the shaver to prevent damage.

Replacement

Replace the shaving heads every two years for optimal shaving results.

Replace damaged or worn shaving heads with HQ55 Philips Shaving Heads only.

1 Switch off the shaver, remove the mains plug from the wall socket and pull the appliance plug out of the shaver.

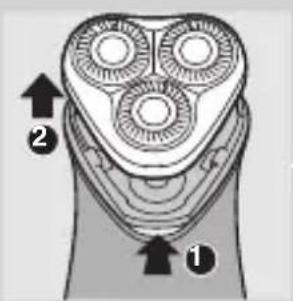

2 Press the release button (1) and remove the shaving unit (2).
3 Turn the wheel anticlockwise (1) and remove the retaining frame (2).

4 Remove the shaving heads and place new ones in the shaving unit.

5 Put the retaining frame back into the shaving unit (1) and turn the wheel clockwise (2). 6 Put the shaving unit back onto the shaver.

6 Put the shaving unit back onto the shaver.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Accessories

The following accessories are available:

• HQ55 Philips Shaving Heads.
• HQ100 Philips Shaving Head Cleaner (not available in China).
• HQ101 Philips Shaving Head Cleaning Fluid (not available in China).
• HQ110 Philips Shaving Head Cleaning Spray (not available in China).

Guarantee & service

If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

1 Reduced shaving performance

Cause 1: the shaving heads are dirty.

The shaver has not been cleaned well enough or has not been cleaned for a long time.

Clean the shaver thoroughly before you continue shaving. See chapter ‘Cleaning and maintenance’.
Cause 2: long hairs are obstructing the shaving heads.

Clean the cutters and guards with the brush supplied. See chapter ‘Cleaning and maintenance’, section ‘Every two months: shaving heads’.

Cause 3: the shaving heads are damaged or worn.

Replace the shaving heads. See chapter 'Replacement'.

2 The shaver does not work when the on/off slide is pushed to position I.

Cause: the shaver is not connected to the mains.

Put the mains plug in the wall socket.

Penting

Menggunakan alat

Mencukur

제품 사용

면도

6 바깥날을 청소하십시오.

6 Berus adangan.

Electromagnetic field (EMF)

การจัดเก็บ

Cách sử dụng máy

Cạo râu

電磁場 (EMF)

適合刮除鬢角及髭髴。

定期清潔以維持較佳的刮鬍效果。

2 請先利用隨附的清潔刷清潔產品上方。

5 將電鬍刀組裝回電鬍刀上。

每兩個月：電鬍刀刀頭

5 請使用清潔刷的短毛側來清潔刀具。

請朝箭頭方向小心刷動。

6 用清潔刷清潔刀網。

每次使用鬢角刀後，請進行清潔。

收藏

蓋上電鬍刀保護蓋以避免損壞。

更换

用于修剪鬓角和小胡子。

每周：剃须刀头部件和胡茬储藏室

5 将剃须刀头部件重新安装到剃须刀上。

每两个月：剃须刀头

5 用毛刷的短毛一侧清洁刀片。

按箭头方向仔细刷净。

6 刷净网罩。

每次使用后都要清洁修发器。

存放

盖上剃须刀保护盖，以防受损。

更换

附件

可选配以下附件:
