MSL600RVS - Range hood Pelgrim - Free user manual and instructions

Product type	Kitchen hood
Brand	Pelgrim
Model	MSL600RVS
Width	60 cm
Depth	50 cm (estimate)
Height	15-25 cm (built-in)
Weight	Approximately 8 kg
Power supply	220-240 V ~ 50/60 Hz
Motor power	150-200 W
Max airflow	600 m³/h
Max noise level	65 dB
Number of speeds	3
Lighting	LED 2 x 1.5 W
Control type	Electronic touch controls
Grease filter	Washable aluminium
Charcoal filter (optional)	Yes, for recirculation
Extraction mode	Extraction or recirculation
Air outlet diameter	150 mm
Energy class	B (estimate)
Maintenance	Regular filter cleaning
Safety	Automatic shutdown in case of overheating
Spare parts	Available, motor and filters replaceable
Repairability	Repairability score 7.5/10 (estimate)

Frequently Asked Questions - MSL600RVS Pelgrim

How to install the MSL600RVS hood?

Installation must be carried out by a qualified professional. Observe safety distances: at least 65 cm above a gas hob, 50 cm for an electric hob. Securely fix the hood to the wall or under a cabinet.

What are the hood's filters and how to maintain them?

The aluminium grease filters are dishwasher-safe. The charcoal filters (optional) should be replaced every 3 to 6 months depending on use.

How to adjust the extraction speed?

Use the control buttons to select one of the 3 speeds. The maximum speed is recommended for strong odours and steam.

The hood is noisy, is this normal?

A noise level up to 65 dB is normal at maximum speed. If the noise is excessive, check that the filters are clean and that the installation is stable.

Can I use the hood in recirculation mode?

Yes, with an activated charcoal filter (optional). In this case, the air is filtered and returned to the room. Make sure the filter is suitable for the MSL600RVS model.

How to change the LED bulb?

The LED bulbs are integrated and must be replaced by a professional. Contact Pelgrim after-sales service for a spare part.

What to do if the hood does not turn on?

Check the power supply (fuse, circuit breaker). If the problem persists, the motor or electronic board may be defective. Contact customer service.

The hood extracts poorly, what to check?

Clean or replace the grease and charcoal filters. Check that the exhaust duct is not blocked. For recirculation mode, ensure the charcoal filter is in good condition.

Where to find spare parts for the MSL600RVS hood?

Spare parts (motor, filters, bulbs) are available from Pelgrim authorised dealers or on their official website. Use the model number to identify the part.

What is the warranty for the Pelgrim MSL600RVS hood?

The legal warranty is 2 years. Pelgrim often offers an additional 1-year warranty on the motor. Keep the invoice for any claims.

USER MANUAL MSL600RVS Pelgrim

SLK650

Diagram of two rectangular electronic components with internal arrows indicating movement or force, labeled 'E' (no text or symbols beyond label)

Reinigen

Afzuigkap

Technical line drawing of a cabinet with open door and side view, showing internal components (no text or symbols)

Technical diagram showing two mechanical assembly configurations with no visible text or symbols

Motorloze afzuigkap

Spanning 230 V - 50 Hz X X X X

precautions you must take 18

extraction systems 18

control

control switches 19

visor switches 19

intensive setting (SLK680/980) 20

timer (SLK680/980) 20

grease filter indication (SLK680/980) 20

maintenance

carbon filters 20

assembling the carbon filter .....21

removing filter panel/changing the light bulbs .....21

cleaning 22

installation

general 23

building-in dimensions 23

mounting the cooker hood 24

mounting the cover 25

cooker hood with remote motor unit .....25

disposal of packaging and appliances .....26

technical specifications .....26

MSL600

SLK600

SLK650

SLK680/980

Description

1. lighting on/off
2. speed switch
3. indicator light
4. intensive setting

Introduction

When you have read these instructions for use, you will quickly be aware of all the facilities the appliance can offer you. You can read about safety and how you should look after the appliance.

Keep the instructions for use and the installation instructions. Any later user of this appliance could benefit from them.

Precautions you must take

■ Have the appliance connected by a qualified fitter (see section "Installation").

■ The power supply must be disconnected before the appliance is cleaned or repaired. Remove the plug from the socket or switch the electricity off at the mains.

■ When cooking, the hob becomes hot, children should always be kept at a distance.

■ Fats and oils become inflammable on overheating. Never leave such foods unattended during preparation.

■ We advise you to switch the cooker hood on before you start cooking. Leave the cooker hood on for another 5 minutes or so after you have finished cooking.

■ A grease-saturated filter mat is inflammable, so never flambé under the cooker hood, and clean the filter regularly.

■ Replacing the light bulbs: first switch the electricity off! Only use the same sort of light bulbs with the same Wattage.

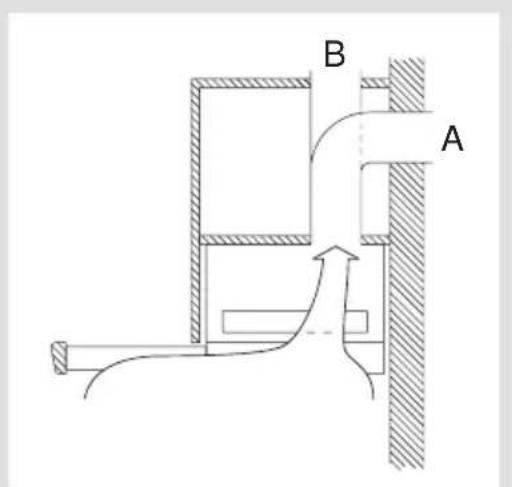

Extraction systems

Some cooker hoods can be connected in one of two ways:

■ To a duct (A), the cooking vapours extracted by suction are carried outside, once the grease particles have been filtered. This is the best method.

■ As a recirculation hood, the grease particles and the smell in the extracted vapours are filtered and the air streams back into the kitchen through the opening (B).

Control switches

1. lighting on/off
2. speed switch
3. indicator light
4. intensive setting

MSL600 SLK600

SLK650

SLK680/980

Visor switches

The visor switches only work if the light and fan switches are switched on. If you pull the visor open the light and fan will go on.

Memory (SLK680/980)

When you close the visor when the motor is still running, the fan switches off. The cooker hood remembers the chosen speed setting. The indicator light will stay on to indicate this (green = setting 1, orange = setting 2, red = setting 3, flashing red = setting 4).

The internal timer that keeps track of the working hours will keep running during this period. Therefore the grease filter indication (see page 20) will be inaccurate.

If you pull the visor fully open again the fan will switch on again with the last chosen speed setting.

Intensive setting (SLK680/980)

You can temporarily switch the extractor hood to the highest setting – in order, for example, to remove the odour quickly if something has burned.

Press switch to switch to the intensive setting. The extractor hood switches to its highest setting (4) for 5 minutes, and then switches back to the original setting.

Timer (SLK680/980)

Press switch, 0 or for 2 seconds. The extractor hood remains at the selected setting for 5 minutes, after which the extractor hood and the lighting are automatically switched off.

Grease filter indication (SLK680/980)

The degree of saturation of the grease filter is indicated by means of a luminous display.

If button is pressed when the extractor hood is switched off, the display lights up; the colours displayed have the following meanings:

■ green light: in use for less than 6 working hours
■ yellow light: in use for 6 to 12 working hours
■ red light: in use for more than 12 working hours (the grease filter should be cleaned or, if necessary, replaced).

Carbon filters

The carbon filter must be used if the cooker hood is not connected to a duct (see extraction systems on page 18).

Note:

■ The carbon filter must be replaced at least twice a year, depending on how much the cooker hood is used.
■ Carbon filters cannot be cleaned to use again.
■ Saturated carbon is harmful to the environment, replace the filter regularly.

Fitting the carbon filter

SLK 600/650/680/980

Centre the carbon filter with the sunken round surface on top of the motor frame and turn it to the right.

Removing filter panel/changing the light bulbs

First switch the electricity off.

MSL600/SLK600

Pull out the visor (C). Press the handle (D) slightly. Remove the filter panel

Remove the carbon filter (if applicable) to change the lam p.

SLK650

Pull out the visor (C). Press the handle (D) slightly. Remove the filter panel

Remove the plastic cover (B) to change the light.

Removing filter panel/changing the light bulbs

First switch the electricity off.

SLK680/980

Pull out the visor (C). Press the handle (D) slightly. Remove the cover (B) by turning it counterclockwise. Pull the bulb out of the holder, then fit the new bulb. Take care not to touch the bulb with your hands when you replace it, since direct contact with the skin can result in the bulb burning out.

SLK980

The filter panel can be taken apart in 2 pieces. Be careful not to damage the fixing guide (E).

Diagram of two rectangular electronic components with internal arrows indicating movement or force, labeled 'E' (no text or symbols beyond label)

Cleaning

Cooker hood

Clean the cooker hood with soapy water, then wipe with clean water to rinse. Do not use aggressive cleaning agents such as soda. The cooker hood paintwork will stay looking nice if you wax it occasionally.

Filters

■ Wash aluminium filters, every week in soapy water. The cleaning agents will make the aluminium filter turn dull, this is normal.
■ Some models are fitted with fibre filters. These can only be washed once or twice and must therefore be replaced regularly.
■ The carbon filters cannot be cleaned to use again.

General

This appliance should be connected to the power supply by a recognized fitter who is familiar with, and works according to the correct safety regulations.

Important that you know:

■ If the cooker hood is to be fitted to an existing duct no other appliances, such as a geyser or heater, may be connected to that same duct.
■ Consider local regulations with respect to the ventilation of gas appliances!
■ The cooker hood should be mounted at least 650 mm above the hob.
■ The shorter the duct, and the fewer the bends in it, the better the cooker hood will work.
■ Before you start drilling check that there are no installation cables present.

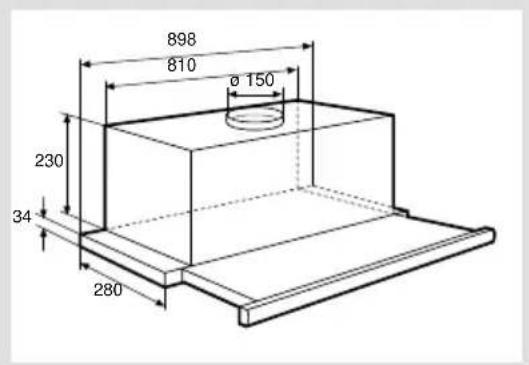

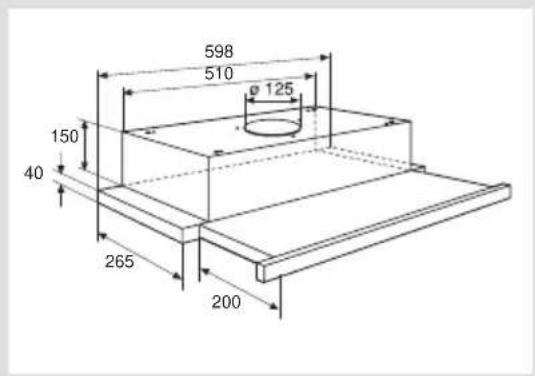

Building-in dimensions

MSL600/SLK600 SLK650

SLK680 SLK980

Mounting the cooker hood

MSL600/SLK600/SLK680/SLK980

Drill 4 holes in the bottom of the wall cupboard, using the stencil provided (H). Also saw the hole for the duct.

Using the 4 screws supplied, fix the cooker hood to the bottom of the cupboard. Make sure that the front of the cooker hood does not stick out in front of the side of the cupboard (G).

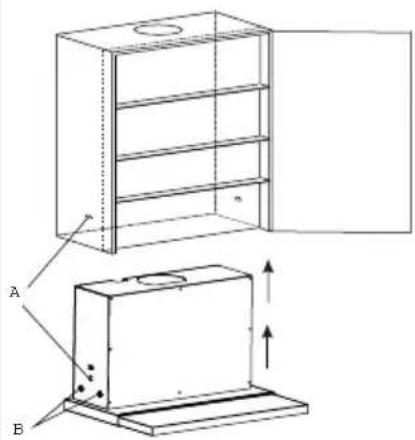

SLK650

Drill 2 holes (A) in the sides of the cabinet. Also saw the hole for the duct. Insert the cooker hood into the cabinet until the two retaining springs (A) are fixed into the previously drilled holes.

From the inside of the hood insert four screws (B) supplied with the hood. If the sides of the cabinet are thicker than 18 mm and the cooker hood can not be installed due to the plastic spacers (B), please remove the spacers.

The handle may be replaced by other material, e.g. the same material used for the kitchen cupboards or the light strip. The handle is fitted from the back with screws.

Connect the cooker hood outlet flange (P) to the duct (A). Put the plug in the wall socket.

Mounting the cover

If the cupboard is deeper than the cooker hood, you can mount the cover via the slotted holes on the back of the hood. The depth can be adjusted from 20 to 60 mm

Technical line drawing of a mechanical assembly with two views: top shows a pipe connection, bottom shows a structural beam with fasteners (no text or symbols)

Cooker hood with remote motor unit

This cooker hood can only be used in combination with a mechanical ventilation system. The extraction is regulated with a switch on the motor unit.

The motor unit must be single phase (230 V-50Hz) with various speeds. Whichever method of extraction is selected, it must never be possible to switch the motor unit off (see for this only the motor unit manual). The various possibilities are often given in terms of: Medium or day setting, high or cooking setting.

Disposal of packaging and appliances

The packaging of the appliance is recyclable. It is made up off:

-cardboard

- polyethylene

– CFC free polystyrene (PS rigid foam)

– polypropylene straps around the box

Please dispose of these materials in a responsible way in accordance with the regulations of your local authority.

Your local authority will also be able to give you information about disposing disused household appliances in a responsible way

Technical specifications

Type MSL600 SLK600 SLK650 SLK680/980

Power 230 V - 50 Hz X X X X

Nominal capacity W 80 210 325 240

Motor W - 130 300 200

Lighting W 2x40 2x40 PL 11 2x20

Carbon filter - KF20 KF20 KF80
