DO911WK - Wine cellar DOMO - Free user manual and instructions

Product type	Wine cellar
Brand	DOMO
Model	DO911WK
Capacity (bottles)	Approximately 12 to 18 bottles
Temperature zone	1 zone (adjustable temperature)
Temperature range	5 °C to 18 °C
Cooling type	Compressor / thermodynamic
Dimensions (W x D x H)	Approximately 50 x 50 x 85 cm
Net weight	Approximately 25 kg
Power supply	220-240 V, 50 Hz
Energy consumption	Approximately 100 kWh/year (class G)
Noise level	Approximately 40 dB
Interior lighting	LED
Reversible door	Yes
Door type	Solid or glass (depending on version)
Shelves	Sliding metal shelves
Thermostat	Mechanical or electronic adjustment
Defrost function	Automatic
Maintenance and cleaning	Unplug, clean with a soft cloth and non-abrasive product
Safety	Child lock (if present), mandatory grounding
Spare parts and repairability	Parts available via after-sales service
General information	User manual available for download

Frequently Asked Questions - DO911WK DOMO

What is the capacity of the DOMO DO911WK wine cellar?

The DOMO DO911WK wine cellar can hold approximately 12 to 18 bottles depending on the format.

What is the temperature range of the DO911WK cellar?

The adjustable temperature range is between 5 °C and 18 °C, ideal for aging and storing wines.

Is the door reversible?

Yes, the door of the DO911WK cellar is reversible, allowing installation according to your configuration.

What type of cooling does this cellar use?

The cooling system is compressor (thermodynamic), ensuring stable temperature.

How to clean the inside of the cellar?

Unplug the appliance, remove the shelves and clean with a soft cloth and non-abrasive product. Rinse and dry thoroughly.

Do I need to defrost the wine cellar?

No, defrosting is automatic. Condensation water is drained via an integrated tray.

Is the wine cellar noisy?

The noise level is approximately 40 dB, comparable to a quiet refrigerator.

Where to find the user manual?

The manual is available for free download in PDF format on notice-facile.com.

What types of wine can I store?

This cellar is suitable for storing red, white, and sparkling wines, thanks to the adjustable temperature range.

What to do in case of breakdown or defective part?

Contact DOMO after-sales service for spare parts or repair.

USER MANUAL DO911WK DOMO

Exterior view of a stainless steel double-wire refrigerator with open door and wooden shelves (no visible text or symbols)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

RECYCLING INFORMATIONEN

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

Simple black line drawing of a plug with a curved wire (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

INSTALLATIE

Line drawing of a sewing machine needle stitching fabric, with no text or symbols present

Simple line drawing of a mechanical lever mechanism with a circular head and downward arrow (no text or symbols)

Simple line drawing of a folded corner or panel with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with two views: one showing a circular component and the other showing a pulley mechanism (no text or symbols)

Technical line drawing of a mechanical linkage assembly with two views (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing a hand holding a tool, labeled with number 9 (no text or symbols on the diagram itself)

MOGELIJKE OPLOSSINGEN BIJ PROBLEMEN

INSTALLATION

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Simple line drawing of a mechanical device with a handle and lever, no text or symbols present

Simple line drawing of a folded corner or panel with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with two views: one showing a pulley mechanism and the other showing a rope connection (no text or symbols present)

Technical line drawing of a mechanical linkage assembly with two views (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing a circular component (no text or symbols)

SOLUTIONS POSSIBLES EN CAS DE PROBLÈMES

AUFSTELLEN

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Diagram of a mechanical device with a lever and adjustment knob, showing no text or symbols

Simple line drawing of a folded paper or sheet with two corner points and dashed lines indicating edges (no text or symbols)

Technical diagram showing mechanical assembly with two views of a linkage mechanism (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing a hand holding a tool, labeled with number 9 (no text or symbols on the diagram itself)

This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
  • Make sure that children do not climb into the appliance and that they can not get trapped inside.
• Never clean the appliance with inflammable products. The fumes could cause a fire hazard or explosions. Never store gasoline or inflammable products inside the wine-chiller.
• Do not store any food inside the wine-chiller.
  • Always connect the wine-chiller to an earthed power outlet.

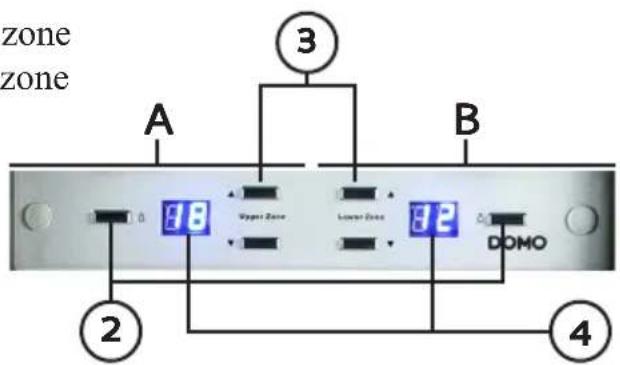

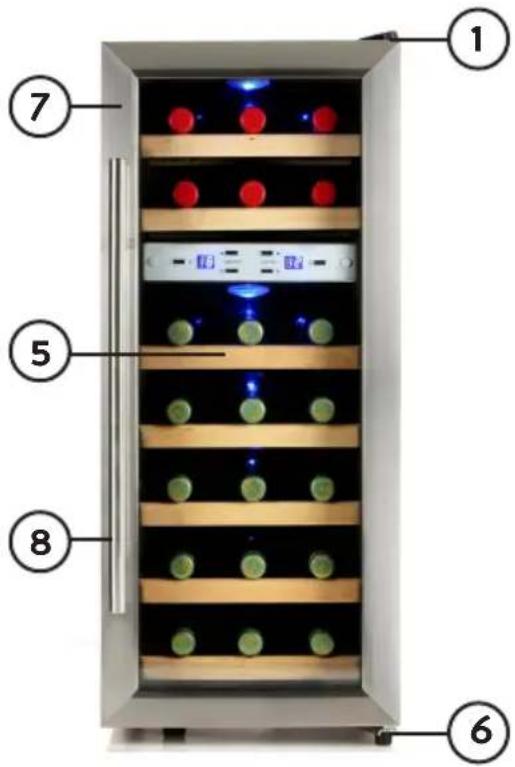

PARTS

1. Hinge
2. Lighting on/off
3. Temperature control
4. Display temperature
5. 7 wooden racks
6. Support feet
7. Door with rubber seal and glass window
8. Handle

A: upper zone

B: lower zone

INSTALLATION

1. Remove all packaging materials and any promotional stickers.
2. Before connecting the appliance to the power net, leave it standing upright for about 2 hours. This reduces the risk of any malfunctioning of the cooling system due to transportation.
3. Clean the inside of the wine-chiller with lukewarm water and a soft cloth.
4. Place the appliance on a firm, steady surface, that is strong enough to carry a filled wine-chiller. To level the appliance, you can adjust the front support feet at the bottom of the appliance.
5. Do not place the appliance directly into sunlight or near heat sources. Direct sunlight could affect the coating of the appliance and the proximity of heat sources may cause an increase of the energy consumption. Extreme temperatures may also cause malfunctioning of the appliance.
6. Make sure that the air can circulate around the appliance. Therefore, leave a free space of at least 10 cm between the appliance and any other object.
7. Screw the handle onto the door with the supplied screws.
8. Only suited for indoor use. Do not use the appliance in basements or garages.
9. The cord should not be exposed or left hanging loose to prevent possible accidents.

USE

Temperature

Make sure that the room temperature lies between 10^ C and 26^ C. If the temperature is higher or lower, the performances of the appliance may be affected. The temperature may vary depending on whether the bottles are on the upper, middle or lower racks and whether the inside lighting is on or not.

A few guidelines on the temperature setting:

Beer: 7°C

Champagne: 7-8°C

Young white wine, rosé wine: 9-10°C

Aging white wine: 12°C

Young, fruity red wine: 15-16°C

Aging red wine: 17-18°C

(These temperatures are merely guidelines.)

Display

The desired temperature can be set with the arrow buttons on the control panel. The temperature for the upper zone ( 7^ C tot 18^ C) and lower zone ( 10^ C tot 18^ C) can be set separately.

The inside lighting can be switched on and off with the button next to the light bulb symbol.

CLEANING AND MAINTENANCE

• Remove the plug from the socket and remove the bottles from the wine-chiller.
• Clean the inside of the wine-chiller with warm water and a soda solution.
• Clean the outside of the wine-chiller with warm water and some mild detergent.

MOVING THE APPLIANCE

• Remove all bottles from the wine-chiller.
• Tape all loose parts to the inside of the wine-chiller.
• Set the support feet at the bottom of the appliance to their lowest position to avoid damaging.
• Tape the door shut.
• Make sure that the appliance is kept upright during transportation.

REVERSING THE DOOR

Caution:

• Make sure that the appliance is empty and disconnected from the power net.
• To reverse the door, you need to tip the appliance backwards. Make sure that the appliance can lean on something firm and stable, so that it does not slip away while reversing the door.
• All removed objects are still needed to reinstall the reversed door.
• Do not lay the appliance flat, this could damage the cooling system.

• It is recommended to execute the assembly with 2 people.

• Remove the top hinge cover with a flat screw driver.

• Unscrew the top hinge.

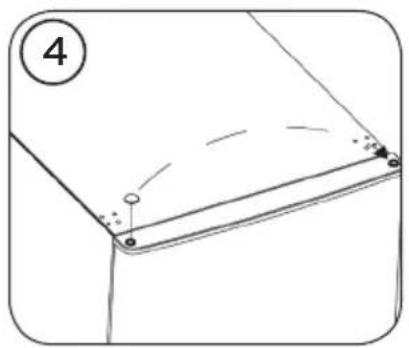

• Remove the hole cover on the other side of the door with a flat screw driver.
• Move the core cover in the door from the one side to the other.

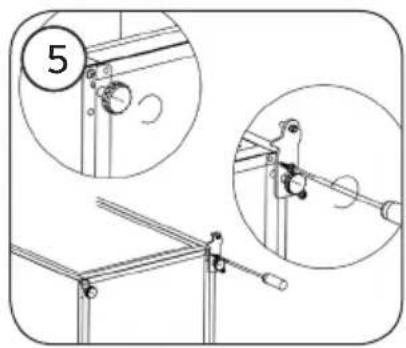

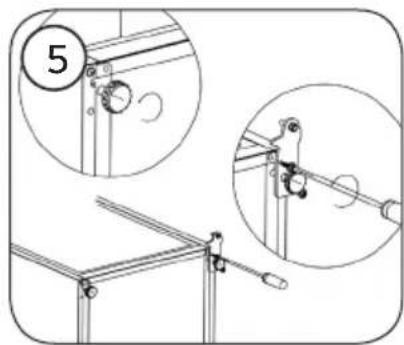

• Unscrew the bottom hinge and the two levelling feet. Lift the door and place the door on a soft surface to avoid scratching.

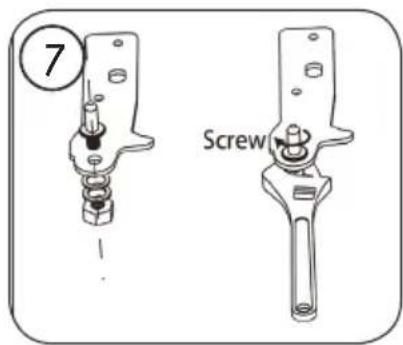

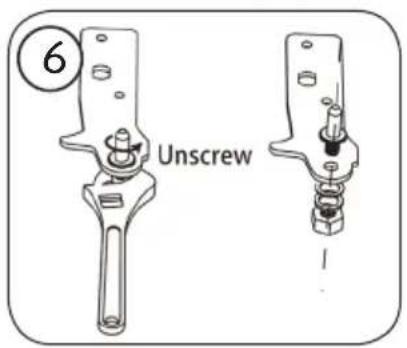

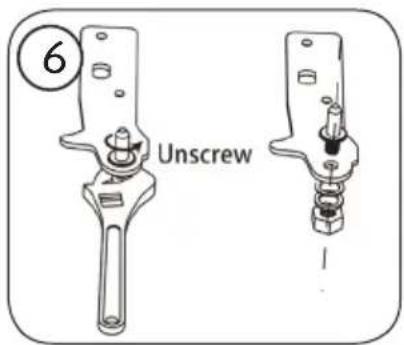

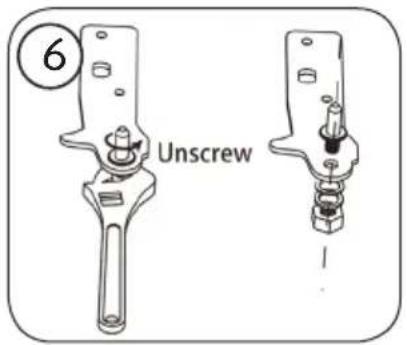

• Unscrew and remove the bottom hinge pin, turn the bracket over and screw the hinge pin back in again.

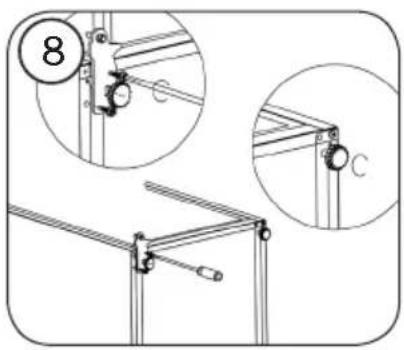

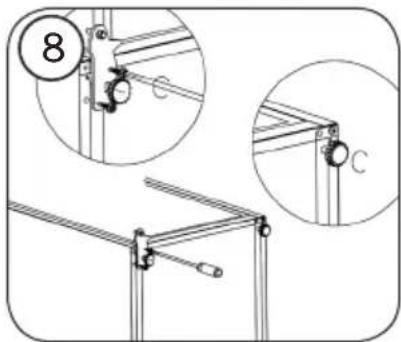

• Install the hinge at the other side on the bottom of the appliance. Reinstall the levelling feet.
• Place the bottom door on the bottom hinge. Make sure that the hinge is inserted into the opening at the bottom of the door. Move the hinge hole cover at the top of the door from the one side to the other.

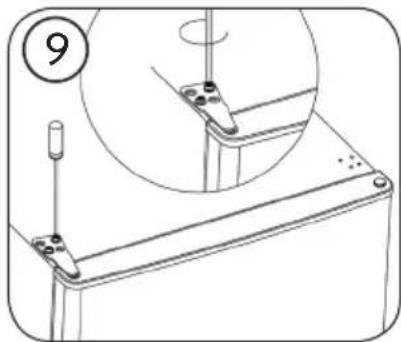

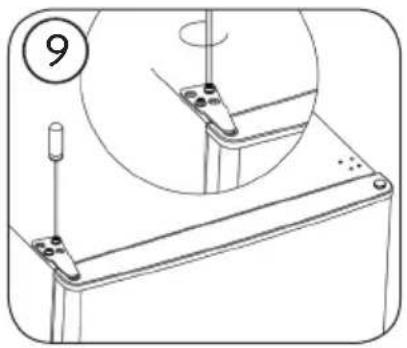

• Install the upper door with the upper hinge.
• Click the hinge cover and the hole cover back on top of the appliance.

Line drawing of a sewing machine needle stitching fabric, with no visible text or symbols

Simple line drawing of a mechanical lever mechanism with a circular head and downward arrow (no text or symbols)

Simple line drawing of a folded paper or sheet with two corner points and dashed lines indicating edges (no text or symbols)

Technical line drawing of a mechanical assembly with two views: one showing a circular component and the other showing a chain link (no text or symbols present)

Technical line drawing of a mechanical linkage assembly with two views (labeled 8), showing no text or symbols.

Technical line drawing of a mechanical device with a circular inset showing a hand holding a tool, labeled with number 9 (no text or symbols on the diagram itself)

POSSIBLE SOLUTIONS IN CASE OF A PROBLEM

If there is a problem with your wine-chiller, please check the table below first before contacting the repair service. You may be able to fix the problem yourself.

Problem Possible causes and solutions
The wine-chiller does not work. Check if the plug is connected to the power outlet and if the voltage indicated on the label on the appliance corresponds with the voltage of the power net.
The wine-chiller is not cool enough. Check the temperature settings.Ambient temperatures may cause the need of a higher or lower temperature setting.The door is being opened too frequently.The door is not shut properly.The rubber seal of the door does not close off properly.
The wine-chiller vibrates. Check whether the wine-chiller is level.
The wine-chiller makes too much noise. The wine-chiller may not be level.Check the ventilator.
The door does not close properly. The wine-chiller may not be level.The door was reversed and is not installed properly.The rubber seal is not strong enough.The racks are not placed well into the wine-chiller.

PRECAUCIONES IMPORTANTES

INSTALACIÓN

Technical line drawing of a sewing machine needle stitching a fabric (no text or symbols)

Simple line drawing of a mechanical lever mechanism with a circular head and downward arrow (no text or symbols)

Simple line drawing of a folded corner or panel with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with two views: one showing a pulley mechanism and the other showing a rope system (no text or symbols present)

Technical line drawing of a mechanical linkage assembly with two views (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

PROBLEMAS Y POSIBLES SOLUCIONES

MONTÁŽ

Technical line drawing of a sewing machine needle stitching a fabric (no text or symbols)

Simple line drawing of a mechanical lever mechanism with a circular head and downward arrow (no text or symbols)

Simple line drawing of a folded corner or edge with a numbered label (4) and no text or symbols present.

Technical line drawing of a mechanical assembly with circular insets showing components (no text or symbols)

Technical line drawing of a mechanical linkage assembly with two views (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

MOŽNÉ PROBLÉMY A JEJICH ŘEŠENÍ

MONTÁŽ

Technical line drawing of a sewing machine needle stitching a component (no text or symbols)

Simple line drawing of a mechanical lever mechanism with a circular head and downward arrow (no text or symbols)

Simple line drawing of a folded corner or panel with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with two views: one showing a pulley mechanism and the other showing a chain connection (no text or symbols present)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

MOŽNÉ PROBLÉMY A ICH RIEŠENIA

Out of dust bags? Need an anti-scale cartridge?

You can now also order our accessories and parts in the

Domo Webshop

Webshop Domo

Domo- Webshop

Domo Webshop

Surf naar:

Rendez-vous sur:

Einfach unter:

Surf to:

webshop.domo-elektro.be

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:
