Product type	Active speaker
Brand	Proel
Model	V15A
Speaker	15 inches + tweeter
Amplification	Built-in amplifier
Power	600 W RMS

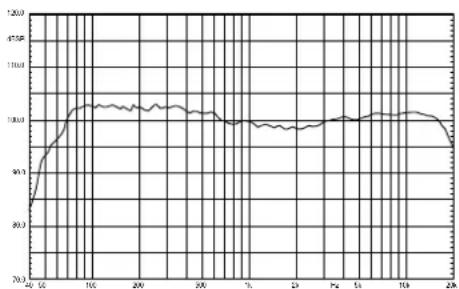

Frequency response	55 Hz - 20 kHz
Impedance	8 ohms
Maximum sound pressure	126 dB SPL
Dimensions (W x H x D)	440 x 710 x 420 mm
Weight	27 kg
Power supply	220-240 V AC, 50/60 Hz
Power consumption	800 W max
Connectivity	XLR and 6.35 mm Jack inputs, XLR link output
Controls	Volume, EQ, high-pass filter
Cabinet material	Birch plywood
Protective grille	Painted steel grille
Application	Mobile sound reinforcement, stage, fixed installation
Maintenance and cleaning	Clean with a soft dry cloth. Do not use solvents.
Safety	Do not expose to moisture or shocks. Disconnect before cleaning.
Spare parts and repairability	Contact an authorized Proel service center for repairs. Parts available on request.
Included accessories	Power cable, user manual
General information	Professional active speaker designed for quality sound reinforcement.

Frequently Asked Questions - V15A Proel

How to connect the Proel V15A speaker?

Use an XLR or 6.35 mm Jack cable to connect an audio source (mixer, microphone, etc.) to the speaker input. Plug the power cable into a 220-240 V mains socket. Turn on the speaker with the switch located at the rear.

What is the weight of the speaker?

The Proel V15A weighs approximately 27 kg. It is recommended to use a cart or get assistance to move it.

Can the speaker be used on a stand?

Yes, the V15A has a mounting socket for a standard (35 mm) speaker stand. Ensure the stand supports the weight of the speaker.

How to clean the speaker?

Disconnect the speaker before cleaning. Use a soft dry cloth to remove dust. Never use chemical or abrasive products.

What to do if the speaker does not turn on?

Check that the power cable is properly connected and that the mains socket works. If the problem persists, contact an authorized Proel service center.

What is the power of the built-in amplifier?

The amplifier delivers 600 W RMS, sufficient for medium-sized sound reinforcement applications.

Can I connect multiple speakers together?

Yes, use the Link XLR output to connect a second speaker in parallel. Ensure the total impedance is compatible with the amplifier.

What controls are available on the back?

You will find a volume control, EQ (bass/treble), and a high-pass filter to cut low frequencies if necessary.

Is the speaker suitable for outdoor use?

The V15A is designed for professional use and can be used outdoors under cover. Avoid direct exposure to rain or moisture.

Where to find spare parts or get the speaker repaired?

Contact Proel customer service or an authorized dealer. Repairs must be carried out by a qualified technician.

USER MANUAL V15A Proel

Technical line drawing of three identical mechanical components with internal structural framework (no text or symbols)

FCC COMPLIANCE NOTICE

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the

purchase contract. This product should not be mixed with other commercial wastes for disposal.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The information contained in this publication has been carefully prepared and checked. However no responsibility will be taken for any errors. All rights are reserved and this document cannot be copied, photocopied or reproduced in part or completely without written consent being obtained in advance from PROEL. PROEL reserves the right to make any aesthetic, functional or design modification to any of its products without any prior notice. PROEL assumes no responsibility for the use or application of the products or circuits described herein.

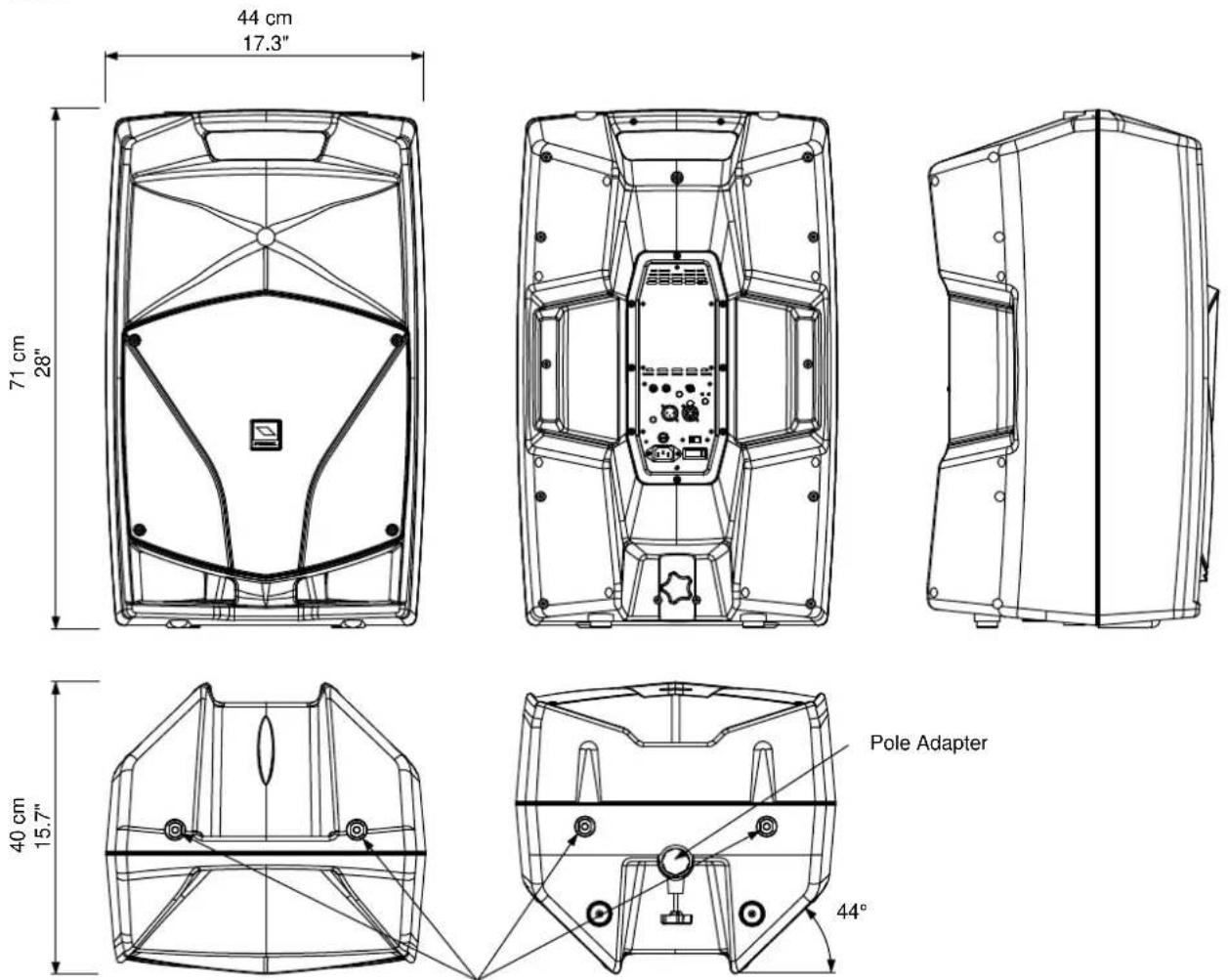

DIMENSIONS AND FLYING POINTS

V15A

M10 Flying Point

ACCESSORIES

KP210

Adjustable speaker pole for speaker-subwoofer separation with terminal pieces ∅ 35 mm. Supplied with a bolt locking mechanism incorporating a steel pin for extra safety. Adjustment: 825 - 1320 mm.

FRE300BK

Professional aluminium floor-stand for speaker with terminal pieces ∅ 35mm. Supplied with a screw locking system, a steel safety pin and "Aircushioned" air-damped release device to grant a flexible, fast and easy adjustment. Adjustment: 1470-2180 mm.

KPTV10 / KPTV12 / KPTV15

C-shape metal bracket for wall mount with +/- 45° free rotation.

KPTNX04

Horizontal and Vertical adjustable metal bracket for wall mount, bar length 25 cm, 12.5° 4 step vert. aiming, 10° 7 step hor. aiming, must be used in conjunction with KPTV.

PLH300

Single aluminium coupler for 50mm truss with M12 bolt, always use two couplers with the KPTV for each speaker.

COVERV10 / COVERV12 / COVERV15

Heavy duty cover for carrying.

ACCESSORI

KP210

Close-up of a metallic cylindrical device with threaded tip and connector (no visible text or symbols)

INPUT
Balanced male XLR
INPUT (ingresso)
XLR bilanciato maschio
INPUT (Eingang)
XLR symmetrisch, männlich
INPUT (entrée)
XLR symétrique mâle
INPUT (entrada)
XLR balanceado macho
INPUT (الخيم)
XLR

LINK (output)
Balanced female XLR
LINK (uscita)
XLR bilanciato femmina
LINK (Ausgang)
XLR symmetrisch, weiblich
LINK (sortie)
XLR symétrique femelle
LINK (salida)
XLR balanceado hembra
LINK (الخيم)
XLR غير متوازي الله

INPUT
Jack (balanced)
INPUT (ingresso)
Jack (bilanciato)
INPUT (Eingang)
Klinkenstecker (symmetrisch)
INPUT (entrée)
Jack (symétrique)
INPUT (entrada)
Jack (balanceado)
INPUT(الج DEM)
مرصل صوت (مکازن)

INPUT
Jack (unbalanced)
INPUT (ingresso)
Jack (sbilanciato)
INPUT (Eingang)
Klinkenstecker (unsymmetrisch)
INPUT (entrée)
Jack (asymétrique)
INPUT (entrada)
Jack (debalanceado)
INPUT (الجيم)
موصتلاصوت (غرمکوازن)
*note: connect both cold and ground to make cable from balanced to unbalanced
*nota: connettere insieme cold e ground per cavi da bilanciato a sbilanciato
*Hinweis: bei Verbindung von symmetrisch zu unsymmetrisch Kalt und Masse zusammen anschließen
*remarque : connecter ensemble cold et ground pour des câbles de symétrique à asymétrique
*nota: conecte juntos cold y ground para cables de balanceado a desbalanceado
لئېه*اربطالباردواأرضيمعً للكابلاتبدأ مالمتوازنوح Greير المتوازن

CONFIGURATIONS (FIG.3)	CONFIGURAZIONI (FIG.3)	KONFIGURATIONEN (ABB.3)
CONFIGURATIONS (FIG.3)	CONFIGURACIONES (FIG.3)	(التكويّنات (الشکل 3)

basic conference system

V10A / V12A / V15A

(mic in)

single voice system

V10A / V12A / V15A

(mic in)

double voice system

dynamic microphone PROEL suggested types: DM580 - DM586 - DM226 DM220 - DM800 or WM wireless mic

set this switch as "MIC"

use preferably balanced cables

stereo basic system

2x V10A / V12A / V15A

LEFT

V10A / V12A / V15A

RIGHT

V10A / V12A / V15A

PROEL suggested equipment: Mi and M series mixer

Technical line drawing of a multi-layer electronic component with no visible text or symbols

SAFETY AND PRECAUTIONS

- CAUTION: before using this product read carefully the following safety instructions. Take a look of this manual entirely and preserve it for future reference.

When using any electric product, basic precautions should always be taken, including the following:

• To reduce the risk, close supervision is necessary when the product is used near children.
• Protect the apparatus from atmospheric agents and keep it away from water, rain and high humidity places.
• This product should be site away from heat sources such as radiators, lamps and any other device that generate heat.
• This product should be located so that its location or position does not interfere with its proper ventilation and heating dissipation.
  – Care should be taken so that objects and liquids do not go inside the product.
• The product should be connected to a power supply mains line only of the type described on the operating instructions or as marked on the product. Connect the apparatus to a power supply using only power cord included making always sure it is in good conditions.
• ⚠ WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
• Do not cancel the safety feature assured by means of a polarized line plug (one blade wider than the other) or with a earth connection.
• Make sure that power supply mains line has a proper earth connection.
• Power supply cord should be unplugged from the outlet during strong thunderstorm or when left unused for a long period of time.
• Do not place objects on the product's power cord or place it in a position where anyone could trip over, walk on or roll anything over it. Do not allow the product to rest on or to be installed over power cords of any type. Improper installations of this type create the possibility of fire hazard and/or personal injury.

- This product may be capable of producing sound levels that could cause permanent hearing loss. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a period of time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the permissible noise level exposures shown in the following chart. According to OSHA, any exposure in excess of these permissible limits could result in some hearing loss. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels use hearing protectors while the equipment is in operation. Ear plugs or protectors in the ear canals or over the ears must be worn when operating the equipment in order to prevent permanent hearing loss if exposure is in excess of the limits set forth here. Keep your's attention that children and pets are more susceptible to excessive noise levels.

Duration Per DayIn Hours	Sound Level dBASlow Response	TypicalExample
890 Duo in small club
6	92
4 95 Subway Train
3	97
2100 Very loud classical music
1.5	102
1 105 Traffic noise
0.5	110
0.25 or less	115 Loudest parts at a rock concert

IN CASE OF FAULT

• In case of fault or maintenance this product should be inspected only by qualified service personnel when:
• There is a flaw either in the connections or in the supplied connecting cables.
  – Liquids have spilled inside the product.
  – The product has fallen and been damaged.
  – The product does not appear to operate normally or exhibits a marked change in performance.
• The product has been lost liquids or gases or the enclosure is damaged.
• Do not operate on the product, it has no user-serviceable parts inside, refer servicing to an authorized maintenance centre.

TROUBLESHOOTING

No Power • The loudspeaker's "POWER" switch is off.Make sure the mains AC outlet is live (check with a tester or a lamp).Make sure the mains plug is securely plugged into mains AC outlet.
No Sound • Is the input	LEVEL control for the channel turned up?Is the SIGNAL LED illuminated? If not check if your signal level is too low or check the signal cable, mixer and other equipment setting and cabling.Are you sure your signal cables works properly? check it using a cable tester or replacing with a new one.Is the SPEAKON cable connector correctly inserted? turn it clockwise until it clicks.Are you sure your power cable works properly? check it using a cable tester or replacing with a new one.
Distorted Sound • Input	signal level is too high. Turn down your level controls.NOTE: The loudspeakers should never be operated at a level which causes the amplifier Clip LEDs to illuminate constantly.
Different channel level	Check if are using a balanced cable for one channel and an unbalanced one for the other, as this would cause a considerable difference in channel levels.Be sure that your loudspeaker system is fully connected and both loudspeakers have the same impedance.
Noise / Hum	Enable GND LIFT button on rear panel, if the problem persist press all GND LIFT buttons for all system's amplifiers.Whenever possible, preferably use only balanced cables. Unbalanced lines may also be used but may result in noise over long cable runs.Sometimes it helps to plug all audio equipment into the same AC circuit so they share a common ground.

CE CONFORMITY

• Proel products comply with directive 2004/108/EC (EMC), as stated in EN 55103-1 and EN 55103-2 standards and with directive 2006/95/CE (LVD), as stated in EN 60065 standard.
• Under the EM disturbance, the ratio of signal-noise will be changed above 10dB.

PACKAGING, SHIPPING AND COMPLAINT

• This unit package has been submitted to ISTA 1A integrity tests. We suggest you control the unit conditions immediately after unpacking it.
• If any damage is found, immediately advise the dealer. Keep all unit packaging parts to allow inspection.
• Proel is not responsible for any damage that occurs during shipment.
• Products are sold "delivered ex warehouse" and shipment is at charge and risk of the buyer.
• Possible damages to unit should be immediately notified to forwarder. Each complaint for package tampered with should be done within eight days from product receipt.

WARRANTY AND PRODUCTS RETURN

• Proel products have operating warranty and comply their specifications, as stated by manufacturer.
• Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if the product fails to function properly during the applicable warranty period, the owner should inform about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed description. This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. Proel S.p.A. is not responsible for any "direct damage" or "indirect damage" caused by product defectiveness.

INSTALLATION AND DISCLAIMER

• Proel products have been expressly designed for audio application, with signals in audio range (20Hz to 20kHz). Proel has no liability for damages caused in case of lack of maintenance, modifications, improper use or improper installation non-applying safety instructions.
• The installation of these speakers is provided for indoors, in case of use outdoors be sure that the speakers are installed correctly in a safe location protected from wind, rain and humidity. To avoid performance deterioration of mechanical, acoustics and electrical parts is not advisable to leave these speakers exposed outdoors for a long period of time, so we suggest a temporary installation for the limited sound events.
• The installation of these speakers is provided for floor or by means of specific stands able to support their weight. Therefore avoid installation on unstable elements such as: furniture, chairs and vibrant surfaces as stages or other speakers without appropriate fix point specifically designed to avoid speaker movement. Then avoid the use of inadequate supports, we suggest to use PROEL stands and accessories only.
• In case of the speakers are provided of rigging points: DO NOT SUSPEND THE SPEAKERS FROM THE HANDLES, use exclusively these rigging points. Consult professional rigger or structural engineers prior to suspending loudspeakers from a structure not intended for that use. Always know the working load limit of the structure supporting the loudspeakers. Always make sure that the rigging hardware minimum rating is at least five times the actual load, speakers and rigging hardware.
• In case of suspended installations of active loudspeakers where is not possible to turn on and off the speakers from their appropriate switches, we recommend to install switches on the mains lines, for this purpose consult an expert electrician for the exact dimension of wiring.
• Locate the speakers as far away as possible from radio or television receivers or other sensitive equipment. These speakers have a strong magnetic field which can induce hum and noise into unshielded devices that are located nearby with consequent deterioration of reception of image and sound.
• Proel S.p.A. reserves the right to change these specifications at any time without notice.
• Proel S.p.A. declines any liability for damages to objects or persons caused by lacks of maintenance, improper use, installation not performed with safety precautions and at the state of the art.

POWER SUPPLY AND MAINTENANCE

• Clean only with dry cloth.
• Check periodically that the slots for its proper ventilation and heating dissipation are not obstructed by dust, remove the dust using a dry brush or a compressed air gun.
• The amplified loudspeakers of Proel have been designed with CLASS I construction and must be connected always to a mains socket outlet with a protective earth connection (the third grounding prong).
• Before connecting the product to the mains outlet make certain that the mains line voltage matches that shown on the rear of the product, a tolerance of up to ± 10% is acceptable.
• Inside the amplified loudspeakers are present special safety devices such as:
  √ Transformer and amplifier over-heating protection.
  √ Protection against excessive power applied at each speaker.
  • THE REPLACEMENT OF FUSES INSIDE THE APPARATUS MUST BE MADE ONLY BY QUALIFIED PERSONNEL.
• CHECK THE CONDITION OF THE PROTECTION FUSE, ACCESSIBLE OUTWARD, ONLY WITH THE APPARATUS SWITCHED OFF AND DISCONNECTED FROM THE MAINS LINE OUTLET.
• REPLACE THE PROTECTION FUSE ONLY WITH SAME TYPE AS SHOWN ON THE PRODUCT.
• I'É AFTER THE SUBSTITUTION, THE FUSE INTERRUPTS AGAIN THE APPARATUS WORKING, DO NOT TRY AGAIN THEN CONTACT THE PROEL SERVICE CENTRE.

GENERAL INFORMATION

Thank you for having chosen a PROEL product.

V Series is the new generation of PROEL powered loudspeakers delivering absolute value in terms of performance, engineering and design.

These ultra-portable speakers combine, in carefully engineered and light-weight cabinets, the clearest and most accurate PROEL sound with Class D amplifier technology and Switch Mode Power Supply, offering an unbeatable PA solution at its price point.

All the three models feature an extremely efficient amplifier module capable of delivering 600 W of robust power to the transducers. Thanks to the use of SMPS technology, this power comes in an ultra-lightweight package, making the V models the most portable PROEL speakers ever. The power module is hosted in a fully sealed aluminium box, which provides protection, perfect insulation of the cabinet from the outside and extremely efficient cooling.

Thanks to the carefully selected speakers and to the sophisticated active electronics, including dual CLIP LIMITERS for an undistorted sound even at the loudest level, the sound of the V Series has been precisely tuned in every details, in order to provide unheard performance in this price range.

The V series cabinets, expression of the most advanced Italian design, include a super-comfortable luggage-style top handle for an effortless portability. The slanted shape allows the V speakers to be laid on their side and used also as stage monitors.

INSTRUCTIONS (FIG. 1 / 2 / 3)

1. INPUT (combo XLR-JACK input)

This is a female combo connector, which accepts a XLR or a JACK plug from almost any type of equipment with a balanced or unbalanced outputs. The XLR input is wired as follows:

Pin 1 = shield or ground

Pin 2 = + positive or "hot"

Pin 3 = - negative or "cold"

The JACK input is wired as follows:

Tip = + positive or "hot"

Ring = - negative or "cold"

Sleeve = shield or ground

When connecting an unbalanced signal, wire them as follows:

Pin2 / Tip = + positive or "hot"

Pin 1-3 / Sleeve = shield or ground

NOTE: whenever possible, use always balanced cables. Unbalanced lines may also be used but may result in noise over long cable runs. In any case, avoid using a balanced cable for one channel and an unbalanced one for the other.

2. LINK (XLR output)

This is a male XLR connector, it is connected in parallel with the respective INPUT socket, so the LINK is wired as INPUT. Connect these to the inputs of other powered speakers to make an array.

3. MIC / LINE switch

This switch adjusts the gain of the LINE/MIC input varying the sensitivity between MIC, suited to connect a microphone, and LINE, suited to connect a device with high level output like a MIXER, a CD player etc.

NOTE: do not use the MIC sensitivity to "pump up" the volume with the LINE level equipment, in order to avoid the analog input saturation that could produce very annoying distortion.

4. GND LIFT switch

This switch lift the ground of the balanced audio inputs from the earth-ground of the amplifier. If you have HUM noise problem on one or more loudspeaker try to change the position of these switches (often all up or all down for all the amplifiers in the system). Please note that to have an effect all cables must be balanced.

5. LEVEL control

Rotary level control: it attenuates the level of the signal sent to the INPUT. The attenuation ranges from "0" fully closed (the signal is completely attenuated) to "10" fully open, nominal level (the signal is not attenuated in any way, so it is fed to the internal amplifier at the same level at which it arrives on input).

6. LOW control

This control gives you up to 6 dB boost or cut at 90 Hz with a "SHELVING" curve shape. Use it to add or reduce the sound "punch", or to reduce the low frequency rise when the speaker is set near walls or on floor as stage monitor.

7. HIGH control

This control gives you up to 6 dB boost or cut at 8 KHz with a "SHELVING" curve shape. Use it to add or reduce the sound "clarity" and "brightness".

8. SIGN/LIMIT indicator

GREEN LED illuminates to indicate the presence of the signal at the amplifier input.

RED LED illuminates when the internal amplifier's output is limited. When this LED flashes reduce the input signal level.

9. ON indicator

GREEN LED: when lighted indicates amplifier has been turned on and AC power is available.

10. FRONT LED switch

This switch enables the front LED to indicate the speaker power ON status or to replicate the SIGNAL/LIMIT indication.

11. POWER switch

Speaker is "ON" when the switch is in the "I" position, use this switch to set the speaker power to ON or OFF.

NOTE: When you shut down your equipment, turn off the speaker first. When powering up, turn on the speaker last.

12. LINE VOLTAGE selector

This switch sets the AC voltage line of your country (usually it is set by factory and isn't necessary to change it). The 115V setting is for mains line in the range of 105-120V\~ and 230V setting is for mains line in the range of 210-240V\~.

WARNING: AN INCORRECT SETTING OF AC LINE VOLTAGE COULD DAMAGE SERIOUSLY THE INTERNAL ELECTRONICS!

13. FUSE holder

Here is placed the mains protection fuse.

WARNING: REPLACE THE PROTECTION FUSE ONLY WITH SAME TYPE AS SHOWN ON THE PRODUCT. IF AFTER THE SUBSTITUTION, THE FUSE INTERRUPTS AGAIN THE APPARATUS WORKING, DO NOT TRY AGAIN THEN CONTACT THE PROEL SERVICE CENTER.

14. AC\~ socket

Here's where you plug in your speaker's mains supply cord. You should always use the mains cord supplied with the speaker. Be sure your speaker is turned off before you plug the mains supply cord into an electrical outlet.

AVVERTENZE PER LA SICUREZZA

INSTRUCTIONS (FIG. 1 / 2 / 3)

1. INPUT (entrée COMBO XLR/JACK)

م MSNBC Agricultural Agricultural Workers
