MultiTrix 153.725 - Effect machine BeamZ - Free user manual and instructions

Product type	Light and smoke effects machine
Brand	BeamZ
Model	MultiTrix 153.725
Dimensions (L x W x H)	400 x 300 x 250 mm
Weight	5 kg
Power supply	230 V ~ 50 Hz
Power	500 W
Tank capacity	0.5 L
Fluid consumption	15 min/L
Heating time	3 minutes
Control	DMX512, automatic, manual
DMX channels	1 or 3 (depending on mode)
Main functions	Mist, RGB LED light, stroboscope
Maintenance and cleaning	Clean regularly with a soft cloth; drain the tank after use
Safety	Do not use without liquid; avoid contact with skin; use indoors
Spare parts and repairability	Fuse, pump, heating element; professional repair recommended
General information	Ambient temperature: 5°C to 40°C; indoor use only

Frequently Asked Questions - MultiTrix 153.725 BeamZ

How to turn on the device?

Plug the device into a power outlet, then turn the main switch to the ON position. Wait for the heating time (about 3 minutes) before activating the smoke output.

What type of fluid to use?

Use exclusively water-based fog machine fluid recommended by BeamZ. Never use oil or flammable liquids.

How to clean the machine?

Unplug the device and let it cool down. Clean the outside with a soft dry cloth. For the inside, use a cleaning kit for fog machines to remove residue.

What to do if the machine does not produce smoke?

Check that the tank has enough fluid, the device is hot (heating indicator on), and the smoke output is not blocked. If the problem persists, consult a certified technician.

Can I use the machine outdoors?

The device is designed for indoor use only. Outdoor use may expose it to humidity and dust, which could damage it. Protect it from rain and extreme temperatures.

How to connect DMX control?

Use a standard DMX cable (3-pin XLR) to connect the device to a DMX controller. Set the DMX address via the switches or control panel. Refer to the manual for channel values.

What is the lifespan of the heating element?

The heating element is a wear part. Its lifespan depends on usage, but it is generally several hundred hours. Replace it as soon as smoke output decreases.

How to change the fuse?

Unplug the device. Open the fuse compartment with a screwdriver. Replace the defective fuse with a fuse of the same type and rating (indicated on the device). Close the compartment.

Can the device be used without liquid?

No, never run the machine dry. This will permanently damage the pump and heating element. Always ensure the tank contains fluid.

Where to find the full manual?

The full manual is available for free download at notice-facile.com. You can also request a translation by filling out the form on the page.

USER MANUAL MultiTrix 153.725 BeamZ

Multitrix LED with laser and strobe

Ref. nr.: 153.726

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

ENGLISH

Congratulations to the purchase of this Beamz product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the product on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• During operation, the housing becomes very hot. Do not touch it during operation and immediately after.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Secure the product with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1 meter space on every side to ensure sufficient cooling.
• This product contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes.
• Do not repeatedly switch the product on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the product with clean hands.
• Do not force the controls.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5° C/41°F and 35° C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Beamz cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

LASERSAFETY

Read for the commissioning of the laser all safety instructions and technical data of this manual carefully and thoroughly.

Laser Light is different from any other light source with which you may be familiar. The light from this product can potentially cause eye injury if not set up and used properly. Laser light is thousands of times more concentrated than light from any other kind of light source. This concentration of light power can cause instant eye injuries, primarily by burning the retina (the light sensitive portion at the back of the eye). Even if you cannot feel “heat” from a laser beam, it can still potentially injure or blind you or your audience. Even very small amounts of laser light are potentially hazardous even at long distances. Laser eye injuries can happen quicker than you can blink.

It is wrong to assume that a single beam of a bundle of hundreds by the laser beams made, it cannot cause injury.

It is also incorrect to assume that it is safe to look at a moving beam. In the laser safety regulation, it is not legal to aim Class 3B/4 lasers in areas which people can get exposed also on a dance floor.

Caution:

• Do not point lasers at people or animals.
• Never look into the laser aperture or laser beams, this can potentially cause instant eye injury or blindness if laser light directly strikes the eyes.
• Do not point lasers in areas in which people can potentially get exposed, such as uncontrolled balconies, etc.
  • Install the laser units such that laser beams above the audience move. See section later in this manual.
• Test the laser units always first before the public is present.
• Do not point lasers into the public or at highly reflective surfaces such as windows, mirrors and shiny metal. Even laser reflections can be hazardous.
• Never point a laser at aircraft or into the sky, this is a federal offense.
• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not expose the output optic (aperture) to cleaning chemicals.
• The operation of a laser is only allowed if the show is controlled by a skilled and well-trained operator familiar with the requirements that are needed.
• Do not use laser if housing is damaged or open, or if optics appear damaged in any way.
• Never leave this device running unattended.
• Always use appropriate lighting safety cables when hanging lights and effects overhead.

The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the legal requirements at the location/country of use.

This unit contains laser components with high power, live parts and parts that emit radiation. Therefore, DO NOT OPEN the housing, THIS CAN BE FATAL. It can also cause blindness, skin burns and fires.

Eye damage occurs faster than you can blink your eyes.

Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard “For Safe Use of Lasers”, available from “www.laserinstitute.org”. Many local governments, corporations, agencies, military and others, require all lasers to be used under the guidelines of ANSI Z136.1. Laser Display guidance can be obtained via the International Laser Display Association, www.laserist.org.

INSTALLATION

CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers!

This fixture has been designed to be hung. It is recommended for safety purposes, your lighting effect are properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor.

International laser safety regulations require that lasers must be operated in the fashion illustrated below, with a minimum of 3 meters (9.8 ft) of vertical separation between the floor and the lowest laser light vertically. Additionally, 2.5 meters of horizontal separation is required between laser light and audience or other public spaces.

CAUTION: Use of controls, adjustments, or performance of procedures other than what is specified herein may result in hazardous radiation exposure!

• The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
  • Always use the supplied mounting bracket to hang the fixture.
  • The fixture should aid of a mounting bracket (not included) to the supplied mounting bracket to be confirmed.
• The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
  • Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
• The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
• The fixture should be installed in the position where persons cannot reach.
• For your own safety and for others, we do strongly recommend you to use this laser emergency kill switch. (ref.no: 152.958)

CAUTION: When installing the device, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min 0.5 meter.

DISPLAY

The control board offer several features: you can simple set the starting address, run the pre-programmed program or make a reset. The main menu is accessed by pressing the Mode-button, browse through the submenu by pressing Up or Down.

Press the Enter-button in order to select the desired menu.

You can change the selection by pressing Up or Down. Confirm every selection by pressing the Enter-button.

You can leave every mode by pressing the Mode-button. The functions provided are described later in this manual.

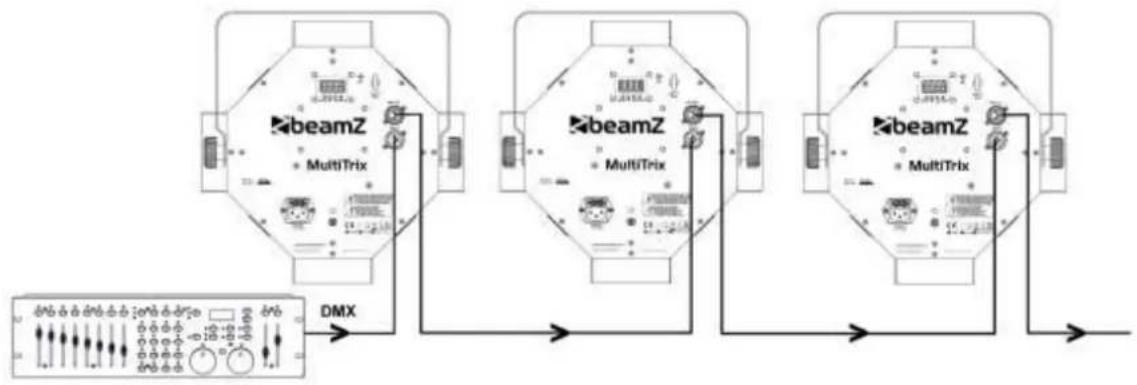

DMX-512 CONNECTION

If you are using a standard DMX controller, you can connect the DMX-output of the controller directly to the DMX-input of the first unit in a DMX-chain. Always connect the output of one unit with the input of the next unit until all units are connected. If you use a controller with 5 pin DMX connection you will need to use a 5-pin to 3-pin adapter.

At the last fixture, the DMX cable has to be terminated. Solder a 120 Ohm resistor between signal (-) and signal (+) into a 3-pin XLR connector and plug this into the DMX output of the last fixture in the chain.

The master/slave operation enables that several same units can be controlled by one "master" unit.

Connect the first unit "DMX OUT" socket with the second unit "DMX IN", using a 3pin DMX Cable. Repeat this process with the third, fourth etc. or see a above section "DMX-512 connection". Choose the unit that will control all other and set this in master-mode via display. The other units that must react on the master, you must set in slave-mode. The "Slave" will synchronously follow the "Master".

Noted: Any unit can be the "Master" or "Slave".

REMOTE CONTROLLER

BLACK OUT Mode

Press off existing modes. Press return the last modes.

AUTO Mode

Automatic mode will enable you to run the automatic programs on the product.

To turn on Automatic mode:

1. Press on the remote controller.
2. Press <+> or <-> to choose between the different auto programs.

SOUND Mode

Sound-Active mode will enable the product to respond to the music.

To turn on Sound-Active mode:

1. Press on the remote controller.
2. Press <+> or <-> to choose between the different sound programs.

STROBE Mode

To adjust the strobe speed of the automatic program and the sound active program.

1. Press on the remote controller.
2. Press <+> or <-> to either increase or decrease the speed of the program.
3. Press again to turn off the strobe.

SPEED Mode

To adjust the speed of the automatic program and the sound active program.

1. Press on the remote controller.
2. Press <+> or <-> to either increase or decrease the speed of the program.

SENSITIVITY Mode

To adjust sound sensitivity for in Sound-Active mode

1. Press on the remote controller.
2. Press <+> or <-> to either increase or decrease sound sensitivity.

DMX / % Mode

To enable DMX or disallow DMX on the product.

Press on the remote controller, the product work on the DMX controlling modes.

MANUAL Mode

1. Press on the remote controller.
2. Press , , , or (red, green, blue, white and amber) to choose your colour.
3. Press again , , , or (red, green, blue, white and amber) to close your colour.
4. Press <+> or <-> to either increase or decrease the percentage of each colour.

FADE/UNIT Mode

1. Press on the remote controller.
2. Press <1> to turn ON or OFF the Laser.

The remote control is supplied with a battery inserted. An insulating foil between the battery and the battery contacts prevents the battery from being discharged during storage. Prior to the first operation remove the foil from the battery support on the rear side of the remote control. Otherwise operation of the remote control is not possible.

If the range of the remote control decreases, replace the battery. For this purpose, on the rear side of the remote control press the small bar with the groove to the right (1) and at the same time remove the battery support (2). For operation, one 3 V button cell type CR 2025 is required. When inserting, pay attention that the positive pole of the button cell shows upwards in the support.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

FIXTURE CLEANING

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's optics.

• Make sure the area below the installation place is free from unwanted persons during servicing
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation
- The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected
- In order to protect the fixture from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
- The interior of the fixture should be cleaned annually using a vacuum cleaner or air-jet.
- Clean with soft cloth using normal glass cleaning fluid.
• Always dry the parts carefully.
- Clean the external optics at least every month. Clean the internal optics at least every 30/60 days.

ATTENTION: We strongly recommend internal cleaning to be carried out by qualified worker!

NEDERLANDS

DISPLAY

DISPLAY

DE CONTROL (DISPLAY)

AFFICHAGE

REPLACEMENT DU FUSIBLE

Read for the commissioning of the laser all safety instructions and technical data of this manual carefully and thoroughly.

WYŚWIETLACZ

Mode	Programming	Description
Auto	Au-1	Auto program 1
	Au-2	Auto program 2
	Au-3	Auto program 3
	Au4	Auto program 4
	Au-5	Auto program 5
	Au-6	Auto program 6
Sound	So-1	Sound program 1
	So-2	Sound program 2
	So-3	Sound program 3
	So-4	Sound program 4
	So-5	Sound program 5
	So-6	Sound program 6
Speed	SP 1 - SP9	Speed value for program adjustable
Sensitivity	Se 1 - Se9	MIC value adjustable
Silent scene	OFF	The fixture is open light on music by Sound program
	ON	The fixture is closed light on music by Sound program
Infra	ON	Enable IR remote controller signal receiving.
	OFF	Disenable IR remote controller signal receiving.
Address	4CH	4 channels DMX mode
	9CH	9 channels DMX mode
Slave	Slav	Slave
Display	dISP	Display Normal
	dSIP	Display inversion

DMX CHANNELS / DMX KANALEN / DMX-KANÄLE / CANALES DMX / CANAUX DMX / KANAŁY DMX

4 Channels

Channel	Function	Value	Description
1	Effect	000-255	LED effect
2	LED strobe	000-009	No function
		010-255	LED Effect Strobe (From slow to fast)
3	SMD strobe	000-009	No function
		010-255	SMD White LED Strobe (From slow to fast)
4	Laser motor	000-009	No function
		010-119	Laser motor clockwise rotation (From slow to fast)
		120-129	Laser motor Stop
		130-255	Laser motor un-clockwise rotation (From slow to fast)
1 - 4	Colour	000-009	No function
		010-019	Red
		020-029	Green
		030-039	Blue
		040-049	White
		050-059	Amber
		060-069	Red + Green
		070-079	Red + Blue
		080-089	Red + White
		090-099	Red + Amber
		100-109	Green + Blue
		110-119	Green + White
		120-129	Green + Amber
		130-139	Blue + White
		140-149	Blue + Amber
		150-159	Red + Green + Amber
		160-169	Red + Blue + Amber
		170-179	Green + Blue + Amber
		180-189	Green + White + Amber
		190-199	Red + White + Amber
		200-209	Green + Blue + White + Amber
		210-219	Red + Blue + White + Amber
		220-229	Red + Green + White + Amber
		230-239	Red + Green + Blue + White
		240-249	Red + Green + Blue + Amber
		250-255	Red + Green + Blue + White + Amber
5	Effect strobe	000-009	No function
		010-255	LED Effect Strobe (From slow to fast)
6	SMD strobe	000-009	No function
		010-255	SMD White LED Strobe (From slow to fast)
7	Laser R/G	000-009	No function
		010-049	Laser R
		050-099	Laser G
		100-149	Laser R + G
		150-255	Laser rainbow effect (From slow to fast)
8	Laser motor	000-009	No function
		010-129	Laser motor clockwise rotation (From slow to fast)
		130-255	Laser motor un-clockwise rotation (From slow to fast)
9	Auto/Sound	000-009	No function
		010-119	Auto DMX (From slow to fast)
		120-255	Sound DMX (From slow to fast)

TECHNICAL SPECIFICATION / TECNISCHE SPECIFICATIE / TECHNISCHE DA / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA

Rated voltage : AC100\~240V 50/60Hz

Rated power : 80W

LED : 20 x 1W RGBWA / 12x1W SMD White

Laser : Red 150mW / Green 75mW

Fuse : T1A

Function : DMX, Auto, Sound active and Master-Slave.

Dimensions per unit : 230 x 330 x 280mm

Weight (per unit) : 3.4kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

ENGLISH : Attention! The use in France is only allowed to the professional user and not to the end user. See decision: www.legifrance.gouv.fr

tronios

Sound & Light

CE Declaration of Conformity

Manufacturer: TRONIOS BV

Product Description: MultiTrix

Trade Name: BEAMZ

Regulatory Requirement: EN 55015: 2013

EN 61000-3-2: 2014;-3-3: 2013;-4-2: 2009;-4-3: 2006+A1: 2008+ A2:

2010;-4-4: 2012;-4-5: 2014;-4-6:2014;-4-8: 2010;-4-11: 2004

EN 60598-1:2015;-2-17:1989+A2:1991

EN 60825-1:2014

EN 62471:2008

EN 61547: 2009

IEC 62321-1: 2013

I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU and conforms to the above-mentioned Declarations.

Almelo,

19-01-2017

Name : M. Velders

Signature :

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2017 by TRONIOS the Netherlands
