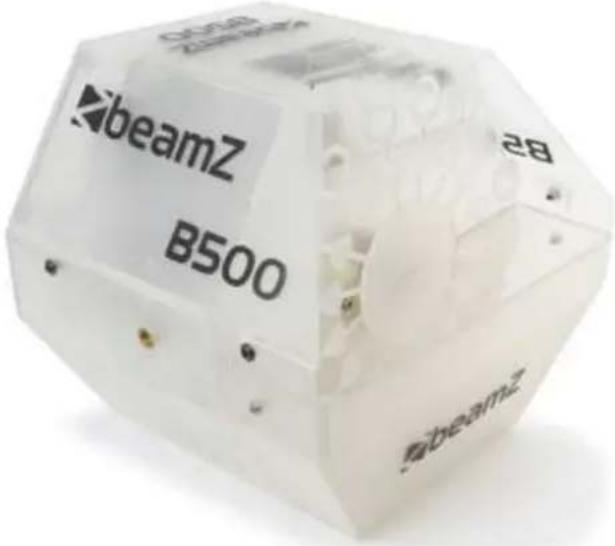

B500 160.571 - Effect machine BeamZ - Free user manual and instructions

Product type	Smoke machine
Brand	BeamZ
Model	B500 160.571
Dimensions (L x W x H)	300 x 250 x 200 mm
Weight	4.5 kg
Power supply	230 V ~ 50 Hz
Power	500 W
Tank capacity	1 liter
Fluid consumption	120 ml/min
Heating time	3 minutes
Smoke range	Up to 8 meters
Main functions	Smoke production, wired remote control, DMX512 control (optional)
Maintenance and cleaning	Clean the nozzle regularly with a damp cloth; use cleaning fluid after 40 hours of use
Safety	Do not block ventilation openings; use in a well-ventilated area; do not aim the nozzle at people
Spare parts and repairability	Spare fuse (T6.3A/250V), heating element and pump available; repair by a qualified technician
General information	Indoor use; ambient temperature 0-40°C; max humidity 85%

Frequently Asked Questions - B500 160.571 BeamZ

How to start the BeamZ B500 smoke machine?

Plug in the device, fill the tank with fluid, wait 3 minutes for heating, then press the button or remote control.

What type of fluid to use in the BeamZ B500?

Use exclusively water-based smoke machine fluid. BeamZ recommends its own fluid to avoid blockages.

Why is the machine not producing smoke?

Check that the tank is full, the machine is hot (green light on), and the nozzle is not blocked. Refer to the troubleshooting section of the manual.

How to clean the smoke machine?

After 40 hours of use, run the machine with a special cleaning fluid for 5 minutes, then rinse with distilled water.

Can I use the machine without the remote control?

Yes, you can manually trigger the smoke via the button on the device. The remote control is optional.

Does the machine have thermal protection?

Yes, it shuts off automatically in case of overheating. Wait for it to cool down and check the ventilation.

What is the safety distance to observe?

Keep a distance of at least 50 cm between the nozzle and any surface or person. The smoke can be hot at the outlet.

How to replace the fuse?

Unplug the machine, open the fuse holder, replace the defective fuse with a T6.3A/250V of the same type, then close.

Can the machine be used outdoors?

No, it is designed for indoor use only. Exposure to wind or rain can damage it.

Where to find the complete manual for the BeamZ B500?

The manual is available for free download on notice-facile.com in PDF format.

USER MANUAL B500 160.571 BeamZ

B500LED Bubble Machine RGB

Ref. nr.:160.572

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

V1.1

ENGLISH

Congratulations to the purchase of this Beamz bubblemachine. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• During operation, the housing becomes very hot. Do not touch it during operation and immediately after.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Secure the unit with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1 meter space on every side to ensure sufficient cooling.
• This unit contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes.
• Do not repeatedly switch the fixture on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the unit with clean hands.
• Do not force the controls.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5° C/41°F and 35° C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that a bubble machine must be returned to the factory, it is important that the bubble machine be returned in the original factory box and packing.

If the bubble machine has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the bubble machine is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The bubble machine must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the bubble machine to a protected circuit (circuit breaker or fuse). Make sure the bubble machine has an appropriate electrical ground to avoid the risk of electrocution or fire.

INSTALLATION

CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers!

Attention:

• Be sure that the bubble machine is positioned on a stable, non-slip surface.
• Be sure that no ventilation slots on the product's housing are blocked.
• Don't put any objects on the bubble machine.
• Never connect the bubble machine to a dimmer or rheostat.
• Keep the housing of this bubble machine dry at all times.
• Do not spill water or other liquids into reservoir.
• Drain the reservoir before transporting or storing the product.
• Never drink bubble liquid or use it on the inside or outside of a human body. If fluid gets in contact with skin or eyes, rinse thoroughly with water and call a doctor immediately!
• Keep out of the reach of children.
• For indoor use only.

CAUTION: When installing the fixture, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min. 20in or 0.5 meter.

FILLING RESERVOIR

Before filling unplug from mains!

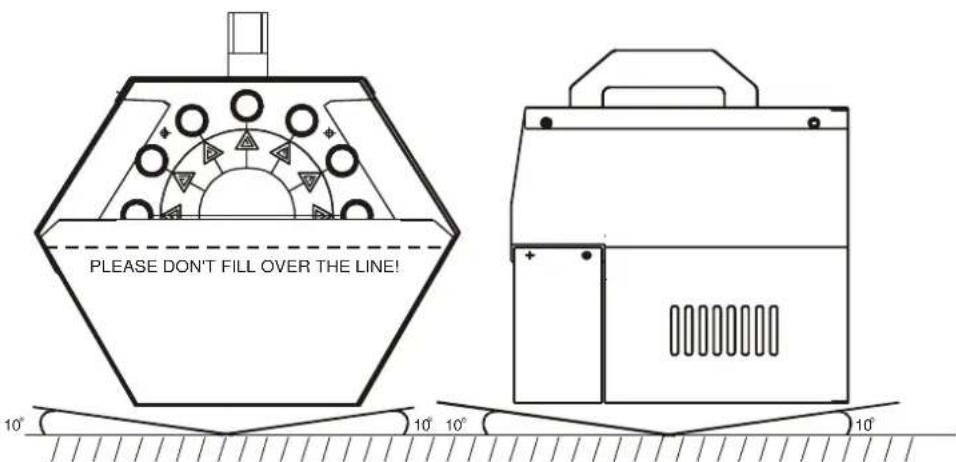

• Place the unit on a flat, stable surface which must not be tilted more than 10° (see drawing)
• Fill the tank up to the marking with a good quality bubble fluid (order nr.160.575).
• Switch the unit on via the On/Off switch on the rear side.
• Switch the unit off after use and unplug it from the mains if it will not be used for a long period of time.
• Rinse the unit regularly with clean water.

OPERATION

Once the reservoir has been filled. Connect the power lead into smoke machine and earthed mains outlet. Then you can switch the power on. By pressing the switch on the remote control, the machine start producing bubble.

Switch off when machine not used and unplug from mains if not use for long periods.

0 = OFF I = ON

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

ACCESSORIES

High quality bubble fluid, specially designed for Beamz bubble machines guarantees a trouble-free use with a lot of bubbles.

5 liter packaging, ref. no. 160.574

1 liter packaging, ref. no. 160.575

NEDERLANDS

5 litros ref. no. 160.574

FRANÇAIS

0 = OFF I = ON

REPLACEMENT DU FUSIBLE

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Declaration of Conformity

Manufacturer: TRONIOS BV

Product Description: B500LED Bubble Machine RGB

Trade Name: BEAMZ

Regulatory Requirement: EN 60598-1

EN 60598-2-17

EN 61000-3-2/-3-3

EN 55015

EN 61547

I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU and conforms to the above mentioned Declarations.

Almelo,

29-09-2016

Name : M. Velders

Signature :

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2016 by TRONIOS the Netherlands
