Product Type	Freestanding Refrigerator
Brand	Beko
Model	RSNE445E22
Total Net Capacity	245 L (approx.)
Refrigerator Net Capacity	190 L (approx.)
Freezer Net Capacity	55 L (approx.)
Energy Efficiency Class	A+
Annual Energy Consumption	180 kWh (approx.)
Climate Class	N-ST
Noise Level	39 dB (approx.)
Cooling System	Static (Manual Defrost)
Lighting	LED
Number of Shelves	4 (adjustable glass)
Door Compartments	3 (including dairy compartment)
Crisper Drawers	1 (for fruits and vegetables)
Freezer Drawers	3
Defrosting	Manual (freezer)
Door Reversible	Yes
Dimensions (H x W x D)	144 x 54 x 54 cm (approx.)
Weight	37 kg (approx.)
Power Supply	220-240 V / 50 Hz
Refrigerant	R600a
No Frost Technology	No (manual defrost)

Frequently Asked Questions - RSNE445E22 BEKO

How do I set the temperature on my Beko RSNE445E22 refrigerator?

Use the thermostat dial inside the fridge compartment. Turn it to a higher number for colder temperatures. Recommended setting is medium (3-4).

Why is my refrigerator making noise?

Normal sounds include humming from the compressor, gurgling from refrigerant, and clicking from the thermostat. If loud or irregular, ensure the fridge is level and not contacting walls.

How do I defrost the freezer?

Remove all food, unplug the appliance, and leave the door open. Place towels to absorb water. Do not use sharp tools to remove ice. Dry thoroughly before restarting.

How often should I clean my refrigerator?

Clean the interior every 1-2 months with warm water and mild detergent. Wipe door seals regularly to ensure proper sealing. Avoid abrasive cleaners.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for detailed steps. You may need a screwdriver and assistance.

What does the LED light inside do if it fails?

Contact a qualified technician to replace the LED light. Do not attempt to replace it yourself as it may require special tools.

Why is water forming inside the refrigerator?

Ensure the door is closed properly. Check door seals for damage or debris. Also avoid putting hot food inside. Clean the defrost drain hole if clogged.

How much space should I leave around the fridge?

Leave at least 10 cm clearance at the back and sides for proper ventilation. Ensure the fridge is on a stable, level surface.

What is the energy consumption?

Approximately 180 kWh per year. Actual consumption depends on usage, ambient temperature, and door openings.

Where can I find spare parts?

Contact Beko authorized service centers or visit the official Beko website. Use genuine parts for safety and performance.

USER MANUAL RSNE445E22 BEKO

Simple line drawing of a pear and a carrot (no text or symbols)

RSNE445E22

Please read this manual before using the product!

Dear Customer,

We'd like you to make the best use of our product, which has been manufactured in modern facilities with care and meticulous quality controls.

Thus, we advice you to read the entire user manual before you use the product. In case the product changes hands, do not forget to hand the guide to its new owner along with the product.

This guide will help you use the product quickly and safely.

• Please read the user guide carefully before installing and operating the product.
  • Always observe the applicable safety instructions.
• Keep the user guide within easy reach for future use.
• Please read any other documents provided with the product.

Keep in mind that this user guide may apply to several product models. The guide clearly indicates any variations of different models.

	Important information and useful tips.
	Risk of life and property.
	Risk of electric shock.
	The product's packaging is made of recyclable materials, in accordance with the National Environment Legislation.

1 Safety and environment instructions 4

General safety 4

Intended use 6

Child safety 6

Compliance with WEEE Directive and Disposing of the Waste Product ...... 6

Compliance with RoHS Directive......7

Package information 7

2 Your refrigerator 8

3 Installation 9

Appropriate Installation Location ...... 9

Adjusting the Feet 10

Electrical Connection ....10

4 Preparation 11

5 Operating the product 12

Freezing fresh food 14

Recommendations for preserving the frozen food ....15

Deep-freeze information ....15

Placing the food 16

Door open warning 16

Changing the door opening direction 16

6 Maintenance and cleaning 21

7 Troubleshooting 22

1 Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

Intended use

	WARNING:Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction.
	WARNING:Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
	WARNING:Do not damage the refrigerant circuit.
	WARNING:Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

1.1. General safety

- This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.

• In case of malfunction, unplug the device.
  • After unplugging, wait at least 5 minutes before plugging in again.
• Unplug the product when not in use.
• Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug.
• Do not plug in the refrigerator if the socket is loose.
• Unplug the product during installation, maintenance, cleaning and repair.
• If the product will not be used for a while, unplug the product and remove any food inside.
• Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

Safety and environment instructions

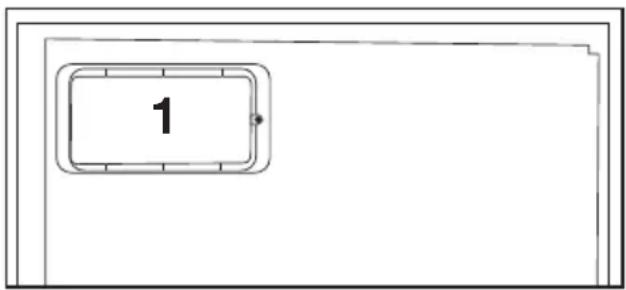

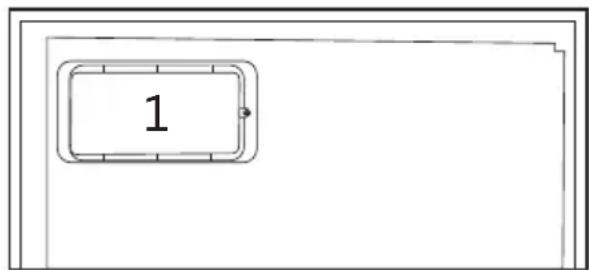

Simple line drawing of a rectangular frame with a numbered label '1' on the top left corner (no other text or symbols)

Simple line drawing of a mechanical component with a base and top view (no text or symbols)

• Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
• Do not wash the product by spraying or pouring water on it! Danger of electric shock!
• In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorised service before doing anything.
• Plug the product into an earthed socket. Earthing must be done by a qualified electrician.
• If the product has LED type lighting, contact the authorised service for replacing or in case of any problem.
• Do not touch frozen food with wet hands! It may adhere to your hands!

• Do not place liquids in bottles and cans into the freezer compartment. They may explode.

• Place liquids in upright position after tightly closing the lid.

• Do not spray flammable substances near the product, as it may burn or explode.
• Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.
  • Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
• Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.
  • Take care not to trap the power cable.

Diagram showing a lightning bolt striking a wall-mounted device with a cable and plug, no text or symbols present

Safety and environment instructions

1.1.1 HC warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with water dispenser

• Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.
• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum.
  • Use drinking water only.

1.2. Intended use

• This product is designed for home use. It is not intended for commercial use.
• The product should be used to store food and beverages only.
• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.
• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
• Original spare parts will be provided for 10 years, following the product purchasing date.

1.3. Child safety

• Keep packaging materials out of children's reach.
• Do not allow the children to play with the product.
• If the product's door comprises a lock, keep the key out of children's reach.

1.4. Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Pure electrical circuit lines without any symbols

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and

Safety and environment instructions

other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5. Compliance with RoHS Directive

- This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6. Package information

- Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your refrigerator

1. Indicator panel
2. Butter & Cheese sections

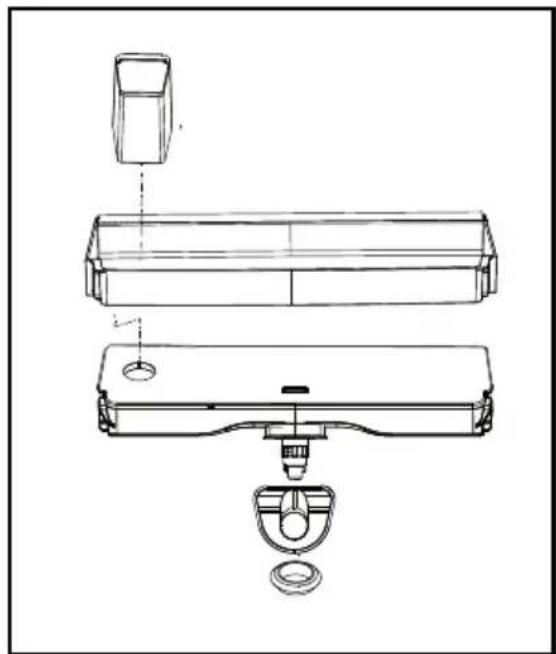

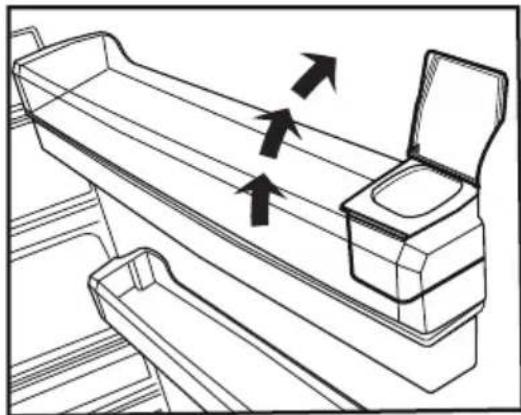

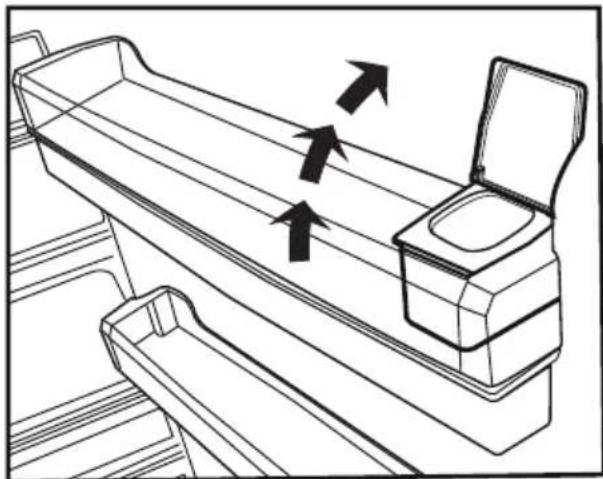

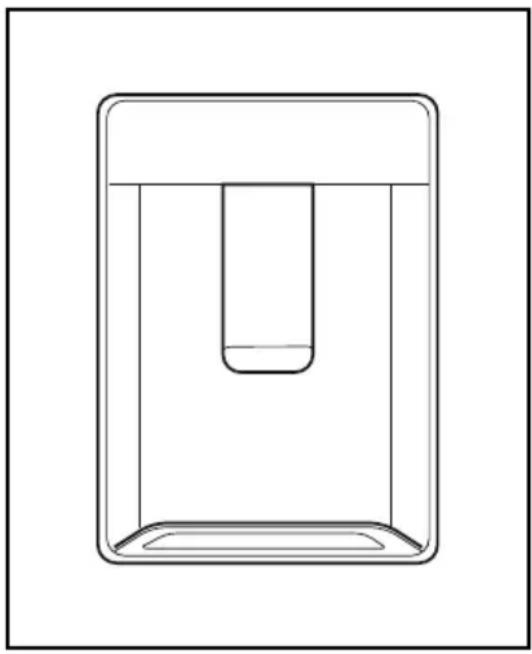

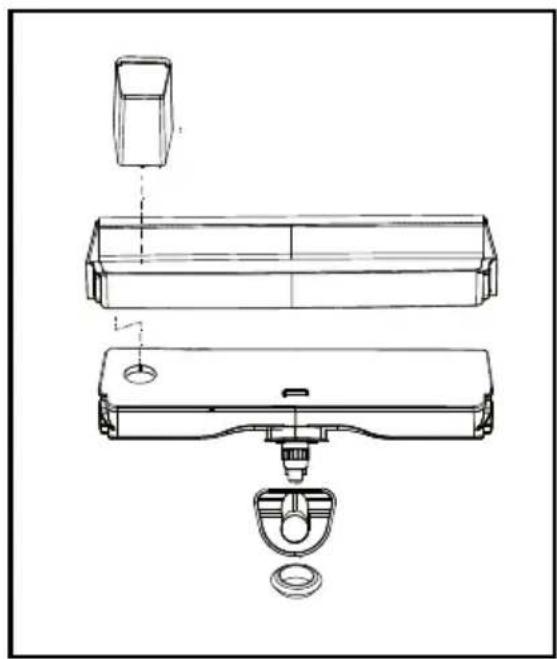

3. Water dispenser filling tank
4. Egg section

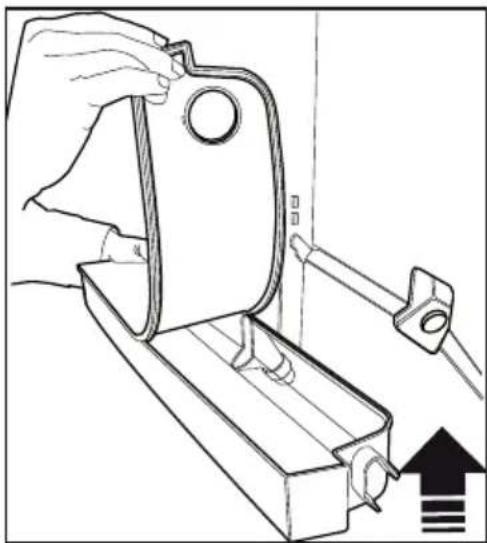

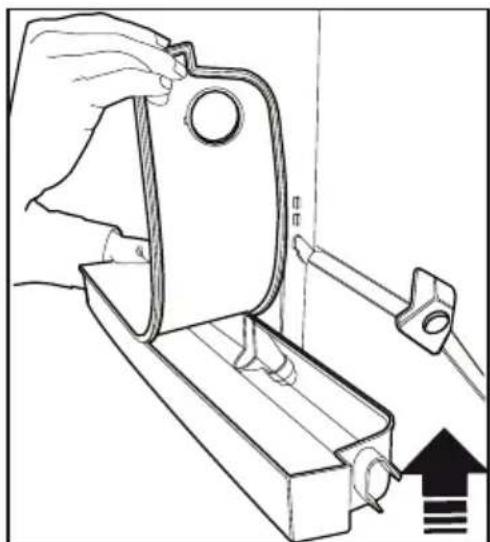

5. Water dispenser reservoir
6. Bottle shelves

7. Adjustable front feet

8. Crispers

9. Chiller
10. Chiller cover and glass
11. Movable shelves
12. Wine cellar
13. Fan

\*May not be available in all models

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

3 Installation

3.1. Appropriate Installation Location

Contact an Authorized Service for the installation of the product. In order to prepare the product for use, refer the information in the user manual and ensure that electrical installation and water installation are appropriate. If not, call a qualified electrician and technician to have any necessary arrangements carried out.

	WARNING: Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
	WARNING: Product must not be plugged in during installation. Otherwise, there is the risk of death or serious injury!
	WARNING:If the door clearance of the room where the product shall be place is so tight to prevent passing of the product, remove the door of the room and pass the product through the door by turning it to its side; if this does not work, contact the authorized service.

• Place the product on an even floor surface to prevent jolts.
  • Install the product at least 30 cm away from heat sources such as hobs, heater cores and stoves and at least 5 cm away from electrical ovens.
• Product must not be subjected to direct sun light and kept in humid places.

- Appropriate air ventilation must be provided around your product in order to achieve an efficient operation. If the product is to be placed in a recess in the wall, pay attention to leave at least 5 cm distance with the ceiling and side walls.

Installing the Plastic Wedges

Plastic wedges supplied with the product are used to create the distance for the air circulation between the product and the rear wall.

1. To install the wedges, remove the screws on the product and use the screws supplied together with the wedges.
2. Insert the 2 plastic wedges onto the rear ventilation cover as illustrated in the figure.

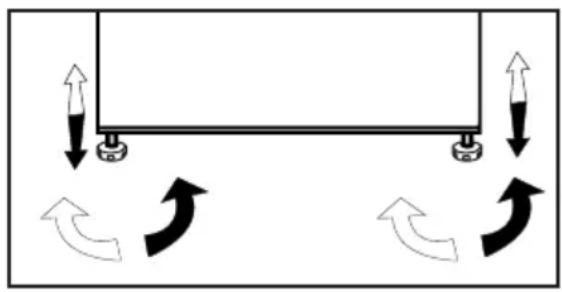

3.2. Adjusting the Feet

If the product stands unbalanced after installation, adjust the feet on the front by rotating them to the right or left.

Diagram showing bidirectional arrows and curved arrows around a rectangular structure (no text or symbols)

3.3. Electrical Connection

	WARNING: Do not make connections via extension cables or multi-plugs.
	WARNING: Damaged power cable must be replaced by the Authorized Service Agent.
	If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

• Our company shall not be liable for any damages that will arise when the product is used without grounding and electrical connection in accordance with the national regulations.
• Power cable plug must be within easy reach after installation.
• Connect your refrigerator to a grounded outlet rated for a voltage value of 220-240V /50 Hz. Outlet shall have 10 to 16A fuse.
• Do not extension cords or cordless multiple outlets between your product and the wall outlet.

The condenser of your appliance is located on the back as shown below. In order to achieve better energy efficiency with lower energy consumption, please pull the condenser towards yourself as illustrated in picture below.

*may not be available in all models

4 Preparation

• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
• The ambient temperature of the room where you install your refrigerator should at least be 5°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.
• Please make sure that the interior of your refrigerator is cleaned thoroughly.
• If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.
• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.
• Original packaging and foam materials should be kept for future transportations or moving.

• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

• In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.
• Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal

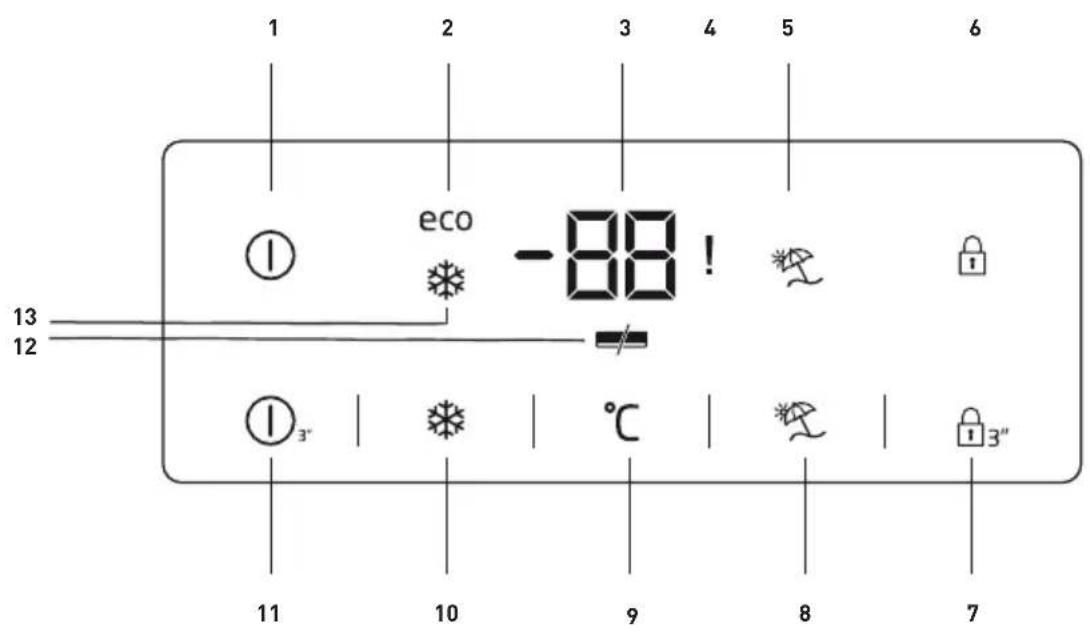

5 Operating the product

1. On/Off Indicator:

This icon (Y) come on when the fridge is turned off. All the other icons turn off.

2.Economic Usage Indicator:

This icon (eco) comes on when the Fridge Compartment is set to 8°C which is the most economical set value. Economic Usage Indicator turns off when the Quick Fridge or Quick Freeze function is selected.

3. Fridge Compartment Temperature Setting Indicator:

Indicates the temperature set for the Fridge Compartment.

4. Power failure/High temperature / error warning indicator :

This light (!) illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that

the fridge compartment reaches will flash on the digital display.

5. Vacation Indicator:

This icon (✗) lights up when the Vacation Function is active.

6.Key Lock Indicator:

This icon (💡) lights up when the Key Lock mode is activated.

7.Key Lock Mode:

Press Key Lock (1) button continuously for 3 seconds. Key lock icon will light up and key lock mode will be activated. Buttons will not function if the Key Lock mode is active. Press Key Lock button continuously for 3 seconds again. Key lock icon will turn off and the key lock mode will be exit.

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

Operating the product

8. Vacation Function:

When you press Vacation button, vacation function ( ^① ) is activated and vacation indicator lights. You can use this function when you will not use your fridge for a long time. Note that there should be no food inside your fridge, otherwise fridge can not preserve your food at Vacation mode. If this function is activated, fridge compartment temperature is kept at 15 C° in order to prevent bad smelling. Press Vacation button again to deactivate vacation function.

9. Fridge Set Function:

This function (°C) allows you to make the Fridge compartment temperature setting. Press this button to set the temperature of the fridge compartment to 8,7,6,5,4,3, and 1 respectively.

10. Quick Fridge Function:

Quick Fridge indicator (❄️) turns on when the Quick Fridge function is on. Press Quick Fridge button again to cancel this function. Quick Fridge indicator will turn off and normal settings will be resumed. Quick Fridge function will be cancelled automatically 1 hours later if you do not cancel it manually. If you want to cool plenty amount of fresh food, press Quick Fridge button before you place the food into the fridge compartment.

11.0n/Off Function:

This function ( Ⓐ) allows you to make the Fridge turn off when pressed for 3 seconds. The fridge could be turned on by pressing On/Off button for 3 seconds again.

12. Energy Saving Indicator :

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. (☐)

When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.

Energy saving function is activated during delivery from factory and cannot be canceled.

13. Quick Freeze Indicator :

This icon (❄️) comes on when the Quick Freeze function is on.

Operating the product

5.1. Freezing fresh food

• In order to preserve the quality of the food, it shall be frozen as quickly as possible when it is placed in the freezer compartment, use the fast freezing feature for this purpose.
• You may store the food longer in freezer compartment when you freeze them while they are fresh.
• Pack the food to be frozen and close the packing so that it would not allow entrance of air.
• Ensure that you pack your food before putting them in the freezer. Use freezer containers, foils and moisture-proof papers, plastic bags and other packing materials instead of traditional packing papers.
• Label each pack of food by adding the date before freezing. You may distinguish the freshness of each food pack in this way when you open your freezer each time. Store the food frozen before in the front side of compartment to ensure that they are used first.

The freezer compartment defrosts automatically.

• Frozen food must be used immediately after they are thawed and they should not be re-frozen.
• Do not freeze too large quantities of food at one time.

Operating the product

Freezer Compartment Setting	Fridge compartment Setting	Remarks
-18°C 4°C This is	the normal recommended setting.
-20,-22 or -24°C	4°C	These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze 4°C		Use when you wish to freeze your food in a short time. Your product will return to its previous mode when the process is over.
-18°C or colder 2°C		Use these settings if you think that your fridge compartment is not cold enough because of the hot ambient conditions or frequent opening and closing of the door.

5.2. Recommendations for preserving the frozen food

Compartment shall be set to -18^ at least.

1. Put packages in the freezer as quickly as possible after purchase without allowing the to thaw.
2. Check whether the "Use By" and "Best Before" dates on the packaging are expired or not before freezing it.
3. Ensure that the package of the food is not damaged.

5.3. Deep-freeze information

According to IEC 62552 standards, the product shall freeze at least 4.5 kg of food at 32°C ambient temperature to -18°C or lower within 24 hours for every 100-litres of freezer volume. It is possible to preserve the food for a long time only at -18°C or lower temperatures.

You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze).

Foods to be frozen should not be allowed to come in contact with the previously frozen items to prevent them from getting thawed partially.

Boil the vegetables and drain their water in order to store vegetables for a longer time as frozen. After draining their water, put them in air-proof packages and place them inside the freezer. Food such as bananas, tomatoes, lettuce, celery, boiled eggs, potatoes are not suitable for freezing. When these foods are frozen, only their nutritional value and taste shall be affected negatively. They shall not be spoiled so that they would create a risk for human health.

5.4. Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Refrigerator compartment shelves	Food in pans, covered plates and closed containers, eggs (in closed container)
Door shelves of fridge compartment	Small and packaged food or beverage
Crisper Vegetables and fruits
Fresh zone compartment	Delicatessen (breakfast food, meat products that shall be consumed in a short time)

5.5. Door open warning (This feature is optional)

An audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

Door open warning is given to user both visually and acoustically. If the warning continues for 10 minutes, interior lights will be turned off.

5.6. Changing the door opening direction

Door opening direction of your refrigerator can be changed according to the place you are using it. If this is necessary, please call your nearest Authorized Service.

Above description is a general expression. For information on changing the opening direction of the door, you must refer to the warning label located on the inner side of the door.

Operating the product

Using the water dispenser

* May not be available in all models

It is normal for the first few glasses of water taken from the dispenser to be warm.

If the water dispenser is not used for a long period of time, dispose of first few glasses of water to obtain fresh water.

1. Push in the lever of the water dispenser with your glass. If you are using a soft plastic cup, pushing the lever with your hand will be easier.

2. After filling the cup up to the level you want, release the lever.

Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow. If you slightly press the arm, the water will drip; this is quite normal and not a failure.

Simple line drawing of a rectangular container with a central vertical tube (no text or symbols)

Operating the product

Filling the water dispenser's tank

Water tank filling reservoir is located inside the door rack.

1. Open the cover of the tank.
2. Fill the tank with fresh drinking water.
3. Close the cover.

Do not fill the water tank with any other liquid except for water such as fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank.

Use clean drinking water only.

Technical line drawing of a mechanical component or tray assembly (no text or symbols)

Line drawing of a mechanical device with arrows indicating direction (no text or symbols)

Operating the product

Capacity of the water tank is 3 litres; do not overfill.

Cleaning the water tank

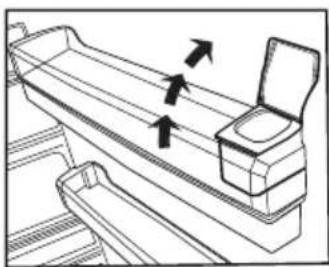

1. Remove the water filling reservoir inside the door rack.

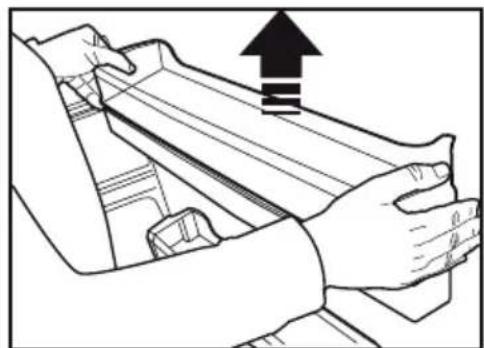

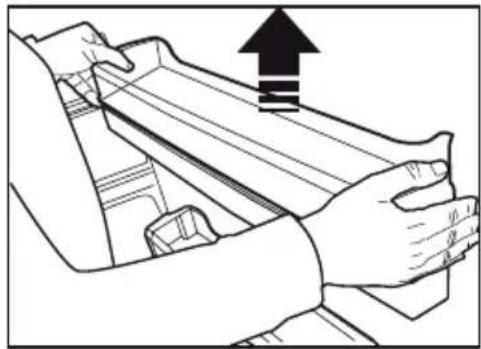

2. Remove the door rack by holding from both sides.

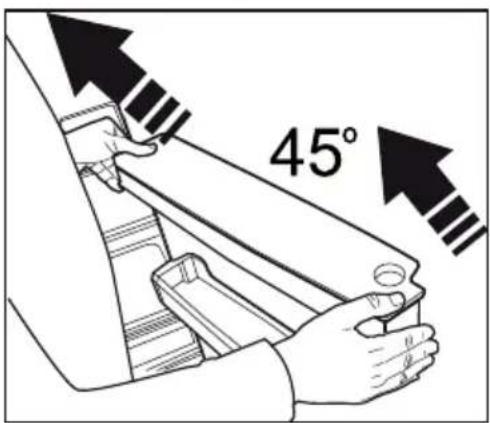

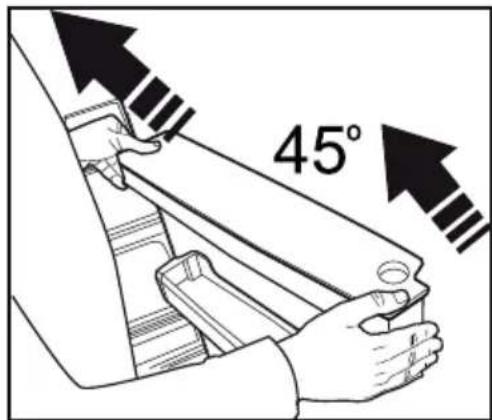

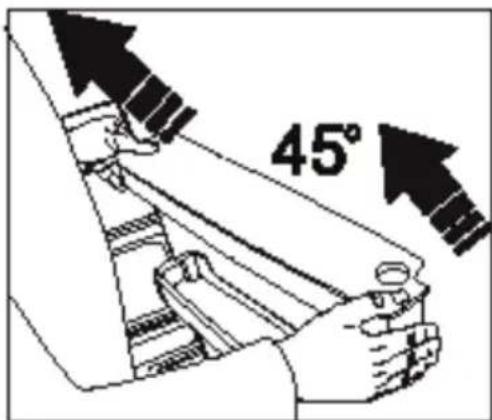

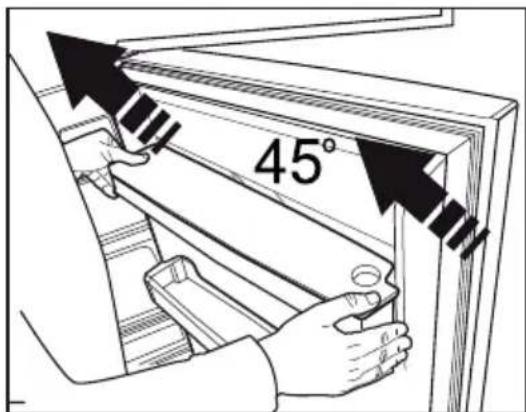

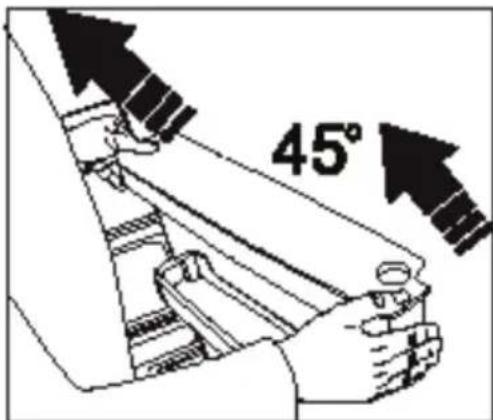

3. Grab the water tank from both sides and remove it with an angle of 45^ C.

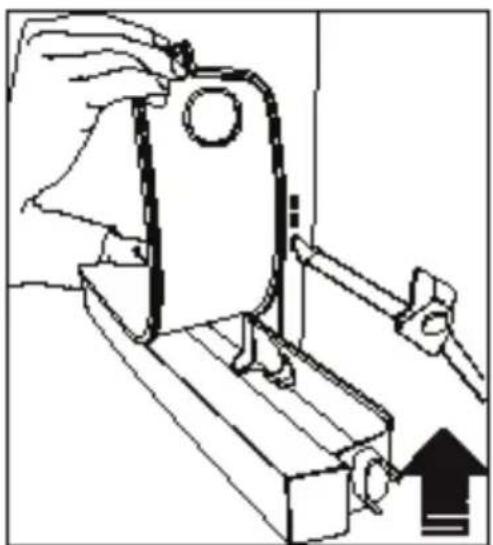

4. Remove the cover of the water tank and clean the tank.

Components of the water tank and water dispenser should not be washed in dishwasher.

Operating the product

Drip tray

Water that dripped while using the water dispenser accumulates in the spillage tray.

Remove the plastic filter as shown in the figure.

With a clean and dry cloth, remove the water that has accumulated.

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

6 Maintenance and cleaning

Cleaning your fridge at regular intervals will extend the service life of the product.

WARNING:

Unplug the product before cleaning it.

• Never use gasoline, benzene or similar substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it.
• Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface
• Dissolve one teaspoon of bi-carbonate in half litre of water. Soak a cloth with the solution and wrung it thoroughly. Wipe the interior of the refrigerator with this cloth and the dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave the door ajar.
• Check regularly that the door gaskets are clean. If not, clean them.
• To remove door and body shelves, remove all of its contents.

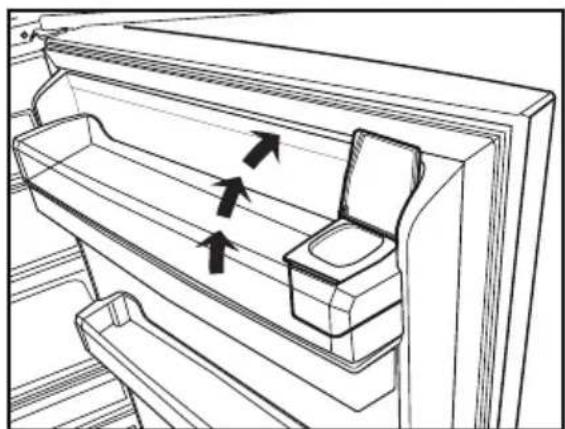

• Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install.

- Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

6.1 Avoiding bad odours

• Materials that may cause odour are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odour. Pay attention to following to avoid this problem:
• Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odour. Therefore, clean the refrigerator with bi-carbonate dissolved in water every few months. Never use detergents or soap.
• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
• Never keep the food that have passed best before dates and spoiled in the refrigerator.

6.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled.

  Plug it in to settle completely into the socket.

• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The door is opened too frequently >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

- In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard.

The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.

• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.
• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.

Troubleshooting

• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

- The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on

the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.

• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.
• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

Troubleshooting

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.
• The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.
• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour.
• The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.

- The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

If The Surface Of The Product Is Hot.

- High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance! Be careful when touching these areas.

WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

Vážení zákazníci,

Simple line drawing of a rectangular object with a triangular base and labeled point '1' (no text or symbols beyond the label)

Diagram showing a device with wires and a plug inserted into a chamber, no text or symbols present

1.1.1 Varování HC

Pure electrical circuit lines without any symbols

Instalace

Simple line drawing of a test tube submerged in a container (no text or symbols)

Technical line drawing of a mechanical assembly with two rectangular components (no text or symbols)

Line drawing of a mechanical device with two arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand using a tool to lift a box, with an upward arrow and three horizontal lines above (no text or symbols)

Line drawing of hands operating a mechanical component with an upward arrow indicating motion (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

6

Údržba a čištění

Line drawing of a mechanical component with a labeled part '1' (no text or symbols beyond the label)

Diagram showing a lightning bolt striking a wall-mounted device with wires and a plug, no text or symbols present

Pure electrical circuit lines without any symbols

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Simple line drawing of a rectangular container with a central tube (no text or symbols)

Line drawing of a refrigerator interior showing front and side compartments (no text or symbols)

Line drawing of a refrigerator interior showing drawer, front pane, and side shelf with arrows indicating movement (no text or symbols)

Line drawing of a hand placing a small object into a storage cabinet with an upward arrow indicating motion (no text or symbols)

Illustration of hands installing or adjusting a door panel with an upward arrow (no text or symbols)

Line drawing of a hand holding a metal bracket with a pull-up arrow and plus symbol (no text or labels)

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Simple line drawing of a rectangular frame with a small circular cutout labeled '1' and a small arrow pointing to the bottom right (no text or symbols beyond the number)

Simple line drawing of a rectangular frame with a small rectangular base and a numbered label '1' on the top (no text or symbols beyond the number)

Diagram showing a lightning bolt striking a wall-mounted device with a plug, emitting sound waves (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)

3.8. Zmena smeru otvárania dverí

Simple line drawing of a rectangular container with a central trough (no text or symbols)

Line drawing of a wooden boat hull with two side compartments and a side shelf (no text or symbols)

Line drawing of a toilet with open lid and side compartments, no text or symbols present

Illustration of a hand using a tool to lift or press a stack of objects, with an upward arrow symbol above (no text or labels)

Line drawing of hands operating a mechanical component with an upward arrow indicating motion (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

RSNE445E22

Molimo da prvo pročitate ovo uputstvo za upotrebu!

Poštovani kupci,

Nadamo se da će vam ovaj proizvod, koji je proizveden u savremenim fabrikama i koji je prošao najstrože kontrole kvaliteta, dugo i efikasno služiti.

Zato pažljivo pročitajte kompletno uputstvo za upotrebu pre nego što počnete da koristite proizvod i sačuvajte ga za buduće potrebe. Ako proizvod predajte nekome, dajte mu i uputstvo za upotrebu.

Uputstvo za upotrebu će vam pomoći da proizvod koristite efikasno i na sigurna način.

• Pročitajte uputstvo za upotrebu pre instaliranja i rada sa proizvodom.
• Obavezno pročitajte bezbednosna uputstva.
• Uputstvo za upotrebu čuvajte na pristupačnom mestu jer vam kasnije može zatrebati.
• Pročitajte i drugu dokumentaciju koju ste dobili uz proizvod.

Imajte na umu da se ovo uputstvo za upotrebu odnosi i na nekoliko drugih modela. Razlike između modela će biti naznačene u uputstvu.

Objašnjenje simbola

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

Technical line drawing of a mechanical component with a base and housing (no text or symbols)

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the number)

Podešavanje nožoca

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Upozorenje za otvorena vrata

\*opcija

Simple line drawing of a rectangular container with a central depression (no text or symbols)

Punjenje rezervoara automata vodom

Technical line drawing of a mechanical component with two rectangular parts and a base, no text or symbols present

Line drawing of a mechanical device with two compartments and directional arrows indicating motion (no text or symbols)

Čišćenje rezervoara za vodu

Line drawing of a hand pressing down on a shelf with an upward arrow and three horizontal lines above (no text or symbols)

Line drawing of hands operating a mechanical component with an upward arrow indicating motion (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Posuda za sakupljanje vode

Voda koja kaplje tokom korišćenja aparata za vodu se sakuplja u posudi za sakupljanje vode

Skinite plastični filter na način prikazan na slici.

Nagomilanu vodu pokupite čistom suvom krpom.

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

Diagram showing a lightning bolt striking a wall-mounted device with wires and a plug, no text or symbols present

Simple line drawing of a rectangular container with a central trough and side supports (no text or symbols)

5.9. Ūdens automāta tvertnes uzpilde

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with arrows indicating motion (no text or symbols)

5.10. Üdens tvertnes tîrîğana

1. Izòemiet ûdens uzpildes tvertni no durvju plaukta.
2. Izņemiet durvju plauktu, turot to no abām pusēm.
3. Satveriet ūdens tvertni aiz abām pusēm un nonemiet to, sagāžot 45° lenkī.
4. Nonemiet udens tvertnes vaku un iztīriet tvertni.

Illustration of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Diagram of a mechanical assembly with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with a hand operating a bracket (no text or symbols)

Produkta lietošana

Line drawing of a hand pressing down on a device panel with a downward arrow indicating compression or disassembly (no text or symbols)

6

Apkope un tīrīšana

Diagram showing a device with a lightning bolt and cable, no text or symbols present

1.1.1 HC hoiatus

Simple line drawing of a rectangular container with a central depression, no text or symbols present.

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

Technical line drawing of a mechanical device with arrows indicating motion or assembly (no text or symbols)

Toote kasutamine

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Diagram of a mechanical assembly with an upward arrow indicating motion (no text or symbols present)

Line drawing of a hand operating a mechanical clamp or bracket (no text or symbols present)

Toote kasutamine

5.11. Tilgaalus

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

6

Simple line drawing of a rectangular frame with a numbered arrow and arrow, no text or symbols present.

Simple line drawing of a mechanical component with a base and top view, no text or symbols present

Diagram showing a lightning bolt striking down an electrical socket with wires, no text or symbols present

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

The condenser of your appliance is located on the back as shown below. In order to achieve better energy efficiency with lower energy consumption, please pull the condenser towards yourself as illustrated in picture below.

\*may not be available in all models

4 Подготовка

Simple line drawing of a rectangular container with a central depression (no text or symbols)

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Line drawing of a mechanical device with two boxes and an open lid, showing directional arrows (no text or symbols)

Line drawing of a hand opening a box with an upward arrow symbol (no text or labels)

Line drawing of hands operating a mechanical component with an upward arrow (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)
