Series 8000 S8980 - Razor PHILIPS - Free user manual and instructions

Type	Electric shaver
Brand	Philips
Model	Series 8000 S8980
Color	Black and silver
Dimensions (approx.)	5.7 x 2.7 x 9.8 inches
Weight	0.7 lbs
Power source	Rechargeable battery
Battery life	60 minutes
Charging time	1 hour
Quick charge	5 minutes for one shave
Waterproof rating	IPX7 (fully washable)
Shaving system	Dual steel Precision Blades
Contour following	5D Flex & pivot head
Pop-up trimmer	Yes
Cleaning	SmartClean system included
Travel lock	Yes
Replaceable heads	SH90/91 series
Warranty	2 years

Frequently Asked Questions - Series 8000 S8980 PHILIPS

How do I clean the Philips Series 8000 S8980 shaver?

Rinse the shaver head under warm water after each use. For a deeper clean, use the SmartClean system or remove the shaving unit and clean with the supplied brush. Ensure the shaver is switched off before cleaning.

How long does the battery last on a full charge?

The battery provides up to 60 minutes of cordless shaving time, which is approximately 20 shaves.

Can I use the shaver while it is charging?

No, the Philips Series 8000 S8980 is designed for cordless use only. It cannot be used while plugged in.

How do I replace the shaving heads?

Press the release button to remove the shaving unit. Replace the heads with new SH90/91 series heads. It is recommended to replace them every 12 months for optimal performance.

Is the shaver waterproof?

Yes, it has an IPX7 rating, meaning it can be rinsed under the tap and is suitable for use in the shower.

How do I activate the travel lock?

Press and hold the on/off button for 3 seconds. The travel lock symbol will appear on the display to confirm it is locked. Repeat to unlock.

What does the SmartClean system do?

The SmartClean system automatically cleans, lubricates, and dries the shaver. It also charges the shaver when docked.

How often should I replace the foil and cutter?

Philips recommends replacing the shaving heads every 12 months to maintain a close and comfortable shave.

What is the quick charge time?

A 5-minute quick charge provides enough power for one full shave.

How do I reset the shaver after a replacement?

After replacing the shaving heads, press the reset button (located on the back of the shaver) for 5 seconds until the display shows a 0.

USER MANUAL Series 8000 S8980 PHILIPS

Philips electric shaver

Model number

S8980/11

User manual

Main unit

Please check the product.

Protective cap

Trimmer

Charging adapter

Guidance in English 19~40

● Warranty

Warranty and after-sales service 43

Specifications 44

Free repair regulations 46

Warranty certificate ...... last page

Be sure to observe the following.

Safety precautions

Protective cap

Trimmer

Cheek

Under the chin

From the inner cheek to the neck

Under the nose

4 How to attach the shaving unit

Blade replacement

The dedicated replacement blade model number is SH90.

Replacing the replacement blade (SH90)

3

English

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable.

General description (Fig. 1)

1 Protection cap 2 Click-on shaving unit 3 Handle 4 Socket for small plug 5 Battery charge indicator with 3 lights 6 Unplug for use symbol 7 Travel lock symbol 8 Replacement reminder 9 Cleaning reminder 10 Click-on precision trimmer attachment 11 Supply unit 12 Small plug

Important safety information

Read this important information carefully before you use the appliance and save it for future reference.

Danger

Warning

- Keep the supply unit dry.

• To charge the battery, only use the detachable supply unit (HQ8505) provided with the appliance.
• The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Always unplug the shaver before you clean it under the tap.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.
• This appliance contains batteries that are non-replaceable.
• Do not open the appliance to replace the rechargeable battery.

Caution

• Never use water hotter than 60°C to rinse the shaver.
• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.
• Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

- This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.

- The supply unit is suitable for mains voltages ranging from 100 to 240 volts.

The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.

The display

Battery charging

Quick charge: When the battery is empty and you connect the appliance to the wall socket, the lights of the battery charge indicator light up one after the other repeatedly. When the appliance contains enough energy for one shave, the bottom light of the battery charge indicator starts flashing slowly. While the appliance continues to charge, first the bottom light of the battery charge indicator flashes and then lights up continuously. Then the second light flashes and then lights up continuously, and so on until the appliance is fully charged.

Battery fully charged

When the battery is fully charged, all lights of the battery charge indicator light up white continuously.

When you press the on/off button while the shaver is still connected to the wall socket, the 'unplug for use' symbol lights up to remind you to disconnect the shaver from the wall socket before you can switch it on.

Note: When the battery is full, the display switches off automatically after 30 minutes.

Battery low

When the battery is almost empty, the bottom light of the battery charge indicator flashes orange.

Remaining battery charge

The remaining battery charge is shown by the lights of the battery charge indicator that light up continuously.

'Unplug for use' reminder

The ‘unplug for use’ symbol flashes to remind you that you have to disconnect the appliance from the wall socket before you can switch it on.

Cleaning reminder

Clean the shaver after every use for optimal performance (see 'Cleaning and maintenance'). When you switch off the appliance, the cleaning reminder flashes to remind you to clean the appliance.

Travel lock

You can lock the appliance when you are going to travel. The travel lock prevents the appliance from being switched on by accident (see 'Activating the travel lock').

Activating the travel lock

1 Press the on/off button for 3 seconds to use the travel lock mode.

While you activate the travel lock, the travel lock symbol lights up continuously. When the travel lock is activated, the travel lock symbol flashes.

Deactivating the travel lock

1 Press the on/off button for 3 seconds.

While you deactivate the travel lock, the travel lock symbol lights up briefly and the shaver produces a short sound. The appliance switches on and is now ready for use again.

Replacement reminder

For maximum shaving performance, we advise you to replace the shaving heads every two years. The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The shaving unit symbol lights up and the arrows flash to indicate that you have to replace the shaving heads.

Note: After replacing the shaving heads, you can reset the replacement reminder by pressing the on/off button for 7 seconds. If you do not reset the replacement reminder, the shaver resets automatically after 9 shaves.

Charging

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

Charging takes approx. 1 hour. A fully charged shaver has a shaving time of up to 50 minutes.

Note: You cannot use the appliance while it is charging.

Charging with the supply unit

1 Make sure the appliance is switched off.

2 Put the small plug in the appliance and put the supply unit in the wall socket.

3 After charging, remove the supply unit from the wall socket and pull the small plug out of the appliance.

Using the appliance

Always check the shaver and all accessories before use. Do not use the shaver or any accessory if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

This symbol indicates that the shaver can be used in the bath or shower.

• Use this shaver for its intended household use as described in this manual.
• For hygienic reasons, the shaver should only be used by one person.
• Trimming is easier when the skin and hair are dry.

Note: This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can only be used without cord.

Switching the appliance on and off

1 To switch on the appliance, press the on/off button once. 2 To switch off the appliance, press the on/off button once.

Shaving

Skin adaption period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system. We advise you to shave regularly (at least 3 times a week) and exclusively with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver.

- For the best results on skin comfort, pre-trim your beard if you have not shaved for 3 days or longer.

Dry shaving

1 Switch on the appliance. 2 Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave. Note: Do not press too hard, as this can cause skin irritation.

3 Clean the appliance after use (see 'Cleaning and maintenance').

Wet shaving

For a more comfortable shave, you can also use this appliance on a wet face with shaving foam or shaving gel.

To shave with shaving foam or shaving gel, follow the steps below:

English

1 Apply some water to your skin.

2 Apply shaving foam or shaving gel to your skin.

3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

4 Switch on the appliance.

5 Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.

Note: Do not press too hard, this can cause skin irritation.

Note: Rinse the shaving unit regularly to ensure that it continues to glide smoothly over your skin.

6 Dry your face.

7 Clean the appliance after use (see 'Cleaning and maintenance').

Note: Make sure you rinse all foam or shaving gel off the appliance.

Using click-on attachments

Removing or attaching the click-on attachments

1 Make sure the appliance is switched off.

2 Pull the attachment straight off the appliance.

Note: Do not twist the attachment while you pull it off the appliance.

3 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the precision trimmer attachment

You can use the precision trimmer attachment to touch up your beard, sideburns and moustache.

1 Attach the precision trimmer attachment to the appliance ('click').

2 Switch on the appliance.

3 Hold the trimmer perpendicular to the skin and move the appliance downwards while you exert gentle pressure.

4 Clean the attachment after use.

English

Cleaning and maintenance

Cleaning the shaver under the tap

Clean the shaver after every use for optimal performance (see 'Cleaning and maintenance').

Be careful with hot water. Always check if the water is not too hot, to prevent burning your hands.

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

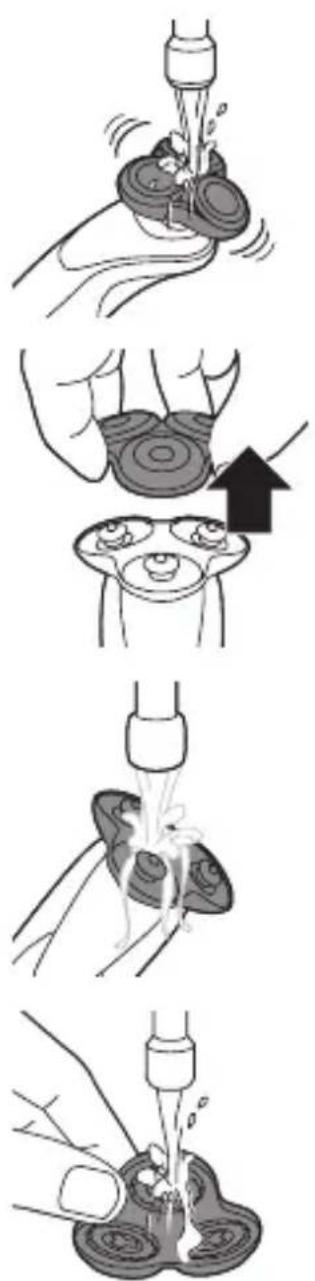

1 Switch on the appliance. 2 Rinse the shaving unit under a warm tap.

3 Switch off the appliance. Pull the shaving head holder off the bottom part of the shaving unit.

4 Rinse the hair chamber under the tap.

5 Rinse the shaving head holder under a warm tap. 6 Carefully shake off excess water and let the shaving head holder air-dry completely.

7 Attach the shaving head holder to the bottom part of the shaving unit ('click').

Thorough cleaning

We advise you to clean the shaving heads thoroughly once a month or when the shaver does not shave as well as it used to.

1 Switch off the shaver. 2 Pull the shaving head holder off the bottom part of the shaving unit.

3 Rinse the hair chamber and shaving head holder under the tap.

4 Turn the retaining ring anticlockwise and lift it off the shaving head.

Repeat this process for the other retaining rings. Place them aside in a safe place.

5 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

6 Clean the cutter and guard under the tap.

7 Shake off excess water.

8 Put the cutter back into the guard.

9 Place the shaving heads in the shaving head holder.

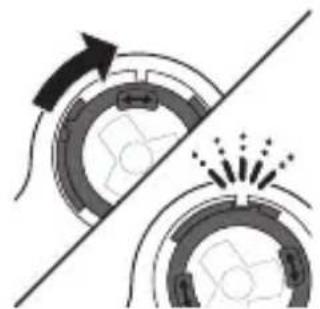

10 Place the retaining ring on the shaving head.

11 Align the arrows on the retaining ring with the projections in the shaving head holder. Turn the ring clockwise until it clicks to indicate that the ring is fixed.

12 Attach the shaving head holder to the bottom part of the shaving unit ('click').

Cleaning click-on attachments

Caution: Never dry the trimmer attachment with a towel or tissue, as this may damage the trimming teeth.

Cleaning the trimmer attachment

Clean the trimmer attachment after each use.

1 Switch on the appliance with the precision trimmer attachment attached. 2 Rinse the attachment under a warm tap. 3 After cleaning, switch off the appliance. 4 Carefully shake off excess water and let the attachment air-dry completely.

For optimal performance, lubricate the teeth of the attachment with a drop of sewing machine oil every six months.

Storage

Put the protection cap on the shaver to protect it from any dirt accumulation.

Note: We advise you to let the appliance dry before you put the protection cap on the shaving unit.

Replacement

Replacing the shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years. Replace damaged shaving heads immediately. Always replace the shaving heads with original Philips shaving heads ('Ordering accessories').

Replacement reminder

The replacement reminder indicates that the shaving heads need to be replaced. The shaving unit symbol and arrows light up when you switch off the appliance.

Available replacement parts are SH90/51 (separate shaving heads) or SH90/81 (shaving heads in shaving head holder). Follow the correct instructions.

Replacing the SH90 shaving head holder

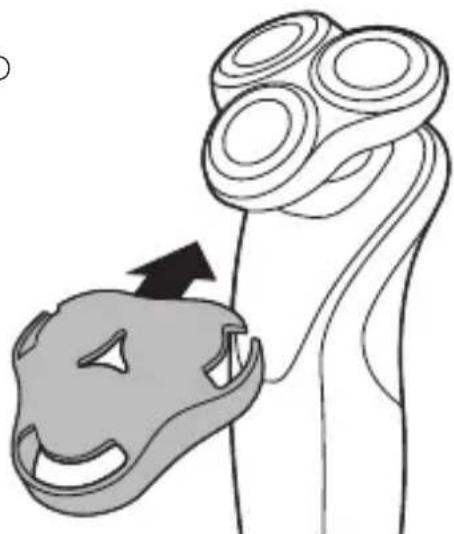

1 Switch off the shaver. Pull the shaving head holder off the bottom part of the shaving unit.

2 Discard the old shaving head holder and attach the new shaving head holder to the bottom part of the shaving unit ('click').

3 To reset the replacement reminder, press and hold the on/off button for approx. 7 seconds.

Ordering accessories

To buy accessories or spare parts, visit www.philips.com/parts-and-accessories or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

The following accessories and spare parts are available:

• HQ8505 supply unit
• SH90 Philips shaving heads
• HQ110 Philips shaving head cleaning spray

Note: The availability of the accessories may differ by country.

Recycling

• Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.
• This product contains a built-in rechargeable battery which shall not be disposed of with normal household waste. Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.
• Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

English

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the appliance. Before you remove the battery, make sure that the appliance is disconnected from the mains and that the battery is completely empty.

Take any necessary safety precautions when you handle tools to open the appliance.

Be careful, the battery strips are sharp.

1 Remove the screw in the back of the shaver.

2 Remove the back panel.

3 Take out the power unit.

4 Bend the snap hooks aside and remove the transparent cover of the power unit.

5 Lift out the battery holder and cut the wires with a pair of cutting pliers or scissors.

6 Bend the battery tags aside with a pair of cutting pliers.

7 Remove the rechargeable batteries.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Warranty restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international warranty because they are subject to wear.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Shaver Problem Possible cause Solution

The appliance does not work when I press the on/off button.	The appliance is still attached to the wall socket. For safety reasons, the appliance can only be used without charging cord.	Unplug the appliance and press the on/off button to switch on the appliance.
	The rechargeable battery is empty.	Recharge the battery.
	The travel lock is activated.	Press the on/off button for 3 seconds to deactivate the travel lock.
	The shaving unit is soiled or damaged to such an extent that the motor cannot run.	Clean the shaving heads thoroughly or replace them.
The appliance do es not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads.
	Hairs or dirt obstruct the shaving heads.	Clean the shaving heads in the regular way or clean them thoroughly.
I replaced the shaving heads, but the replacement reminder is still showing.	You have not reset the replacement reminder.	To reset the replacement reminder, press and hold the on/off button for more than 7 seconds.
A shaving head symbol has suddenly appeared on the display.	This symbol is the replacement reminder.	Replace the shaving heads.

Problem Possible cause Solution

Water is leaking from the bottom of the appliance.

During cleaning, water may collect between the inner body and the outer shell of the appliance.

This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the appliance.

Warranty and after-sales service

MyPhilips registration information
