Product Type	Electric Shaver
Brand	Philips
Model	Series 9000 S9112
Dimensions	5.7 x 1.8 x 2.2 inches (approx.)
Weight	0.5 lbs (approx.)
Power Source	Rechargeable Lithium-ion battery
Charging Time	1 hour
Run Time	50 minutes
Voltage	100-240V auto voltage
Wet & Dry Use	Yes
Waterproof	Yes (fully washable)
Blade System	V-Track precision blades
Pop-up Trimmer	Yes
Contour Detection	SmartClick with contour detection
Cleaning	Rinse under running water; optional SmartClean system
Display	LED display (battery, cleaning reminder, travel lock)
Travel Lock	Yes
Replacement Heads	Philips SH90
Warranty	2 years (varies by region)
Accessories	Charging station, travel case, cleaning brush

Frequently Asked Questions - Series 9000 S9112 PHILIPS

How to clean the Philips Series 9000 S9112?

Remove the shaving head, rinse under warm water. Use the cleaning brush if needed. Allow to dry. For deep cleaning, use the SmartClean system (if included).

How long does the battery last?

Up to 50 minutes after a full 1-hour charge.

Can I use the shaver in the shower?

Yes, it's fully waterproof for wet and dry use.

How often should I replace the blades?

Replace every 12 months or when you notice discomfort. Use Philips SH90 replacement heads.

What does the travel lock feature do?

It disables the shaver to prevent accidental activation during travel. Press and hold button to lock/unlock.

How do I charge the shaver?

Connect the charging station or plug directly into the shaver via the provided cable. Full charge in 1 hour; a 5-minute quick charge gives enough for one shave.

Is the shaver suitable for sensitive skin?

Yes, the micro-precision blades and contour detection reduce irritation.

How do I use the pop-up trimmer?

Slide the trimmer up to use for sideburns or mustache.

What does the LED display show?

Battery level, cleaning reminder, travel lock indication, and charging status.

Where can I find replacement parts?

From Philips website or authorized retailers. Use original Philips parts.

USER MANUAL Series 9000 S9112 PHILIPS

www.philips.com/support/ifu

English 6

Nederlands 31

Русский 58

简体中文 84

105 العربية

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable.

General description (Fig.1)

1 Protection cap for cleansing brush attachment

2 Click-on cleansing brush attachment

3 Click-on precision trimmer attachment

4 Click-on shaving unit

5 On/off button

6 Socket for small plug

7 Exclamation mark

8 Replacement reminder

9 Battery charge indicator

10 Travel lock symbol

11 Cleaning reminder

12 Supply unit

13 Small plug

14 Pouch

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

- Keep the supply unit dry.

Warning

• To charge the battery, only use the detachable supply unit (type HQ8505) provided with the appliance.
• The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

English

• Always unplug the shaver before you clean it under the tap.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.
• Do not open the appliance to replace the rechargeable battery.

Caution

• Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.
• Never use water hotter than 60°C to rinse the shaver.
• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.

- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

- If your shaver comes with a cleaning system, always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).

- Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.

- If your cleaning system uses a cleaning cartridge, always make sure the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.

- When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.

- Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

- Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

- This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.

- The supply unit is suitable for mains voltages ranging from 100 to 240 volts.

- The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.

The display

Note: Before you use the shaver for the first time, remove the protective foil from the display.

Charging

Quick charge: When you connect the shaver to the wall socket, the lights of the battery charge indicator light up one after another repeatedly.

When the shaver contains enough energy for one shave, the bottom light of the battery charge indicator starts to flash slowly.

While the shaver continues to charge, first the bottom light of the battery charge indicator flashes and then lights up continuously. Then the second light flashes and lights up continuously, and so on until the shaver is fully charged (see 'Battery fully charged').

Battery fully charged

When the battery is fully charged, all lights of the battery charge indicator light up white continuously.

Note: This appliance can only be used without cord. When you press the on/off button during or after charging, you hear a sound to indicate that the shaver is still connected to the wall socket.

Note: When the battery is full, the display switches off automatically after 30 minutes.

12 English

Battery low

When the battery is almost empty, the bottom light of the battery charge indicator flashes orange and you hear a sound.

Remaining battery charge

The remaining battery charge is shown by the lights of the battery charge indicator that light up continuously.

Cleaning reminder

Clean the shaver after every shave for optimal performance. When you switch off the appliance, the cleaning reminder flashes to remind you to clean the appliance.

Travel lock

You can lock the appliance when you are going to travel. The travel lock prevents the appliance from being switched on by accident.

Activating the travel lock

1 Press the on/off button for 3 seconds to enter the travel lock mode.

While you activate the travel lock, the travel lock symbol lights up white continuously. When the travel lock is activated, the appliance produces a sound and the travel lock symbol flashes.

Deactivating the travel lock

1 Press the on/off button for 3 seconds.

The travel lock symbol flashes and then lights up continuously. The appliance is now ready for use again.

Note: You can also deactivate the travel lock by connecting the appliance to the wall socket.

Replacement reminder

For maximum shaving performance, we advise you to replace the shaving heads every two years.

The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The shaving unit symbol lights up white continuously, the arrows flash white and the appliance beeps to indicate that you have to replace the shaving heads.

Note: After replacing the shaving heads, you can reset the replacement reminder by pressing the on/off button for 7 seconds. If you do not reset the replacement reminder, the shaver resets automatically after 9 shaves.

Exclamation mark

Overheating

If the appliance overheats during charging, the exclamation mark flashes orange. When this happens, the shaver switches off automatically. Charging continues once the temperature of the appliance has decreased to the normal level.

Blocked shaving heads

If the shaving heads are blocked, the exclamation mark lights up orange continuously. The replacement reminder and the cleaning reminder flash white alternately and you hear a sound. In this case, the motor cannot run because the shaving heads are soiled or damaged.

If the shaving heads are soiled, you have to clean them. If the shaving heads are damaged, you have to replace them.

Charging

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty. The battery charge is indicated by the lights of the battery charge indicator on the display.

When you connect the shaver to the wall socket, you hear a sound.

Charging takes approx. 1 hour. A fully charged shaver has a shaving time of up to 50 minutes.

Note: You cannot use the appliance while it is charging.

Charging with the supply unit

1 Make sure the appliance is switched off.
2 Put the small plug in the appliance and put the supply unit in the wall socket.
3 After charging, remove the supply unit from the wall socket and pull the small plug out of the appliance.

Using the appliance

Note: This appliance can only be used without cord.

Switching the appliance on and off

- To switch on the appliance, press the on/off button once.

The display lights up for a few seconds.

- To switch off the appliance, press the on/off button once.

The display lights up for a few seconds and shows the remaining battery charge.

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system. To allow your skin to adapt to this new appliance, we advise you to shave regularly (at least 3 times a week) and exclusively with this appliance for a period of 3 weeks.

Shaving tips

- For the best results on skin comfort, pre-trim your beard if you have not shaved for 3 days or longer.

- Move the shaving heads over your skin in circular movements.

Dry shaving

1 Switch on the appliance.

The display lights up for a few seconds.

2 Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.

Note: Do not press too hard, this can cause skin irritation.

3 Clean the appliance after use.

Wet shaving

For a more comfortable shave, you can also use this appliance on a wet face with shaving foam or shaving gel.

To shave with shaving foam or shaving gel, follow the steps below:

1 Apply some water to your skin.

2 Apply shaving foam or shaving gel to your skin.

3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

4 Switch on the appliance.

5 Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.

Note: Rinse the shaving unit regularly to ensure that it continues to glide smoothly over your skin.

6 Dry your face.

7 Clean the appliance after use.

Note: Make sure you rinse all foam or shaving gel off the appliance.

Using click-on attachments

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your product.

Removing or attaching the click-on attachments

1 Make sure the appliance is switched off. 2 Pull the attachment straight off the appliance.

Note: Do not twist the attachment while you pull it off the appliance.

3 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the trimmer attachment

You can use the precision trimmer attachment to touch up your beard, sideburns and moustache.

1 Attach the attachment to the appliance ('click').
2 Switch on the appliance.
The display lights up for a few seconds.

3 Hold the trimmer attachment perpendicular to the skin and move the appliance downwards while you exert gentle pressure.
4 Clean the attachment after use (see 'Cleaning and maintenance').

Using the cleansing brush attachment

Note: For better shaving results, use the click-on cleansing brush attachment before shaving.

Use the rotating cleansing brush with your daily cleansing cream. The cleansing brush removes oil and dirt, contributing to a healthy and oil-free skin. We advise you to use it no more than twice a day. Start with the lowest personal comfort setting to familiarize yourself with the attachment.

Do not use the appliance on damaged or irritated skin or on wounds.

1 Place the attachment on the attachment holder.
2 Attach the attachment to the appliance ('click').

3 Moisten the attachment with water.

Note: Do not use the appliance with a dry cleansing brush attachment, as this can irritate the skin.

4 Moisten your face with water and apply a cleanser to your face.

5 Place the attachment on your cheek.

6 Switch on the appliance.

7 Gently move the attachment across your skin from the nose towards the ear. Do not push the attachment too hard onto the skin to make sure that the treatment remains comfortable.

Note: Do not cleanse the sensitive area around your eyes.

8 After approx. 20 seconds, move the appliance to your other cheek and start cleansing this part of your face.

9 After approx. 20 seconds, move the appliance to your forehead and start cleansing this part of your face. Gently move the brush head from left to right.

Note: We advise you to not overdo the cleansing and to not cleanse any zone longer than 20 seconds.

10 After the treatment, rinse and dry your face. Your face is now ready for the next step of your daily skincare routine.

11 Switch off the appliance and clean the attachment after use.

Cleaning and maintenance

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your product.

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal performance.

Be careful with hot water. Always check if the water is not too hot, to prevent burning your hands.

Note: Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

1 Switch on the appliance.

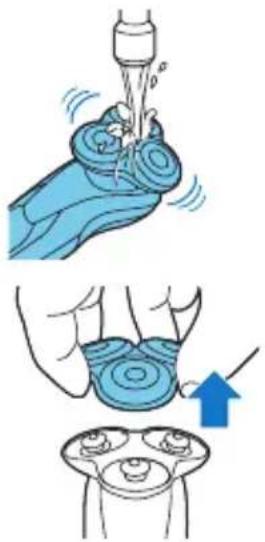

2 Rinse the shaving unit under a warm tap.

3 Switch off the appliance. Pull the shaving head holder off the bottom part of the shaving unit.

4 Rinse the hair chamber under the tap.

5 Rinse the shaving head holder under a warm tap.

6 Carefully shake off excess water and let the shaving head holder air-dry completely.

7 Attach the shaving head holder to the bottom part of the shaving unit ('click').

Thorough cleaning

We advise you to clean the shaving heads thoroughly once a month or when the shaver does not shave as well as it used to.

Note: The shaving heads are locked by a blue or an orange retaining ring.

Follow the correct instructions.

1 Switch off the shaver.

22 English

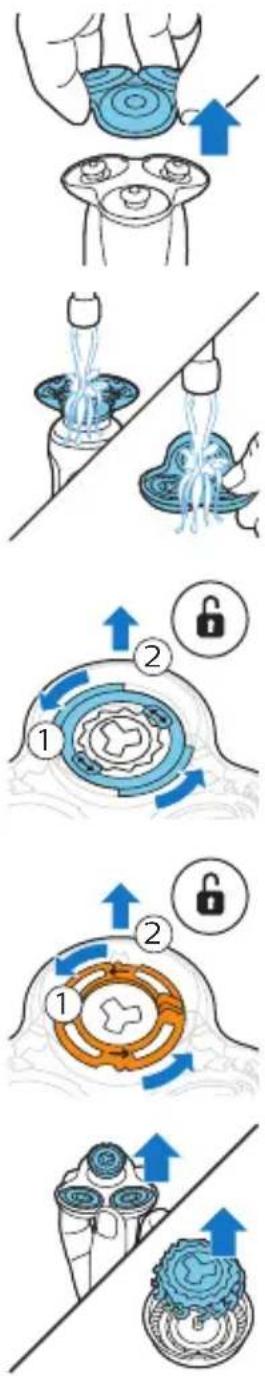

2 Pull the shaving head holder off the bottom part of the shaving unit.

3 Rinse the hair chamber and shaving head holder under the tap.

4 Turn the retaining ring anticlockwise and lift it off the shaving head. Repeat this process for the other retaining rings. Place them aside in a safe place.

5 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

6 Clean the cutter and guard under the tap.

7 Shake off excess water.

8 Put the cutter back into the guard.

9 Place the shaving heads in the shaving head holder.

Note: Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving head holder.

10 Blue retaining ring: Place the retaining ring on the shaving head and turn it clockwise to reattach the retaining ring.

Place the arrows on the ring in line with the projections in the shaving head holder. Turn the ring clockwise until it clicks to indicate that the ring is fixed.

- Orange retaining ring: Place the retaining ring on the shaving head and turn it clockwise to reattach the retaining ring. Repeat this process for the other retaining rings.

Each retaining ring has two recesses that fit exactly into the projections of the shaving head holder. Turn the ring clockwise until your hear a click to indicate that the ring is fixed.

Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

11 Attach the shaving head holder to the bottom part of the shaving unit ('click').

Cleaning the click-on attachments

Note: Never dry the trimmer attachment with a towel or tissue, as this may damage the trimming teeth.

Cleaning the trimmer attachment

Never dry the trimmer with a towel or tissue, as this may damage the trimming teeth.

Clean the trimmer attachment after each use.

1 Switch on the appliance with the precision trimmer attachment attached.
2 Rinse the attachment under a warm tap.
3 After cleaning, switch off the appliance.
4 Carefully shake off excess water and let the attachment air-dry completely.

Tip: For optimal performance, lubricate the teeth of the attachment with a drop of sewing machine oil regularly.

Cleaning the cleansing brush attachment

Clean the cleansing brush attachment after each use.

1 Switch off the appliance.

Storage

2 Detach the attachment from the attachment holder.
3 Clean the parts thoroughly with warm water and soap.
4 Dry the attachment with a towel.

- Store the appliance in the pouch supplied.

Note: Make sure the appliance is dry before you store it in the pouch.

- Put the protection cap on the cleansing brush attachment to protect it from dirt accumulation.

Replacement

Replacing the shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replace damaged shaving heads immediately. Always replace the shaving heads with original Philips shaving heads ('Ordering accessories').

Replacement reminder

The replacement reminder indicates that the shaving heads need to be replaced. The shaving unit symbol lights up continuously, the arrows flash white and you hear a beep when you switch off the shaver.

1 To replace the shaving heads, remove the shaving heads from the shaving head holder one by one. See chapter Thorough Cleaning for the instructions on how to remove the retaining rings and shaving heads.

Note: The shaving heads are locked by a blue or an orange retaining ring. Follow the correct instructions.

2 To reset the replacement reminder, press and hold the on/off button for approx. 7 seconds. Wait until you hear two beeps.

Replacing the cleansing brush attachment

The cleansing brush attachment should be replaced every 3 months or earlier if the brush hairs are bent or damaged (see 'Ordering accessories').

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

The following accessories and spare parts are available:

- SH90 Philips shaving heads

• HQ110 Philips shaving head cleaning spray
• RQ111 Philips beard styler attachment
• RQ585 Philips cleansing brush attachment
• RQ560/RQ563 Philips cleansing brush heads
• JC301/JC302/JC303/JC304/JC305 cleaning cartridge
• HQ8505 supply unit

Note: The availability of the accessories may differ by country.

Recycling

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.

- Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Before you remove the battery, make sure that the shaver is disconnected from the wall socket and that the battery is completely empty.

Take any necessary safety precautions when you handle tools to open the shaver and when you dispose of the rechargeable battery.

Be careful, the battery strips are sharp.

1 Insert the screwdriver into the slot between the front and back panel in the bottom of the appliance. Remove the back panel.
2 Remove the front panel.
3 Unscrew the two screws at the top of the inner panel and remove the inner panel.
4 Bend aside the battery lips, which hold the battery, by placing a screwdriver between the battery and the lips.
5 Remove the battery.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Warranty restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international warranty because they are subject to wear.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Shaver

Problem Possible cause Solution

The appliance does not work when I press the on/off button.	The appliance is still attached to the wall socket. For safety reasons, the appliance can only be used without cord.	Unplug the appliance and press the on/off button to switch on the appliance.
The rechargeable battery is empty.		Recharge the battery (see 'Charging').
The travel lock is activated.		Press the on/off button for 3 seconds to deactivate the travel lock.
	The shaving unit is soiled or damaged to such an extent that the motor cannot run.	Clean the shaving heads thoroughly or replace them.
The appliance does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see 'Replacement').
Hairs or dirt	obstruct the shaving heads.	Clean the shaving heads in the regular way or clean them thoroughly.
I replaced the shaving heads, but the display still shows the replacement reminder.	You have not reset the appliance.	Reset the appliance by pressing the on/off button for approx. 7 seconds.
A shaving unit symbol has suddenly appeared on the display.	This symbol reminds you to replace the shaving heads.	Replace the shaving heads (see 'Replacement').

Problem Possible cause Solution

An exclamation mark has suddenly appeared on the display while the appliance is charging.	The appliance is overheated.	Disconnect the appliance from the wall socket for approx. 10 minutes.
An exclamation mark, the replacement reminder and the cleaning reminder have suddenly appeared on the display.	The shaving heads are damaged.	Replace the shaving heads (see 'Replacement').
The shaving heads are soiled.		Clean the shaving heads (see 'Cleaning and maintenance').
Water is leaking from the bottom of the appliance.	During cleaning, water may collect between the inner body and the outer shell of the appliance.	This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the appliance.

Introductie

De reisvergrendeling deactiveren

Oververhitting

Vervangingsherinnering

Перегрев

4 Включите прибор.

剃须刀头被阻塞

- 要打开本产品，请按一下开/关按钮。

显示屏将亮起几秒钟的时间。

- 要关闭产品，请按一下开/关按钮。

1 用水润湿皮肤。

2 在皮肤上涂抹剃须泡沫或剃须啫喱。

6 在水龙头下清洁刀片和网罩。

7 甩掉多余的水份。

8 将刀片重新装回至网罩。

9 将剃须刀头装到剃须刀头支架中。

清洗洁面刷附件

每次使用后都要清洗洁面刷附件。

存放

- JC301/JC302/JC303/JC304/JC305 清洁滤芯

注意：配件可用性可能因国家/地区而异。

回收

Translation Teaching

تدكير بالاستبidal 8

نمر شحن البطارية 9

رمز قفل السفر 10

， التذكر بال concentrates 11

حدة تزويد الطاقة 12

يد بالاطقة جافة.

تحذیر

الاقابلة لادفصل-

طة شخص واحد-

cdot.

نظيف، أو العوامل -

الثالثة

قال السفر

دقة عادى بشرتك. 2.

قها بسلامة على 3

البشرة.

م بتشغيل الجهاز.

ائرية لقص جمع 5

از. ثم اضغط على 3

1.("صوت comptقة")

1. بتشغيل الجهاز

المladحق بالமاء. 3

1. عي مطهرً علديه

لحق على الإخد.5

بتشغيل الإجهاز.

الأذنين.٤. تدفعي 7

وجهك 아닌 جاهزً 10

1. م بتشغيل الجهاز

اء صنboro ساخن.

ن الجزء السفادي 3

من وحدة الحلادقة.

کر أسفل الصنبور. 4.

اء صنبور ساخن.5

ة الحلادقة (صوت 7)

."طقطقة".

التنظيف التام

ن وحدة الحلامة.

غل مياه الصنبور.

م انزعها من رأس 4

الح ladقة.

مع حلقة التثبيت 10

تثبيت، ضع حلقة-

ة من حامل رأس 1

الاستمرار علای زر2

75% recycled paper

75% papier recyclé
