Product Type	Beard Trimmer
Model	Series 5000 BT5260
Brand	Philips
Dimensions (approx.)	15 x 4 x 4 cm
Weight (approx.)	180 g
Power Source	Rechargeable lithium-ion battery
Charging Time	1 hour for full charge
Runtime	Up to 60 minutes cordless use
Water Resistance	IPX7 (washable under tap)
Blade Material	Self-sharpening steel blades
Cutting Length Settings	0.5 - 10 mm in 0.5 mm increments (via 20 settings)
Combs / Guides Included	3 comb attachments (1, 3, 5 mm)
Key Features	Precision dial, ergonomic grip, dual-cutting action, pop-up trimmer for details
Maintenance	Rinse under running water; oil blades monthly
Safety	Automatic shut-off after 15 min of inactivity, overcharge protection
Spare Parts Available	Replacement blades (BT500), combs, charger
Warranty	2 years (subject to terms)
Included Accessories	Trimmer, 3 combs, charging cable, cleaning brush, storage pouch

Frequently Asked Questions - Series 5000 BT5260 PHILIPS

How do I clean the Philips Series 5000 BT5260 beard trimmer?

Rinse the trimmer head under running water after each use. For deeper cleaning, remove the blade unit and brush away hair. Dry thoroughly before reassembling. Do not use abrasive cleaners.

How long does the battery last on a full charge?

The lithium-ion battery provides up to 60 minutes of cordless use after a 1-hour charge.

Can I use the trimmer while it's charging?

No, the trimmer is designed for cordless use only. Charging must be done with the device switched off.

What cutting lengths can I achieve?

With the precision dial, you can set the cutting length from 0.5 mm to 10 mm in 0.5 mm steps. The included combs also allow for additional fixed lengths.

Is the Philips BT5260 waterproof?

Yes, it is IPX7 rated, meaning it can be rinsed under the tap and used in the shower. However, do not submerge for prolonged periods.

How do I replace the blades?

To replace blades, remove the old blade unit by pressing the release buttons. Attach a new one until it clicks. Compatible replacement blades are the Philips BT500 series.

Why is the trimmer not cutting as well as before?

Check if the blades are clogged with hair. Clean thoroughly. If still dull, the blades may need replacement. Regular oiling can extend blade life.

Can I trim my nose or ear hair with this device?

No, the Series 5000 BT5260 is designed for beard and stubble only. Use a dedicated nose/ear trimmer for those areas.

What should I do if the trimmer gets wet accidentally?

Since it is water-resistant, it can handle splashes. If soaked, wipe dry and let it air dry completely before charging. Do not charge when wet.

How often should I oil the blades?

It is recommended to oil the blades once a month with a drop of sewing machine oil or the oil provided by Philips. This ensures smooth operation and prolongs blade life.

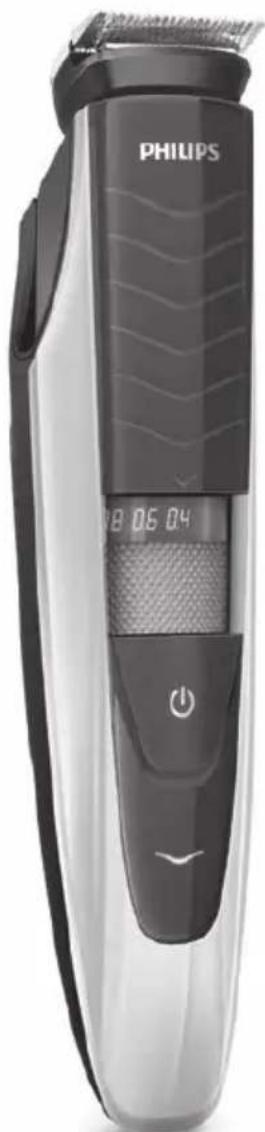

USER MANUAL Series 5000 BT5260 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

BT5275

BT5270

BT5260

Close-up of a Philips 3D-print hairbrush with a digital display and power button (no text or symbols on the instrument itself)

User manual

PHILIPS

Simple line drawing of an open book with a grid on the left and a closed page on the right (no text or symbols)

ENGLISH 6

ESPAÑOL 14

FRANÇAIS 23

FRANÇAIS (CANADA) 32

INDONESIA 41

한국어 50

BAHASA MELAYU 58

PORTUGUÊS 67

ภาษาไทย 76

TIÊNG VIÊT 84

繁體中文 92

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

1 Turnable trimming head
2 Length setting
3 Zoom wheel
4 On/off button
5 Battery light
6 Socket for small plug
7 Guiding groove for trimming comb
8 Trimming comb
9 Adapter
10 Small plug
11 Cleaning brush

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the adapter dry.

Warning

• Check if the voltage indicated on the adapter corresponds to the local mains voltage before you connect the appliance.
• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Keep the appliance and its cord out of the reach of children.
• Do not use the appliance in the bath or in the shower.

No smoking sign with a faucet symbol (no text or numbers present)

Caution

• Always check the appliance before you use it. Do not use the appliance if any of its parts is damaged or broken, as this may cause injury.
• Only use this appliance for its intended purpose as shown in the user manual.
• Use, charge and store the appliance at a temperature between 5^ C and 35^ C.
• Only use the adapter supplied to charge the appliance.
• Make sure the appliance is switched off and disconnected from the mains before you clean it under the tap.
• If the appliance is subjected to a major change in temperature, pressure or humidity, let the appliance acclimatise for 30 minutes before you use it.
• If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.

Simple black-and-white icon of a faucet with raindrops (no text or symbols)

• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• Noise level: Lc= 65dB(A)

Compliance with standards

• The appliance complies with the internationally approved IEC safety regulations and can be safely cleaned under the tap.
• This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Preparing for use

Charging

Charge the appliance fully before you use it for the first time and after a long period of disuse.

Charging takes about 60 minutes if the appliance is completely empty.

1 Make sure the appliance is switched off.
2 Insert the small plug into the appliance and put the adapter in the wall socket.

The battery light flashes orange and white alternately.

After about 3 minutes, the battery light flashes white only. At this point, the battery contains enough energy for one cordless trimming session.

The battery light continues to flash white and when the appliance is fully charged, it lights up solid white.
If the fully charged appliance is still connected to the mains after 1 hour, the battery light goes out after 30 minutes.

ENGLISH8

Simple line drawing of a pen-like object with a starburst shape on the tip (no text or symbols)

Battery low and battery empty signals

When the battery is almost empty, the battery light starts flashing orange. When you switch off the appliance, the battery light continues to flash orange for a few seconds.

The battery light flashes orange at a higher frequency if the battery is empty and if you press the on/off button.

Corded trimming

Diagram of a finger pointing to a plug with an arrow indicating upward motion (no text or symbols)

You can also operate the appliance from the mains.

1 Insert the small plug into the appliance.
2 Put the adapter in a wall socket.

3 Press the on/off button to switch on the appliance.

Using the appliance

You can use the appliance to trim facial hair (beard, moustache and sideburns). This appliance is not intended for trimming lower body parts or scalp hair.

Trimming with comb

Illustration of a hand gripping a tool with a downward arrow and radiating lines indicating motion (no text or symbols)

The appliance comes with a comb that keeps the trimming head at a certain distance from your skin. This distance determines the remaining hair length and can be adjusted by turning the zoom wheel.

1 Slide the comb into the guiding grooves on both sides of the appliance ('click').

Illustration of a person inserting a device into a device with a magnified inset showing the device's internal structure (no text or symbols)

Note: The comb does not fit on the trimming head when the 15mm (0.6in) side is pointing towards the front of the appliance. If this is the case, turn the trimming head before you slide the comb onto the trimming head.

2 Turn the zoom wheel to select a length setting.

- The length setting selected is the one right below the indicator on the front of the appliance.

- You can select a length from 0.4mm to 10mm (see table in section 'Length settings' below).

3 Press the on/off button to switch on the appliance.

Illustration of a person applying a hairdryer to their face (no text or symbols)

4 To trim your beard, move the comb through the hair slowly.

5 When you are finished, press the on/off button to switch off the appliance.

Tips

• Always make sure that the tips of the comb point in the direction in which you move the appliance.
• Make sure that the flat part of the comb is always in full contact with the skin to obtain an even hair length result.
• Since hair grows in different directions, you need to move the appliance in different directions (upward, downward or across).
• Trimming is easier when skin and hair are dry.

Length settings

mm

0.4 0.6 0.8 1 1.5

2 2.5 3 3.5 4

4.5 5 6 7 8

9 10

Trimming without comb

Illustration of a person applying a hair product to their beak (no text or symbols)

If you trim without the comb, your hair is cut off close to the skin. The trimming head has a 32mm(1.25in) side and a 15mm (0.6in) side.

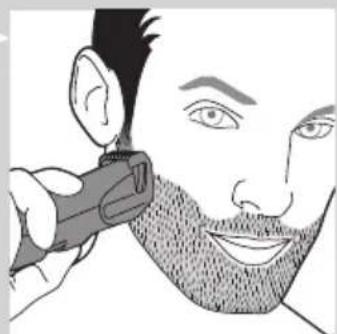

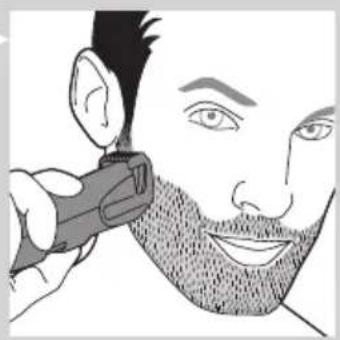

- The 32mm (1.25in) side is for regular trimming and contouring.

Line drawing of a person applying makeup to their face (no text or symbols)

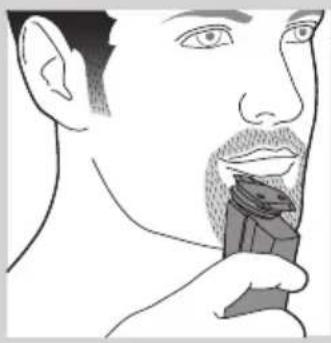

- The 15mm (0.6in) side of the trimming head allows more precise styling and contouring than the 32mm(1.25in) side.

Diagram of a hand gripping a device with an upward arrow indicating motion (no text or symbols present)

1 If the comb is still on the trimming head, pull it off.

Never pull at the flexible top of the comb. Always pull at the sides.

Diagram of a mechanical component with a magnified inset showing internal components (no text or symbols)

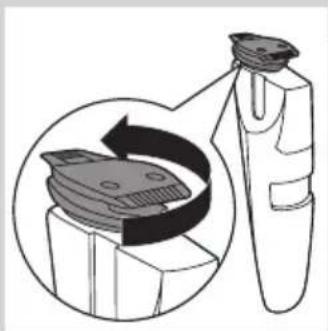

2 Turn the trimming head until the side you want to use points to the front of the appliance.

3 Press the on/off button to switch on the appliance.
4 Hold the appliance in the position that is most convenient for the area you want to trim and make upward or downward strokes.

Tip: For a comfortable trim close to your skin, place the flat side of the trimming head against your skin and make strokes in the desired direction.

5 When you are finished, press the on/off button to switch off the appliance.

Cleaning and maintenance

Clean the appliance after every use.

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Note: The trimming head does not need any lubrication.

Cleaning the appliance and the comb

1 Switch off the appliance.
2 Pull the comb off the trimming head.
3 Clean the trimming head under the tap with lukewarm water or clean it with the cleaning brush supplied.

Diagram of a mechanical clamp or bracket with an arrow indicating upward motion (no text or symbols present)

4 Clean the comb under the tap or clean it with the cleaning brush supplied.

Diagram of a laboratory procedure showing a pipette and tubing with a clamp (no text or labels)

Cleaning the trimming head connector

Note: Make sure you clean the trimming head connector at least once every three months.

Diagram of a mechanical clamp or clamp assembly with liquid droplets, no text or symbols present

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

1 Switch off the appliance.
2 Pull the comb off the trimming head.

Diagram of a mechanical component with an upward arrow indicating motion (no text or symbols)

3 Pull the trimming head off the appliance.

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

4 Clean the trimming head connector with the cleaning brush supplied.

Illustration of a hand using a pipette to apply liquid into a digital device (no text or symbols visible)

5 Clean the inside of the trimming head with the cleaning brush supplied.
6 After cleaning, put the trimming head back onto the appliance.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

Guarantee and support

If you need information or support, please visit the Philips website at www.philips.com/support or read the worldwide guarantee leaflet.

Environment

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

- The built-in rechargeable battery contains substances that may pollute the environment. Always remove the battery before you discard and hand in the appliance at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The appliance does not work when it is switched on.	The battery is empty.	Charge the appliance fully (see chapter ‘Charging’). It takes approximately 60 minutes to charge the appliance fully. You can also operate the appliance from the mains.
The appliance does not trim as well as it used to.	The cutting element of the trimmer head is dirty.	Thoroughly clean the trimming head (see chapter ‘Cleaning and maintenance’).
	You do not move the appliance in the optimal direction.	For the best possible trimming and suction performance, we advise you to move the trimmer upwards, against the direction of hair growth, making smooth and gentle strokes. See chapter ‘Using the appliance’.

Introducción

No smoking sign with faucet symbol (no text or numbers)

Precaución

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Simple line drawing of a curved object with a circular highlight (no text or symbols)

Simple line drawing of a stylized object with a starburst shape and a small smile (no text or symbols)

Illustration of a finger pointing to a medical device with an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with a downward arrow and radiating lines indicating motion or force (no text or symbols)

Illustration of a person cleaning a wall-mounted device with a magnified inset showing the device's internal structure (no text or symbols)

Illustration of a person applying a hairdryer to their face (no text or symbols present)

Illustration of a person applying a hair product to their face (no text or symbols)

Line drawing of a person's face with a toothbrush touching the mouth (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a toothbrush cleaning a tooth with a magnified inset illustrating the process (no text or symbols present)

Illustration of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

Diagram of a laboratory procedure showing liquid transfer from a pipette to a container (no text or labels)

Diagram of a mechanical clamp or clamp device with liquid dripping from a vertical rod (no text or symbols)

Illustration of a mechanical device with an upward arrow indicating motion (no text or symbols)

Mechanical component diagram showing a U-shaped housing with an upward arrow indicating motion (no text or symbols)

Hand using a tool to insert or mark a component on a base (no text or symbols visible)

Illustration of a hand using a tool to apply a small electronic component (no text or symbols visible)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Prohibition sign of a faucet crossed out, no text or symbols present

Attention

Simple black-and-white icon of a faucet with raindrops falling (no text or symbols)

Illustration of a finger pointing to a medical device with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a curved object with a starburst shape and a small smile (no text or symbols)

Simple line drawing of a curved object with a starburst shape and a small smile at the base (no text or symbols)

Simple line drawing of a curved object with a circular mark and a small circle, no text or symbols present.

Simple line drawing of a stylized object resembling a pen or tool with a starburst shape on the left (no text or symbols)

Illustration of a finger pointing to a medical device with an arrow indicating upward motion (no text or symbols)

Illustration of a mechanical device with a downward arrow and radiating lines indicating motion or force (no text or symbols)

Illustration of a person cleaning a garment with a magnified inset showing the fabric detail (no text or symbols)

Illustration of a person applying a hairdryer to their face (no text or symbols)

Illustration of a person applying a hair product to their face (no text or symbols)

Line drawing of a person's face with a toothbrush touching the mouth (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a toothbrush cleaning a tooth with a magnified inset illustrating the process (no text or symbols present)

Illustration of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

Diagram of a laboratory procedure showing liquid transfer from a pipe to a container (no text or labels)

Diagram of a mechanical clamp or clamp device with liquid dripping from a vertical rod (no text or symbols)

Illustration of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

Mechanical component diagram showing a mechanical assembly with an upward arrow (no text or symbols)

Hand using a screwdriver to insert a cylindrical component (no text or symbols visible)

Illustration of a hand using a pen to apply liquid to a small electronic component (no text or symbols visible)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no pollution or fire resistance (no text present)

Avertissement

Simple black-and-white icon of a faucet with raindrops (no text or symbols)

Simple line drawing of a curved object with a circular mark and a small circle, no text or symbols present.

Simple line drawing of a stylized object with a starburst shape and a small smile (no text or symbols)

Illustration of a finger pointing to a medical device with an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with a downward arrow and radiating lines indicating motion or force (no text or symbols)

Illustration of a person cleaning a garment with a magnified inset showing the fabric detail (no text or symbols)

Illustration of a person applying a hairdryer to their face (no text or symbols)

Illustration of a person applying a hair product to their face (no text or symbols)

Taille sans peigne

Line drawing of a person's face with a toothbrush touching the mouth (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a toothbrush cleaning a tooth with a magnified inset illustrating the process (no text or symbols present)

Illustration of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

Diagram of a laboratory procedure showing liquid transfer from a pipe to a container (no text or labels)

Diagram of a mechanical clamp or clamp device with wires and droplets, no text or symbols present

Illustration of a mechanical device with a handle and arrow indicating upward motion (no text or symbols)

Mechanical component diagram showing a U-shaped groove with an upward arrow (no text or symbols)

Hand using a screwdriver to insert a cylindrical component (no text or symbols visible)

Illustration of a hand using a pen to apply liquid to a small electronic component (no text or symbols visible)

Symbol of a trash bin crossed out by a diagonal line, representing no waste or elimination (no text or numbers present)

No smoking sign with faucet symbol (no text or numbers)

Perhatian

Simple black-and-white icon of a faucet with raindrops (no text or symbols)

Simple line drawing of a curved object with a circular mark and a small circle, no text or symbols present.

Simple line drawing of a pen-like object with a starburst shape on the handle (no text or symbols)

Illustration of a finger pointing to a medical device with an arrow indicating upward motion (no text or symbols)

Illustration of a person applying a hair product to their face (no text or symbols)

Line drawing of a person's face with a toothbrush touching the mouth (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a toothbrush cleaning a tooth with a magnified inset illustrating the process (no text or symbols present)

Illustration of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

Diagram of a laboratory procedure showing liquid transfer from a pipe to a container (no text or labels)

Diagram of a mechanical clamp or clamp device with liquid dripping from a vertical rod (no text or symbols)

Illustration of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

Mechanical component diagram showing a mechanical assembly with an upward arrow (no text or symbols)

Hand using a screwdriver to insert a cylindrical component (no text or symbols visible)

Illustration of a hand using a tool to apply a small electronic component (no text or symbols visible)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

No smoking sign with a faucet symbol (no text or numbers present)

주의

Black and white icon of a faucet with radiating lines indicating water or fire (no text or symbols)

Diagram of a finger pointing to a plug with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a curved object with a starburst shape at the center (no text or symbols)

Simple line drawing of a curved object with a starburst shape and a small smile (no text or symbols)

Simple line drawing of a curved object with a circular mark and a small symbol inside (no text or labels)

Simple line drawing of a stylized object resembling a shoe or tool with a starburst shape on the side (no text or symbols)

배터리 부족 및 배터리 방전 신호

Diagram of a finger pointing to a medical device with an arrow indicating upward motion (no text or symbols present)

Diagram of a mechanical device with a downward arrow and radiating lines indicating motion or force (no text or symbols)

Illustration of a person inserting a device into a device with a magnified inset showing the internal components (no text or symbols)

Illustration of a person applying a hairdryer to their face (no text or symbols)

Illustration of a person applying a hair product to their beak (no text or symbols)

Line drawing of a person applying makeup to their face (no text or symbols)

Illustration of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

Diagram showing a device being processed into a circular component, with no visible text or symbols.

Illustration of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

Diagram of a laboratory procedure showing a pipette inserted into a container with liquid, no text or symbols present

Mechanical clamp or lever assembly diagram with no visible text or symbols

Diagram of a mechanical device with a handle and arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion (no text or symbols)

Hand using a tool to apply a screwdriver to a mechanical component (no text or symbols visible)

Hand holding a small electronic component with a probe inserted (no text or symbols visible)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Prohibition sign with a faucet and diagonal line, no text or symbols present

Awas

Simple black-and-white icon of a faucet with raindrops (no text or symbols)

Simple line drawing of a curved object with a circular mark and a small circle, no text or symbols present.

Simple line drawing of a stylized object resembling a pen or tool with a starburst shape on the left (no text or symbols)

Illustration of a finger pointing to a medical device with an arrow indicating upward motion (no text or symbols)

Diagram of a tool interacting with a mechanical component, showing a downward force and radiating lines (no text or symbols)

Illustration of a medical device with a magnified inset showing internal components (no text or symbols)

Illustration of a person applying a hairdryer to their face (no text or symbols)

Illustration of a person applying a hair product to their face (no text or symbols)

Merapikan tanpa sikat

Line drawing of a person applying a toothbrush to their face (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a toothbrush cleaning a tooth with a magnified inset illustrating the process (no text or symbols present)

Illustration of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

Diagram of a laboratory procedure showing liquid transfer from a pipe to a bottle (no text or labels)

Diagram of a mechanical clamp or clamp device with hanging wires and a central component (no text or symbols)

Hand using a screwdriver to insert a cylindrical component (no text or symbols visible)

Illustration of a hand using a pipette to apply liquid into a digital device (no text or symbols visible)

Prohibition sign of a faucet crossed out, no text or symbols present

Cuidado

Simple black-and-white icon of a faucet with raindrops falling (no text or symbols)

Illustration of a finger pointing to a medical device with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a curved object with a starburst pattern and a small smile (no text or symbols)

Simple line drawing of a curved object with a starburst shape and a small smile at the base (no text or symbols)

Simple line drawing of a curved object with a circular highlight (no text or symbols)

Diagram of a finger pointing to a plug with an arrow indicating upward motion (no text or symbols)

Utilizar o aparelho

Illustration of a hand gripping a tool with a downward arrow and radiating lines indicating motion (no text or symbols)

Illustration of a person cleaning a circular object with a magnified inset showing the interior (no text or symbols)

Illustration of a person applying a hairdryer to their face (no text or symbols)

Illustration of a person applying a hair product to their face (no text or symbols)

Aparar sem pente

Line drawing of a person's face with a toothbrush touching the lower lip (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a toothbrush cleaning a tooth with a magnified inset illustrating the process (no text or symbols present)

Illustration of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

Diagram of a laboratory procedure showing liquid transfer from a pipe to a bottle (no text or labels)

Diagram of a mechanical clamp or clamp device with wires and droplets, no text or symbols present

Illustration of a mechanical device with an upward arrow indicating motion (no text or symbols)

Mechanical component diagram showing a U-shaped groove with an upward arrow (no text or symbols)

Hand using a screwdriver to insert a cylindrical component (no text or symbols visible)

Illustration of a hand using a pipette to apply liquid into a digital device (no text or symbols visible)

Encomendar acessórios

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

ข้อควรระวัง

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Diagram of a finger pressing a cable with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a stylized object resembling a pen or tool with a starburst effect (no text or symbols)

Simple line drawing of a stylized object resembling a shoe or tool, with no text or symbols present.

Simple line drawing of a curved object with a circular highlight (no text or symbols)

Simple line drawing of a pen-like object with a starburst shape on the tip (no text or symbols)

Diagram of a medical or surgical device with an arrow pointing to a connector (no text or symbols present)

Diagram of a mechanical device with a downward arrow and radiating lines indicating motion or force (no text or symbols)

Illustration of a person inserting a device into a device with a magnified inset showing the internal structure (no text or symbols)

Illustration of a person applying a hairdryer to their face (no text or symbols)

Illustration of a person applying a hair product to their beak (no text or symbols)

Line drawing of a person applying a toothbrush to their face (no text or symbols)

Illustration of a hand holding a bag with an arrow indicating upward motion (no text or symbols)

Illustration of a toothbrush cutting into a rectangular object, showing mechanical components and a magnified view (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Diagram of a laboratory procedure showing a pipette and tubing with a clamp (no text or labels)

Diagram of a mechanical device with a handle and arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion (no text or symbols)

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Hand holding a small electronic component with a probe inserted (no text or symbols visible)

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or disposal (no text present)

No smoking sign with faucet symbol (no text or numbers)

Chú y

Black and white icon of a faucet with raindrops falling (no text or symbols)

Simple line drawing of a stylized object with a starburst shape on the left (no text or symbols)

Illustration of a finger pointing to a medical device with an arrow indicating upward motion (no text or symbols)

Sử dụng thiết bị

Diagram of a mechanical device with a downward arrow and radiating lines indicating motion or force (no text or symbols)

Illustration of a person cleaning a wall-mounted device with a magnified inset showing the component (no text or symbols)

Illustration of a person applying a toothpaste to their face (no text or symbols)

Illustration of a person applying a hair product to their beak (no text or symbols)

Line drawing of a person applying makeup to their face (no text or symbols)

Diagram of a hand gripping a device with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with a magnified inset showing internal components (no text or symbols)

Diagram of a hand gripping a device with an arrow indicating upward motion (no text or symbols)

Diagram of a laboratory procedure showing a pipette inserted into a container with liquid, and a partially submerged object (no text or labels)

Diagram of a mechanical clamp or clamp device with a suspended rod and connecting rods (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

1 Tắt thiết bị.

Diagram of a mechanical component with an upward arrow, no text or symbols present

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Hand holding a pen tip over a small electronic component (no text or symbols visible)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no pollution or water release.

警告

Simple black-and-white icon of a faucet with radiating lines, no text or symbols present.

符合標準

Simple line drawing of a pen-like object with a starburst shape on the tip (no text or symbols)

電池電量不足及電量耗盡指示

Diagram of a finger pointing to a medical device with an arrow indicating upward motion (no text or symbols present)

您也可以插電使用本產品。

Diagram of a mechanical device with a downward arrow and radiating lines indicating motion or force (no text or symbols)

Diagram showing a device interacting with a circular component, no text or symbols present

Illustration of a person applying a hairdryer to their face (no text or symbols present)

Illustration of a person applying a hair product to their beak (no text or symbols)

Line drawing of a person applying a toothbrush to their face (no text or symbols)

Illustration of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

1 若梳具仍在修整刀頭上，請將其拔除。

切勿拉扯梳具的軟性頂部。請務必施力於梳具兩側。

Diagram showing a device being processed into a cylindrical component, with no visible text or symbols.

Diagram of a hand gripping a device with an upward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

3 將修整刀頭從本產品上拔除。

Hand using a tool to apply a component to a mechanical part (no text or symbols visible)

4 使用隨附的清潔刷清潔修整刀頭接頭。

Hand holding a small electronic device with a probe inserted (no text or symbols visible)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

تميزکردن و نگهداری

Three-step diagram showing a mechanical device with a handle, spring, and lever mechanism (no text or symbols)

تنظيمات طول

میلی متر
1,0	1	-,Λ	-,ε	-,4
4	4,0	4	4,0	4
Λ	V	ε	0	4,0
			1-	9

مرتب کردن بدون شانه

Illustration of a person applying a hair product to their face (no text or symbols)

Line drawing of a person's face with a toothbrush applying product (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a device with a magnified view of its internal components (no text or symbols present)

Illustration of a mechanical component with a magnified inset showing a circular component (no text or symbols)

Illustration of a person applying a hairdryer to their face (no text or symbols)

Simple line drawing of a stylized object with a starburst shape and a small smile (no text or symbols)

Illustration of a finger pointing to a plug with an arrow indicating upward motion (no text or symbols)

استفاده ازدستگاه

Diagram of a mechanical device with a downward arrow and radiating lines indicating motion or force (no text or symbols)

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

مقدمه

The image is too blurry to recognize any text content.

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing waste or disposal (no text or numbers present)

التنظيف والصيانة

Diagram of a mechanical device with an arrow indicating upward motion (no text or symbols)

Diagram of a medical procedure showing a catheter inserted into a tube with liquid droplets, no text or symbols present

Diagram of a mechanical clamp or clip assembly with no visible text or symbols

Diagram of a mechanical device with a handle and arrow indicating upward motion (no text or symbols)

Illustration of a person applying a toothbrush to their face (no text or symbols present)

Line drawing of a person's face with a toothbrush touching the lower jaw (no text or symbols)

Diagram of a hand holding a tool or device with an arrow indicating upward motion (no text or symbols present)

Diagram showing a mechanical component being inserted into a cylindrical housing, with no visible text or symbols.

Illustration of a person applying a hairdryer to their face (no text or symbols present)

	ρ0
1,0	1	-,Λ	-,7	-,ε
ε	r,0	r	r,0	r
Λ	V	7	0	ε,0
			1-	9

استخدام الجهاز

Illustration of a hand holding a tool with a black arrow indicating compression or dislocation (no text or symbols)

Illustration of a person using a tool to interact with a device, showing a circular inset view of the device (no text or symbols present)

التجهيز للاستخدام

الشحن

Diagram of a finger pointing to a plug with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a stylized object resembling a shoe or tool with a starburst effect (no text or symbols)

Simple line drawing of a stylized object resembling a pen or tool with a starburst shape overlay (no text or symbols)

Simple line drawing of a curved object with a circular mark, no text or symbols present

Simple line drawing of a stylized object resembling a pen or tool with a starburst shape on the left (no text or symbols)

مقدمة

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no fire or water discharge (no text present)

Simple black-and-white icon of a faucet with raindrops (no text or symbols)
