Product type	Touchscreen tablet
Brand	Mediacom
Model	W801
Dimensions (L x W x H)	210 x 125 x 10 mm
Weight	350 g
Screen size	8 inches (20.3 cm)
Screen resolution	1280 x 800 pixels
Power supply	Lithium-ion battery 4000 mAh, charging via micro-USB
Operating system	Android (version depends on updates)
Processor	Quad-core 1.3 GHz
RAM memory	1 GB
Internal storage	16 GB (expandable via microSD up to 32 GB)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Rear camera	2 megapixels
Front camera	0.3 megapixel
Speakers	Built-in, mono
Microphone	Built-in
Sensors	Accelerometer
Care and cleaning	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Do not expose to moisture, shocks, or excessive heat.
Spare parts and repairability	Battery and screen replaceable by a professional.
General information	Entry-level tablet suitable for web browsing, reading, and light applications.

Frequently Asked Questions - W801 Mediacom

How to perform a factory reset on the Mediacom W801?

Go to Settings > Backup and reset > Factory data reset. Confirm the operation. The tablet will restart and all personal data will be erased.

What to do if the tablet does not turn on?

Make sure the battery is charged by plugging in the charger for 30 minutes. If nothing happens, try a forced reset by holding down the power button and volume down button for 10 seconds.

How to transfer files from a computer?

Connect the tablet to the computer via a micro-USB cable. On the tablet, select File Transfer (MTP) in the notifications. The computer will detect the internal storage and SD card.

The tablet is slow, what to do?

Close unused apps, clear cache in Settings > Storage > Cached data, and uninstall unnecessary apps. A restart can also improve performance.

How to add a memory card?

Turn off the tablet, insert a microSD card into the slot (often located on the side). The tablet will detect it automatically. You can format the card as internal or portable storage in settings.

What type of charger to use?

Use the supplied charger (5V, 1A) with a micro-USB cable. Using an incompatible charger may damage the battery.

How to take a screenshot?

Simultaneously press the power button and volume down button for one second. The screen will flash and the image will be saved in the gallery.

The tablet does not connect to Wi-Fi, what to do?

Check that Wi-Fi is enabled in settings. Forget the network and reconnect by entering the password again. Restart the tablet and router if necessary.

How to update the operating system?

Go to Settings > About tablet > System updates. If an update is available, download and install it via Wi-Fi.

What to do if the touch screen is not responding?

Clean the screen with a soft cloth. Restart the tablet by holding down the power button. If the problem persists, perform a factory reset.

USER MANUAL W801 Mediacom

Change your world with a click

Language contents:

English 3

Russian 6

Croatian 9

French 12

German 15

Greek 18

Netherlands 21

Portuguese 24

Romanian 27

Slovenian 30

Spanish 33

Italian 36

Picture 1

Picture 2

Picture 3

SMARTPAD

Quick Start Guide Safety precautions

For safe and efficient operation of your Tablet PC, please observe the following rules:

• Keep the Tablet away from extreme heat, cold, moisture and dust.
• Do not spill any liquids on the Tablet PC as it may damage the device or cause a fire.
• Do not use liquids and chemical cleaners for cleaning the Tablet PC.
• Do not insert any objects in the Tablet air vents or other slots.
• Do not keep the device near magnetic sources, heaters, microwave ovens, heating up kitchen appliances, or in high pressure containers, as it may cause the battery leaking, the device overheating and inflammation.
• Do not disassemble the Tablet PC, only a certified service technician should perform repairs on your computer.
• Use only the AC adapters, power cords and batteries that are approved for use with this device. Use of another type of battery or AC adapter may cause fire or explosion.

Note: The device pictures, as well as data on the device appearance, color and design features are given in the manual for reference only. Mediacom reserves the right to change the appearance and technical parameters of its products without prior notice.

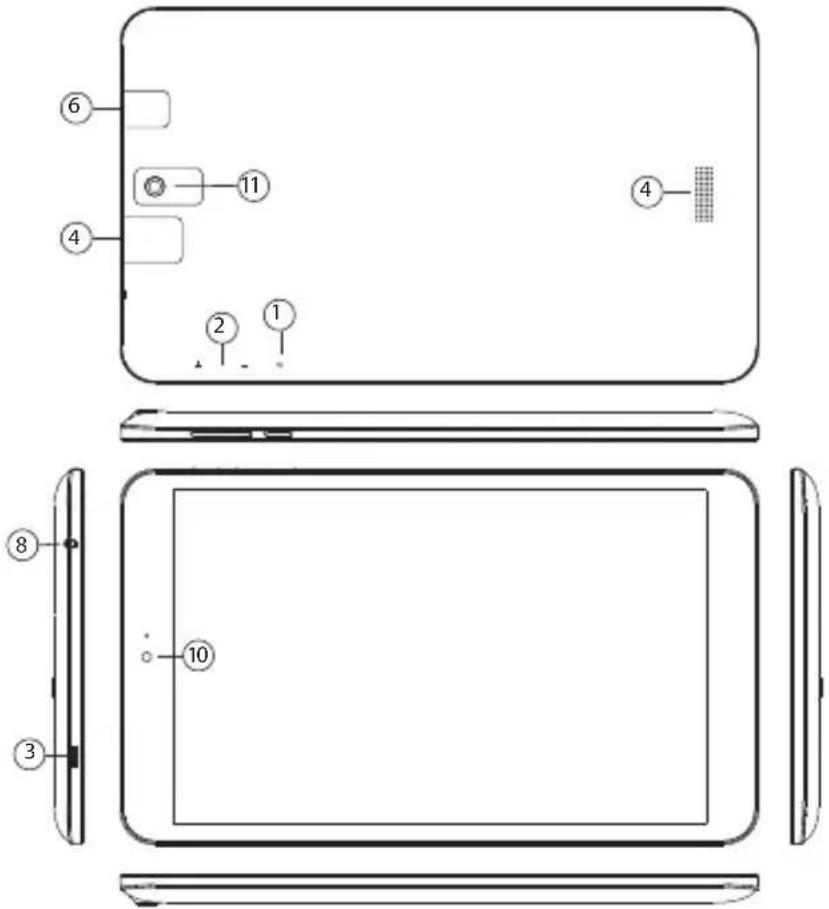

About your device (Picture 1)

Power button1.

Volume Bottoms2.

USB port – connecting 3.

your computer

4.5. SIM card slot (optional)

Micro SD card slot6.

Speaker 7.

Earphone port8.

Reset port (if available)9.

Rear camera (optional)10.

1. Front camera

2. DC-in (if available)

3. Microphone (if available)

4. Back (if available)

Switching on/off

To switch on the Tablet PC, press and hold the Power button. When startup window appears, release the button. The system initialization may take several minutes. Please wait patiently.

To switch off the tablet PC, press and hold the Power button. When "Power off" message appears, release the button. Touch the message, then press OK.

Recommendation: To save the battery charge, the device is set to sleep mode: the screen is locked and sensor functions become inactive (in accordance with the settings of screen lock time). To "wake up" the device, short press the power button.

Unlocking the screen (Picture 2)

If you do not use the screen during certain period of time, the screen will be locked. To unlock the screen, press the power button once and drag "Lock" image right.

Main screen (Picture 3)

Voice search (if available)

Application menu2.

Battery charge indicator3.

Time4.

Connected to PC 5.

Recently used applications6.

Home7.

Back 8.

Google search9.

Clock10.

1. Standard application button

1.

Restarting the device

If the screen does not response to key press or tap, press the reset button (located in the hole) using any thin object (paper clip, pin, etc.) to restart your Tablet PC or keep power button for long time

Factory reset

To delete all data and restore your Tablet PC to factory defaults, touch Settings > > Recovery and reset; touch menu item Reset > Reset to factory defaults.

Contents

Tablet, USB Cable, OTG Cable (optional), Power adapter AC / DC, Quick Guide

Charging the battery

Device is provided with built in rechargeable battery There is no need of supplemental batteries. Important: The battery must be charged before using it for the first time. When related Icon or warning message alerts you please charge the battery using porper adapter (do not use diefferent adapter from original one).

Wireless networks

Prior to starting an Internet-application, activate Wi-Fi connection and set up Wi-Fi network.

Touch the icon "Applications" > "Settings" > "Wireless connections".1.

Select Wi-Fi item and set the switch to On position.

1. The device will automatically start searching for available networks and will display them on the right panel.

Select any network from the list and press "Connect". If the network 3.

you selected i s protected by WEP-protocol, type the security key, then press "Connect" button.

When the connection is successfully created, "Connected to" (Network name) message will appear on the screen.

3G networks (Optional)

Note that your Tablet PC will only have signal if you are in an area covered by your 3G provider's 3G or EDGE network.

Before inserting a SIM card, you must turn off the device.

A Pin number may be requested. Enter the SIM card pin number.

Your device will attempt to connect to the 3G network of your provider.

NOTE: If your device does not connect to your 3G provider's network

Contact your 3G provider to obtain the connection parameters.1.

On your device, tap the Menu icon, then settings.2.

Select Wireless & networks > Mobile networks > Select your operator.3. In Access Poin t Names, select the correct access point name and enter the exact connection parameters.

Bluetooth (Optional)

Tap "Settings" > Select "Wireless connections/Bluetooth" > Tap "On" to switch on the Bluetooth function. The device will automatically search for available Bluetooth device.

Select the Bluetooth device and start data transmission.
