TL-WPA4530 KIT - Powerline Adapter TP-LINK - Free user manual and instructions

Product Type	Powerline Adapter Kit
Brand	TP-Link
Model	TL-WPA4530 KIT
Dimensions (each adapter)	95 x 56 x 42 mm
Weight (each adapter)	210 g
Power Supply	Built-in power plug, 100-240 V AC, 50/60 Hz
Power Consumption	Standby: < 0.5 W; Operating: < 3.5 W
Maximum Data Rate (Powerline)	Up to 1200 Mbps (AV1200)
Ethernet Ports	2 RJ45 10/100/1000 Mbps ports per adapter
Powerline Network Range	Up to 300 meters on electrical circuit
Pair Button	Yes, to secure the connection
Encryption	AES 128-bit
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, HomePlug AV2
Kit Contents	2 Powerline adapters, 2 RJ45 Ethernet cables, quick installation guide
Maintenance and Cleaning	Unplug before cleaning; use a dry, soft, lint-free cloth. Do not use abrasive or liquid products.
Safety	Do not plug into a power strip with filter; protect from moisture and extreme temperatures
Spare parts and repairability	The adapters are not user-repairable; contact TP-Link support for any malfunction.
Warranty	2 years (depending on country)

Frequently Asked Questions - TL-WPA4530 KIT TP-LINK

How to install the TP-Link TL-WPA4530 Powerline Kit?

Plug the first adapter into a socket near your router and connect it to the router via an Ethernet cable. Plug the second adapter into the desired room. Press the Pair button on each adapter within 2 minutes to pair them.

Why is the Powerline connection not working?

Check that the adapters are plugged directly into a wall socket, not a power strip with filter. Make sure they are paired (Powerline LED on). Test with another Ethernet cable.

What is the maximum speed of this kit?

The theoretical data rate is 1200 Mbps (AV1200). In practice, speed depends on the quality of the electrical circuit and distance.

Can I use these adapters with other Powerline brands?

Yes, if they are compatible HomePlug AV2. However, pairing may be limited; it is recommended to use adapters from the same brand.

How to reset the Powerline adapter?

Press and hold the Pair button for about 10 seconds until the LED flashes. The adapter will restart in factory mode.

Can I plug multiple Powerline adapters into the same network?

Yes, the Powerline network can have up to 8 adapters at the same time. Each adapter must be paired to the same network (by pressing Pair).

The Powerline LED does not turn on, what to do?

Check that the adapter is powered (Power LED on). Ensure that the adapters are on the same electrical meter. If the problem persists, reset both adapters.

What is the power consumption in standby?

In standby, consumption is less than 0.5 W per adapter, complying with energy-saving standards.

Can I use a power strip to plug the Powerline adapter?

It is recommended to plug the adapter directly into a wall socket. Power strips with filter can reduce performance and the Powerline signal.

How to secure my Powerline network?

AES 128-bit encryption is automatically activated during pairing. To add a new adapter, you must press Pair, which prevents unauthorized access.

USER MANUAL TL-WPA4530 KIT TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as transition, transformation, or adaptation without permission from IP-Link Technologies Co. Ltd. Copyright © 2018 IP-Link Technologies Co. Ltd. All rights reserved.

MADE IN CHINA

7106507825 REV2.1.1

tp-link

Quick Installation Guide

Powerline Extender

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

Deutsch

Deutsch

1. Connect the adapter to a LAN port of your router using an Ethernet cable.
2. Plug the powerline devices into the wall outlets near each other and on the same electrical circuit.
3. Pair the powerline devices.

A. Press the Pair button on the powerline adapter for 1 second. The Power LED starts blinking.

* If the Power LED does not blink, press the Pair button again.

B. Within 2 minutes, press the Pair button on the powerline extender for 1 second. The Power LED ⏻ starts blinking. When the Powerline LED turns on, it's done.

English

1. Relocate the powerline extender to a new location. Connect to the Wi-Fi using the SSID and password on the product label.

* A blinking or red Powerline LED 🔒 indicates poor signal strength. Move the extender to another location.

1. Enjoy!

Tips: You can add more powerline devices to the existing powerline network by pairing these devices.

Attention

- Plug the powerline devices directly into the wall outlets but not the power strips.

- For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Copy Wi-Fi Settings from Router to Extender

If your router supports WPS, you can follow the steps below to automatically copy the router's Wi-Fi settings (SSID and password) to the powerline extender.

1. Plug in the powerline extender near your router. Press the WPS button on your router.
2. Within 2 minutes, press the Wi-Fi button on the extender for 1 second.
3. When the 2.4GHz Wi-Fi LED and 5GHz Wi-Fi LED on the extender blink quickly for 3 seconds, and then stay on, it's done!

* 5GHz Wi-Fi is not available on single-band products. For multiple-band products, the powerline extender copies by default both 2.4GHz and 5GHz wireless settings at the same time. If it fails to copy both, your router may be only able to clone one band at a time. Please check your router's manual for support.

Note: The wireless settings can also be configured through the powerline extender's web interface or through the tpPLC app. You can download the app from the App Store or Google Play, or simply scan the QR code.

English

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline extender?

A. With the extender powered on, press and hold the Reset button (use a pin if it is a hole) until all LEDs turn off. When all LEDs turn on again, the reset process is complete.

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all adapters and extenders are on the same electrical circuit.

A2. Make sure all Powerline LEDs 📋 are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

Q3. What can I do if a successfully-paired extender does not reconnect after being relocated?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Pair it again with another adapter or extender, and make sure the Powerline LED is on before relocating it.

A3. Check for possible interference, such as washers, air conditioners or other household appliances that may be too close to one of the powerline adapters or extenders.

Español

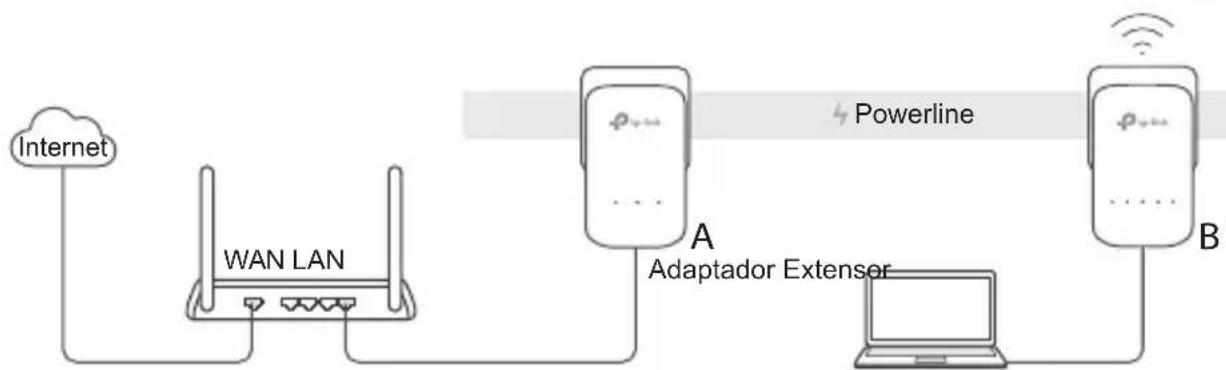


Español

Français

Italiano

Domande Frequenti

Português

FAQ (Perguntas Frequentes)

Suomi

Svenska

Norsk

Dansk

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Español

http://www.tp-link.com
