Product Type	Audio Baby Monitor
Brand	Alecto
Model	DBX-20
Dimensions (Parent Unit)	80 x 50 x 20 mm
Dimensions (Baby Unit)	60 x 60 x 30 mm
Weight (Parent Unit)	100 g
Weight (Baby Unit)	80 g
Power Supply Parent Unit	2 AAA batteries (not included) or mains adapter
Power Supply Baby Unit	Mains adapter
Range	Up to 300 m outdoors, 50 m indoors
Frequency	2.4 GHz
Main Features	Two-way audio transmission, nightlight, sound indicator, volume control
Care and Cleaning	Clean with a soft dry cloth. Do not use abrasive products.
Safety	Complies with European standards. Only use the provided adapters.
Spare Parts and Repairability	Battery not replaceable. Mains adapter available as spare part.
General Information	Audio baby monitor Alecto DBX-20. Supplied with 1 parent unit and 1 baby unit.

Frequently Asked Questions - DBX-20 ALECTO

How to pair the parent and baby units?

Turn on both units. Press the pairing button on the baby unit then on the parent unit within 30 seconds. The connection is confirmed by a steady light.

What is the maximum indoor range?

The indoor range is about 50 meters, but it may vary depending on obstacles (walls, furniture).

Can I use rechargeable batteries?

Yes, rechargeable AAA batteries can be used in the parent unit. Ensure correct polarity.

Can the baby unit work without being plugged in?

No, the baby unit must be permanently plugged in via the mains adapter to operate.

How to activate the nightlight?

Press the nightlight button on the baby unit. A soft light turns on to comfort the baby.

What to do if the range is reduced?

Check that no metal obstacle or emitting device (Wi-Fi, phone) is disturbing the signal. Move the units away from interference sources.

The monitor emits a continuous beep?

This may indicate a loss of connection. Bring the units closer together or check the batteries in the parent unit.

How to clean the monitor?

Use a soft, slightly damp cloth (not soaked) to clean the surfaces. Never immerse in water.

Can I add a second parent unit?

No, the DBX-20 model supports only one parent unit. Check the manual for multi-parent compatible models.

Where to find spare parts?

Mains adapters are available from Alecto customer service or on the official website. Refer to the manual for part numbers.

USER MANUAL DBX-20 ALECTO

Systeemuitbreiding....8

Onderhoud 8

1. GARANTIE....9

1. INTRODUCTIE

Baby-unit:

3. DÉCLARATION DE CONFORMITÉ

Unité bébé:

Berceuses:

Baby-Einheit:

Talk back into the baby unit....30

Temperature Display 30

Battery Charging / Battery Indication....30

9. Others

General....31

Range....31

System Expansion....31

Maintenance....31

10.GUARANTEE....32

1. INTRODUCTION

The DBX-20 is a sound detector/monitor that allows you to hear sounds via a wireless microphone located in the receiver of the transmitter on the parent unit. The DBX-20 can be used as a baby monitor for babies or small children, or as a sound monitor for elderly.

2. INTENDED USE

The DBX-20 is a sound alarm/detector only to be used for household use. The baby monitor should only be used as an assisting device and not as a substitute for an adult, baby-sitter or care giver.

3. DECLARATION OF CONFORMITY

Hereby, Hesdo declares that the radio equipment type Alecto DBX-20 is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

doc.hesdo.com/DBX-20-DOC.pdf

4. PERMITTED USE

The DBX-20 operates at a frequency of 2.4GHz. The use of this baby monitor is allowed in all EU countries. In France, Italy, Russia and the Ukraine the monitor is only permitted indoors.

5. ENVIRONMENT (Disposal)

Should this product reach the end of its life cycle, do not dispose of it into the normal household waste. Rather take it to a collection point for the recycling of electrical and electronic equipment.

Old or damaged batteries should be disposed of in an environmentally friendly manner according to your local regulations.

6. TECHNICAL SPECIFICATIONS

(these specifications are the same for the transmitter and the receiver)

Power supply Power adapter

in: AC100\~240V

out: 5VDC 2W 550mA

Operating temperature: 0°C\~40°C (32°F\~104°F)

Frequency:

2405-2477MHz

Maximum Power : < 10 dBm

7. INSTALLATION

Parent Unit:

Slide down the battery cover located at the back of the parent unit and place the supplied rechargeable battery pack into the battery compartment. The connector plug only fits one way into the compartment. Be sure not to force it.

Connect one of the included power adaptors with the DC5V connection located on the left side of the parent unit and place the adapter into a 230V electrical power outlet. The adapter will now provide power to the parent unit while also simultaneously charging the battery pack.

The battery pack will need to be charged for at least 24 hours before using the monitor.

The parent unit comes with a belt clip. With this belt clip you can carry and use the baby unit hands free.

Baby Unit:

Connect one of the included power adaptors with the DC5V connection into the right side of the baby unit and place the adapter into the 230V electrical power outlet. The baby unit is now ready for use.

The baby unit does NOT have a battery operating function.

Placement:

Place the baby unit in the nursery room approximately 2 meters away from the baby.

MAKE SURE THAT THE BABY CANNOT TOUCH THE ADAPTER CORD. ALSO MAKE SURE THE BABY UNIT CANNOT FALL INTO THE CRIB.

Do not place the baby unit or the parent unit in direct sunlight or in a damp place. The baby monitor is not waterproof. Too much moisture may cause damage to the electronics.

8. HOW TO USE

Switch on: (parent unit + baby unit) Hold down the Ⓞbutton for about 3 seconds until the power light comes on (baby unit) or the display lights up (parent unit).

Press the ⬇button again for 3 seconds to turn the unit off.

Volume:

Pressing the ∧ and ∨ buttons on the parent unit allows you to set the volume of the sound coming from the speaker. You have a choice of five volume levels and volume off. Two beep tones will sound when the maximum volume has been reached.

The selected volume will be shown at the top of the display:

Sound Lights:

The parent unit comes with five audio lights. The louder the sound that the baby unit picks up, the more the lights will show up on the parent unit. In this way, you will know when the baby is crying, even when the sound on the parent unit is switched off.

Link check:

Should the connection between the parent unit and the baby unit be broken, the antenna symbol ( ① ) in the display will flash and a beep tone will sound continuously.

The reason for this could be because the parent unit is out of range from the baby unit or because the power of the baby monitor has run down.

Once the connection is restored, this symbol will stop flashing and the beep tones will stop.

Lullabies:

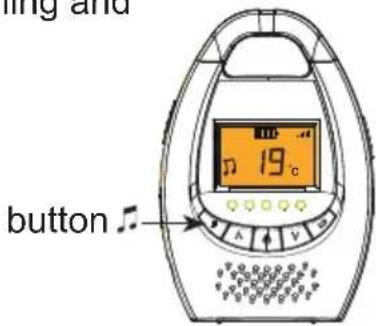

Press the ♪ button on the parent unit to start playing lullabies on the baby unit.

By default lullaby 1 will be played. Press the ♪ button again to start playing the next lullaby. The dBX-20 has 4 lullabies and a soothing beach sound.

The selected song is played continuously for 15 minutes or press multiple times on button ♪ to directly beyond the soothing beach sound to stop the playing instantly.

The playback volume on the baby unit is fixed and cannot be changed.

Please note that you will be able to hear the lullaby coming through the speaker of the parent unit coming from the microphone of the baby unit. It is advisable to set the volume of the parent unit off if you do not want to hear the lullaby.

Talk back into the baby unit:

Press the • button on the parent unit to talk into the baby unit.

Keep this button pressed down while talking and let go when you want to listen.

The volume of the baby unit is set and cannot be changed.

Temperature Display:

The display of the parent unit will show the temperature that is measured by the baby unit. Please note that the temperature is only indicative with a tolerance of +/- 2 °C.

Press C / F to switch between Celsius (°C) or Fahrenheit (°F). - button C/F

If the measured temperature exceeds 32° C, the sign “HH” will appear on the display. At temperatures below 15° C the sign “LL” will appear in the display. Note that the temperature sensor needs up to 24 hours to display the room temperature.

The DBX -20 has no function to set a maximum or minimum temperature at which an alarm sounds when the baby's room too cold or too hot.

Battery Charging / Battery Indication:

The operating time of the parent unit on a fully charged battery pack is approximately 10 to 12 hours (depending on the use of the baby monitor and the condition of the batteries).

Once the parent unit switched on, the display will show the battery capacity:

The battery is full

The battery is sufficiently full

The battery is almost empty, charging required

The battery is empty, parent unit will switch off

Just before the parent unit shuts down due to low battery, several beep tones will sound as a warning.

Recharging the battery takes about 6 hours. During charging, you can use the baby monitor as normal.

The electrical charging current is automatically limited. This means you can leave the power adapter connected continuously without risk of overcharging.

9. Others

General:

The baby monitor should only be used as an aid and never as a replacement for an adult or babysitter.

Check the function ability of the baby monitor each time before use. In addition to checking the range and connection control of the DBX-20, it is recommended to regularly check the connection during usage.

The DBX-20 should not be used for anything else than for detecting sounds from within your own private premises; anyone else within the listening perimeter of the baby monitor should be informed.

A licence is not required in order to use a wireless baby monitor. The system can be used as needed from within the home. There is no guarantee however, that the signal will always have an interference-free signal.

If the baby monitor and parent unit are not being used, it is advisable to turn them off using the on/off button.

Range:

The connection range of the baby monitor is up to 300 meters in an open field and 50 meters in a house.

System Expansion:

The technology behind the DBX-20 makes it possible for more baby monitors (baby unit and parent unit) to be used next to each other in order to monitor multiple baby rooms simultaneously and still have an interference-free signal; each parent unit and baby unit is equipped with a unique code. This code prevents the DBX-20 from picking up sounds from other baby monitors in the area, or that other baby monitors pick up the sounds coming from your baby monitor.

It is not possible to expand your DBX-20 with additional single baby units or single parent units.

Maintenance:

Clean the baby monitor with a damp cloth; never use chemical cleaners. Before cleaning any attached power adapters should be disconnected.

Name: keep your

Address: Cash or Payment

Postal code: Receipt here

City:

Phone number:

The Alecto DBX-20 has a guarantee of 24 MONTHS after the date of purchase. We guarantee during this period the free repair of defects caused from the material and workmanship. Some things are kept for the assessment of the importer.

WHAT TO DO:

If you notice a defect, first consult the manual. If the manual does not give a definite answer, please contact your dealer or the service of Alecto via the internet at www.alecto.nl

TERMINATION OF GUARENTEE:

For improper use, the use of non-original parts or accessories, negligence and damage caused by fire, flood, lightning and natural disasters. If unauthorized modifications and/or repairs are done by third parties. For incorrect transportation without a suitable container and if the device is not accompanied by the warranty card and purchase receipt.

Any further liabilities, especially for any consequential damage are excluded.

manufacturer information:

Name: Hesdo B.V.

Address: Azielaan 12, 5232 BA 's-Hertogenbosch, The Netherlands.

Use only power supply listed in the user manual;

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

power adapter information:

Model No: TGE050P055

Name: Dongguan Guanjin Electronics Technology Co., Ltd.

Address: Block 16 Qiantou New Industrial Park, Niushan, Dongcheng District, 523128

Dongguan City, Guangdong Province, PEOPLE'S REPUBLIC OF CHINA
